Confer 4k PTZ Camera 12X 20X Zoom SDI USB HD MI PTZ Conference Camera Video Conferencing Equipment
- Category: >>>
- Supplier: World Win Technology (shenzhen) Co. Ltd.
Share on (1600552246174):
Product Overview
Description
Tip:
1.Contact us for more discount;
2.OEM/ODM are also welcome；
3.Excellent quality and better Price.
3.Excellent quality and better Price.
Products Description
Confer 4k PTZ Camera 12X 20X Zoom SDI USB HD MI PTZ Conference Camera Video Conferencing Equipment
WIN-M42K
WIN-M42K Video Conferencing Camera Selling Points:

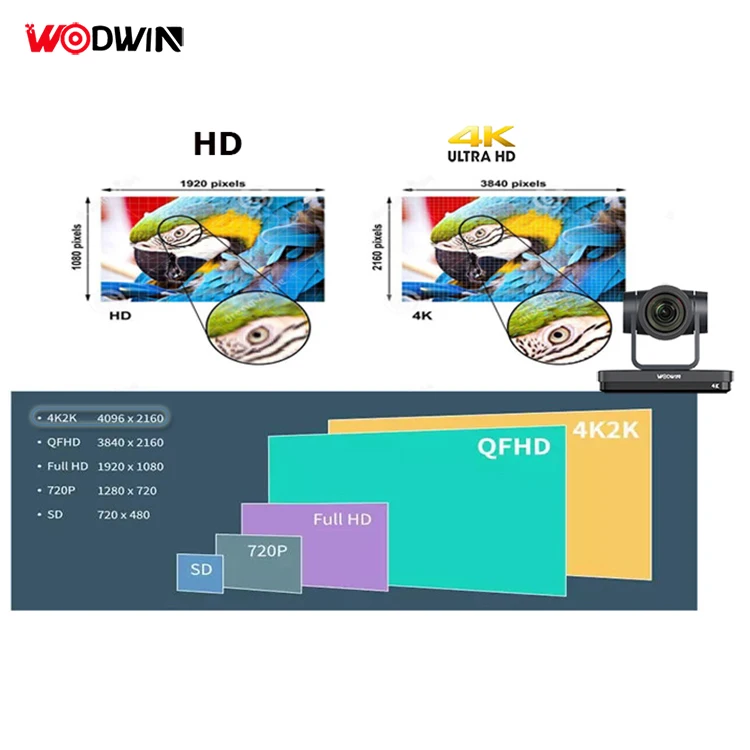

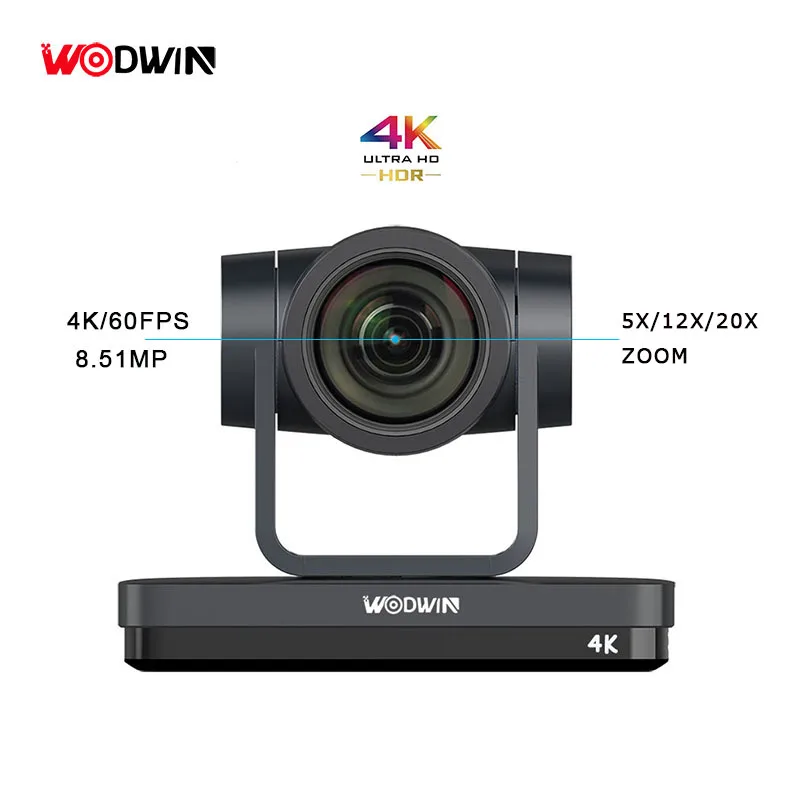

1. Support 4K, Resolution up to 4K@60fps
2. Sony Sensor, 8.51Megapixels
3. Lens (5x or 12x optioanl)
5X zoom, wide angle :84.5 degree
12x zoom, wide angle:72.5 degree
4.Multi Outputs:
USB3.0+HD-MI+LAN+Audio in
5. Multiple USB Compression Encoding Format: YUY2,MJPEG,H.264,NV12 video encoding formats
6. Multiple network protocol
Supports ONVIF, GB/T28181, RTSP, RTMP protocols;
7. Control Interface: RS422 (compatible with RS485); RS232 in & out; RS232 cascade connection
8. Multiple Control Protocol:Support VISCA, PELCO-D, PELCO-P protocols
9. Multiple preset:Up to 255 presets (10 presets for remote control).
10. Wall mounting, desktop or ceiling mounting
3. Lens (5x or 12x optioanl)
5X zoom, wide angle :84.5 degree
12x zoom, wide angle:72.5 degree
4.Multi Outputs:
USB3.0+HD-MI+LAN+Audio in
5. Multiple USB Compression Encoding Format: YUY2,MJPEG,H.264,NV12 video encoding formats
6. Multiple network protocol
Supports ONVIF, GB/T28181, RTSP, RTMP protocols;
7. Control Interface: RS422 (compatible with RS485); RS232 in & out; RS232 cascade connection
8. Multiple Control Protocol:Support VISCA, PELCO-D, PELCO-P protocols
9. Multiple preset:Up to 255 presets (10 presets for remote control).
10. Wall mounting, desktop or ceiling mounting
Details Images
Product Paramenters
Product Name | Video Conferencing Camera | ||
Item No. | WIN-M42K | WIN-J31UB-10X | |
Image Sensor | 4K 1/2.8 SONYCMOS sensor | 10X optical zoom | |
Effective Pixels | 8.51 Megapixels (16:9) | 60.9°(W)～6.43°(T) | |

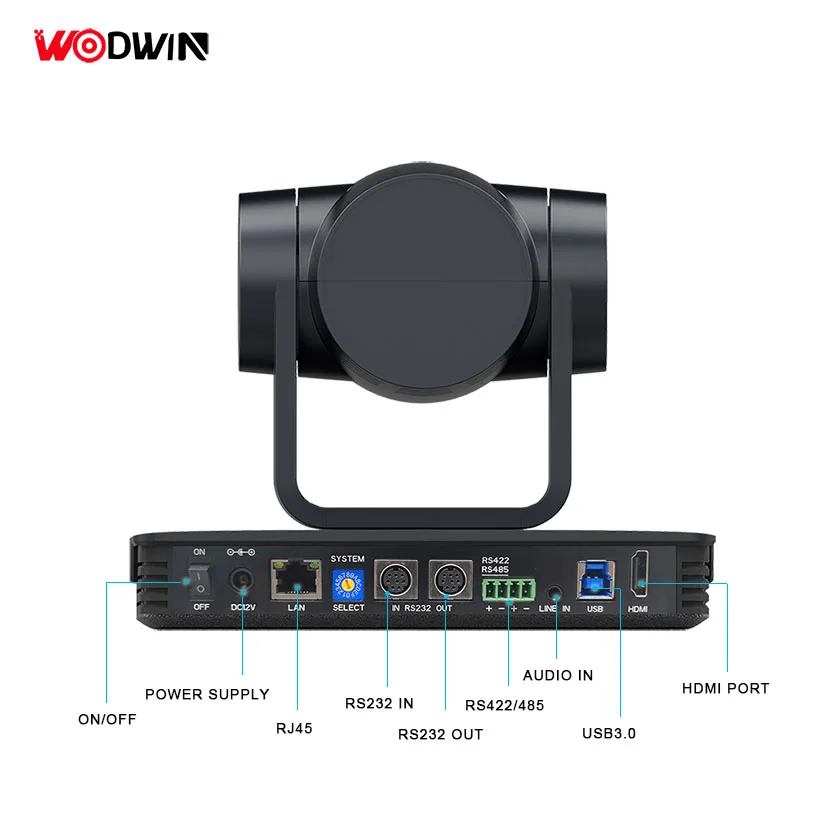

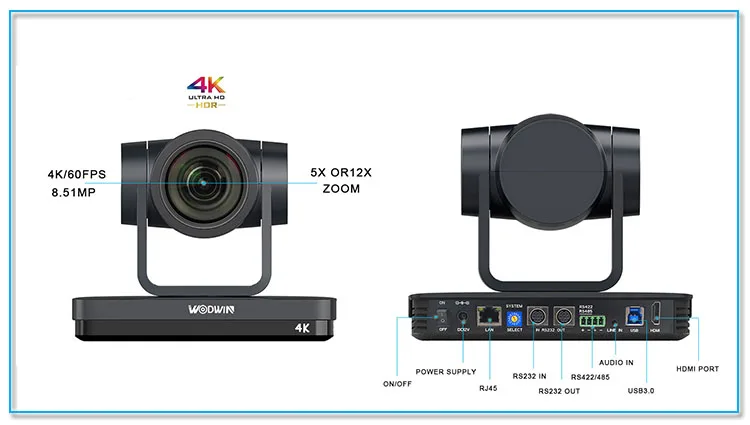

Video Output | USB3.0+HD-MI+LAN(POE OPTICAL), A-IN, RS232-in & out; RS422（Compatible with RS485）, Dial switch, DC12V, Power Switch | ||
Lens | 5X OR 12X OPTICAL ZOOM | ||
Horizontal View Angle | Horizontal: 6.55˚（tele）～ 69.4˚（wide） vertical: 3.66˚（tele）～ 42.8˚（wide） | ||
Video Compression | LAN: H.264, H.265 USB 3.0: MJPG, H264, YUY2, NV12 | ||
Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA Control Protocols, Remote Upgrade, reboot and reset | ||
Serial Protocol | VISCA/ Pelco-D / Pelco-P; Baud rare: 115200/38400/9600/4800/2400 | ||
Pan Rotation | -170°～+170° | ||
Tilt Rotation | -30°～+90° | ||
Dimension | 181（L）mm × 115mm（W）× 149mm（H） | ||
Standard | Power supply and adapter,RS232 Cable,USB3.0 Cable, IR remote control, User Manual | ||
Power | 12V DC | ||
Product packaging
Recommend Products
WIN-JV30U3
4K EPTZ CAMERA
Build in mic and speaker
WIN-J40RU
USB+HD-MI PORT
12X or 20X Zoom
WIN-DC3L
1080P HD WEB CAM
360° Voice Pick Up
Company Profile
FAQ
Q1. Can I have a sample order?
Yes, welcome sample order to test and check quality.
Yes, welcome sample order to test and check quality.
Q2. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT.
It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. What about the lead time?
Sample needs about 2-3 working days,
Small batch production time needs 5-10 days,
OEM or large order need about 14-25 days.
Q4. Could I put my own logo on products?
Sure, with our R&D department, we can do ODM and OEM.
Q5. What`s your warranty period?
The warranty period is 3 years and start from the purchase date.
Q6. How do you guarantee the quality?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
Yes, surely.We have very professional technical team,and it is our responsibility to help our clients
when meet with any technical problem.
Q8. I'm buying with your company at the first time, how can I trust you?
We totally understand if you have some doubt about us at our first cooperation.
You are welcome to visit our company or our factory anytime you like.
You can also choose trade assurance for your order.
Q9. What's your payment term?
Our payment term is TT in advance before shipment.
