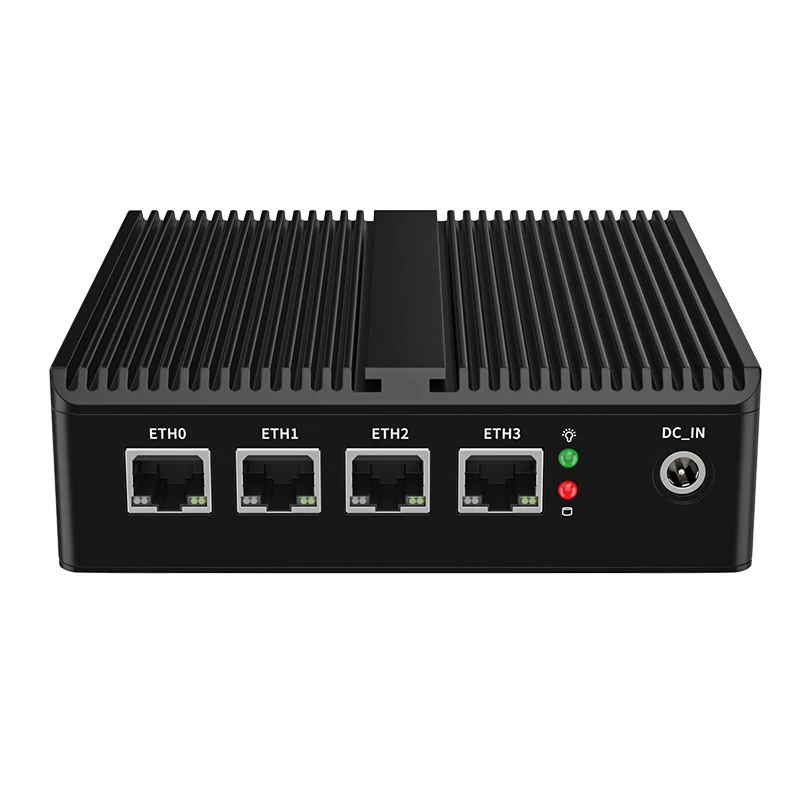

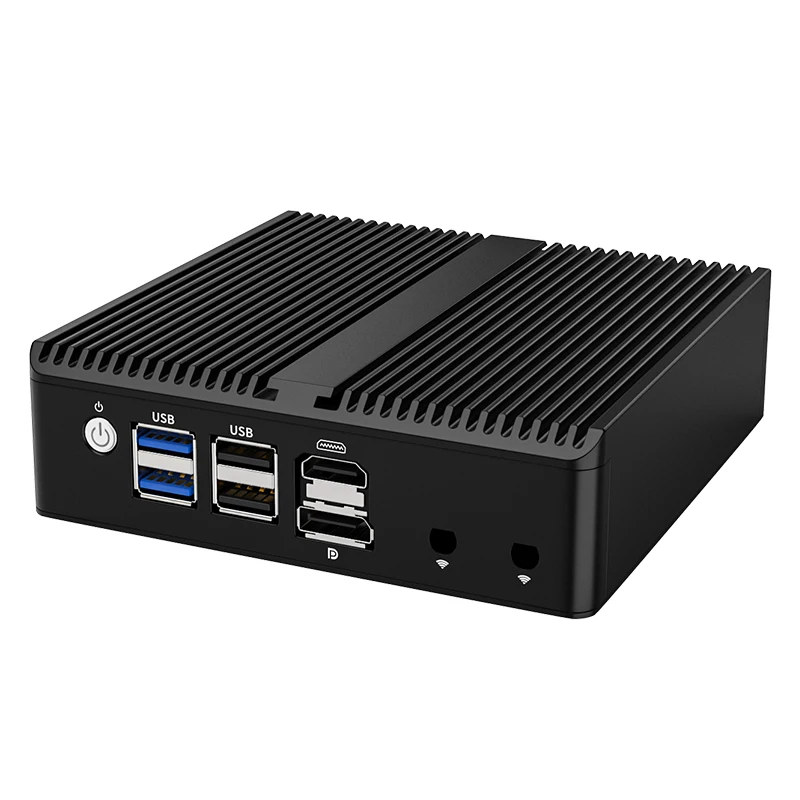

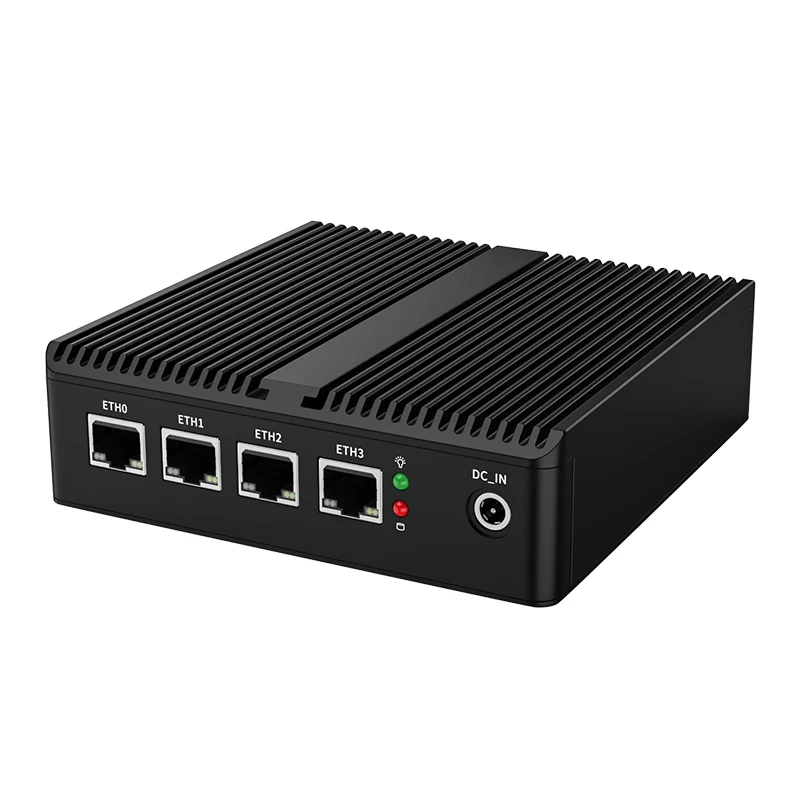

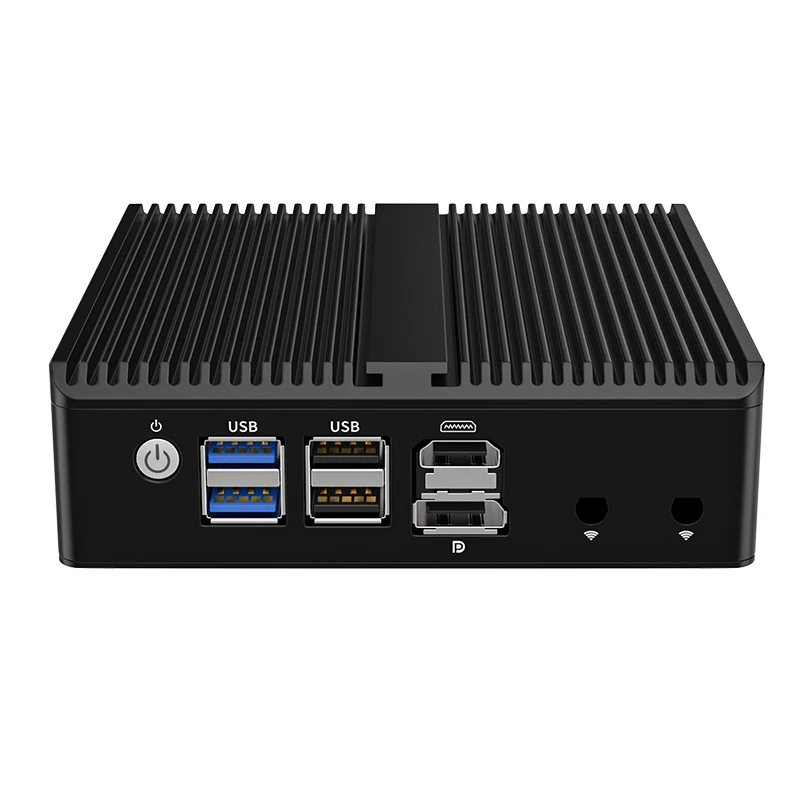

Мини микроПК Guanfeng N100 с четырехъядерным процессомом, ОЗУ DDR5 4800 МГц, ОЗУ M.2, NVME, SD, HD MI
- Category: Servers >>>
- Supplier: Guanfeng Network Technology (Shenzhen) Co. Ltd.
Share on (1600553068488):
Product Overview
Description
Abstraction

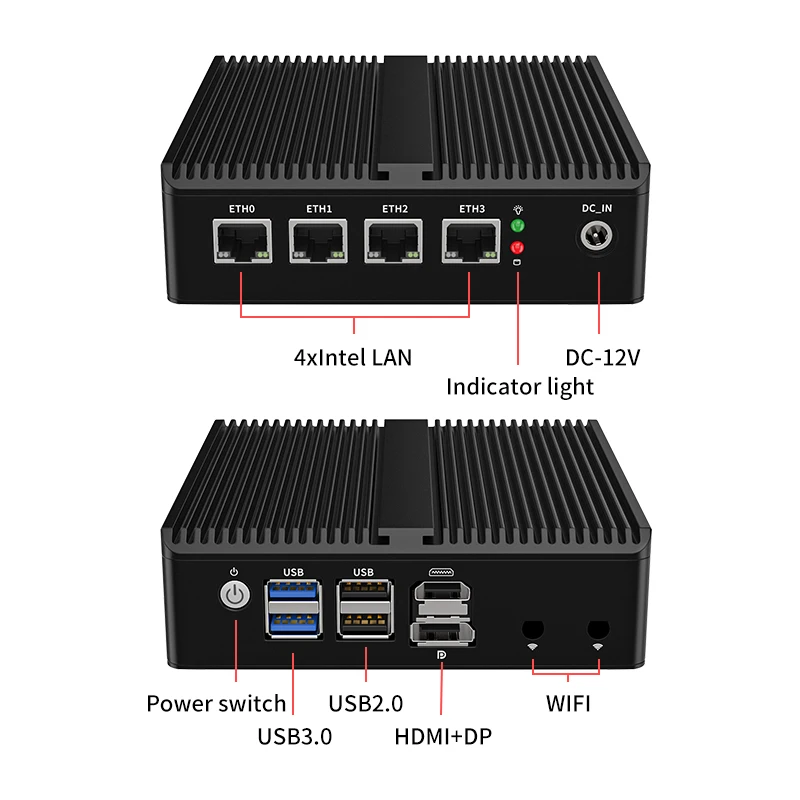

* Intel Alder Lake-N seial processor
* 1*DDR5 slot, Max. 16GB 4800 MHz SO-DIMM
* 1*M.2 2280 NVME SSD
* 4*intel i225 2.5GBE NICs
* 1*HDMI + 1*DP
* 1*MINI PCIE channel (WIFI / Bluetooth / 4G)
* DC12V
* 1*DDR5 slot, Max. 16GB 4800 MHz SO-DIMM
* 1*M.2 2280 NVME SSD
* 4*intel i225 2.5GBE NICs
* 1*HDMI + 1*DP
* 1*MINI PCIE channel (WIFI / Bluetooth / 4G)
* DC12V
Product Description
Brand | Guanfeng | ||||||
CPU | Intel Alder Lake N100, quad core four threads, 3.40 GHz Turbo Boost | ||||||
RAM | 1*DDR5 SO-DIMM Ram Slot | ||||||
Strorage | 1*NVME M.2 2280 | 1*SATA 3.0, support 2.5inch | |||||
Ethernet Ports | 4*Intel i225/i226 2.5GBE NICs | ||||||
USB | 2*USB 3.0 | 2*USB 2.0 | |||||
Display Ports | 1*HDMI | 1*DP | |||||
Expansion Bus | 1*Mini PCI-e slot for 4G/WIFI/Bluetooth module | ||||||
Power Supply | DC 12V | ||||||
F&Q
A: 1 year. It can be prolonged with extra cost.
Q:Running pfsense as a firewall what type of throughput does this device get?
A: Unencrypted pfSense can forward at wirespeed, but for an openvpn link, this box struggles to get up to 100mb/s and drops about
30% of packets. I upgraded from pfSense to VyOS, and now easily 200mb/s encrypted openvpn traffic, no packets dropped, and less,
cpu usage, only about 30%
Q: Who is the manufacturer of the memory and msata? what are those model numbers?
A: Memory comes from our own brand. And other memories like Kingston, Samsung, or Crucial are also optional.
Q:I notice there is an open slot next to the msata drive slot. Is this slot compatible with some sort of wifi and Blue-tooth module?
A: It is for a WiFi module. Note that it must be the USB communications type of WiFi module.
Q: Do the usb ports support serial emulation so that a console based install of pfsense (or any other serial communication) is supported over USB?
A: These devices (like all GF-LINK devices) have a dedicated physical COM port that can be used as a serial console for pfSense. The COM cable that comes with all our devices is a RJ45 to DB9 cable (standard Cisco cable). You'll need to add your own USB to DB9 serial adapter if you don't have a DB9 serial port on your computer.
Q: Is the msata upgradable?
A: Yes, the mSATA module can be upgraded to as much as 1000GB. GF Link offers different size mSATA on our website.
Q: Does the NIC support Pfsense 2.6.0?
A: i211 and i225 NIC can work with pfsense 2.6.0 perfectly. We also have i226 version for sale but from the feedback of manyoverseas customers, i226 seems to be unstable for pfsense 2.6.0. So I recommend you to take this point into consideration before placing orders
1. Laser Carving
Well, normally laser carving is free for my loving you~ but if you can click the subscription and follow our store, it would be so kind of you XD~
However, there are still one point you might pay attention to which is the color of the laser logo is fixed to silver white (please check the example on the left)
However, there are still one point you might pay attention to which is the color of the laser logo is fixed to silver white (please check the example on the left)
2. UV Coating and Silk Screen Painting
And if you need colorful logo, we also have solutions for you.
UV coating, comparatively speaking, is the cheaper method. 60USD one time charge for 10 unit or less order; It can be free for more than 10 units orders. It will take 2-3 days
Silk Screen, the exact cost depends on the complexity of your logo and design. Why not kick our service staff and ask for a more detailed answer. We are online all the time
3. Package Customization
Moreover, if you wanna design your own personal brand package, we can also achieve that for you, which only cost you lifetime one time charge 200USD .
The size, location of the logo all can be your choice. Refer to the picture on the right, it can be seen what it looks like
If you have any question, like what I said before, please be free to contact our service staff. We are always here for you
Certifications
Why Choose Us
Cooperation Partners
Factory and Office
Packing and Delivery
