Product Overview

Description



Product Description






Main content

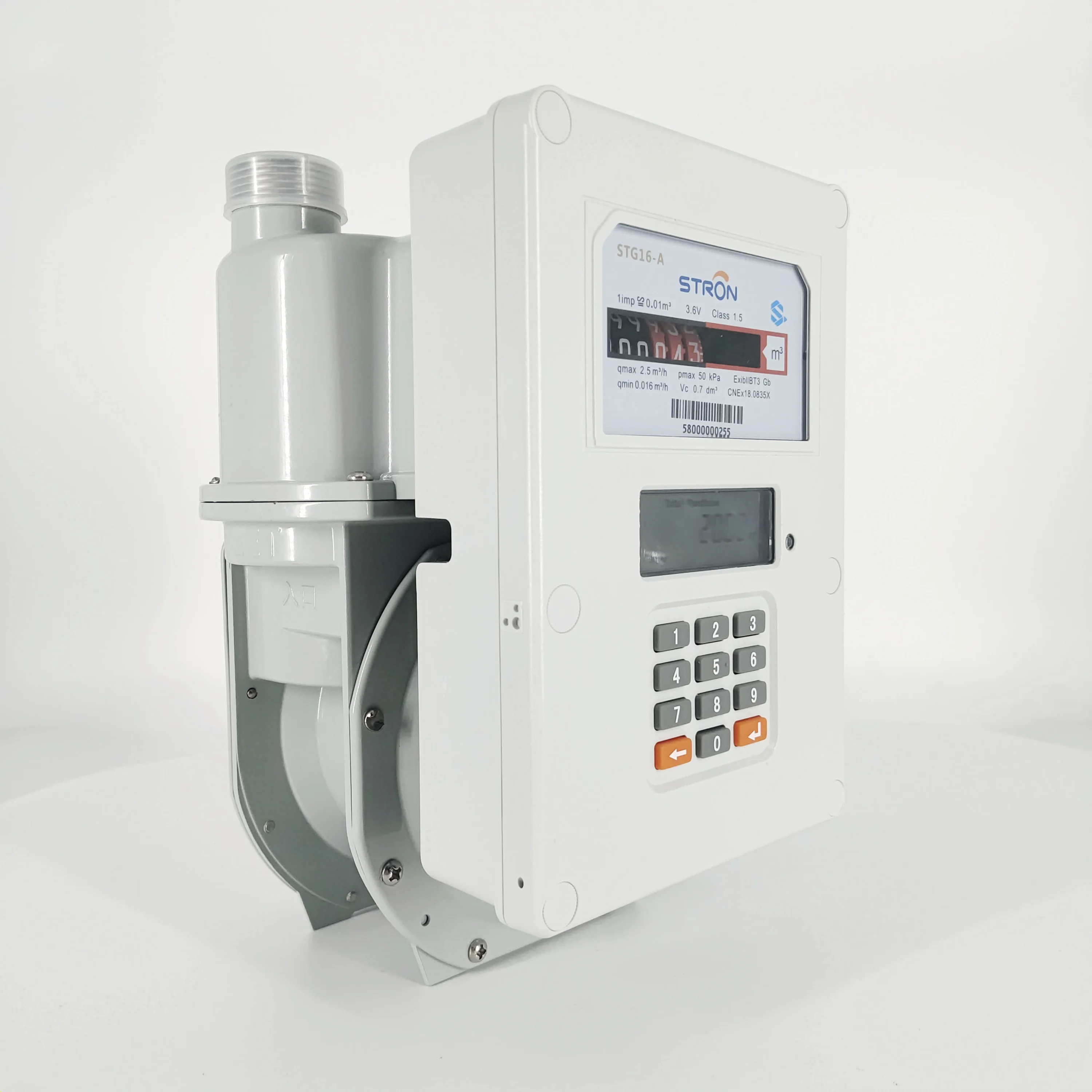

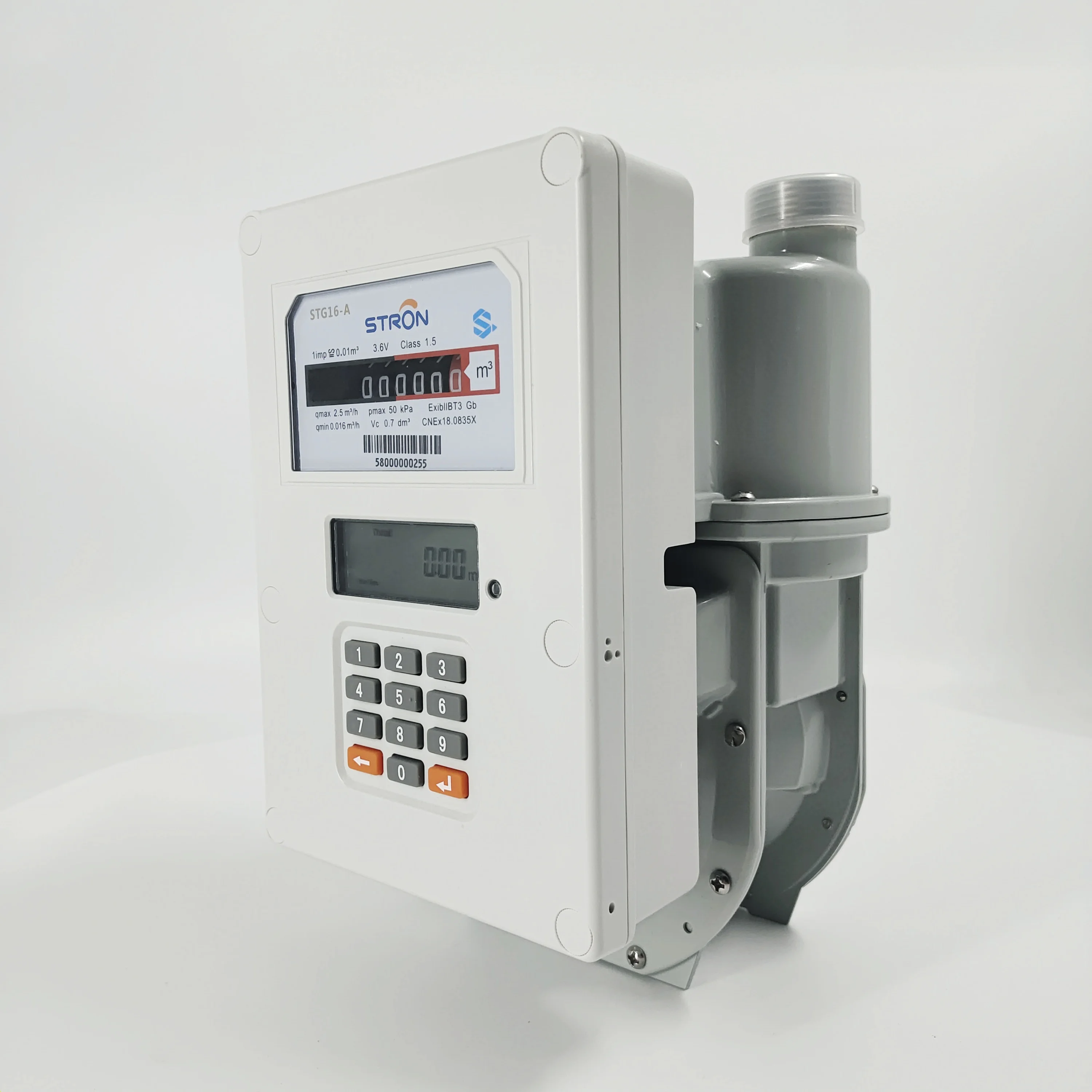

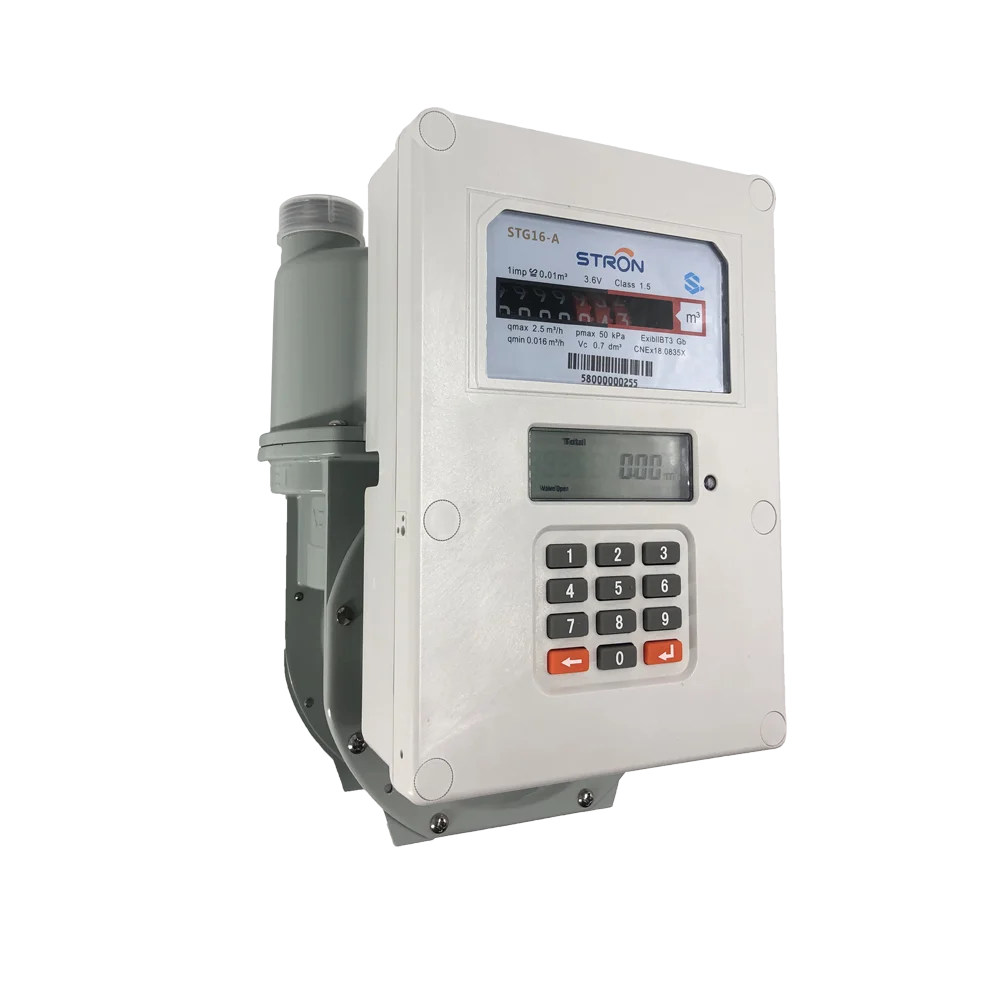

The STG16-A is an STS Standard compliant, keypad type, automatically valve controlled prepaid gas meter. It can be top up with Stronpay vending software directly and
communicate with AMI system via LORA-RF or NB-IoT module.

Application: Measuring the volume of gas through gas pipes.

Compliance with Standard
✽ ISO 9001 ; ISO 14001
✽ STS Certificated


Main features
1.Automatic valve controlling.
2.Ingress protection IP67 waterproof.
3.Up to 6 years battery life.
4.STS Standard.
5.Real-time clock.
6.Utilities can set step price into meter on request.
7.Anti-Tamper Magnetic field protection.
8.LORA-RF communication (optional).
9.Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc.


Function:
The integrated keypad of gas meter is
offered to enter recharge TOKEN and
check information by short codes.
Stronpay vending software could be
integrated to local Mobile Money
Payment Platform like M-PESA, Alipay,
MTN, Airtel, etc.


Basic Function:
Meter Recharge: By inputting 20
digits Token.
Low Credit Alarm: Alarm value can
be set by inputting corresponding
TOKEN
Non-return valve: Non-return valve
inside for preventing back-flow


Communication:
The meter is available with AMI system
through LORA-RF or NB-IoT module on
request.
Step Tariff:
Meters can be set Step Tariff by inputting
corresponding TOKEN. Utilities can set
step price on request.
Anti-Tamper:
Meter will automatically close the valve
after detection of magnetic field and open
cover event.
o


Overdraft Collection:
Non- Revenue gas (Overdraft) can be
collected day by day or month by
month.
Information Inquiry:
Consumer could check the data like
Credit Remain, Total Purchased and
Total Credit by inputting the short code.


Liquid Crystal Display:




Specification


Metrological Parameters of different size


Size
G1.6
G2.5
G4
Nominal Flow Rate
1.6 m3/h
2.5 m3/h
4 m3/h
Maximum Flow Rate
2.5 m3/h
4 m3/h
6 m3/h
Minimum Flow Rate
0.016 m3/h
0.025 m3/h
0.04 m3/h
Cyclic Volume
0.7dm3
1.2 dm3
2 dm3
Maximum working pressure
0.7 Bar
0.7 Bar
0.7 Bar
Pressure loss
<200 Pa
<200 Pa
<200 Pa
Maximum reading
99999
99999
99999
Working temperature
-20-50℃
-20-50℃
-20-50℃
Storage Temperature
-30-60℃
-30-60℃
-30-60℃
Error:Qmin≦Q≦0.1Qmax
          0.1Qmax≦Q≦Qmax
±3
±3
±3
±1.5
±1.5
±1.5


Meter Dimension




Three solutions to recharge prepaid gas meter












Packing & Delivery




Company Profile


Hunan Stron Smart Co., Ltd founded in 2007, is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, among which 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.




Stron owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, while a number of its products and technologies have won the national, provincial and municipal awards.




we have more than 10 million meters running in State Grid of China, which is the biggest utility in the world. Our production capacity is 8million smart meters per year, and have a workshop only working for overseas’ order to guarantee the delivery time and quality control.
Stron has kept long-term cooperation with partners from over 60 countries andregions including Canada, India, Egypt, South Africa, Nigeria, Tanzania, Kenya, Russia, Bangladesh, Indonesia, etc.




Qualifications




FAQ


1.Q: Can I have a sample to test it?
A: Of course, but we will charge some fees for the sample to cover the cost. However, if your
purchasing quantity is large, we will deduct or reduce the cost of your samples from the purchase price.

2.
Q: When Can I receive the goods?
A: Generally 5~10 days, but if you have special requirements, it will take 15 to 30 days.

3.
Q: How many users of your product in the world?
A: Our main market is Africa and South Asia, and we not only produce our own products but also ODM/OEM with other meter manufacturers, together with vending system, offering solutions it's very difficult to estimate the quantity, a conservative estimate should be 500,000 users in this two main regions.
