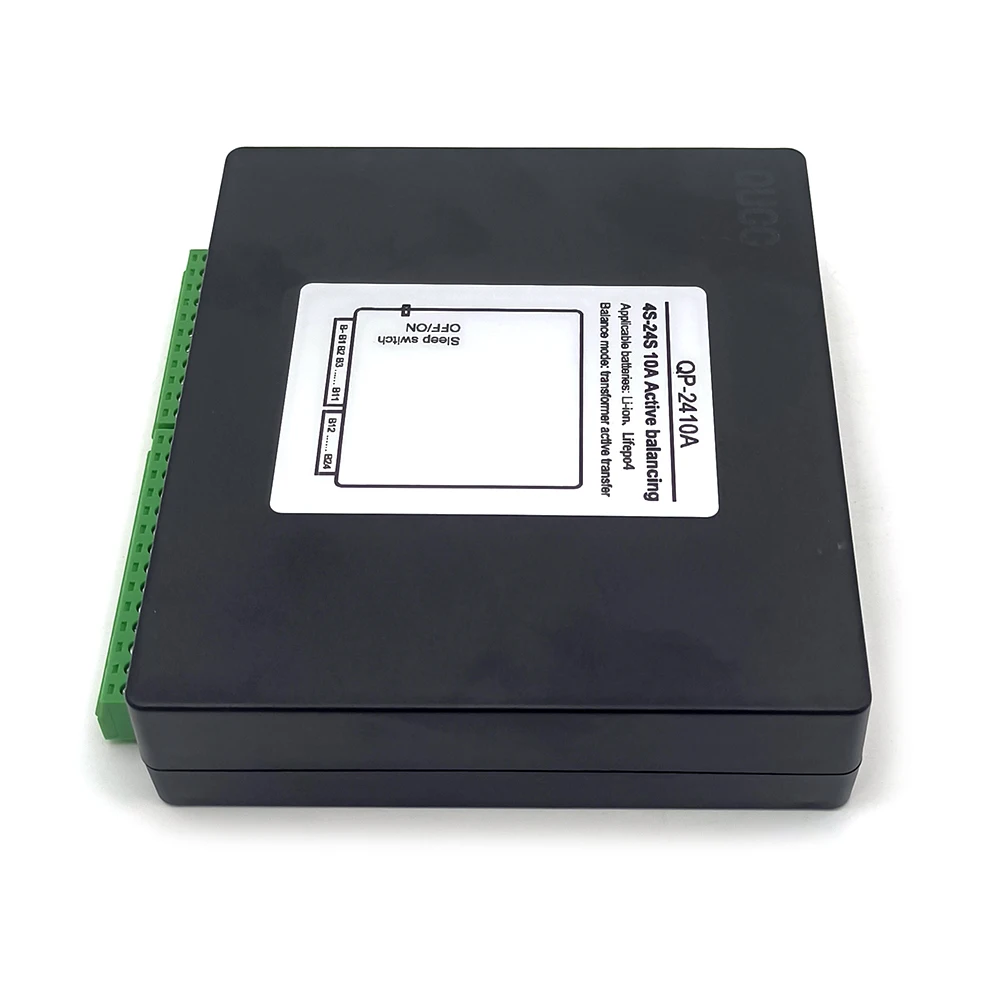

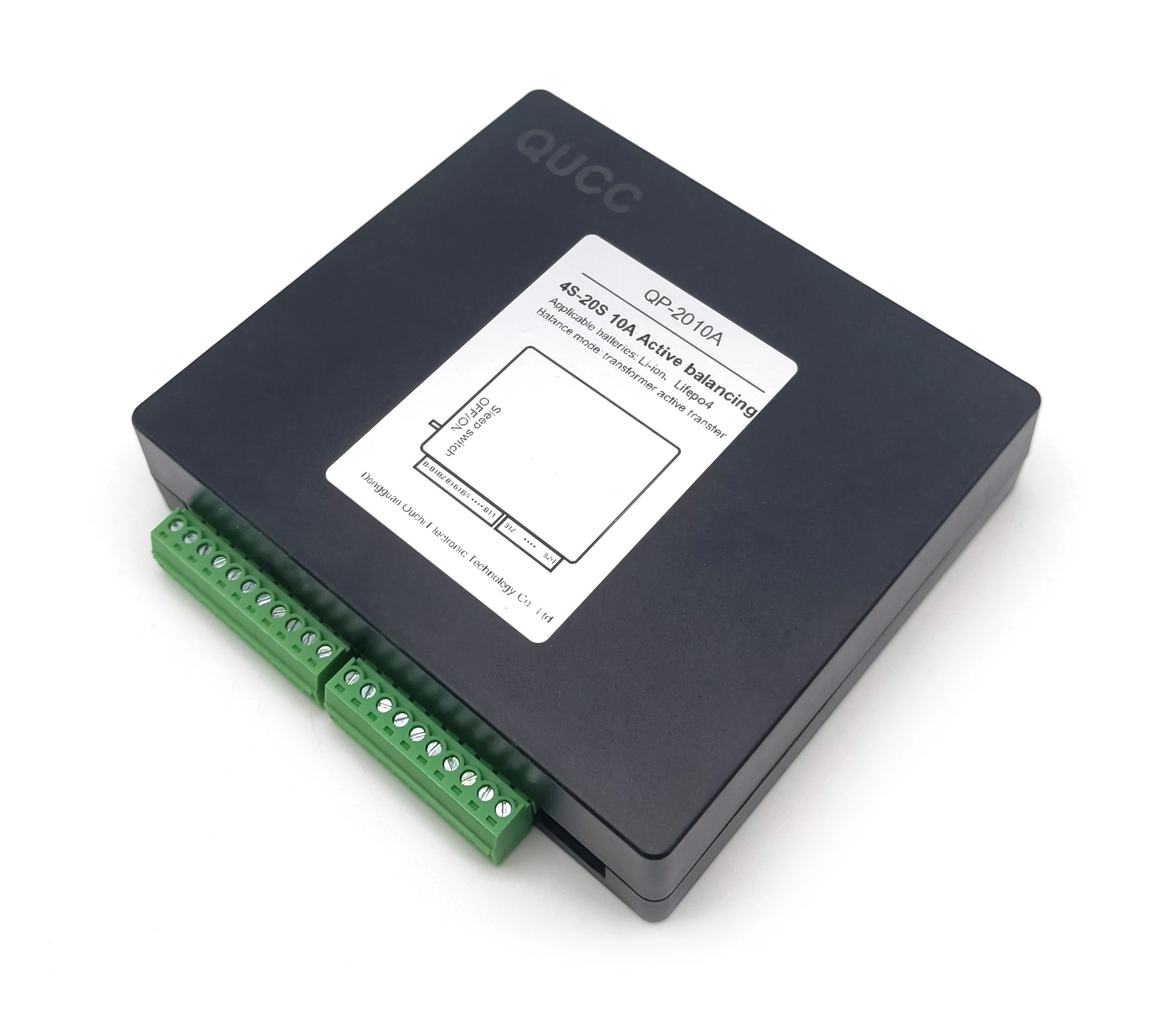

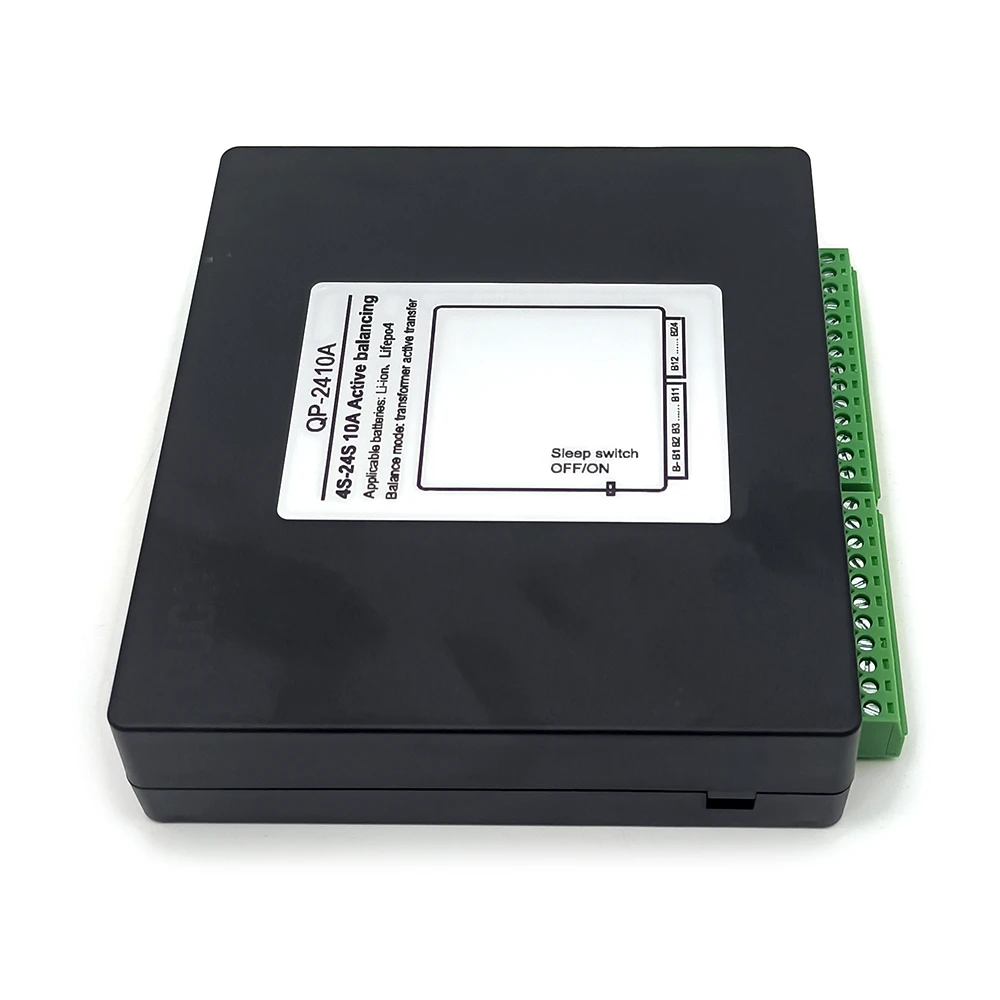

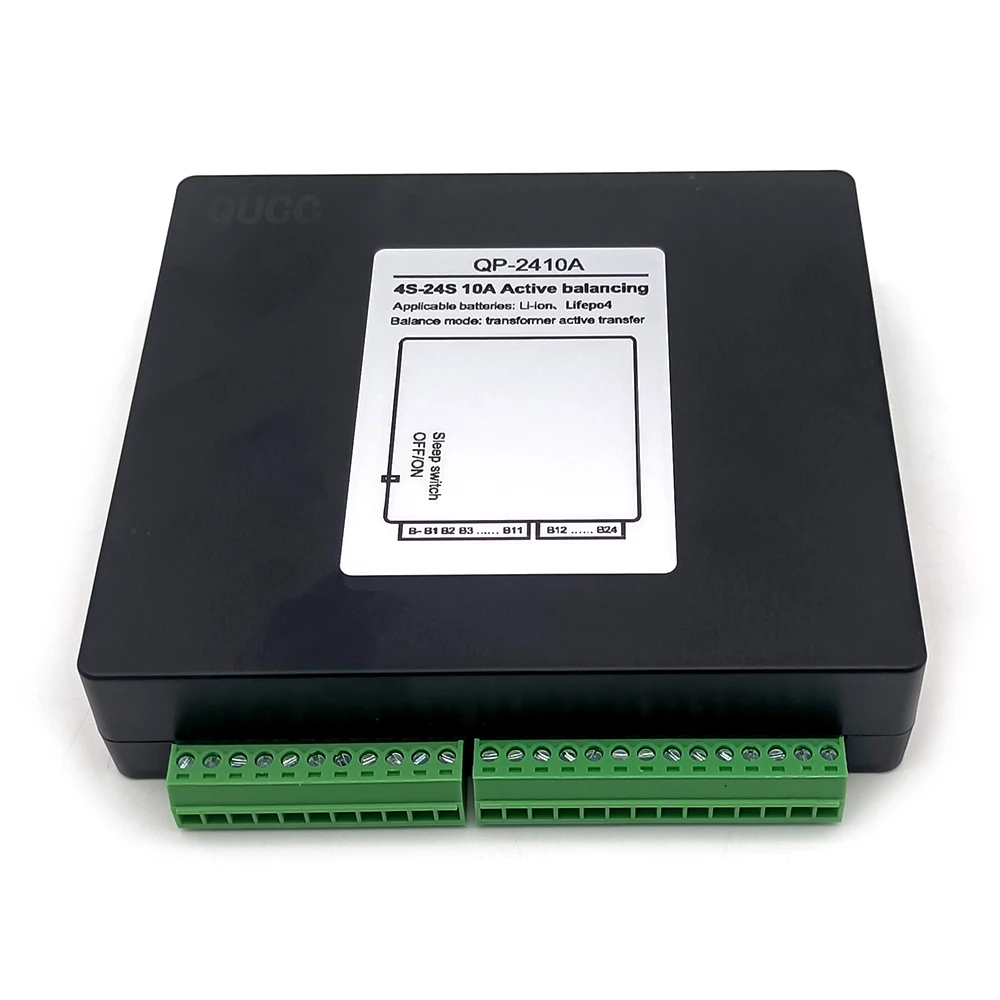

Qucc 10Amp 24S 20S 8S 12S 16S 13S Active balancing Li ion LiFePO4 LFP 4S 8S BMS energy transfer Lithium battery energy balance
Qucc 10Amp 24S 20S 8S 12S 16S 13S Active balancing Li-ion LiFePO4 LFP 4S 8S BMS energy transfer Lithium battery energy balance
Qucc 10Amp 24S 20S 8S 12S 16S 13S Active balancing Li-ion LiFePO4 LFP 4S 8S BMS energy transfer Lithium battery energy balance
Qucc 10Amp 24S 20S 8S 12S 16S 13S Active balancing Li-ion LiFePO4 LFP 4S 8S BMS energy transfer Lithium battery energy balance
Qucc 10Amp 24S 20S 8S 12S 16S 13S Active balancing Li-ion LiFePO4 LFP 4S 8S BMS energy transfer Lithium battery energy balance
Qucc 10Amp 24S 20S 8S 12S 16S 13S Active balancing Li-ion LiFePO4 LFP 4S 8S BMS energy transfer Lithium battery energy balance
Qucc 10Amp 24S 20S 8S 12S 16S 13S Active balancing Li-ion LiFePO4 LFP 4S 8S BMS energy transfer Lithium battery energy balance

Qucc 10Amp 24S 20S 8S 12S 16S 13S Active balancing Li ion LiFePO4 LFP 4S 8S BMS energy transfer Lithium battery energy balance

Share on (1600561545786):


Price:$40.00 - $45.00

Quantity:


Product Overview

Description



Product Paramenters


Parameters
Indicators
working voltage
≥12V
Applicable battery
Li-ion / Lifepo4
Balance mode
Transformer active energy transfer
Equilibrium efficiency
96%
Balance current
10A Max
Balance differential pressure
≤10mV
Trigger condition
>0.05V
Balance cut-off
0.03V
Low pressure sleep
Li-ion/Lifepo4:＜3V
Equilibrium period
Full voltage cycle (including charge, discharge and standstill)
Sleep power consumption
800uA
Working logic
The greater the voltage difference, the greater the balance current


The balancer can be extended in parallel or in series.

1.Balance current reference:
4s/8s: the maximum equalizing current for each 0.1V voltage difference is 1.5A.
17s: the maximum equalizing current per 0.1V voltage difference is 1.2A.
20s/24s: the maximum equalizing current of 0.1V voltage per difference is 1.2A.
The balance current of each string of batteries is not fixed, but changes with the change of pressure difference.

2. It can be used for model toy battery repair, and can also be used in parallel with BMS long-term fixed battery pack,
Because the chip setting logic is that the greater the voltage difference, the greater the balance current, and the long-term fixation will not cause damage to the battery.
 3. Three adjustable balance modes:
1: When the battery voltage is lower than 3V or 2V, it will automatically turn off balancing and sleep.
0：NA
2: Always enable active balance without sleep




Company Profile




FAQ


notes
The battery balance module has polarity. Each electric shock has an upper limit of withstand voltage of 5V. It is easy to damage things if the battery pack is frequently switched.
