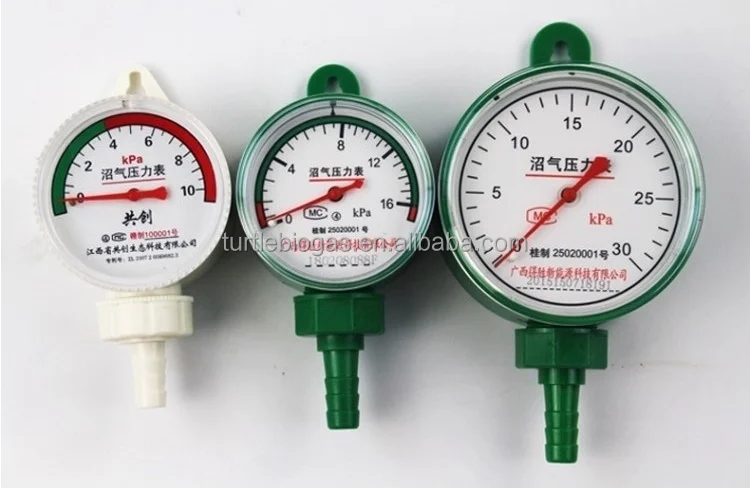

16 KPA pressure gauge for biogas plant gas meter for biogas
16 KPA pressure gauge for biogas plant gas meter for biogas

16 KPA pressure gauge for biogas plant gas meter for biogas

Share on (1600565251644):


Price:$3.00

Quantity:


Product Overview

Description





10 KPA
16 KPA

30 kPA


Specification


Brand Name
Turtle Biogas
Product name
biogas pressure gauge
The Joint Diameter
10mm


Turtle Biogas System










Update your toilet.






Biogas Toilet

Manual Model Biogas Toilet
Material : ceramic
OD of inlet pipe : 19 mm
OD of sewage pipe :38 mm
Package size : 450*415*340mm
Weight : 10 KG


More Models Turtle Biogas


Turtle Biogas 3.0
Turtle Biogas 5.0


Turtle Biogas 8.0
Turtle Biogas 10.0


More Biogas Appliances


Biogas Lamp
Biogas Rice Cooker
Biogas Room Heater


Biogas water heater
Biogas Generator
Biogas Refrigerator


FAQ


FAQ 1, What's the difference with homebiogas ?
Homebiogas is well-know. If at first glance Turtle Biogas looks a little like Homebiogas, you think Turtle Biogas copied Homebiogas, that's big wrong. In general, both Homebiogas and Turtle Biogas belong to soft biogas digesters.

In terms of design, HomeBiogas is a three-dimensional trapezoidal soft biogas digester, which has separate fermentation bag and separate gas storage bag. The feeding tube is set on the trapezoidal inclined plane, so the feeding tube is inclined and very long.

Turtle Biogas is a reference to the shape of the Turtle. A feeding tube is placed vertically on the head of the Turtle. The feeding hopper is big and the feeding tube is short, so users can easily put organic waste into the biogas tank. The lower part of the turtle's body is for fermentation and the upper part is for gas storage. Of course, the turtle's tail is the discharge pipe and overflow pipe.

We hope that better and better products will come out, cheaper and easier for more people to use biogas.




FAQ 2, What is biogas and How do Turtle Biogas ensure safe use of biogas ?
Biogas is a mixture of gases, primarily consisting of methane , carbon dioxide and hydrogen sulphide, produced from organic materials such as agricultural waste, manure, municipal waste, plant material, sewage, green waste and food waste.

The Turtle Biogas is equipped with pressure relief valves. When the pressure reaches 2kpa, excessive biogas will leak into the air through the pressure relief valve, which is recommended to be installed outdoors at a height of 2 meters.
Turtle Biogas' gas pipe system is equipped with an automatic drainage valve that automatically drains condensate from the gas pipe. It is avoiding gas pipe clogging by condensate.
Turtle Biogas' gas pipe system is equipped with transparent desulfurizer. When the user sees the desulfurizer pellets turn black, he will replace the pellets in time.


FAQ 3, Is there enough firepower without a gas pump and how many hours cooking daily?
Yes, there is enough firepower without a gas pump.
The maximum gas pressure provided by the Turtle Biogas is 2 KPA, and the minimum gas pressure required by the biogas stove is 0.6 KPA.
In the process of cooking, the gas pressure will be lower and lower, it takes 2 hours from 2KPA to 0.6KPA. Based on user feedback , average cooking time is 2 hours on the weather condition of 25+ ℃.




FAQ 4，How to feed the Turtle Biogas？




Recommend starting the digester with cow dung. After the digester is turned on producing biogas, we can use other organic waste, such as food waste.


A large feed hopper, which is placed vertically on the digester, you can easily drop organic waste into digester.
A seal bar can seal the inlet hopper to avoid the smell and helps pushing waste into the digester.



FAQ 5，How to get liquid organic fertilizer？
The transparent overflow tube helps you see the level of water inside the digester, open the valve to drain excess liquid fertilizer.




Company Profile


Shenzhen Minerva Tech Co., Ltd was founded by Mr. Pan Zhongjing in 2021. Mr. Pan has 12 years of experience in the biogas industry and has obtained a number of national patents in the biogas industry. We are developing biogas technology for small home biogas digester and market advanced biogas plant.We are producing and selling small home biogas plant digester, mini biodigester, biogas storage balloon, desulfurizer, biogas stove, biogas generator, biogas rice cooker, biogas lamp, biogas room heater and all kinds of biogas equipment appliance accessories.
Our mission is to get more people to use a cheap and simple home biogas plant.
