Benchtop automatic 5 or 30cc UV solder paste glue dispensing machine
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Shenzhen Second Intelligent Equipment Co. Ltd.
Share on (1600565315173):
Product Overview
Description
Product Overview

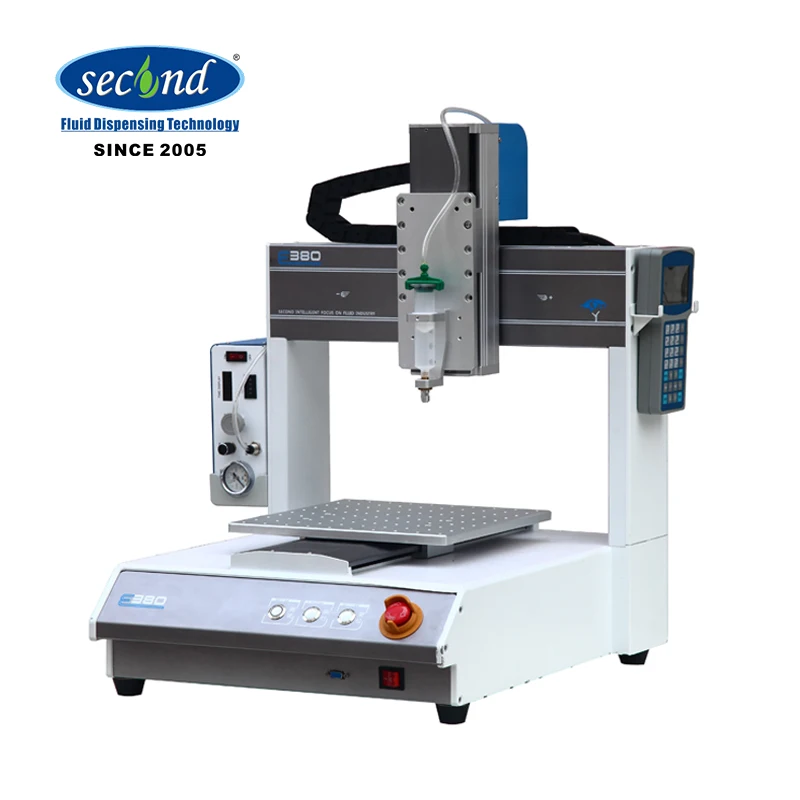

Benchtop automatic 5 or 30cc UV solder paste glue dispensing machine
Features
This new machine’s main body is made out of one-piece aluminum casting molding, strong structure, stable and user friendly operation.
It provides 380x380x100mm maximum XYZ strokes for extra dispensing needs.
The machine is designed to adapt different type of dispensing applicators for different fluid or glue. Once your bought the Cartesian CNC machine, you just need to choose different applicators. It is really One for All. According to our research, with the seven different applicators, you are covering about 80% of the desktop dispensing needs.
The multi purposes clamping system allow to match with different material filling devices, and valves, and allow quick changeover. It achieves the dispensing of different products of different processes.
This is really a good machine from a reliable factory, with over 15 years focus business on the fluid and glue dispensing, potting industry.
Dispensing and potting are the precise manipulating between air, fluid, or adhesive, don’t waste your money on the cheap and non professional suppliers, you will end up buying many spare parts, and a new machine again.
It provides 380x380x100mm maximum XYZ strokes for extra dispensing needs.
The machine is designed to adapt different type of dispensing applicators for different fluid or glue. Once your bought the Cartesian CNC machine, you just need to choose different applicators. It is really One for All. According to our research, with the seven different applicators, you are covering about 80% of the desktop dispensing needs.
The multi purposes clamping system allow to match with different material filling devices, and valves, and allow quick changeover. It achieves the dispensing of different products of different processes.
This is really a good machine from a reliable factory, with over 15 years focus business on the fluid and glue dispensing, potting industry.
Dispensing and potting are the precise manipulating between air, fluid, or adhesive, don’t waste your money on the cheap and non professional suppliers, you will end up buying many spare parts, and a new machine again.
Benchtop automatic 5 or 30cc UV solder paste glue dispensing machine
• Max 380x380x100mm stroke
• Compacted machine dimensions (300mm machine dimensions)
• Bigger working stroke (380mm working table)
• One-piece casting body
• Multifunctional, reliable, simple
• User friendly, and low maintenance

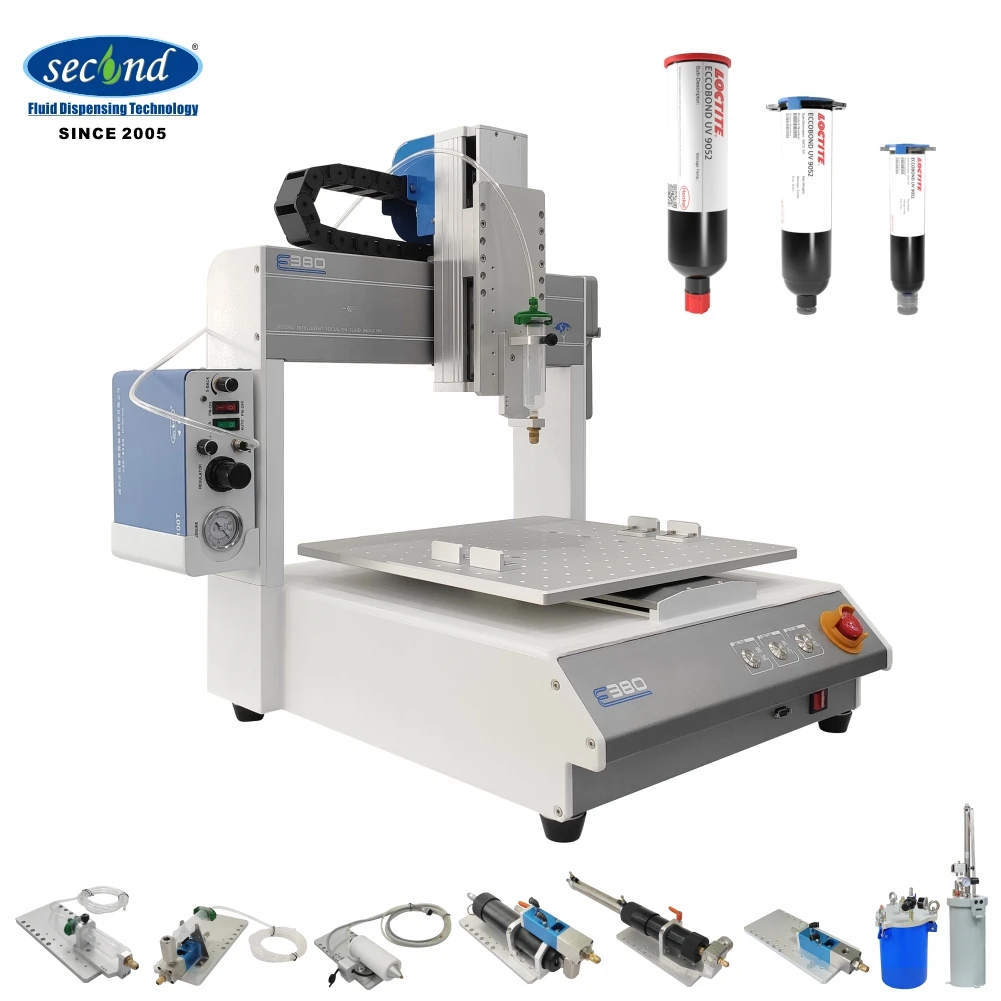

Different dispensing applicators:
1. 30cc syringe dispenser (low viscosity)
2. 30cc drip-proof dispenser (low viscosity)
3. 300ml pneumatic cartridge dispenser (medium viscosity)
4. 300ml cylinder ceramic rotate dispenser (medium to high viscosity)
5. 30cc hot melt (resin, glue stick, chips)
6. 1.5 gallons dispenser
7. 2600ml dispenser
• Compacted machine dimensions (300mm machine dimensions)
• Bigger working stroke (380mm working table)
• One-piece casting body
• Multifunctional, reliable, simple
• User friendly, and low maintenance
Different dispensing applicators:
1. 30cc syringe dispenser (low viscosity)
2. 30cc drip-proof dispenser (low viscosity)
3. 300ml pneumatic cartridge dispenser (medium viscosity)
4. 300ml cylinder ceramic rotate dispenser (medium to high viscosity)
5. 30cc hot melt (resin, glue stick, chips)
6. 1.5 gallons dispenser
7. 2600ml dispenser
Model | SEC-E380 | ||||||
Working range | 380(X)*380*(Y)*100(Z)mm | ||||||
Max payload | 7kg/5kg | ||||||
Max travel speed | 500mm/sec(XY)/100mm/sec(Z) | ||||||
Transfer method | Stepper motor, belt, precision rail | ||||||
XYZ position accuracy | ±0.008mm | ||||||
Resolution | 0.01 | ||||||
Memory storage | 999 program setup (each program store up to 65535 spots) | ||||||
Operating method | LCD, Teach pendant | ||||||
Motor | Precision stepper motor | ||||||
Movement patterns | 3 axis spot to spot, continue line, arc | ||||||
I/O | 1 input, 4 output (support expansion) | ||||||
Power supply | AC220V 50/60Hz 0.5kw | ||||||
Working environment | Temperature 0-40℃, Humidity 20-90% | ||||||
Machine dimension | 520*583*645mm | ||||||
weight | 48kg | ||||||
Special Function : File inserting
Powerful system compatibility with the Logoshop software allow to import mainstream design software, such as Auto CAD, Coral Draw, etc.to generate a different file formats ( NC, .AI,.DXF,.JPG, BMP, scanner, etc.)

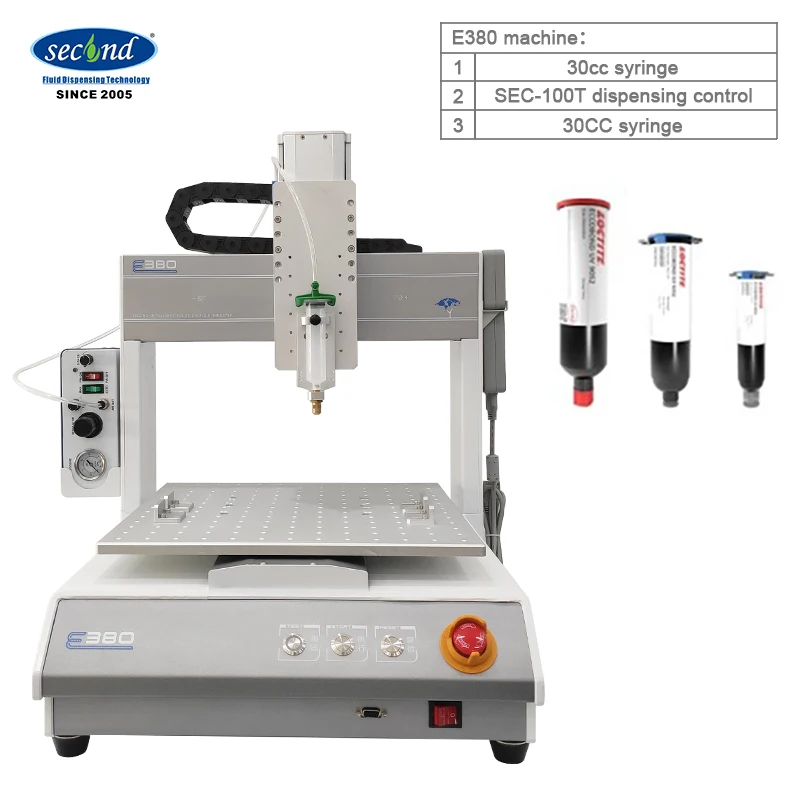

30CC syringe glue dispensing machine
The machine can be used to dispense various type of fluid, adhesive materials for fixing or protecting PCB electronic parts. It can also be used for bonding of mobile phone and notebook cases, LCD glass, LED dispensing, Semiconductor sealing, optical lens dispensing, and packaging, automotive parts, hardware parts, and others.

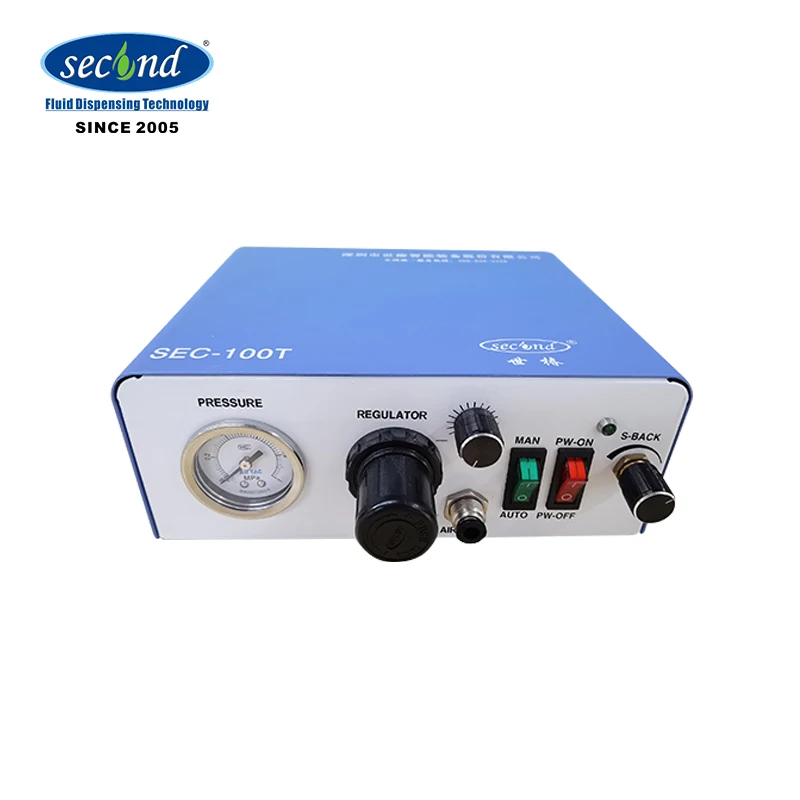

Dispensing controller SEC-100T
Applicable for any fluid
using with precise dispensing valve to improve precision.
using with precise dispensing valve to improve precision.
Model: SEC-100T
Volume : 226L*216D*67Hmm
Inlet pressure: 0~0.7Mpa
Dispensing Time: 0.01~31 sec ± 0.1%
Power supply: 110/220 VAC
Volume : 226L*216D*67Hmm
Inlet pressure: 0~0.7Mpa
Dispensing Time: 0.01~31 sec ± 0.1%
Power supply: 110/220 VAC
Controller you can also choose for alternatively SEC-200S

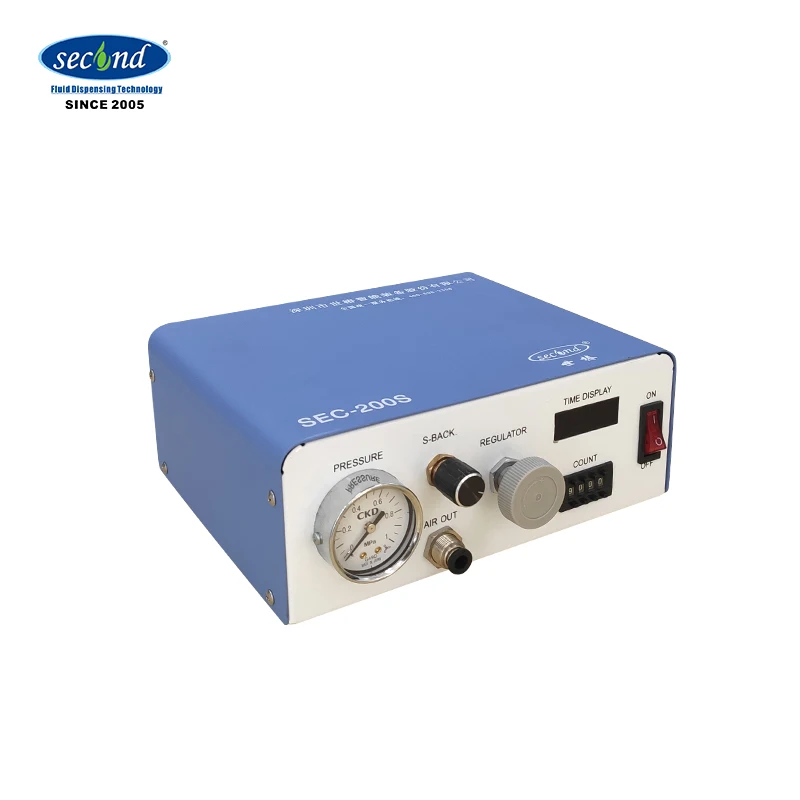

Dispensing controller SEC-200S
the desiging is humanized that fixed time can be input, raised or reduced quantificationally by pushing the button on the board, the set time can be displayed while dispensing.
Model: SEC-200S
Timer display: 0.001 to 9.999
repeating accouracy: 0.001sec
Function of learning teach
Ever-lasting time memory
adjustable fluid pressure: 0 to 120 PSI(0.-8.0KG)
Gurantee for 1 year

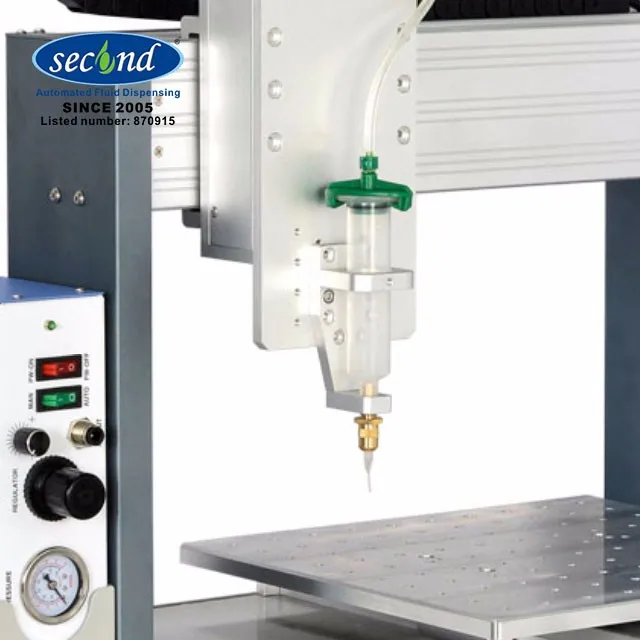

30 CC Syringe Details
can match with diffrent type of pins
14G,16G,18G,20G,22G,25G etc.

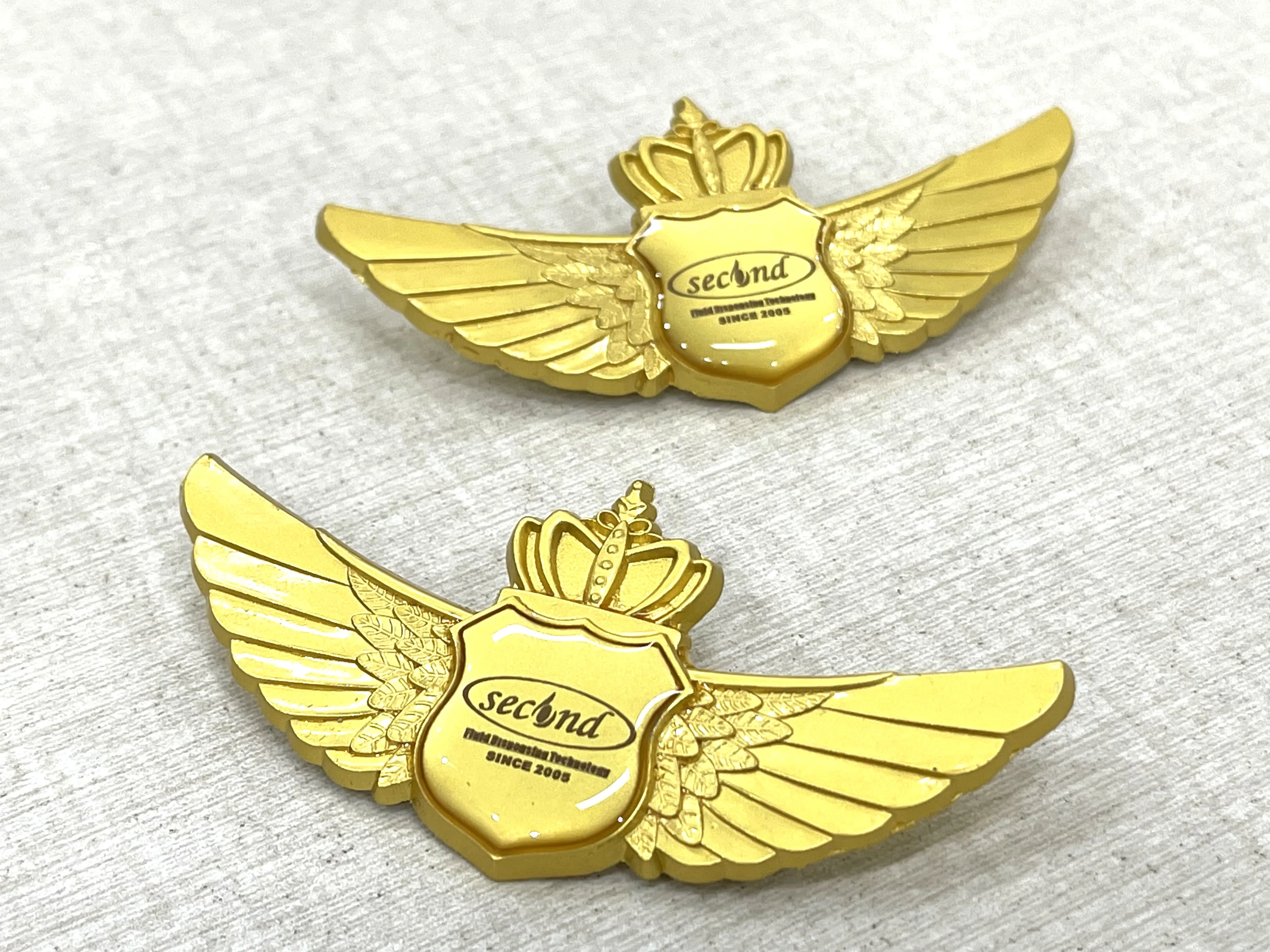

Crystal glue dispensing on small accessories.
Crystal glue dispensing on small accessories.
Our Advantages
Free Lab service

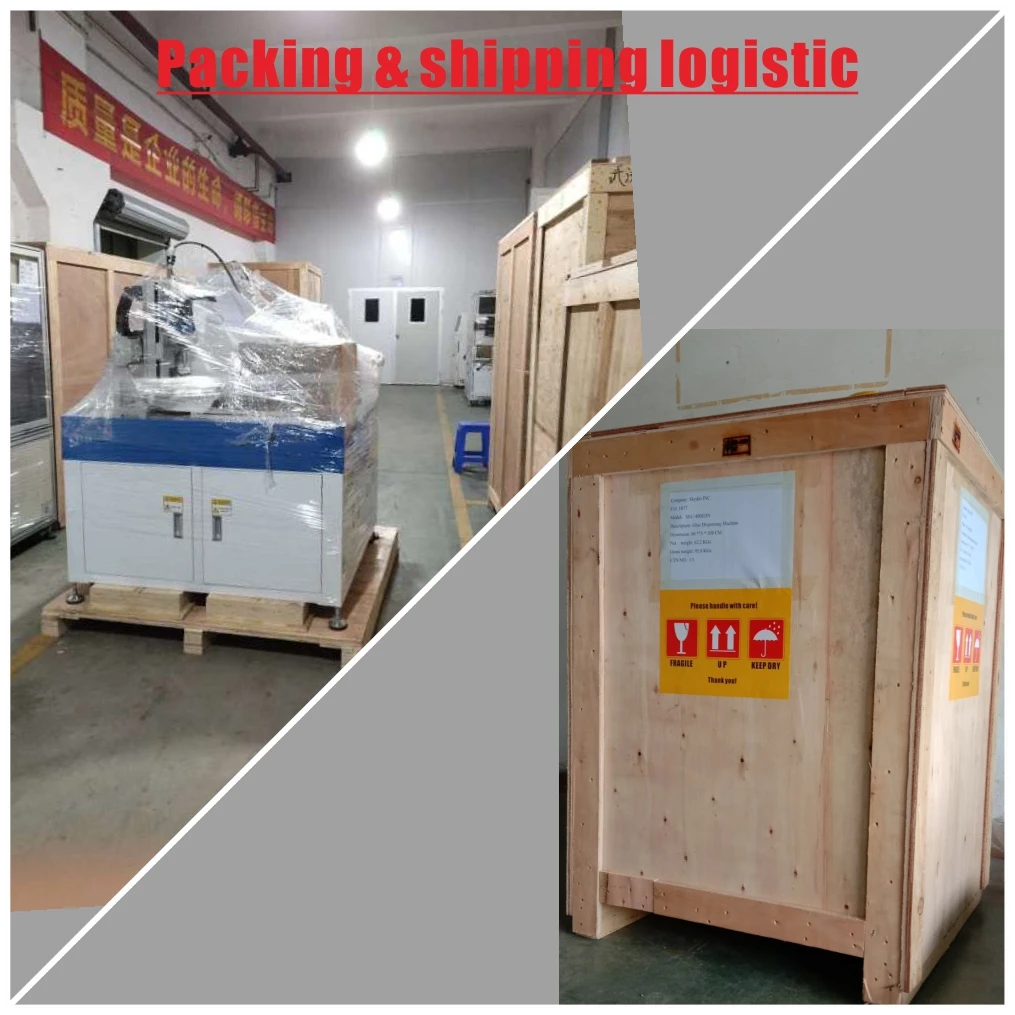

Packing&Shipping
Machine will be boxed well and protected with proper Ply-wooden box.
Estimated Packing for 1 unit of SEC-E380.
1 Ply-wooden Box , 80*85*92CM, N.W. 70KGS. G.W. 105KGS. 0.626CBM.
Estimated Packing for 1 unit of SEC-E380.
1 Ply-wooden Box , 80*85*92CM, N.W. 70KGS. G.W. 105KGS. 0.626CBM.
Company Profile
Second Intelligent Equipment was found in 2005. The factory is able to provide total solution for industrial adhesive glue dispensing, and potting automated machines, e.g. desktop, stand-alone, inline,and robot dispensers.
Second Inelligent is support by strong engineering teams (software, hardware) since the beginning of the company's establishment, for we believe and value technology development. From production line personnel to the management teams, above 80% of the staffs are engineering studied, and certified profession. Some are doctorate studied in engineering or robotics related qualifications.
Its services start from research to development, production, after-sale commissioning, training, and supports. The company equips with its own software, hardware, CNC, and machinery departments, so to provide reliable long term one-stop direct design and manufacturing supports. With adhesive chemical materials, good keeping and maintaining are very important for long term success.
We are the SECOND, because we believe customer is the FIRST.
Second Inelligent is support by strong engineering teams (software, hardware) since the beginning of the company's establishment, for we believe and value technology development. From production line personnel to the management teams, above 80% of the staffs are engineering studied, and certified profession. Some are doctorate studied in engineering or robotics related qualifications.
Its services start from research to development, production, after-sale commissioning, training, and supports. The company equips with its own software, hardware, CNC, and machinery departments, so to provide reliable long term one-stop direct design and manufacturing supports. With adhesive chemical materials, good keeping and maintaining are very important for long term success.
We are the SECOND, because we believe customer is the FIRST.
Exhibition
FAQ
Dear Customer,
Greetings from Second Intelligent! As below Q&A to let you know more about Second Intelligent:
1 Are you factory or trade company?
We are manufacturer of fluid dispensing equipment since 2005, from desktop to freestanding big equipment, and RO roller machine.
2 How long is your machine warranty?
12 months
3 What is your lead time?
For standard specification machine, we have inventory and could prepare the machine within 7 working days.
For custom request, desktop machine 7-10 days,
freestanding machine 10-15 days,
RO roller machine 20-40 days.
4 Do you provide free training for using and installing the machine?
Yes, our technical person can provide online training as request, customers could contact us at any time for any tech issues, our engineer team could support at any time if you need.
In order to recommend more suitable machine, please let us know the following information:
1 Glue type: please give us the data sheet if you have
2 Glue is easy caking? A Yes, need vacuum tank B No, no special request
3 Glue package please send us picture A Cartridge B Barrel C Pour into our machine tank directly
4 Glue package amount
5 Need vacuum system when pouring glue into our tank A Yes B No We could provide vacuum system for 300ML,3600ML and 25KG barrel glue package
Greetings from Second Intelligent! As below Q&A to let you know more about Second Intelligent:
1 Are you factory or trade company?
We are manufacturer of fluid dispensing equipment since 2005, from desktop to freestanding big equipment, and RO roller machine.
2 How long is your machine warranty?
12 months
3 What is your lead time?
For standard specification machine, we have inventory and could prepare the machine within 7 working days.
For custom request, desktop machine 7-10 days,
freestanding machine 10-15 days,
RO roller machine 20-40 days.
4 Do you provide free training for using and installing the machine?
Yes, our technical person can provide online training as request, customers could contact us at any time for any tech issues, our engineer team could support at any time if you need.
In order to recommend more suitable machine, please let us know the following information:
1 Glue type: please give us the data sheet if you have
2 Glue is easy caking? A Yes, need vacuum tank B No, no special request
3 Glue package please send us picture A Cartridge B Barrel C Pour into our machine tank directly
4 Glue package amount
5 Need vacuum system when pouring glue into our tank A Yes B No We could provide vacuum system for 300ML,3600ML and 25KG barrel glue package
