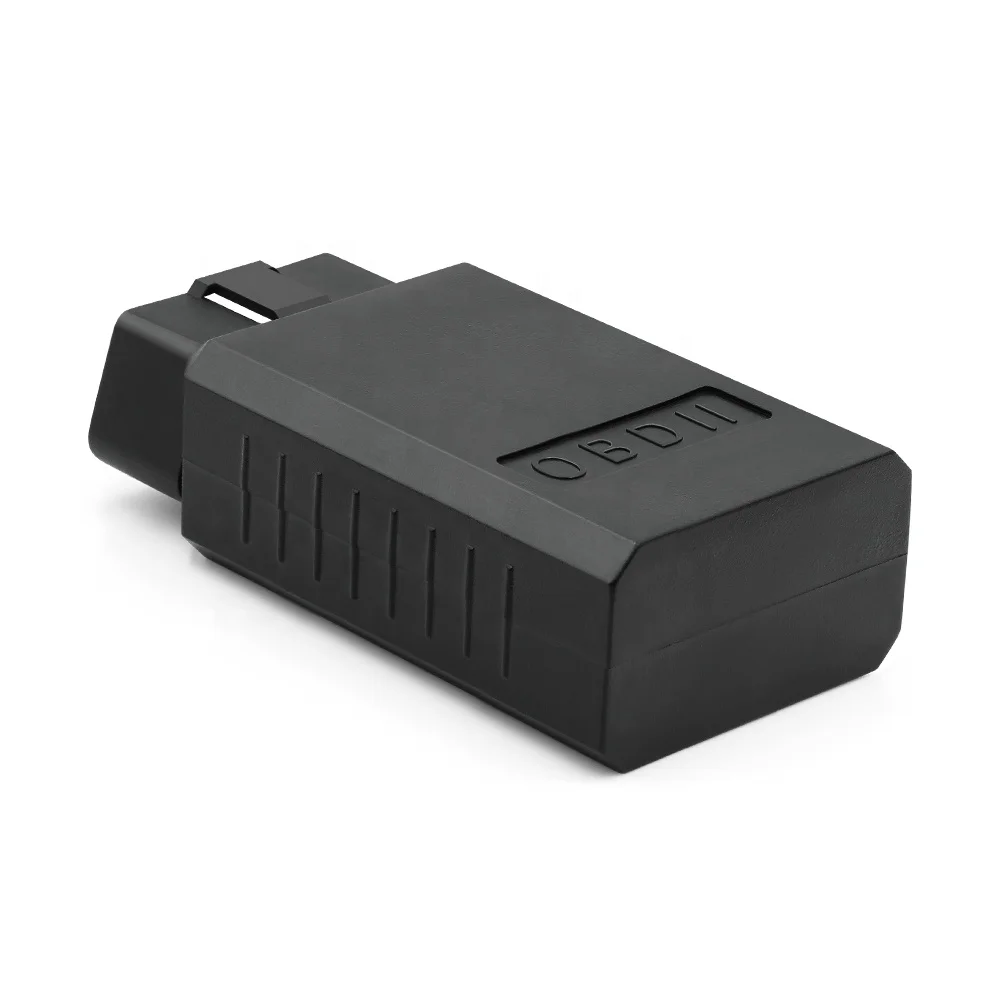

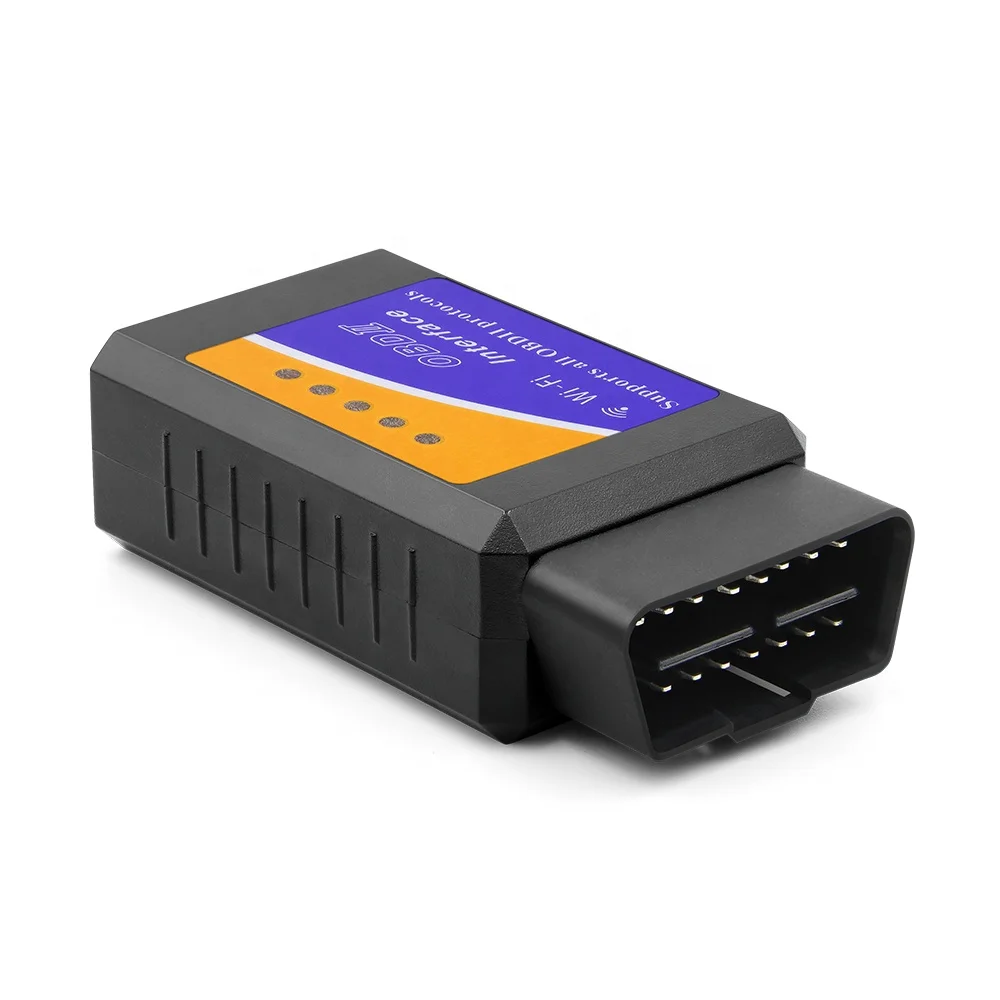

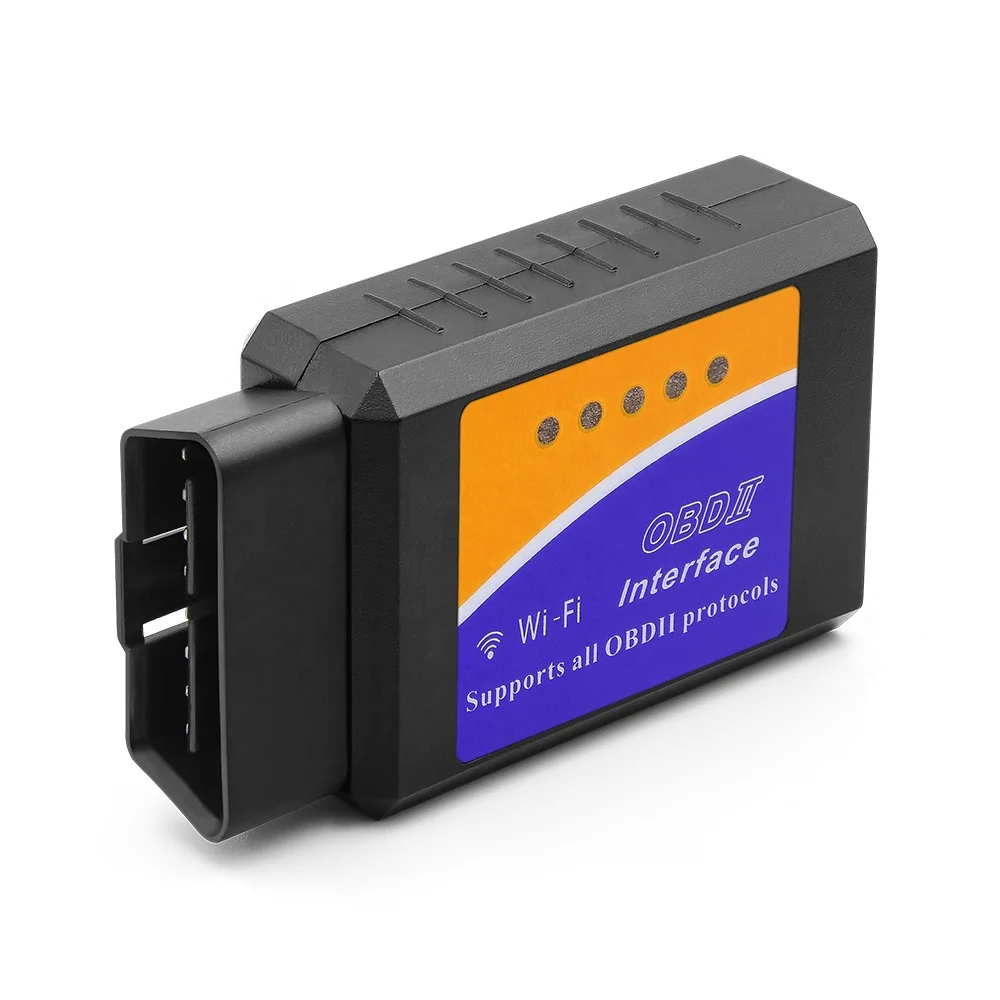

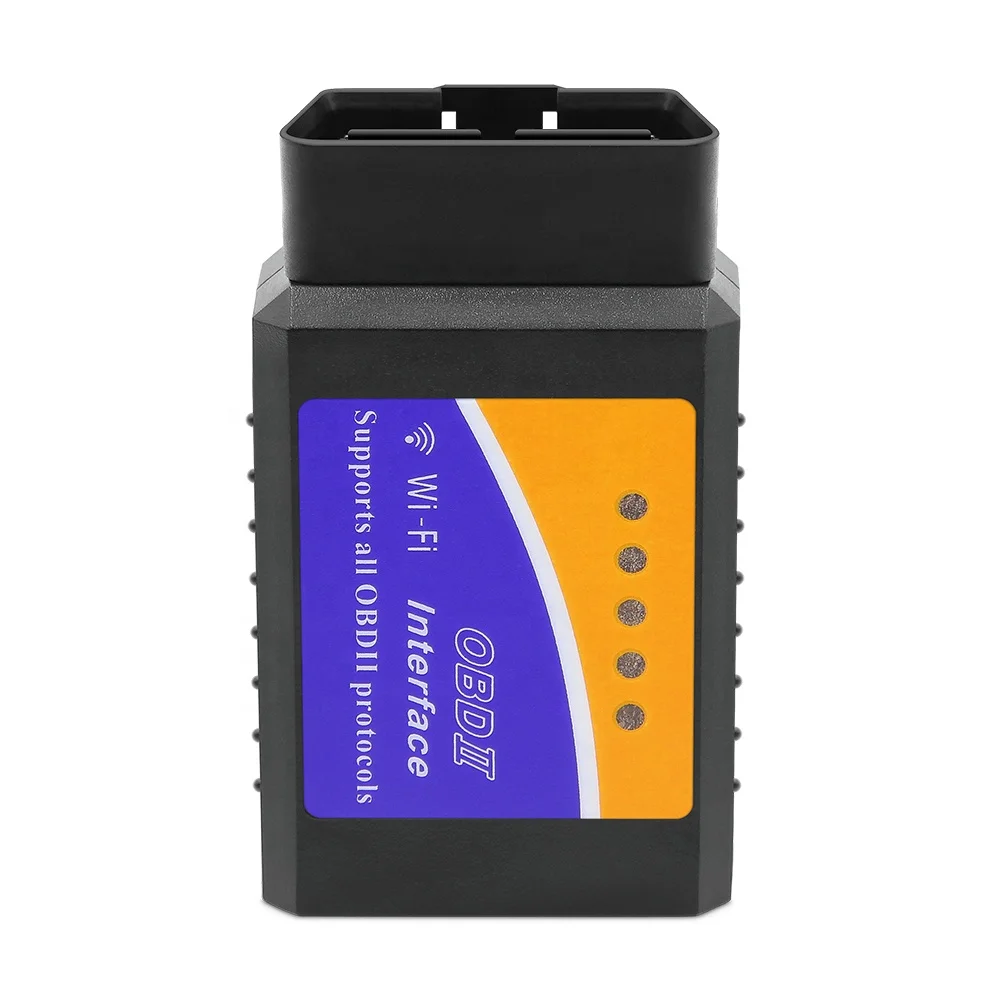

Universal ELM327 V1.5 OBD2 WIFI Scanner Support Multi brands CAN BUS All OBD2 Protocols Automotive Diagnostic Scanner
- Category: >>>
- Supplier: Shenzhen Boyna Technology Co. Ltd.
Share on (1600565345210):
Product Overview
Description
Product Description
Universal ELM327 V1.5 OBD2 WIFI Scanner Support Multi-brands CAN-BUS All OBD2 Protocols Automotive Diagnostic Scanner
Top 5 Reasons To Get Mini OBD2 Wifi Scanner:
1. Software Version: V2.1 (depending on software)
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Wifi)
5. Support Four operating platforms (IOS, Android, Symbian, Windows)
1. Software Version: V2.1 (depending on software)
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Wifi)
5. Support Four operating platforms (IOS, Android, Symbian, Windows)
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Mini OBD2 Wifi Scanner Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
Mini OBD2 Wifi Scanner Specifications:
SSID: WiFi_OBDII
IP: 192.168.0.10
Port: 35000
Communication: WIFI
Main Chip: ST
Support System: IOS, Android, Symbian, Windows
Working Voltage: 9v ~ 16v
Working Current: 65mA
Standby Current: 45mA
Operating temperature: -40 ℃ ~ 85 ℃
Working Humidity: less than 60%
Size: 45mm * 25mm * 75mm
Compatible systems:
Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.
Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
IOS: Auto Doctor, Mini OBDII
Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope
Specification
ITEM | ELM327 V1.5 WIFI OBD2 Scanner |
Firmware Version | V1.5 |
Connection | WIFI |
Support | Support Android / IOS / Windows |
Function | Read / Clear Fault code |
Supported protocols | 1.SAE J1850 PWM (41.6Kbaud) 2.SAE J1850 VPW (10.4Kbaud) 3.ISO9141-2 (5 baud init, 10.4 Kbaud) 4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5.ISO14230-4 KWP (fast init, 10.4 Kbaud) 6.ISO15765-4 CAN (11bit ID, 500 Kbaud) 7.ISO15765-4 CAN (29bit ID, 500 Kbaud) 8.ISO15765-4 CAN (11bit ID, 250 Kbaud) 9.ISO15765-4 CAN (29bit ID, 250 Kbaud) |
Compatible software | Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc. IOS: Auto Doctor, Mini OBDII Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc. Symbian: OBDScope |
Packing & Delivery

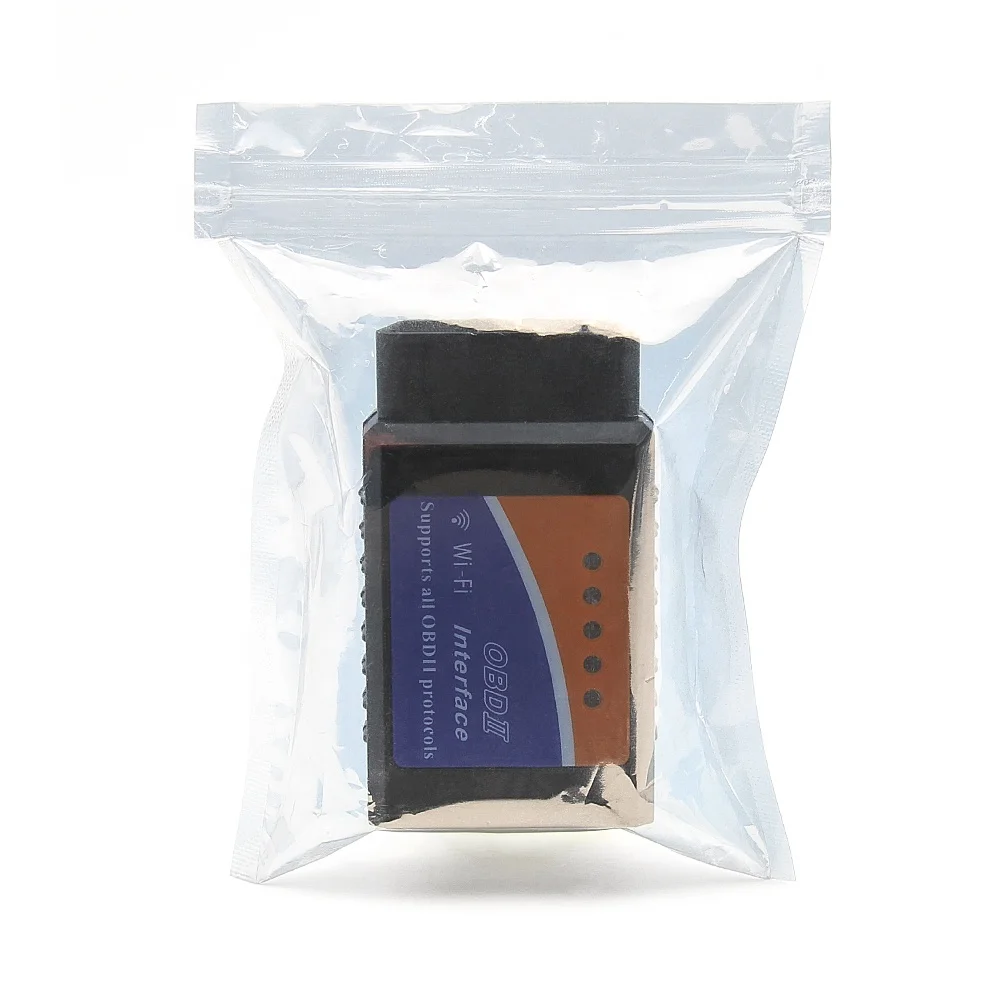

Package Including:
1pc x Mini OBD2 Wifi Scanner
1pc x Mini OBD2 Wifi Scanner
Package:
Polybag Package+ Carton box, or OEM as your request
Delivery Time:
3-7 working days for samples; 7-30 working days for bulk goods.
Alibaba Trade Assurance can assure all your benefits during the whole deal, contact sales to know more!
Delivery Time:
3-7 working days for samples; 7-30 working days for bulk goods.
Alibaba Trade Assurance can assure all your benefits during the whole deal, contact sales to know more!
