Product Overview
Description
Application Scenarios:
Mobile payment for 1D/2D barcode scanning,e.g.AliPay, WeChat Pay QR code e-payment, e-coupons/e-vouchers,Supermarket/retail store management, customer service center, ticket vending/verification point, O2O application site
Super Reading Performance
Adopt the newest generation 2D core decoding technology, can quickly read 1D/2D barcode and filmed 2D barcode with amount data of filmed screen barcode.
High Movement Tolerance
2m/s movement tolerance capability, and ultra-wide window, can offer the best reading performance.
2m/s movement tolerance capability, and ultra-wide window, can offer the best reading performance.
1.2m Drop Resistant
6 times, 6 sides, not less than 1.2m drop to the cement floor(one time per side)Powerful Data Editing Function Can preset by device before uploading the data to PC, finish the data input of the format. To flexibly meet the demands of all kinds of data editing.

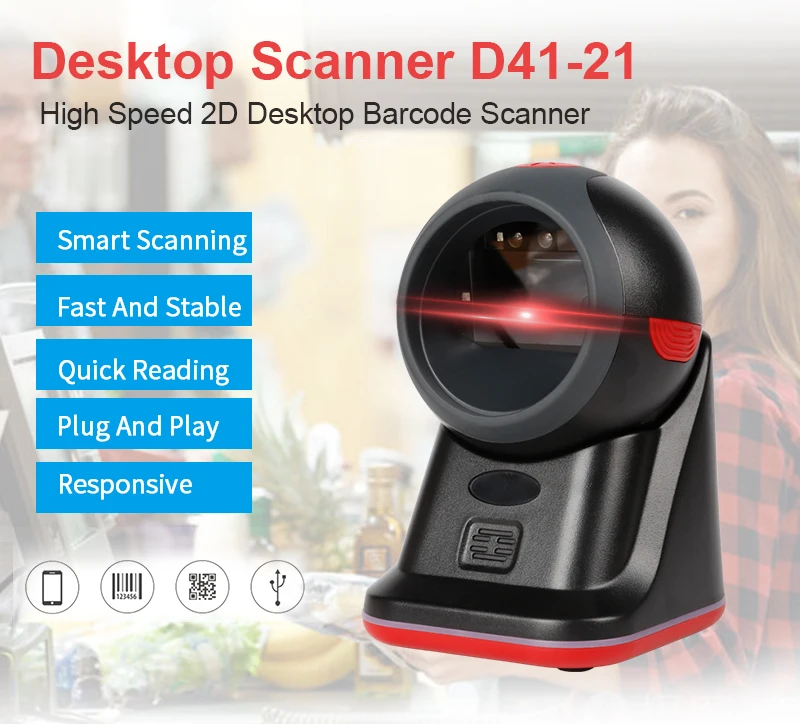

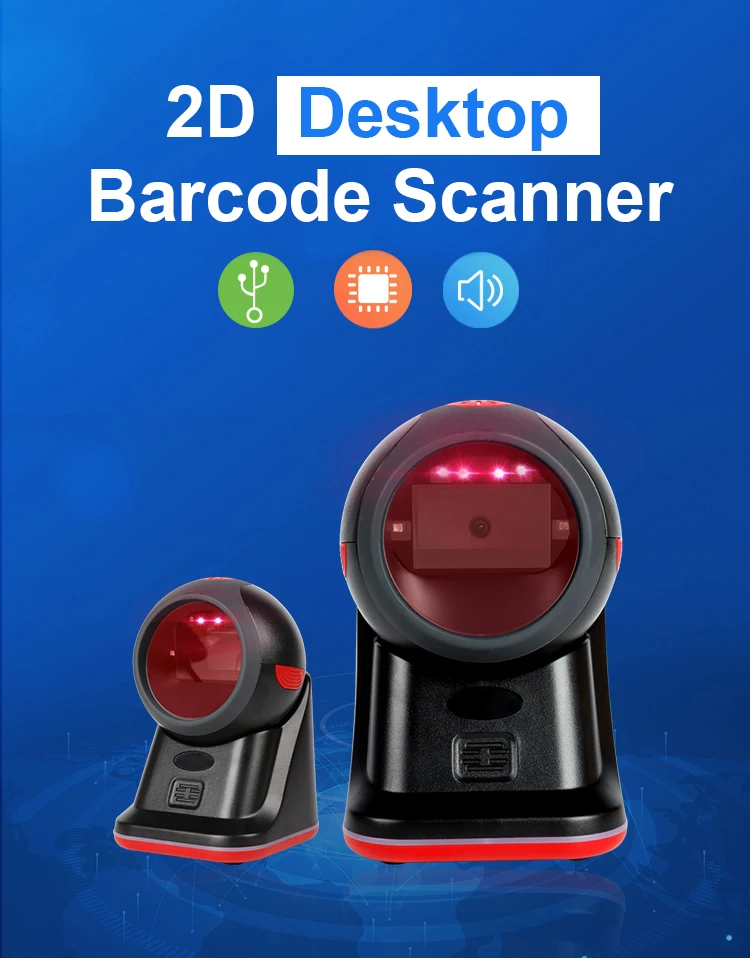

D41-21/Desktop 2D Barcode Scanner
Performance | Image Sensor | 640*480 CMOS | |
Illumination | Red LED | ||
Symbologies | 2D | PDF417, Data Matrix, QR Code，Micro QR Code | |
1D | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 25, Standard 25, ISSN, Plessey, MSI-Plessey,AIM 128 and so on | ||
Scan Precision* | ≥5mil（Code 128） | ||
Typical Depth of View* | EAN-13（13mil） | 0mm-160mm | |
QR Code （15mil） | 10mm-120mm | ||
Scan sensitivity** | Pitch | ±60° | |

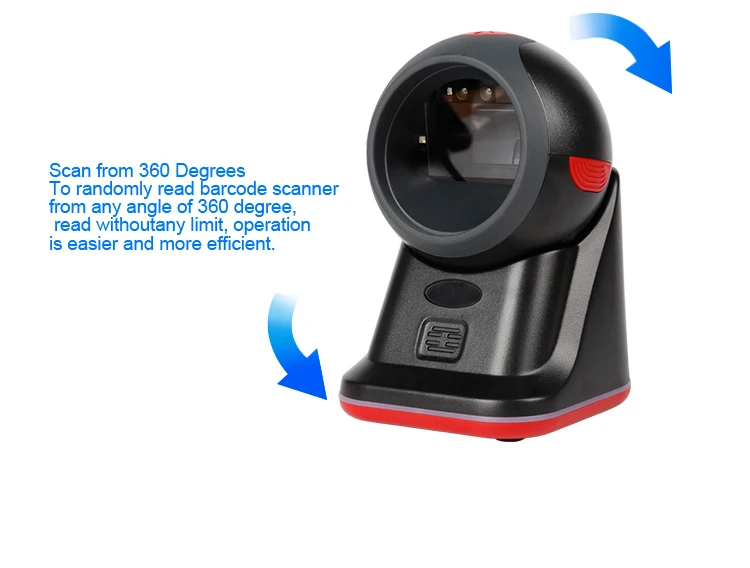

Tilt | 360° | ||
Skew | ±60° | ||
Field Angle | Horizontal 68°，Vertical 51°，Diagonal 84.8° | ||
Symbol Contrast* | ≥30%（Code 128） | ||

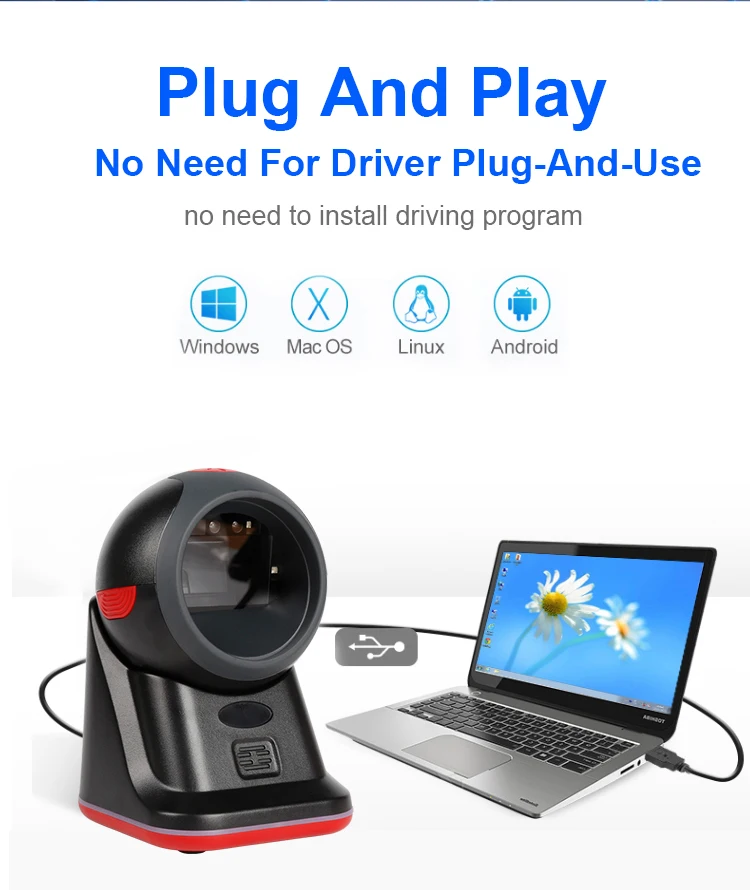

Mechanical/ Electronic | Data Interface | USB HID-KBW、USB Virtual Serial Interface、USB HID-POS、RS232(optional) | |

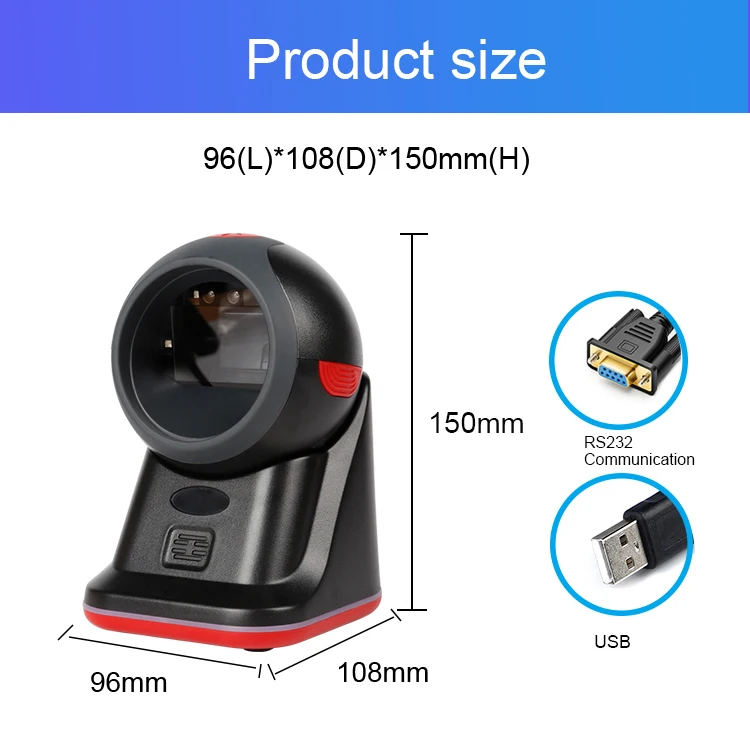

Size(mm) | 96*108*150mm | ||
Weight | 295 g | ||
Indicator | Beeper | ||
Operation Voltage | 5.0 VDC±5% | ||
Current@5VDC | Operation | 427mA（Typical Value） | |
Standby | 55mA | ||
Environmental | Operation Temperature | -20℃~+55℃ | |
Storage Temperature | -40℃~+70℃ | ||
Relative Humidity | 5%~95%（Non-condensing） | ||
Static Protection | ±8 kV（Air Discharge），±4 kV（Direct Discharge） | ||
Drop Height | 6 sides, 1.2m drop to the cement floor(one time per side) | ||
Protection Level | IP52 | ||
Certification | FCC Part15 Class B，CE EMC Class B |
