BC-216 artnet to SPI controller for rgbw led strip pixel led controller dmx rgb controller



Product Introduction

This Ethernet-SPI/DMX pixel light controller is dedicated to converting the Ethernet signal into
SPI pixel signal, which is designed for large project with high-density pixel light, such as matrix
panel lights, construction's contour lamp, etc. Besides converting Ethernet-based control protocols
into various LED driving IC signal, it also outputs DMX512 signal at the same time, convenient for
the connection of different types of led lamp, and to achieve the unified control of all kinds of led
lamp in the same project.



Basic Features:

1. With LCD display and built-in WEB SERVER setting interface, easy operation.

2. Support Ethernet DMX protocol ArtNet, can be expanded to other protocols.

3. Multi SPI (TTL) signal output, up to 5440 pixels control.

4. Output DMX512 signal at the same time, convenient for the connection of different types led lamp.

5. Support various LED driving IC, flexible control.

6. Support online firmware upgrade.

7. Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit.

8. Built-in test mode, using a network interface with indicator light, work status is clear when at a glance.



Specification:

Model	BC-216
Working Voltage	DC5-DC24V
Output Current	3A X 16CH(Built-in 5A fuse)
Input Ethernet control protocol	ArtNet
Output Control IC	2811/2801/6803/3001/8806/9813/APA102/TM1814/SK6812 Series
Control Pixels	RGB:340 Pixels X16CH   RGBW:256 Pixels X16CH
Output DMX512	Two port(2X512 Channels)
Working Temp	-20~55℃
Product Dimension	L258×W145×H41(mm)
Weight(G.W)	1100g

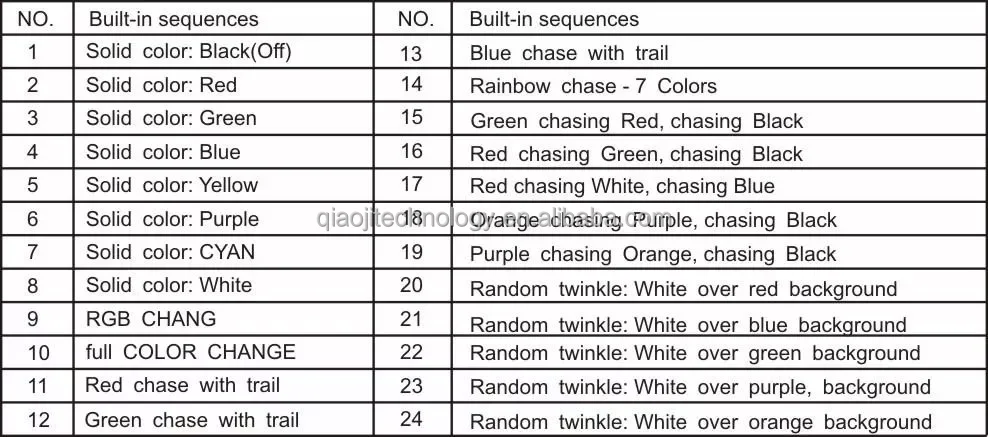

Changing Patterns:

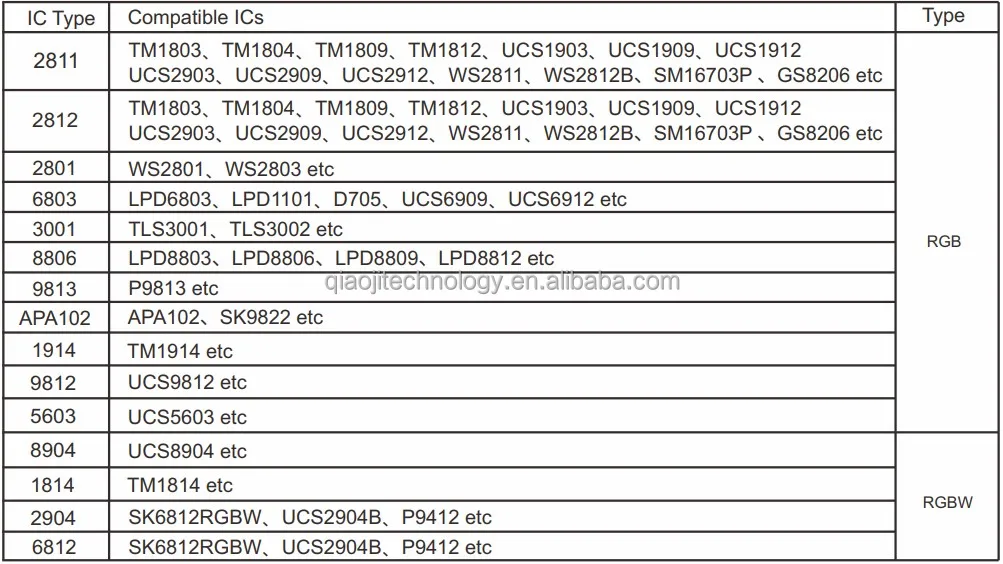

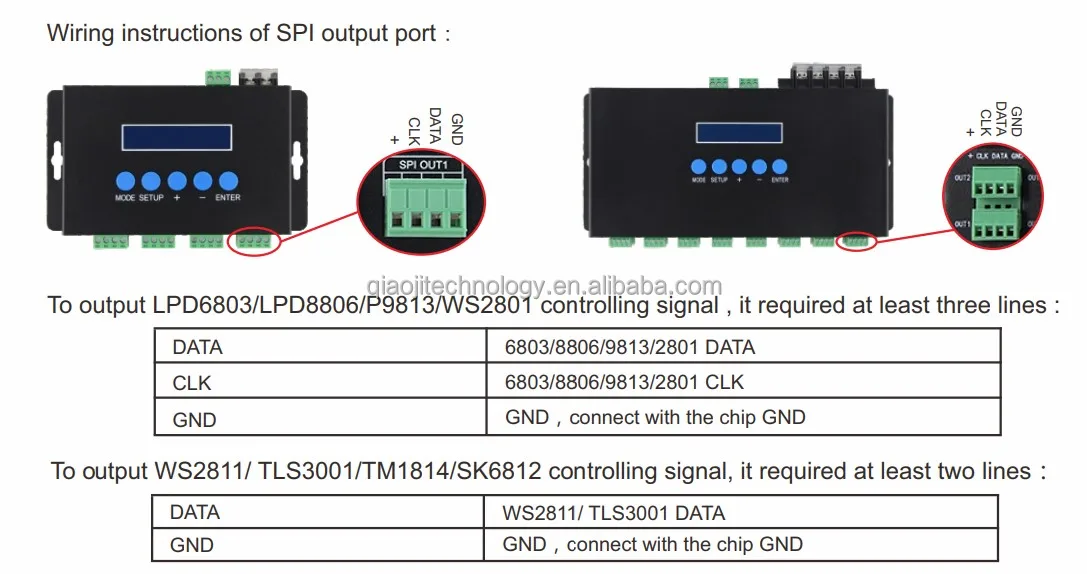

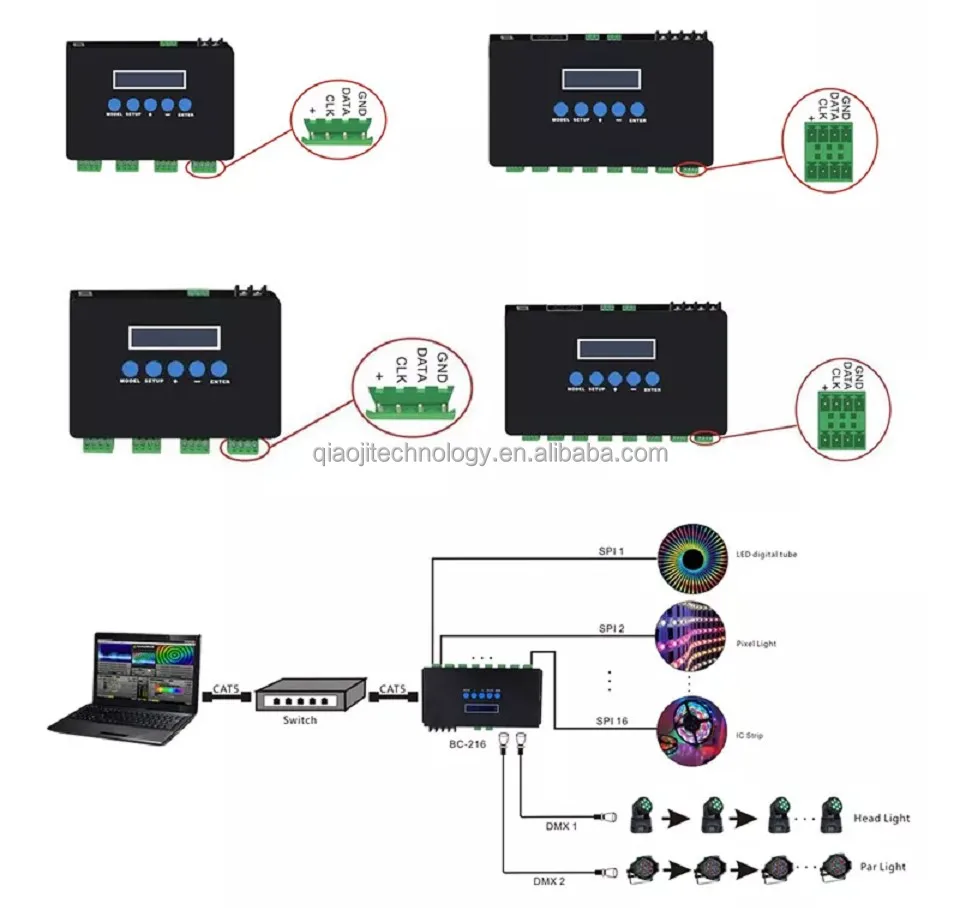

Control ICs Type

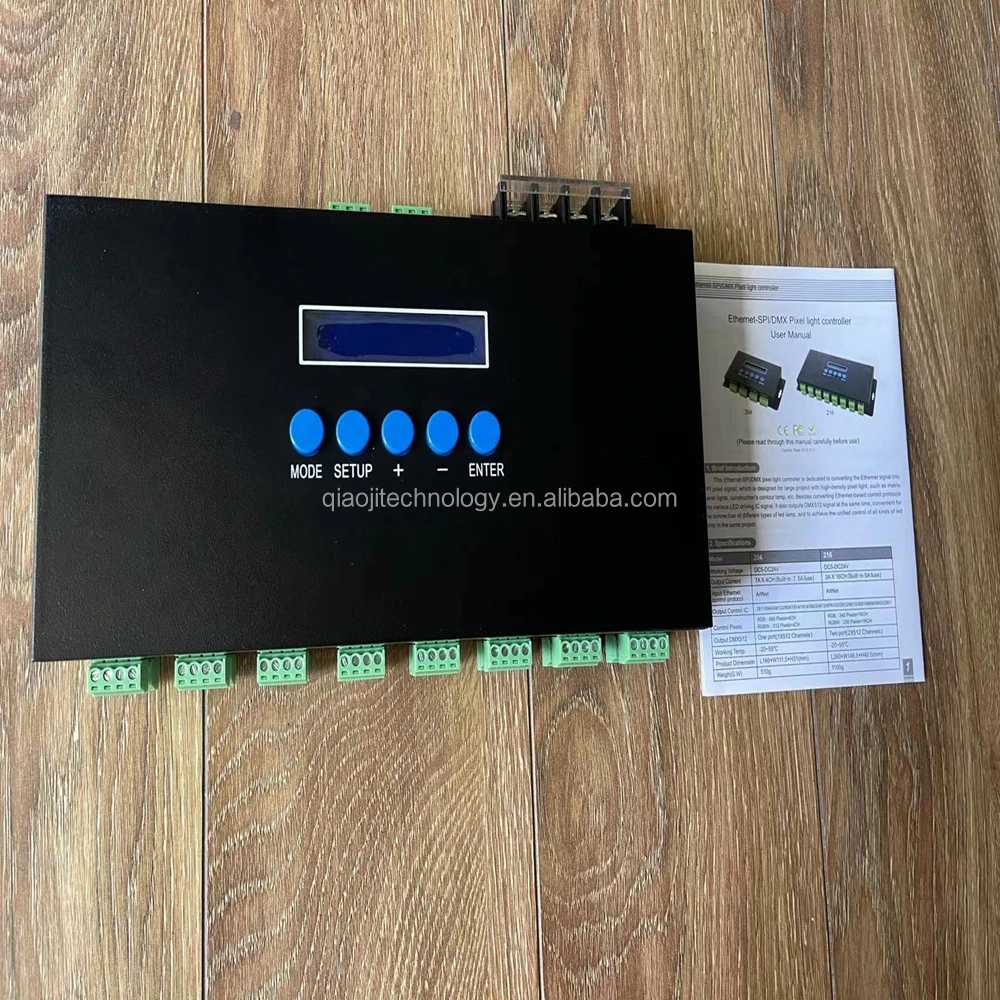

Product Show

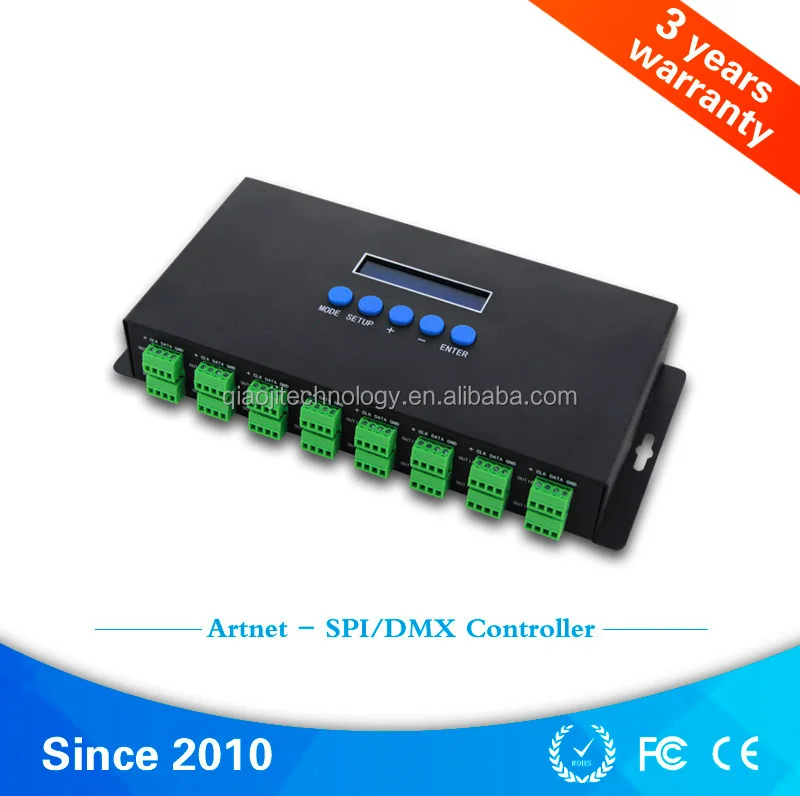

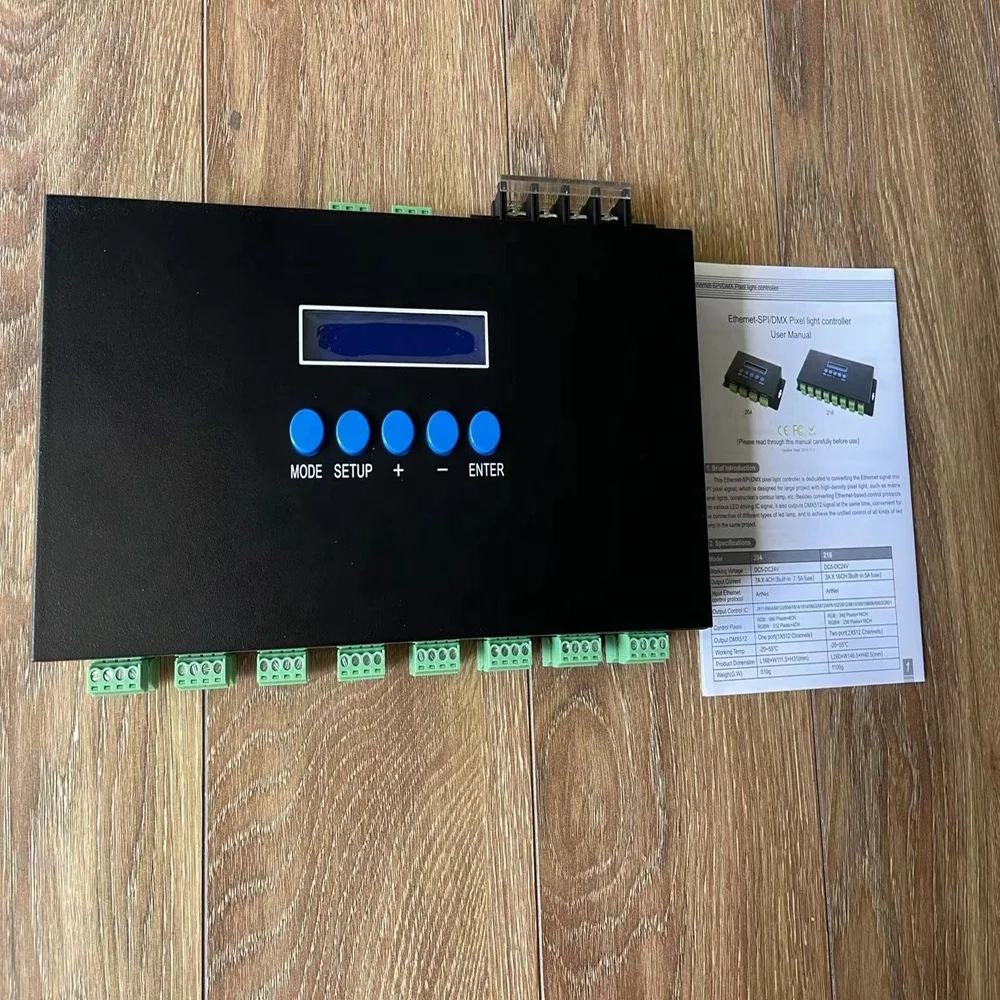

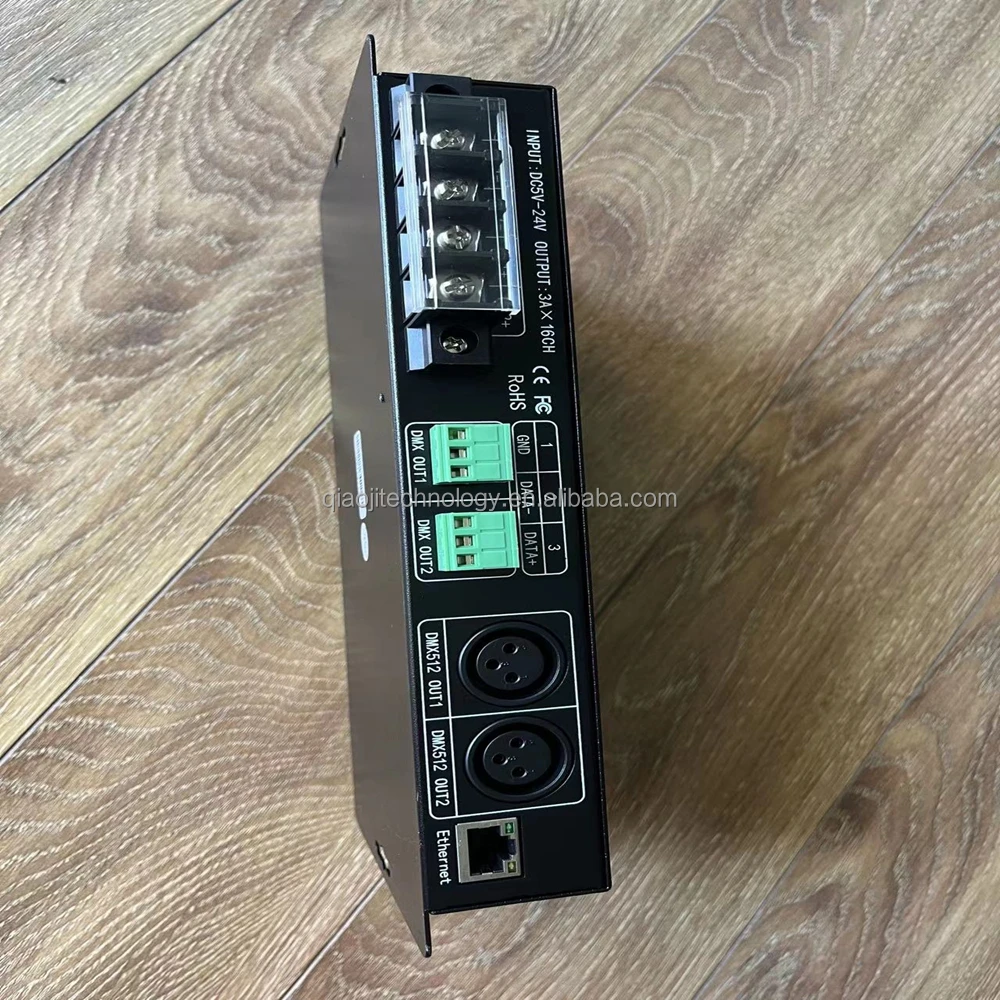

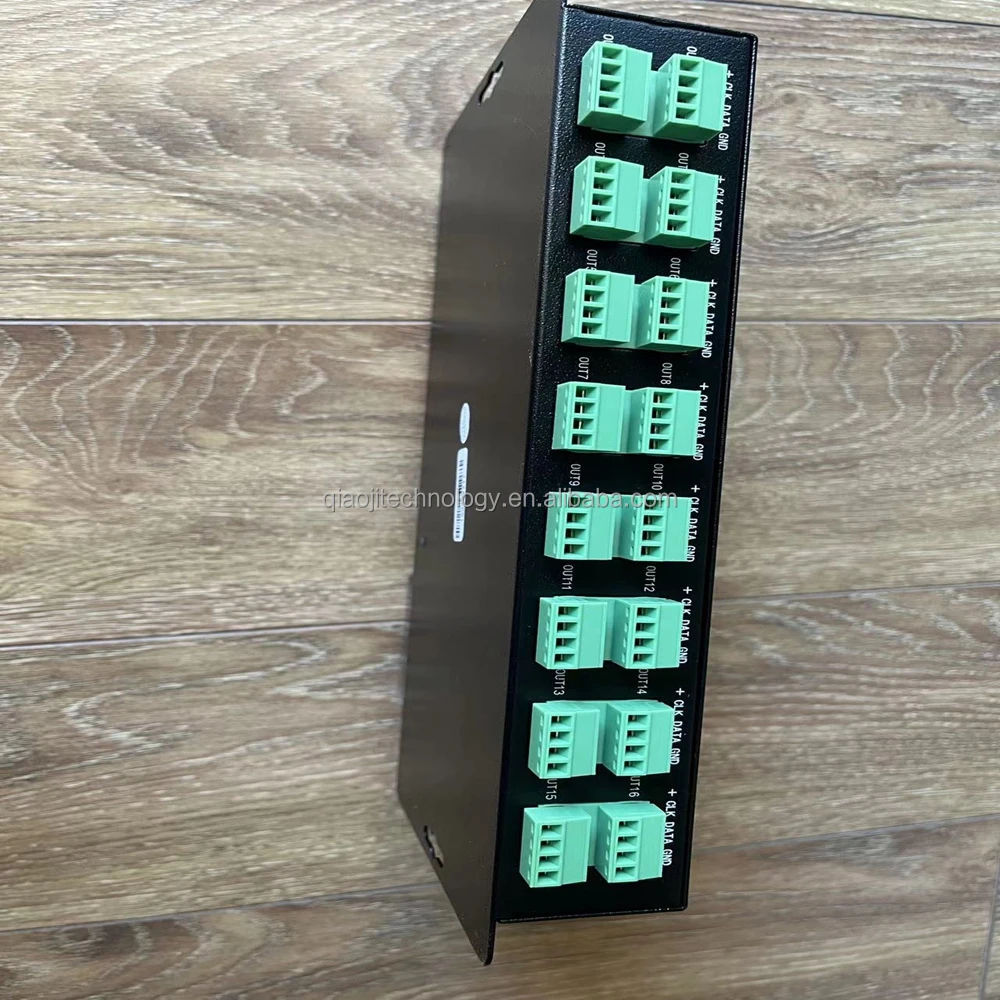

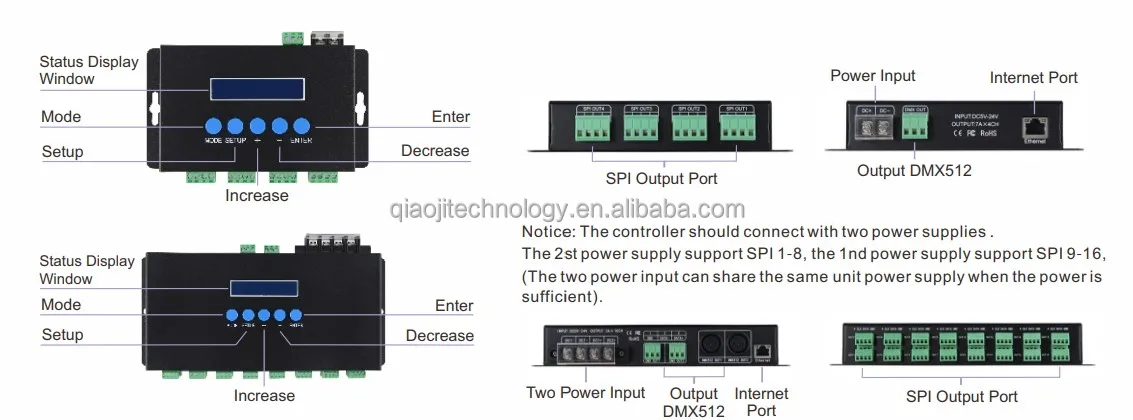

Ethernet-SPI/DMX Pixel light controller

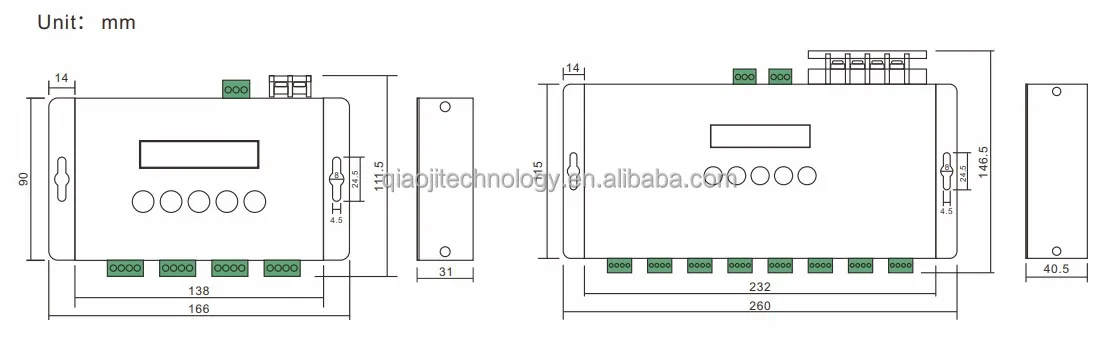

Dimensions



Safety Warnings

1. Please don’t install this controller in lightening, intense magnetic and high-voltage fields.
2. To reduce the risk of component damage and fire caused by short circuit, make sure correct
connection.
3. Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting
temperature.
4. Check if the voltage and power adapter suit the controller.
5. Don’t connect cables with power on, make sure a correct connection and no short circuit checked
with instrument before power on.
6. Please don’t open controller cover and operate if problems occur.
The manual is only suitable for this model; any update is subject to change without prior notice.
