Портативный прибор для измерения силы, высокоточный ручной небольшой ЦИФРОВОЙ динамометр, датчик силы для толчка и тяги

Портативный прибор для измерения силы, высокоточный ручной небольшой ЦИФРОВОЙ динамометр, датчик силы для толчка и тяги

Category: Force Measuring Instruments >>>
Supplier: Mikrometry,instruments,limited

Price:228,00 $ - 247,00 $

Price in USD:Details

Quantity:

Product Overview

Description

Features

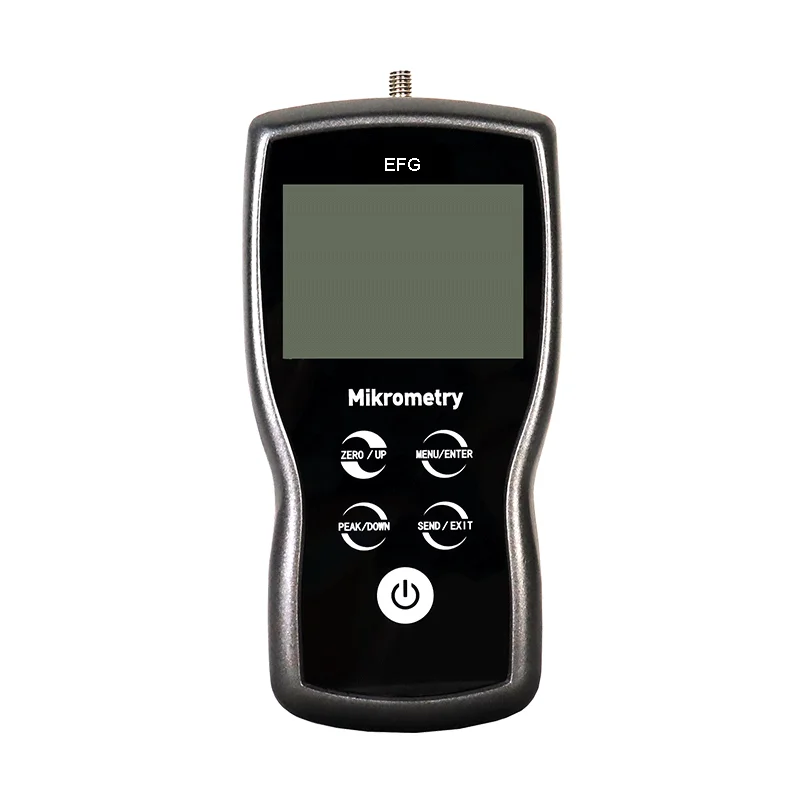

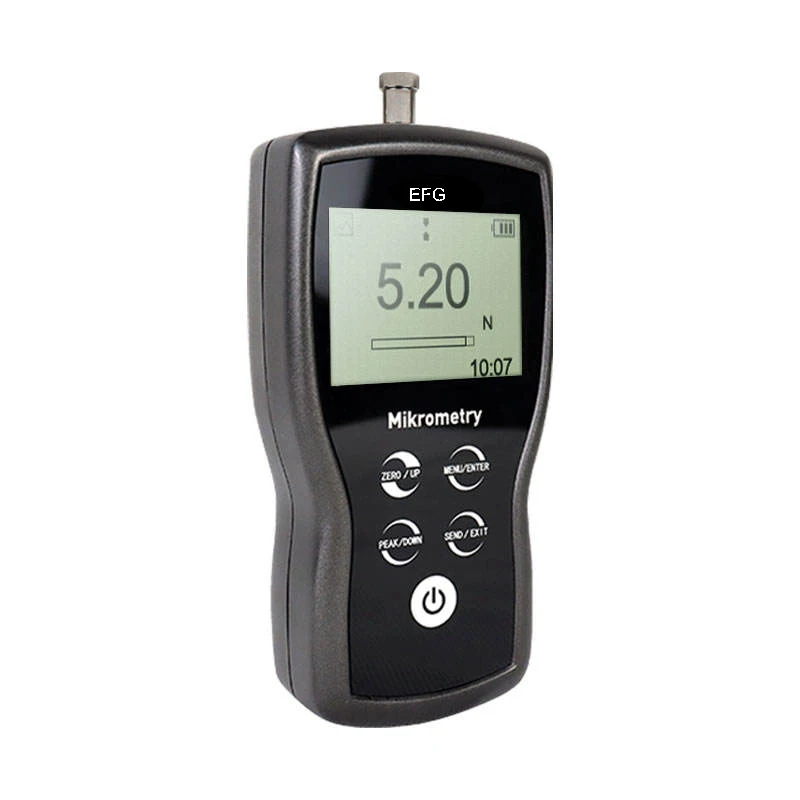

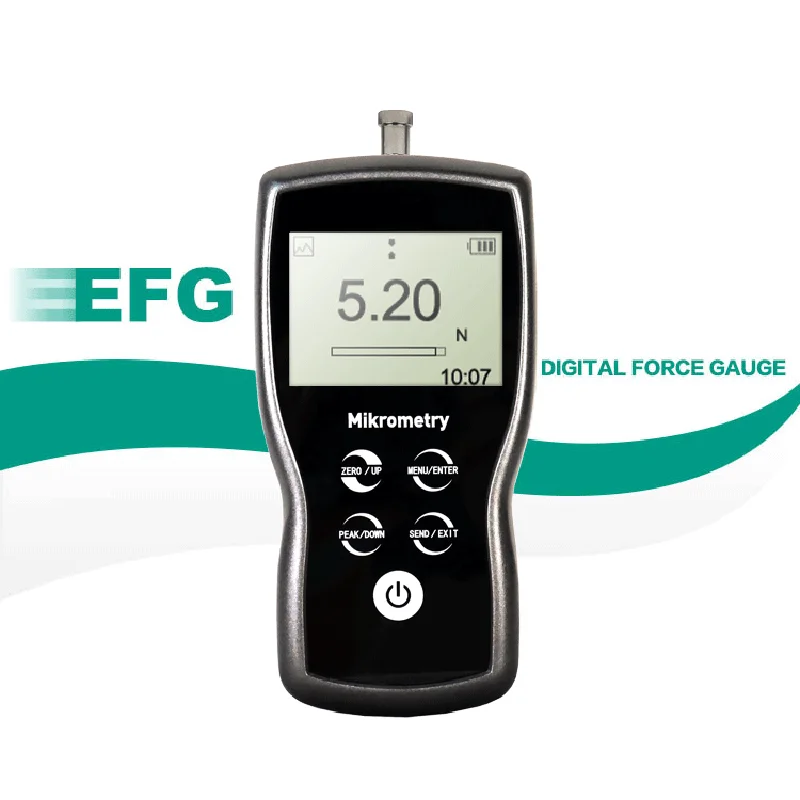

Mikrometry spindle clamping force gauge with compact size, high accuracy, they are easy to operate and handy to carry out.Widely
applied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system,light
industry, mechanical, textile, and so on industries for testing of pull or push load test, insertion force or pull and destructive
experience. This digital force gauge is new generation pulls the pressure measuring instrument.

Features:
Durable metal case
Reverse display setting
Mechanical overload protection
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Support low battery alarm
Accuracy: ± 0.2% FS
Sampling Rate: up to 2KHz

Product Description

Accuracy	± 0.2% F.S.
Selectable Units	N、mN、gf、 kgf、 ozf and lbf
Display	160*128 dot matrix LCD(2.8 inch) with LED Backlight
Overload Capacity	120% of F.S. (LCD blinks beyond 110%)
Overload Protection	Overload Protection Mechanism to prevent to be damaged
Measurement Mode	Track 、Peak、 Auto-Peak、First Peak
Display Mode	Curve / digital
Data Sampling Rate	2KHz
Display Update Rate	10 times/second
Memory	1000 data
Set Point	Programmable high and low limits
Battery Indicator	Display flashes battery icon when battery is low
Power	3.6VDC 800mAH Ni-Mh rechargeable batteries
Battery Life	Approx. 14 hours per charge
Charger / Adaptor	Universal USB/BM charger, Input:110~240VAC
Temperature Effects	<0.03% FS per °C
Communication	USB or RS-232
Software	Free software for USB communication
Outputs	RS-232, "Within" set point output， "Under or over" set point output
Operating environment	Temperature: -10 to 40°C
Operating environment		Relative Humidity: 20 to 80%
Storage environment	Temperature: -20 to +50°C
Storage environment		Relative Humidity: 5 to 90%
Dimensions	1607334mm
Weight	0.7 kg (1.5 lb)
Accessories	AC adapter/charger, USB cable, 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
Options	Mini-printer, Measuring Adapters, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit.
