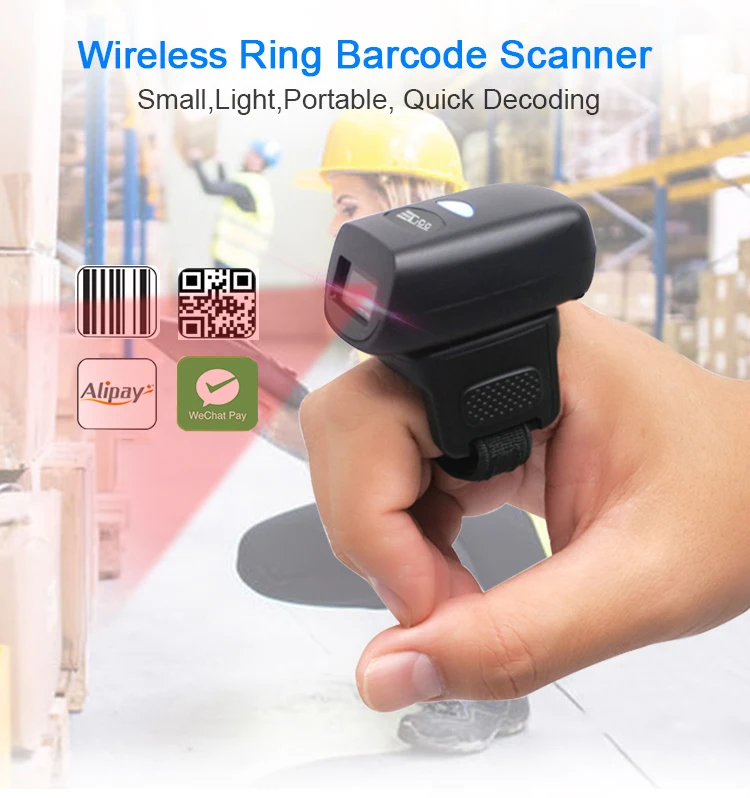

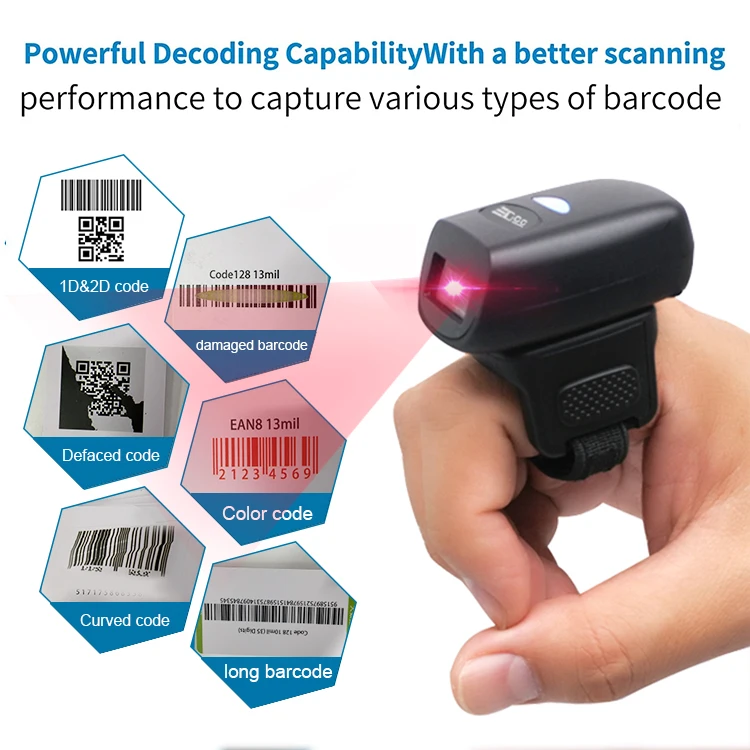

Edoo mini portable Wearable Finger Ring 1d 2d wireless barcode scanner
- Category: Scanners >>>
- Supplier: Shenzhen Edoo IOT Technology Co. Ltd.
Share on (1600568135328):
Product Overview
Description
Specification
R40-N1/wireless Ring Barcode Scanner
Image Sensor | 640*480 | ||
Symbologies | 2D: PDF417,QR Code (QR1/2, Micro),Data Matrix (ECC200, ECC000, 050, 080, 100, 140) | ||
1D:Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Standard 25, Codabar, Industrial 25, Code39, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS) (RSS-14,RSS-Limited,RSS-Expand),Matrix 2 of 5 | |||
Scan precision | ≥3mil | ||
Depth of field | EAN-13 60mm~350mm (13mil) | ||
Code 39 40mm~150mm (5mil) | |||
PDF 417 50mm~125mm (6.67mil) | |||
Data Matrix 45mm~120mm (10mil) | |||
QR Code 30mm~170mm (15mil) | |||
Scan angle | Pitch: ±60°; Roll: 360°; Skew: ±60° | ||
PCS | ≥25% | ||
Interface | Micro USB, wireless 4.1 | ||

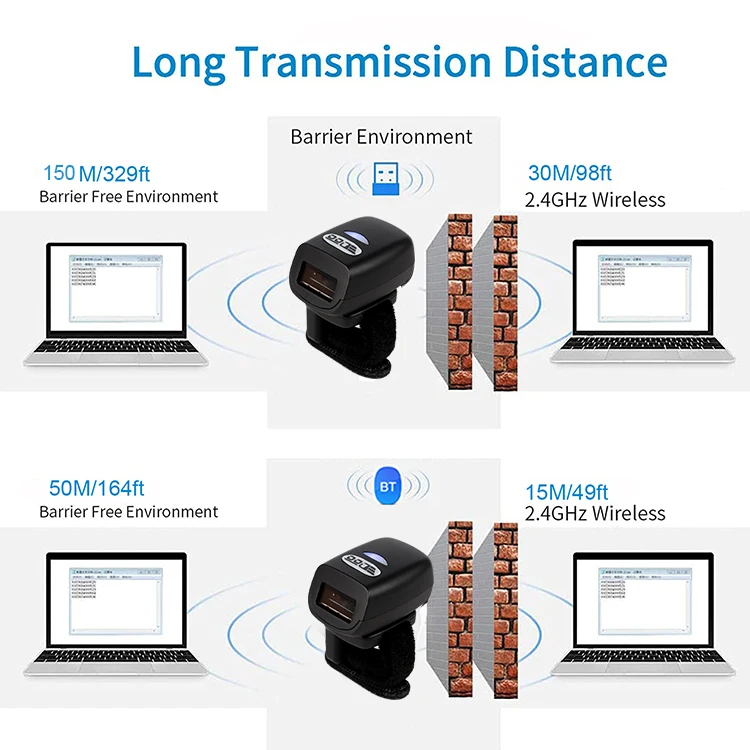

wireless transmission distance | 50 m(wide empty area) | ||
Physical dimension | 52.5×36.5×46.5mm(L×W×H) | ||
Weight | 40g | ||
Notifications | Sound, LED and vibration | ||

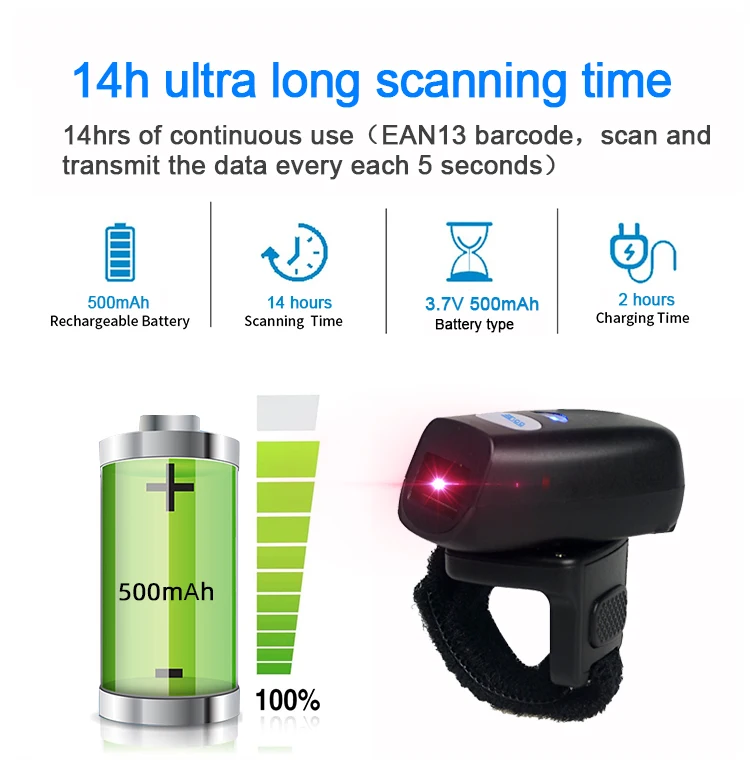

Battery type | 3.7V 500mAh rechargeable Li-ion battery | ||
Usage hours per charge | 14hrs of continuous use(EAN13 barcode,scan and transmit the data every each 5 seconds) | ||
Charging hours | 2hrs | ||
Power supply | Output: DC 5V, 2A input: AC100 ~ 240V, 50~60Hz | ||
Environmental | Operating temperature | -20℃ to 50℃ (-4°F to 122°F) | |
Storage temperature | -40℃ to 70℃ (-40°F to 158°F) | ||
Operating humidity | 5%~95% (non-condensing) | ||
ESD | ±8 KV (Contact discharge); ±15 KV (Air discharge) | ||
Drop | 1.2m | ||

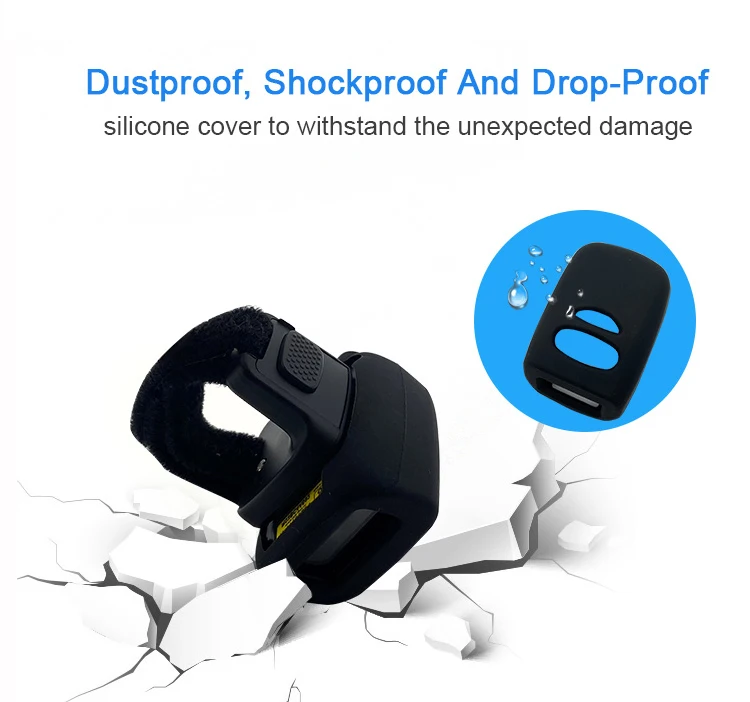

Shell protection | IP42 | ||
Certifications | FCC Part15 Class B, EMC Class B,BIS | ||
Features:
Core Technology

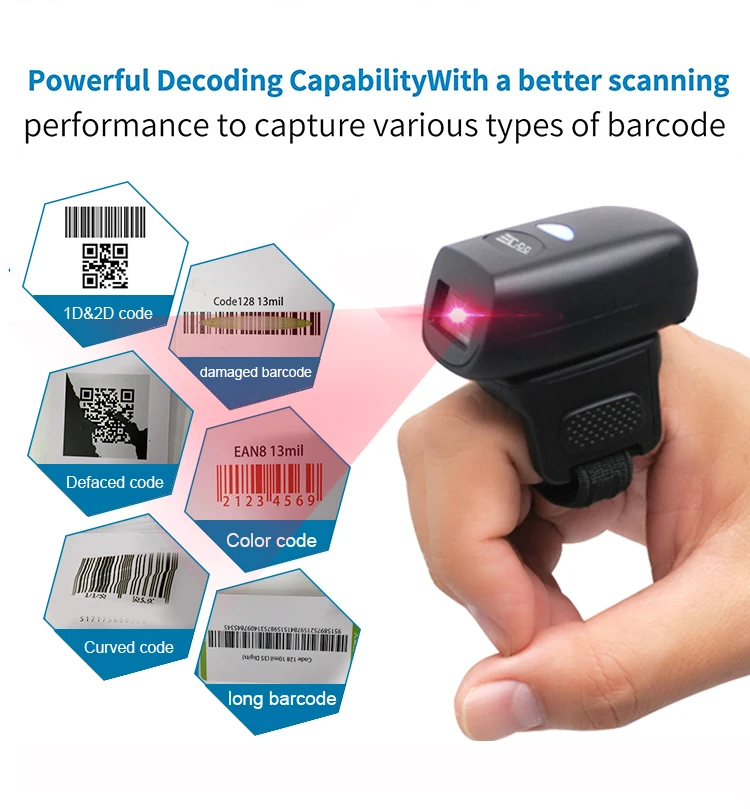

Adopt self-developed 5th generation of core UIMG decoding technology, it can read virtually any barcode from paper or screen. The 2D device has been equipped with a laser aimer with a red cross to make barcode reading easier and faster.
4.0 wireless transmission
Via wireless 4.0 Class 1 wireless technology, it can be paired with any Android, iOS o device five times
Can be used anywhere, anytime.
Small enough to fit into your pocket and light enough to carry around all day, providing you with the convenience of always having a scanner at your fingertips.
Green low consumption
Adopt the self-developed core technology, largely reduces power consumption, extend the device lifetime.
