HD Video conferencing Rotating Camera kit OEM 360 Degrees Pan PTZ Meetting Camera TV Box Supports USB Video Conference Camera
- Category: >>>
- Supplier: World Win Technology (shenzhen) Co. Ltd.
Share on (1600573255265):
Product Overview
Description
Tip:
1.→→Click here to inquiry←Get better discount price.
2.OEM/ODM are also welcome；
3.Excellent quality and better Price.
3.Excellent quality and better Price.
4. This appearance WIN-J86 series, we have Black color and White color for choice, 12X and 20X Optional Zoom, SDI and NDI version to suitable for your different place, Contact us for more details.
Products Description
HD Video conferencing Rotating Camera Kit OEM 360 Degrees Pan PTZ Meetting Camera TV Box Supports USB Video Conference Camera
WIN-J86R/AN
WIN-J86 Series SDI PTZ Conference Camera Selling Points:
1. WIN-J86RN is Full HD1080P60fps NDI PTZ Camera
2. It is 12X optical zoom, 20X for optional3. With Tally light, two green color light
4. Support POE, Power on ethernet
5. USB3.0 support H264, SDI and LAN port is good for live streaming,
6. NDI protocol low latency
7. Low noise and High SNR
8. Easy be control via IR remote and Joystick Controller

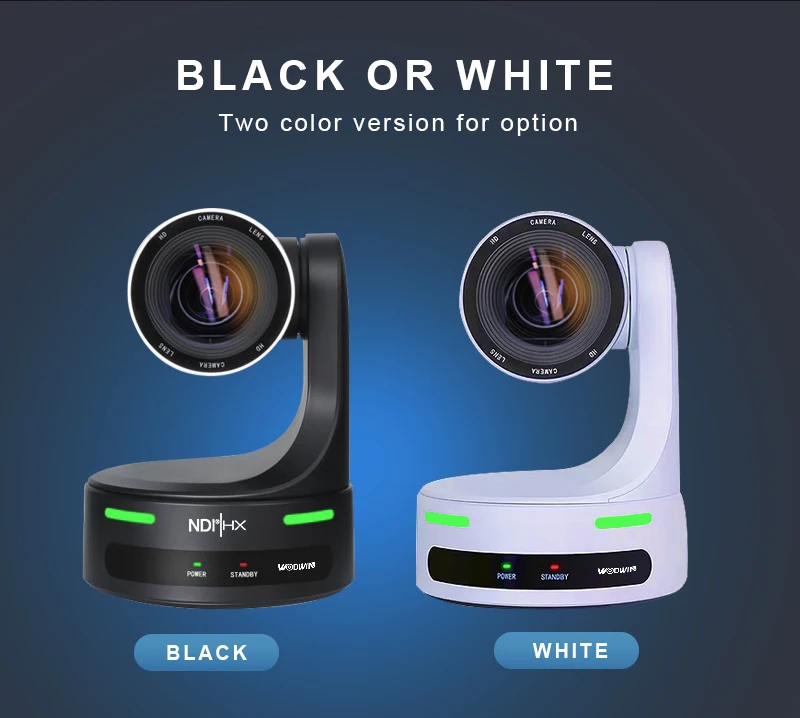

9. Have black color and white color to choose
10. Wall mounting, desktop or ceiling mounting
Model No.: | WIN-J86AS | |||||
Zoom | ||||||
Wide Angle | 58.7° | 58.7° | 72.5° | 58.7° | 56° | 56° |
Interface | USB3.0, SDI, HDMI | USB3.0, SDI, HDMI | USB2.0, SDI, HDMI | USB2.0, SDI, HDMI | SDI, HDMI,USB3.0 | SDI, HDMI,USB3.0,LAN |
LAN, POE | LAN, POE | LAN | NDI(LAN), POE | LAN, POE | NDI, POE | |
RS232, RS422, RS485 | RS232, RS422, RS485 | RS232, RS422, RS485 | RS232, RS422, RS485 | RS232, RS422, RS485 | RS232, RS422, RS485 | |
Color | Black | Black or White | Black or White | Grey | Black | Black |
Details Images

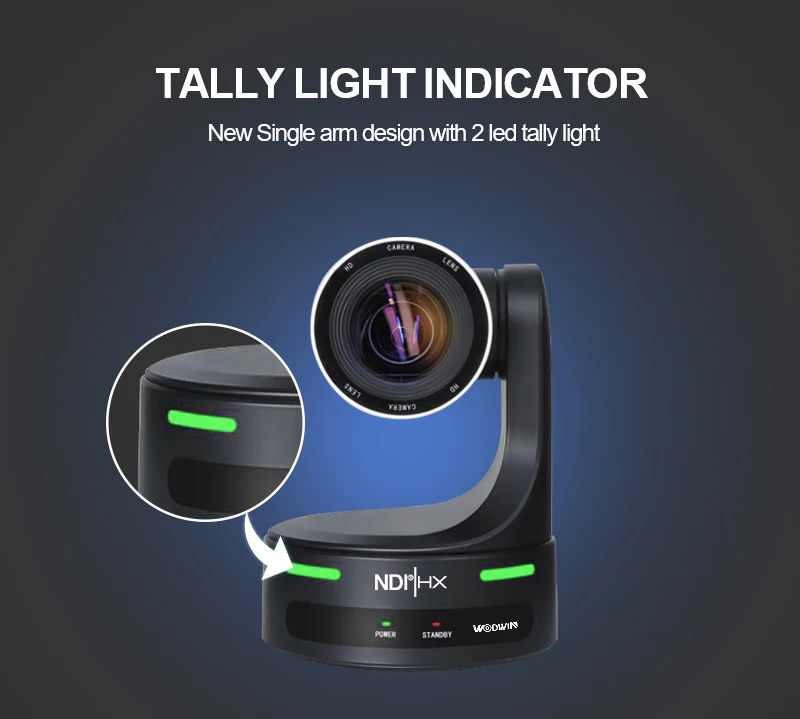

Tally Light Indicator
WIN-J86RN NDI PTZ Video Conference camera is with super green color indicate Tally light, easy to see and easy operate.
NDI Camera WIN-J86 have 20X and 12X Zoom
SDI PTZ Conference Camera WIN-J86 series, have 12X and 20X optical zoom for choice, suitable for middle and large size room.

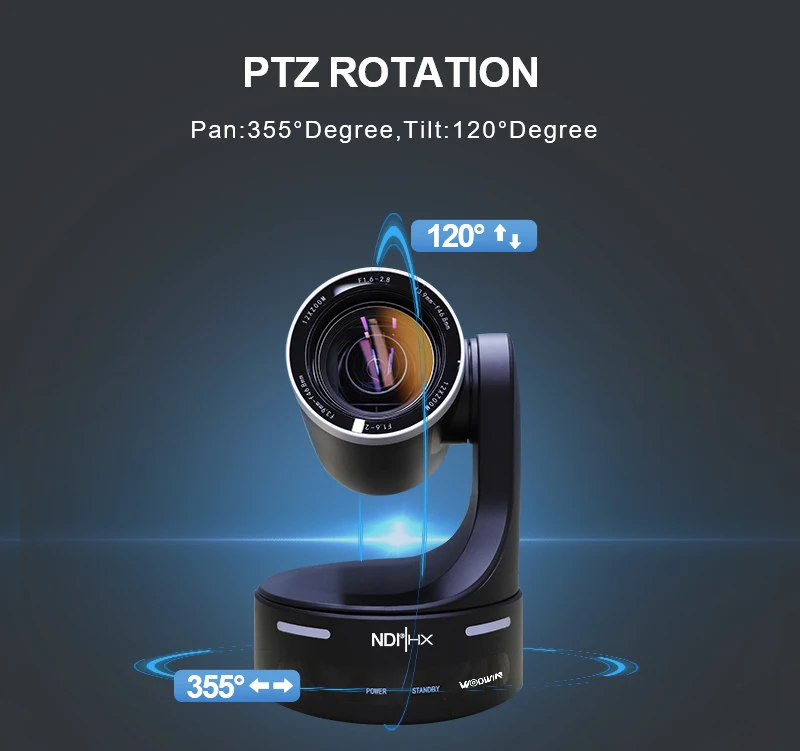

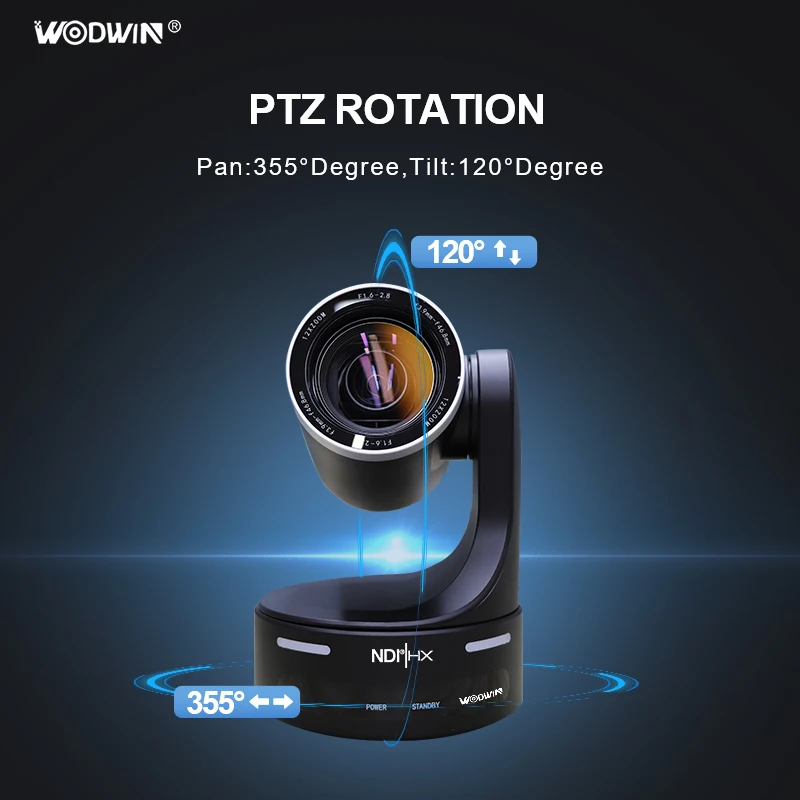

WIN-J86 PAN TILT ZOOM Camera
The PTZ Camera's pan is 355 degree, and the tilt is 120 degree, it is enough for live streaming of different corner and angle of your scene.

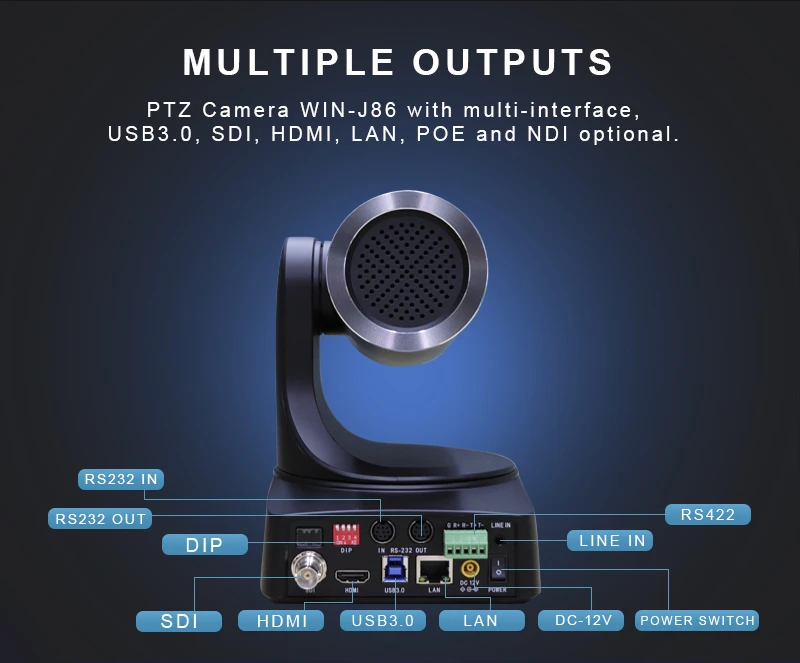

WIN-J86 Multi-interface
The interface of this Video Conference Camera is with USB3.0, HD-MI, LAN, SDI video ports, RS232/422/485 control interface, NDI ports and POE support.

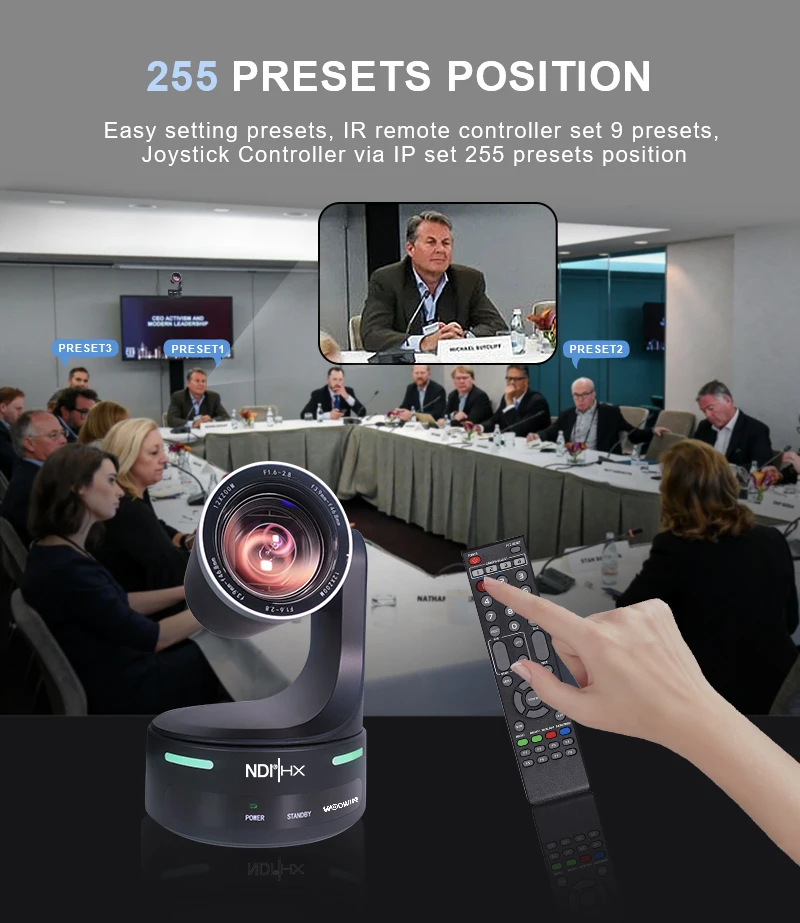

255 Presets Position
Conference Camera WIN-J86 can be set 9 presets via IR Remote and set 255 Presets position via Joystick Controller

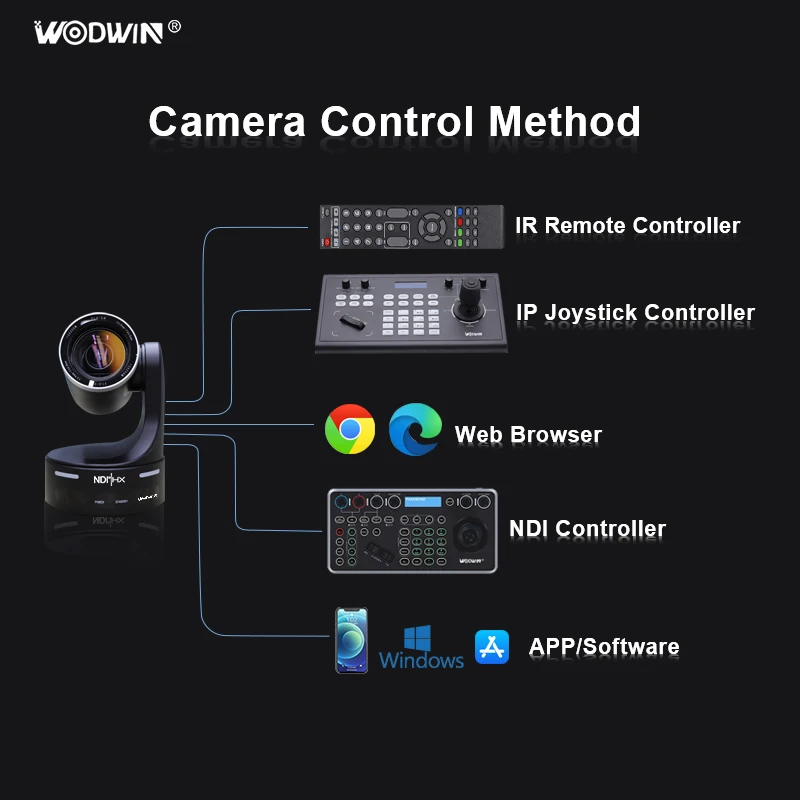

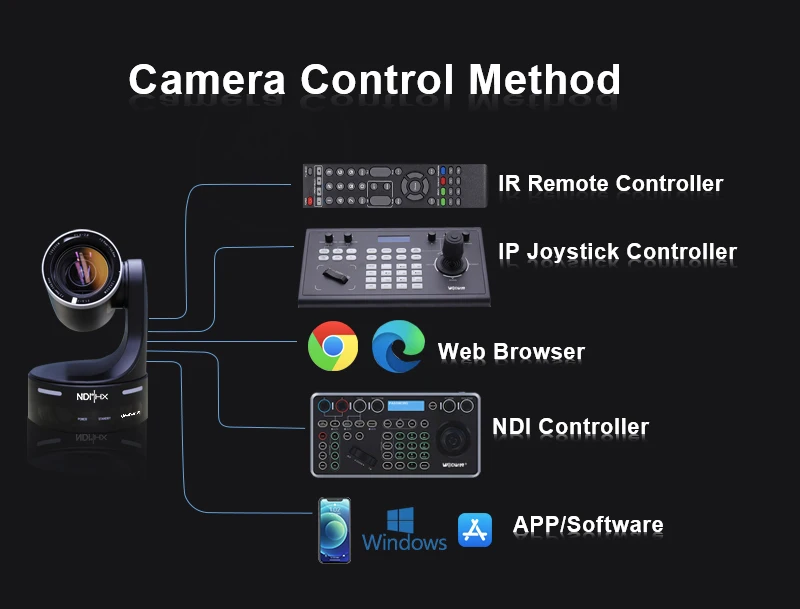

Camera Control Method
WIN-J86 IP POE SDI PTZ Camera can be control by many method, such as NDI or IP Joystick Controller, Ir Remote Controller, IP web browser, or Software such as Vimix, OBS..

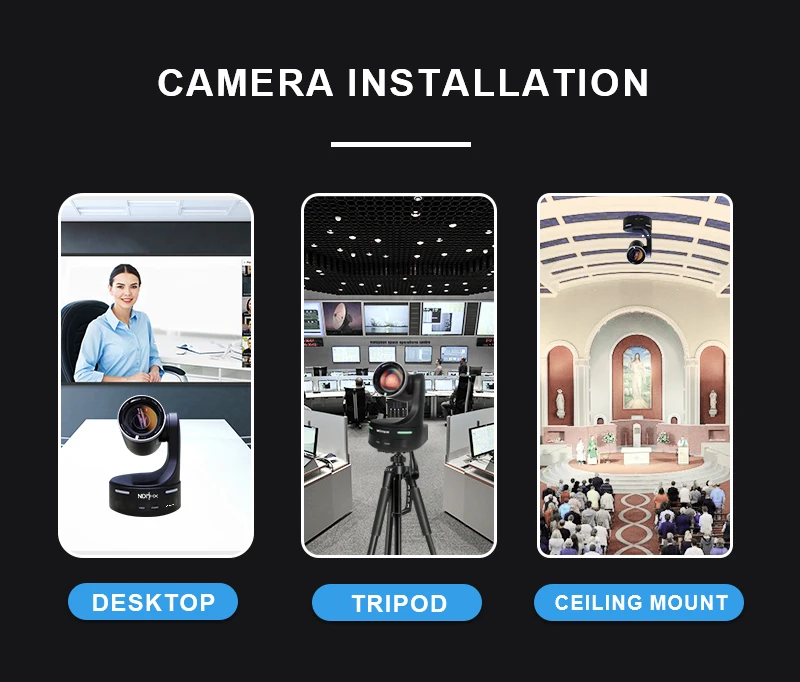

Installation of the NDI Camera
WIN-J86 NDI camera can be install on the wall, ceiling, also by tripod and desktop.
Application of the NDI PTZ Camera
This NDI PTZ Conference Camera can be used in many application such as Conference Room, Government, Concerts, Church, Tele-medicince and so on.
Product Paramenters
Product Name | SDI PTZ Conference Camera | ||
Item No. | WIN-J86RN | WIN-J86AN | |
Effective Pixels | 3.10 Megapixels | 3.50 Megapixels | |
Lens | 12X optical zoom | 20X optical zoom | |
Horizontal View Angle | 72.5°(W)~7.4°(T) | 58.7°(W)~3.2°(T) | |
Interface | HDM1, SDI, USB3.0, IP, NDI, POE | ||
Pan | 355°(max.speed:80°/s) | ||
Tilt | -30°to 90°(max.speed:60°/s) | ||
Signal | PAL/NTSC | ||
Minimu Illumination | 0.1Lux | ||
Protocol | SONY VISCA、PELCO P/D | ||
Control Mode | RS-232C、RS-422/485 | ||
Dimension | (L)147 ×(W)147 ×(H)165mm | ||
Power | 12V DC(10.8～13.0V DC) | ||

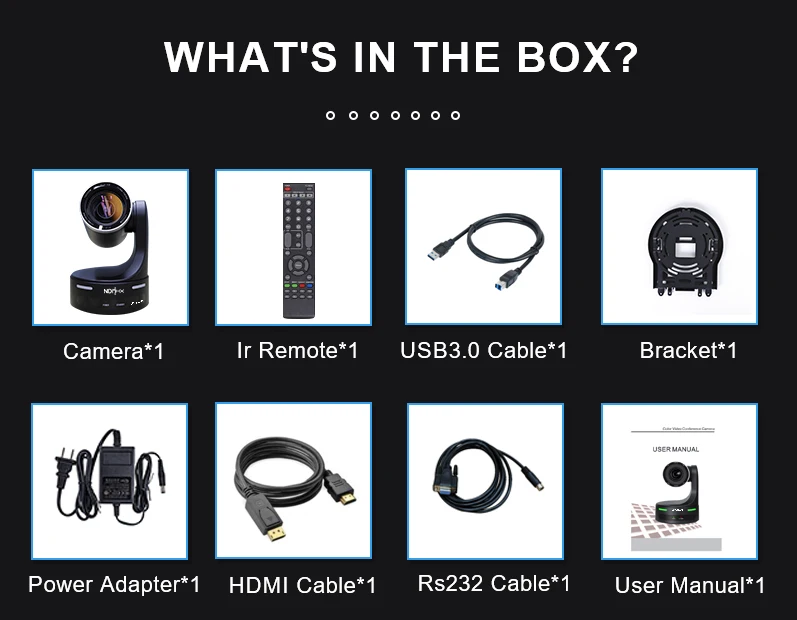

Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDM cable, USB Cable, Ceiling bracket | ||
Product packaging
Recommend Products
WIN-M57S
SDI+HDMI+IP+USB3.0
12X/20X /30X Zoom
WIN-J91AF
SDI PTZ CAMERA
20X or 12X Zoom
WIN-91AF
USB3.0+HDMI+SDI+LAN
12X/20X Zoom
Company Profile
Certifications
FAQ
Q1. Can I have a sample order?
Yes, welcome sample order to test and check quality.
Yes, welcome sample order to test and check quality.
Q2. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT.
It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. What about the lead time?
Sample needs about 2-3 working days,
Small batch production time needs 5-10 days,
OEM or large order need about 14-25 days.
Q4. Could I put my own logo on products?
Sure, with our R&D department, we can do ODM and OEM.
Q5. What`s your warranty period?
The warranty period is 3 years and start from the purchase date.
Q6. How do you guarantee the quality?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
Yes, surely.We have very professional technical team,and it is our responsibility to help our clients
when meet with any technical problem.
Q8. I'm buying with your company at the first time, how can I trust you?
We totally understand if you have some doubt about us at our first cooperation.
You are welcome to visit our company or our factory anytime you like.
You can also choose trade assurance for your order.
Q9. What's your payment term?
Our payment term is TT in advance before shipment.
