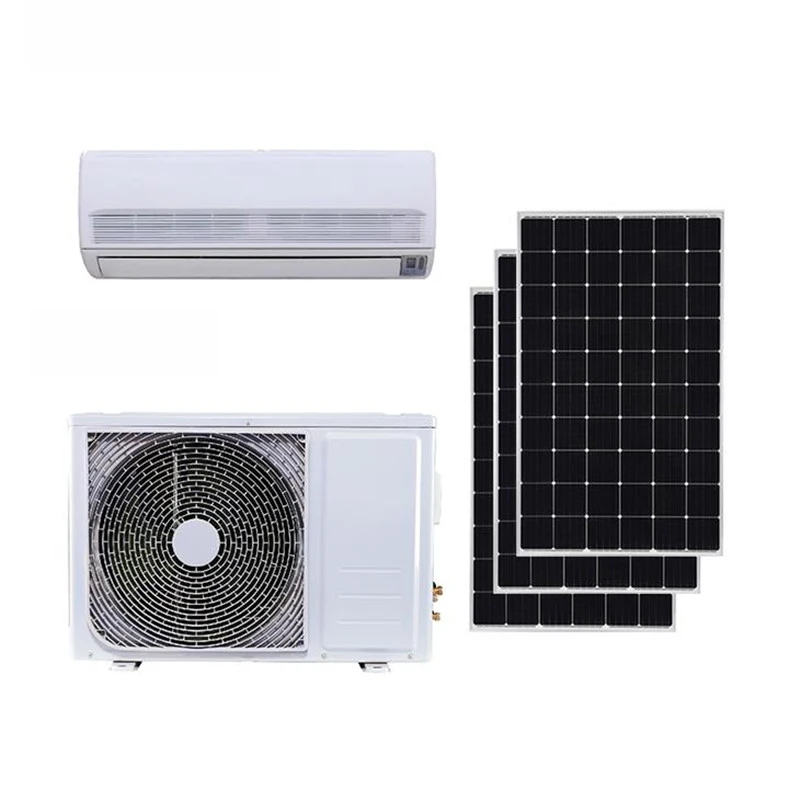

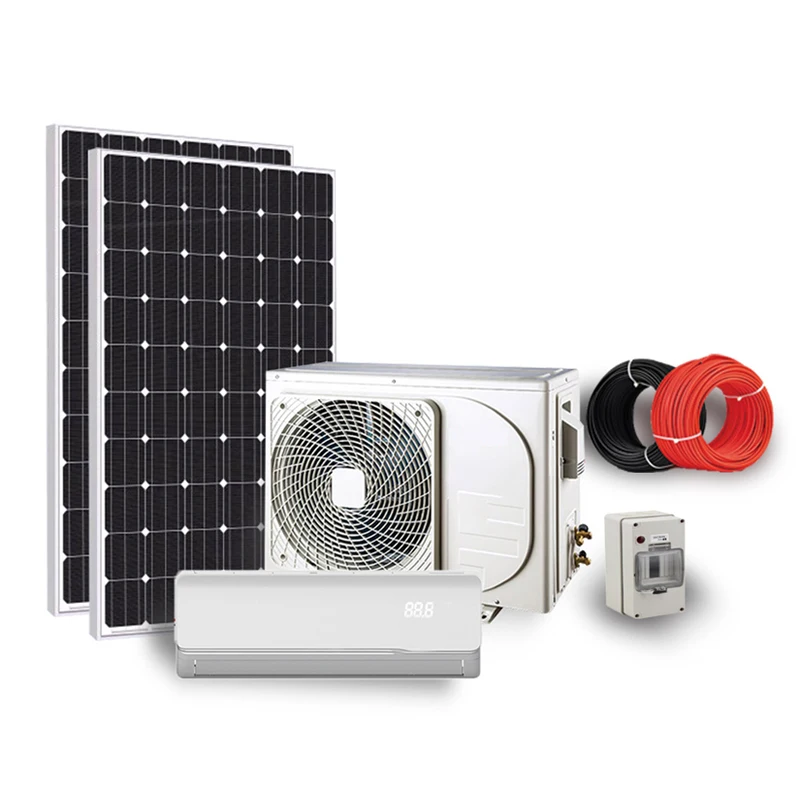

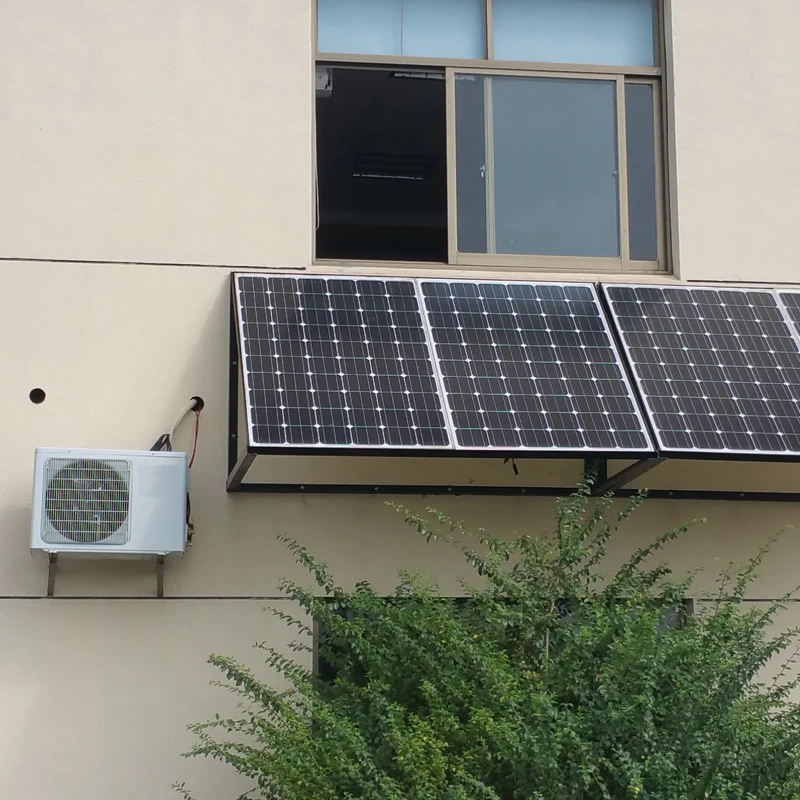

18000 Btu портативный уличный солнечный кондиционер AC DC разделенный Кондиционер
- Category: Solar Applications >>>
- Supplier: Anhui Chenxin Teco. Co. Ltd.
Share on (1600577769756):
Product Overview
Description

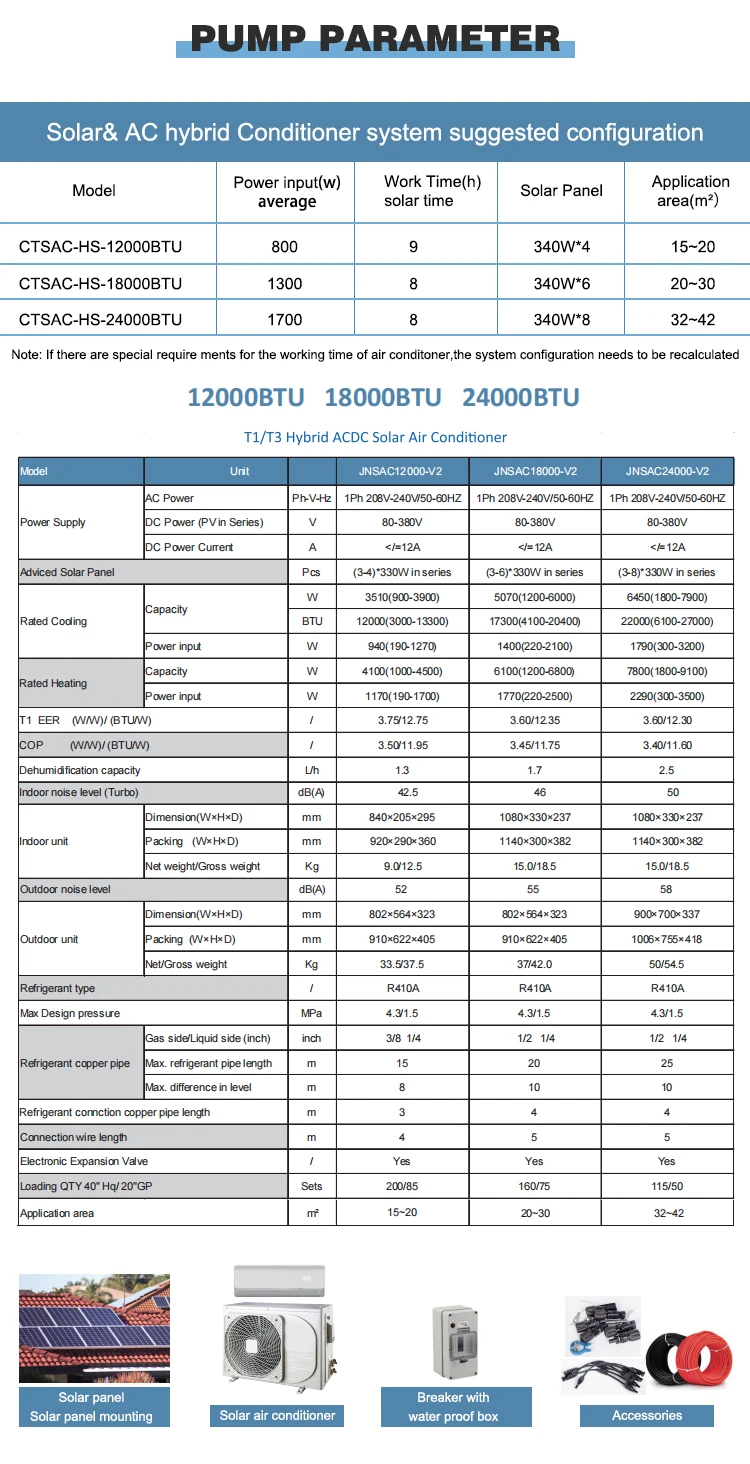

Solar& AC hybrid Conditioner system suggested confifiguration | ||||||||
Model | Power input (w) average | Work Time (h) solar time | Solar Panel | Application area (m²) | ||||
JNSAC-HS-12000BTU | 800 | 9 | 340W*4 | 15~20 | ||||
JNSAC-HS-18000BTU | 1300 | 8 | 340W*6 | 20~30 | ||||
JNSAC-HS-24000BTU | 1700 | 8 | 340W*8 | 32~42 | ||||
Model | Unit | CTSAC12000-V2 | CTSAC18000-V2 | CTSAC24000-V2 | ||
Power Supply | AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ | |
DC Power (PV in Series) | V | 80-380V | 80-380V | 80-380V | ||
DC Power Current | A | ＜/=12A | ＜/=12A | ＜/=12A | ||
Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series | ||
Rated Cooling | Capacity | W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) | |
BTU | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) | |||
Power input | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) | ||
Rated Heating | Capacity | W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) | |
Power input | W | 1170(190-1700) | 1770(220-2500) | 2290(300-3500) | ||
T1 EER (W/W)/ (BTU/W) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 | ||
COP (W/W)/ (BTU/W) | / | 3.50/11.95 | 3.45/11.75 | 3.40/11.60 | ||
Dehumidification capacity | L/h | 1.3 | 1.7 | 2.5 | ||
Indoor noise level (Turbo) | dB(A) | 42.5 | 46 | 50 | ||
Indoor unit | Dimension(W×H×D) | mm | 840×205×295 | 1080×330×237 | 1080×330×237 | |
Packing (W×H×D) | mm | 920×290×360 | 1140×300×382 | 1140×300×382 | ||
Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | 15.0/18.5 | ||
Outdoor noise level | dB(A) | 52 | 55 | 58 | ||
Outdoor unit | Dimension(W×H×D) | mm | 802×564×323 | 802×564×323 | 900×700×337 | |
Packing (W×H×D) | mm | 910×622×405 | 910×622×405 | 1006×755×418 | ||
Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 | ||
Refrigerant type | / | R410A | R410A | R410A | ||
Max Design pressure | MPa | 4.3/1.5 | 4.3/1.5 | 4.3/1.5 | ||
Refrigerant copper pipe | Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | 1/2 1/4 | |
Max. refrigerant pipe length | m | 15 | 20 | 25 | ||
Max. difference in level | m | 8 | 10 | 10 | ||
Refrigerant connction copper pipe length | m | 3 | 4 | 4 | ||
Connection wire length | m | 4 | 5 | 5 | ||
Electronic Expansion Valve | / | Yes | Yes | Yes | ||
Loading QTY 40" Hq/ 20"GP | Sets | 200/85 | 160/75 | 115/50 | ||
Application area | m² | 15~20 | 20~30 | 32~42 | ||
welcome to visit us
Anhui Chenxin Teco. Co., Ltd. headquartered in Anhui Province, China, is a large and professional manufacturer of various Solar products with 15 years of solid experience in the renewable energy industry. we export to over 60 countries including the US, Brazil, Mexico,Germany, Spain, UK, South Africa, Iran,Israel, Pakistan and more. By adhering to our mission, creating value for our customers, providing employee opportunities and bringing wealth to society, we hope to achieve exceptional success with all partners through exceptional products, reputation,and services.
