Макита MFRS A1 032 315x150 магнитных патронах для дробления Универсальный шарнирный робот
- Category: Lifting, Pulling & Positioning >>>
- Supplier: Shanghai Thinkfon Trading Co. Ltd.
Share on (1600587485382):
Product Overview
Description
The world's competence leader for gripping systems and clamping technology and leading technology supplier of robots and production machines.
The world's largest product portfolio of gripping systems and clamping technology with more than 11,000 standard components
All the leading large and medium-sized companies in the automotive, machine building, robotics, assembly and handling, aviation, metal cutting industries and many more.
Description

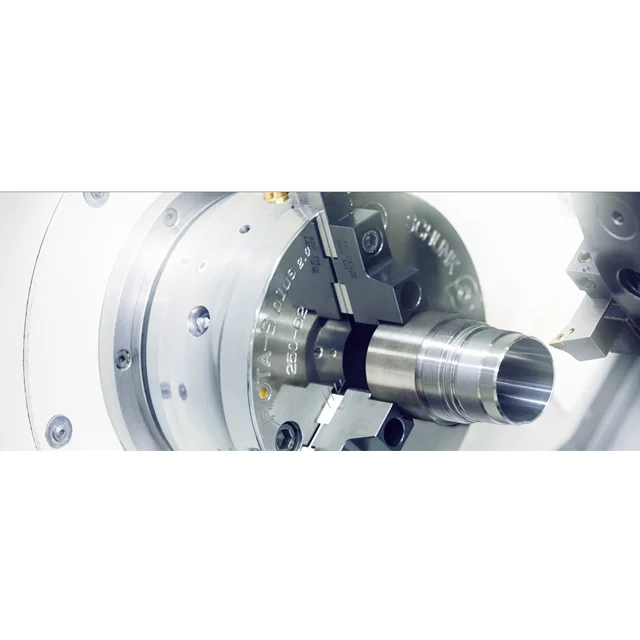

SCHUNK offers the best solutions for the best results - for over 50 years. Using the best clamping technology available for your tools and workpieces is the key for ensuring the safety, efficiency, and high- precision of your processes in chip removal machining.
We develop, manufacture, and optimize powerful, economical products and solutions for the machine and machine room that are
tailored to the individual needs of each customer and application. The standard of our work raises the bar for such products and
sets new benchmarks in the ongoing development of clamping technology - and has been doing so for more than 50 years.
tailored to the individual needs of each customer and application. The standard of our work raises the bar for such products and
sets new benchmarks in the ongoing development of clamping technology - and has been doing so for more than 50 years.
Advantages
By flexibly combining our standard components, we can solve pneumatic, hydraulic or mechanical clamping tasks efficiently and at low cost. Our VERO-S quick-change pallet system for workpieces, pallets, clamping stations, and tombstones can reduce your set-up times by up to 90 percent.On top of that, our comprehensive Total Tooling range of easy-to-use, precision toolholders ensures longer tool service life and optimal machining results and workpiece surfaces. Special tasks require special solutions, especially for workpieces that present new challenges in terms of precision or output.
Together with the world's most extensive range of standard chuck jaws - over 1,200 different types - we act as an all-in-one supplier for effective, economical solutions of the highest quality.
Special tasks require special solutions. We have been developing and producing customized clamping solutions for more than 35 years. An enlarged jaw stroke, modified base jaw interfaces, lathe chucks with reduced clamping force - these are just a few examples of our custom modifications. We can modify products from our standard range or build 100% customized solutions - whatever you require

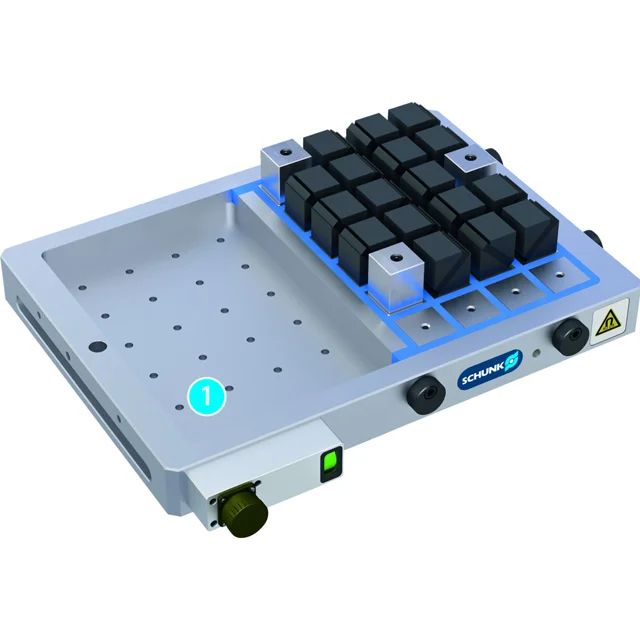

Magnetic chucks with extremely high holding forces for milling applications as an ideal clamping solution for powerful metal
cutting processes with simultaneous 5-sided workpiece machining in a single set-up.
cutting processes with simultaneous 5-sided workpiece machining in a single set-up.
Workpiece weight
is calculated for force-fit gripping with a coefficient of static friction of 0.1 and a safety factor of 2 against workpiece slippage at acceleration due to gravity g. For form-fit or capture gripping, there are significantly higher permissible workpiece weights.
Advantages
Solid base body
For optimum clamping results with an additional coating against corrosion
Mounting groove
For mounting the magnetic chuck via clamping claws
Mounting bore
For direct mounting of the magnetic chuck to the machine table

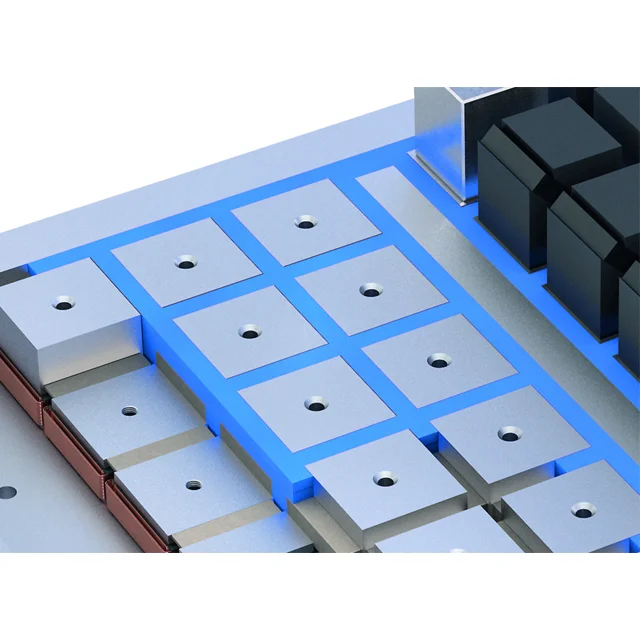

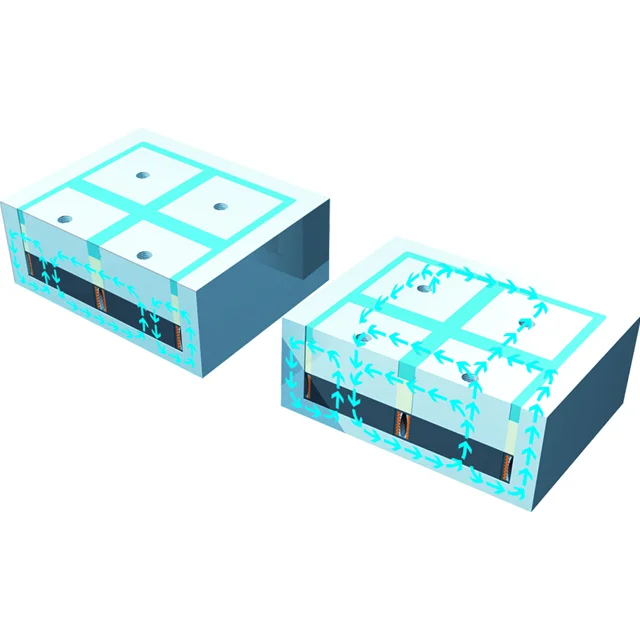

Invertible AlNiCo magnets
Embedded in the coil - for activating or deactivating of the magnetic chuck
Coil body, insulated version
For transmitting pulses for activation or deactivation of the magnetic chuck
Steel pole
For transferring the magnetic field to the workpiece and for mounting the pole extensions
Synthetic resin grounting
For sealing the magnetic chuck and sealing cavities
For optimum clamping results with an additional coating against corrosion
Mounting groove
For mounting the magnetic chuck via clamping claws
Mounting bore
For direct mounting of the magnetic chuck to the machine table
Invertible AlNiCo magnets
Embedded in the coil - for activating or deactivating of the magnetic chuck
Coil body, insulated version
For transmitting pulses for activation or deactivation of the magnetic chuck
Steel pole
For transferring the magnetic field to the workpiece and for mounting the pole extensions
Synthetic resin grounting
For sealing the magnetic chuck and sealing cavities
Field of application
For all horizontal machining centers to increase the machine running time
Clamping force
Additional shank diameters can be clamped using intermediate sleeves
Height tolerance of the vise
±0.04 mm. Clamping force blocks with the same height are available on request.
Repeat accuracy
Results from the end position spread after 100 consecutive strokes
Scope of delivery
Tombstone, cover, shipping screws, operating manual; without clamping pins, without locking coupling

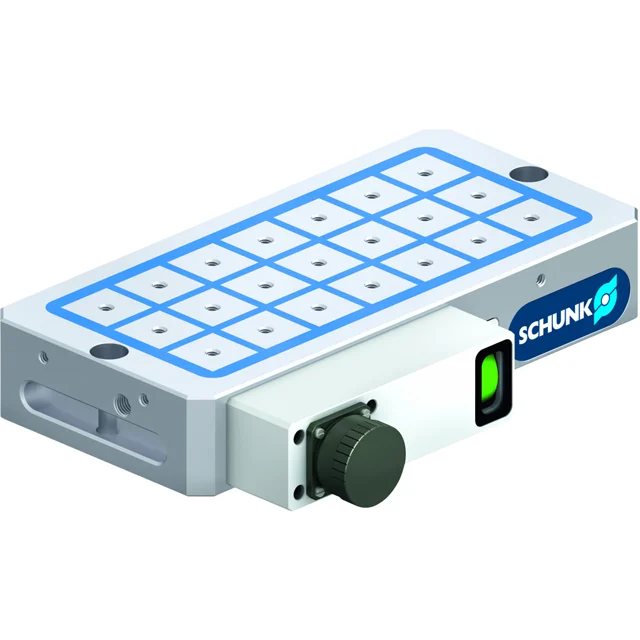

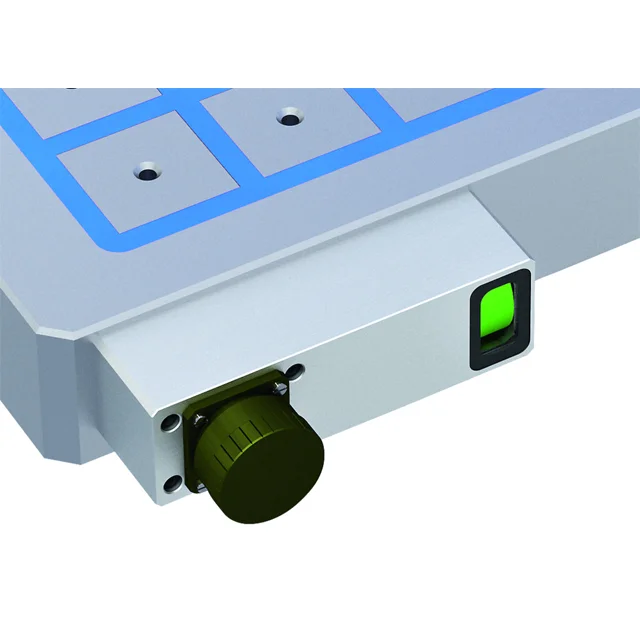

ID | 0423104 | Connection | 4-PIN |
L [mm] | 315 | Amount of channels | 1 |
B [mm] | 150 | Mains voltage | 400V/460V |
H [mm] | 55 | Min. workpiece thickness [mm] | 4 |
Max. clamping force [kN] | 26 | Weight [kg] | 20 |
Number of poles | 24 |
Fully automatic sorting of curtain clips | ||
Workpiece Plastic curtain hooks | Task Sorting, testing, and depositing curtain clips on a conveying belt. | |
Solution Two SCHUNK MPG-plus grippers for small components grip two curtain clips each and deposit them on the conveying belt. If the optical test is negative, the information is sent to the gripper, and the faulty clip is deposited in a reject container. | Customer benefits The cycle times are significantly shortened and the parts are precisely handled. | |
Q1. Are you a trading company or a manufacturer?
We are a trading company.
Q2. What is your minimum order quantity?
One set
Q3. How long is your preparation time?
our product preparation time is about 7-15 days. If we have stock, we can deliver the goods immediately.
Q4.: Is there a warranty for the goods?
it is usually guaranteed for one year after delivery, except for manual damage.
Q5. How to process orders?
first of all, please let us know your request or application. In addition, we offer according to your requirements or our suggestions.
first of all, please let us know your request or application. In addition, we offer according to your requirements or our suggestions.
