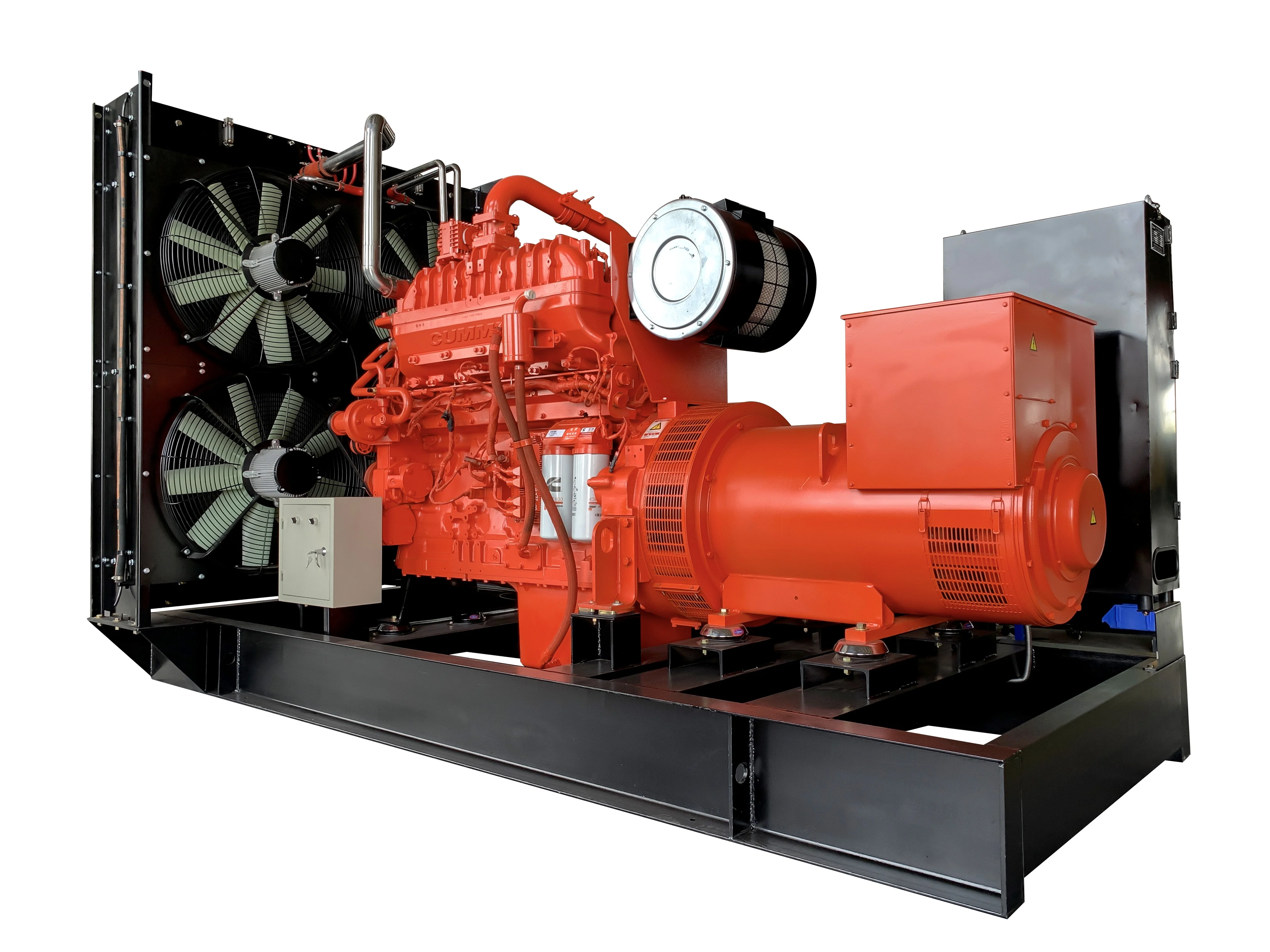

300kw Natural gas generator with original cummins QSK19 gas engine
- Category: Gas Turbine Generators >>>
- Supplier: Weifang Yidaneng Power Co. Ltd.
Share on (1600601072165):
Product Overview
Description

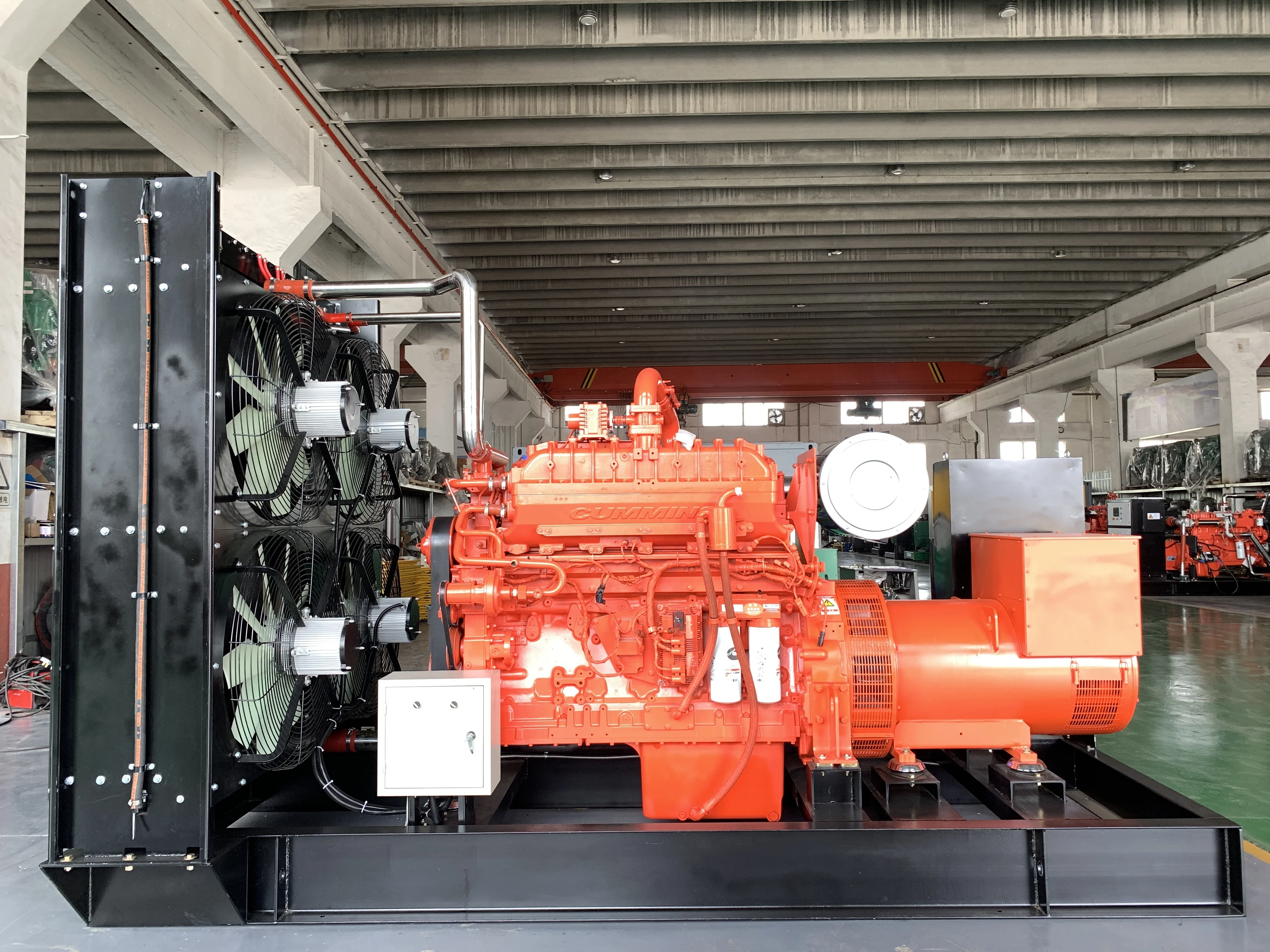

The first original QSK19 engine testing in the generator set in YDN POWER FACTORY
Cummins China exclusive OEM
Please log in to Cummins official website to check the warranty service location
Specification
320kW CUMMINS NATURAL GAS GENERATOR TECHNICAL PARAMETERS | ||||
Model | YDNC-320 | |||
Rated power (kW/KVA) | 320/400 | |||
Rated voltage(V) | 220/380 | |||
Frequency(Hz) | 50/60 | |||
Rated current (A) | 576 | |||
Size (mm) | 3800*1780*2100 | |||
Weight (kg) | 3800 | |||
Engine | Model | QSK19N | ||
Type | Four-stroke, Water-cooling ,L6-type | |||
Rated Power(kW) | 360 | |||
Rated Speed(rpm) | 1500 | |||
Cylinder No. | 6 | |||
Bore*Stroke(mm) | 159×159 | |||
Cooling Method | Water-cooling | |||
Oil Consumption(g/KWH) | ≤1 | |||
Gas Consumption(Nm³) | ≤84/Hour@100%Load | |||
Starting method | 24V DC | |||
Alternator | Brand | MECC ALTE (Italian) | ||
Model | 320 | |||
Rated Power(kW/KVA) | 320/400 | |||
Efficiency | 94.2% | |||
Voltage Regulation | ≦±1 | |||
Excitation mode | Brushless, Self Excitation | |||
Insulation Class | H | |||

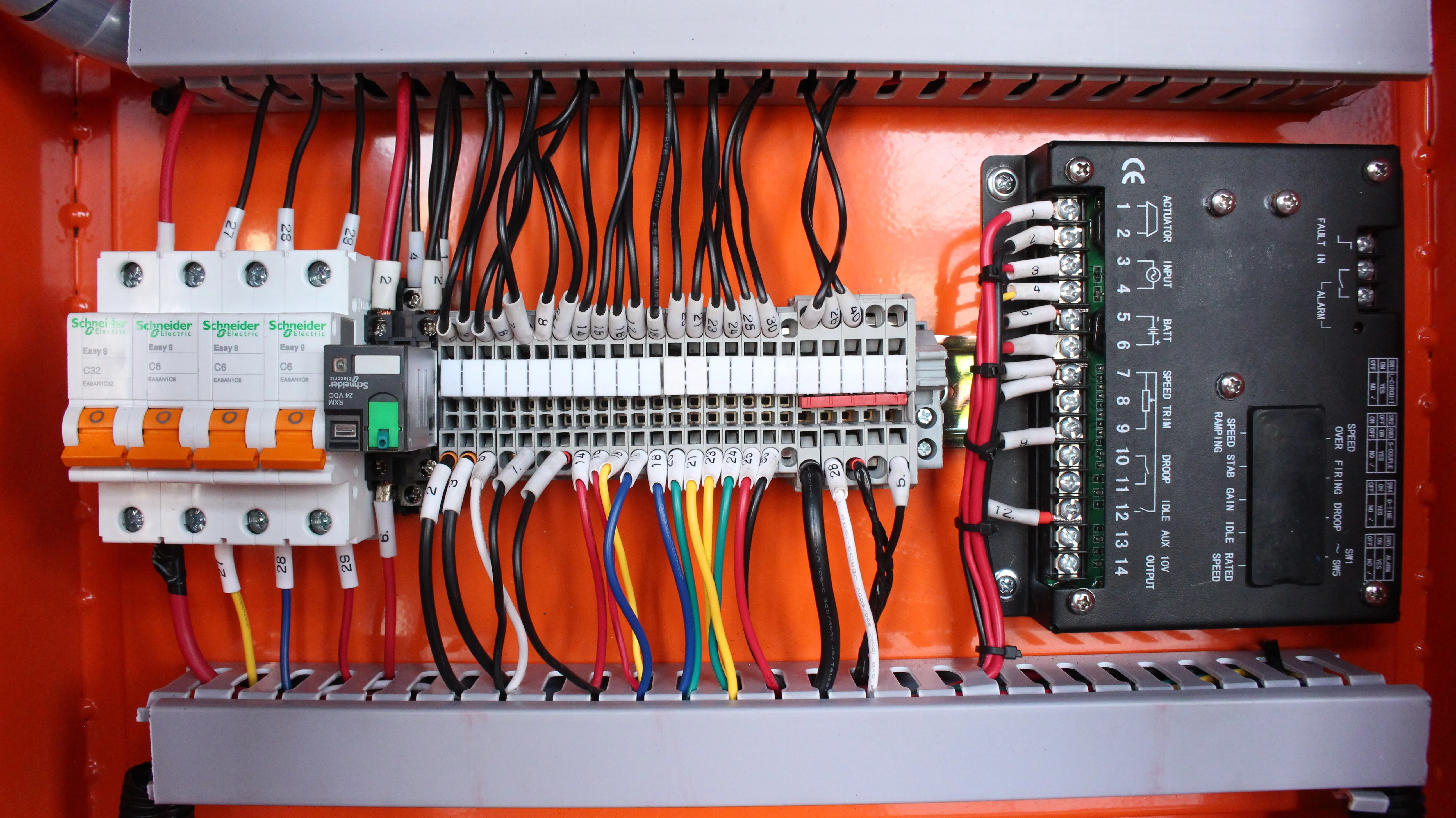

Control System | Model | DSE (UK) | ||
Working Voltage | DC8.0V - DC35.0V | |||
Overall Dimensions | 266 mm x 182 mm x 45 mm | |||
Panel Cutout | 214mm x 160mm | |||
Working Condition | Temperature：(-25~+70)°C Humidity：(20~93)% | |||
Weight | 0.95kg | |||
Customer Photos
Company Profile
Certifications
Marketing Campaign
BEST PRICE with 100% ORIGINAL CUMMINS GAS ENGINE
AFTER SERVICE we have certifications of CUMMINS engine After-service point.(Spare parts available)
Design with longterm running generator，24 hours * 7 days Running available
Payment with Multiple financial payment methods.
Packing & Delivery
Contact us for more solutions~
WE can do BIOGAS Solution Plan- biogas purification system
CNG generator with CNG cylinders set solution
Natural gas generator solution
