Haida HD210L Hair Dryer Housing Plastic Spoon Making Machine Plastic cap Injection Molding Machine
- Category: Injection Molding Machines >>>
- Supplier: Ningbo Chunnoo Machinery Company Limited
Share on (1600604302761):
Product Overview
Description
PRODUCTS DESCRIPTION
ITEM | UNIT | DATA | ||||||
Injection Unit | Screw Diameter | mm | 45 | 50 | 55 | |||
Screw L/D Ratio | L/D | 23.3 | 21 | 19.1 | ||||
Injection Volume | cm3 | 366 | 452 | 546 | ||||
Shot Weight | g | 333 | 411 | 497 | ||||
Injection Pressure | Mpa | 221 | 179 | 148 | ||||
Clamping Unit | Clamping Force | kN | 2100 | |||||
Opening Stroke | mm | 500 | ||||||
Mould Thickness(Min-Max) | mm | 200-550 | ||||||
Space Between Tie-Bars | mm | 530×530 | ||||||
Ejector Force | kN | 70 | ||||||
Ejector Stroke | mm | 165 | ||||||
General | Motor Power | kW | 18.5 | |||||
Heater | kW | 12.6 | ||||||
Pump Pressure | Mpa | 16 | ||||||
Machine Dimension | m | 5.89×1.38×2.24 | ||||||
Machine Weight | T | 7 | ||||||
Mould Orientation Ring Diameter | mm | Φ160 | ||||||
Nozzle Radius | mm | SR15 | ||||||
AFTER-SALES SERVICE
Company Profile

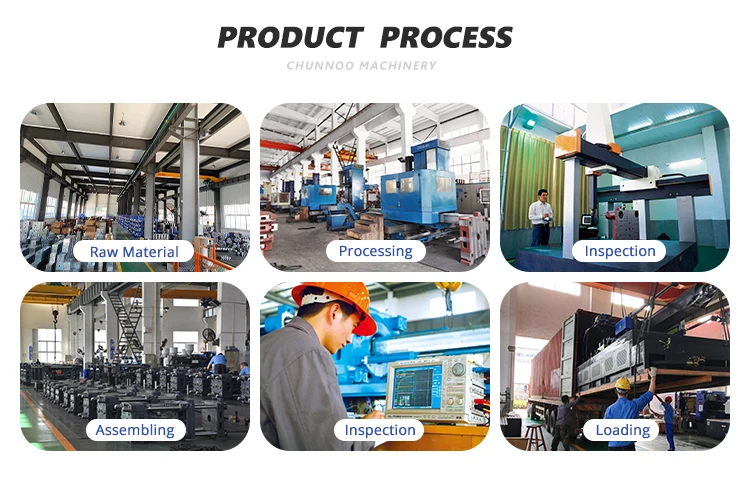

Manufacturing Technique
Exhibition

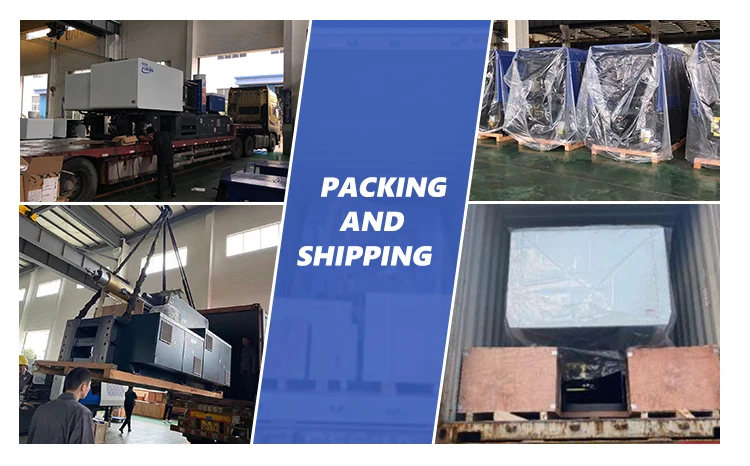

Product Packing
Certifications And Delivery Time
FAQ
1. What's your special service?
eg: We provide one-stop service, from injection molding machines to auxiliary machines to molds, things of which allow you to purchase in China.
2. Can the machine customized for my products?
eg: we have specail machines for some specail products. also can customized the screw and barrel, base height and structure, hydraulic system, electric design , machine colors and others.
3. Delivery time
eg: Normally Machine orders takes 30 days after pre-payment received, mold order takes 45 days after confirm theproduct drawing or mold drawing. Special and customized orders, please inquiry sales.
4. Where is your factory located? How can I visit there?
eg: Our factory is located in Ningbo City, Zhe Jiang Province, China. There has flight from Shanghai(1 hour), Guang Zhou(2 hrs) and Shen Zhen(2 hrs) to our city. Train from Shanghai to our city is 2 hrs. Welcome to visit our factory.
5. Can you engineer come to our place to help with machine installation & commission?
eg: Yes, our engineers are available to travel to your place under safe situation. Round flight tickets & accommodation need you bear it.
6. Can I trust you?
eg:We're Alibaba verified supplier & Alibaba Trade Assurance Supplier. We manufactured injection machine for about 30 years and have many clients all of the world.
eg: We provide one-stop service, from injection molding machines to auxiliary machines to molds, things of which allow you to purchase in China.
2. Can the machine customized for my products?
eg: we have specail machines for some specail products. also can customized the screw and barrel, base height and structure, hydraulic system, electric design , machine colors and others.
3. Delivery time
eg: Normally Machine orders takes 30 days after pre-payment received, mold order takes 45 days after confirm theproduct drawing or mold drawing. Special and customized orders, please inquiry sales.
4. Where is your factory located? How can I visit there?
eg: Our factory is located in Ningbo City, Zhe Jiang Province, China. There has flight from Shanghai(1 hour), Guang Zhou(2 hrs) and Shen Zhen(2 hrs) to our city. Train from Shanghai to our city is 2 hrs. Welcome to visit our factory.
5. Can you engineer come to our place to help with machine installation & commission?
eg: Yes, our engineers are available to travel to your place under safe situation. Round flight tickets & accommodation need you bear it.
6. Can I trust you?
eg:We're Alibaba verified supplier & Alibaba Trade Assurance Supplier. We manufactured injection machine for about 30 years and have many clients all of the world.
