Product Overview
Description
Products Description
Model | 400kn |
Table effective area (mm) | 600mm * 650mm |
Table height(mm) | 800mm |
Opening Height(mm) | 500mm |
Cylinder Stroke(mm) | 300mm |
Nominal pressure (kn) | 400kn |
Four-column size(mm) | 60mm chrome plated |
Type of Electricel Control | Point and automatic 2 functions Use electrical contact stroke control |
Motor power (Kw) | 5.5kW (pure copper core) |
Control type | Stop fast. Press down with both hands. Including photoelectric protection |
Press-working of sheet metal | Downstroke press |
Hydraulic design principle | Solenoid cartridge valve with adjustable pressure |
Dimensions | L1.65m*W0.8m*H2.1m |

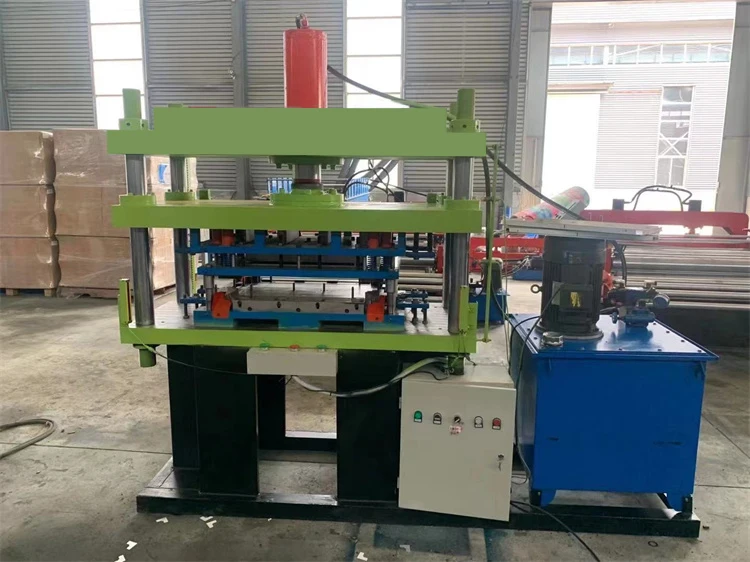

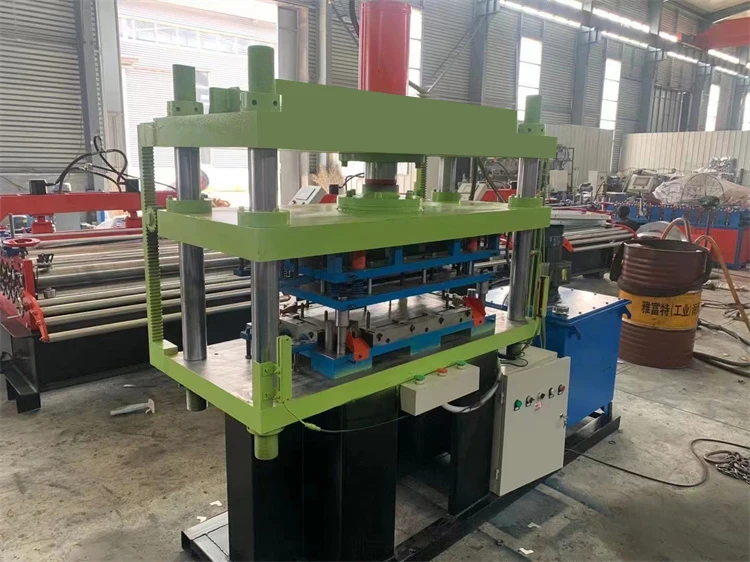

Aluminum gusset integrated ceiling roll forming machine metal ceiling making machine

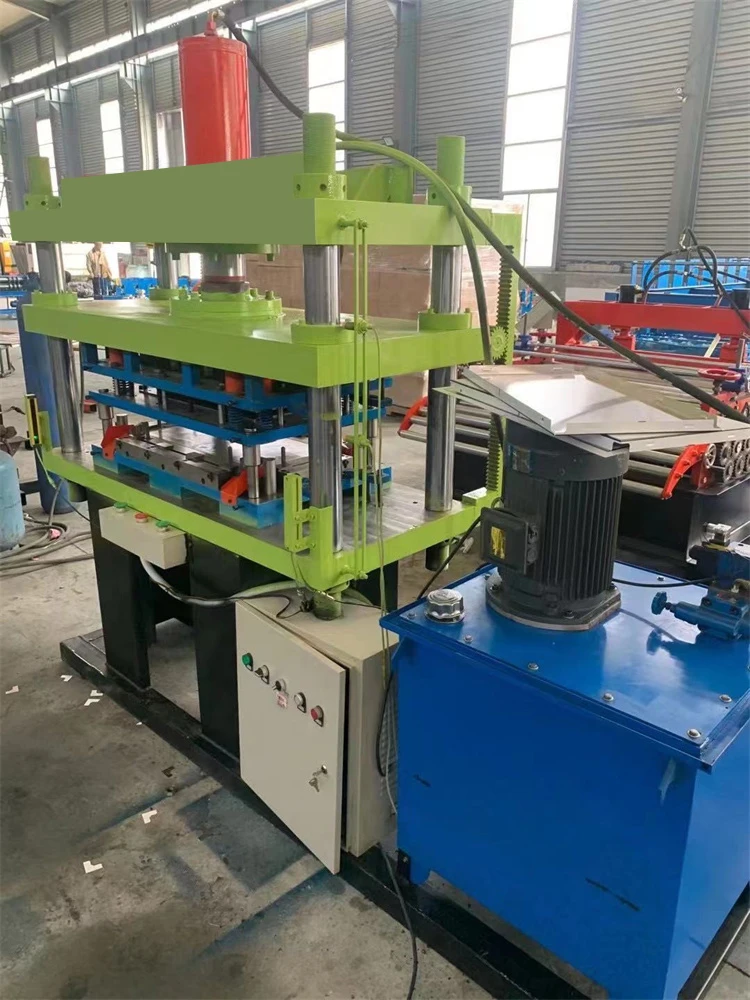

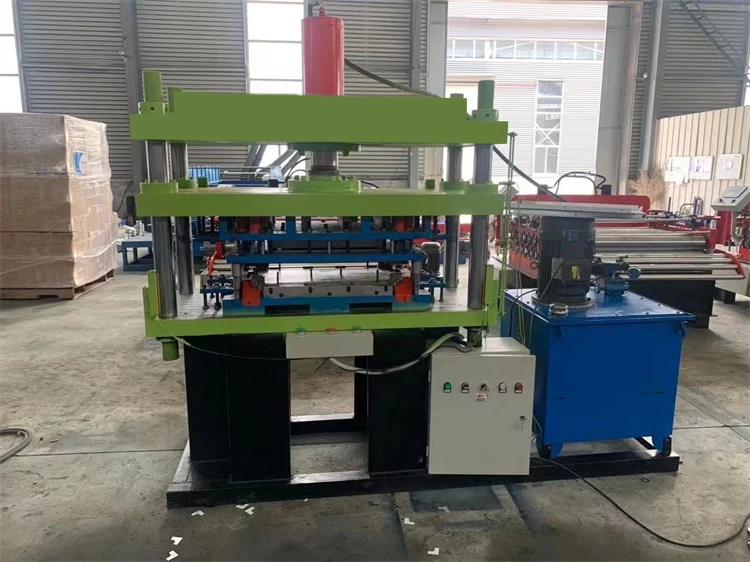

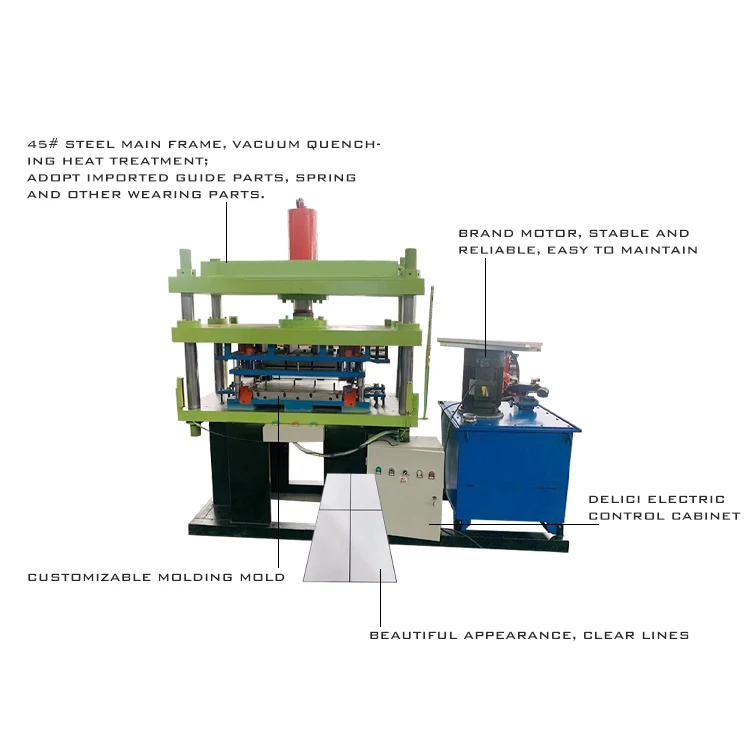

The integrated ceiling hydraulic press is a machine that uses liquid as the working medium and is made according to Pascal's principle to transmit energy to realize various processes. The hydraulic press is generally composed of three parts: the machine (host), power system and hydraulic control system. There are valve hydraulic presses, liquid hydraulic presses, and engineering hydraulic presses; the body of the integrated ceiling forming machine adopts a three-beam four-column structure, and the upper beam and the worktable are combined into a fixed frame through the column, the fastening nut and the adjusting nut; the fully automatic integrated ceiling machine The precision of the frame is adjusted by the adjusting nut, and it has good strength, rigidity and precision retention.
Eatures of equipment
1. Simple circuit, reliable use, easy maintenance

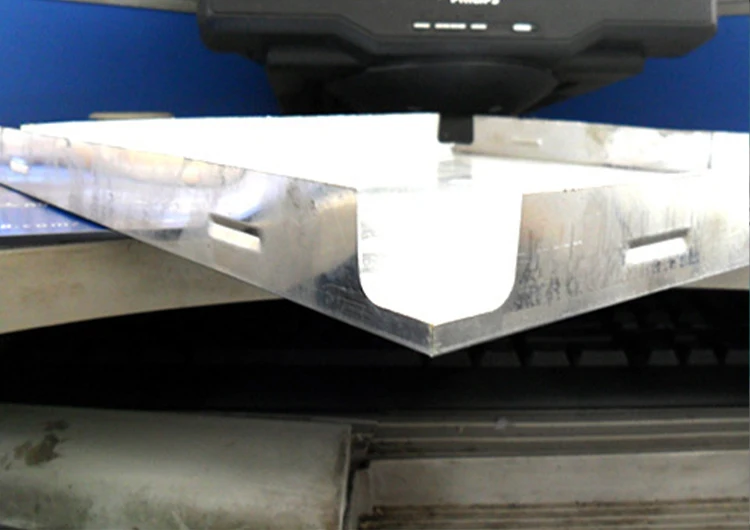

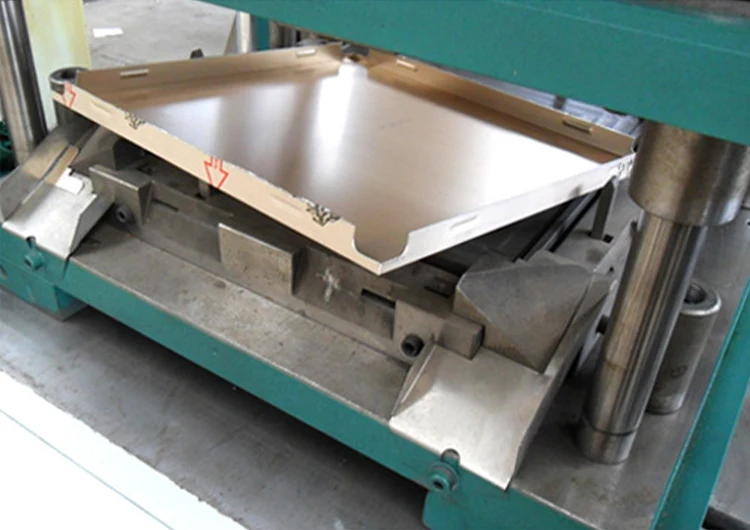

2. Manual feeding, one step in place automatically cut corners, fold four sides, double buckle and trademark.
3. Can customize the mold, various styles.
4. Simple operation, high efficiency.
2. Manual feeding, one step in place automatically cut corners, fold four sides, double buckle and trademark.
3. Can customize the mold, various styles.
4. Simple operation, high efficiency.

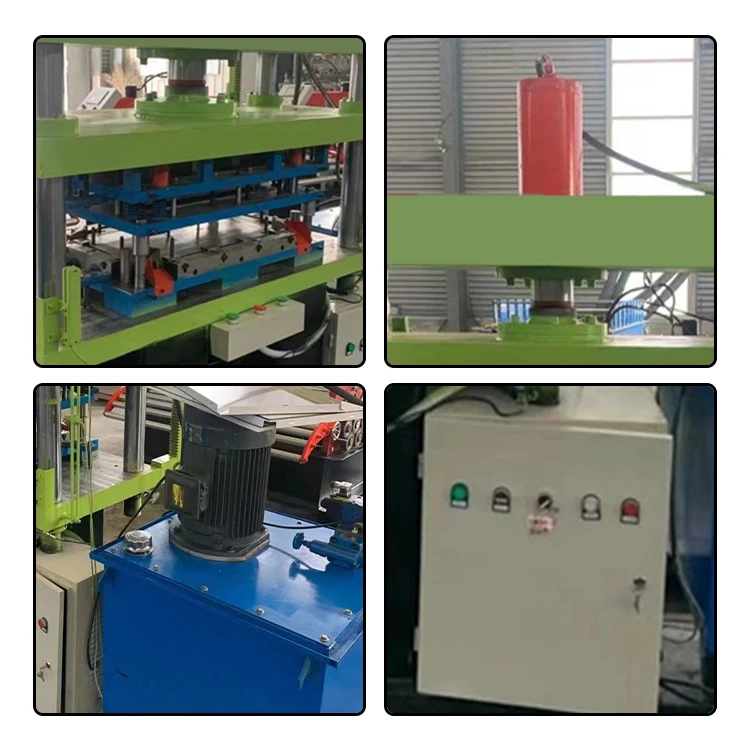

Product Details
Why Choose Us
FQA
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 15 to 30 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 15 to 30 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation.
