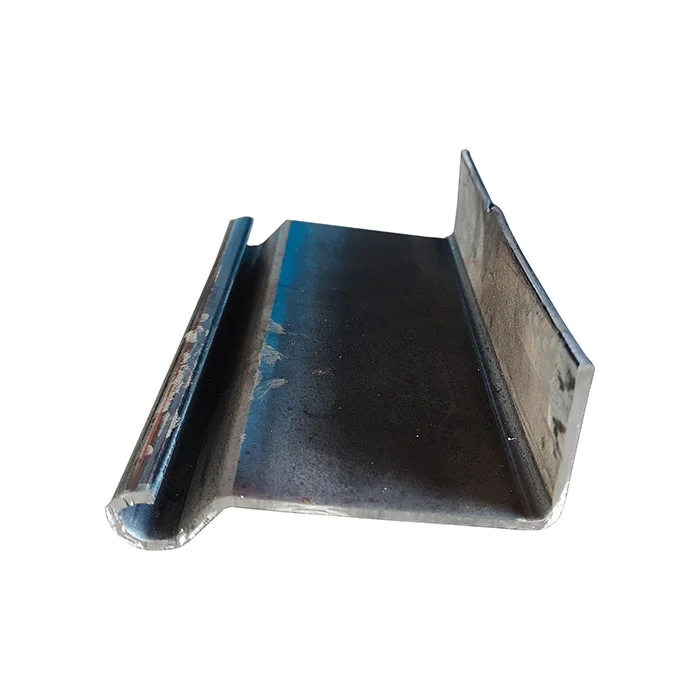

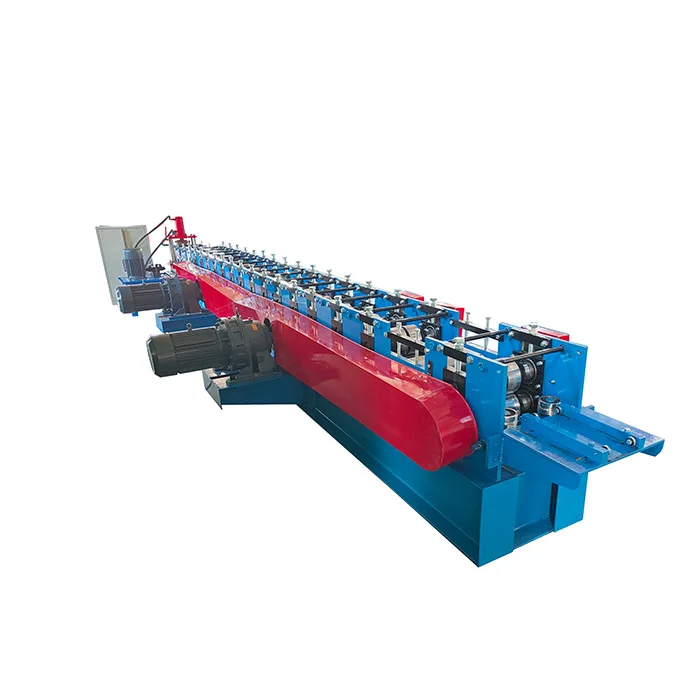

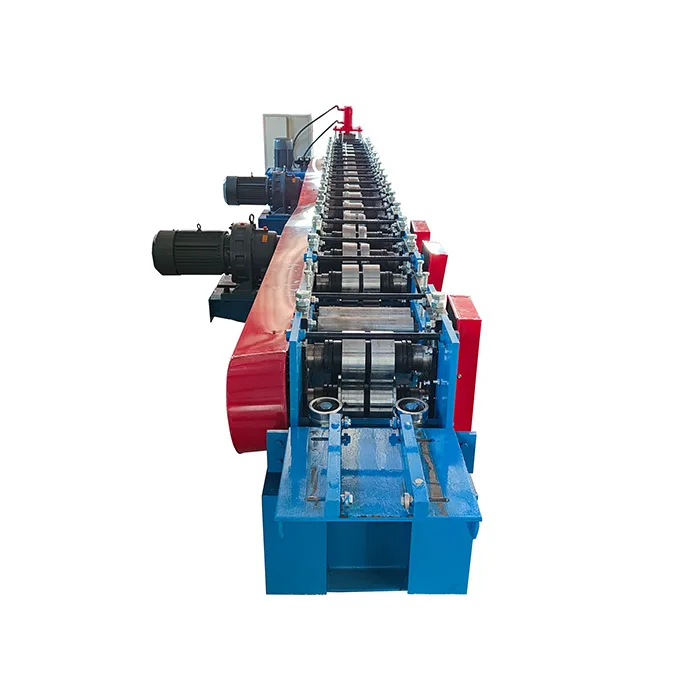

End slat rolling shutter door forming machine rolling shutter door roll forming machine
End slat rolling shutter door forming machine rolling shutter door roll forming machine
End slat rolling shutter door forming machine rolling shutter door roll forming machine
End slat rolling shutter door forming machine rolling shutter door roll forming machine
End slat rolling shutter door forming machine rolling shutter door roll forming machine
End slat rolling shutter door forming machine rolling shutter door roll forming machine
End slat rolling shutter door forming machine rolling shutter door roll forming machine

End slat rolling shutter door forming machine rolling shutter door roll forming machine

Share on (1600608802610):


Price:$9,000.00 - $10,000.00

Quantity:


Product Overview

Description


(1). Brief Introduction


The Roof tiles made by oursingle layer roofing roll forming machine for roof panel have beautiful appearance and bright color.


They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,


ancient architectures and modern villas.







2). Working Flow of Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine,Cold Galvanizing Line

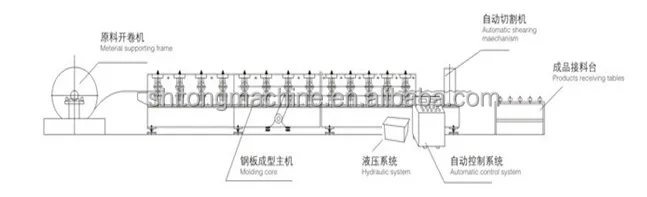

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter


.jpg


(3) .Technical Detail


A   Sheet Specifications





















1



Coil Type



PPGI GI



3



Thickness



1.2-1.5mm



4



Yield stress



Q235






B Components Details




































 Roller Material



 High grade 45# steel. Hard chrome plating, 0.05mm.



 Main Frame



 300# steel. More stable and no shaking.



 Middle Plate



 16mm. We use thicker plates to ensure stability


 of our products.



 Forming Steps



 16 rollers



 Shaft Material



 Φ70 mm, high grade 45# steel.



 Treating process: tempering- finish turning,


 high rigidity, hard to deform.



 Cutting


 Blade Material



 Cr12, hardness HRC60-62.



 Treating process: heat treatment- plane abrasion-  wire electrode cutting.



C. Electric Components
































 Suitable Power



 380V, 50 Hz, 3 phase or according to your need.



 Screen



 7 inch touch screen, easy to operate.



 PLC



 Delta DVP 14ES



 well-adapted to various conditions, such as moisture,


 electromagnetic  disturbance.



 Frequency Converter



 Delta VFD-M. It has the advantage of slowing down before cutting,


 to ensure the length  accuracy (±1mm,


 far better than industrial standard ±3mm).



 Length


 Measurement Device



 Omron, made in Japan.



 It features with high accuracy and stability.

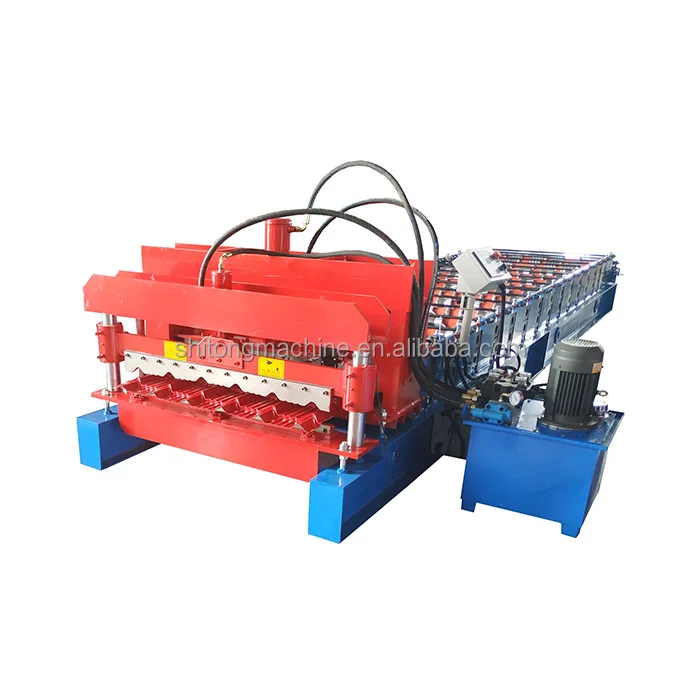

4. We have other Roll Forming Machine for your reference



We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,


shutter door machine, floor decking machine and other associated equipment.


Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.

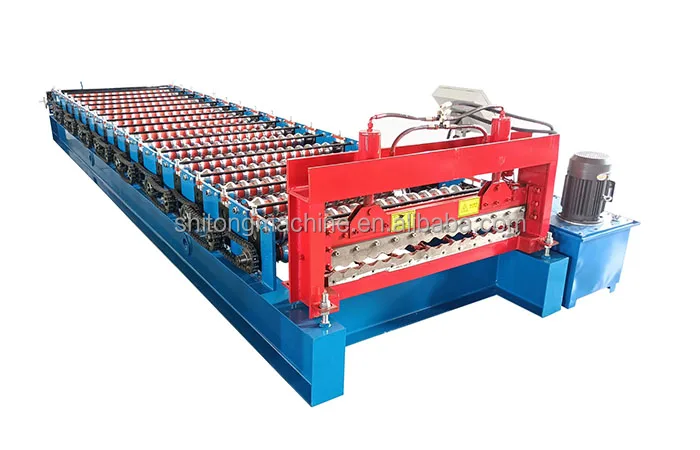

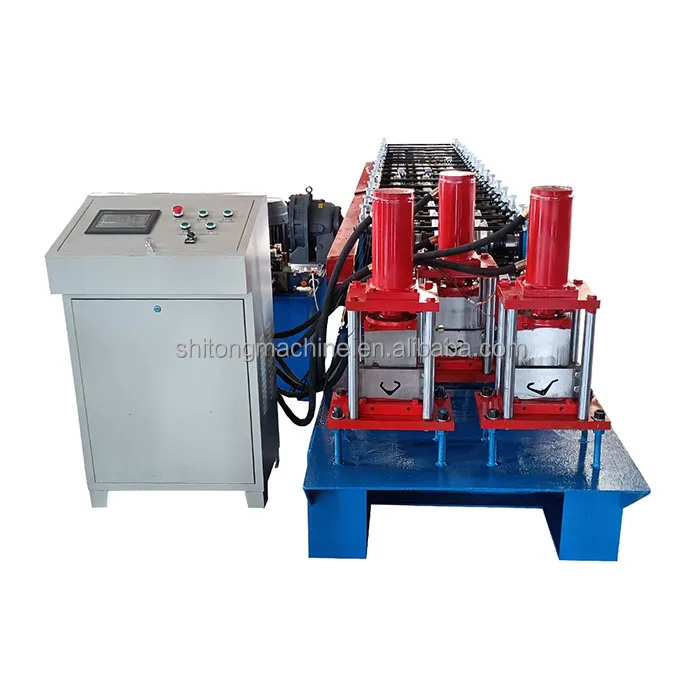

12.jpg001 (3).jpg

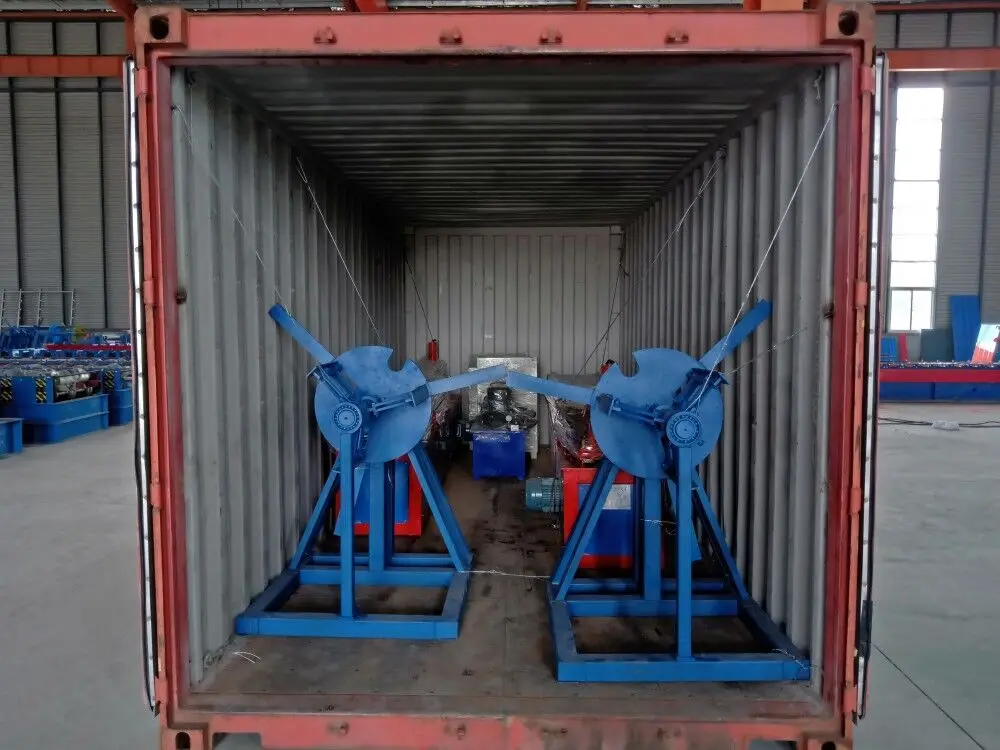

6. We provide shipping service for Roll forming machines



1. Machines need one 20 feet container to load .


2.We have professional technicians for loading to make sure machine has no damage.


3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.














7. Terms and aftersale service






 1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping.


2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .


3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.


4.Warranty: 24 months


  During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping . We will also provide you instruction manual to show you how to operate the machines.

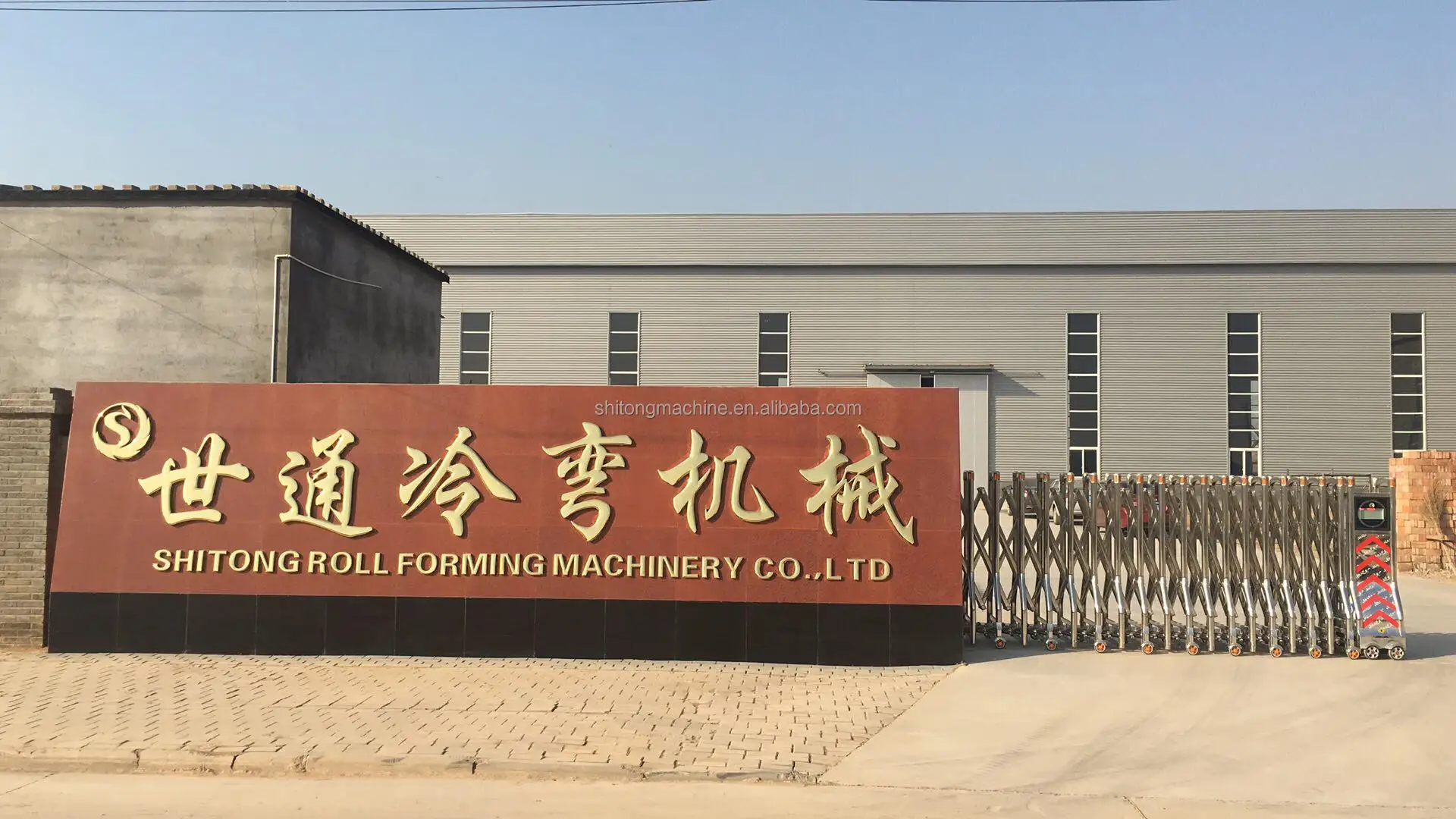

Company Information





Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufacturer of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.


The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.


Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe.We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.


If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
