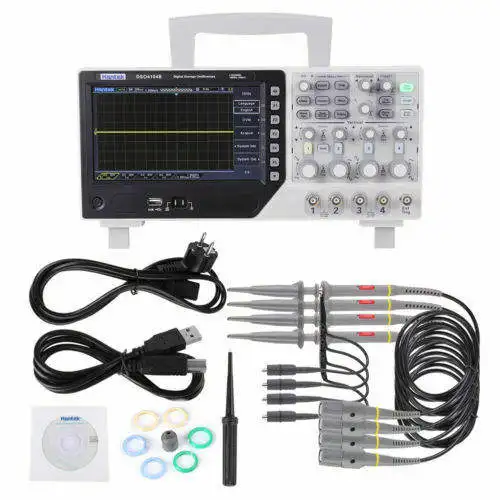

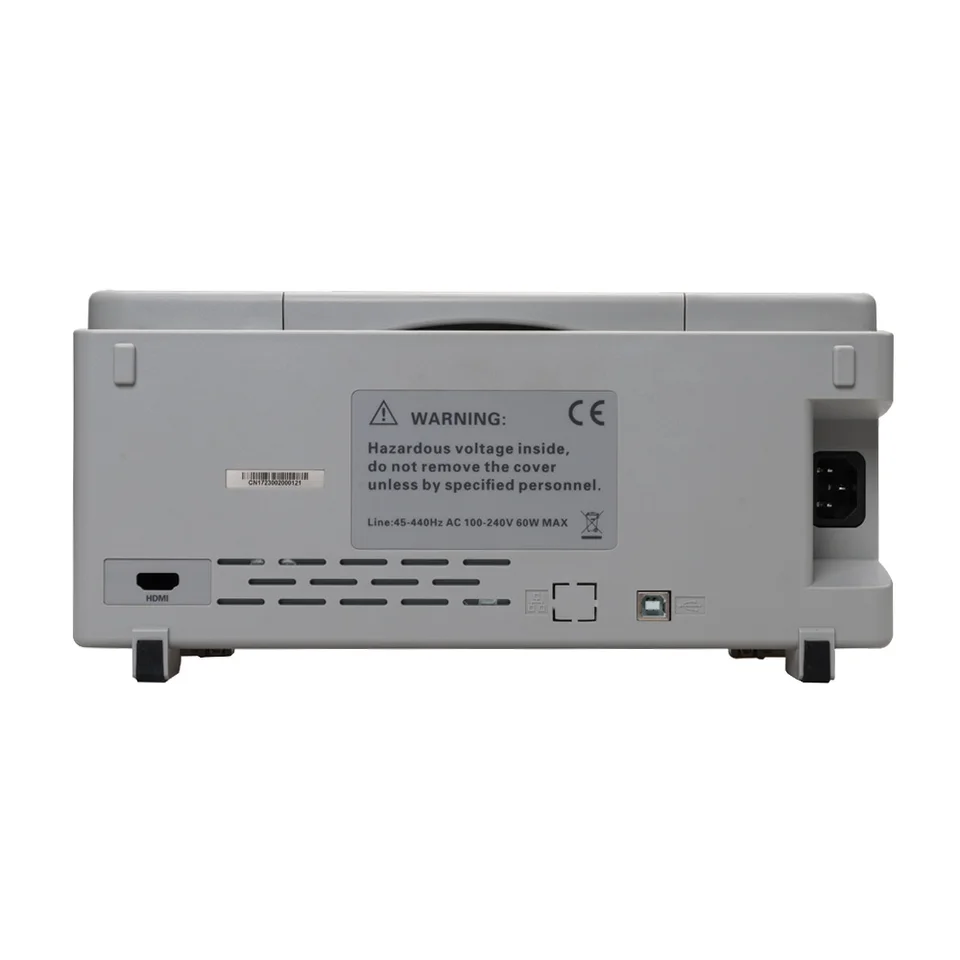

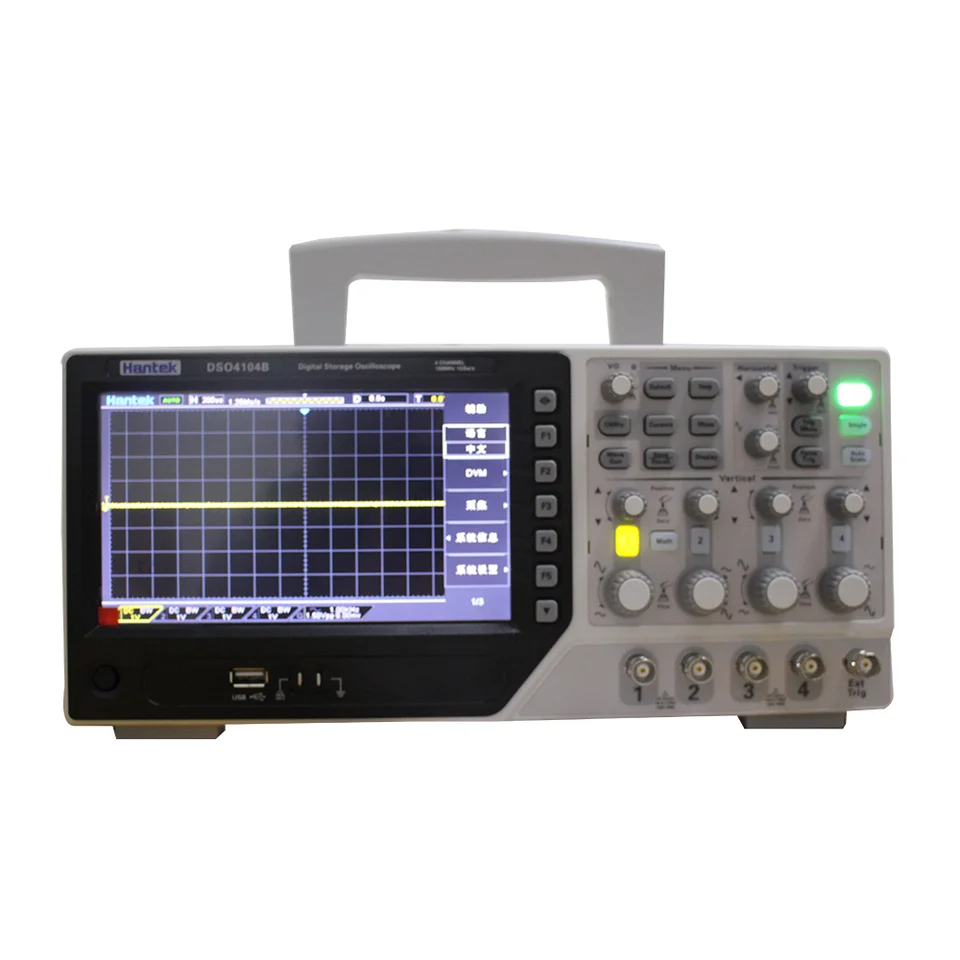

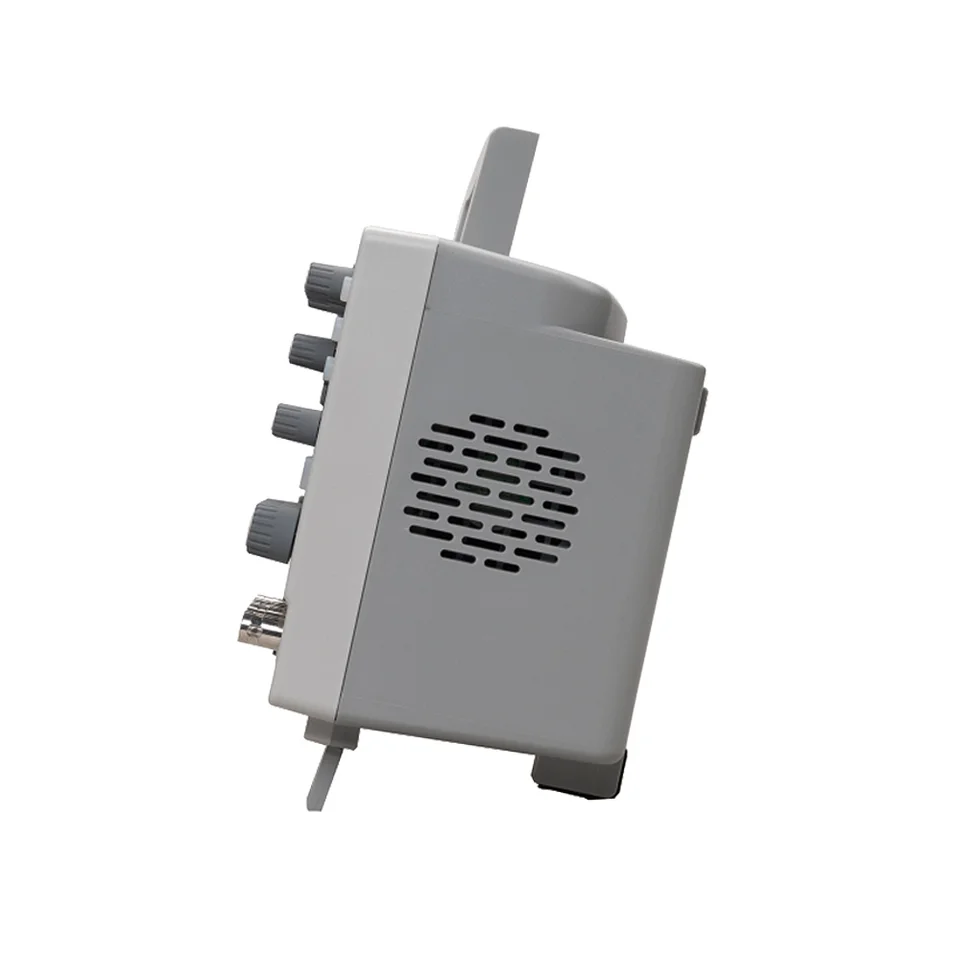

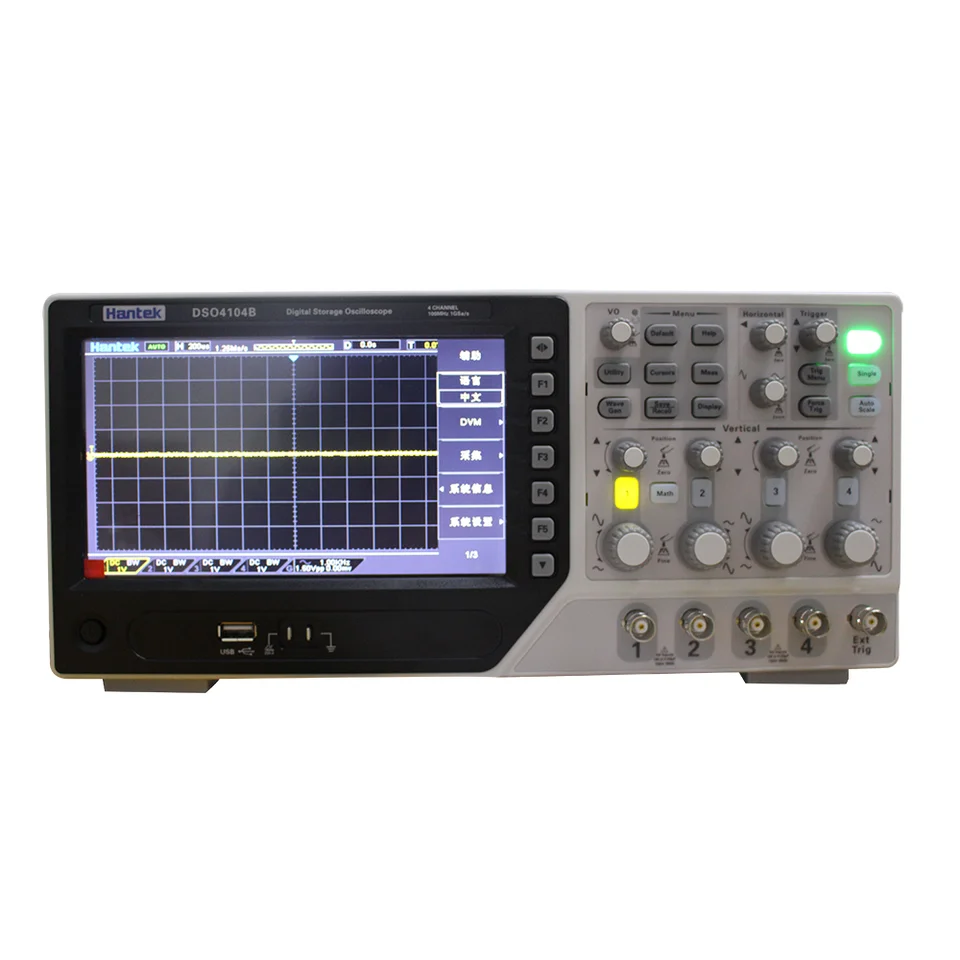

Dso4104b 100mhz Bandwidth 1gsa/s Sample Rate 4 Channel Digital Oscilloscope

Model

DSO4254B

DSO4204B

DSO4104B

DSO4084B

Bandwidth

250MHz

200MHz

100MHz

80MHz

Sample Rate Range

1GS/s

Waveform Interpolation

(sin x)/x

Record Length

Maximum 64K samples per single-channel;

Maximum 32K samples per dual-channel (4K, 32K optional)

SEC/DIV Range

2ns/div~100s/div

1, 2, 5 sequence

Sample Rate and
Delay Time Accuracy

±50ppm

Rise Time at BNC, typical

DSO4254B

DSO4204B

DSO4104B

DSO4084B

<1.4ns

≤1.8ns

<3.5ns

≤4.4ns

Mode

Auto, Normal

Level

CH1~CH4

±4 divisions from center of screen

EXT

0~3.3V

Holdoff Range

20ns ~ 10s

Trigger Level Accuracy

CH1~CH4

0.2div × volts/div within ±4 divisions from center of screen

EXT

± (6% of setting + 40mV)

Edge Trigger

Slope

Rising, Falling, Rising&Falling

Source

CH1~CH4/EXT

Under Amp

Polarity

Positive, Negative

Condition(When)

<, >, ≠, =

Source

CH1~CH4

Time Range

8ns ~ 10s

Resolution

8ns

UART Trigger

Condition(When)

Start, Stop, Data, Parity Error, COM Error

Source(RX/TX)

CH1~CH4

Data format

Hex

Condition(When)

<, >, ≠, =

Data Length

1 byte

Data Length

5 bit, 6 bit, 7 bit, 8 bit

Parity Check

None, Odd, Even

Idle Level

High, Low

Baud Rate(Selectable)

110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s

Baud Rate (Custom)

300bit/s~334000bit/s

LIN Trigger

Condition(When)

Interval Field, Sync Field, Id field, Sync Id Error, Identifier, Id and Data

Source

CH1~CH4

Data format

Hex

Baud Rate (Selectable)

110/300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200/230400/380400/460400 bit/s

Baud Rate (Custom)

300bit/s~334000bit/s

CAN Trigger

Condition(When)

Start Bit, Remote Frame, Data Frame Id, Frame Id, DataFrame Id A, Error Frame, All Error, Ack Error, Overload Fram

Source

CH1~CH4

Data format

Hex

Baud Rate (Selectable)

10000, 20000, 33300, 500000, 62500, 83300, 100000, 125000, 250000, 500000, 800000, 1000000

Baud Rate (Custom)

5kbit/s~1Mbit/s

SPI Trigger

Source (CS/CLK/Data)

CH1~CH4

Data format

Hex

Data Length

4, 8, 16, 24, 32

IIC Trigger

Source (SDA/SCL)

CH1~CH4

Data format

Hex

Data Index

0~7

When(Condition)

Start, Stop, No Ack, Address, Data, Restart

Inputs

Input Coupling

DC, AC or GND

Input Impedance, DC coupled

20pF±3 pF,1MΩ±2%

Probe Attenuation

1X, 10X

Supported Probe Attenuation Factors

1X, 10X, 100X, 1000X

Overvoltage Category

300V CAT II

Maximum Input Voltage

300VRMS (10X)

Measurements

Automatic Measurements

Frequency, Period, Average, Pk-Pk, RMS, PeriodRms, Min, Max, RiseTime, FallTime, + Width, - Width, + Duty, - Duty, Vbase, Vtop,
Vmid, Vamp, Overshoot, Preshoot, PeriodAvg, FOVShoot, RPREShoot, BWidth, FRR, FFF, FRF, FFR, LRR, LRF, LFR and LFF

General Specifications

Display

Display Type

7 inch 64K color TFT (diagonal liquid crystal)

Display Resolution

800 horizontal by 480 vertical pixels

Display Contrast

Adjustable

Probe Compensator Output

Output Voltage, typical

About 2Vpp into ≥1MΩ load

Frequency, typical

1kHz

Power Supply

Supply Voltage

100-120VACRMS(±10%),45Hz to 440Hz,CATⅡ
120-240VACRMS(±10%),45Hz to 66Hz,CATⅡ

Power Consumption

<30W

Fuse

T,3.15A,250V,5x20mm

Environmental

Operating Temperature

0~50 °C (32~122 °F)

Storage Temperature

-40~+71 °C (-40~159.8 °F)

Humidity

≤+104℉(≤+40°C): ≤90% relative humidity

106℉~122℉ (+41°C ~50°C): ≤60% relative humidity

Cooling Method

Convection

Altitude

Operating and Nonoperating

3,000m(10,000 feet)

Random Vibration

0.31gRMS from 50Hz to 500Hz,

10 minutes on each axis

Nonoperating

2.46gRMS from 5Hz to 500Hz

10 minutes on each axis

Mechanical Shock

Operating

50g, 11ms, half sine

Mechanical

Dimension

318 x 110 x 150mm(L x W x H)

Weight

3900g
