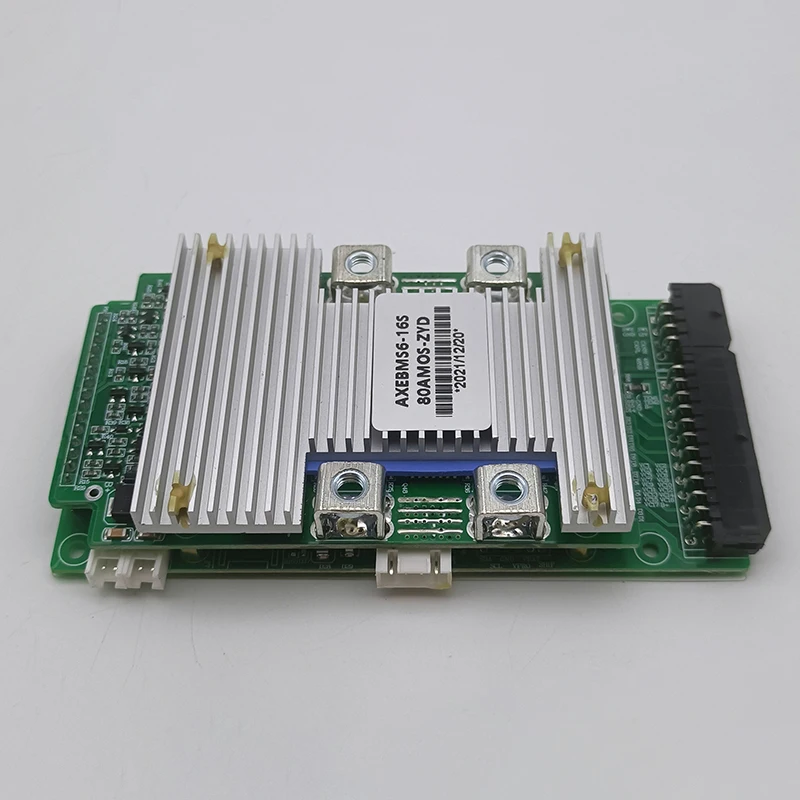

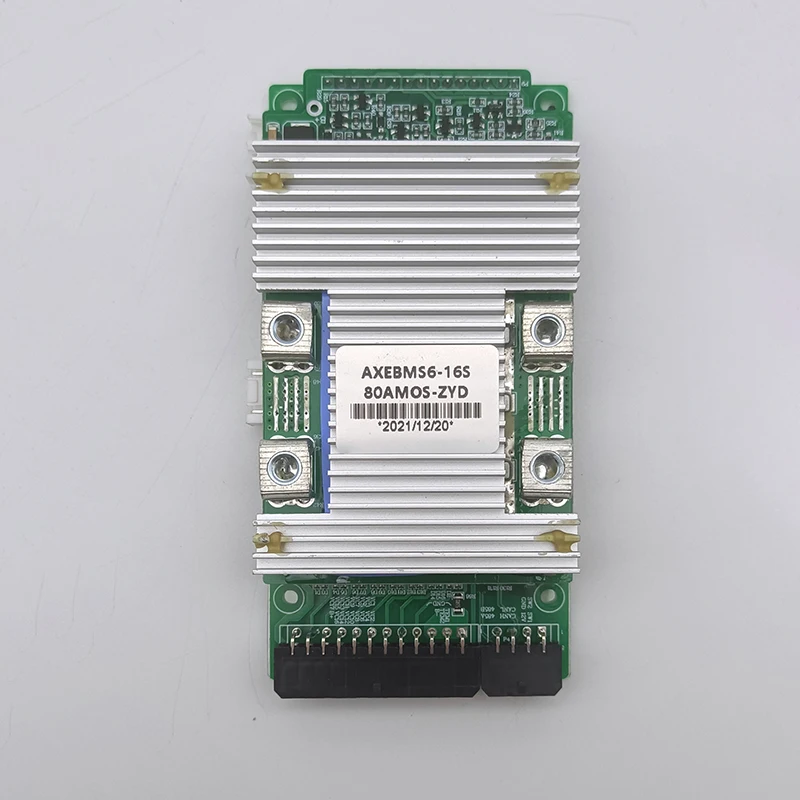

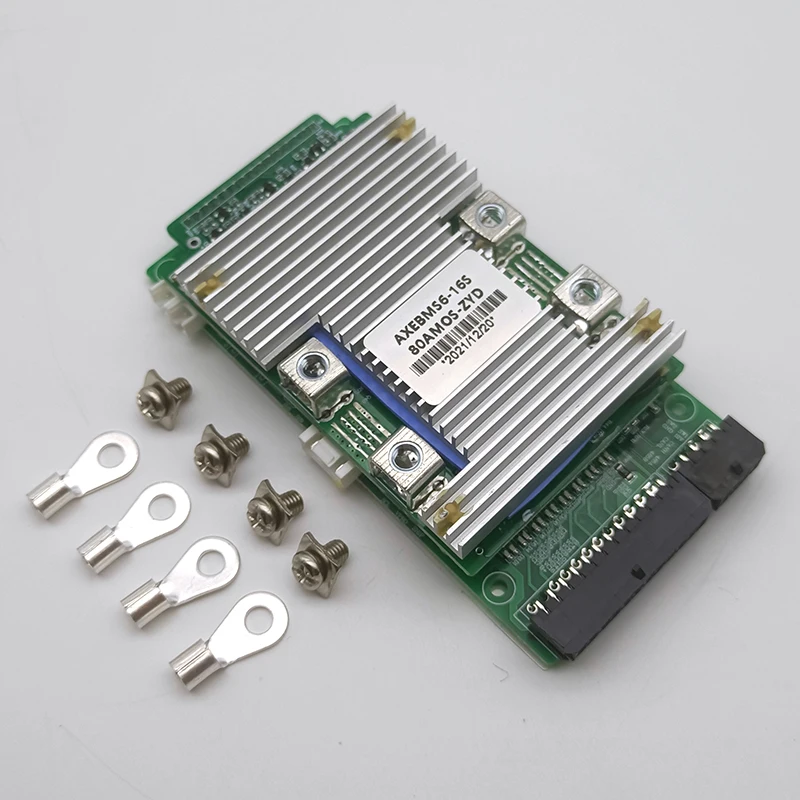

QUCC manufacture 8 20S 120A 300A Ant smart li lon lifepo4 bms
- Category: PCB & PCBA >>>
- Supplier: Dongguan Ouchi Electronic Technology Co. Ltd.
Share on (1600616371822):
Product Overview
Description
Parameters | Indicators | ||
Current switch conductor | Metal oxide semiconductor | ||
Discharge current | 80A | ||
peak current | 180A | ||
Charging current | 60A | ||
Internal resistance | 15mΩ | ||
Power supply | 10V~70V | ||
Number of compatible battery strings | 6S~16S | ||
Input / output mode | Same port | ||
BMS switch | Passive switch | ||
Working power consumption | 30mA | ||
Sleep power consumption | 30μA | ||
Balance current | 80mA | ||

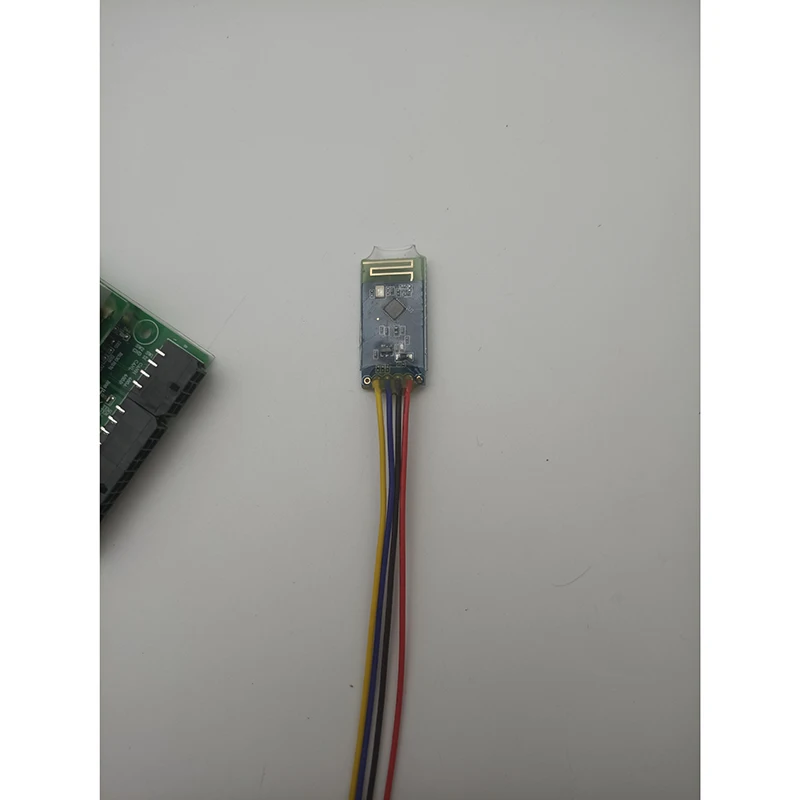

Communication function | 1 UART serial port, Bluetooth. 1 isolated RS485 interface, support Modbus protocol. 1 isolated CAN2.0B interface. | ||
PRODUCT DETAILS
Parameters | Indicators | ||
Support battery | Li-ion、Lifepo4、LTO | ||
Single cell voltage | Acquisition range | 0～5V | |
Detection error | ≤±0.1% | ||
Total battery pressure | Acquisition range | Battery voltage range | |
Detection error | ≤±0.2% | ||
Charge discharge current | Acquisition range | ≤500A | |
Detection error | ±1 % | ||
temperature | Acquisition range | -40～125℃ | |
Detection error | ±1℃ | ||
