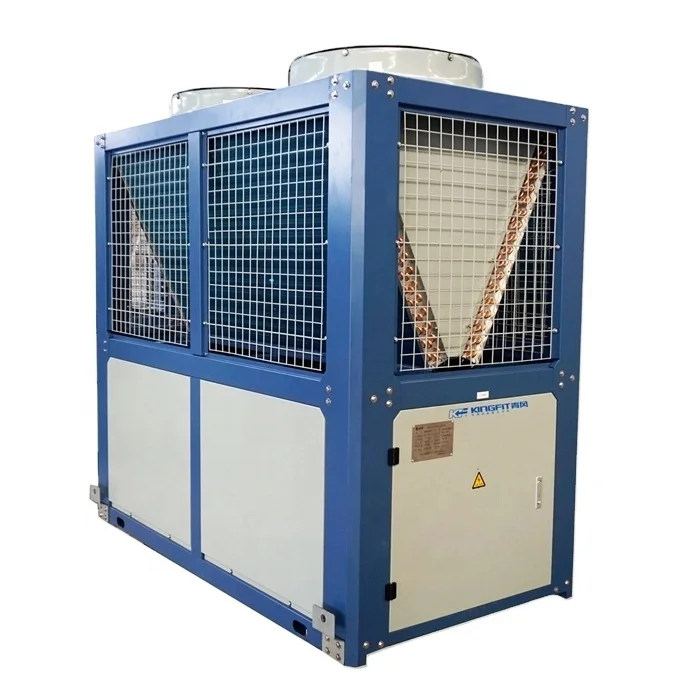

Air Source Conditioner Unit Water Heaters Heat Pump
- Category: Air Conditioners >>>
- Supplier: Zhejiang Kingfit Enviroment Co. Ltd.
Share on (1600618289876):
Product Overview
Description
Product Description
Kingfit Industrial Air Conditioners for Facilities and Factories.
The Industrial Air Conditioner System provides comfortable, high performance air conditioning and heating for your industrial air conditioning projects. The system works equally well in different industrial air conditioning environments including factories, agricultural buildings and warehouses.The Industrial Air Conditioner system creates a comfortable working environment with even temperatures throughout the conditioned area. Adding high specification air purification provides a cleaner and healthier working environment, which can improve productivity. Airborne chemicals, pollutants, toxins, smells, allergens, viruses and bacteria are removed from the air.
The Industrial Air Conditioner system provides solutions for differing industrial heating, ventilation and air conditioning (HVAC) requirements. These include high roof lines, heat from machines, manufacturing floor space / height needs, air quality issues, stable temperature control and varying ventilation rates.
Smaller size ducting and the induction method of air delivery give greater flexibility of duct work design. This makes it easier to fit duct work around fixed production machinery, moving equipment and staff operation areas.
The Industrial Air Conditioner system is designed on a site by site basis, to suit your individual project requirements.
Advantages:
1. Convenient combination of activities and installation.
2. Stable quality and reliable performance.
3. Intelligent control, high efficiency and energy saving.
4. Quiet, comfortable and easy to maintain.
2. Stable quality and reliable performance.
3. Intelligent control, high efficiency and energy saving.
4. Quiet, comfortable and easy to maintain.

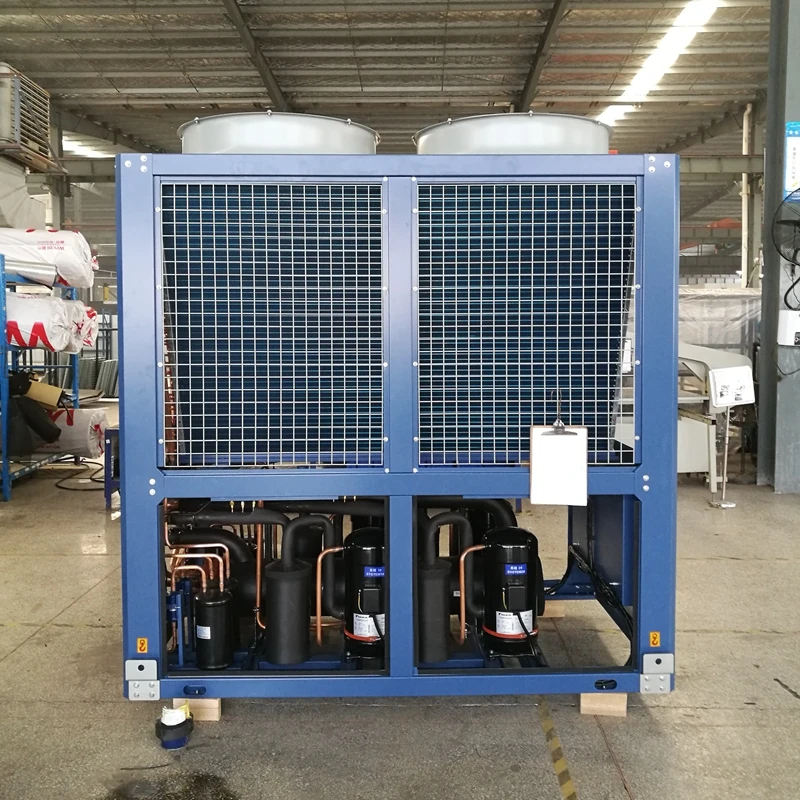

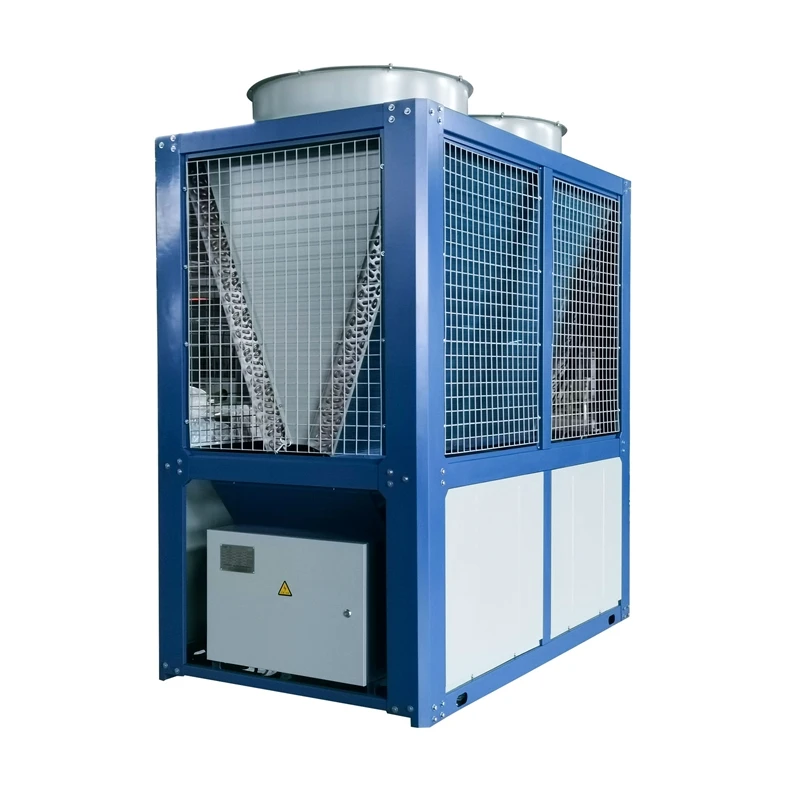

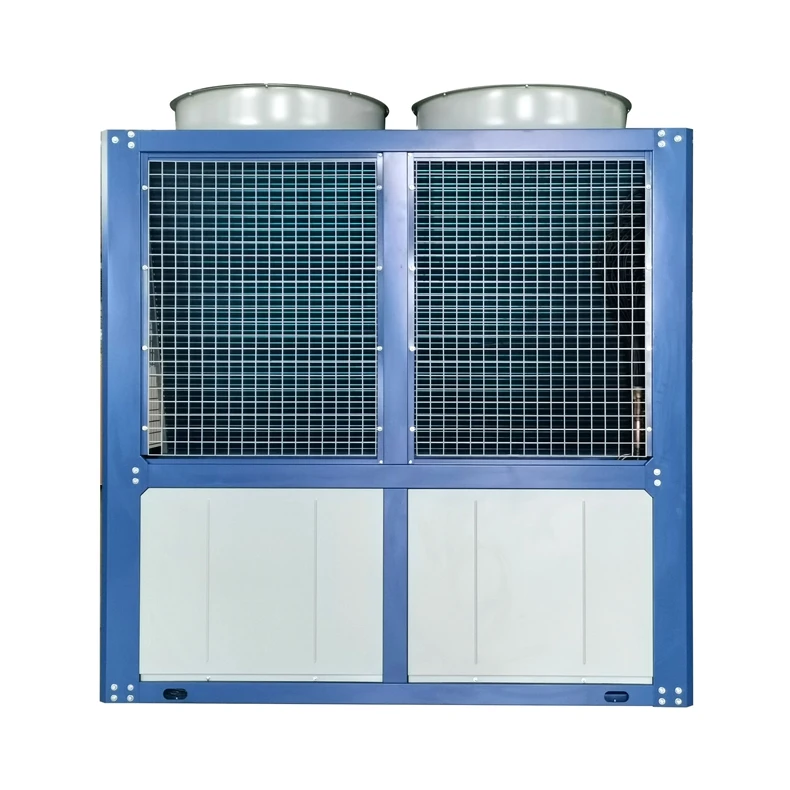

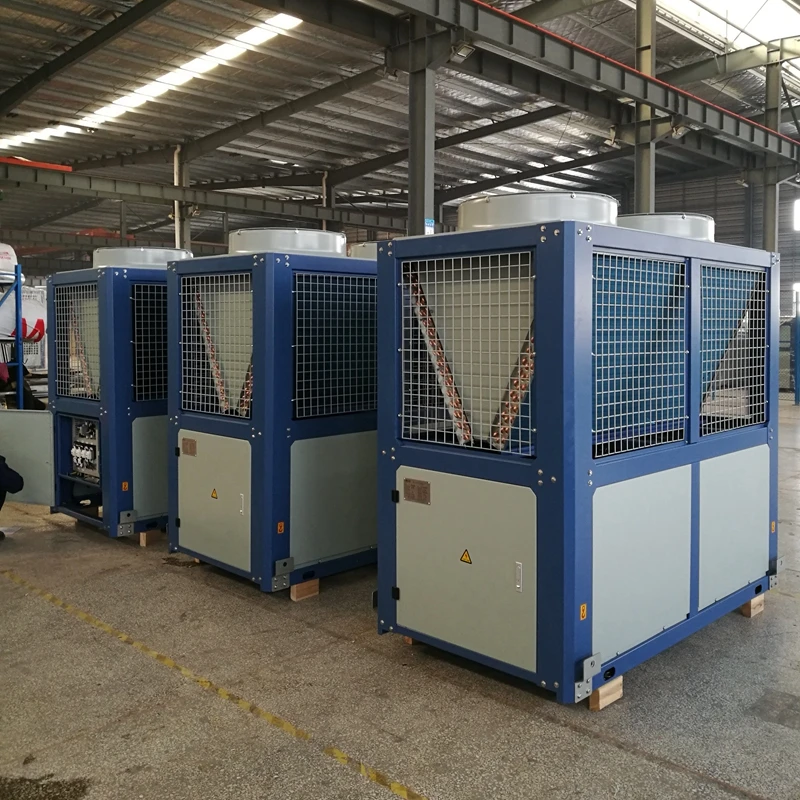

Products View
Specification
MODEL | KFMS20B | KFMS30B | KFMS40B | ||||||
Cooling capacity | 65KW | 98KW | 130KW | ||||||
Cooling method | Air cooled | ||||||||
Power supply | 3Phase：380V/50Hz | ||||||||
Input power | 19.5KW | 31.0KW | 39.5KW | ||||||
Running current | 40.8A | 58.8A | 80.2A | ||||||
Ambient temperature | 35deg.c | ||||||||
Compressor | type | Full-hermetic scroll compressor | |||||||
Way to unload | 0,50%,100% | 0,33%,67%,100% | 0,25%,50%,75%,100% | ||||||
Refrigerant | R410A (13KGS) | R410A (19.5KGS) | R410A (26KGS) | ||||||
Condensing fan | Mold | Low noise,high efficient,water proof | |||||||
Number | 2 | 2 | 2 | ||||||
Input power | 2x0.75 | 2x1.5 | 2x1.8 | ||||||
Evaporator | Mold | High-efficiency shell and tube heat exchanger | |||||||
Water inlet tempeture | 12℃ | ||||||||
Water outlet tempeture | 7℃ | ||||||||
Chilled liquid flow( M³/h ) | 10.5 | 16.5 | 22.2 | ||||||
Hydraulic resistance( Kpa ) | 50 | ||||||||
Pipe connection | Chilling liquid in&outlet | DN50 | DN65 | DN65 | |||||
Overall size | LxWxH(mm) | 1100x2120x2045 | 1230x2500x2200 | 1230x2500x2350 | |||||
Weight (Kgs) | 700kgs | 950kgs | 1180kgs | ||||||

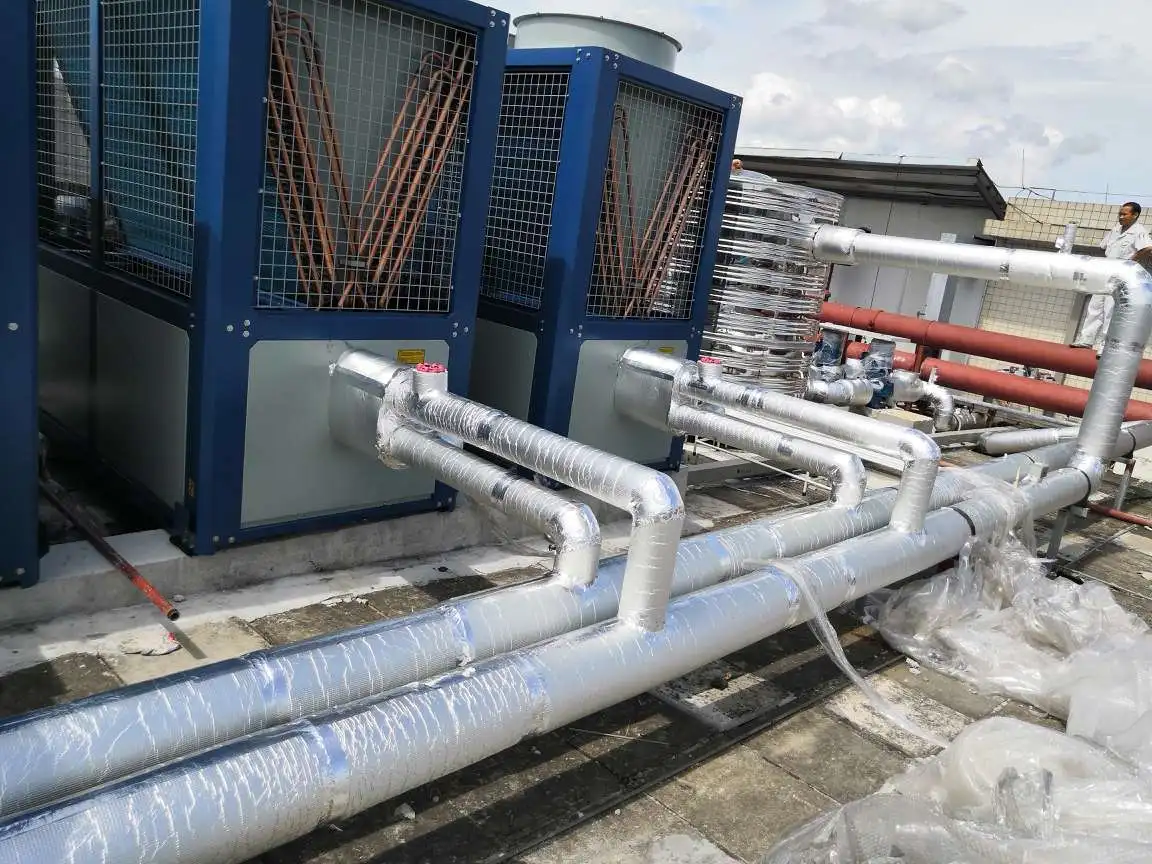

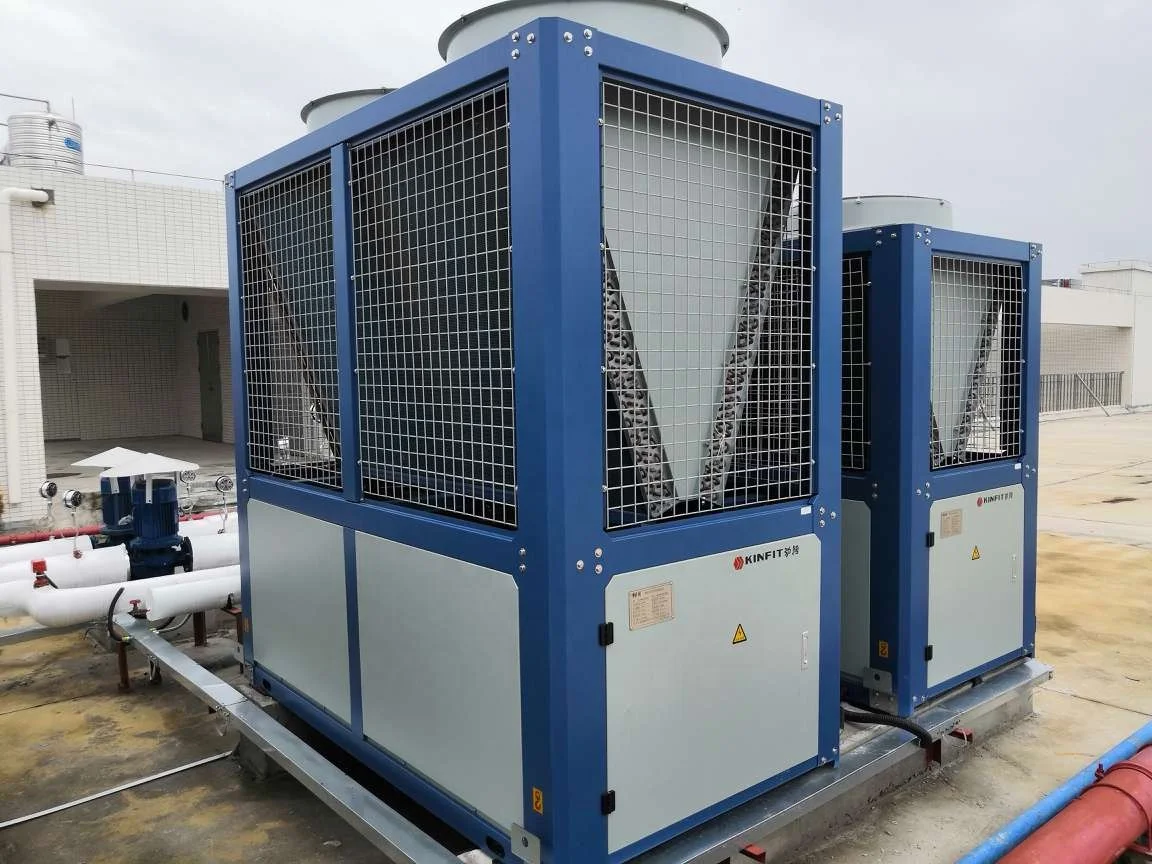

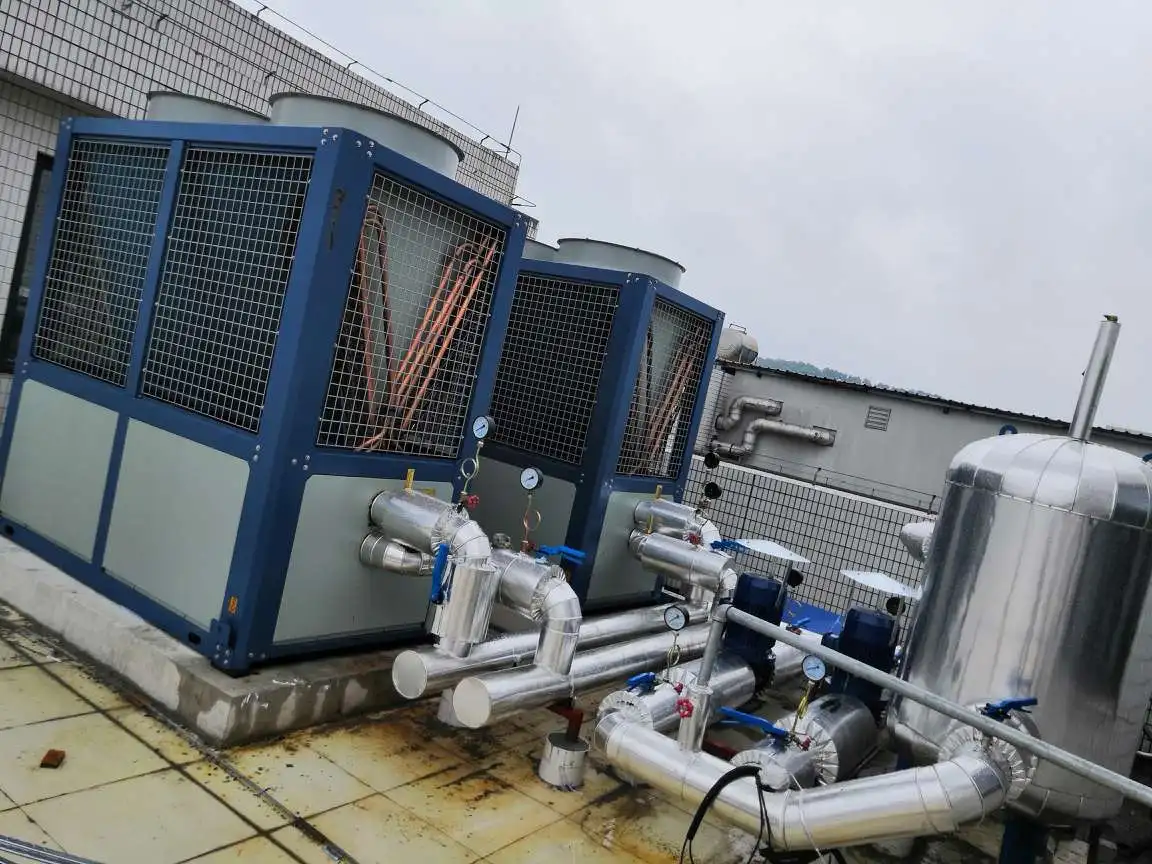

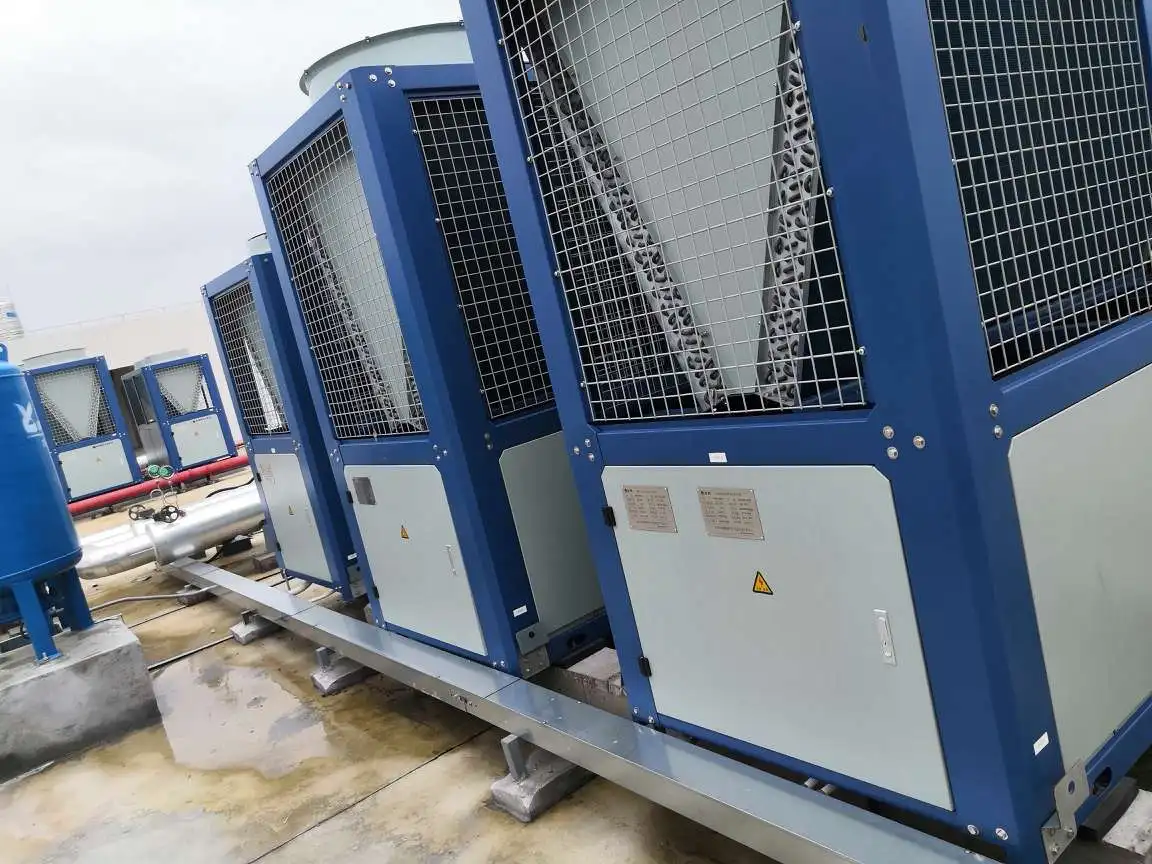

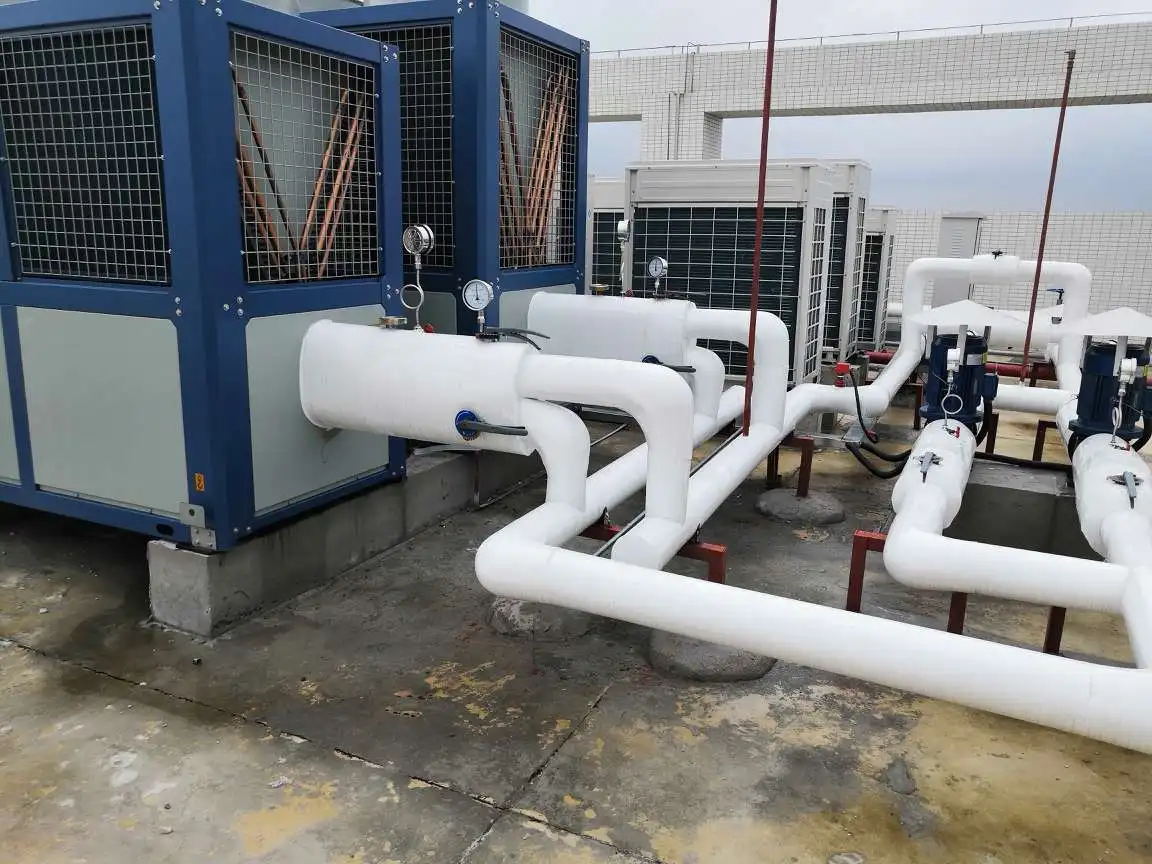

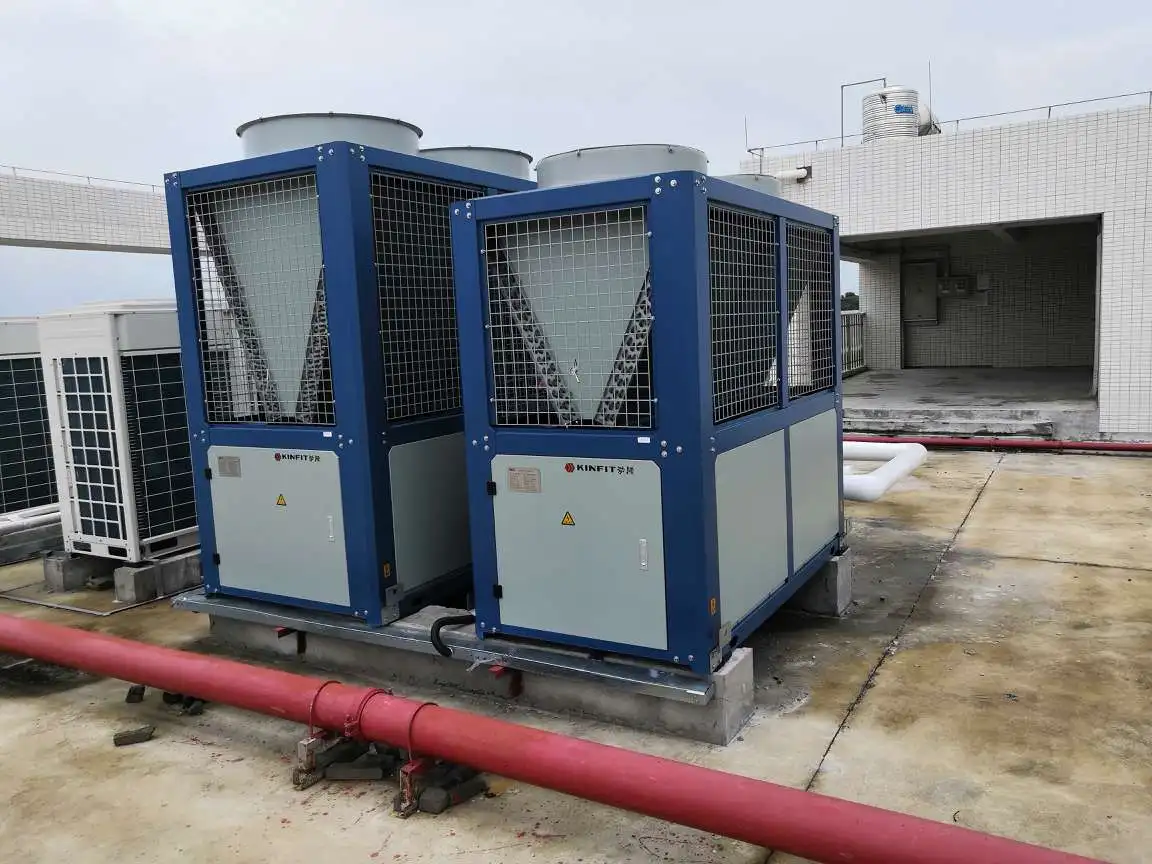

Solutions
The Industrial Air Conditioner System provides comfortable, high performance air conditioning and heating for your industrial air conditioning projects. The system works equally well in different industrial air conditioning environments including factories, agricultural buildings and warehouses.
Why Choose Us
Experienced In Chiller
Over 20 years of rich experience in chiller manufacturing and our professional engineer team is offering the complete chiller designs and models to meet all your requirements.
All Industries Served
With rich experience of different kings of chillers/chiller systems for various industrial applications can help to work out the correct chiller suitable for your needs.
Global Chiller Shipment
No matter which country you are from, just tell your nearest seaport or airport, we can arrange your chiller order at the fastest shipping even can do door to door delivery.
OEM/ODM Available
Kingfit can provide customers’ OEM/ODM service and using your company brand & logo. Besides our standard configuration chillers, we can also design and customize chillers based on your requirements.
Over 20 years of rich experience in chiller manufacturing and our professional engineer team is offering the complete chiller designs and models to meet all your requirements.
All Industries Served
With rich experience of different kings of chillers/chiller systems for various industrial applications can help to work out the correct chiller suitable for your needs.
Global Chiller Shipment
No matter which country you are from, just tell your nearest seaport or airport, we can arrange your chiller order at the fastest shipping even can do door to door delivery.
OEM/ODM Available
Kingfit can provide customers’ OEM/ODM service and using your company brand & logo. Besides our standard configuration chillers, we can also design and customize chillers based on your requirements.
Full Solutions Provider
Our services including: chiller requirement communication, analysis, designing, manufacturing, quality control, chiller delivery.
We always keep advising not just chiller manufacturing.
Top Quality Chiller
Always take good care of your chiller order from design, raw material purchasing, manufactured, testing & delivery to make sure
all chiller making processes are under controlled.
No Worries Service
World business trip/chiller related exhibitions and fairs 2-3times yearly can settle face to face meeting, 24*7*365 online service with fast feedback.
12 Months Warranty
All Kingfit chillers cover 12 months of standard warranty time s after shipment. This makes all customers use our chillers freely
without worries about the after-sales service.
Our services including: chiller requirement communication, analysis, designing, manufacturing, quality control, chiller delivery.
We always keep advising not just chiller manufacturing.
Top Quality Chiller
Always take good care of your chiller order from design, raw material purchasing, manufactured, testing & delivery to make sure
all chiller making processes are under controlled.
No Worries Service
World business trip/chiller related exhibitions and fairs 2-3times yearly can settle face to face meeting, 24*7*365 online service with fast feedback.
12 Months Warranty
All Kingfit chillers cover 12 months of standard warranty time s after shipment. This makes all customers use our chillers freely
without worries about the after-sales service.
Company Profile
About us
Zhejiang Kingfit Environmental Co., Ltd. is a national high-tech enterprise that has been committed to the one-stop solution for modern industrial and agricultural intelligent environmental systems for many years. Kingfit is located in Shuige Industrial Zone, Lishui City, Zhejiang Province, and covers an area of 80000m2. It has standard cooling equipment, water cooling and cold water test equipment, test benches, enthalpy difference laboratories, and other advanced testing equipment. The scale of production can reach an annual output of 20,000 sets of industrial air conditioners.
Since its establishment, Kingfit has actively promoted technological innovation. Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
Kingfit has established a comprehensive quality management system compatible with ISO9001 quality management system, ISO14001 environmental management system, OHS18001 occupational health and safety management system, pressure vessel production license, and "6S" site management and CE approved. The theory of improvement was integrated and an integrated continuous improvement model was established, which greatly improved the operational efficiency and effectiveness of corporate management.
Kingfit understands the needs of customers, customizes the products for customers, and customizes the requirements. At present, the products are exported to more than 60 countries and regions all over the world and have received unanimous recognition and praise from customers.
Zhejiang Kingfit Environmental Co., Ltd. is a national high-tech enterprise that has been committed to the one-stop solution for modern industrial and agricultural intelligent environmental systems for many years. Kingfit is located in Shuige Industrial Zone, Lishui City, Zhejiang Province, and covers an area of 80000m2. It has standard cooling equipment, water cooling and cold water test equipment, test benches, enthalpy difference laboratories, and other advanced testing equipment. The scale of production can reach an annual output of 20,000 sets of industrial air conditioners.
Since its establishment, Kingfit has actively promoted technological innovation. Now it has 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
Kingfit has established a comprehensive quality management system compatible with ISO9001 quality management system, ISO14001 environmental management system, OHS18001 occupational health and safety management system, pressure vessel production license, and "6S" site management and CE approved. The theory of improvement was integrated and an integrated continuous improvement model was established, which greatly improved the operational efficiency and effectiveness of corporate management.
Kingfit understands the needs of customers, customizes the products for customers, and customizes the requirements. At present, the products are exported to more than 60 countries and regions all over the world and have received unanimous recognition and praise from customers.

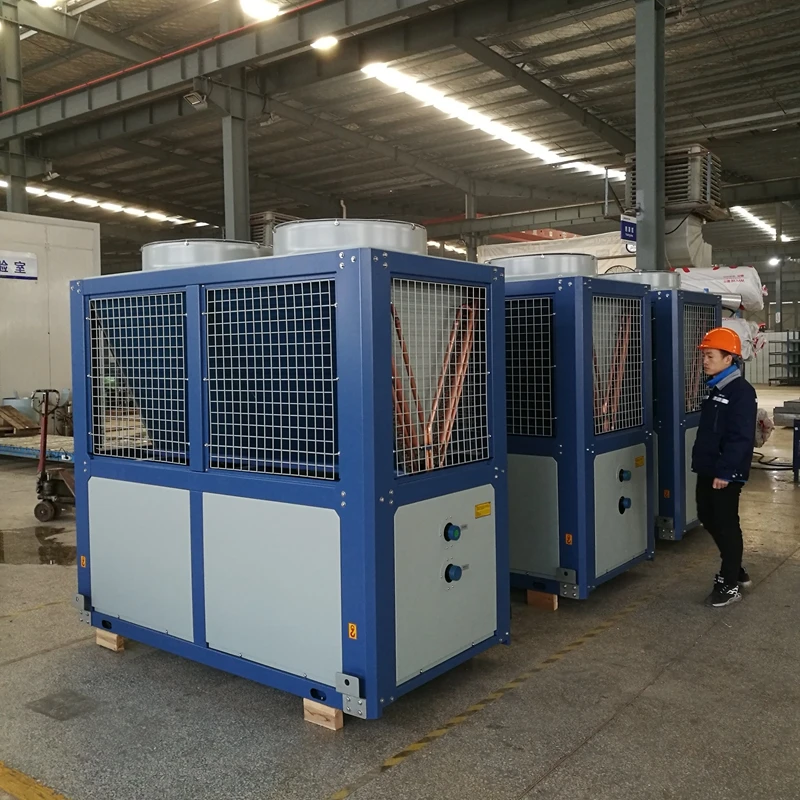

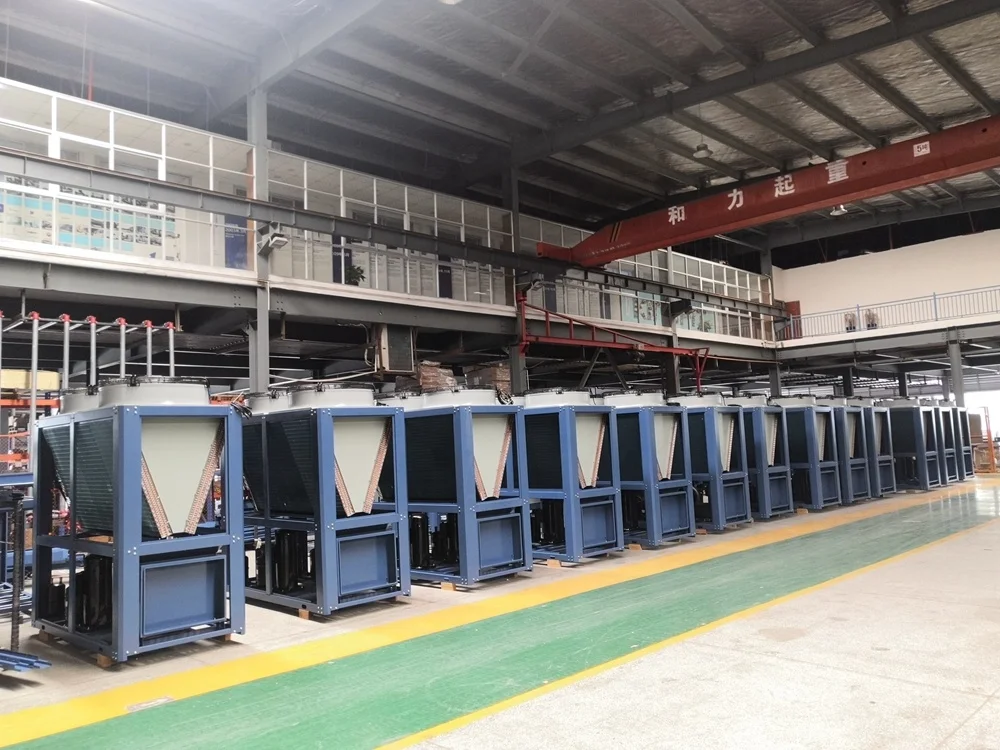

Production Line and Testing Center
Certifications
CE Certificate, ISO9001 Certificate, CQC Energy Conservation Certificate, 12 invention patents, 10 utility model patents, and 8 computer software copyrights.
Packing & Delivery
Wooden package with Air bubble film, Wrapping Film, Big part will be nude packing in container, steel wire fixed so that it's stable for shipping.
FAQ
1. Are you manufacturer or Trade Company?
We are professional factory, founded in 1998. OEM available!
2. What's the order process?
Inquiry---provide us all clear requirements.
Quotation---official quotation form with all detail specifications.
Contract confirmation---provide correct contract details.
Terms of payment--- By T/T 40% downpayment, balance before shipment.
Production---mass production.
Testing---8hours, to ensure the quality of the machine.
Shipping--- by sea, train. Detailed picture of package will be provided.
Installation---install video/install manual.
3.What terms of payment you use?
T/T, L/C, etc.
4. How to get a prompt quotation?
When you send the inquiry to us, please kindly send it with below technical information.
1). Application site:
2). Cooling capacity: _____KW or _____ Kcal/hr or _____RT.
3). Quantity:
4). Power supply: 3PH 380V/50HZ or 3PH 230V/60HZ or 3PH 440V/60HZ.
5). Location of your factory, we have to know the weather condition.
6). Any other special requirements:
5. Any technical support need or purchase need please contact to us!
We are professional factory, founded in 1998. OEM available!
2. What's the order process?
Inquiry---provide us all clear requirements.
Quotation---official quotation form with all detail specifications.
Contract confirmation---provide correct contract details.
Terms of payment--- By T/T 40% downpayment, balance before shipment.
Production---mass production.
Testing---8hours, to ensure the quality of the machine.
Shipping--- by sea, train. Detailed picture of package will be provided.
Installation---install video/install manual.
3.What terms of payment you use?
T/T, L/C, etc.
4. How to get a prompt quotation?
When you send the inquiry to us, please kindly send it with below technical information.
1). Application site:
2). Cooling capacity: _____KW or _____ Kcal/hr or _____RT.
3). Quantity:
4). Power supply: 3PH 380V/50HZ or 3PH 230V/60HZ or 3PH 440V/60HZ.
5). Location of your factory, we have to know the weather condition.
6). Any other special requirements:
5. Any technical support need or purchase need please contact to us!
