Выходной датчик давления 0 1 МПа 4 20 мА с цифровым дисплеем для измерения воды, масла, топлива, газа
- Category: Pressure Transmitters >>>
- Supplier: Anhui Qidian Automation Technology Co. Ltd.
Share on (1600620600969):
Product Overview
Description
Product Description

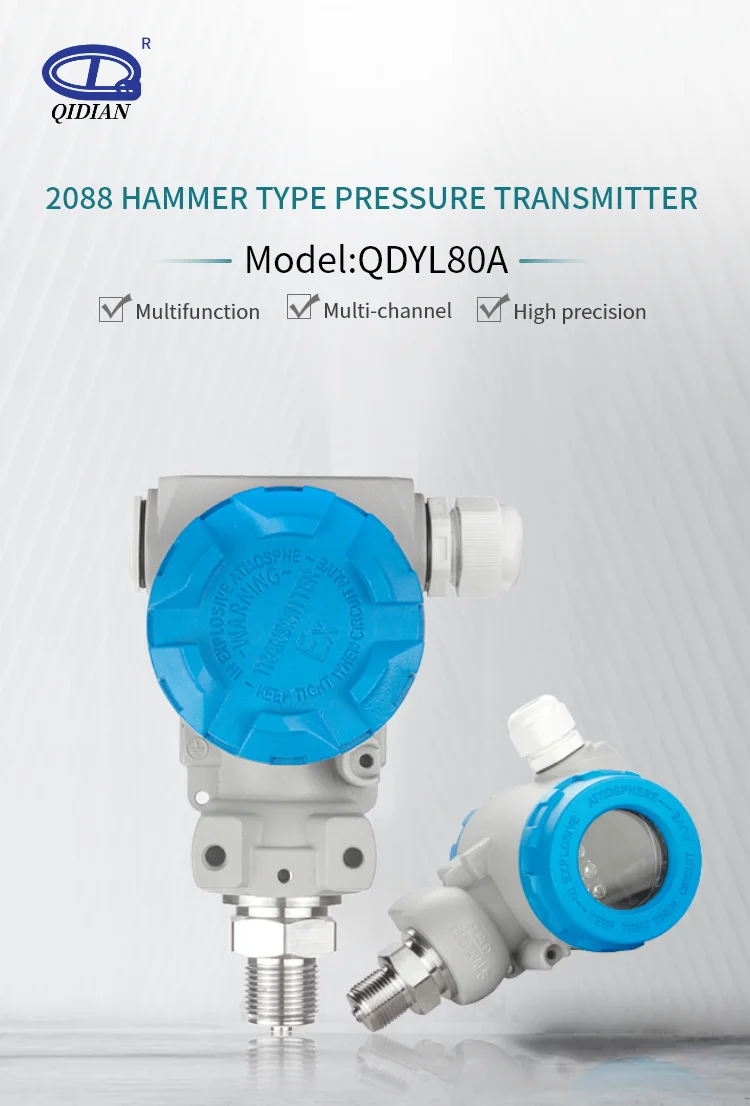

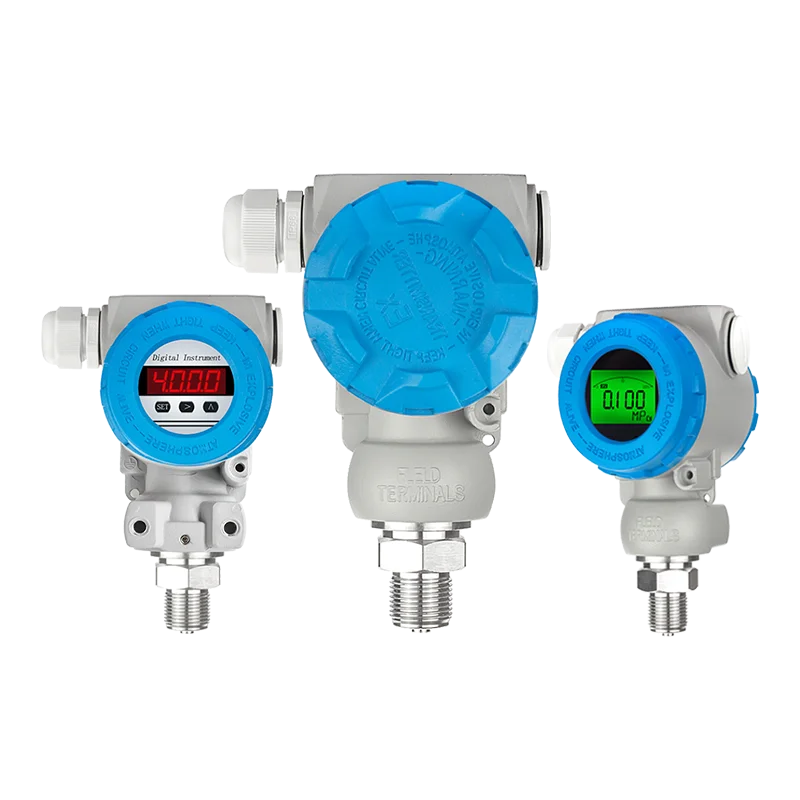

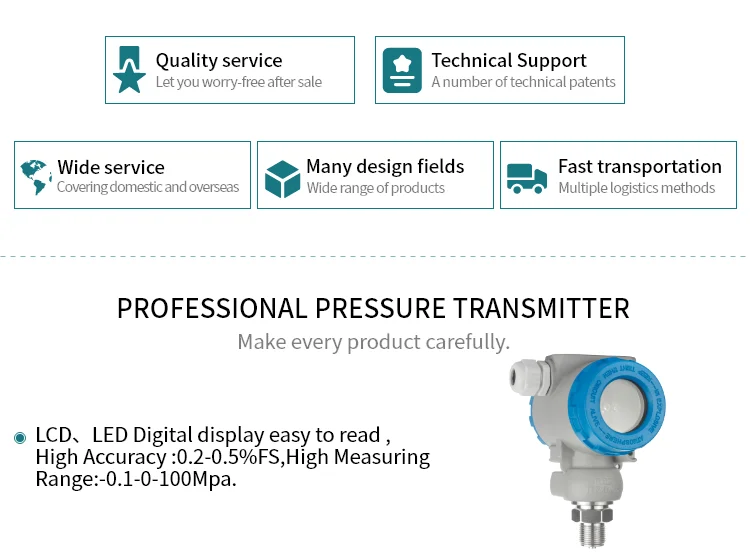

2088 Digital display pressure transmitter
<1>. It is convenient to process temperature compensation, and the accuracy of the whole machine is better than 0.5% (plus sensors)at -20~70°C.<2>. 2-wire system provides constant current source and constant voltage source for the sensor.
reauirements. multi-point calibration can be carried out.
<3>. Multi-point calibration shows that the linear accuracy of the whole machine is better than 0.2%. According to the reauirements. multi-point calibration can be carried out.
Ordering information:
Range:-0.1-0-60Mpa (range can be customized)
Output signal:4-20mA
Power supply：DC12-36V
Thread size:M20*1.5 default (can be customized)
Default :no display

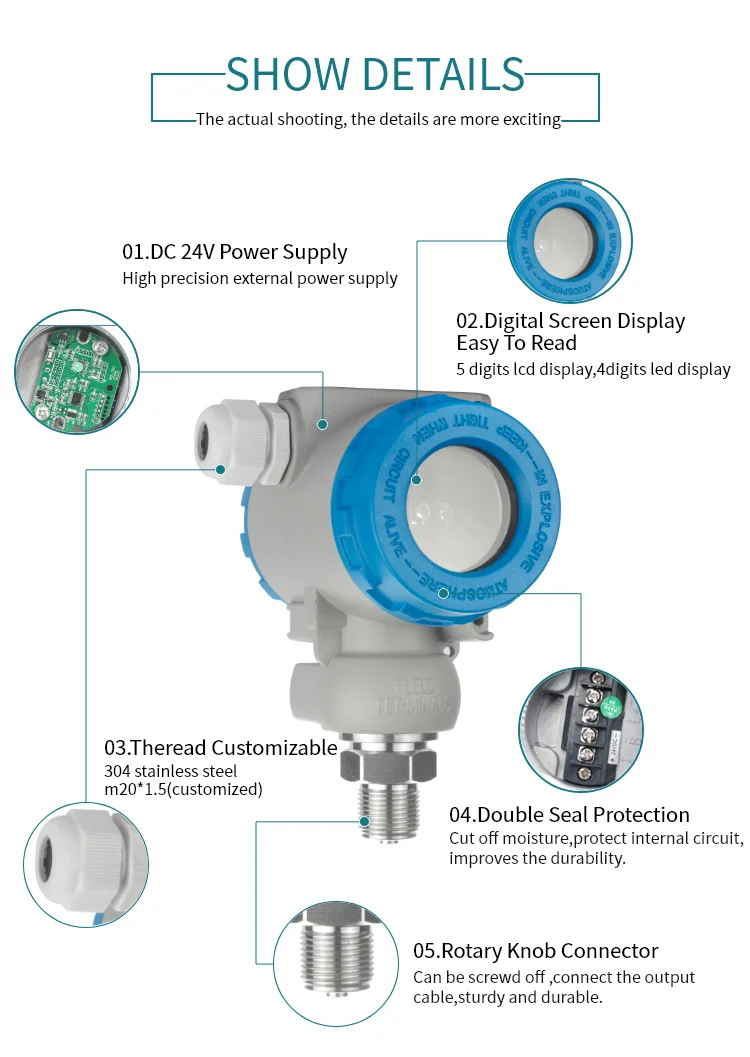

Product Details
Specification
Pressure Range | 0~100KPa,1-0-1 Bar.....600 Bar Optional |
Output Signal | 4-20mA,0-5V,0-10V,RS485,etc |
Accuracy | 0.5%FS, 0.2%FS |
supply voltage | 12~36VDC |
operating temperature range | -20°C~75°C |
Pressure Type | Gauge (G), absolute (A), sealed gauge (S)-40~+125℃ |
Long Stability | Standard:0.2%F.S±0.05% per year |
Material | stainless steel shell |
Certificate | ce fcc Rohs |
verload | 150% F.S. |

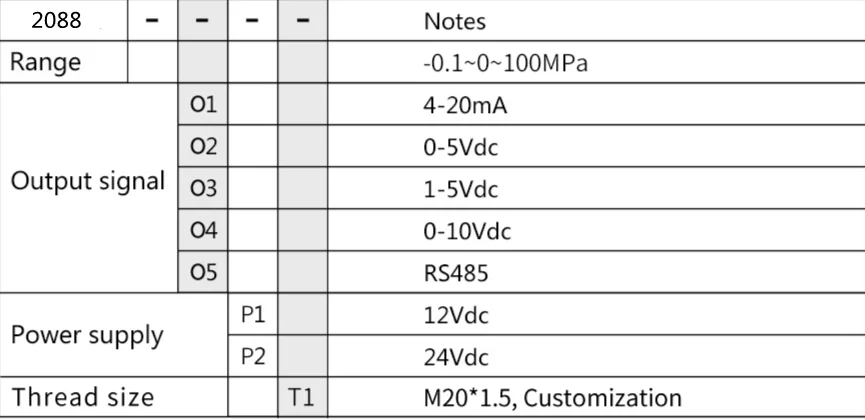

SELECTION

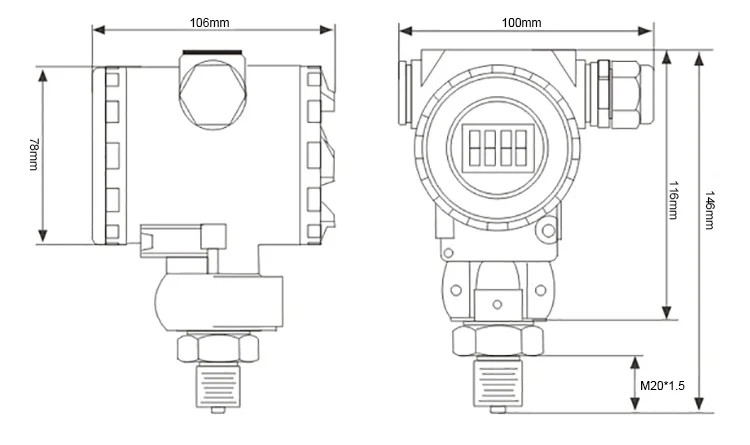

Product Size
