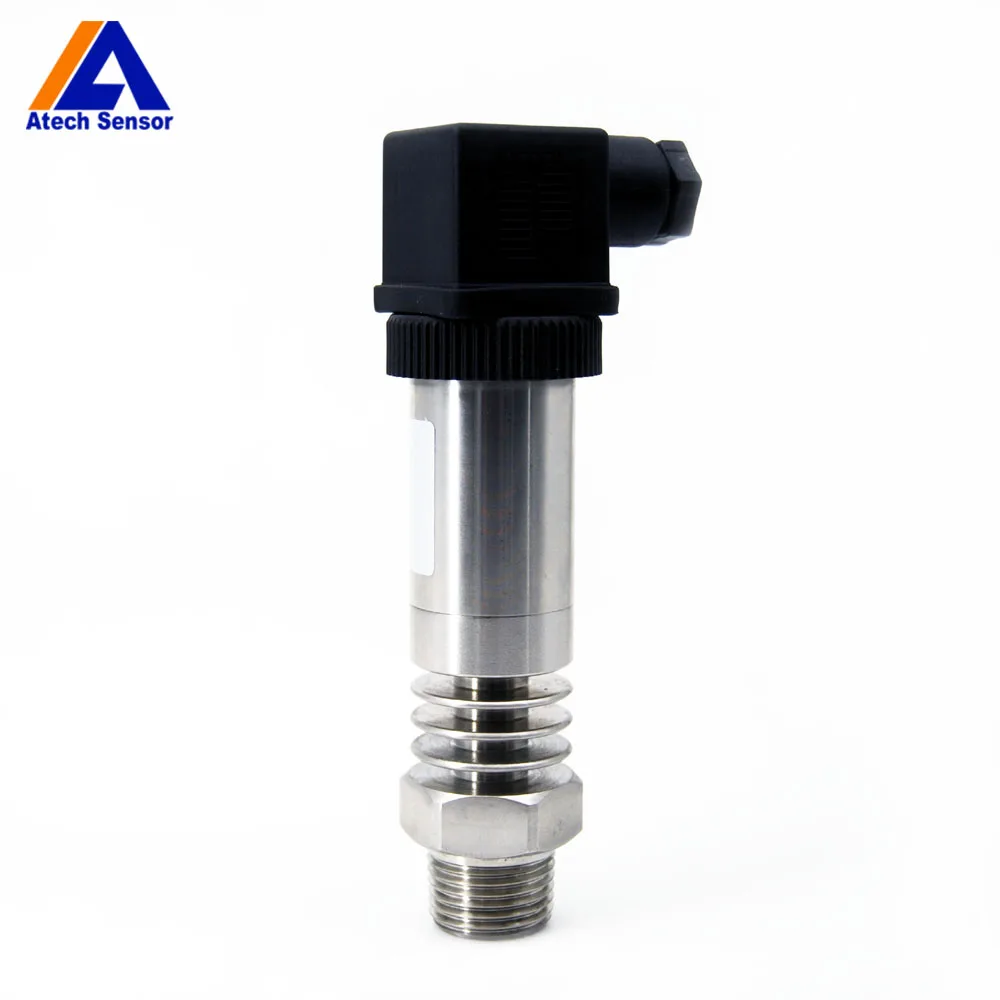

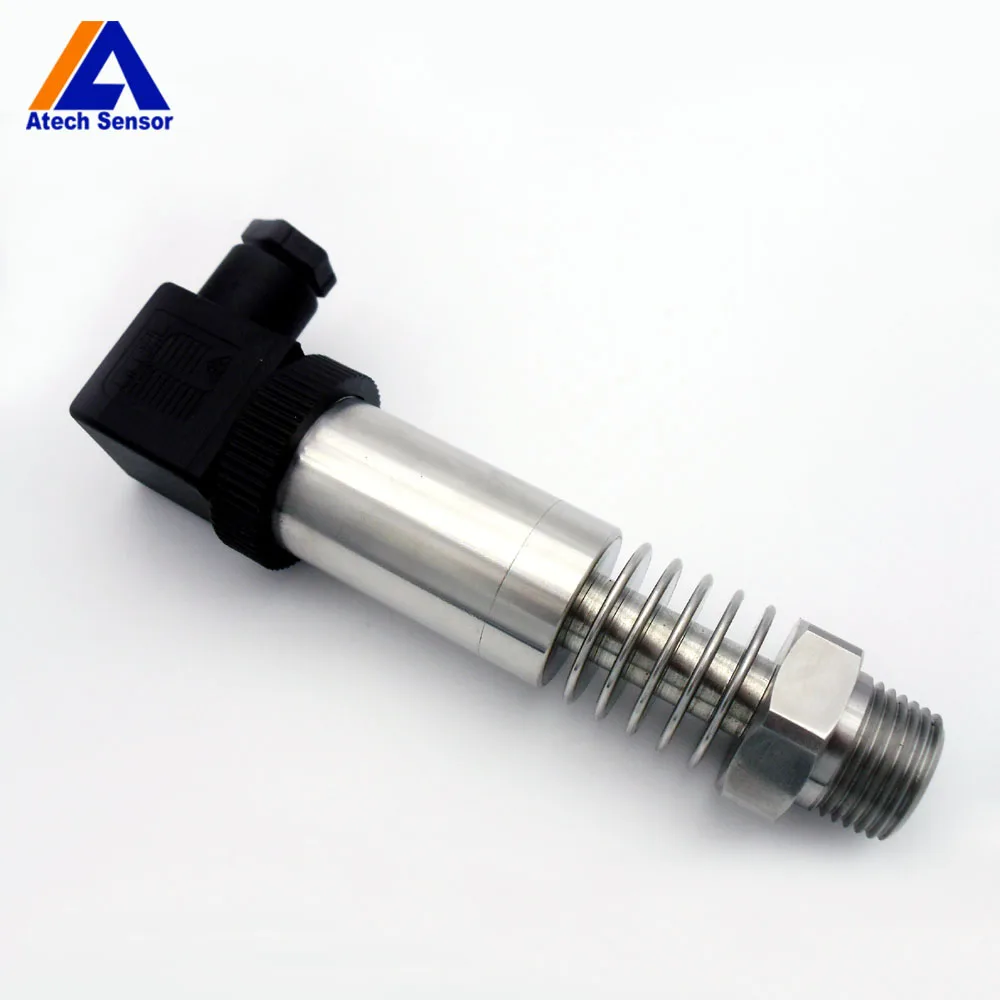

PT-204 4-20mA Output High temperature Boiler water Pressure Transmitter


PT204 series of pressure transmitter use Sputtered film technogy to test liquid and air pressure .


The pressure transmitter is fully welded with intrinsic safety and explosive-proof futures, so can by applied in harsh industrial environments and high temperature environments like 0 °c - 150 °c~230°c





High accuracy and stable performance got very good feed back from customer.

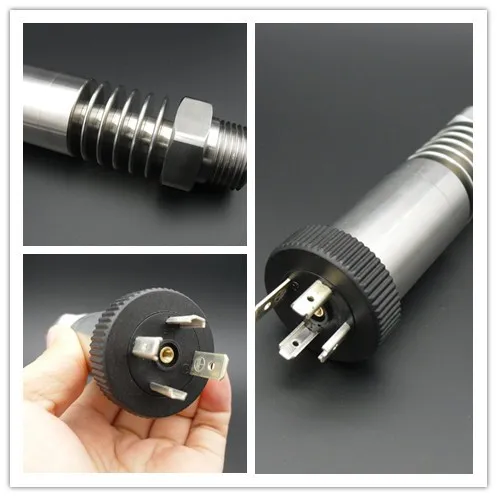

 Details of PT-204 High temperature Pressure Transmitter


dendor7.jpg\\


specification of PT-204 High temperature Pressure Transmitter






















































































 pressure medium of PT204 pressure sensor



 gas liquid compatible stainless steel



 pressure ranges



 0~1...2000bar of High temperature Boiler water Pressure Transmitter



 overload pressure of PT204 pressure sensor



 200%FS



 output signal



 4~20mA,  0~20mA, 0~10mA ,0~5V, 0~10V, 1~5V



 accuracy



 0.1%FS, 0.25%FS, 0.5%FS



 load resistance



RL = (U-10)/0.02(ohm) (4~20mA current output), >20K


(ohm)(voltage output)



 long term stability of PT204 pressure sensor



 0.25%FS/year



 supply voltage



 12~30V



 compensated temperature range



 -20~120°c for High temperature Boiler water Pressure Transmitter



 operating temperature range



 -50~+150°c (typical),  -50~+230°c if for High temperature Boiler water Pressure Transmitter



 storage temperature range



 -50~+170°c



 temperature coefficient of zero



 0.3%FS/10°c



 temperature coefficient of span



 0.3%FS/10°c



 insulation resistance



 >100M(ohm)@ 50VDC



 process connection   of PT204 pressure sensor



 G1/4 or others you can advise



 electrical connection



 DIN 43650 or others you can OEM



 material of wetted part



 1Cr18Ni9Ti



 Elect strength of High temperature Pressure Transmitter



 500V@60 second



 material of housing



 1Cr18Ni9Ti



 weight



180g






Our certificate of PT-204 High temperature Pressure Transmitter


pressure sensor  certificate 1.jpg








Our have three times testing control before the sensor reached to you





pressure sensor test.jpg





FAQ of High temperature Boiler water Pressure Transmitter





1.Q:How long is the delivery of your pressure snesor?  -- Mostly within 10days if this sensor is instocks
2.Q:Can I get a sample?
 --  Sure, contact our sales please
3.Q:What is your MOQ?
 --  1pcs


4.Q: How about sensors warranty time? -- 12-18month


5.Q: How can I visit your sensor factory?  -- Fly to Xian Yang air port, it’s our pleasure to pick you up.


6.Q: What’s your main product?   --All kinds of  pressure sensor, pressure transducer, pressure transmitter, level sensor..ect


7.Q:How do you control your quality ?  -- We have EPR system .we control from parts, process, testing, packing ,retesting.


every Sensor will be tested two times before reach you, after that sport test for the third time. Make sure about the quantity





 Your eraly inquiry will be highly appreciated and please feel free to contact us as follows:
