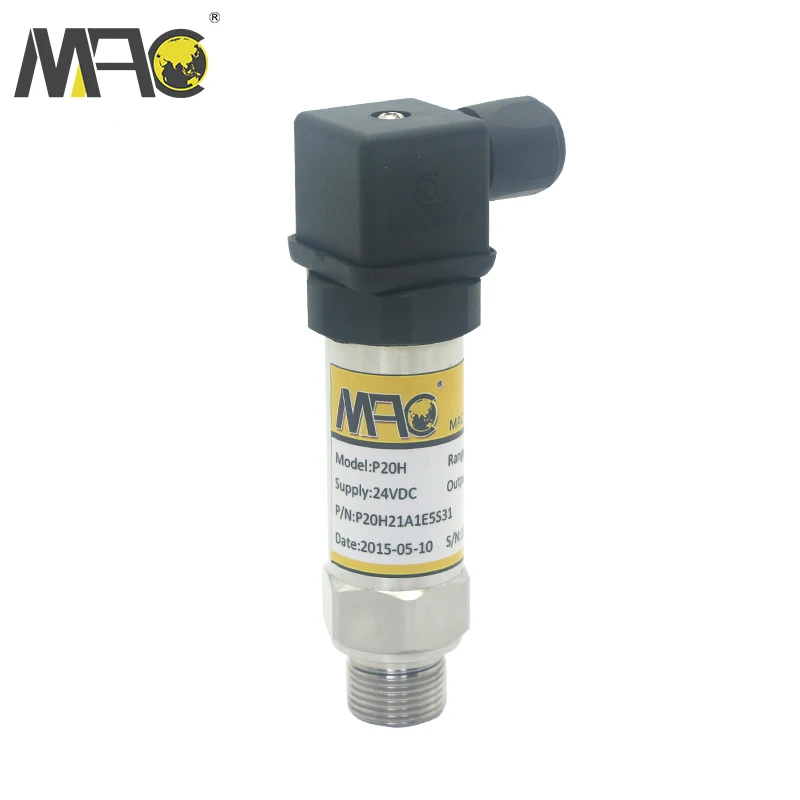

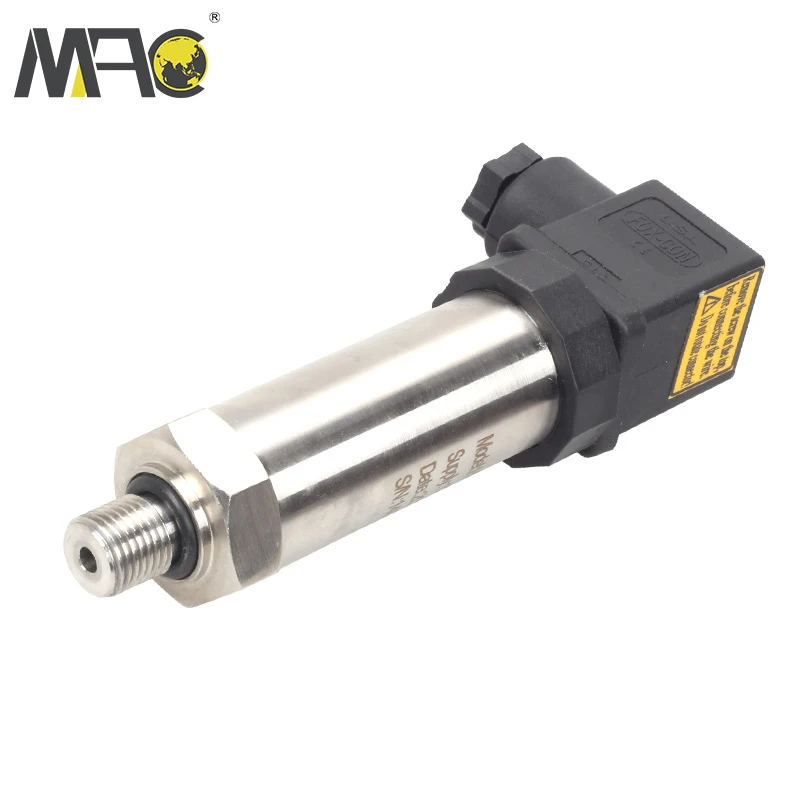

Digital SPI IIC I2C Output 3.3V Pressure Sensor (62135628384)

Share on:


Price:$19.80 - $45.80
Price in USD:Details

Quantity:


Product Overview

Description


Digital SPI, IIC I2C Output 3.3V Pressure Sensor






Product Description


P20EX-1_02


















Characters:


Accuracy: ≤±0.5%F.S.


 Wide working temperature scope


 Automation temperature compensation.


 Excellent overload, Shock and erosion.


 Anticorrosive diaphragm and port.


 OEM economic selection


 Mini dimension types


 2 times range standard overload.


 3 times range burst pressure


 CE approved



Applications:


 Engine Fuel Pressure measurement


 Refrigeration and Air Compressor


 Hydraulic pressure controller


 Petrochemical industry


 HAVC System Application


 Pressure meter


 Laboratory equipment


 Water pressure measurement


 Saving water to irrigate


 Liquid and Gas pressure measurement








Specification of Stainless steel pressure transducer with cable














































































































Model:






P20 Series



Pressure Range:



-1-0-1 Bar.....1000 Bar Optional



Pressure Type:



Gauge pressure; Negative pressure; Absolute pressure optional



Accuracy:


(Linearity Hysteresis


Repeatability)



≤ ±0.25%F.S (Standard)


≤ ±0.5%F.S (Customized)


Optional.



Medium Temp:



-30℃~85℃



Ambient Temp:



-30℃~80℃



Storage Temp:



-40℃~85℃



Temperature Compensation:



0℃~50℃



Overload:



150% F.S.



Housing material:



304 Stainless Steel



Diaphragm material:



316L Stainless Steel



Process material:



SUS316 Stainless Steel or by customized



Medium compatible:



Compatible with 304/316 Stainless Steel



Electronic Wire:



2 or 3 wires



3 Wires



Output:



4~20mA



0~5V/1~5V



0~10 V



0.5~4.5 V Ratiometric



Special customized



Power Supply:



12~36 V DC



8~36 V DC



15~36Vdc



5 V DC



Special customized



Insulate resistance:



>100M Ω  @50V



Electronic connection:



Terminal Box (DIN43650 Hirschman Connector, IP65);   Directly sealed cable IP67;


M12 4 Pins connector IP65;  Packard 3 Pins Connector IP67 are optional.

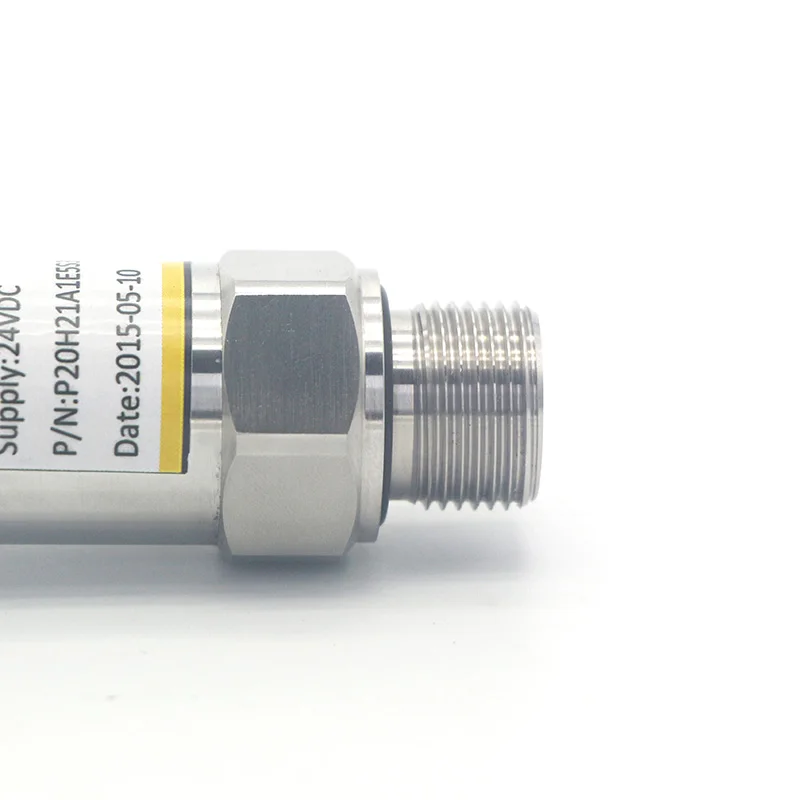

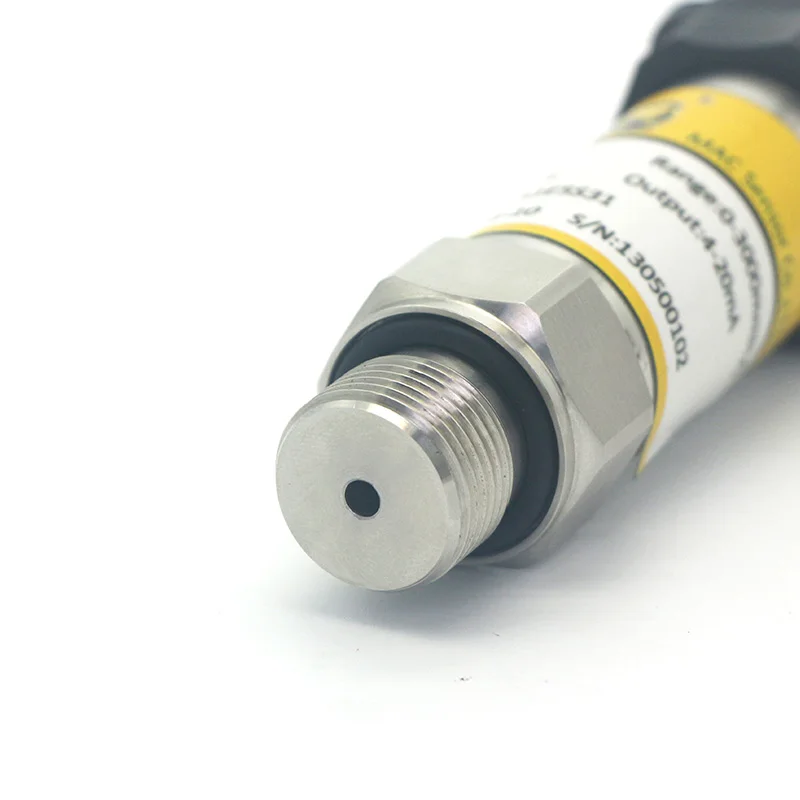

Pressure


connect port:



1/8’’NPT male, 1/4’’NPT male 1/4’’NPT Female, G1/2’’ male, G1/4’’male/female,


7/16’’-20 UNF male/female are optional. (by Customized)



Certificate approving:



CE Certificate.



Water Proof:



IP65 to IP67



Weight:



Net weight is about 0.35KG, Full Packing weight is about 0.5KG (Included 3 Meters Cable)



Remarks:



Special applications request by Customized






Feature of  Stainless steel pressure transducer with cable










Drawing of Stainless steel pressure transducer with cable













Quick Quotation


How to order sensors?


To recommend a suitable pressure sensor for you, please kindly confirm the following questions before ordering:


1. Measuring range?


2. Signal Output


3. What's the application? Measuring Medium? Water or air or oil or others?


4. Process connection?


5. Other special requirements?


The price here is just for reference. Each product will be customized based on your project demand, please send an inquiry to get the optimized product solutions and the best price. Please leave your email address so that our sales engineer can offer one-to-one service for you!
