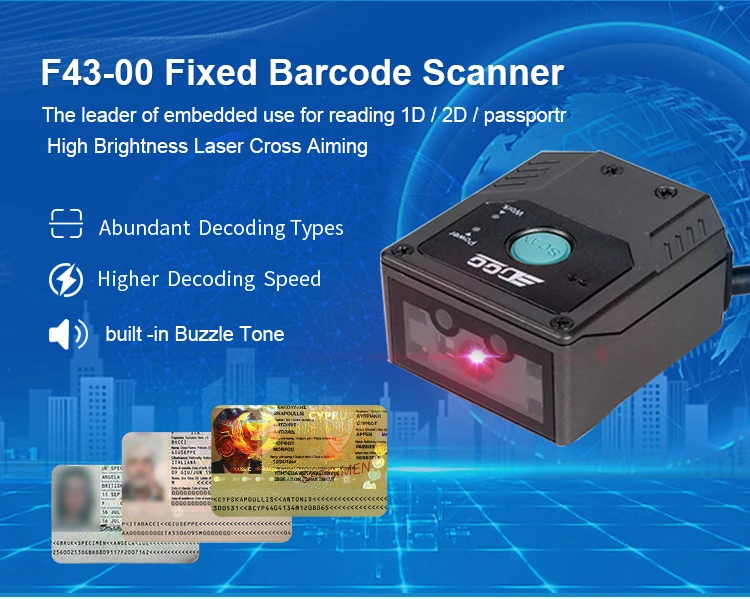

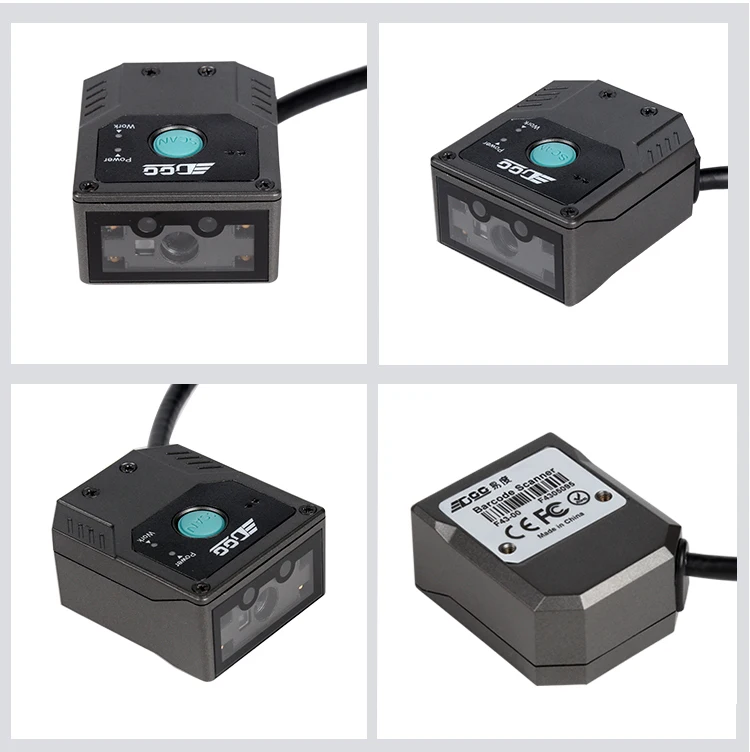

High Quality Fixed Mount 1d 2d Infrared Laser Module Usb/rs232 fixed mount barcode scanner
- Category: Scanners >>>
- Supplier: Shenzhen Edoo IOT Technology Co. Ltd.
Share on (1600626257803):
Product Overview
Description
Infrared/light sensing dual trigger Mode
When the scanned object approaches the scanning indow, the scanner instantly starts and performs rapid reading
When the scanned object approaches the scanning indow, the scanner instantly starts and performs rapid reading

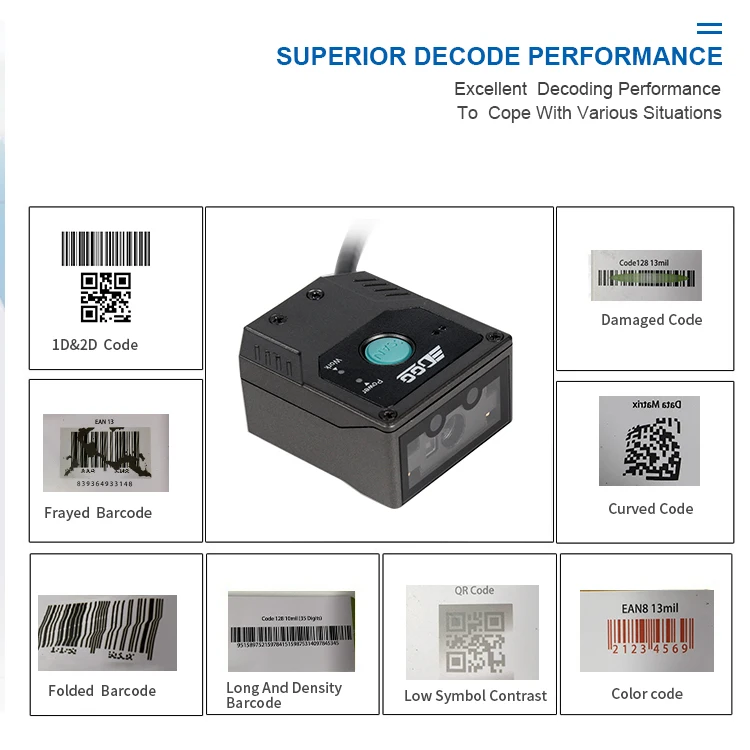

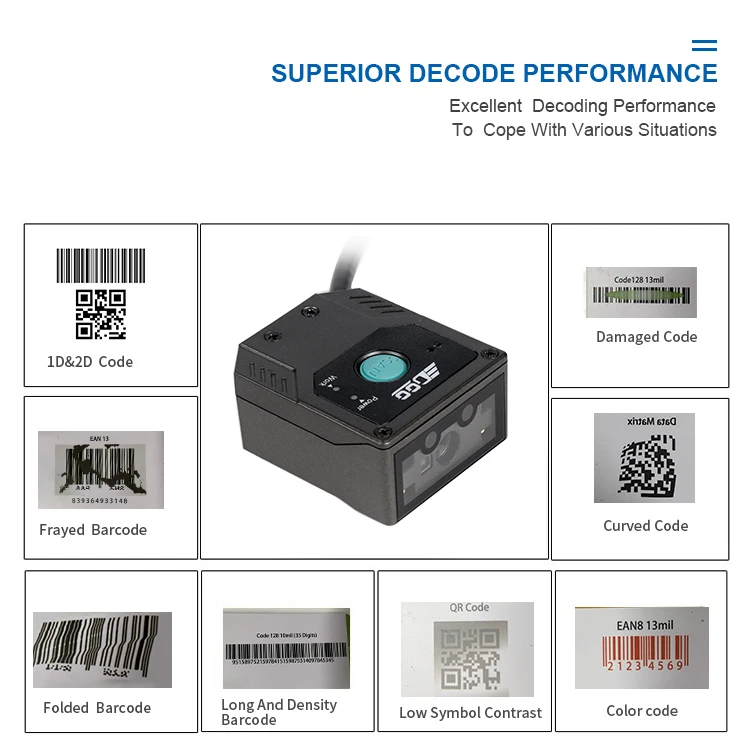

Excellent 1D/2D Barcode Reading Performance
It can quickly read all kinds of 1D/2D barcodes and various amount of large data filmed on-screen barcode with self-developed core decoding technology
It can quickly read all kinds of 1D/2D barcodes and various amount of large data filmed on-screen barcode with self-developed core decoding technology
Application Scenarios:
OCR Scan Device,AFC,Express Logistics Cabinet, Access Control and self-service terminals
OCR Scan Device,AFC,Express Logistics Cabinet, Access Control and self-service terminals

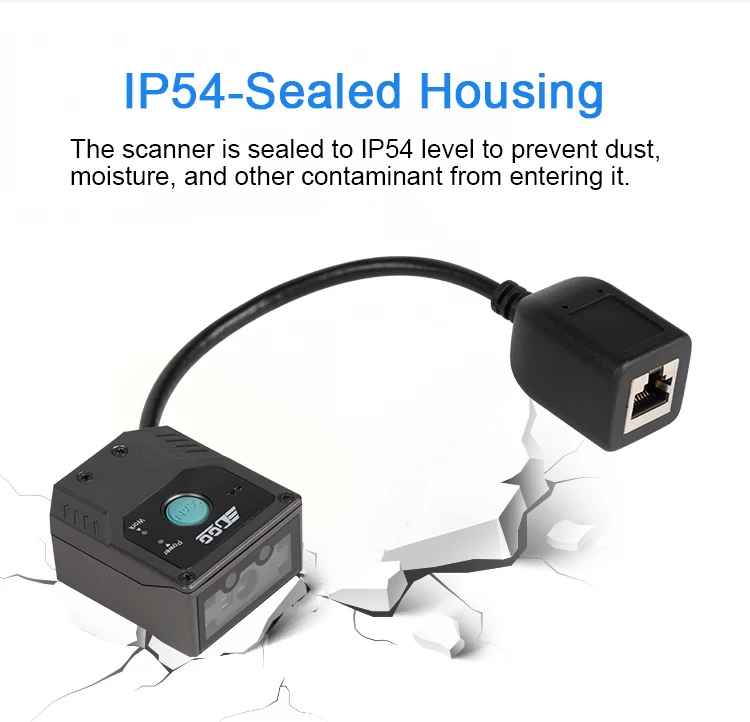

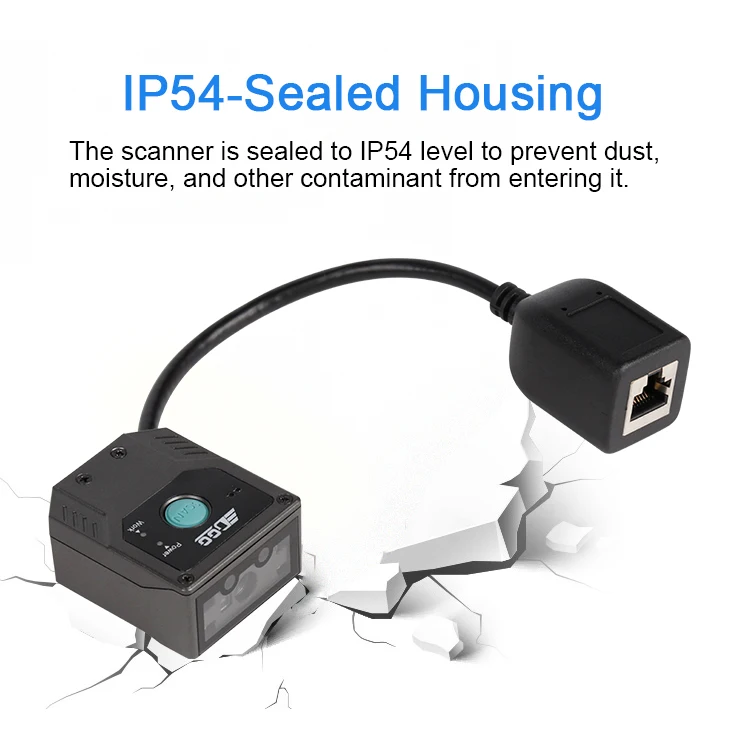

IP54
The Scanner is sealed to IP54 level to prevent dust, moisture, and other contaminant from entering it.
The Scanner is sealed to IP54 level to prevent dust, moisture, and other contaminant from entering it.
Performance | Image Sensor | 1280*800 CMOS Sensor | |||||
Illumination | White LED | ||||||
Aiming | Cross Laser | ||||||
Symbologies | 2D | PDF417, QR Code, Data Matrix, AZTEC, Hanxin Code, Maxicode, Micro QR, Micro PDF417, GM, Code One, etc. | |||||
1D | EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code 16K, etc. | ||||||
Read Precision* | ≥3mil | ||||||
Depth of Field* | EAN-13 | 55mm~350mm（13mil） | |||||
Code 39 | 55mm~145mm（5mil） | ||||||
PDF 417 | 45mm~130mm（6.7mil） | ||||||
Data Matrix | 50mm~150mm（10mil） | ||||||
QR Code | 45mm~190mm（15mil） | ||||||
Scan Mode | Sensing mode, Continuous mode, Trigger mode | ||||||
Barcode Sensitivity** | Pitch | ±50° | |||||
Tilt | 360° | ||||||
Skew | ±55° | ||||||
Field of Angle | Horizontal 35°，Vertical 22° | ||||||
Symbol Contrast* | ≥25% | ||||||
Mechanical/ Electrical | Communication Interface | RS-232, USB(Optional) | |||||

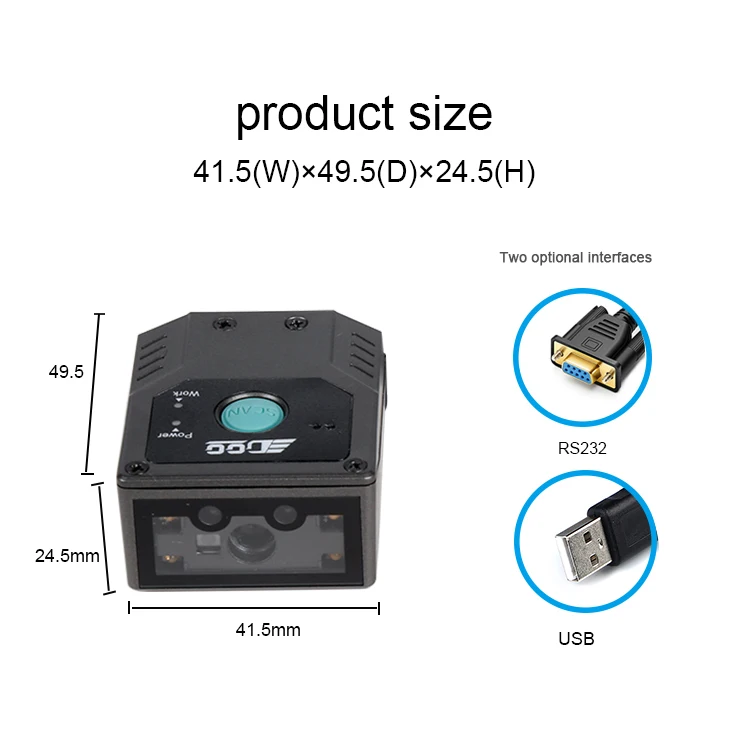

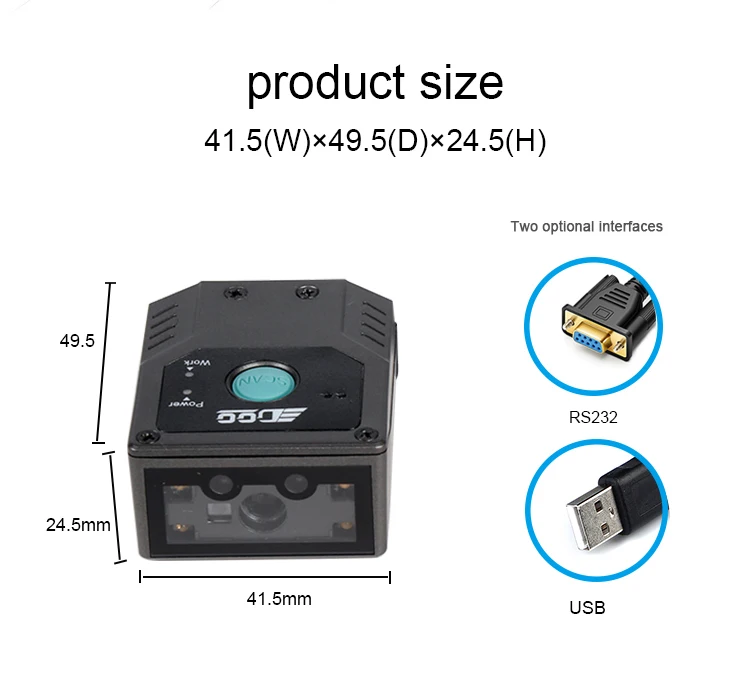

Size(mm) | 41.5(W)×49.5(D)×24.5(H) | ||||||
Weight | 75g | ||||||
Indicator | Beeper, Indicator light | ||||||
Operation Voltage | 5 VDC±5% | ||||||
Current@5 VDC | Operation | 257mA（Typical Value） | |||||
Standby | 50mA | ||||||
Environmental | Operation Temperature | -20℃~+60℃ | Relative Humidity | 5%~95%（Non-condensing） | |||
Storage Temperature | -40℃~+70℃ | ESD +14 kV（Air Discharge），±8 kV（Direct Discharge) | |||||
Sealing | IP54 | Drop 1.5M（3 times per 6 sides） | |||||
Certification | FCC Part15 Class B, CE EMC Class B | ||||||

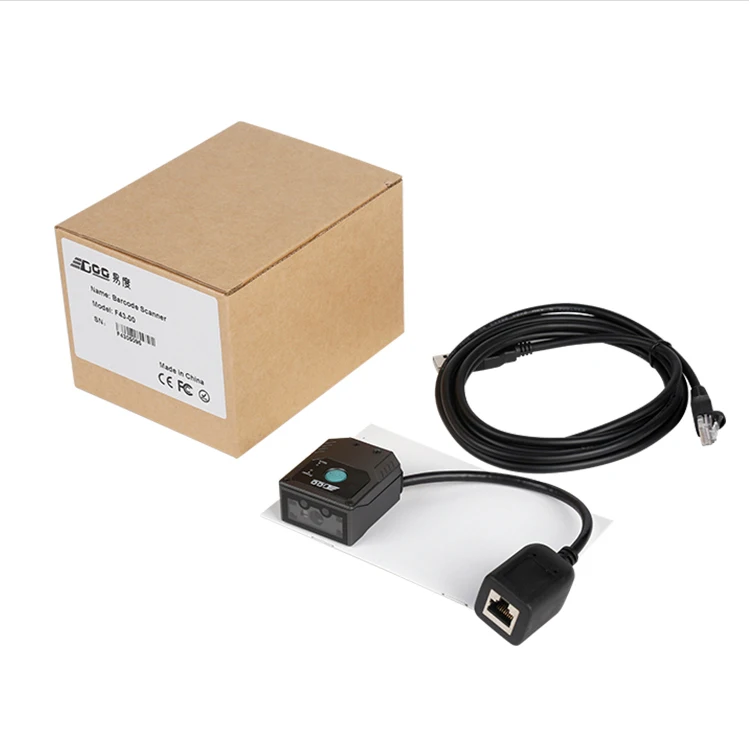

Accessories | Data Cable | USB | USB Cable to connect with the scanner and the host | ||||
RS-232 | RS-232 to connect with the scanner and the host | ||||||
Power Adaptor | 5V Power Adaptor, power on with RS-232 cable | ||||||
1D/2D QR Barcode Scanners and PDA Export OEM and ODM orders accepted Experienced export specialist and logistics experts AProfessional and Experienced Barcode Scanner and PDA Provider .Edoo-IoTTechnology is an IoT exporter and manufacturer locatedinShenzhen.
We can provide 1D & 2D laser/image barcode scanners, handheld barcode scanners, wireless barcode scanners barcodescanning engines/modules, fixed/embedded scanners, desktop scanners, PDA
smartphones or computers barcode scanningplatforms,and other scanning devices and technical services.
Barcode scanning solution terminator for 6 years, amount of stock, ready to ship,QR code scanner, OCR/MRZ scanner.
