Product Overview
Description
【4G Signal to Home Wi-Fi】 Insert the SIM card and plug and play. The 4G LET router can share 4G network with your electronic devices anytime, anywhere, in places without broadband coverage.
【High-quality performance】 The wireless 4G router is equipped with a powerful MTK7621A chipset, up to 880MHZ, 512MB DDR3 RMA and 16MB Nor Flash.
【Excellent dual-band Wi-Fi】 300Mbps over 2.4GHz and 867Mbps over 5GHz high-speed Internet to meet your Internet needs.
【Detachable Antennas】 You can replace the 4G antenna with an extended antenna. to easy connect outdoor directional or Omni antennas, increase your 4G LTE Internet data transmission.

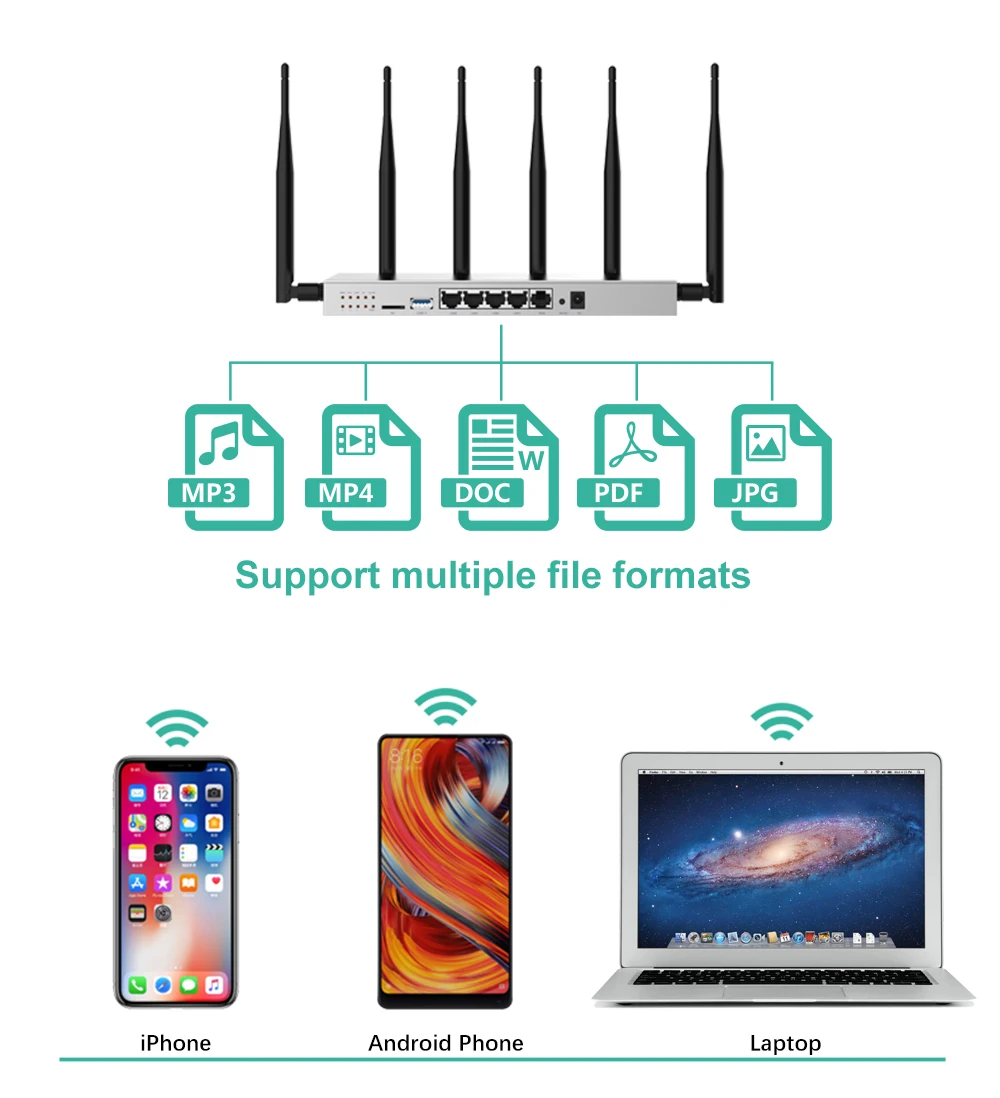

【Multiple interfaces】1*10/100/1000Mbps WAN Port, 4*10/100/1000Mbps LAN Port & USB 3.0 port SIM card slot and TF card slot, USB3.0 Bus MINI-PCIE slot, support (SMABA), FTP enables wireless routers to share files.
Products Description
Product Usage
Specifications
Hardware | ||
Main Chipset | MT7621A (880MHz) | |
2.4G Chip set | MT7603EN | |
5.8G Chip set | MT7612EN | |
RAM | DDR3 256MB （MAX DDR2 512MB） | |
SPI FLASH | 16MB （MAX 32MB） | |
Protocol | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b, IEEE802.11ac ,IEEE802.11a IEEE 802.3,IEEE 802.3u | |
RT Power | 802.11b 18dBm±2dBm 802.11g 15dBm±2dBm 802.11n 15dBm±2dBmu 802.11a 20dBm±2dBm 802.11ac 20dBm±2dBm | |
Reception Sensitivity | 802.11b ≦-76dBm 802.11g ≦-65dBm 802.11n ≦-61dBm 802.11a ≦-64dBm 802.11ac ≦-59dBm | |
Work Channel | 2.4G:2412 MHz-2484MHz(channel 1 -channel 14). 5.8G: 5725MHZ-5850M(channel:149,153,157,161,165) | |
Wireless Rate | Max 1200Mbps（depends on the 11AC mode） | |
Work Frequency | 2.4GHz, 5.8GHz | |
Antenna | 6* removable Omni Directional 5dBi antenna | |
Interface | 1* PCI-E slot 1 *SIM card slot 1 *USB 3.0 port 1 *Micro TF card slot 1 *10/100M/1000M WAN port（Auto MDI/MDIX） 4 *10/100M/1000M LAN port（Auto MDI/MDIX） | |
LED | PWR.2G.5G.WAN.LAN1.LAN2.LAN3.LAN4 | |
Button | Reset Button | |
Max Power consumption | < 12W | |
Dimension（L*W*H） | 332*232*60MM | |
Related Products
Company Profile
Welcome to Shenzhen Zhibotong Electronics Co., Ltd. established in 2010, located at Longhua District, Shenzhen, China. ZBT is a manufacturer which is consist of 300 staffs, with a 30-person R & D team, 10,000 Square meters production scale. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT WiFi router, 3G/4G router, Vehicles router, AP, Outdoor CPE and LTE CPE. ZBT is also a Wi-Fi coverage service provider, provides the solution for hotel, school, hospital, enterprise, airport and vehicle field. We have built a long term cooperation with Mediatek, Broadcom and Qualcomm, capably offering good quality products and fast after-sale service to our clients. Till now, ZBT's products have exported to over 30 countries and regions. Our main customers are China Mobile, Vivacom in Bulgaria, Sprint, T-Mobile, AT&T in USA and Smart in Philippine. We also take part in different Communication Fairs, such as MWCA in USA, Gitex in Dubai, Cebit in Germany and Computex in Taipei. Each year, ZBT will take out more than 35% of the annual turnover as R&D funds to develop new products, so as to satisfy clients' new coming requests. Customers' satisfaction is ZBT's continuously pursues. ZBT warmly welcome everybody joining in and build win-win cooperation.
Certifications
Exhibition
FAQ
Can you printing Customer logo on products?
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desgin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquiring us to see if we can, or if we do, to see if we can surprise you!
Yes, we can printing your logo on products.
Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Can you desgin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
Do you....?
Maybe, why don't contact us now! Inquiring us to see if we can, or if we do, to see if we can surprise you!
