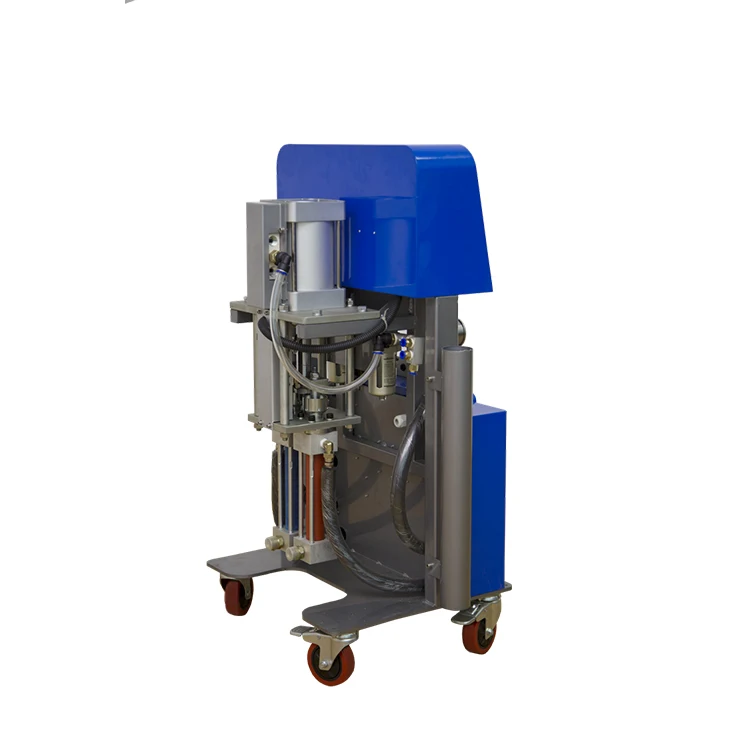

K2000 Factory Outlet Pneumatic Two Component Pu Spray Foam Polyurethane Insulation Injection Spraying Machine
- Category: Plastic & Rubber Processing Machinery >>>
- Supplier: Linyi Zhengda Industrial Technology Co. Ltd.
Share on (1600626920518):
Product Overview
Description
Product Description
Description

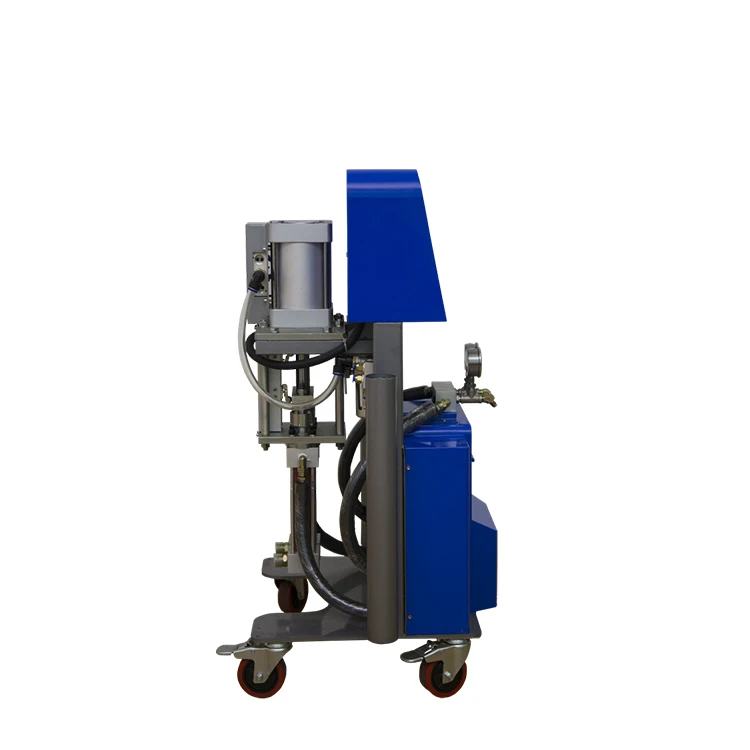

K2000 is a basic, inexpensive and portable polyurethane spray and injection machine, suitable for two-component
polyurethane spray technology. It is small in size, easy to operate and maintain, and is especially suitable for small
area projects.
polyurethane spray technology. It is small in size, easy to operate and maintain, and is especially suitable for small
area projects.
Application
Construction, Automobile, Road, Railway, Shipbuilding, Mining, Petroleum, Electrical, and other industries.
Advantages
* This machine has pass the CE Certificate;

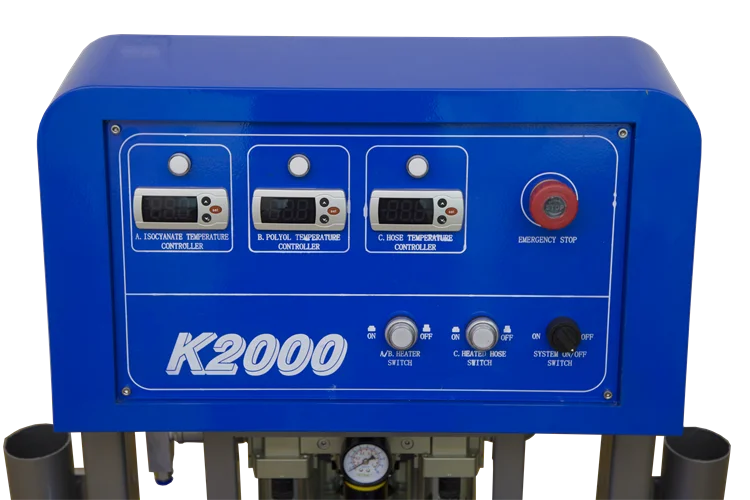

* Panel with operation tips is easy to set up;
* Fully pneumatic design, it can work normally without electricity;
* The booster pump is simple in structure and easy to disassemble and maintain;
* The stop reset function can make the booster pump shafts always infiltrated in the booster pump, which can avoid
damage to the seals and booster pump shafts caused by ISO crystallization;
* A/B/Hose independent temperature control, can set different temperatures separately, adapt to the temperature requirements of different material;
* Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range;
* The integrated heated hose is covered with wear-resistant insulating sleeve, which not only can effectively keep the temperature of the material, but also can prevent the occurrence of leakage, short circuit, etc;
* The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter
impurities and crystals in the materials and reduce the occurrence of the blocking gun;

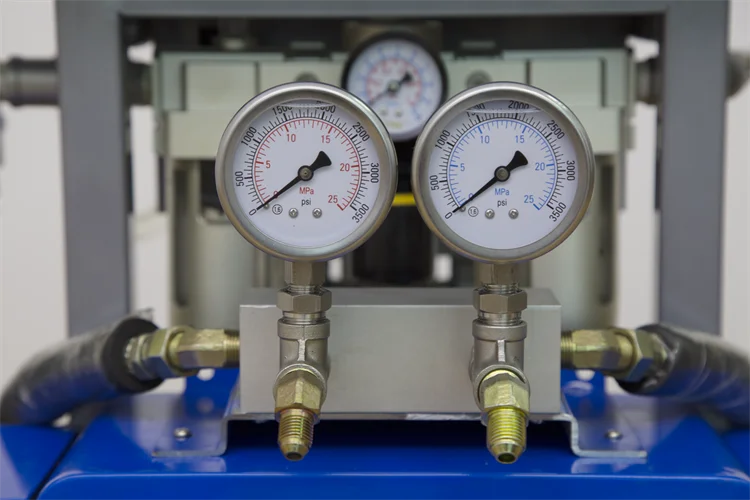

* High-precision pressure gauges are available in MPa and PSI to meet the needs of different customers;
* Equipped with an action counter to accurately calculate the amount of raw materials;

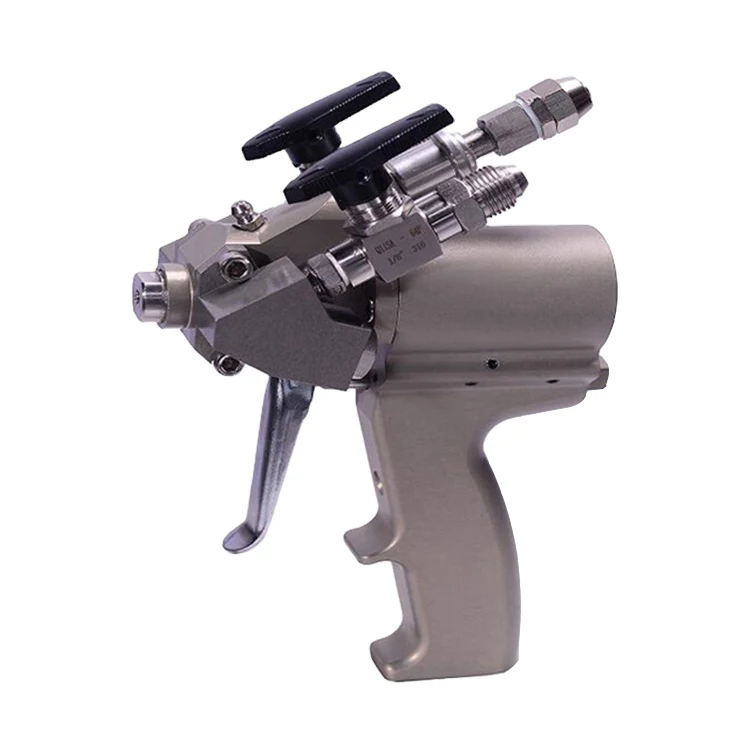

* The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.
* Panel with operation tips is easy to set up;
* Fully pneumatic design, it can work normally without electricity;
* The booster pump is simple in structure and easy to disassemble and maintain;
* The stop reset function can make the booster pump shafts always infiltrated in the booster pump, which can avoid
damage to the seals and booster pump shafts caused by ISO crystallization;
* A/B/Hose independent temperature control, can set different temperatures separately, adapt to the temperature requirements of different material;
* Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range;
* The integrated heated hose is covered with wear-resistant insulating sleeve, which not only can effectively keep the temperature of the material, but also can prevent the occurrence of leakage, short circuit, etc;
* The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter
impurities and crystals in the materials and reduce the occurrence of the blocking gun;
* High-precision pressure gauges are available in MPa and PSI to meet the needs of different customers;
* Equipped with an action counter to accurately calculate the amount of raw materials;
* The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.
Technical Parameters
* Model: K2000 Polyurethane Spray Machine
* Applicable materials: Polyurethane
* The ratio of raw material: 1:1
* Viscosity range of raw materials: 200-1000CPS (under working temperature)
* Max working pressure: 15MPa
* Max fluid temperature: 80°C
* Max output: 10kg/min
* Max heated hose length (Optional): 45m
* Heater power: 3000Wx2
* Heated hose max power: 2000W
* Drive mode: Full pneumatic
* Clean mode: Self-cleaning by air
* Voltage (Optional): Single phase 220V 50Hz or Three phase 380V 50Hz
* Whole power: 9kw
* Pneumatic source: 0.5-0.8Mpa lm3/min
* Applicable materials: Polyurethane
* The ratio of raw material: 1:1
* Viscosity range of raw materials: 200-1000CPS (under working temperature)
* Max working pressure: 15MPa
* Max fluid temperature: 80°C
* Max output: 10kg/min
* Max heated hose length (Optional): 45m
* Heater power: 3000Wx2
* Heated hose max power: 2000W
* Drive mode: Full pneumatic
* Clean mode: Self-cleaning by air
* Voltage (Optional): Single phase 220V 50Hz or Three phase 380V 50Hz
* Whole power: 9kw
* Pneumatic source: 0.5-0.8Mpa lm3/min
Standard Configuration

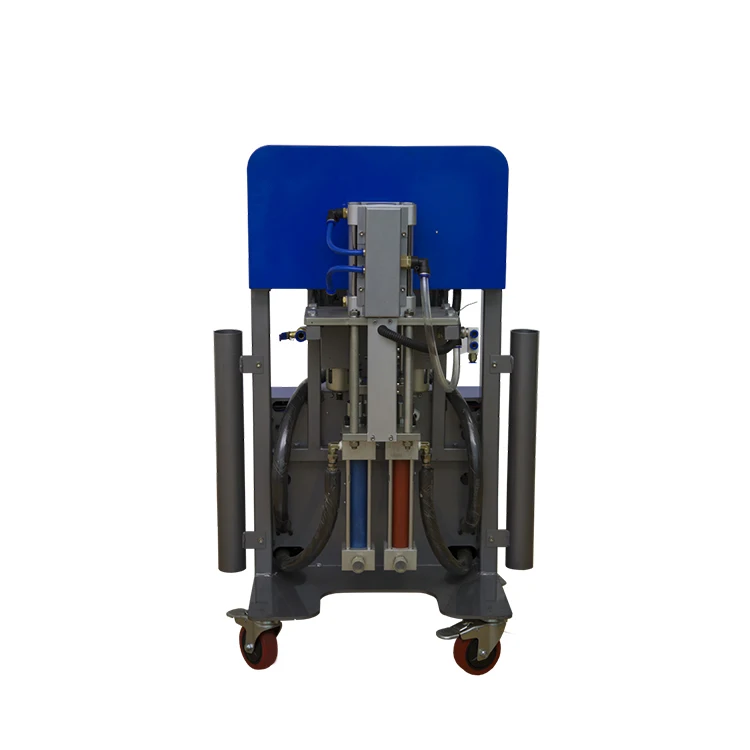

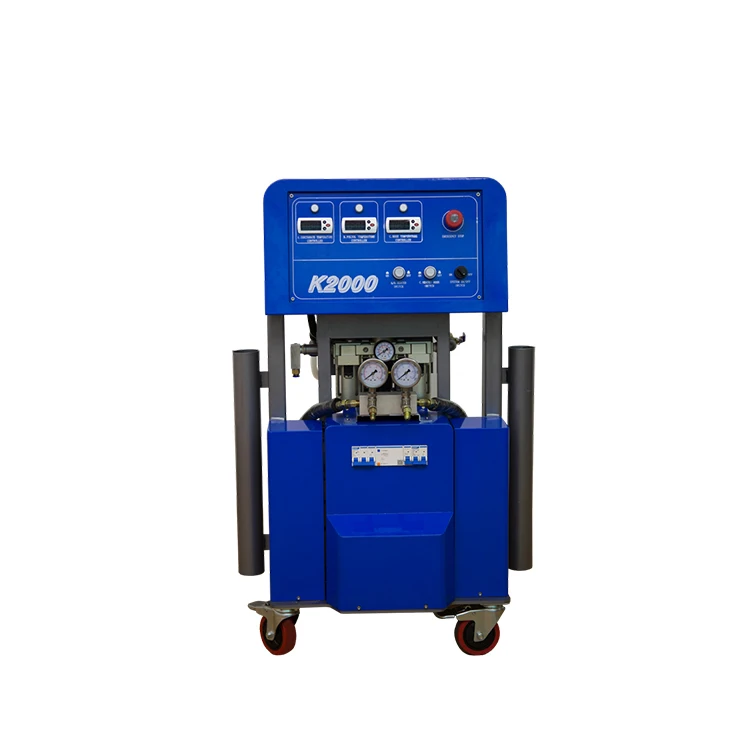

* K2000 mainframe 1 set

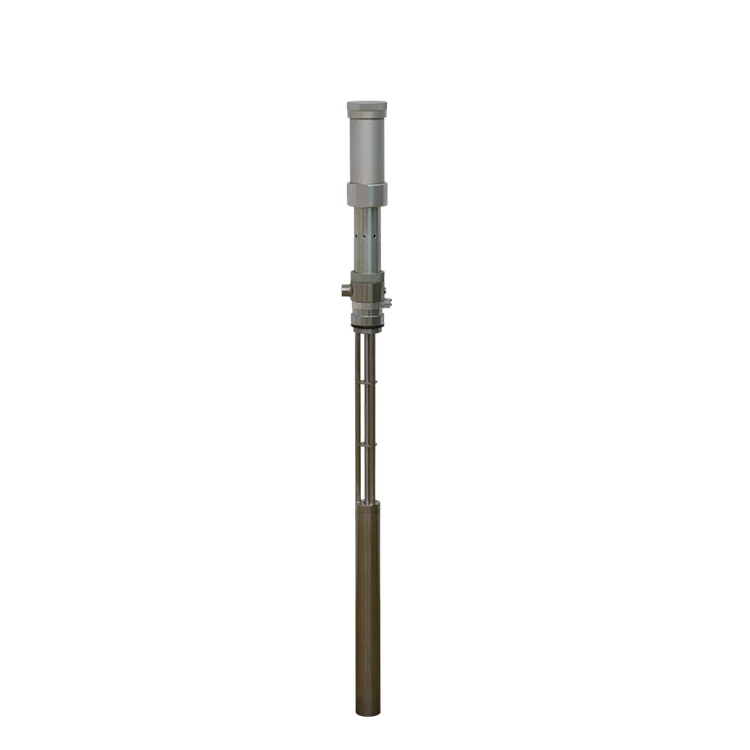

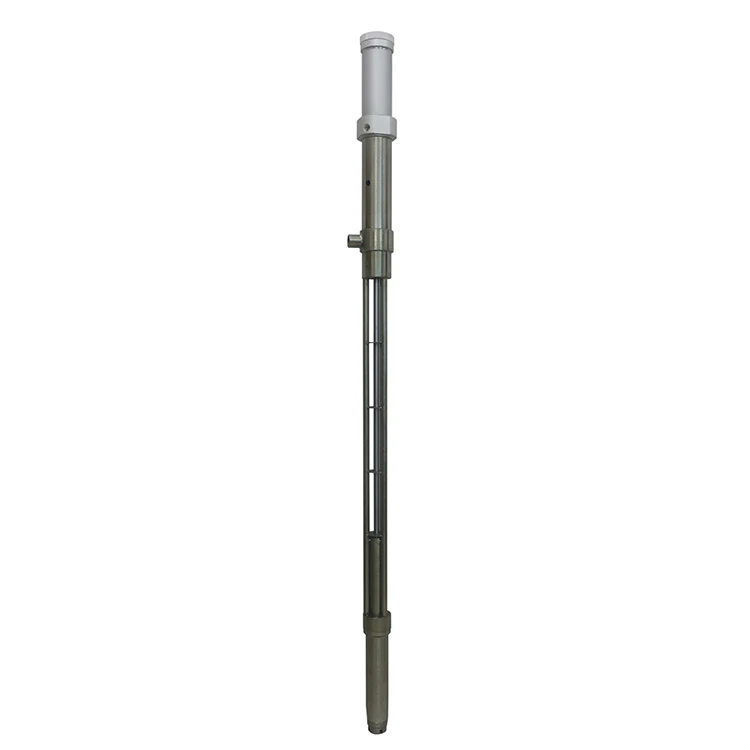

* Transfer pump 2 sets
* Transfer pump hose 2 pcs
* Air pipe 1 set
* Transfer pump 2 sets
* Transfer pump hose 2 pcs
* Air pipe 1 set
* English user manual 1 set
* Spray gun 1 set

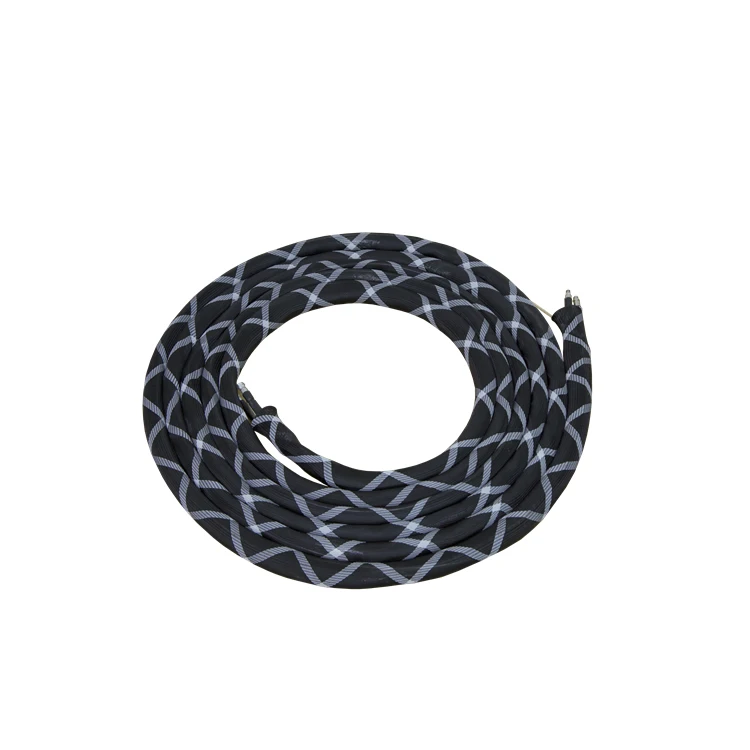

* Heated hose 15m

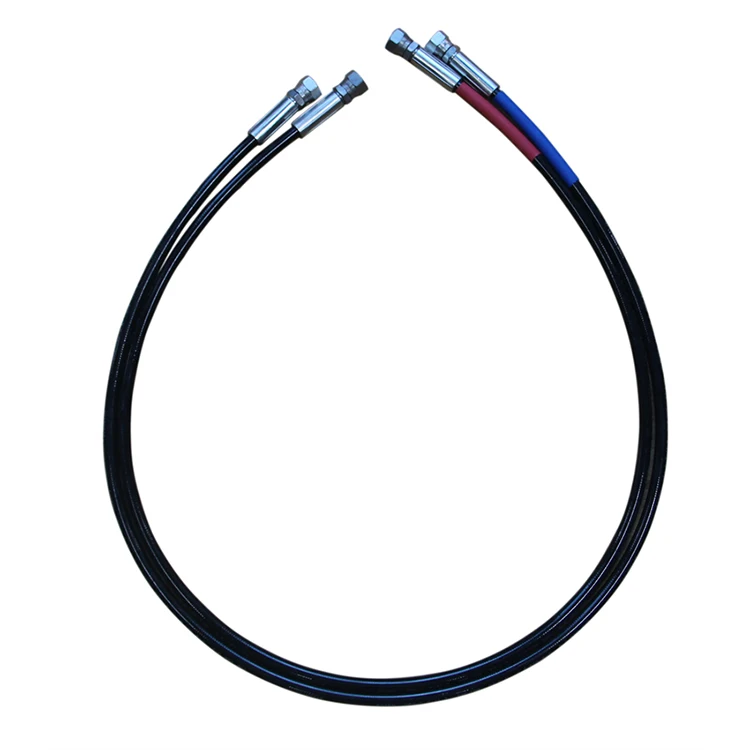

* Whip hose 2 pcs

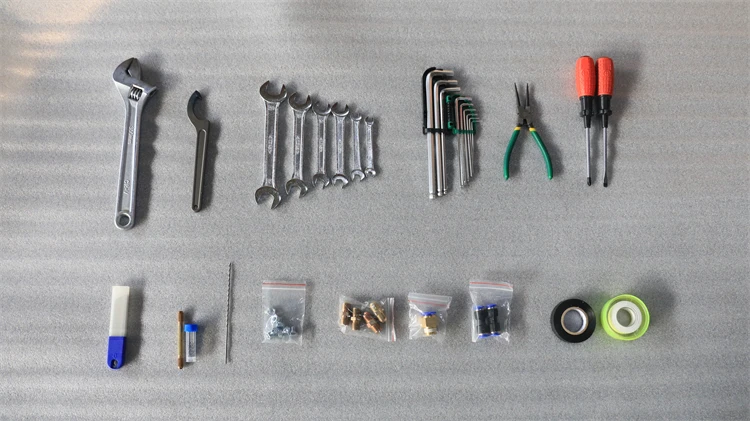

* Tools and spare parts 1 set
* Protective clothing and mask 1 set
* Spray gun 1 set
* Heated hose 15m
* Whip hose 2 pcs
* Tools and spare parts 1 set
* Protective clothing and mask 1 set
Transportation Parameters (Based on standard configuration):
* Model: K2000 Polyurethane Spray Machine
* Package size (LXWXH): 90X75X143cm
* Net weight: 151kg
* Gross weight: 185kg
* Package size (LXWXH): 90X75X143cm
* Net weight: 151kg
* Gross weight: 185kg

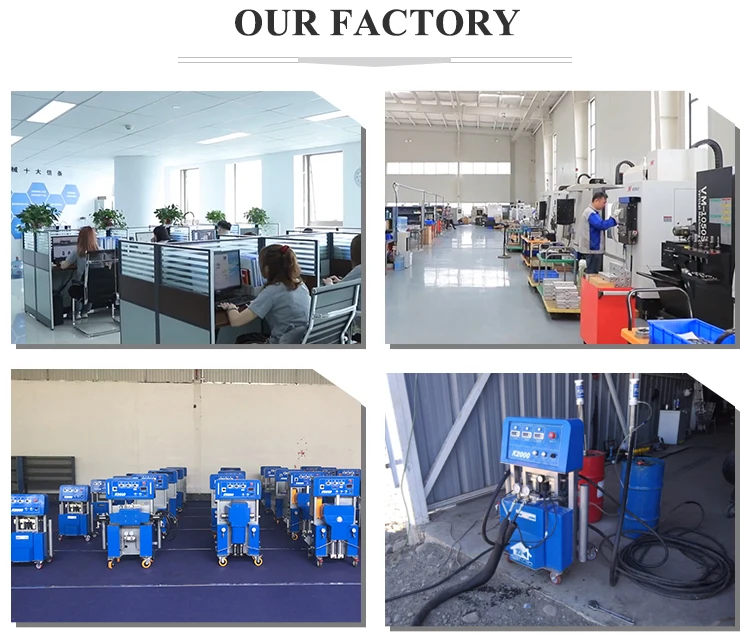

Company Profile
Packing & Delivery
FAQ
Q: Are you the factory or trade company? A: We are factory. Q: Can you provide tutorials? A: Of course.We also provide links to machine operation videos and machine operation manuals. Q: What's the delivery time? A: We can send the machine within 7 days after receiving the payment. Q: Can I use my logo? A: Yes. We also provide other customized services. Q: How to solve the polyurethane foaming machine failure? A: We are online 24 hours, you can contact us at any time. Q: How to keep our transactions safe? A: We can establish cooperation through Alibaba and Trade Assurance, L/C, etc. |
