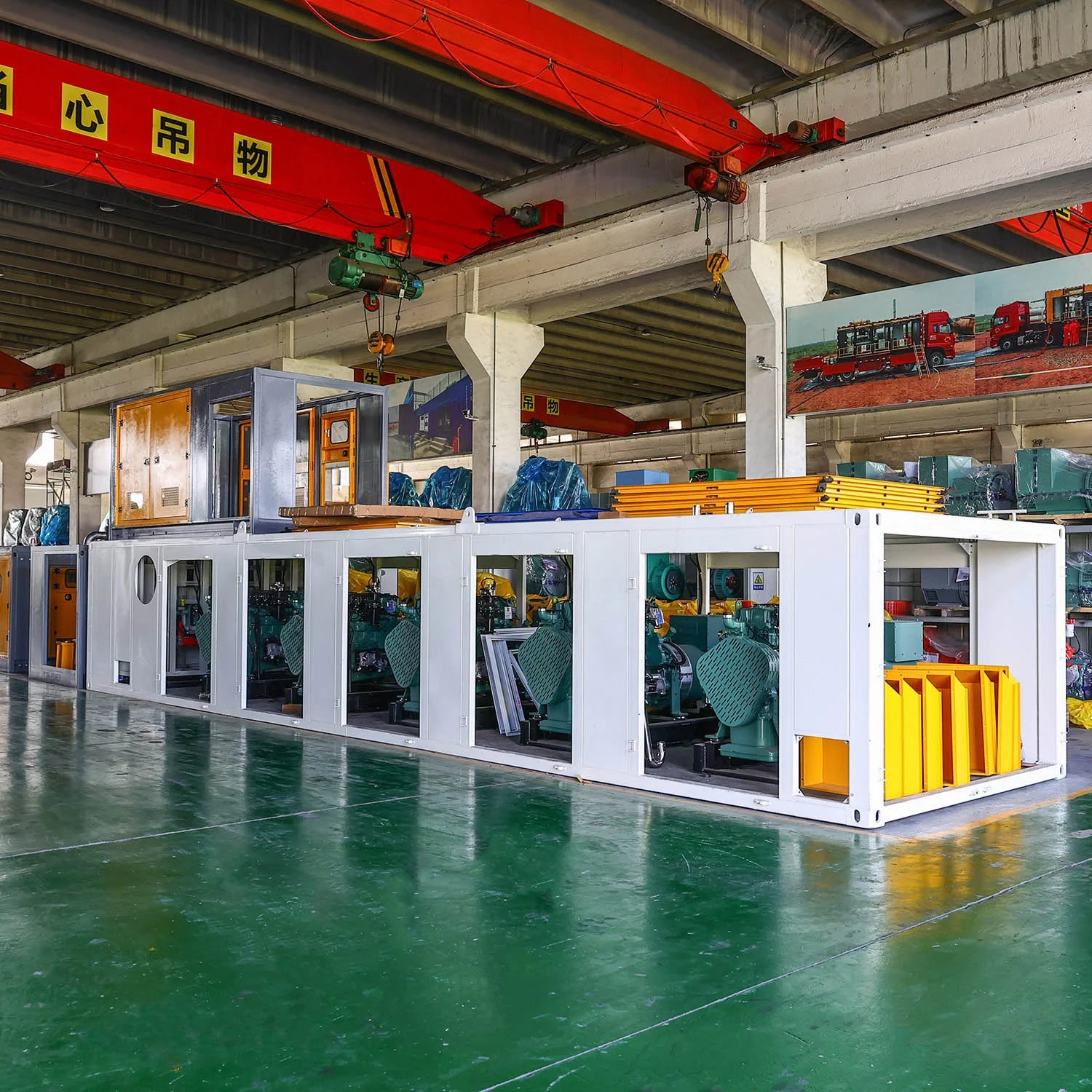

Solution of natural gas generator set 2000kw
- Category: Gas Turbine Generators >>>
- Supplier: Weifang Yidaneng Power Co. Ltd.
Share on (1600630216333):
Product Overview
Description
Product Description
2000kw natural gas generator power station
2*1000kw generator parallel
4*500kw generator parallel8*250kw natural gas generator parallel (Cost effective selection)
We can provide 1600kw,1000kw parallel solution - Contact us for your Power Solution
Specification
DETAILED PARAMETERS | ||||
Generator | Genset Model | YDNM-1000 | ||
Frequency | 50HZ/60HZ | |||
Voltage | 400/230V | |||
Prime Power (KW/KVA) | 1000/1250 | |||
Standby Power (KW/KVA) | 1100/1375 | |||
Phase | 3 Phase | |||
Overall Size (mm) | 6038×1776×3232 | |||
Weight (kg) | 25000 | |||
Engine | Model | TCG3016V16 | ||
Type | Water-cooled,inline,4-stroke,direct injection, wet cylinder liner,1500rpm | |||
Prime Power (kw) | 1028 | |||
Intake Type | Natural | |||
No. of Cylinder | 16 | |||
Bore×Stroke (mm) | 132×160 | |||
Piston Speed (m/s) | 8.0/9.6 | |||
Medium Effective Pressure (bar) | 18.8 | |||
Thermal output ±8% (kW) | 791 | |||
Electrical Efficiency (%) | 43.1 | |||
Thermal Efficiency (%) | 42.6 | |||
Overall Efficiency (%) | 85.7 | |||
Displacement (L) | 35 | |||
Governing type | Mechanical | |||
Alternator | Model | Farrand | ||
Prime Power (KW/KVA) | 1000/1250 | |||
Power Efficiency | 84.30% | |||
Voltage Regulation | ≤±1.5 | |||
Excitation Type | Brushless | |||
Insulation Class | H | |||

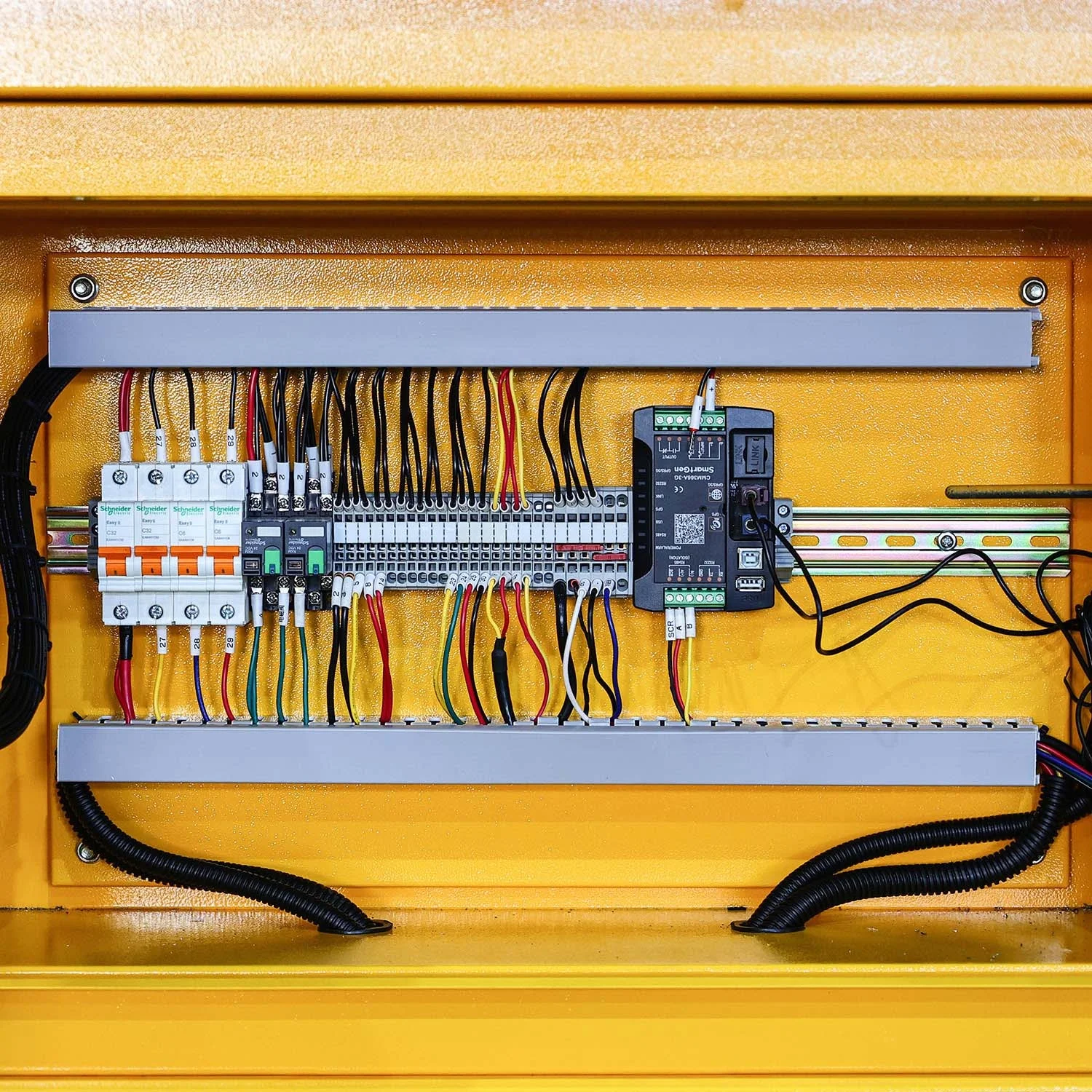

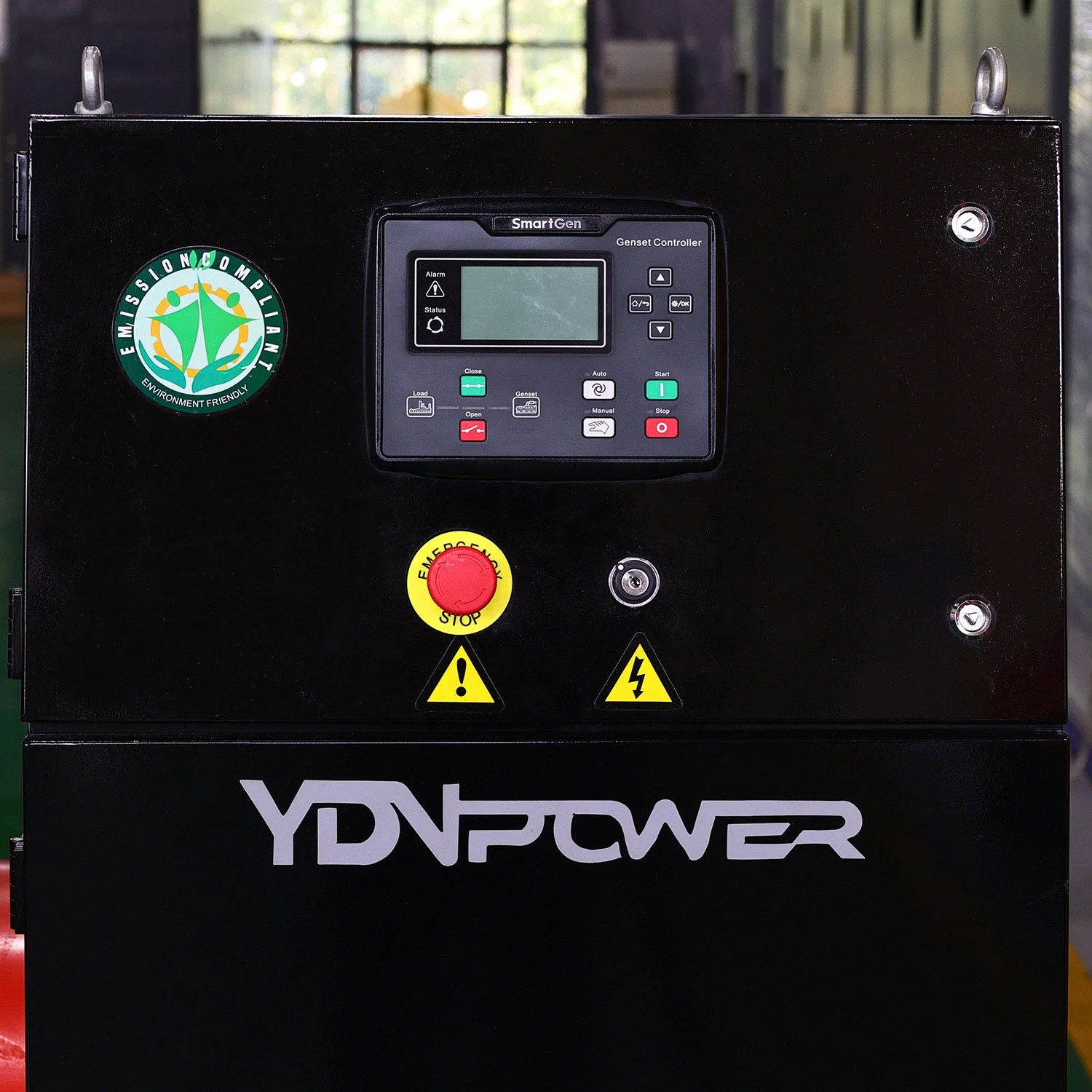

Control System | Model | Smartgen6110 | ||
Working Voltage | DC8.0V to DC35.0V, continuous | |||
Overall Dimensions | 197 mm x 152 mm x 47mm | |||
Panel Cutout | 186mm x 141mm | |||
Working Condition | Temperature: (-25~70)ºC; Humidity: (20~90)% | |||
Weight | 0.56kg | |||
