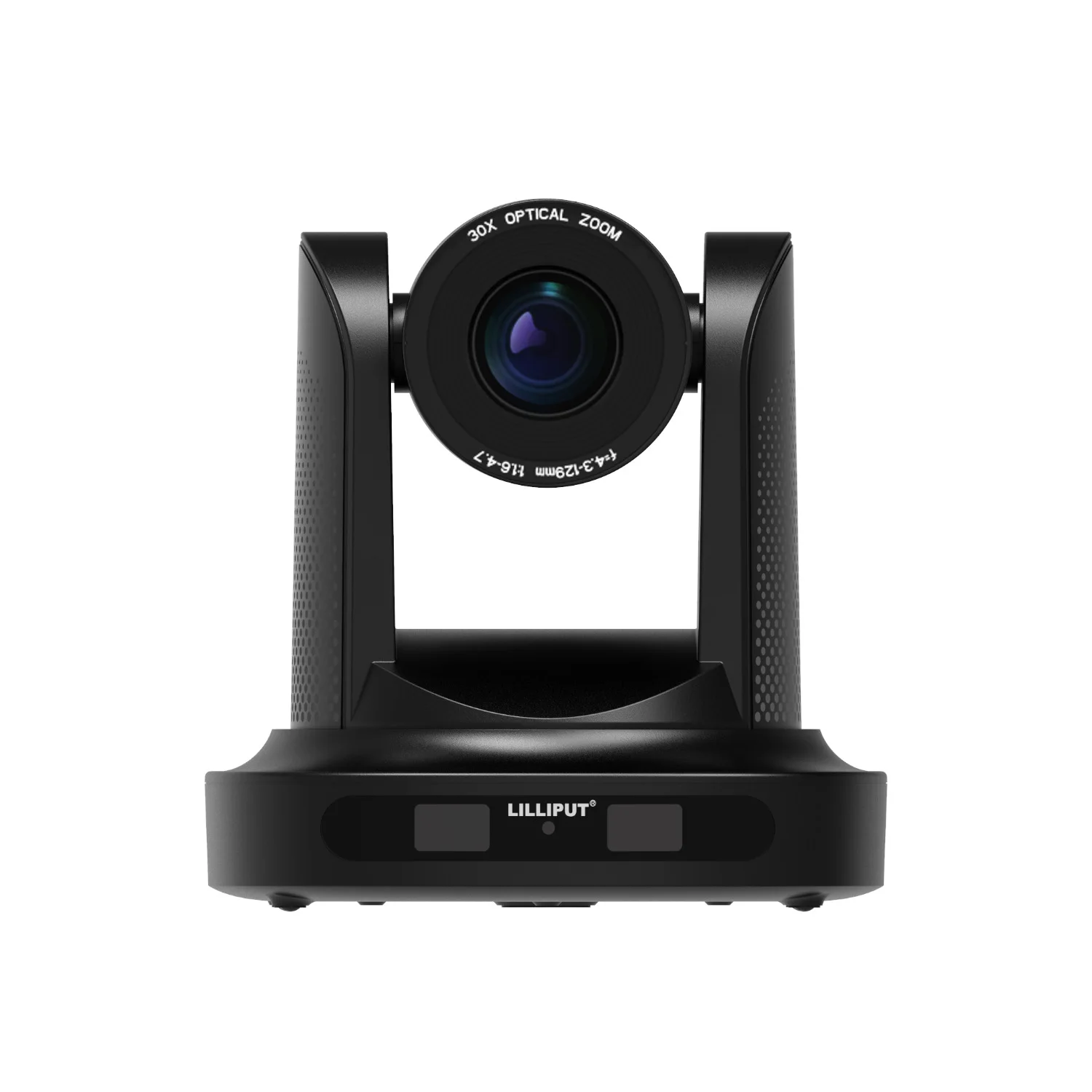

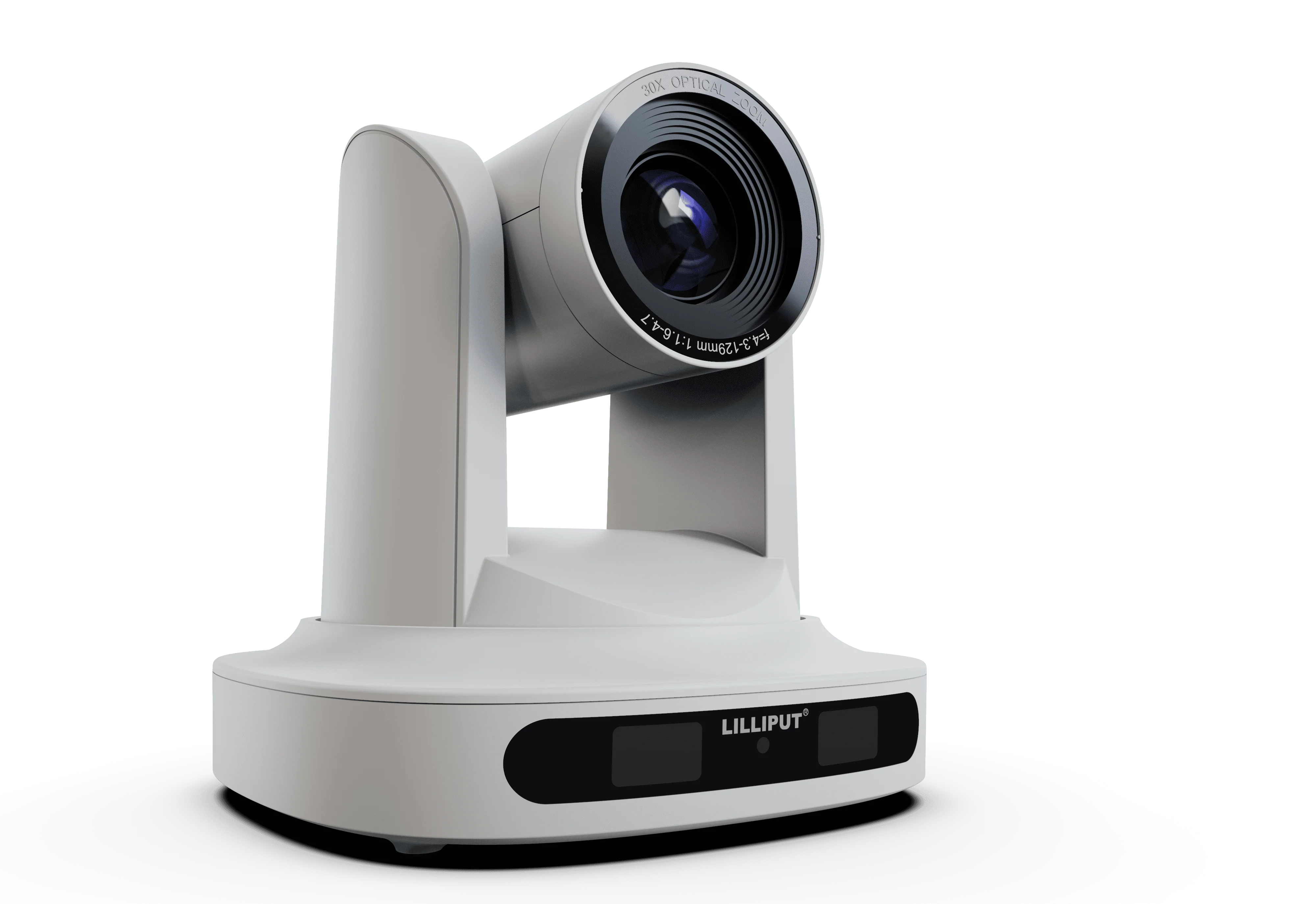

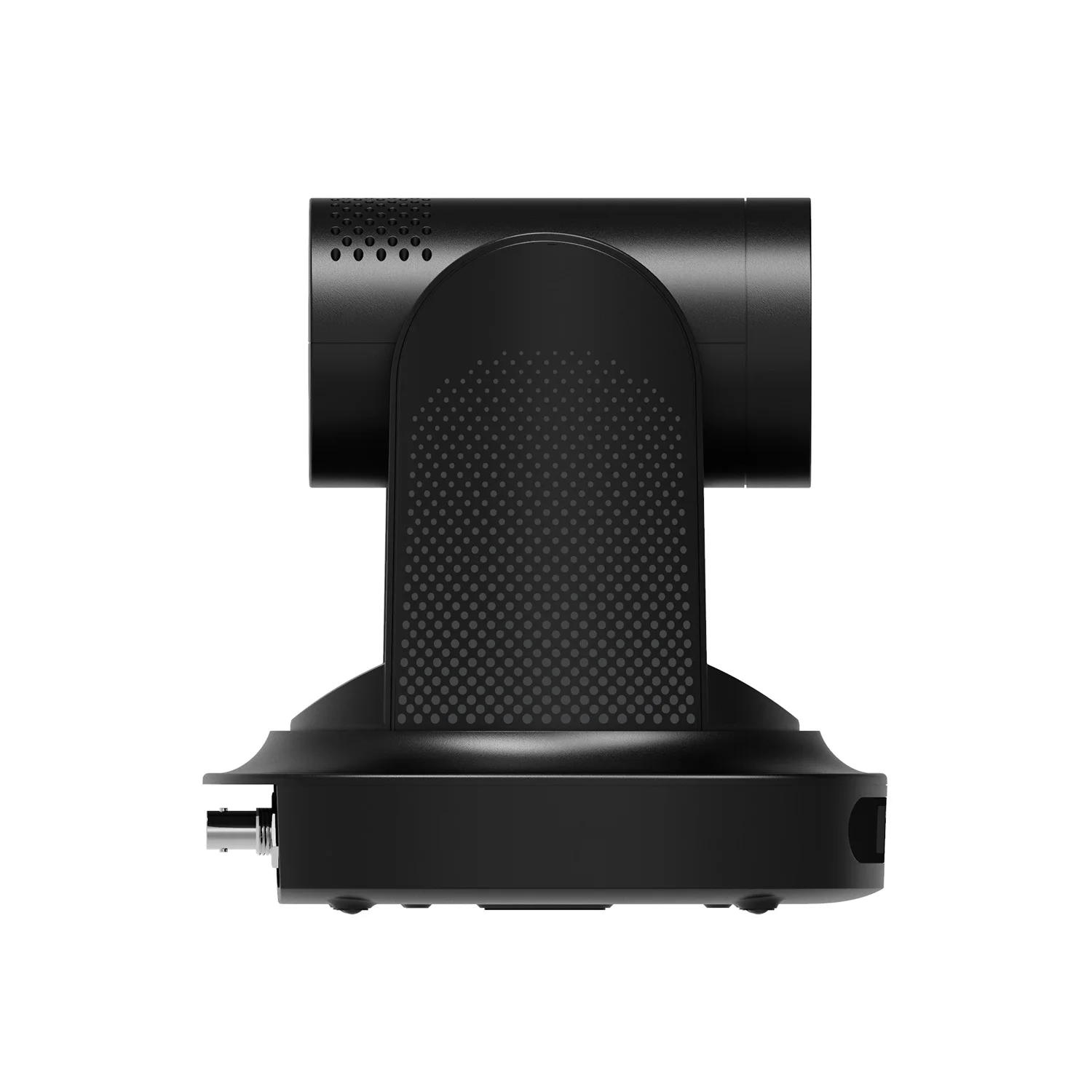

HD 20x PTZ Pan Tilt Zoom Camera with SDI HDMI NDI POE camera for live streaming church and Video Conferencing Solution
- Category: >>>
- Supplier: Zhangzhou Lilliput Electronic Technology Co. Ltd.
Share on (1600633770569):
Product Overview
Description
HD 20x PTZ Pan Tilt Zoom Camera with SDI HDMI NDI POE camera for live streaming church and Video Conferencing Solution
Specification
MODEL NO. | C20P | C20N | ||

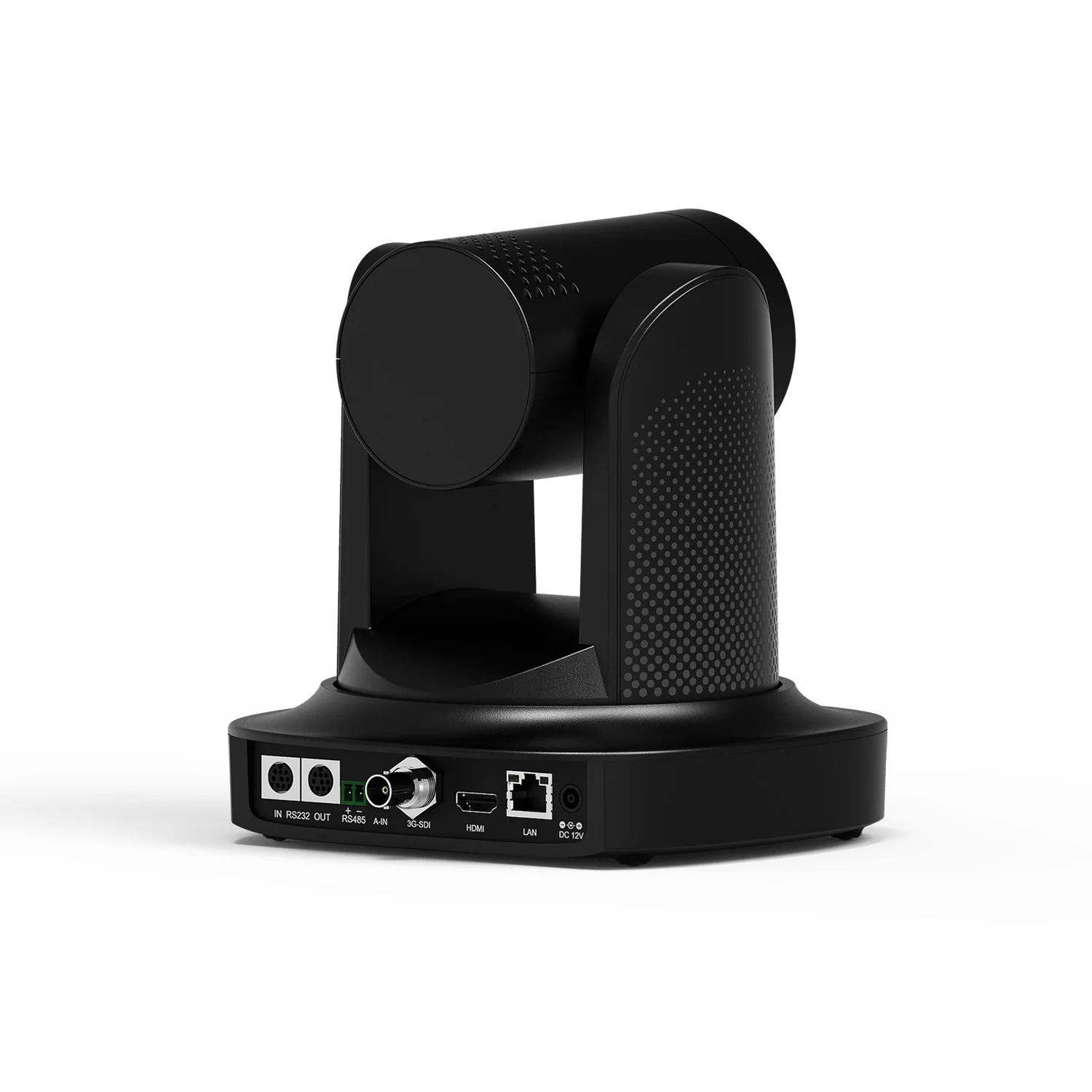

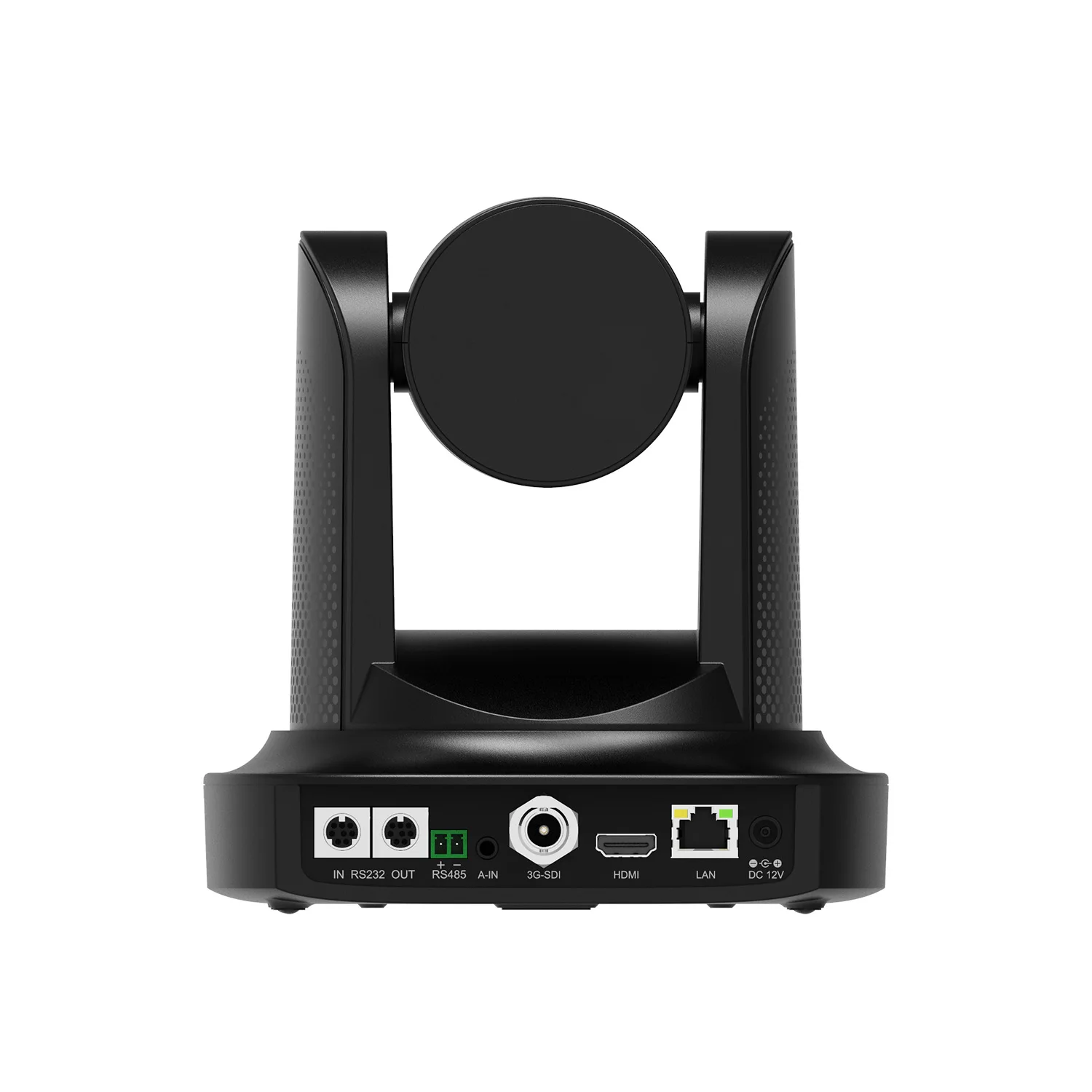

INTERFACES | Video Out | SDI, HDMI | ||
LAN Port | IP Streaming: RTSP/RTMP/SRT | |||
POE | POE&NDI丨 HX | |||
Audio Input | 3.5mm audio (Line-level) | |||
Control Interface | RS-232 In and Out, RS485 In | |||
Control Protocol | Onvif, VISCA over IP/ VISCA/ Pelco-D/P | |||
Video Format | HDMI/ SDI Video up to 1080P60 | |||
CAMERA PARAMETERS | Optical Zoom | 20× | ||
Focal Length | F=5.5~110mm | |||
View Angle | 3.3°(tele) | |||
54.7°(wide) | ||||
Sensor | 1/2.8 inch, High quality HD CMOS sensor | |||
Effective Pixels | 16: 9, 2.07 Megapixel | |||
Digital Zoom | 10× | |||
Minimum Illumination | 0.5Lux (F1.8, AGC ON) | |||
DNR | 2D & 3D DNR | |||
SNR | >55dB | |||
White Balance | Auto/ Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K | |||
WDR | OFF/ Dynamic level adjustment | |||
Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve | |||
Other Camera Parameters | Auto Focus, Auto Aperture, Auto Electronic Shutter, BLC | |||
OTHERS | Input Voltage | DC12V±10% | ||
Input Current | 1A (Max) | |||
Consumption | 12W (Max) | |||
Temperature | Working Temperature: -10~+50°C, Store Temperature: -10~+60°C | |||
Working Humidity | Working Humidity: 20~80% RH (no condensation), Store Humidity: 20~95% RH (no condensation) | |||
Dimension | 170×170×180.31mm | |||
Weight | Net weight: 1.25kg; Gross weight: 2.1kg | |||
Accessories | Power Supply, RS232 Control Cable, Remoter, Manual | |||
Installation Methods | 1/4 inch tripod hole; Bracket installation for Optional | |||
Product Description

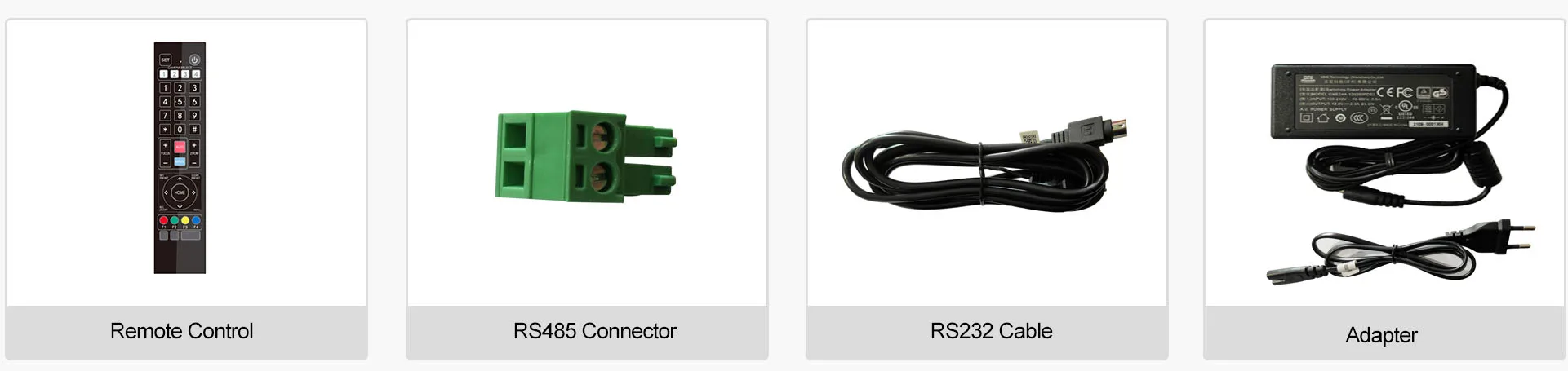

Accessories
1. Remote Control
2. RS485 Connecter
3. RS232 Cable
4. Adapter
3. RS232 Cable
4. Adapter
Company Profile
ABOUT LILLIPUT
LILLIPUT is a globalized ODM (Original Design Manufacturer) and EMS (Electronic Manufacturing Service) service provider specialized in research and application of electronic, optoelectronic and computer-related technology. It is an ISO 9001:2008 certified research institute and manufacturer involved in design, manufacturing, marketing and delivery of electronic products across the world since 1993. The company has been producing and delivering both standardized and customized products in the field of Optoelectronic Display, Embedded Computer Control System and Electronic Testing & Measurement inthe past two decades offering avariety of solutions in satisfying a wide range of industries.Packing & Delivery
