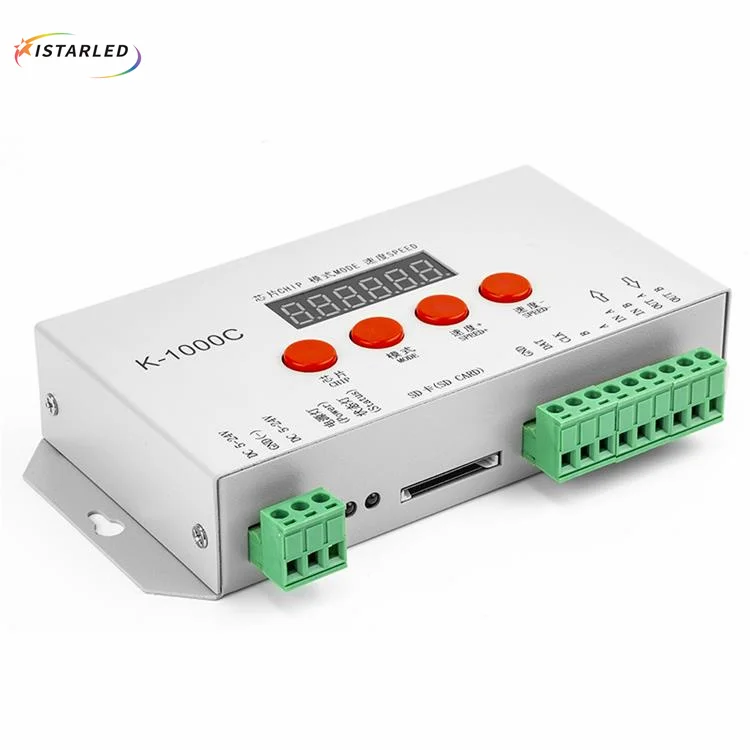

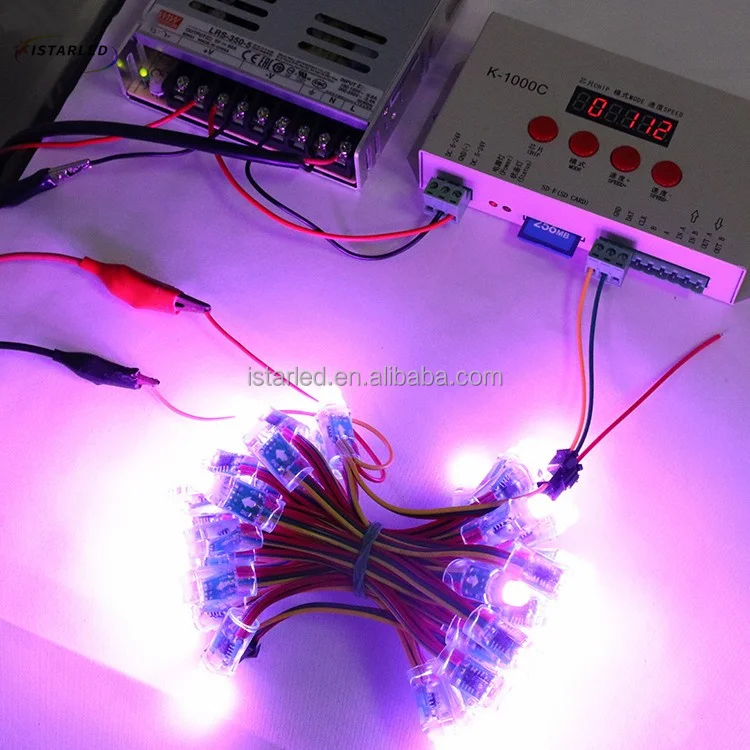

sd card one port lededit k-1000c spi ws2811 ucs1903 sm16703 5-24v dmx512 rgb rgbw pixel led controller

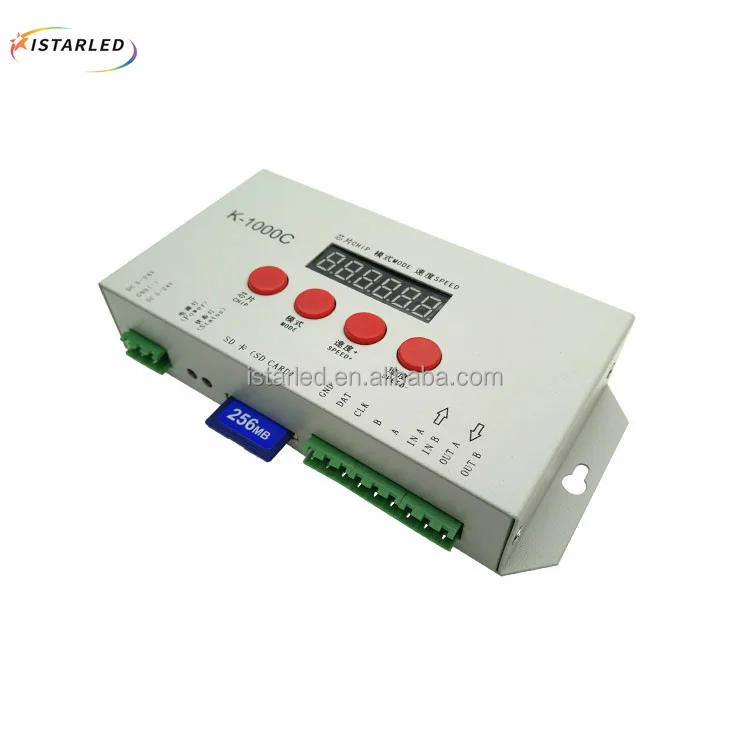

Product Description
1.32 to 65536 degree Gray control, Gamma correction procession handle.
2.Support various point, line light source, and all kinds of rules and specific shaped handle.
3.The controller has one output port, can support up to 512/2048 pixels(DMX lighting support up to 512 pixels).
4.Play content stored in the SD card , the SD card can store up to 32 effects File, SD card capacity support 128MB-32GB.
5.The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.
6.The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7.For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
8.Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
9.Enhanced 485 TTL and 485 differential (DMX) signal output.
10.The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes
Control IC chip as below:
00: UCS1903,1909,1912,2903,2904,2909,2912;TM1803,1804,1809,1812;
SM16703,16709,16712;WS2811,WS2812,WS2813,WS2815,WS2818;
INK1003;LX3203,1603,1103;GS8205,8206;SK6812(max. Supports lights 2048 pixels)
01:SM16716,16726(support up to 2048 pixels)
02:P9813(support up to 2048 pixels)
03:LPD6803(support up to 2048 pixels)
04:LX1003,1203(support up to 2048 pixels)
05:WS2801(support up to 2048 pixels)
06:LPD1886(support up to 2048 pixels)
07:TM1913(support up to 2048 pixels)
08:TM1914(support up to 2048 pixels)
09:P9883,P9823(support up to 2048 pixels)
10:DMX(support up to 512 pixels, suggest to support ≤320 pixels)
11:DMX 500K(support up to 512 pixels, suggest to support ≤320 pixels)
12:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
13:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
NOTES: 1.If support RGBW four channels’ lights should select K-1000-RGBW.
2.If support single channel light should choose K-1000-W, at this time, one channel means one pixel, the software effect make as white lighting.
SM16703,16709,16712;WS2811,WS2812,WS2813,WS2815,WS2818;
INK1003;LX3203,1603,1103;GS8205,8206;SK6812(max. Supports lights 2048 pixels)
01:SM16716,16726(support up to 2048 pixels)
02:P9813(support up to 2048 pixels)
03:LPD6803(support up to 2048 pixels)
04:LX1003,1203(support up to 2048 pixels)
05:WS2801(support up to 2048 pixels)
06:LPD1886(support up to 2048 pixels)
07:TM1913(support up to 2048 pixels)
08:TM1914(support up to 2048 pixels)
09:P9883,P9823(support up to 2048 pixels)
10:DMX(support up to 512 pixels, suggest to support ≤320 pixels)
11:DMX 500K(support up to 512 pixels, suggest to support ≤320 pixels)
12:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
13:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
NOTES: 1.If support RGBW four channels’ lights should select K-1000-RGBW.
2.If support single channel light should choose K-1000-W, at this time, one channel means one pixel, the software effect make as white lighting.
Note:
Controller on the SD card can not be hot-swappable, plug the SD card every time, you must first disconnect the power supply
controller
Question 1: After power, the T-1000 ERROR indicator has been flashing without display output
Answer: The ERROR indicator has been flashing means the controller did not read the card correctly, possible problems:
a .SD card is empty, with no effect file
b .The effect file in the SD card and the controller model are not match, please choose correct controller model in LedEdit and
then re-create the effect file led
c .SD card did not format to FAT before copy effect files
d .Please check the supply power voltage, the controller can be individually powered to exclude power reasons
f .Changing the SD card and then test to exclude the possibility of a bad SD card
Question 2: The controller is powered on, the indicator is normal, but no effect change in lighting
Answer: The reasons for this are as follows:

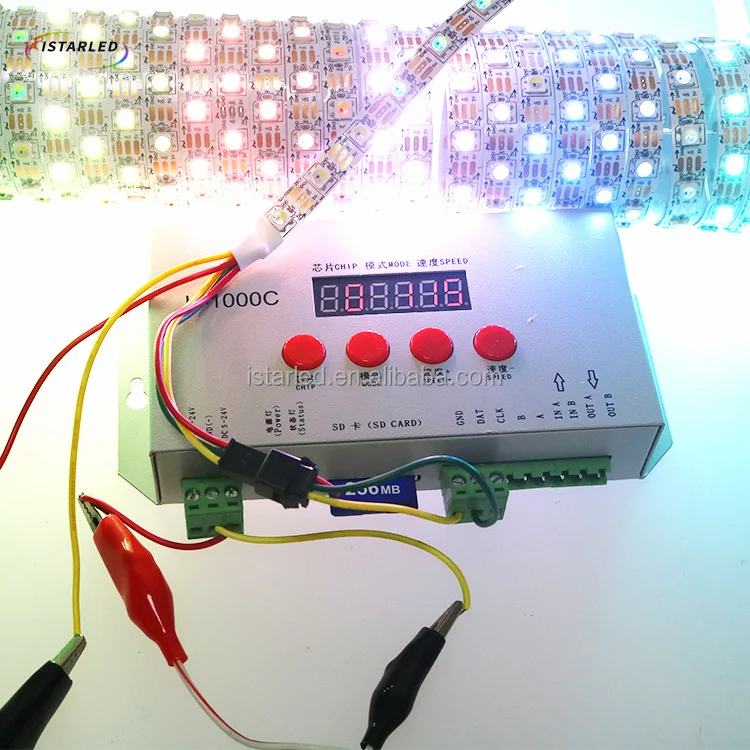

A. Check if the lighting′s signal line and the controller connected correctly
B.If the TTL signal is received, the lamp and the controller must be common ground, that means connect the lighting′s and the
controller′s ground together
C.heck if the model chose during making display files on the SD card match the chips used in the lighting.
controller
Question 1: After power, the T-1000 ERROR indicator has been flashing without display output
Answer: The ERROR indicator has been flashing means the controller did not read the card correctly, possible problems:
a .SD card is empty, with no effect file
b .The effect file in the SD card and the controller model are not match, please choose correct controller model in LedEdit and
then re-create the effect file led
c .SD card did not format to FAT before copy effect files
d .Please check the supply power voltage, the controller can be individually powered to exclude power reasons
f .Changing the SD card and then test to exclude the possibility of a bad SD card
Question 2: The controller is powered on, the indicator is normal, but no effect change in lighting
Answer: The reasons for this are as follows:
A. Check if the lighting′s signal line and the controller connected correctly
B.If the TTL signal is received, the lamp and the controller must be common ground, that means connect the lighting′s and the
controller′s ground together
C.heck if the model chose during making display files on the SD card match the chips used in the lighting.
Datasheet for SD card K-1000c led controller:
| Part Number | K-1000C |
| Control IC chip | ws2811/ucs1903/sm16703/dmx512/ucs2904/tm1814 |
| Pixel number | 1500 pixels max |
| Voltage | dc5-24v |
| Watts | 3W |
| Weight | 0.4kg |
