Smart Street Lighting Introduction

For a better understanding the architecture of the smart roadway & street lighting, how it working, and how it make a safer, more attractive, and sustainable smarter city? Everything you need to know about the Smart Street Lighting





Smart street light is the public lighting fixtures that incorporate technology of cameras, ambient sensor and the motion sensor network for real-time controlling and monitoring - to achieve adaptive lighting which realizes the maximum energy optimization by automatically dimming by surroundings intensity brightness or the movement of the vehicles/pedestrians and auto-dimming by the programmed schedules.



Most of the municipalities are still using outdated traditional high pressure sodium lamps which are inefficient street lighting facilities and double energy bill cost than the LED street luminaries. Moreover, the operating and maintenance cost and lighting pollution will be multiple times of intelligent street lighting.



By 2025, with over 0.35 billions of streetlights globally, we can reduce carbon dioxide(CO2) emissions significantly by update the old HPS lamp to LED street lights, the result will be amazing even if half of them done in the next decade, esp. With smart dimming lighting fixtures, maximum energy saving up to 85%, and shorten the payback time for the investors with up to 30%.

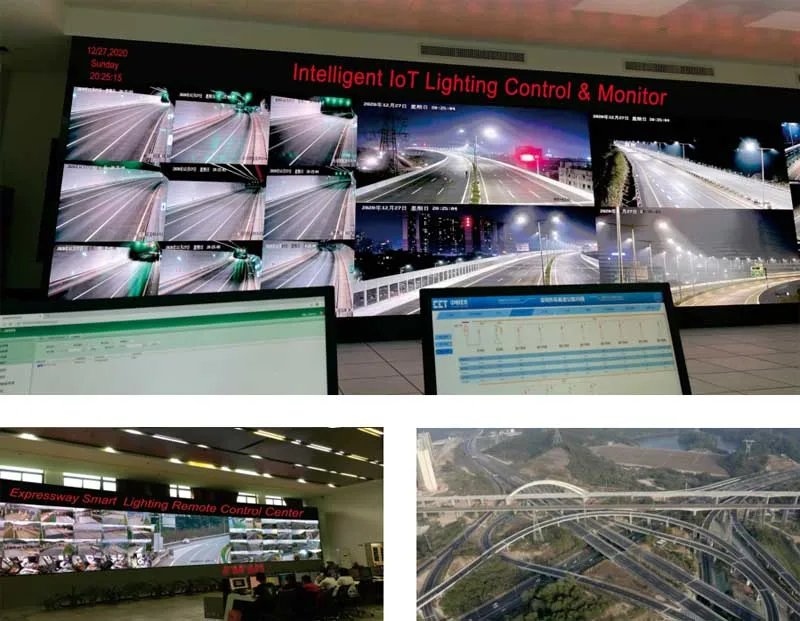

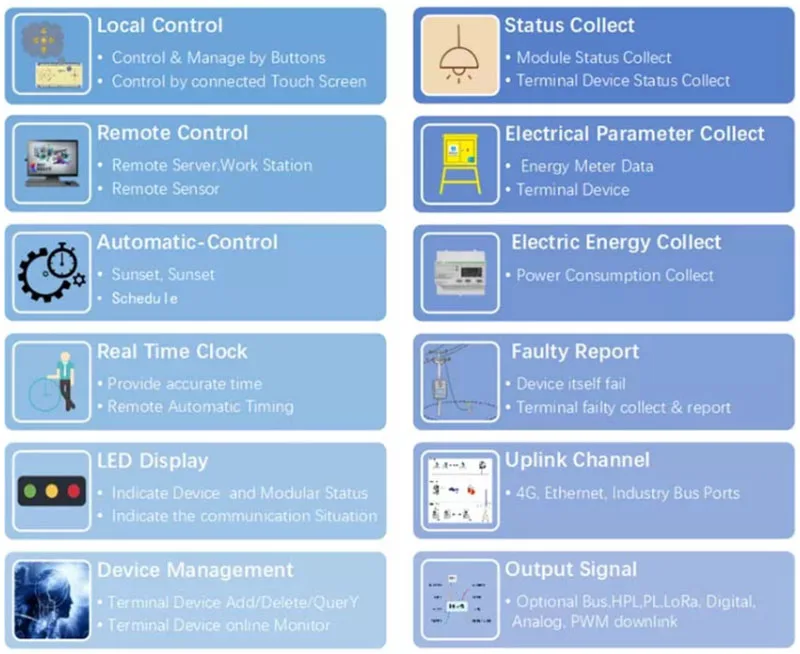

Key Features of the System







How does the SMART LED STREET LIGHTING WORK?

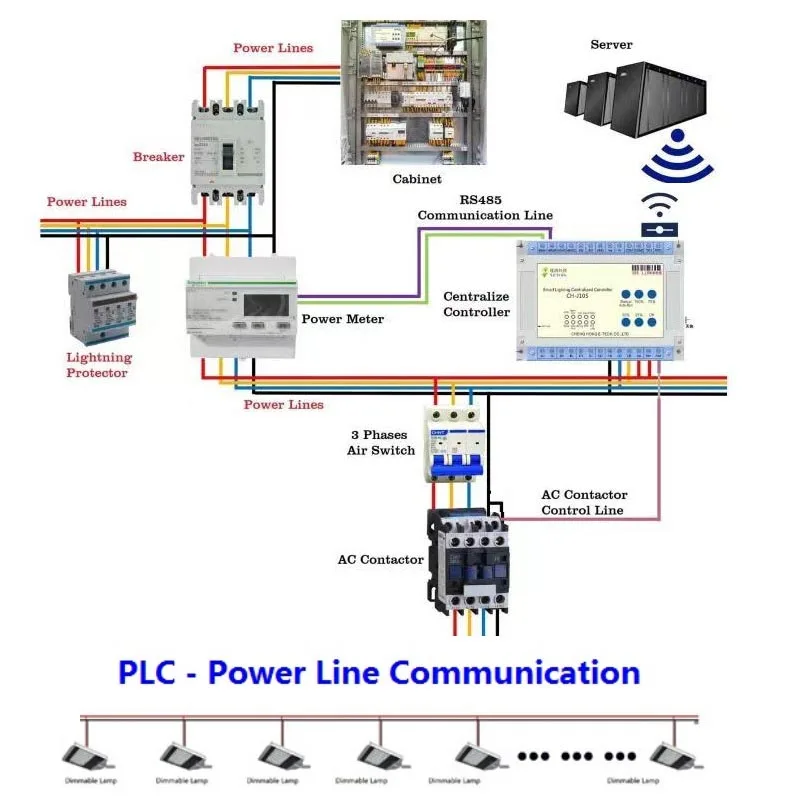

Power Line Communication (PLC) technology operates as follows:

The input side of lighting system shall be equipped with a PLC transmitter-controller, and its output side, i.e. the lamps themselves — shall be equipped with appropriate receivers. Normally, luminaires are equipped with traditional dimmable devices with a 1-10 V interface. PLC allows establishing communication between control element and dimmable lamp without installation of additional network for data exchange. Each luminaire has its own ID number. The system maintains its operability, while the operator can regulate lighting intensity of separate group of luminaires, as well as of one single lamp within certain interval ranges. For example, the system may increase lighting intensity during cultural events performed in a separate part of a city or town during nighttime. As an example, provide additional local lighting for cultural events in a separate part of a city or town in the evening.

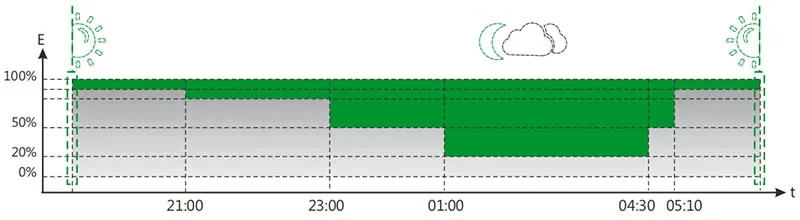

Pattern of operation and lighting level adjustment by using of intelligent lighting system.



Green zone indicates level of energy savings by using of intelligent lighting system (correlation 60% ~ 40% ).

Time of astronomical sunset/sunrise based on 21st of March — the spring equinox. This is an average indicator for the calendar year. Consequently, data is prepared for Almaty city. In case if system operates in another city, the system will automatically reset according to geographical coordinates of operation region.



Thus, the system not merely allows to efficiently save the electricity, but also factors in the specificity of lighting depending on the time of the day, weather conditions or features of the illuminated space.





Smart Street Lighting Infrastructure Overview





The main elements of a smart street lighting system

Modern street lighting system are mainly integrated of high output efficiency led street light(luminaries), high sensitivity and ultra -high precision motion sensor and ambient sensors,individual light controller and the intelligent cabinet as centralized controller/feeder pillar, and the cloud based online web application server.



High-quality Led street light from world famous designer with cutting edge technology

Reasonable wholesale price from leading led street light manufacturer in China.All of the components adopts world famous brand leaders led chips from CREE, Phillips, or OSRAM, professional roads lighting optical lens with high efficiency,and uniform light. Power range from 30W to 300W, which suitable for any height poles, any kinds of roads lighting. Up to 40% longer performance lifetime by target schedule dimming at unnecessary time, and of course lower light attenuation(light decay)  than regulars led lights significantly at 5th year or 10th year. Compared to traditional HPS lamps projects, smart street lamps have the capability to be remotely powered on, off or dimming and status detect by smart luminaries terminal controllers.



Intelligent LED street lighting main goal to better light up the roads, sidewalks and public area to guarantee citizens’ security and live environment. To ensure visual safety to drivers, pedestrians and cyclists, smart led street lighting needs to meet specific values of luminance, illuminance or dimness, uniformity, and avoid glare according to the road types.







Segment Level & Individual Lamp Level Controlling & Monitoring

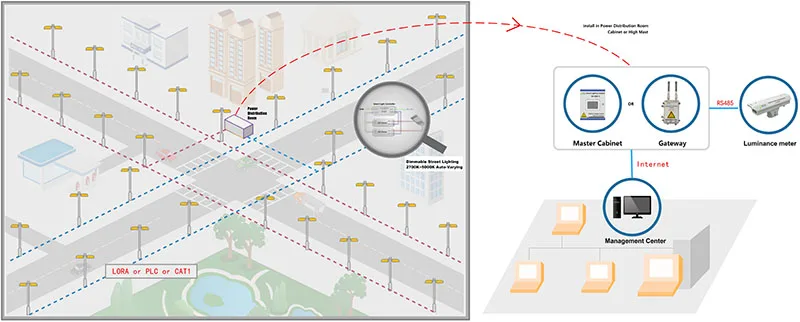

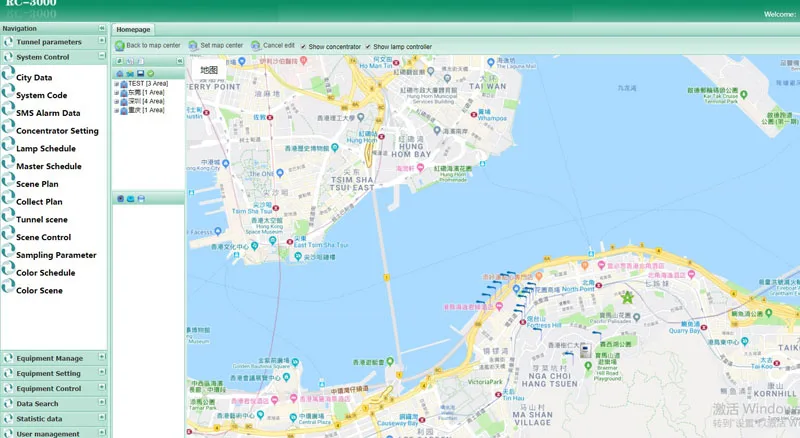

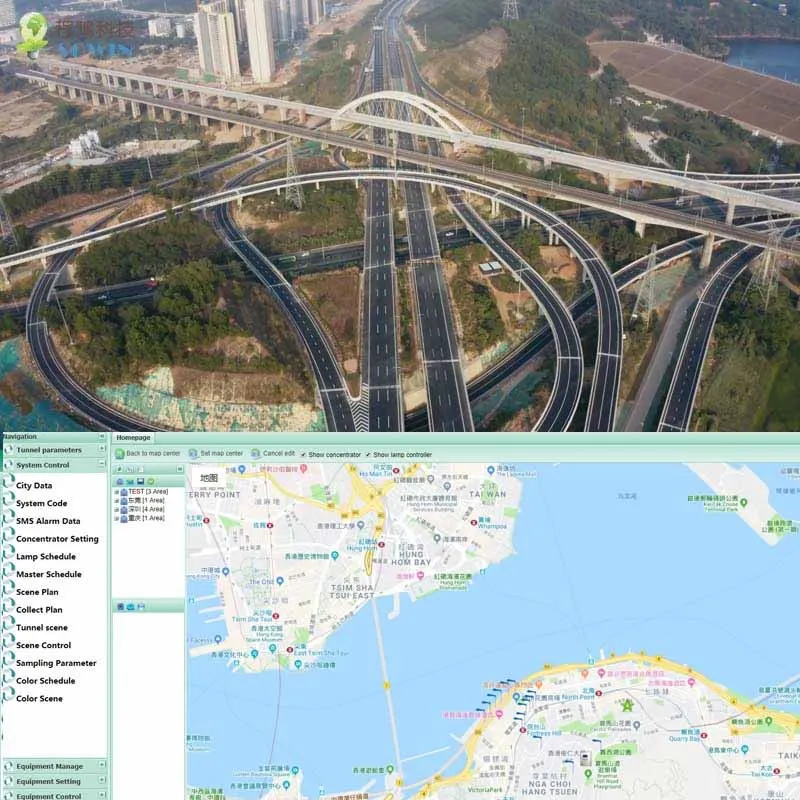

Intelligent street lighting system controlled at segment-level comprises a cluster of up to 256 street lights that communicate to a power cabinet which allows automatic on/off/dimming control. The feeder pillar receives data from the street lamps, manages and transmits the relevant data to a cloud based server, which stores and displays them on your computer dashboard.

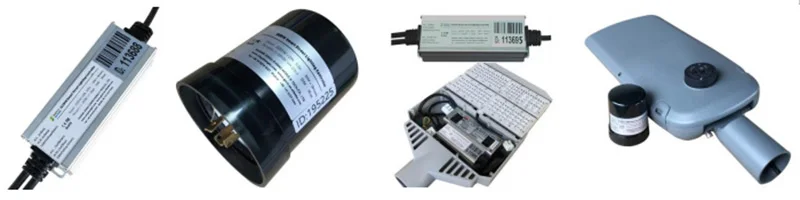

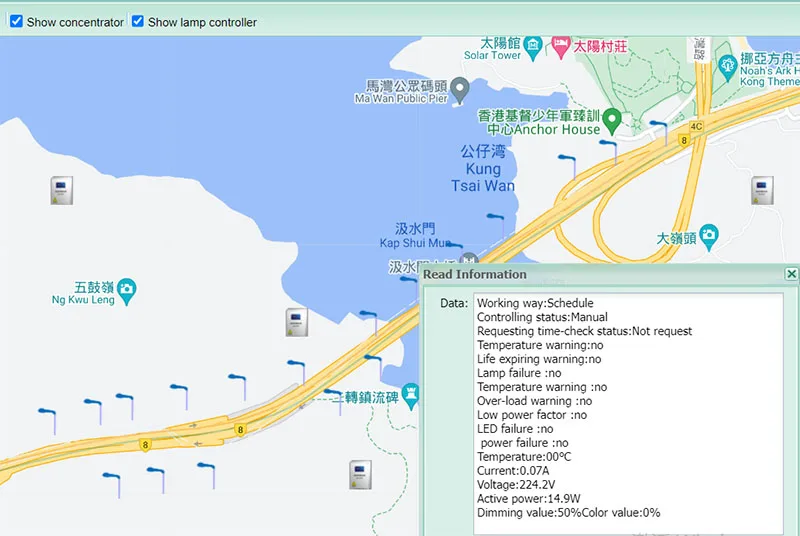

Individual lamp control is handled via single luminary controller which have lamp-level functionality and intelligence, and allow for remote on/off/dimming control,status monitoring or adaptive lighting. Luminary controllers can also provide electrical parameters feedback for every lamp, real time malfunction reporting and optional sensors to measure light, temperature, humidity, noise, pollution,etc. In addition, lamp-level controller keeps the lighting grid powered-up during the day, which allows the installation of other smart city applications: EV-Charging, Weather/Ambient Sensors, Advertising Screen,Manhole Cover Management, Fire Alarm, Motion Sensors, CCTV Video Surveillance Camera, and Traffic Flow Detect Cameras.







Intelligent Cabinet(Feeder Pillar) for Street Light Control System

When modernizing your existing street lighting infrastructure, intelligent cabinets are able to support energy-saving technologies such as LED street lights and smart lighting management systems. Smart Lighting Control cabinets  have to sending and receiving the data between the lighting control center and the terminal individual street lighting devices by the most stable & security communication channels ~ PLC, or link the street lighting system with the smart  lighting sensors network.



Smart lighting system controls at segment-level up to 1,000 lamps(outdoor street lamp control quantity depend on the site transformer power supply distance, usually around 100 units street lights by PLC communication channel, LoRa communication channel technology can be around 130 streetlights within 1km radius for multi-directions with data transmission across transformers) that communicate to a power cabinet which allows automatic on/off/dimming/ detecting. The feeder pillar receives data from the lamps, manages and transmits the relevant data to a secure cloud based server, which stores and displays it on a dashboard.

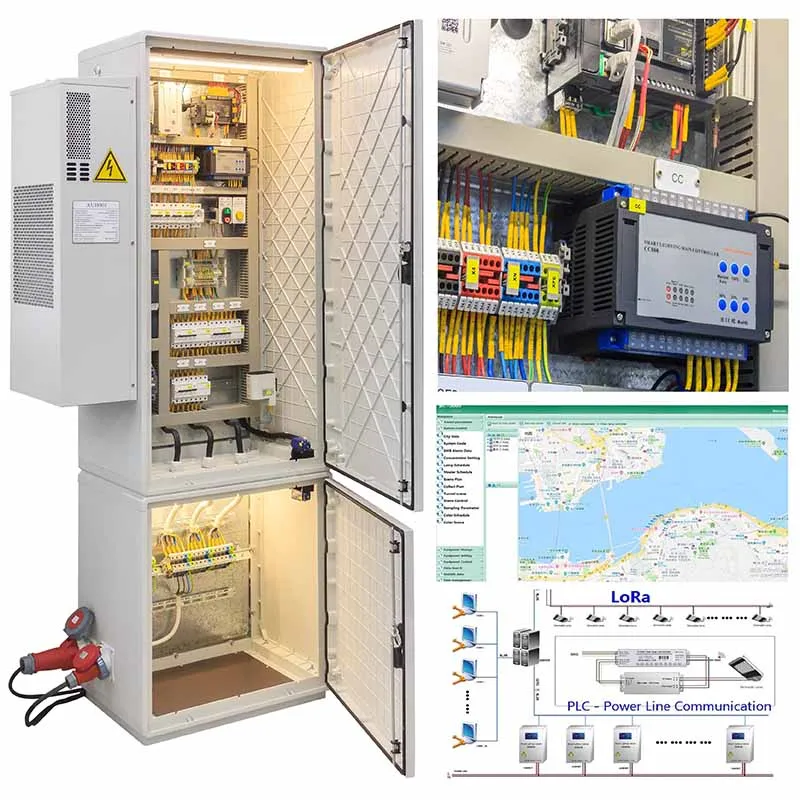

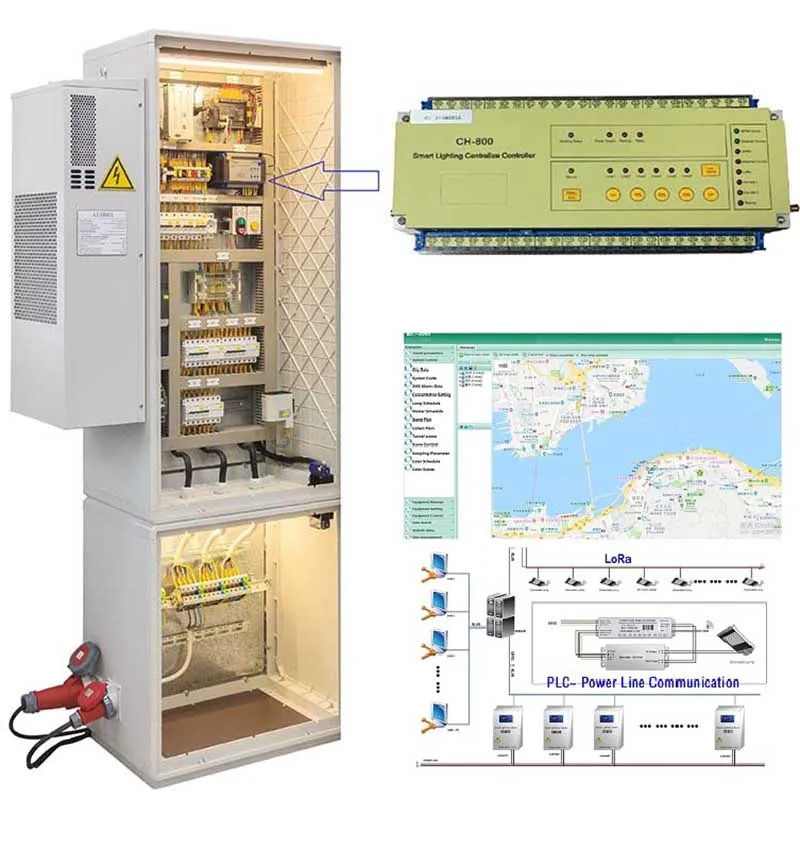

Intelligent Street Lighting Cabinet is nerve centre & key element of the smart led street lighting project, grouping control solution to safeguard your LED street lamp investment. The smart CPU(CC800), which is installed interior of the control cabinets (feeder pillar), offers advanced depth grid monitoring and group lighting control functions - Detect Grid power failures, cable breakages, leakages, theft detection, cabinet door opened/closed, malfunctions(faulty) reporting and energy consumption report, automatic synchronization any led street lights’ currently data to the controlling & monitoring center. Even disconnect with the internet, it is still able to stable and smoothly operate autonomously for weeks, without any intervention from the outside - derives the appropriate switching points from the typical light intensity profiles stored in the integrated astronomical calendar for each date and season, and processing of additional digital input and digital output / Analog output & Analog input... energy measuring devices for values such as active power/reactive power, voltage, power factor and automatic reporting of the measured data to the server.



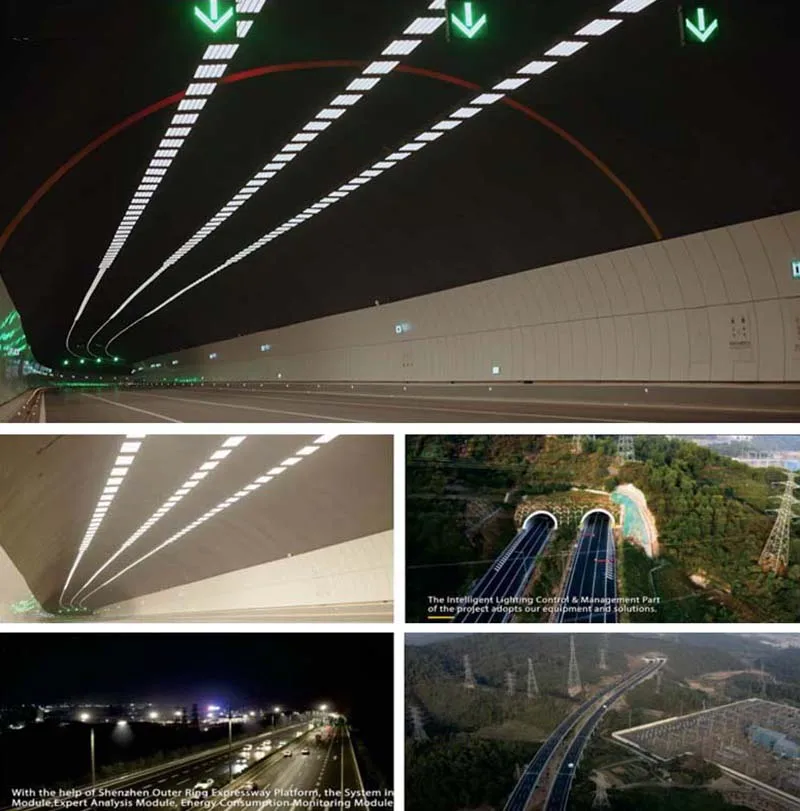

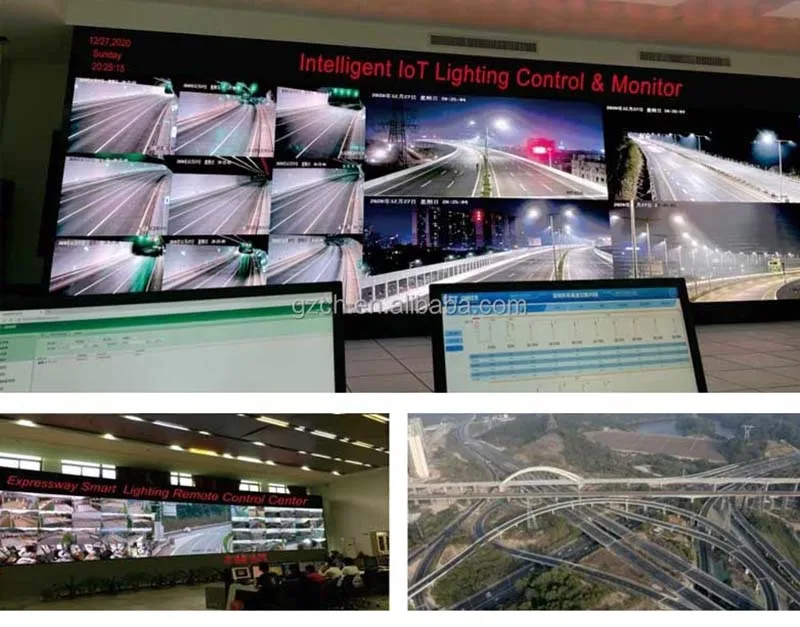

With the CPU as the central building block, the cabinet control solution can be easily upgraded by adding optional modules such as industry touch screen(touch controlling), earth leakage detector, 3-phase current sensor(current contactor), energy power meter(power consumption reporting by daily/monthly/yearly), analogue photocell, over voltage protector and external relays, vehicle motion sensor and ambient sensor, illuminance sensor, expert analysis module, emergency module,etc. You can monitor and control all the streetlight cabinets in your city through our centralized street light management (CMS) system, accessible via any device with internet connection in any part of the world. Dominating over 65% China expressway/highway lighting and tunnel lighting projects by its super stable performance on total over 2,000km and 2,000+ tunnels, and tens of huge city lighting projects, many of the big projects over 10,000 to 30,000 units smart outdoor LED luminaires, the projects scale and the quantity will be ten times of volume in the next coming years basis of our solid foundations and fast growing internet of things(IoT) lighting market !



Universal Design of the Centralized Controllers are flexibility which allows cities to continue using their existing infrastructure components to save cost, keep very short payback period for projects in the modern intelligent street lighting Projects. With their excellent track record in uncountable applications across harsh industrial environments, these compact automation CPUs offer everything that you need for the intelligent control of modern street lighting systems.



Moreover, customized models can be perfectly operating with special cooling & heating system are perfect for Tropical area and extremely cold belt countries/regions where temperatures range from: - 40 ~ +65 Degrees Celsius.



 Intelligent Street Lighting Control System





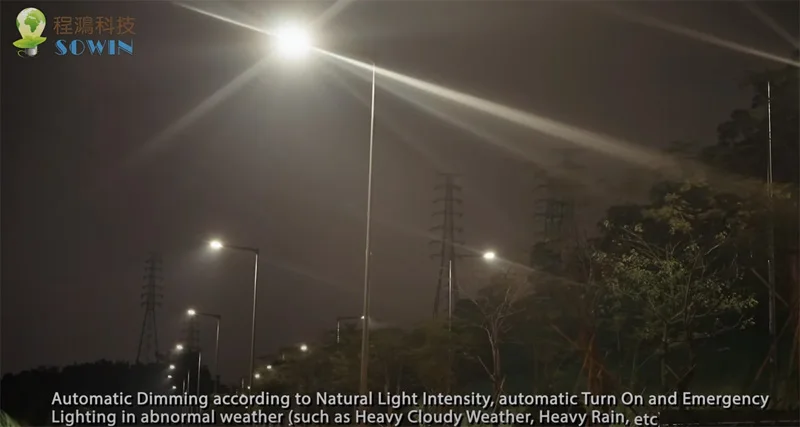

Sensors Net Work & Adaptive Lighting

Our smart lighting controllers are compatible for 1~10V, 0~5V, 0-10V, and PWM with most of the famous brand led drivers.

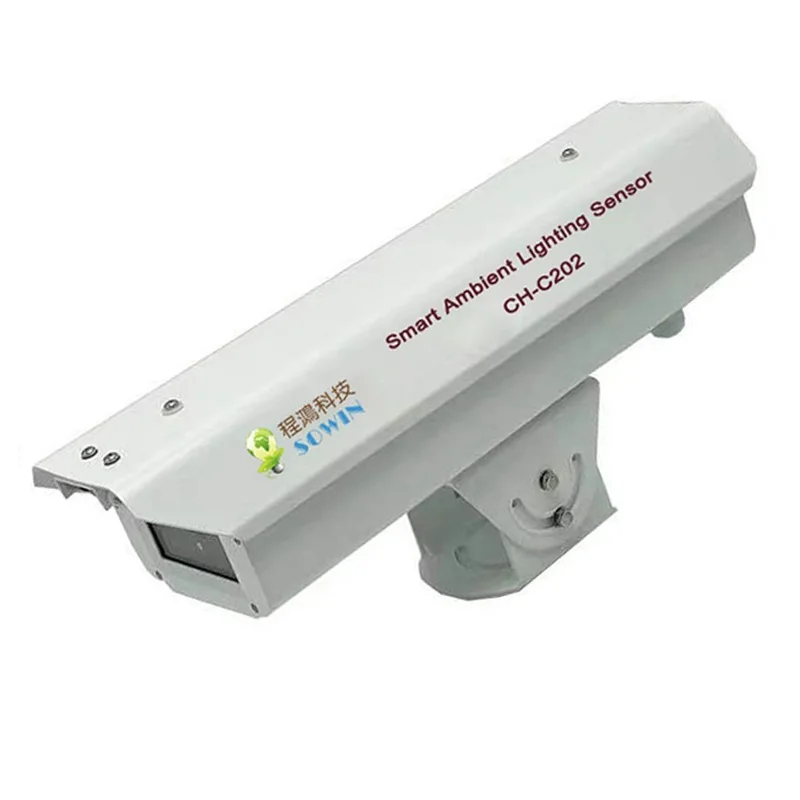

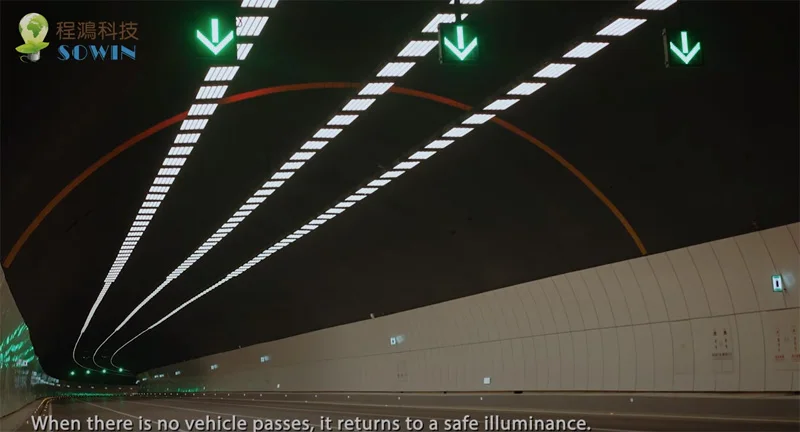

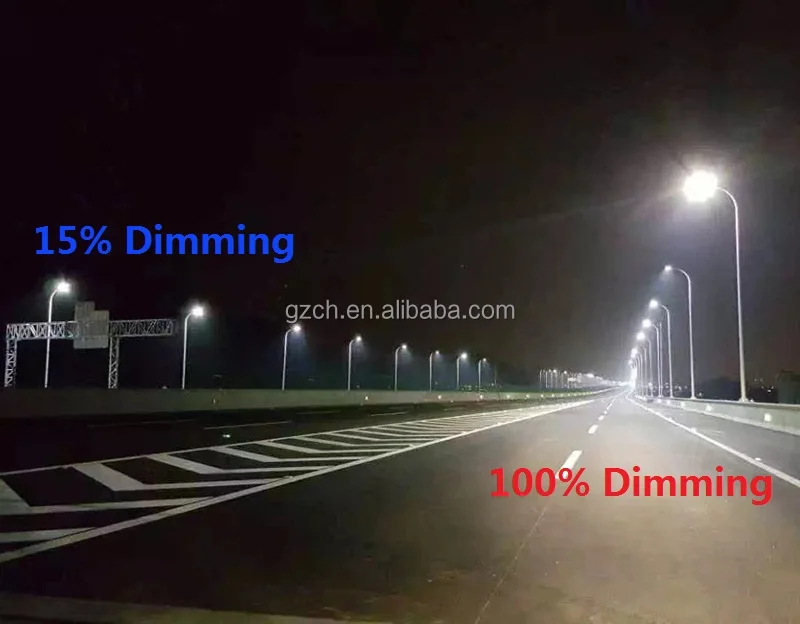

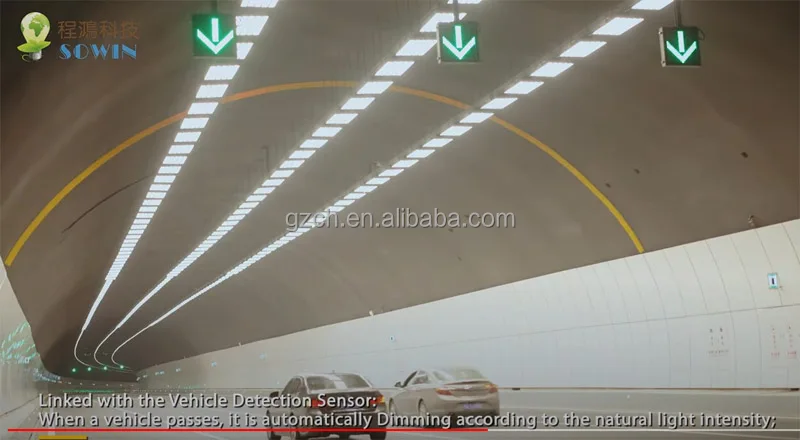

Furthermore, the hybrid model of LoRa & PLC lighting controller allows for further connectivity ~ Motion Sensors for special demand to meet the adaptive lighting. Adaptive street lighting requires the ability to dimming up to 100% value the lamps in real time when presence (pedestrians or vehicles) are detected. This requires adding a motion sensor to the lighting pole, usually connected directly to the lighting controller.

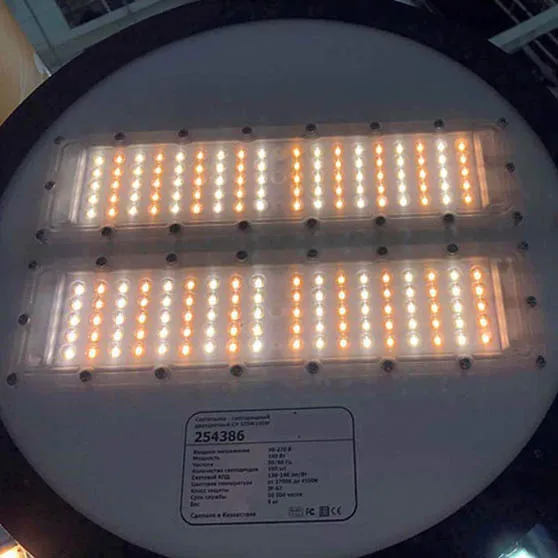

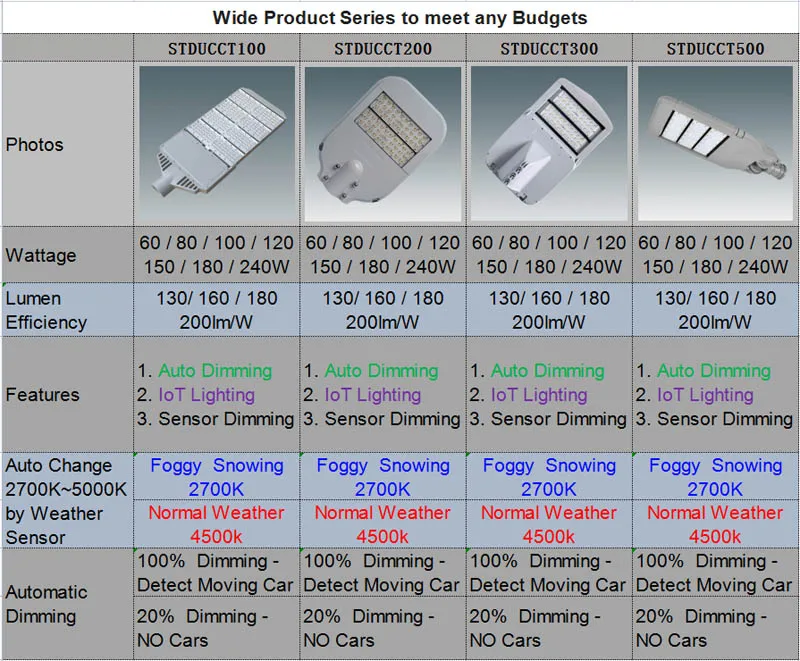

CCT Compensation Solution - Dual Color Temperatures: 2700K ~ 6000K Varying Automatically by Weather Sensor

Our Dual Colors Temperature LED street lighting will be perfect solution for the heavy snowing area, serious fog & rains roads, they will be automatically changing the CCT from( from example 4500/6000k to 2700k) nature white-Daylight/cool white to Warm white colors by the intelligent sensors when detecting of dense fog, rainstorm or snowing.

Moreover our Intelligent street lighting system is a core element for the smart city platform, with maximum power saving rate up to 80% than traditional high pressure sodium lamps and the metal halide lamps by dimming on-demand lighting brightness to the whole city, and at least more of 30% power saving than normal led street lamps without the smart lighting control & management system, and extend the lamps service lifetime dramatically by dimming to minimum safety illumination at midnight.

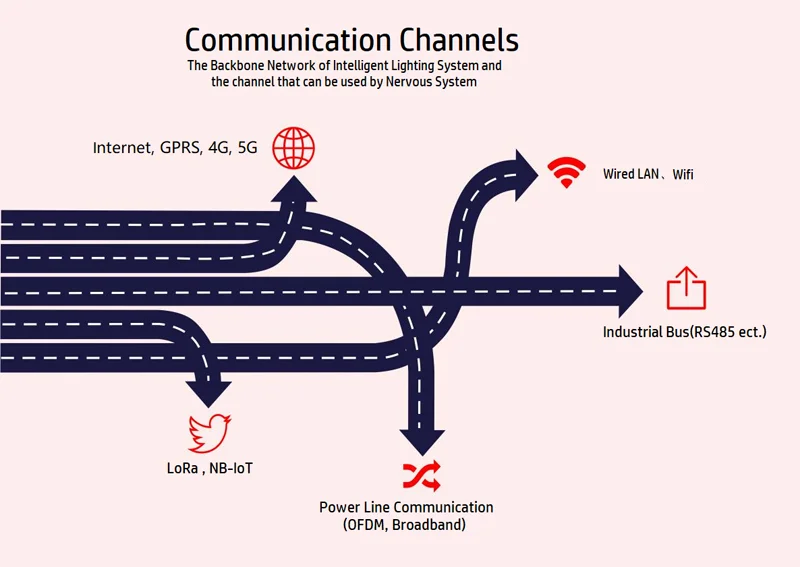

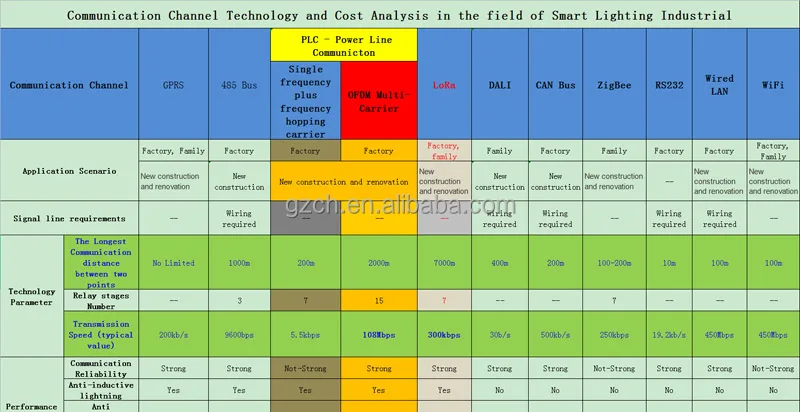

Multi-Communication Channels to solve any Harsh Working Environment





Power Line Communication is a communication technology that enables sending data over existing power cables.

LoRa Communication key advantage is transmission data cross over transformer
