MASKURA 2Km 300Mbps 2.4Ghz Network Wi Fi Poe Wireless Ap Cpe Access Point Outdoor Point To Point Wifi Wireless Bridges
- Category: >>>
- Supplier: Shenzhen Maskura Technology Co. Ltd.
Share on (1600642946580):
Product Overview
Description
product description

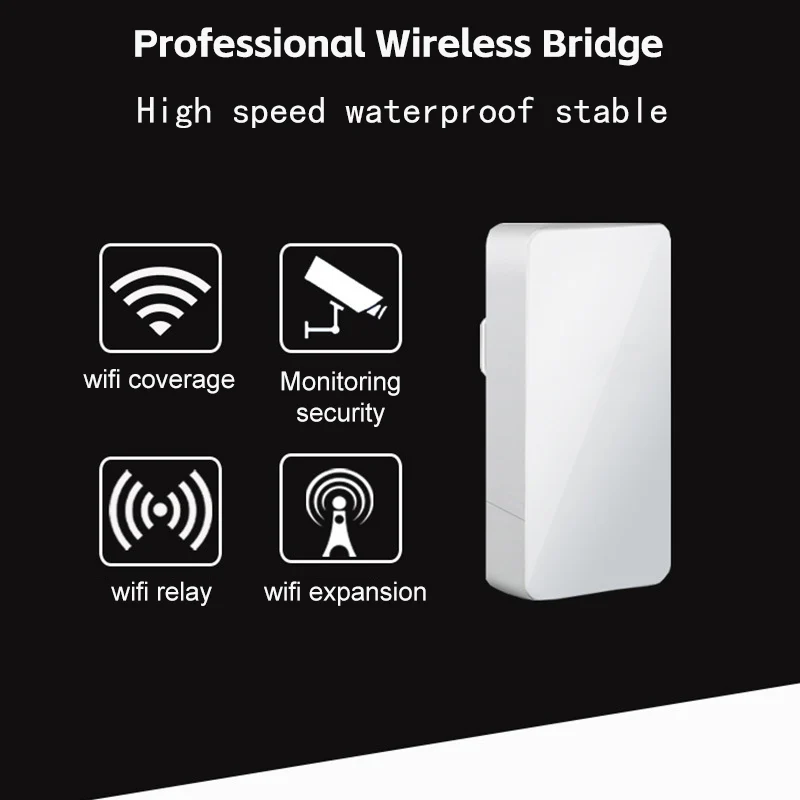

MKC82 is an outdoor wireless bridge designed for video surveillance of elevators , pendant towers , communities , learning, factories , orchards , breeding plants, planting greenhouses, scenic spots and other scenes; the device works in the 2.4 GHz frequency band and can provide up to 300Mbps of wireless Data transmission rate; built-in 8 dBi high-gain directional antenna, stronger signal penetration, outdoor point-to-point bridging distance up to 1000 meters; pole wall-mounted compatible design, can be directly installed on the wall or pole column, beautiful and elegant ; Can work in various outdoor environments such as wind , rain and snow .
Product Features
2.4GHz: Wireless rate 300Mbps
Adopt 8dBi high gain directional antenna
Protection IP65 waterproof and dustproof

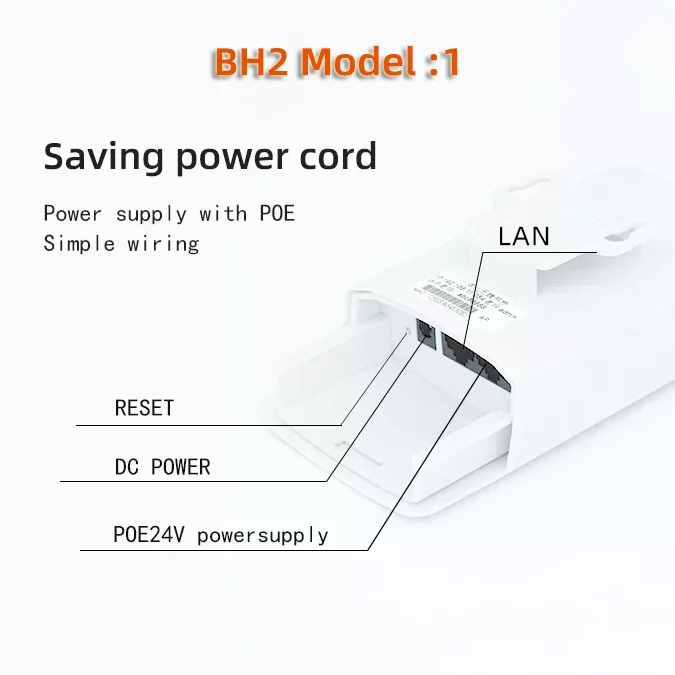

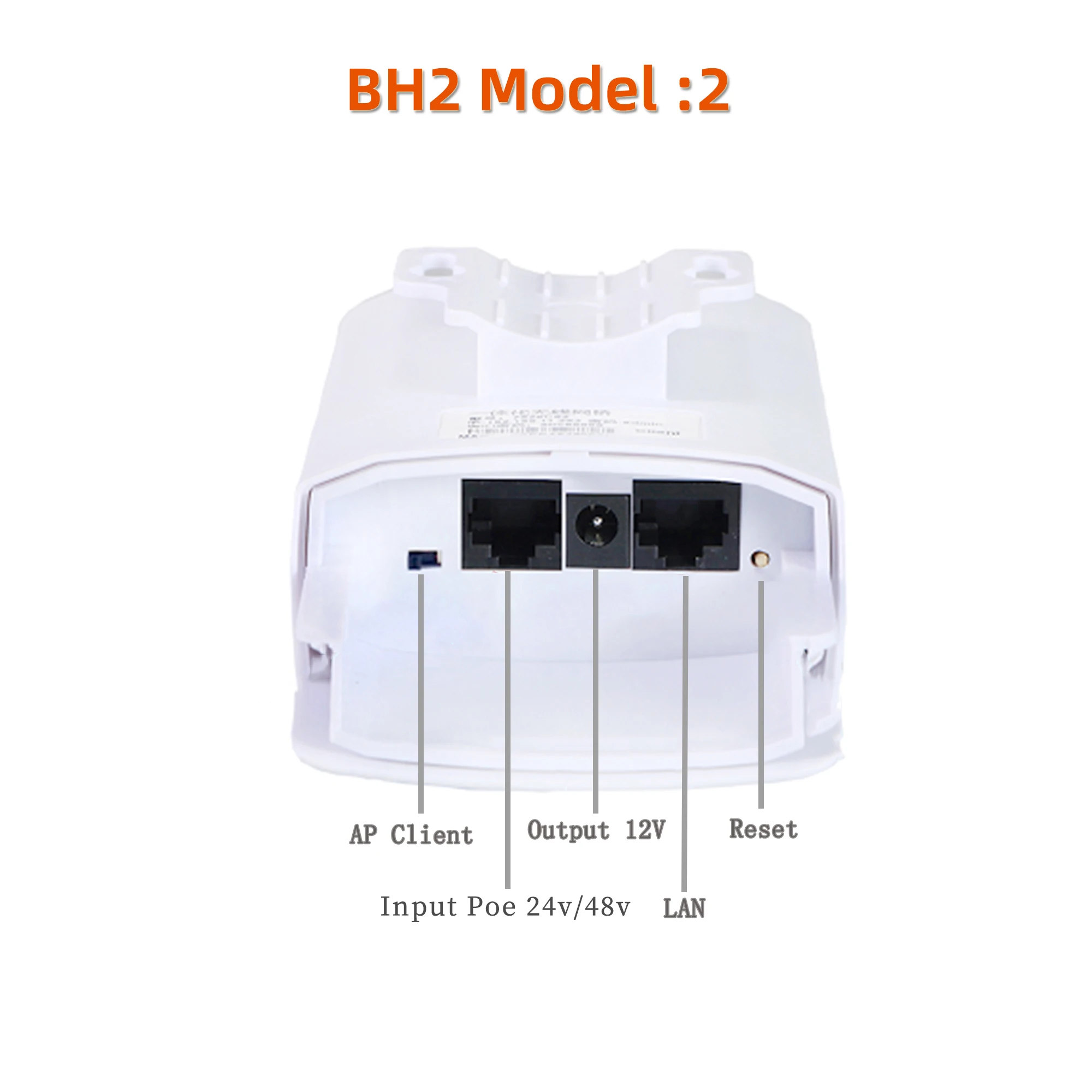

Two power supply modes are available: Ethernet port supports POE input 24V, DC interface supports input 12V
Product Specifications
Hardware Specifications |
|
|
CPU |
| MT7628 |
storage |
| Flash: 2MB; DDR: 8MB |
wired standard |
| IEEE802.3, IEEE802.3u |
Ethernet interface |
| 10/100Mbps LAN port*2 |
antenna |
| Built-in directional antenna 8dBi |
button |
| Reset Button *1 |
Power supply |
| POE 24V or DC 12V |
panel indicator |
| LED*4 ( POWER, LAN, SIG1, SIG2 (signal strength) ) |
Software Specifications |
|
|

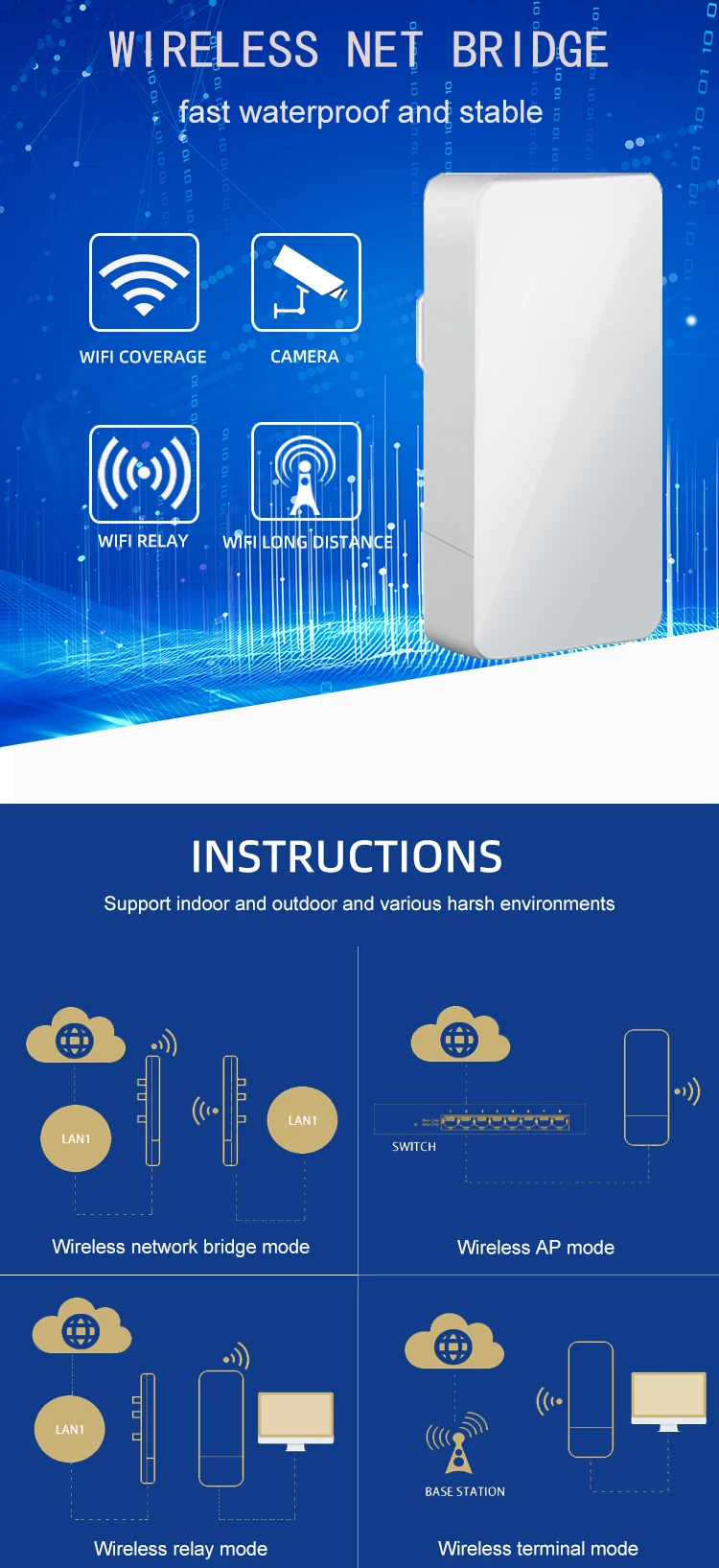

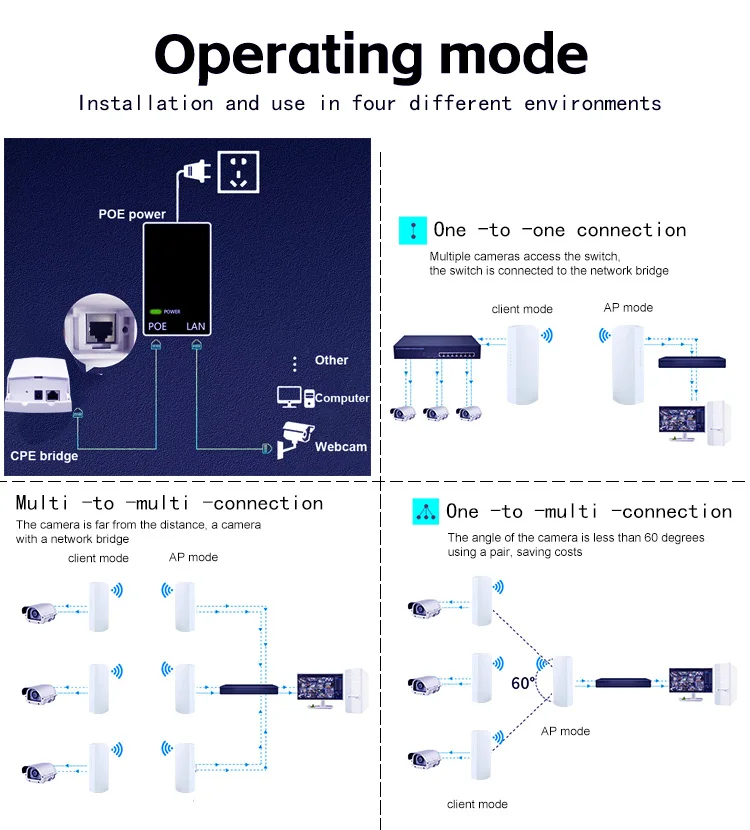

Operating mode |
| Main bridge side (AP mode) |
|
| Subnet bridge side (Client mode) |
|
| Subnet bridge side (AP+Client mode) |
wireless setting |
| Basic settings: wireless name, encryption method, wireless password, wireless mode |
|
| Advanced Settings: BG Protected Mode, Wi-Fi Multimedia (WMM) Disable |
network settings |
| LAN settings |
|
| DHCP server settings |
System Management |
| Administrator settings |
|
| Firmware upgrade |
|
| System Configuration |
|
| language settings |
|
| Automatic system cleanup |
Product Specifications
Wireless Specifications |
|
|
wireless standard |
| IEEE 802.11b/g/n |
wireless rate |
| 300Mbps |
wireless power |
| 20dBm |
Wireless Acceptance Sensitivity |
| -92dBm |
wireless band |
| 2.4GHz |
Other specifications |
|
|
Application Environment |
| Working temperature: -20℃~55℃ |
|
| Working humidity: 10%~90% RH non-condensing |
|
| Storage temperature: -40℃~80℃ |
|
| Storage humidity: 5%~90% RH non-condensing |
Product Size |
| 153*78*50mm |
Installation method |
| pole, wall mount |
Package Contents |
| MKC82 bridge pair |
|
| 4 cable ties |
|
| Configuration manual, certificate, warranty card |
BH2
Certificate
logistics
FAQ
Q: Are you a manufacturer?
A: Yes, we are the manufacturer. We can provide OEM/ODM customized services according to various applications and needs of customers. All our products are fully patented, ID/MD design, hardware and software, mold, assembly are done by our own team.
Q: What is the minimum order quantity (MOQ)?
A: We accept a set of standard products. We can even customize your logo if desired. If OEM is required, will see the detailed requirements and determine the MOQ our sales department will give you.
Q: How to order and pay?
A: We accept T/T, L/C at sight, Western Union, MoneyGram, Paypal, Secure Payment (Alibaba) and Credit Card.
Q:How do you keep my funds safe?
A:In international trade, trust has always been a big issue, and we believe that good business reputation and credibility are the most important. We recommend Alibaba Group's trade assurance services. We won't get funding unless you get the product and confirm payment.
Q:Which countries do you ship to?
A:We ship to almost any country by express, air or sea. If we are unable to ship to your country, we will notify you.
Q: What is your product warranty?
A: We provide 12 months warranty after shipment.
Q: Can I extend the warranty period?
A: We offer an extended warranty of up to 36 months, and the price of the extended warranty is increased by 10%.
Q: How long does it take to deliver?
A: The production lead time is about 15 days depending on the needs, and the shipping time for DHL/UPS/FEDEX/TNT is about 3-5 working days. For some remote locations, the delivery time may be a little longer.
Q: If there is a problem with the device, how to fix it?
A: We will provide technical support online to solve the problem; if it is a hardware problem, if the customer has a technician, we can send the parts or components to the customer and teach them to install, or can also send it back to us for repair.
Q: Are your products in stock?
A: Most items are usually in stock. It all depends on the needs of our promotions, manufacturers and suppliers.
Q: Can you customize products and custom packaging?
A: Yes, all products can be customized according to customer requirements.
Regarding custom packaging, we can put a logo or other information on the box.
Q: How is your after-sales service?
A: We will inspect each product before delivery according to international quality standards.
Q: Can you provide samples?
A: Yes, we can provide samples. Sample fee and shipping fee will be charged by buyer.
