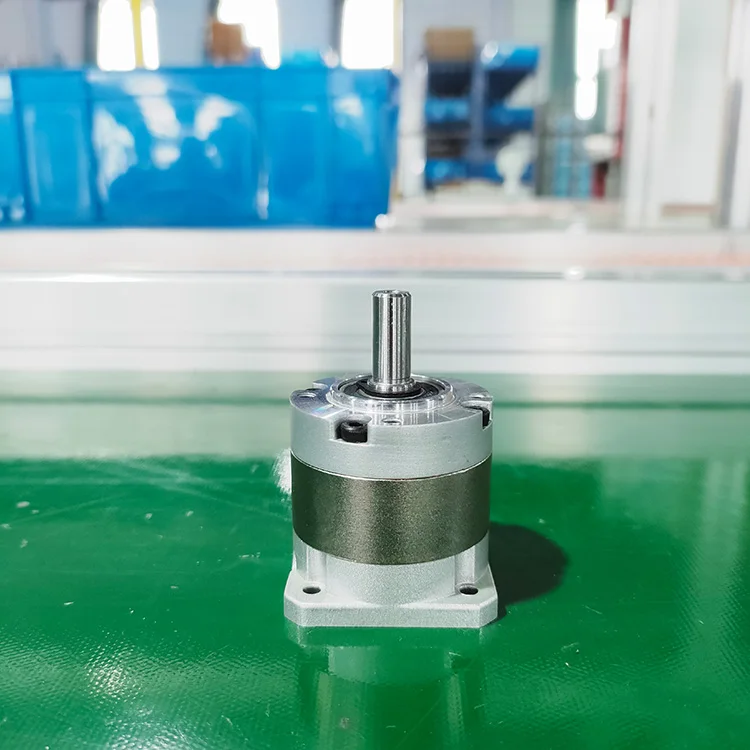

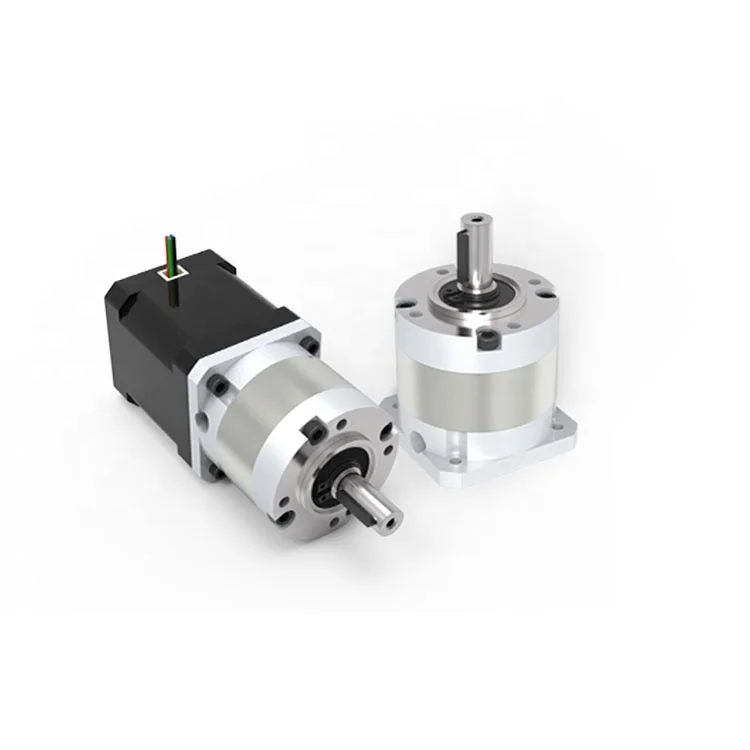

42mm Output Flange Gearbox Reducer Low Backlash Precision Planetary Gear Reducer
- Category: Speed Reducers >>>
- Supplier: Anhui,High,Precision,Gear,Transmission,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
The reducer is generally used for low-speed and high-torque transmission equipment.
The motor, internal combustion engine or other high-speed running power is used to achieve the purpose of deceleration by meshing with the large gear on the output shaft through a gear with a small number of teeth on the input shaft of the reducer.
The reducer will also have several pairs of gears with the same principle to achieve the ideal reduction effect.
The ratio of the number of teeth of the large and small gears is the transmission ratio.
Products Detail
Positive

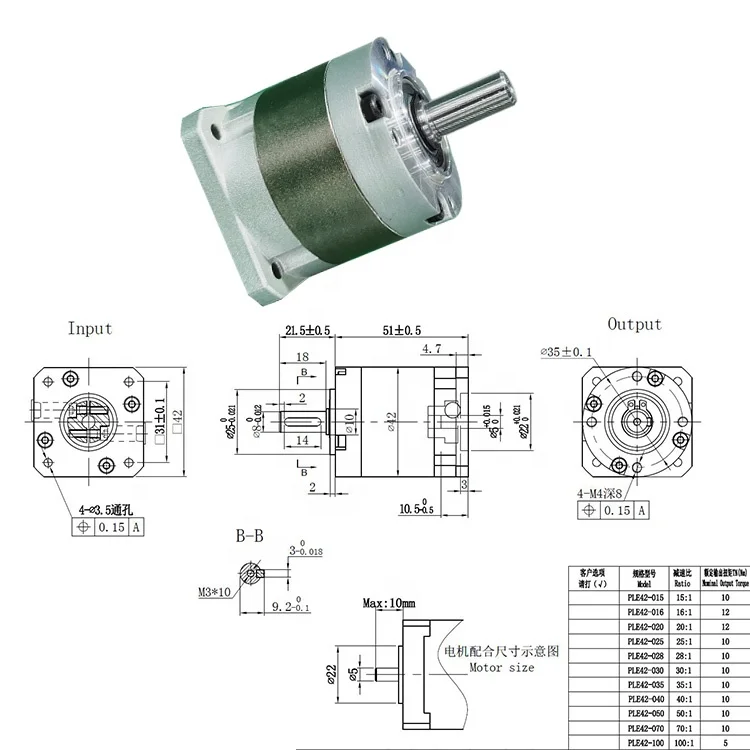

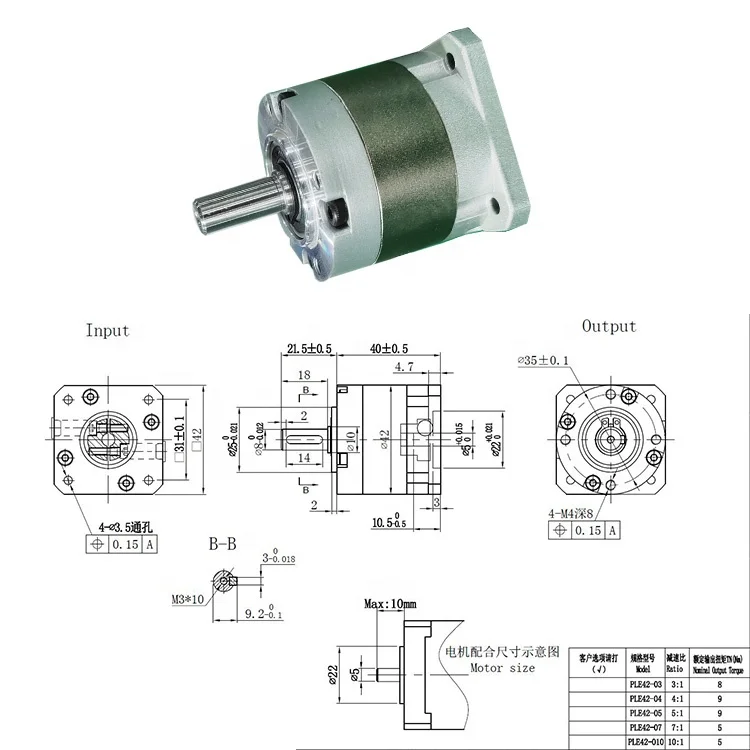

Output Shaft and The Front Flange
Input Shaft and The End Cover
Application Field
It is suitable for most servomotor brands manufactured by manufacturers

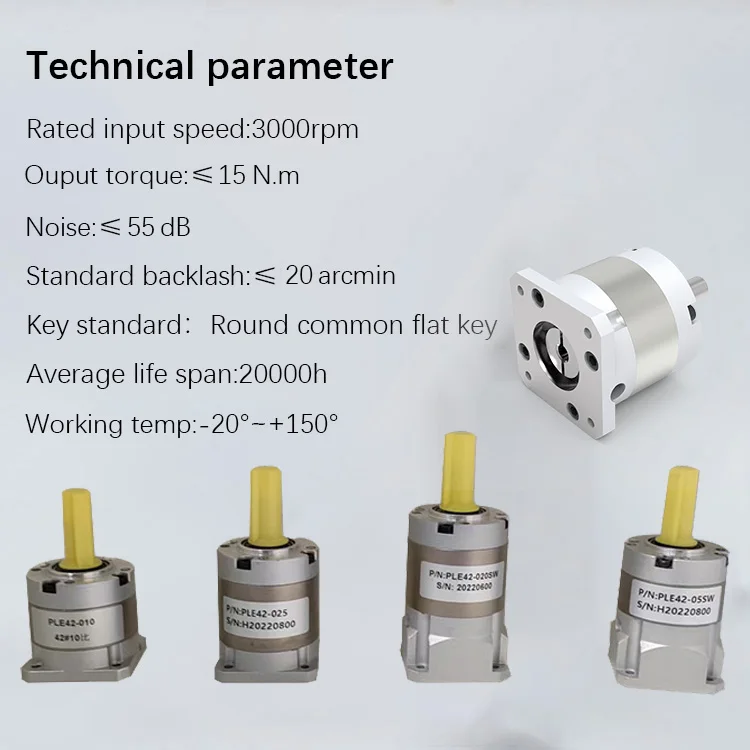

PRODUCT SPECIFICATIONS
Applicable Industries | Manufacturing Plant, Automation industry | Customized support | OEM, ODM |
Gearing Arrangement | Planetary | Output Torque | ≤ 15 N.m |
Input Speed | ≤ 3000rpm | Output Speed | 0.5rpm-30rpm |
Place of Origin | Anhui, China | Brand Name | HPS |
Certification | ISO9001, CE | Housing Material | 45#Steel or 42Crmo |
Speed Ratio | 3,4,5,7,10,16,20,25,28,35,40,50,70,100 | Material of Shaft | as required |
Model: | PLE 42 | Lubricant | Synthetic Grease |
Packing | Standard export package | Warranty | 1 Year |
SIMILAR PRODUCTS
Why Choose Us

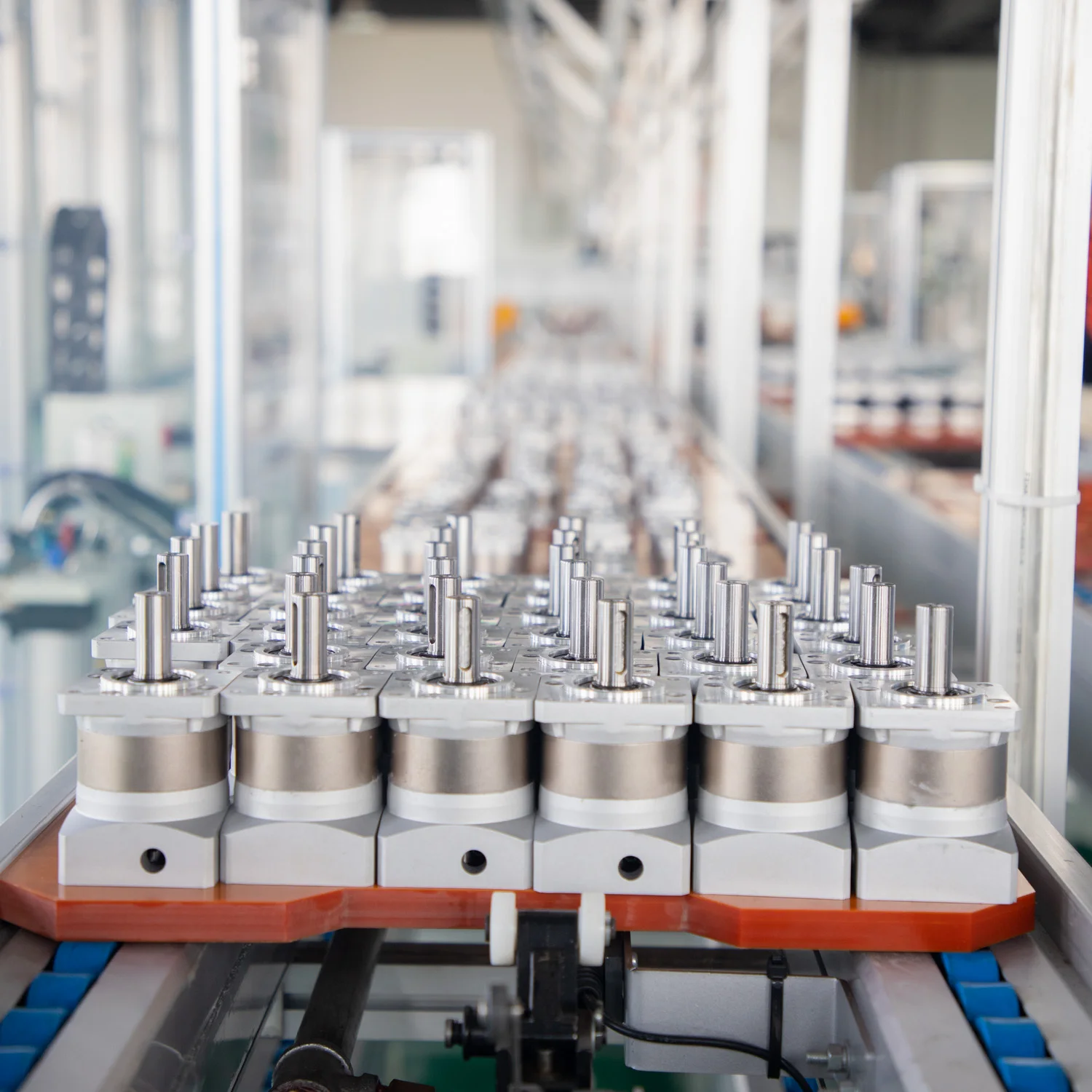

Standard production and Strict testing process
CERTIFICATIONS
Package Type: Standard export packing & Wood pallets packing

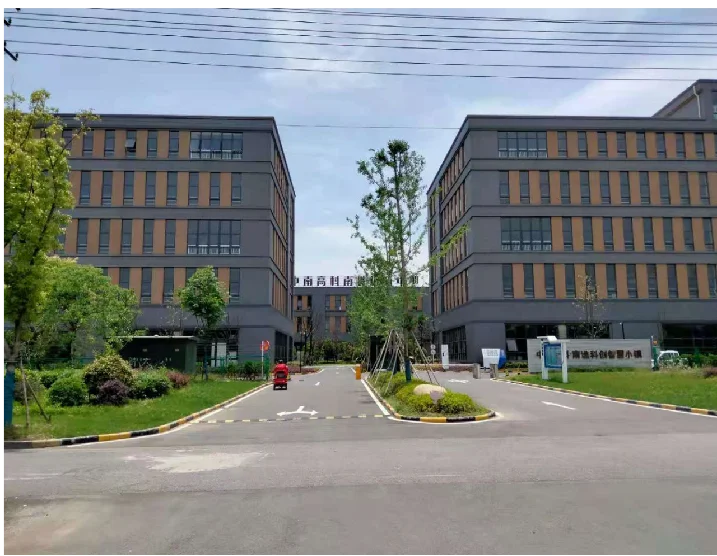

Company Profile
Transmission Co., Ltd
Shown here is a high-precision planetary reduction gearbox of the 90mm series. One is a conventional product, and the other is a corner reduction gearbox. Both peak torques can reach 135N. We can make gearboxes with different speed ratios and different torques according to customer needs.
Competitive & Advantages of Planetary Gearbox
* ODM & OEM Service
* Noise Test/ Life Test/ Water-proof Test/ High- Low Temperature Test/ Air-tight Test/ Salt Spray Test
* Low Noise, Low Backlash, High Efficiency
* 20000 Hours Working Life
* 100% Quality Checked with Quality Guaranteed
* ODM & OEM Service
* Noise Test/ Life Test/ Water-proof Test/ High- Low Temperature Test/ Air-tight Test/ Salt Spray Test
* Low Noise, Low Backlash, High Efficiency
* 20000 Hours Working Life
* 100% Quality Checked with Quality Guaranteed

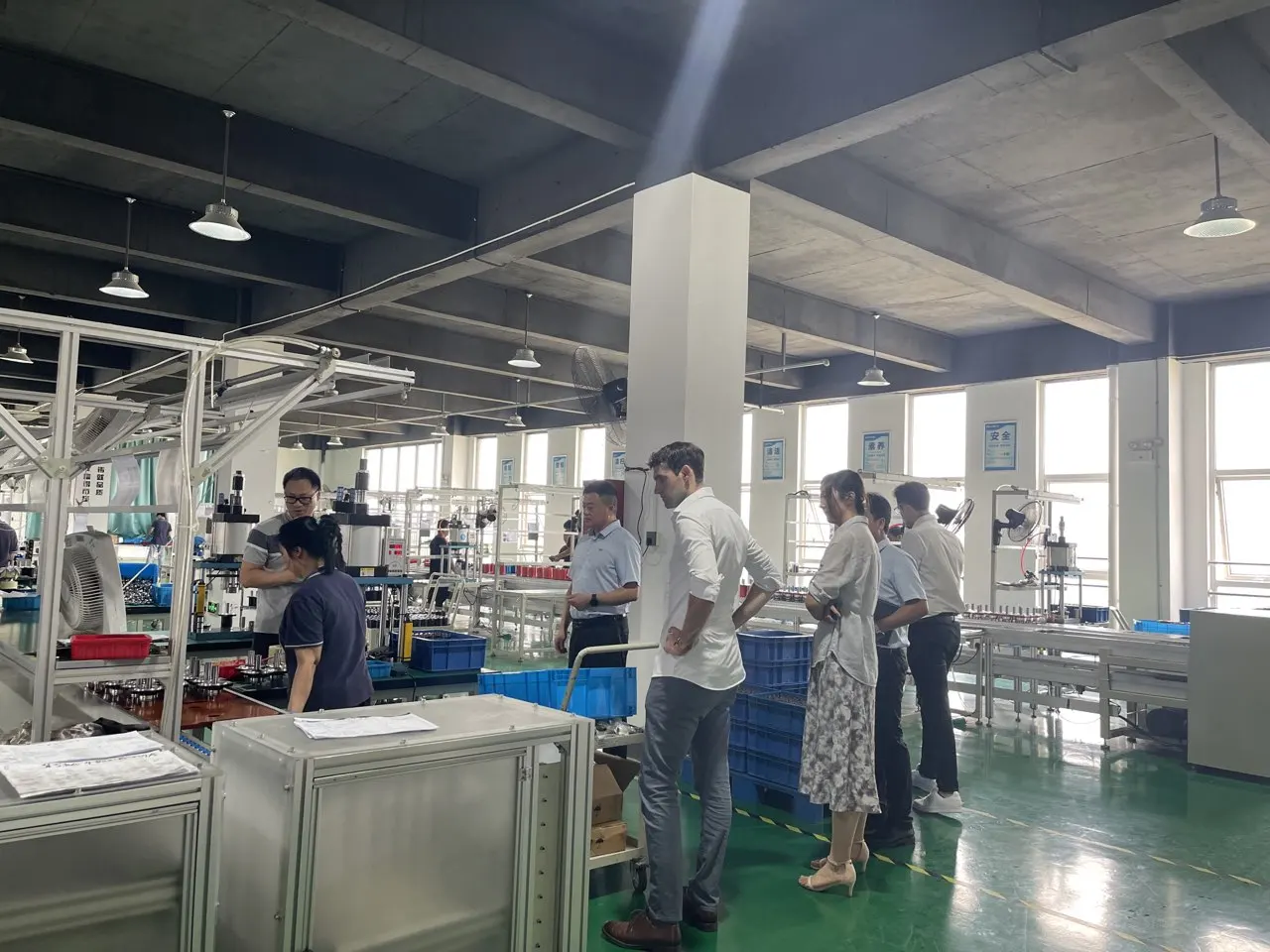

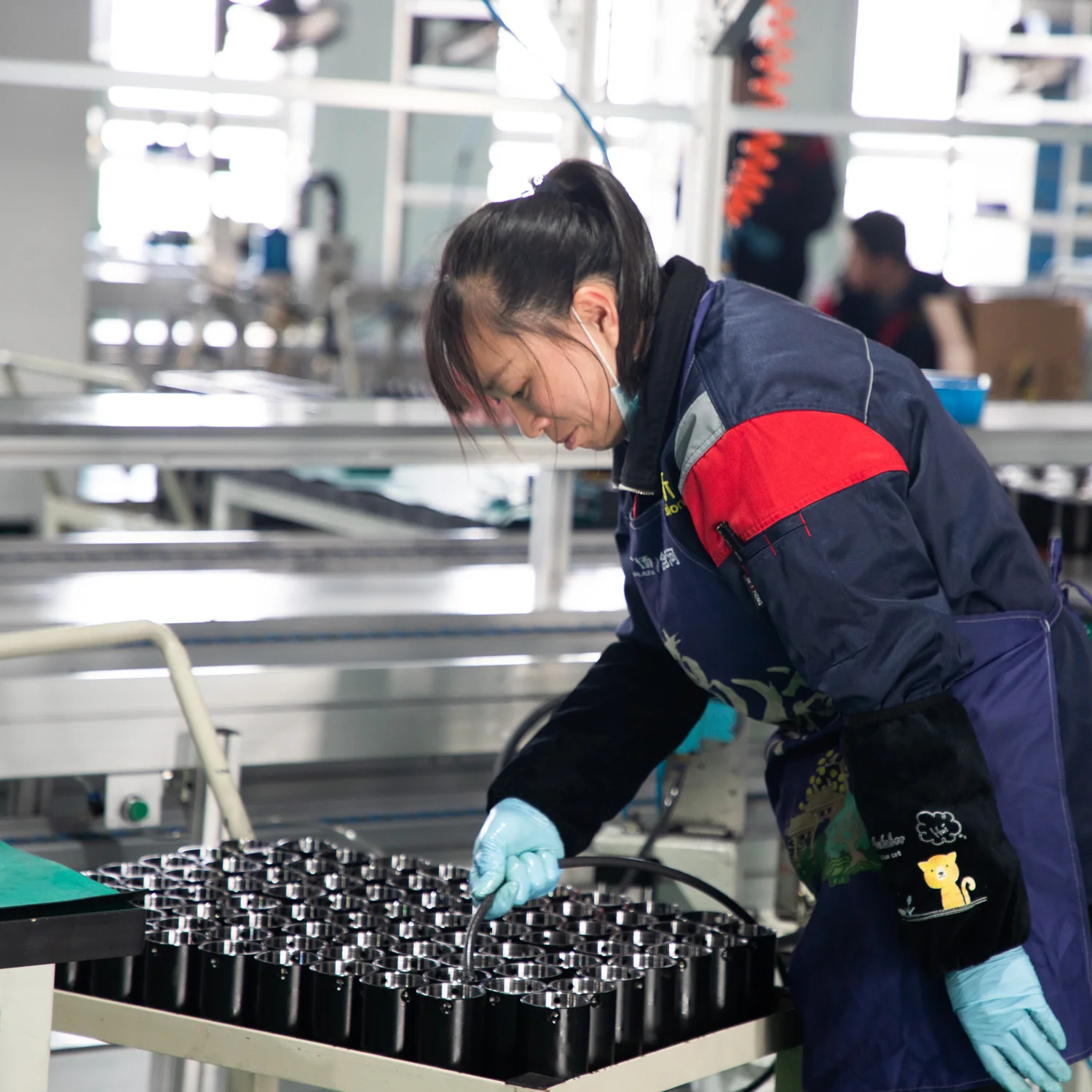

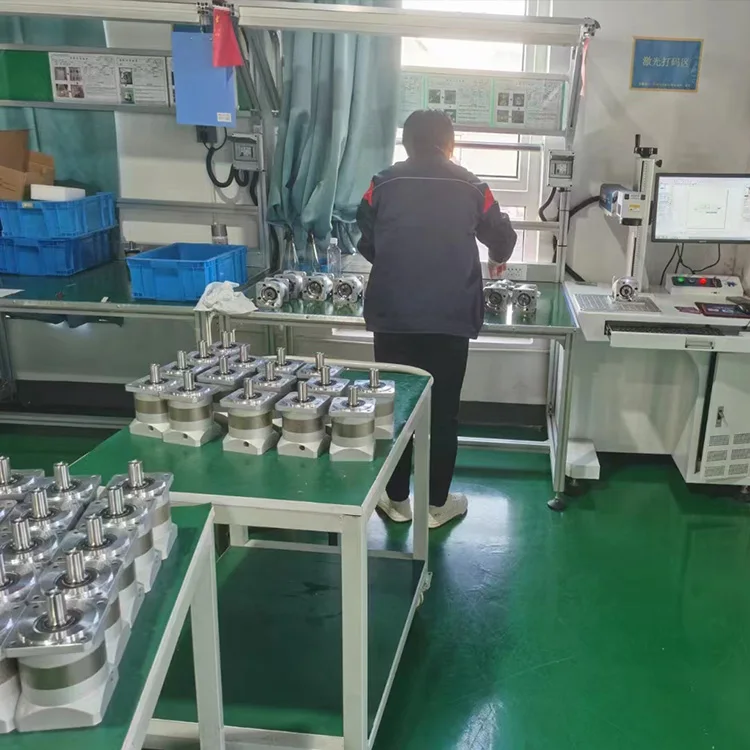

WORKSHOP
TEAM
HPS attends 5-6 exhibitions every year, both solar PV exhibitions and automation industry exhibitions, professional sales team and quality products build HPS a good reputation in the market.
FAQ
Q1：Which areas are your products mainly used in?
A1：At present, we have two main products: precision planetary gear reducer and solar geared motor. Most of the precision planetary reducers are used in automation fields, such as medical equipment, 3D printers, door openers, tapping machines, CNC lathes and a series of automation equipment. In addition, our solar geared motors are used in photovoltaic power generation projects, which are mainly combined with rotary drives to drive solar panels to track sunlight.
Q2 : How to choose the suitable planetary gearbox?
A2 :First of all, we need you to be able to provide relevant parameters. If you have a motor drawing, it will let us recommend a suitable gearbox for you faster. If not, we hope you can provide the following motor parameters: output speed, output torque, voltage, current, IP, noise, operating conditions, motor size and power, etc.
Q3 :What is the price ?
A3 : The main determining factor for the price of each product is the order volume. You can communicate with us
and let us understand each other. I believe that our prices, product quality and our services can definitely make you satisfied.
and let us understand each other. I believe that our prices, product quality and our services can definitely make you satisfied.
Q4: Do you provide customized service?
A4: Yes, we provide customized services. You only need to put forward your needs, and we will do our best to provide you with a plan, make plans, and try our best to meet your needs.
