Automatic wire bonder Fully automatic ultrasonic wire bonding machine for battery pack welding
- Category: >>>
- Supplier: Shenzhen Macex Industry Co. Ltd.
Share on (1600651599263):
Product Overview
Description
Products Description

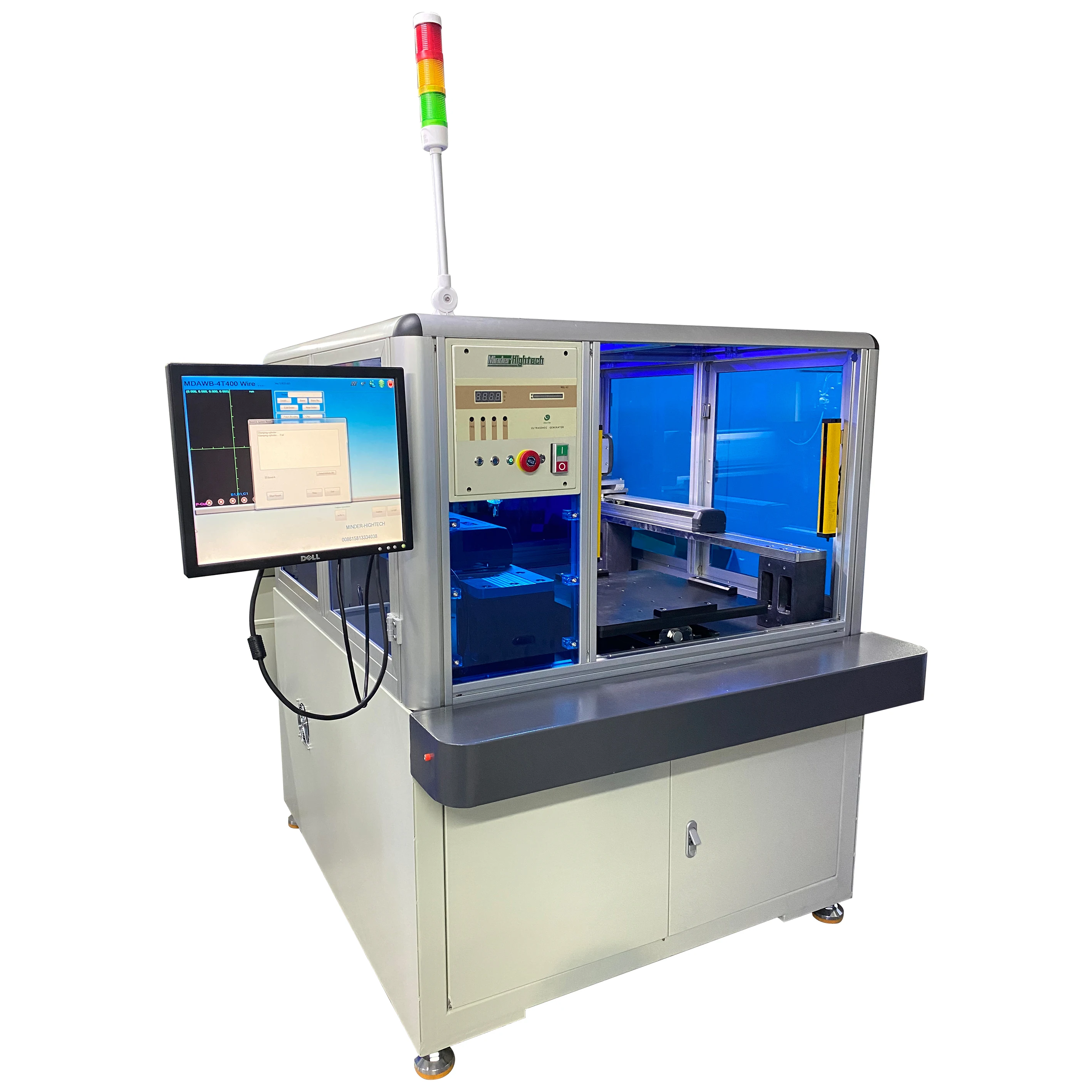

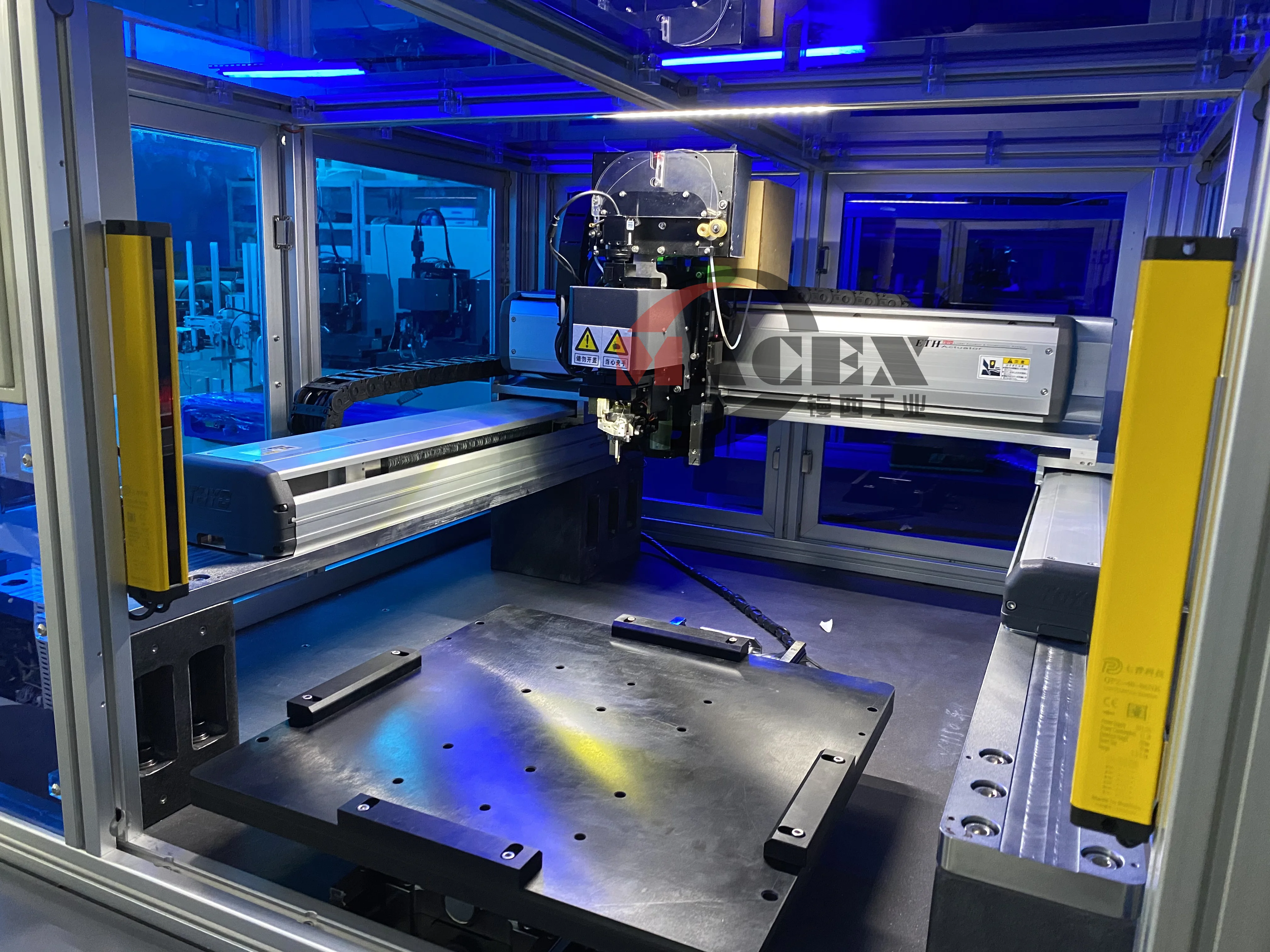

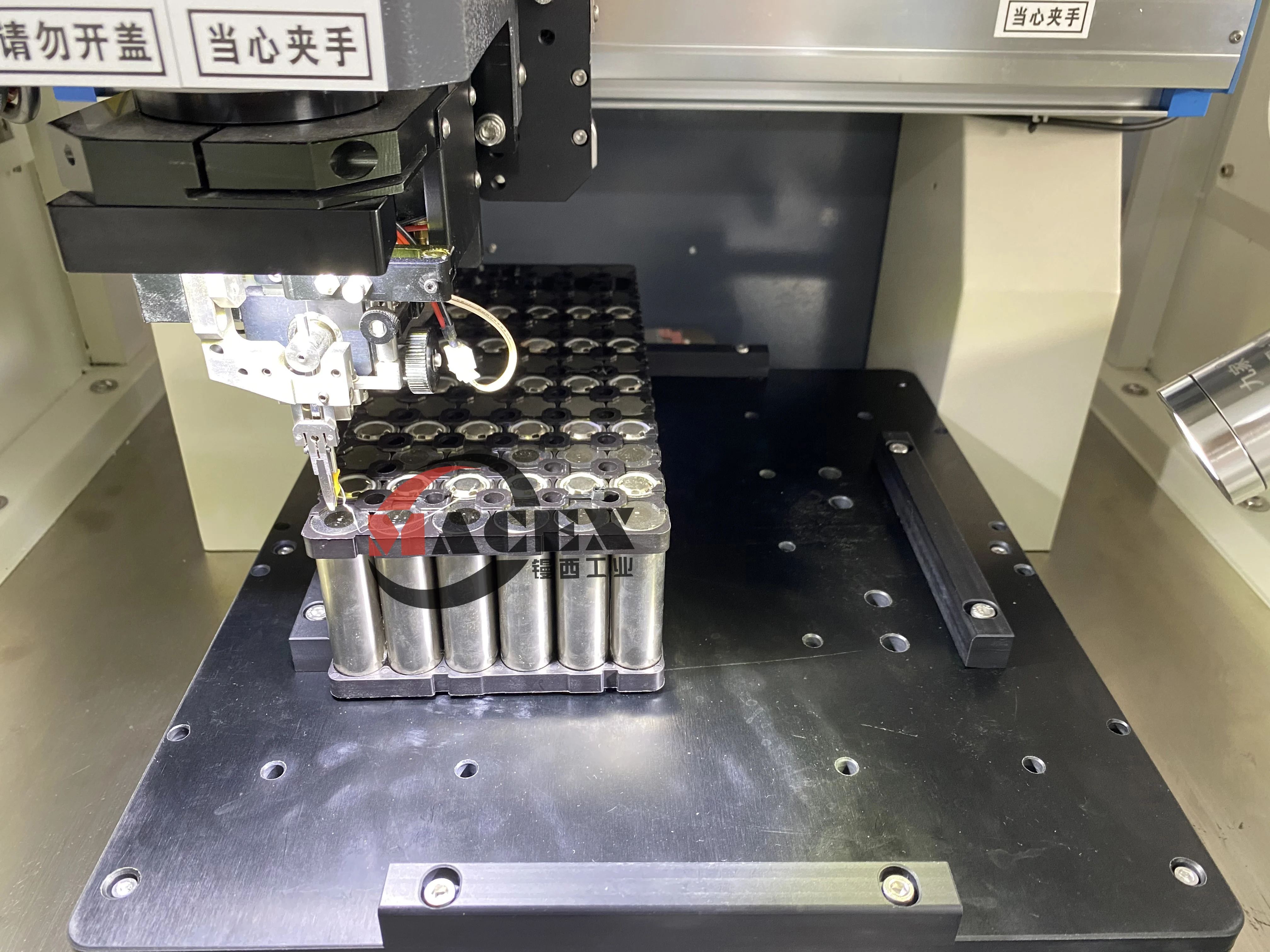

New type Automatic wire bonder MDAWB-4NL400
Main application:
18650,26800,21700
lithium battery wire bonding.or other connection
lithium battery wire bonding.or other connection
Advantage:
1,First using rotary bonding head.
2,Digital & automatic frequency tracking ultrasonic system.
3,Digital pressure adjustment system.
4,With advance pattern recognizing system.
5,Full closed-loop motion control system.
6,With like bad bondingor wire feeding block etc.
full error alarm, ensure bonding quality.
7,Optional automatic bond tester.
8,Manual upload, automatic recognition and bonding,manual download.
2,Digital & automatic frequency tracking ultrasonic system.
3,Digital pressure adjustment system.
4,With advance pattern recognizing system.
5,Full closed-loop motion control system.
6,With like bad bondingor wire feeding block etc.
full error alarm, ensure bonding quality.
7,Optional automatic bond tester.
8,Manual upload, automatic recognition and bonding,manual download.
Specification:
Power: | 220v,50Hz,800w. | |
Suit for aluminum wire: | 125-500um(5-20mil) | |
Ultrasonic: | ||
frequency: | 60kHz. | |
Power: | 0-30w. automatic changing between first bonding and second bonding. | |
X axis accuracy: | 0.02mm. | |
Time: | 10-500ms. (multi channel.) | |
Bonding pressure: | 50-1200g(multi channel) | |
Bonding speed: | 2s/wire.depending on other situation. | |
Working area: | ||
XY: | 400*400mm(can customize as required). | |
Z: | 50mm. | |
C: | +-90degree. | |
Dimension: | 1500mm*1800mm*1650mm | |
Weight: | ~800KG | |

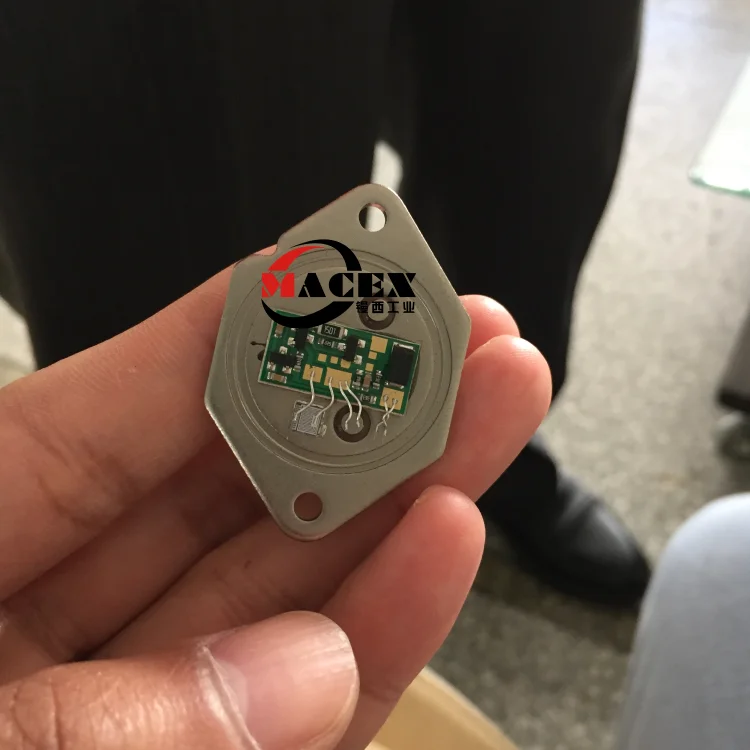

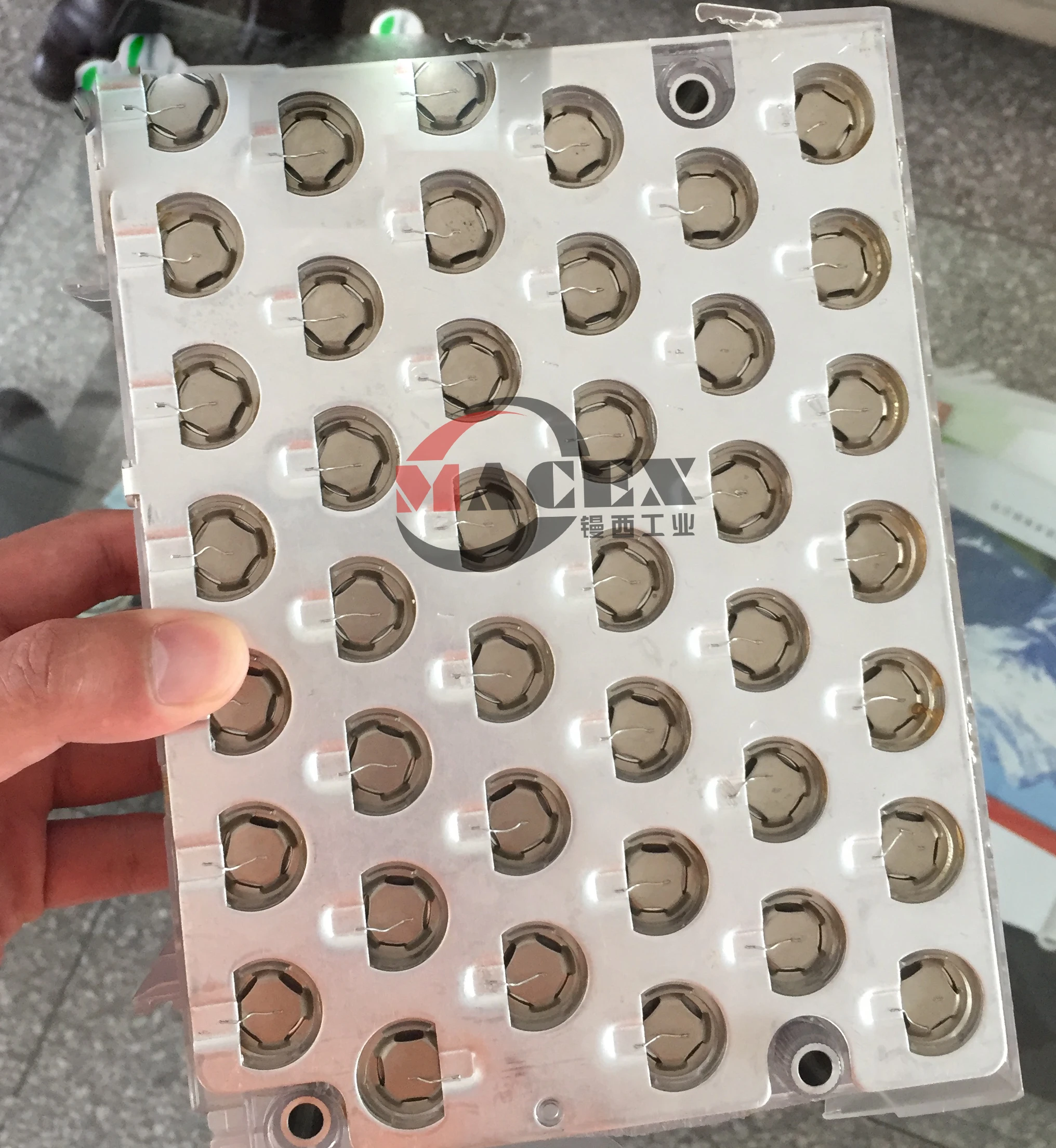

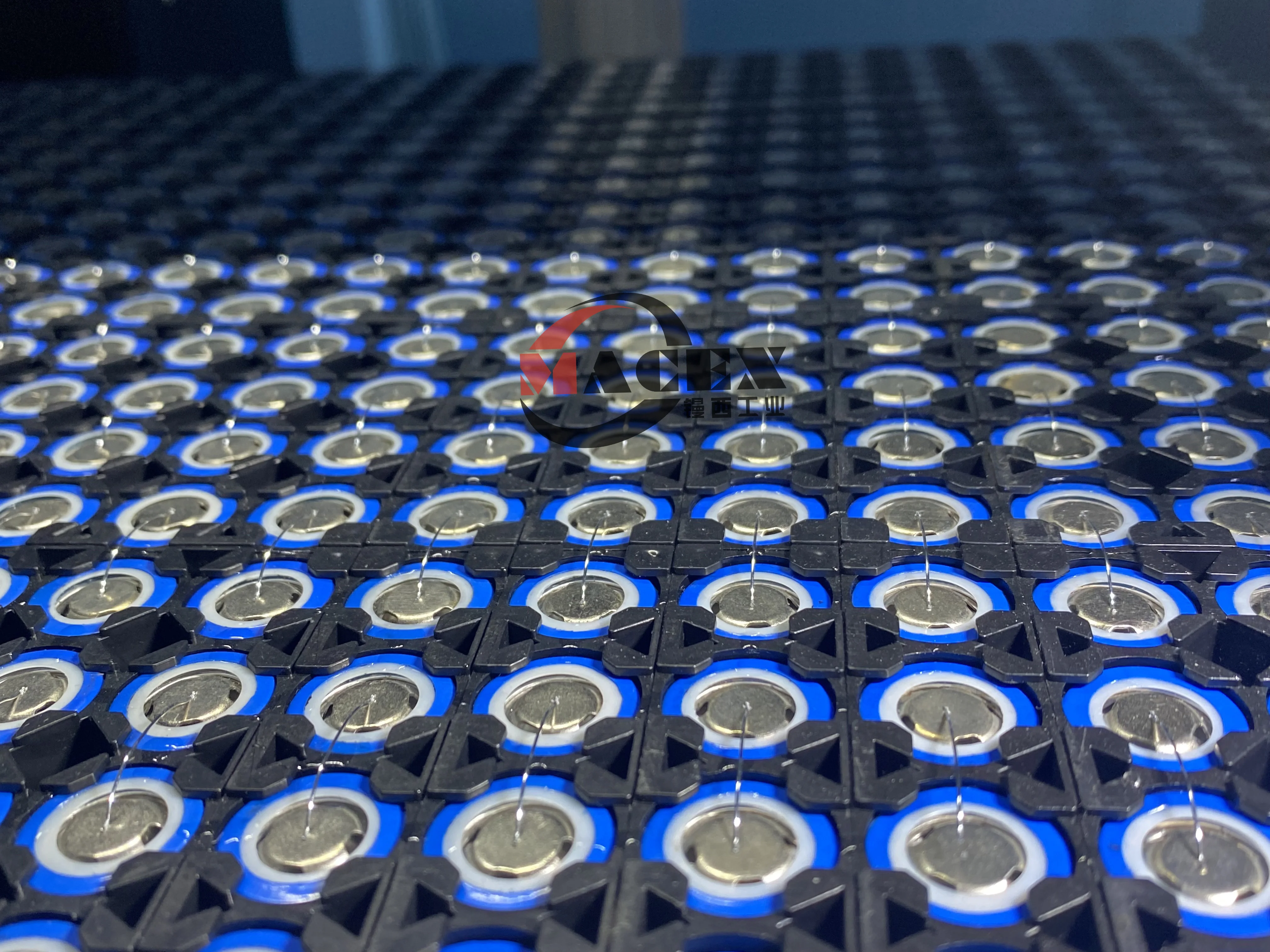

sample

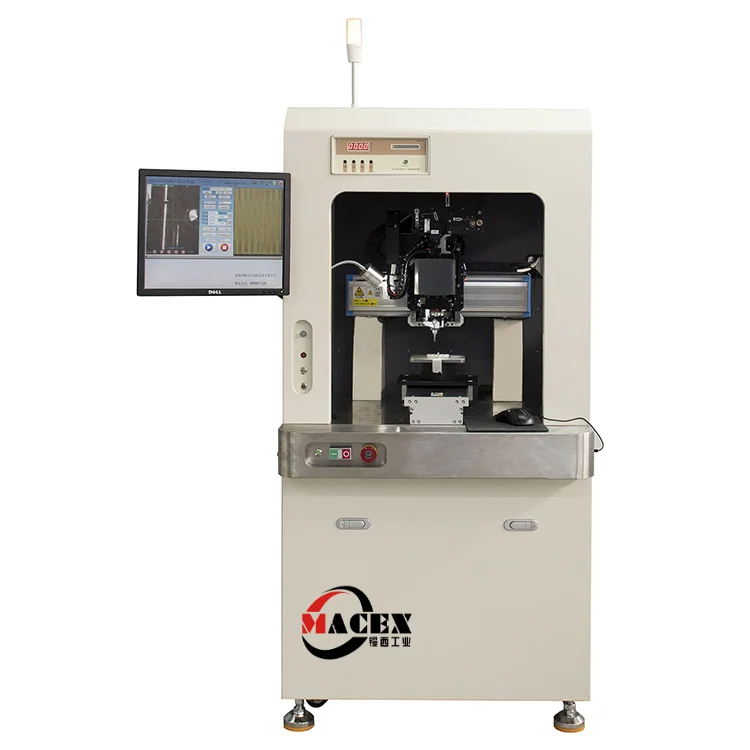

MACEX-2025 AUTOMATIC WIRE BONDER FOR auto parts
Main application:
auto parts
auto sensors/IGBTs
ABS/ECU/oxygen sensor
ABS/ECU/oxygen sensor
Advantage:
1,First using rotary bonding head.
2,Digital & automatic frequency tracking ultrasonic system.
3,Digital pressure adjustment system.
4,With advance pattern recognizing system(PRS).
5,Full closed-loop motion control system.
6,With like bad bonding or wire feeding block etc. full error alarm, ensure bonding quality.
7,Optional automatic bond tester.
8,Manual upload, automatic recognition and bonding,manual download.
2,Digital & automatic frequency tracking ultrasonic system.
3,Digital pressure adjustment system.
4,With advance pattern recognizing system(PRS).
5,Full closed-loop motion control system.
6,With like bad bonding or wire feeding block etc. full error alarm, ensure bonding quality.
7,Optional automatic bond tester.
8,Manual upload, automatic recognition and bonding,manual download.
Specification:
Power | 220v,50Hz,800w. | ||
Suit for aluminum wire | 125-500um(5-20mil) | ||
Ultrasonic: | frequency | 60kHz. | |
Power | 0-30w. automatic changing between first bonding and second bonding. | ||
X axis accuracy | 0.02mm. | ||
Time | 10-500ms. (multi channel.) | ||
Bonding pressure | 50-1200g(multi channel) | ||
Bonding speed | 2s/wire.depending on other situation | ||
Working area | XY | 200*250mm(can customize as required). | |
Z | 50mm. | ||
C | +-90degree. | ||
Dimension | 810mm*620mm*1558mm | ||
Weight | ~350KG | ||

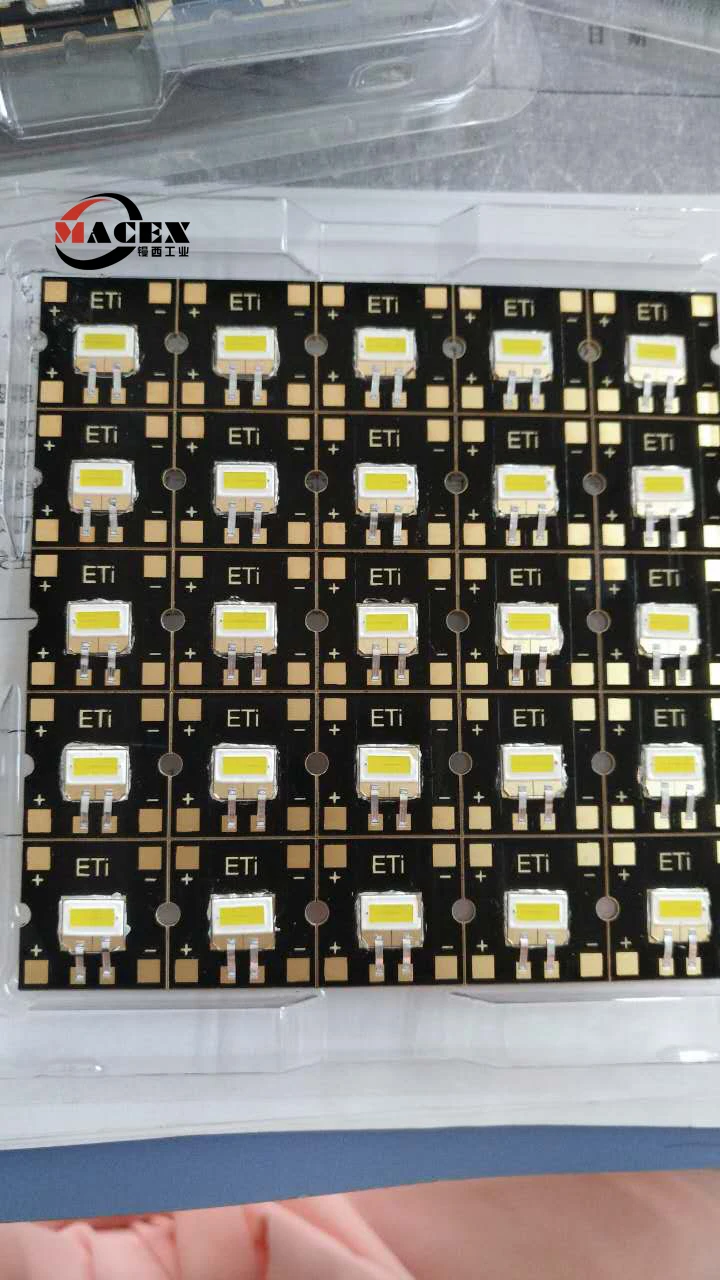

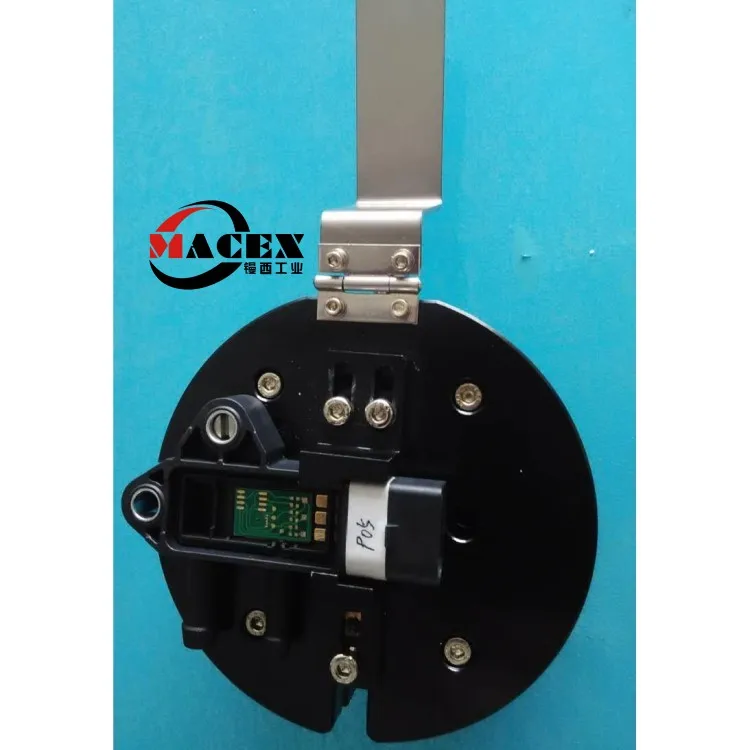

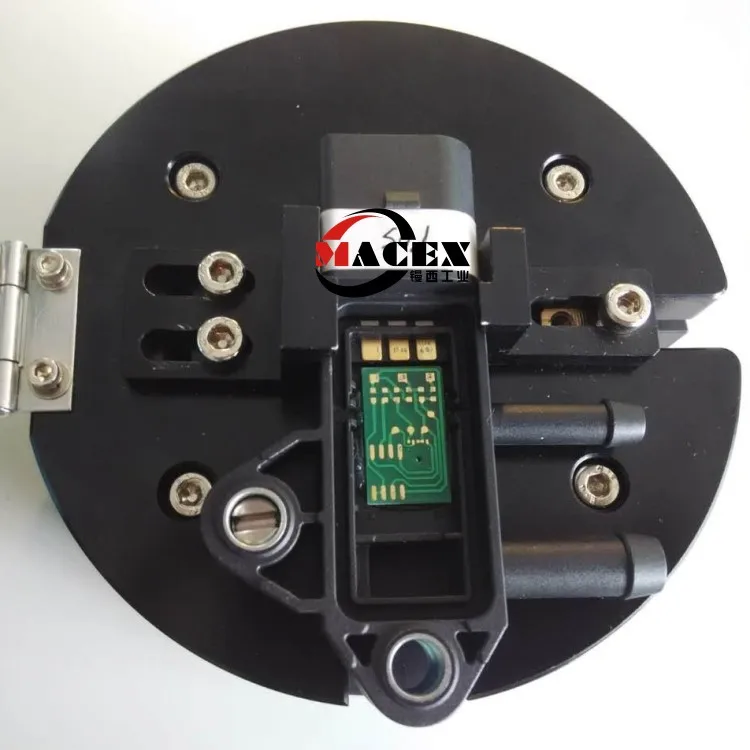

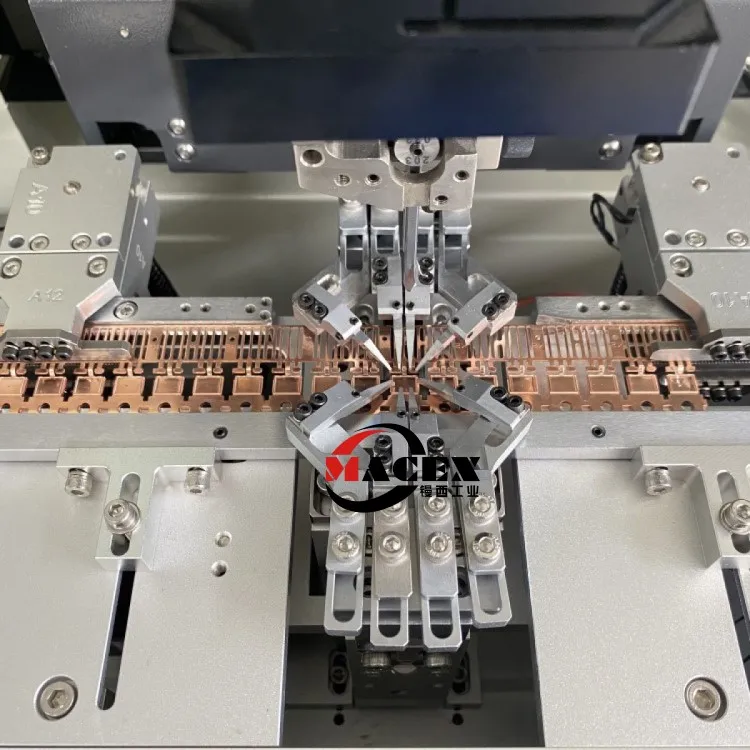

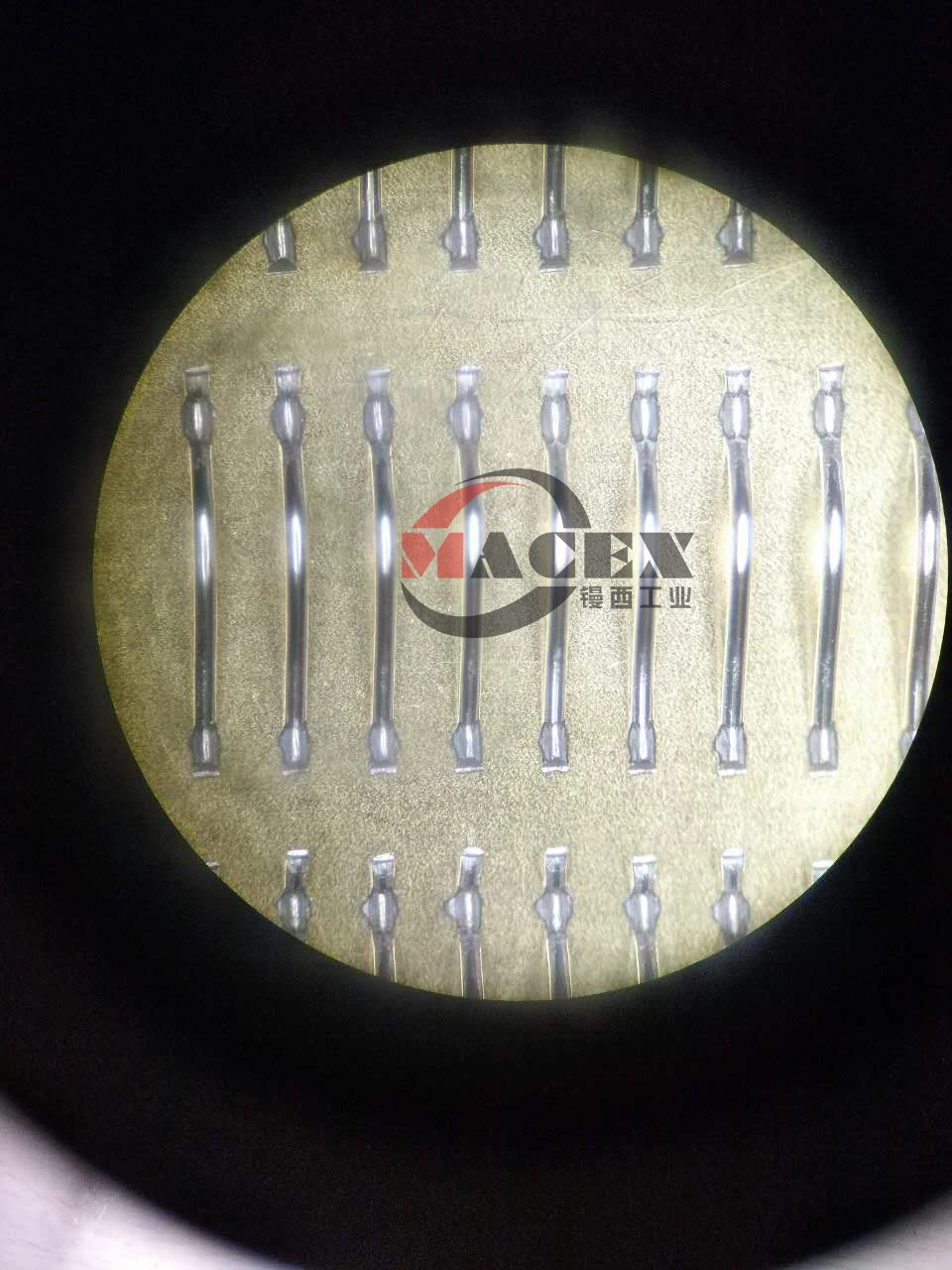

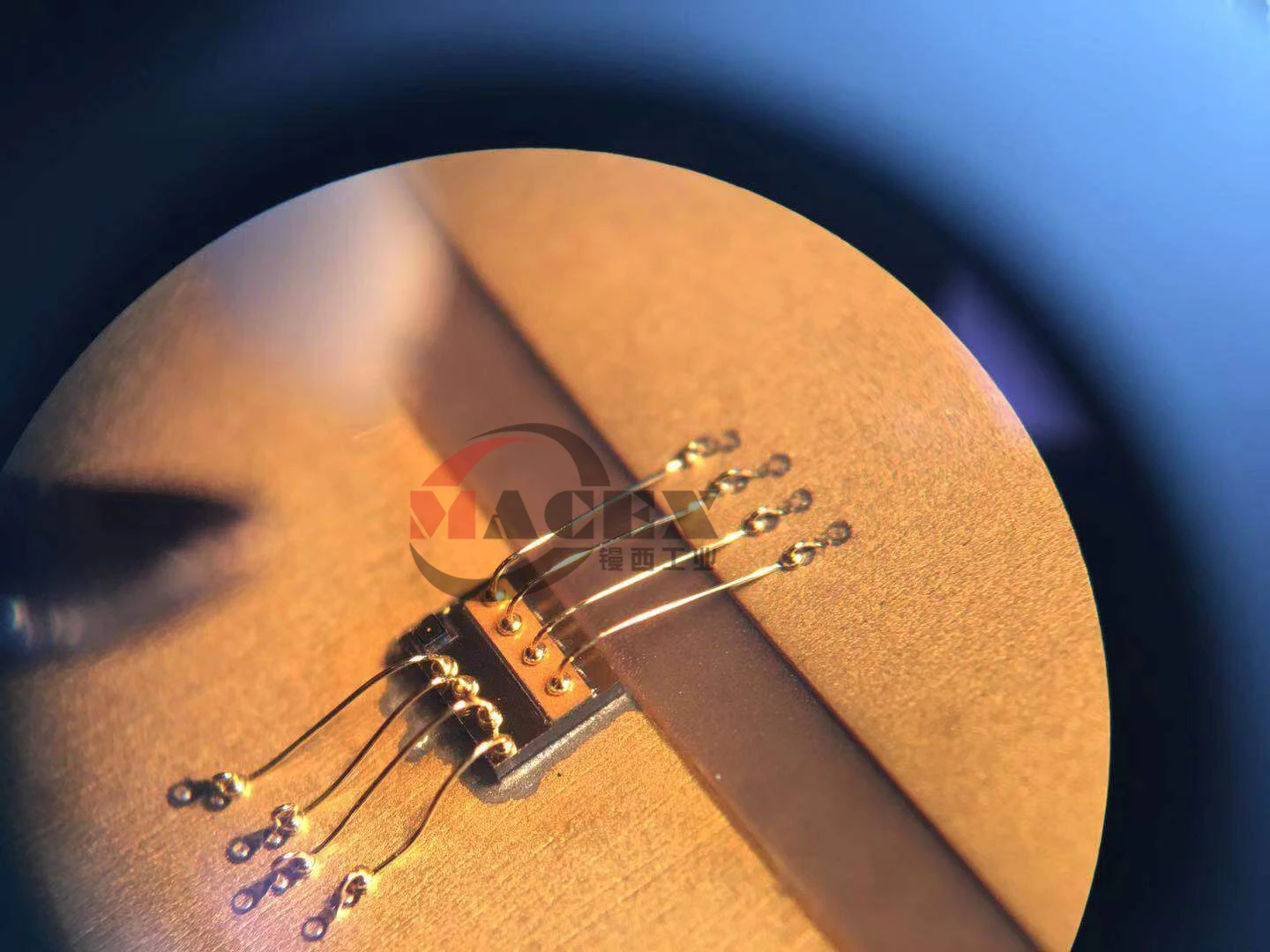

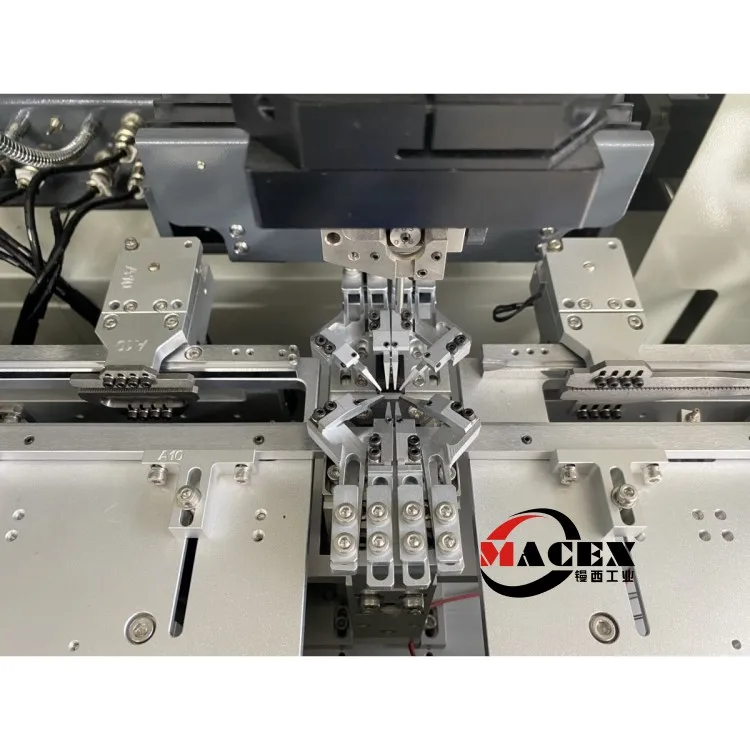

Part of sample and jigs:

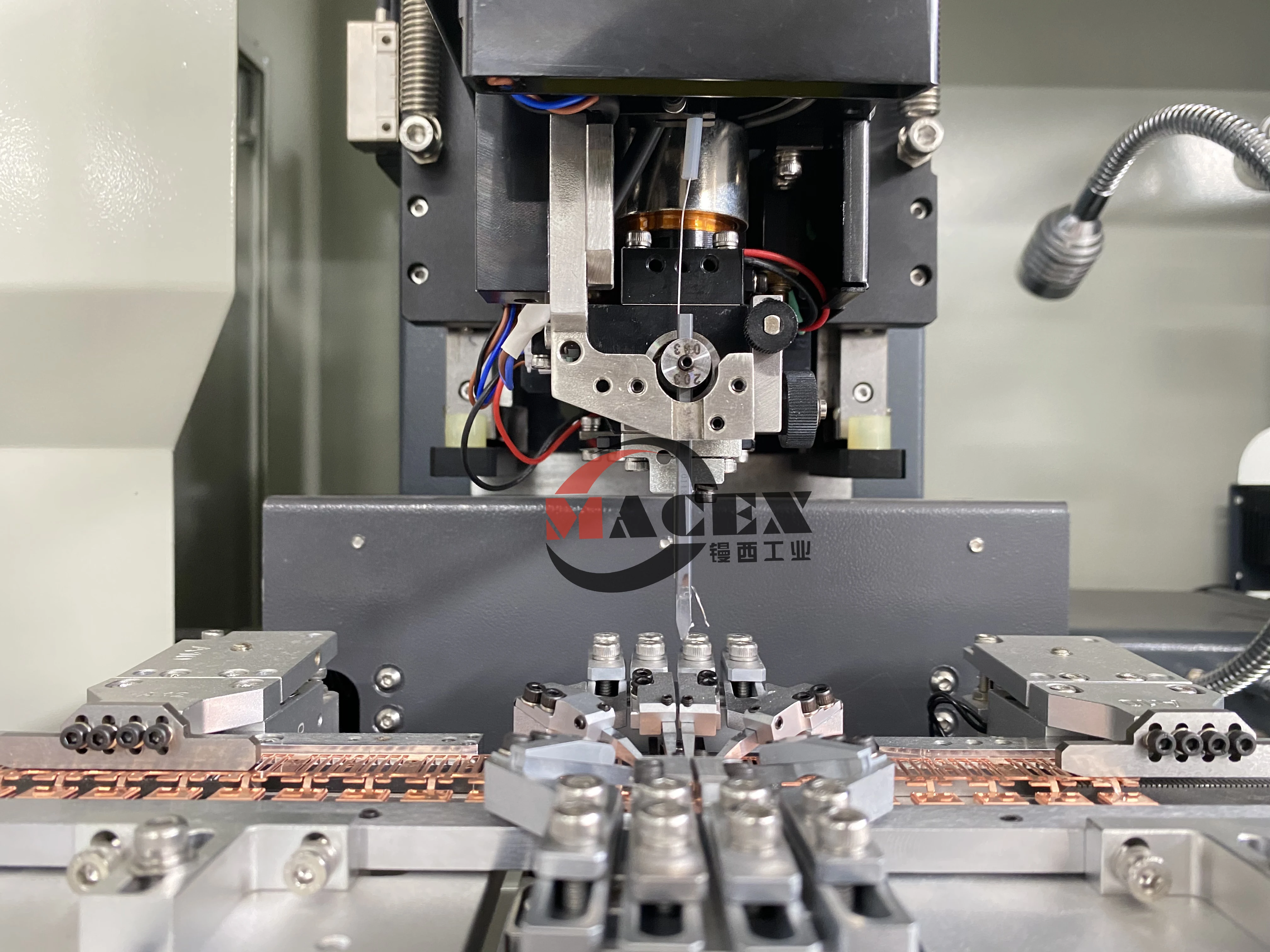

aluminium wire pressure welding MACEX AWB-3721

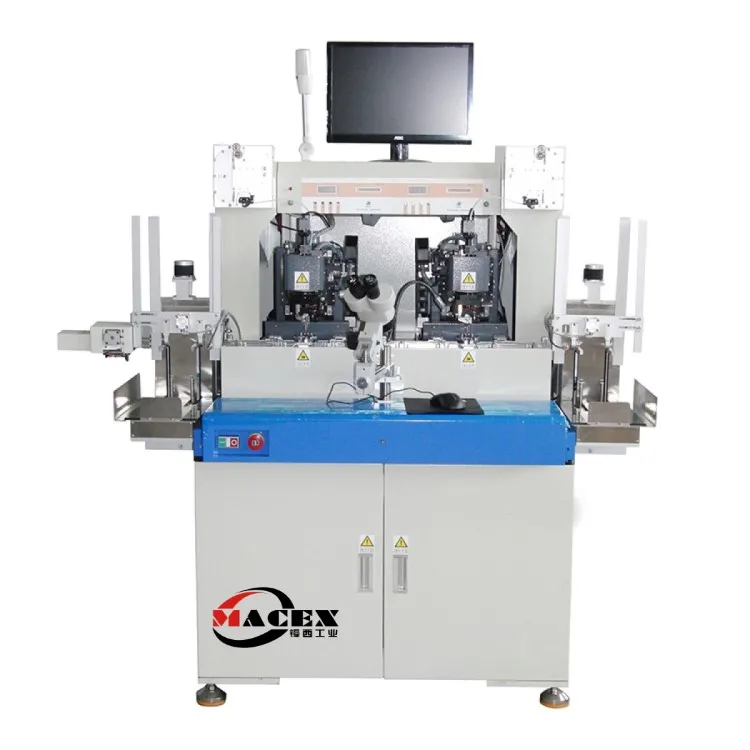

Automatic ultrasonic thick aluminium wire welding press MACEX AWB-3721, national first using spin welding head way, adopting digital automatic frequency tracking ultrasonic system, digital control of pressure regulating function, first-class image recognition device, full closed-loop motion control circuit. Really realize China coarse aluminium wire bonding machine fully automated!
MACEX AWB-3721 is mainly used in the TO - 220, TO - 3 p encapsulating large, medium power transistor, SCR, field effect tube, large current fast recovery rectifiers, schottky diode semiconductor power devices in welding lead.
MACEX AWB-3721 is mainly used in the TO - 220, TO - 3 p encapsulating large, medium power transistor, SCR, field effect tube, large current fast recovery rectifiers, schottky diode semiconductor power devices in welding lead.
To adopt advanced technology for image recognition and homing technology, realized the automatic and accurate positioning of solder joints.
Strong rich digital ultrasound to ensure the solder joint quality is stable and reliable.
Automatic frequency tracking ultrasonic system and reasonable welding head design to ensure the quality of the solder joints.
Original digital pressure control system to ensure constant output to ensure the consistency of the solder joints.
, blanking agencies use a variety of electronic induction on institutions and get an electric shock control, to ensure the
reliability of the automatic up-down material.
The reasonable design of fixture and unique way of feeding to ensure the welding quality and greatly improve the work efficiency.
Precision mechanical transmission mechanism and reliable industrial computer and independent intellectual property rights of software to ensure the precision of the welding position.
Has no weld, pay-off anomalies on a variety of fault alarm stop function, greatly reducing the roa, not at the same time, greatly increased the production. More operable and humanization.
Optional automatic welding line tension testing device, can be more effective is the supervision of the welding line quality.
Adopt computer control, operation interface in Chinese new employee training can operate on its own one day, a month can be skilled
Operation, one person can operate more machine at the same time, greatly improving the work efficiency.
Strong rich digital ultrasound to ensure the solder joint quality is stable and reliable.
Automatic frequency tracking ultrasonic system and reasonable welding head design to ensure the quality of the solder joints.
Original digital pressure control system to ensure constant output to ensure the consistency of the solder joints.
, blanking agencies use a variety of electronic induction on institutions and get an electric shock control, to ensure the
reliability of the automatic up-down material.
The reasonable design of fixture and unique way of feeding to ensure the welding quality and greatly improve the work efficiency.
Precision mechanical transmission mechanism and reliable industrial computer and independent intellectual property rights of software to ensure the precision of the welding position.
Has no weld, pay-off anomalies on a variety of fault alarm stop function, greatly reducing the roa, not at the same time, greatly increased the production. More operable and humanization.
Optional automatic welding line tension testing device, can be more effective is the supervision of the welding line quality.
Adopt computer control, operation interface in Chinese new employee training can operate on its own one day, a month can be skilled
Operation, one person can operate more machine at the same time, greatly improving the work efficiency.
The main technical specifications:
Power supply | 220 vac plus or minus 10%, 50 hz, reliable grounding, maximum rate of about 800 w |
Drive source | 4 ~ 6 kg/C ㎡ |
Ultrasonic power | 0 ~ 30 w, one, two welding automatic switching |
Weldable aluminium silk diameter | 125 ~ 500 um (5 ~ 20 mil) |
Welding time | 10 ~ 500 ms, 2 channel |
Welding stress | 30 ~ 1200 g, 2 channel |
Welding speed | about 1300 ~ 1300 / h (TO - 220 double) |
Welding Angle | - 90 ~ 90 degrees |
Weight | 480 kg |
The visual system | PR microscope magnification of 0.5 times |
PR floodlight | white light, brightness is adjustable |
Shape size | 1260 mm * 1860 mm * 760 mm |
Equipment
If you want to know more about the machinery and equipment you need, you can contact our engineers
