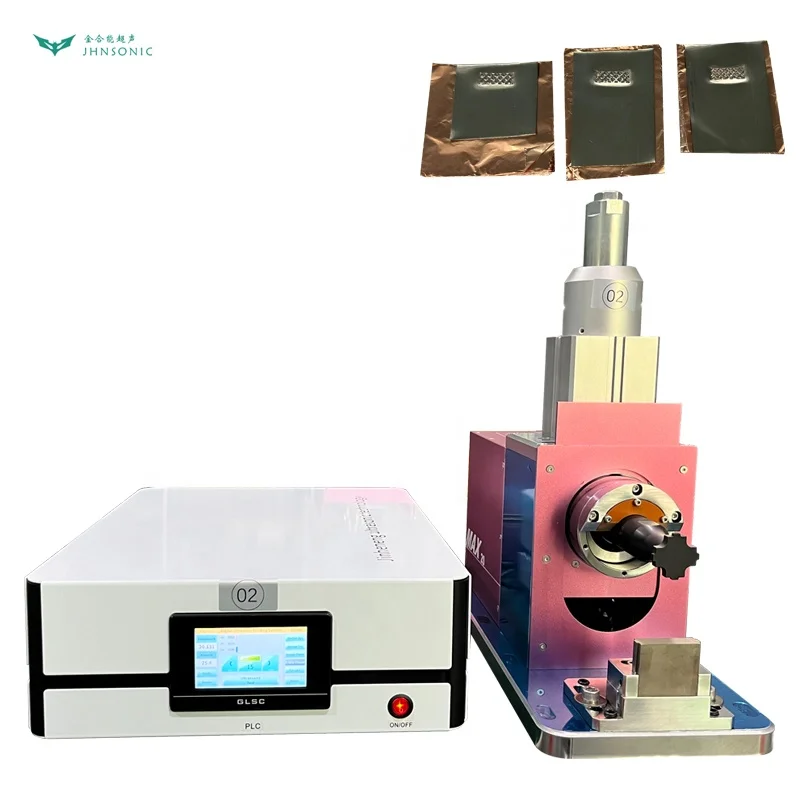

High Quality Pouch Cell Tab CNC Ultrasonic Metal Spot Welder Welding Machine
- Category: >>>
- Supplier: Guangzhou Yitong Nc Co. Ltd.Guangzhou Ltd.
Share on (1601366445298):
Product Overview
Description
Product Description
1. It is designed for Lithium battery tab welding with touch-screen controller.
2. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion pouch cells in R&D laboratories and production line.
2. It is designed for welding stacked electrode sheets (Copper & Aluminum) and tab onto current collectors to prepare Li-ion pouch cells in R&D laboratories and production line.
3. It can weld stacked electrode with 20-60 layers aluminum foil or copper foil with Al tab and Nickel tab.

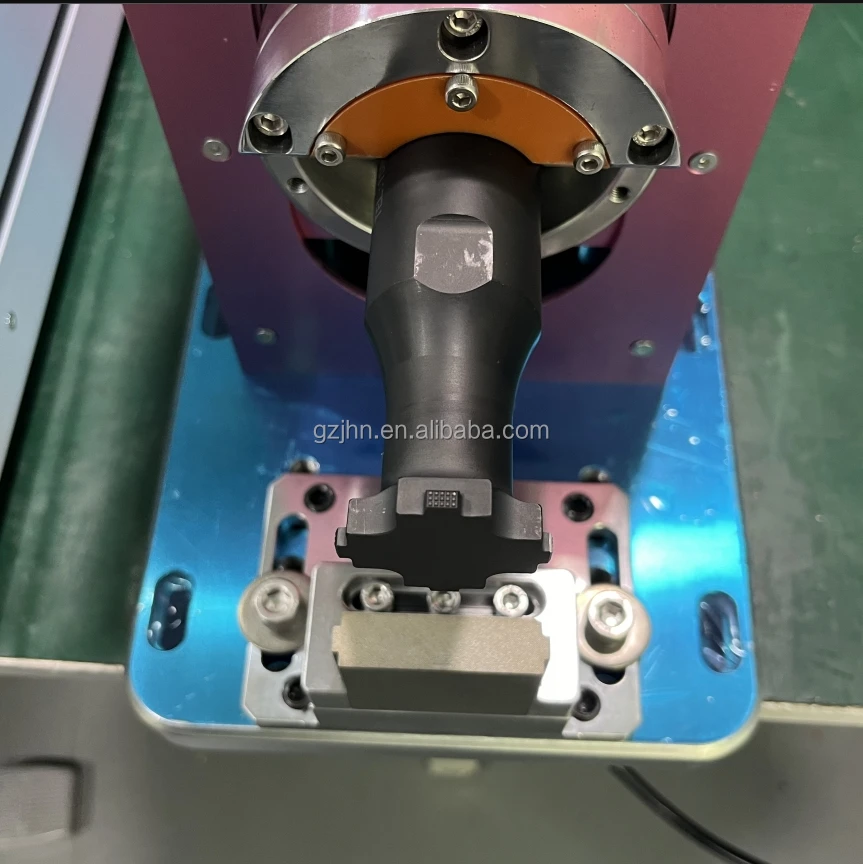

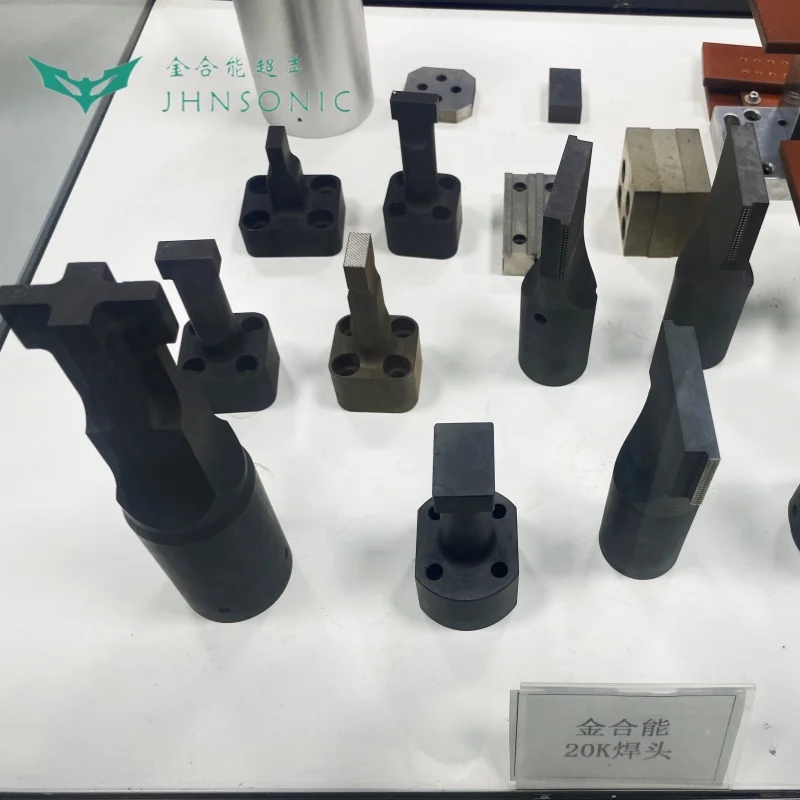

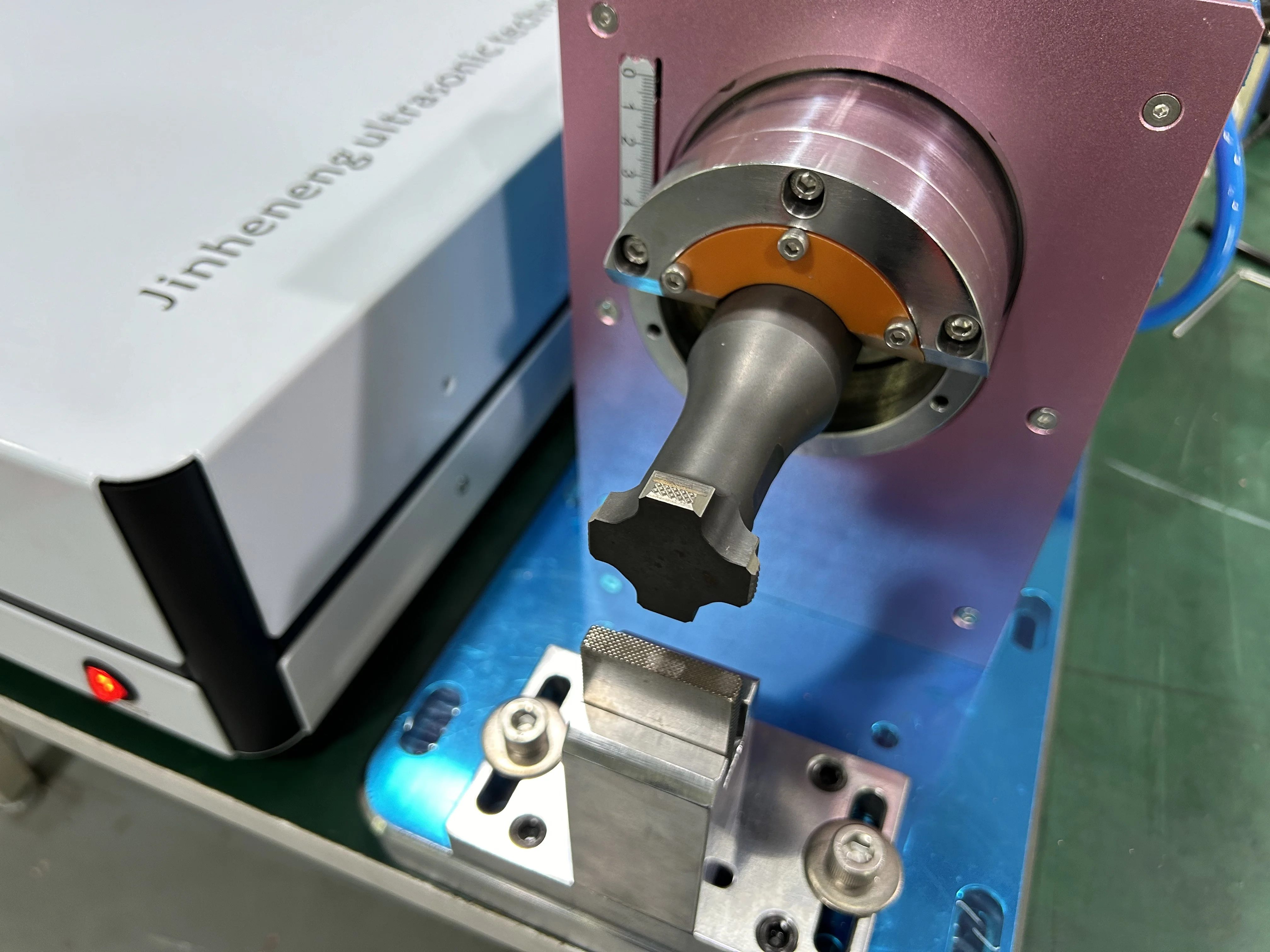

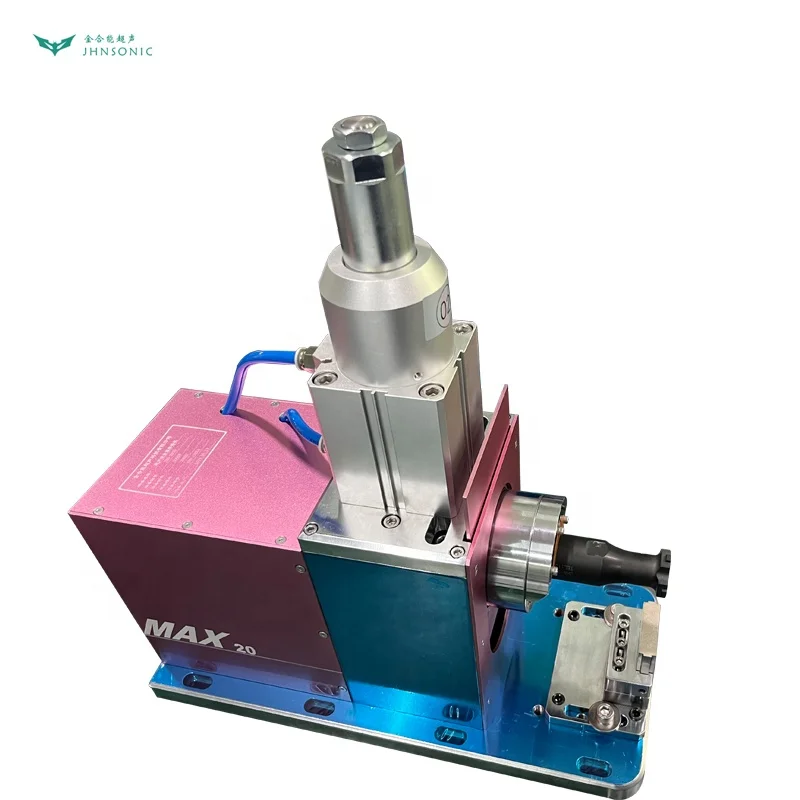

Welding head

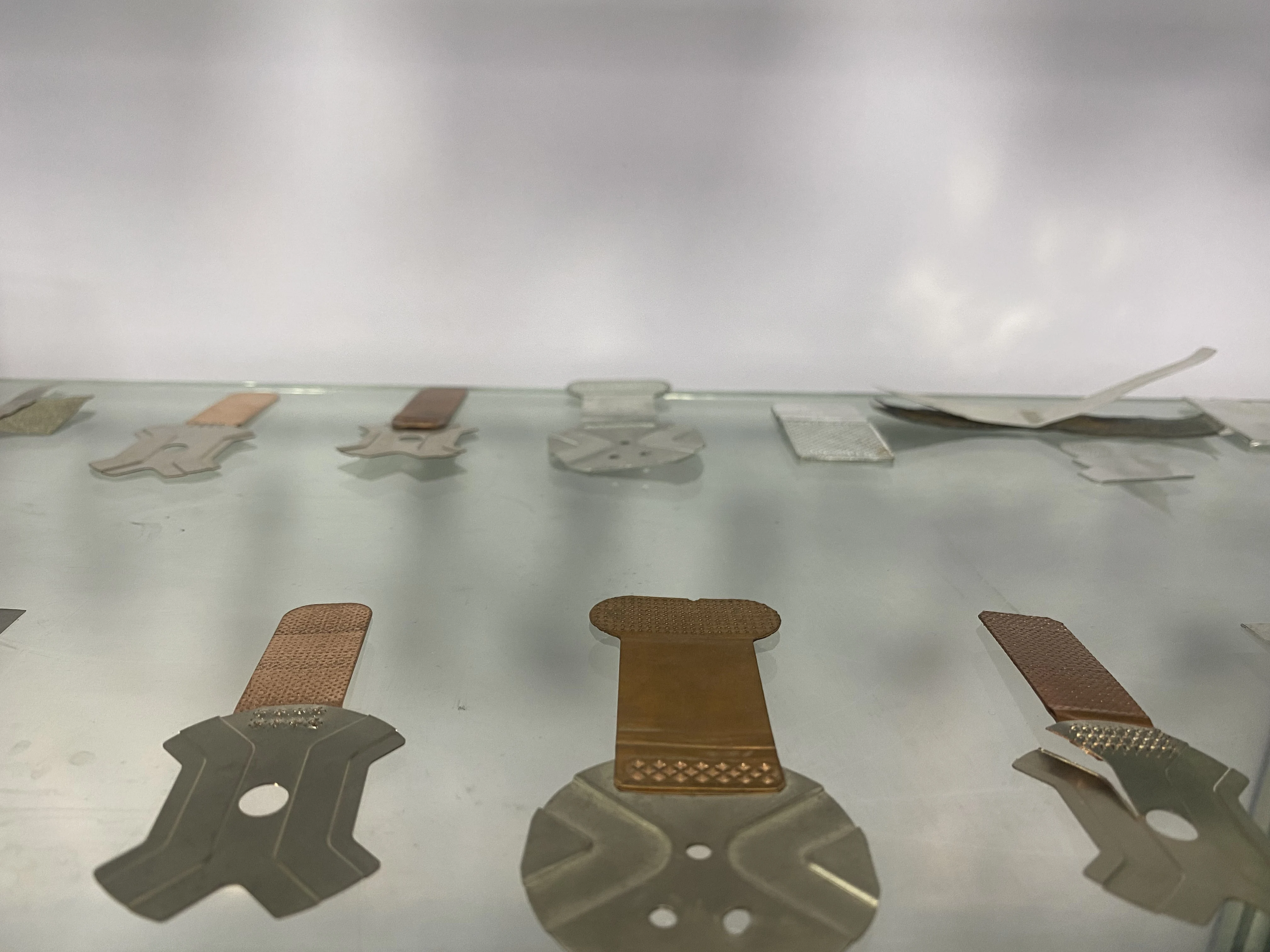

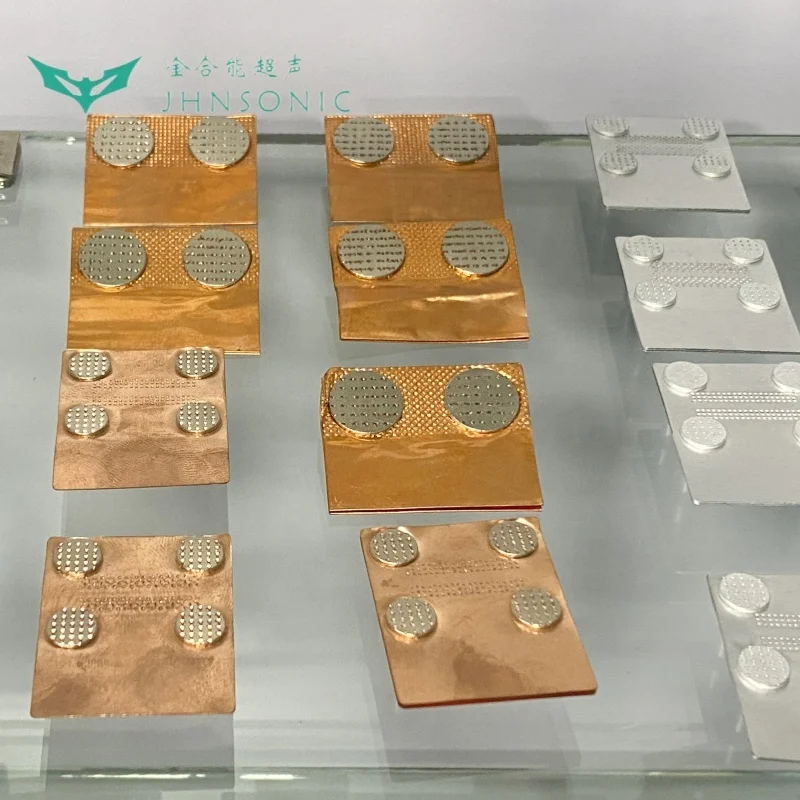

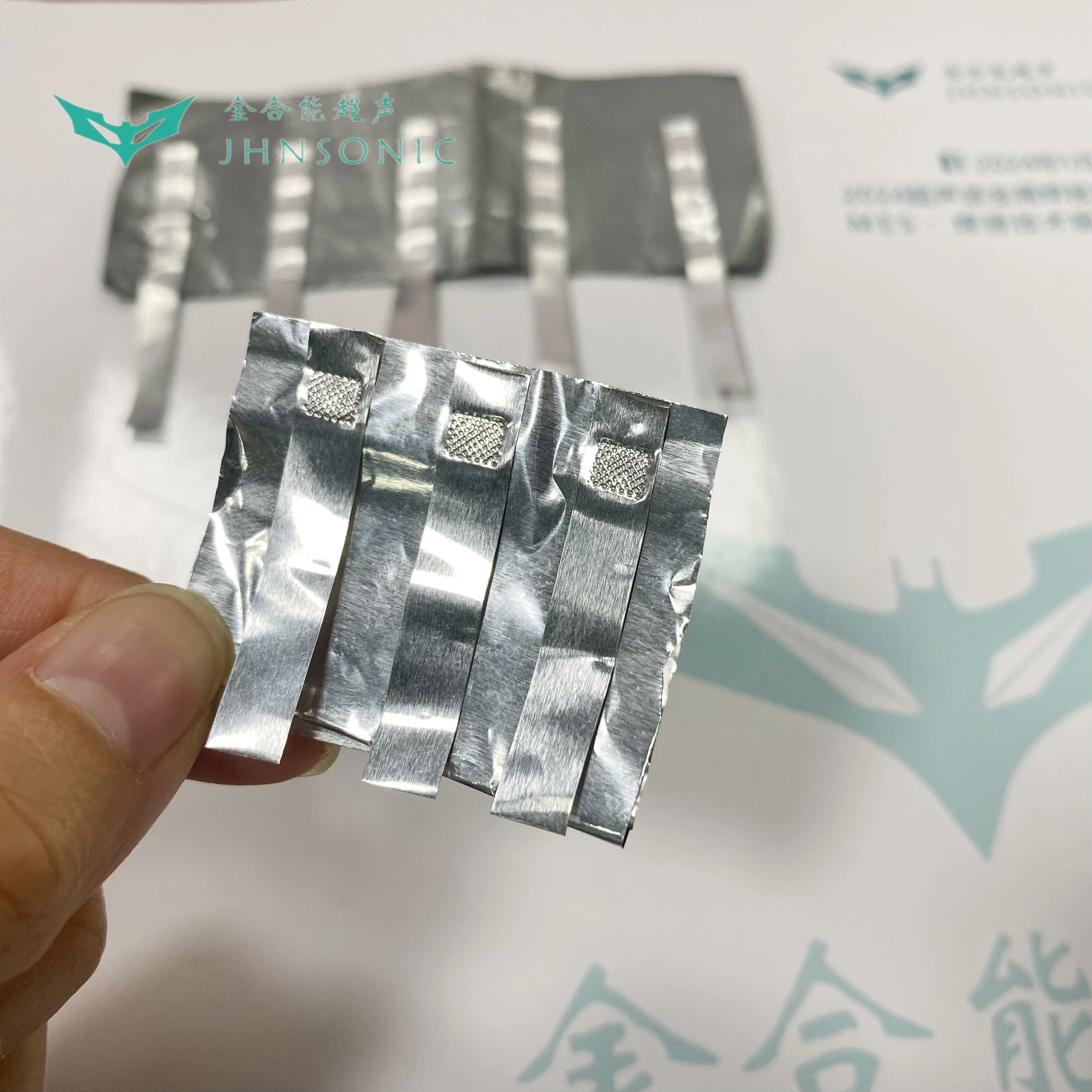

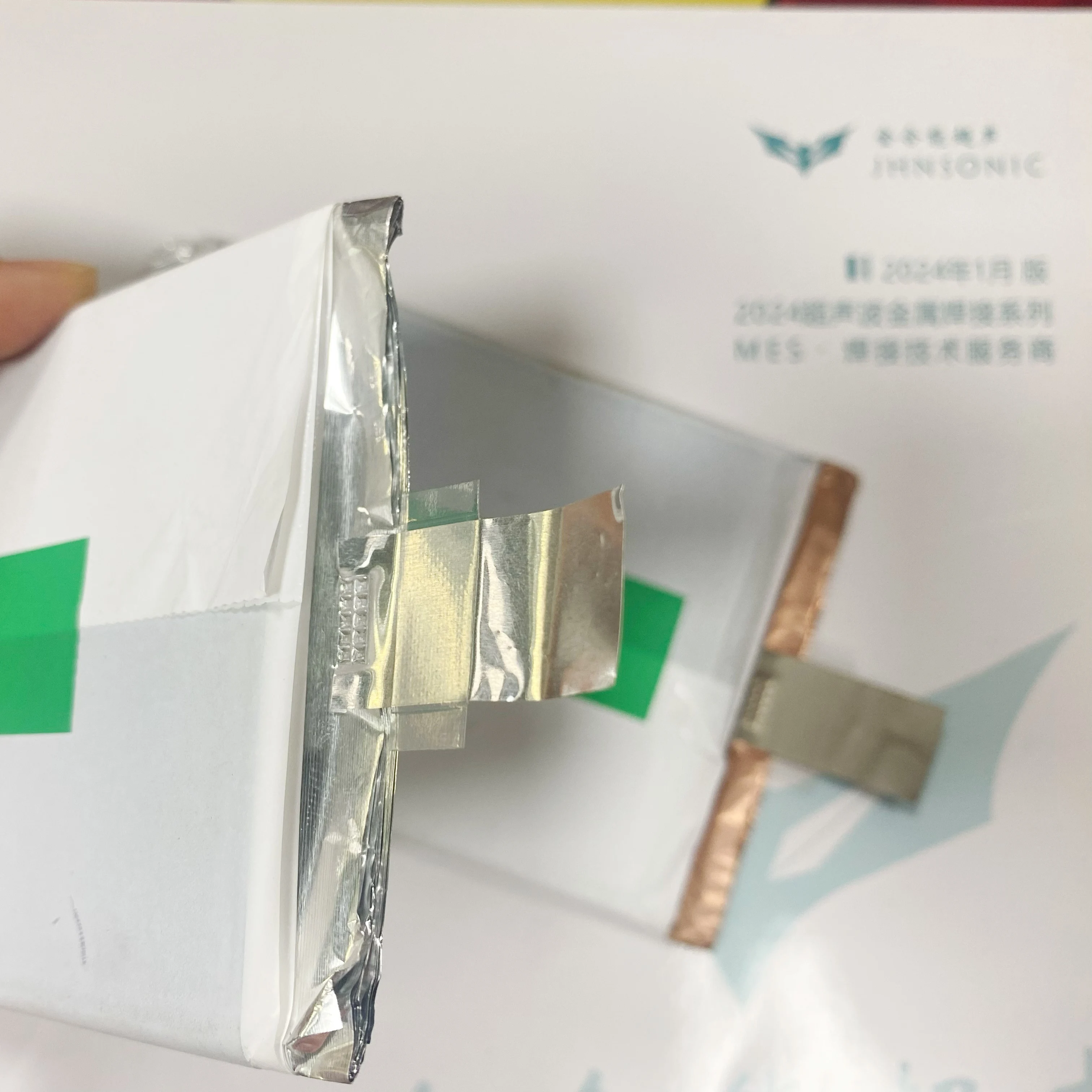

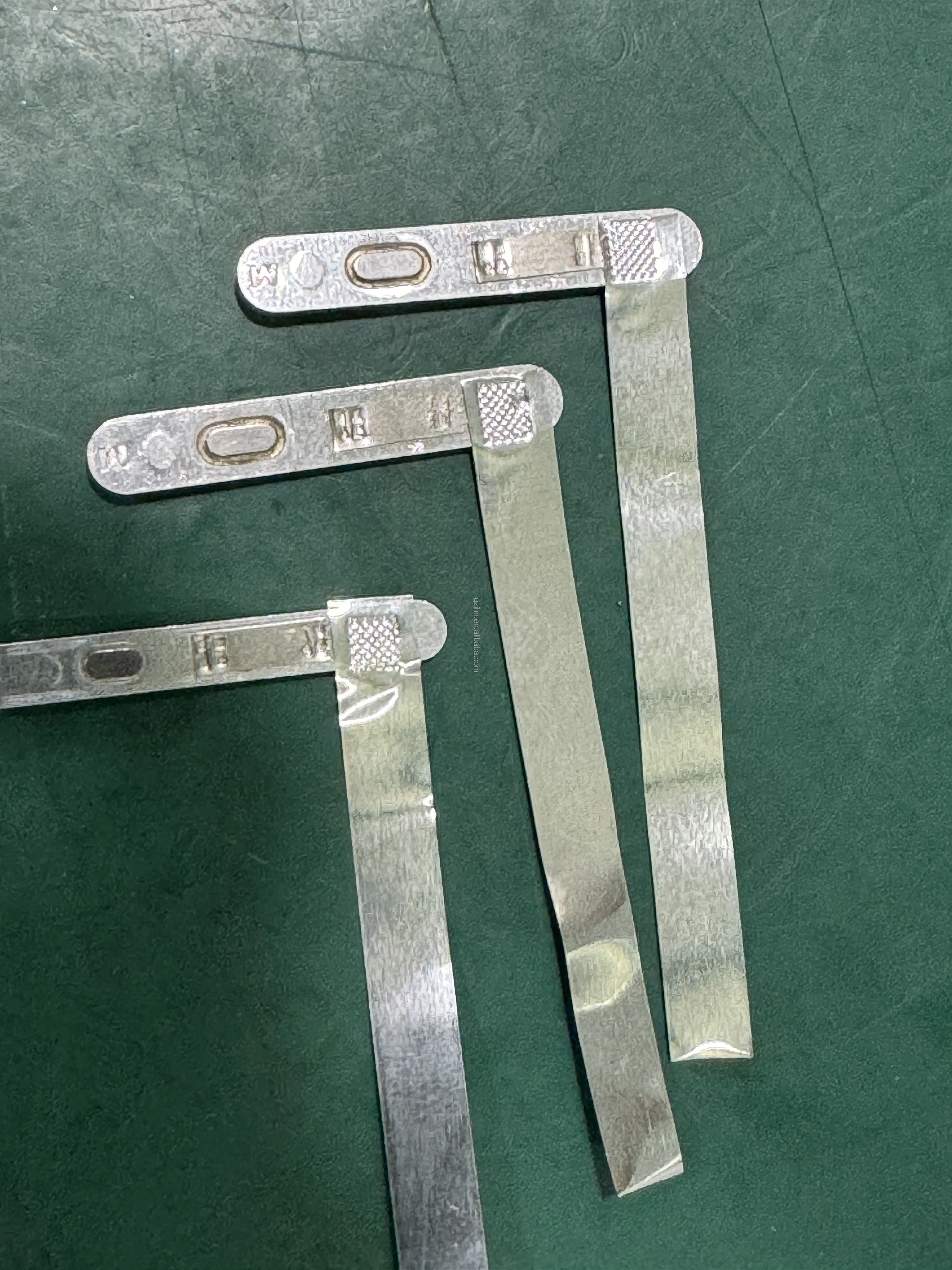

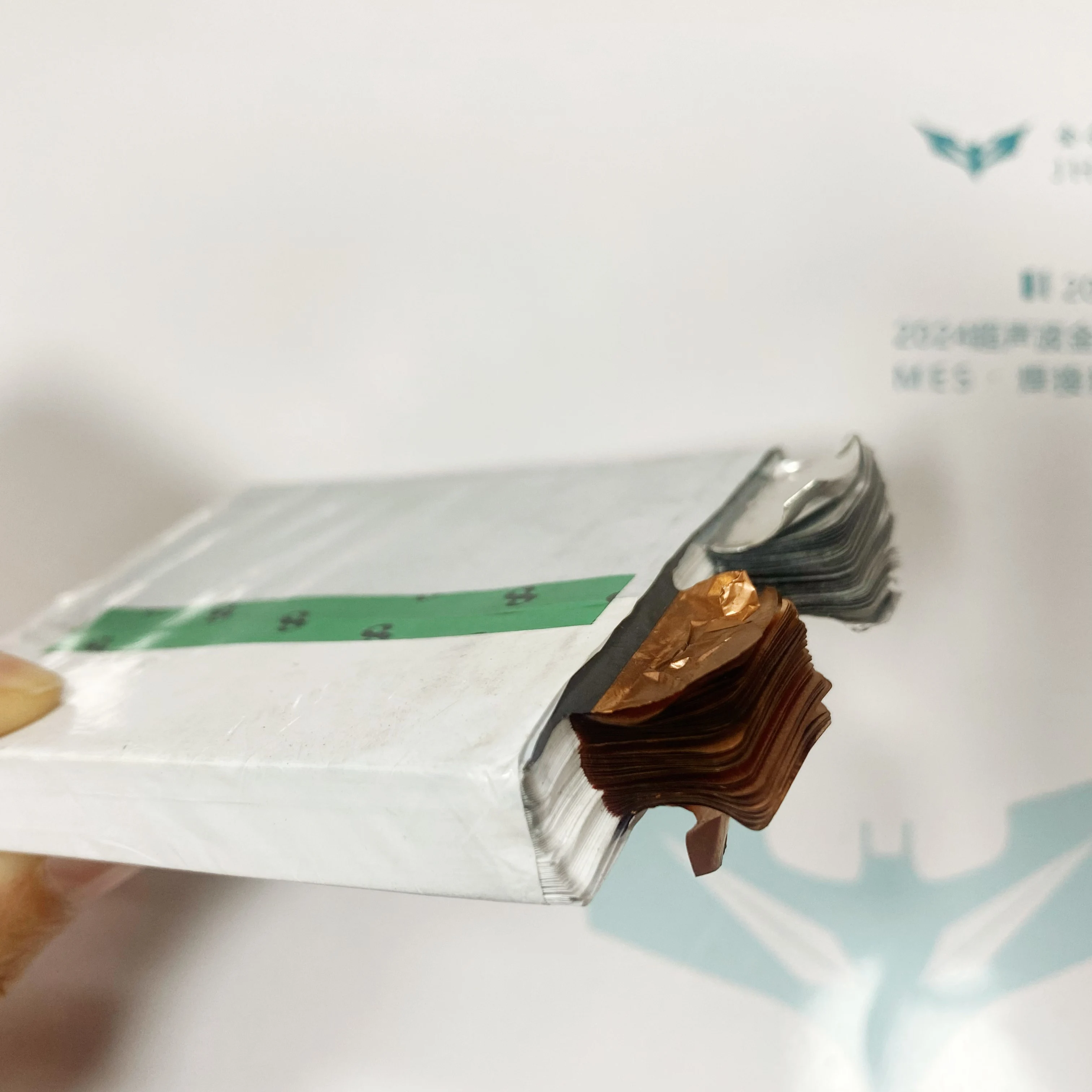

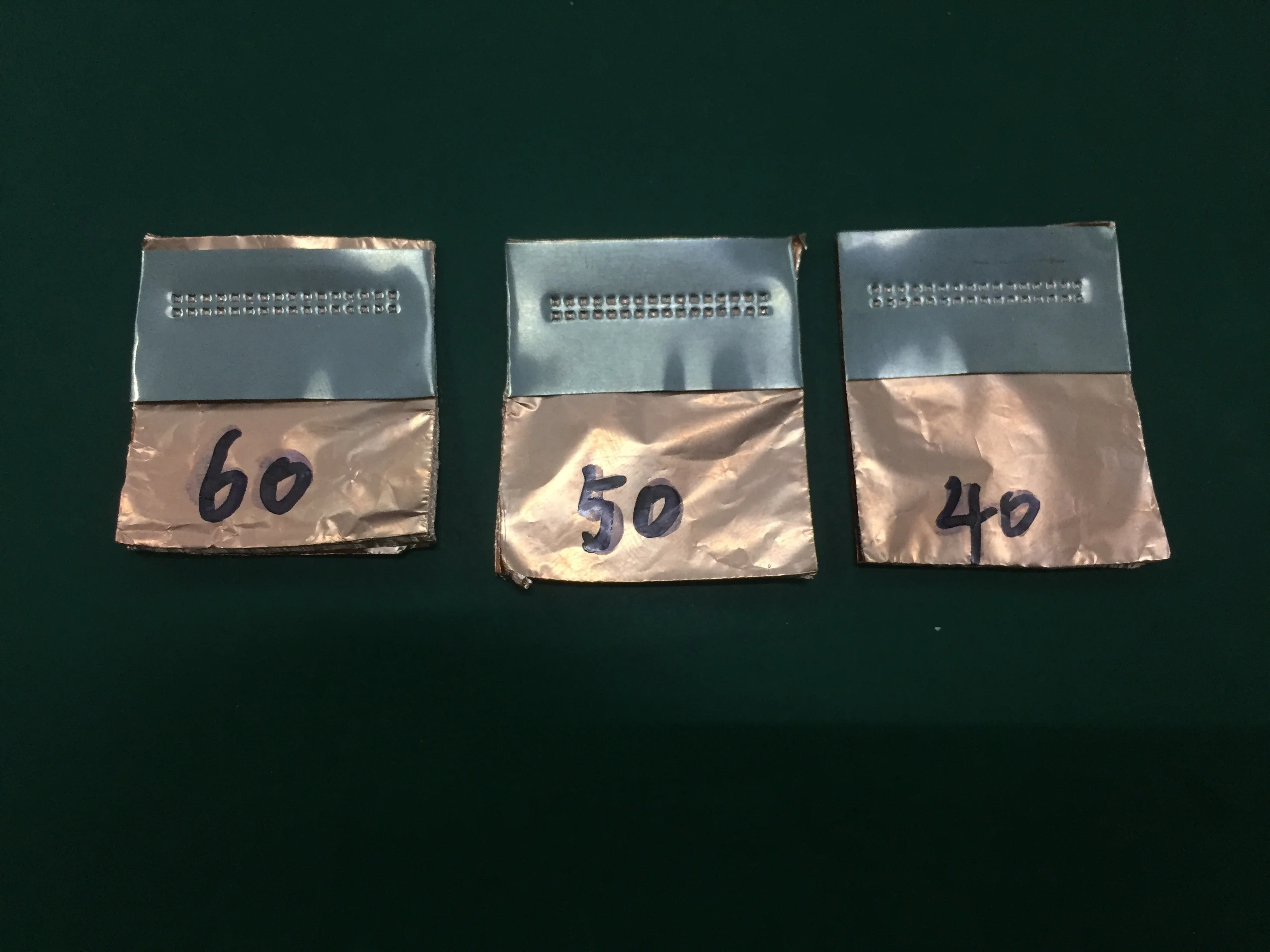

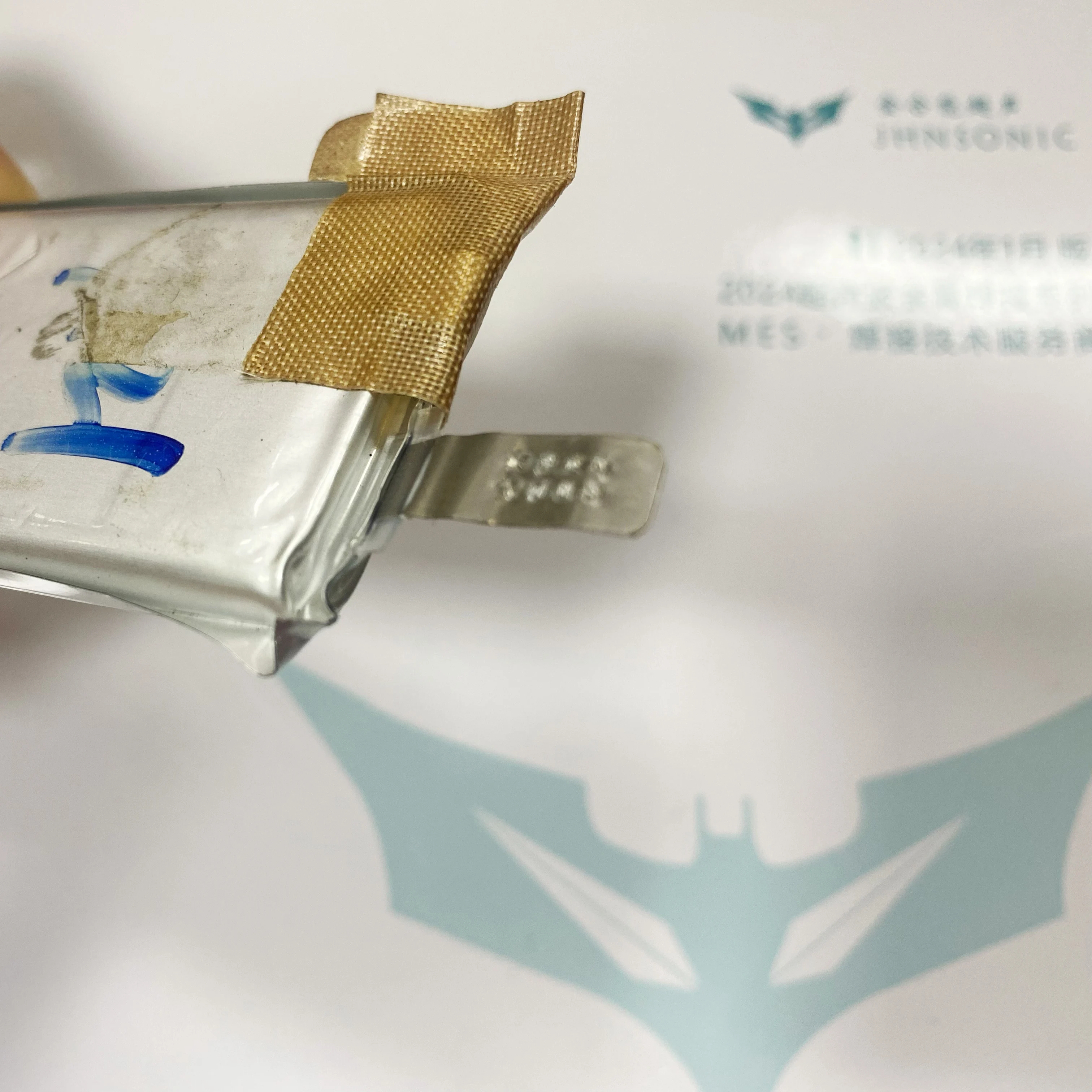

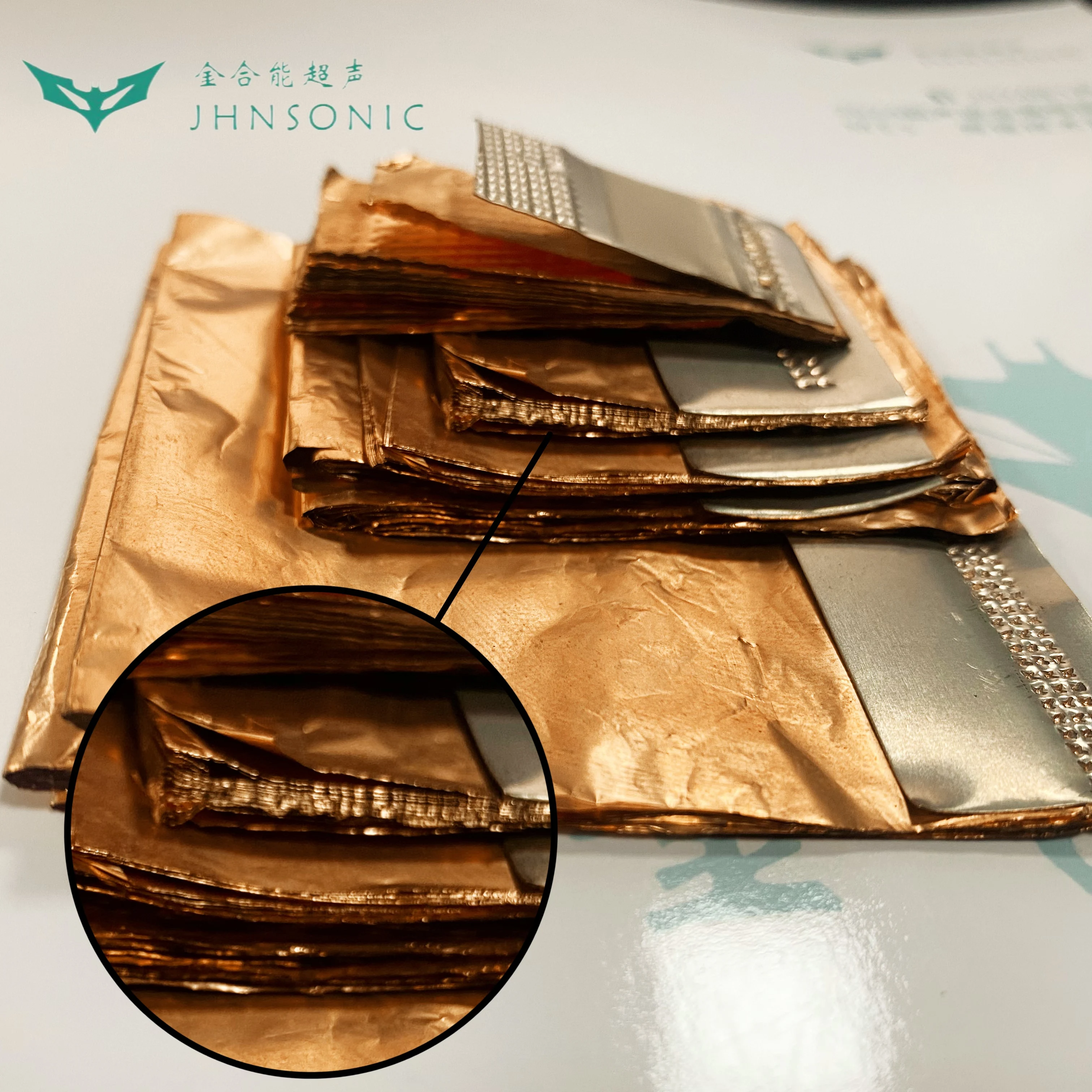

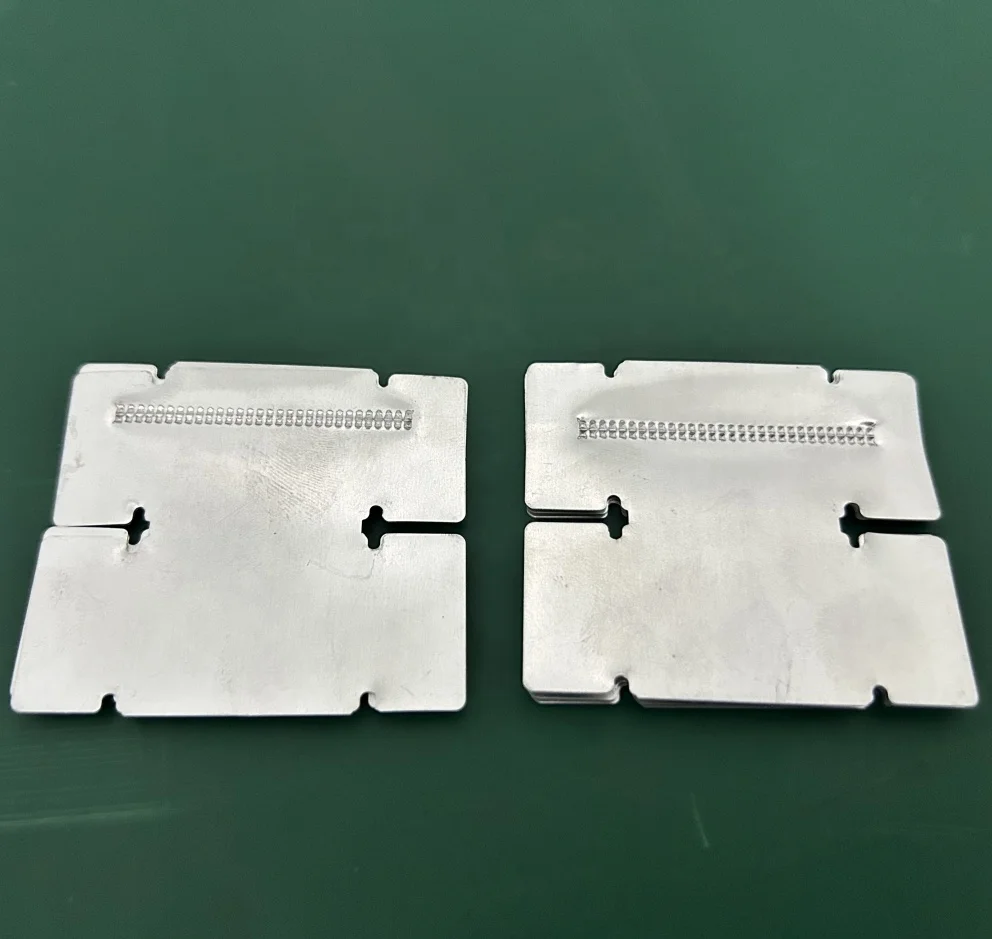

Welding sample (what it would produce? )
Technical Parameters
Product name | Ultrasonic welding machine tab welding |
Product No. | JHN2042-1-006 |
Welding area | 35-70 mm² welding, pressure square welding |
Welding material | tab / cable / Wire harness |
Power | 4200W |
Frequency | 20KHz |
Air cylinder | Built-in cylinder |
Head color | Blue + Silver |
Controller size | 55cm*45cm*20cm |
Welder size | 55cm*25cm*55cm |
Total size | 60cm*65cm*55cm |
Net weight | 62KG |
Gross weight | 92KG（Everything is subject to actual weight!） |
Send Inquiry Right Now |

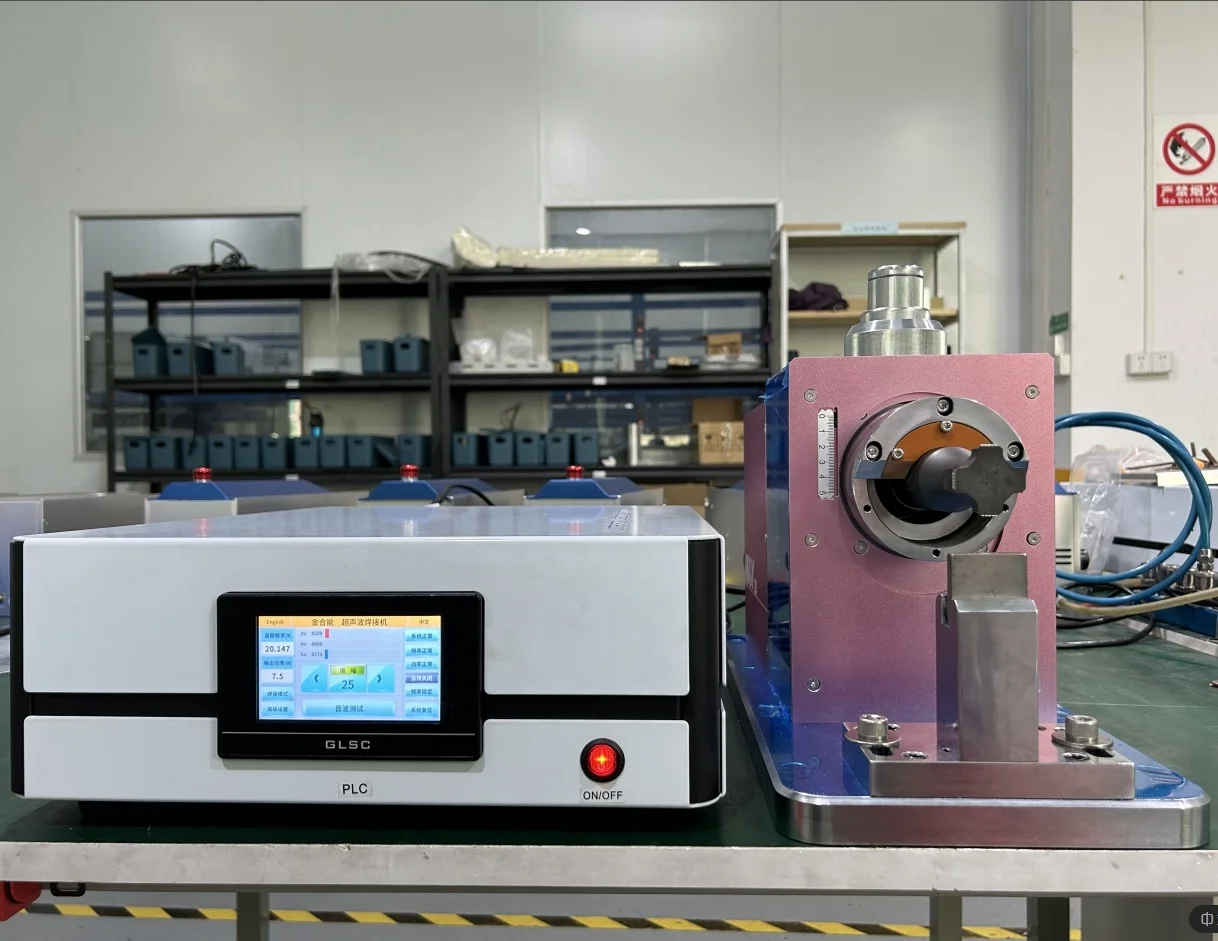

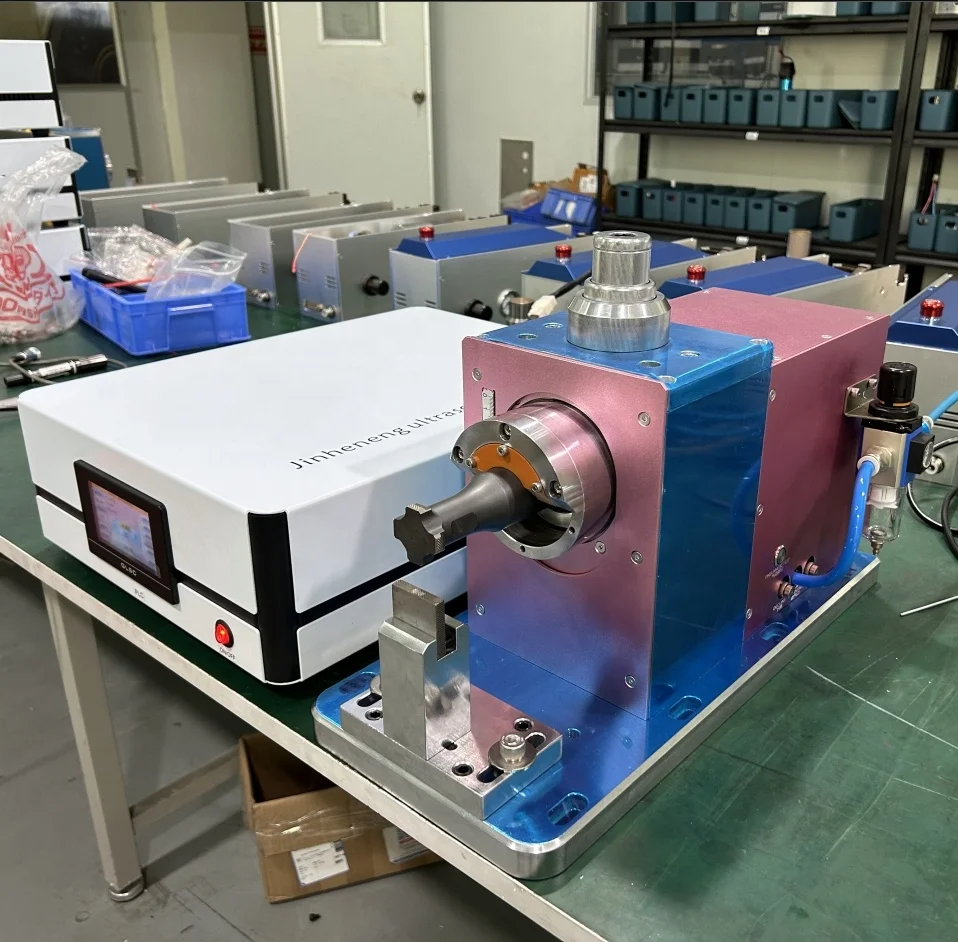

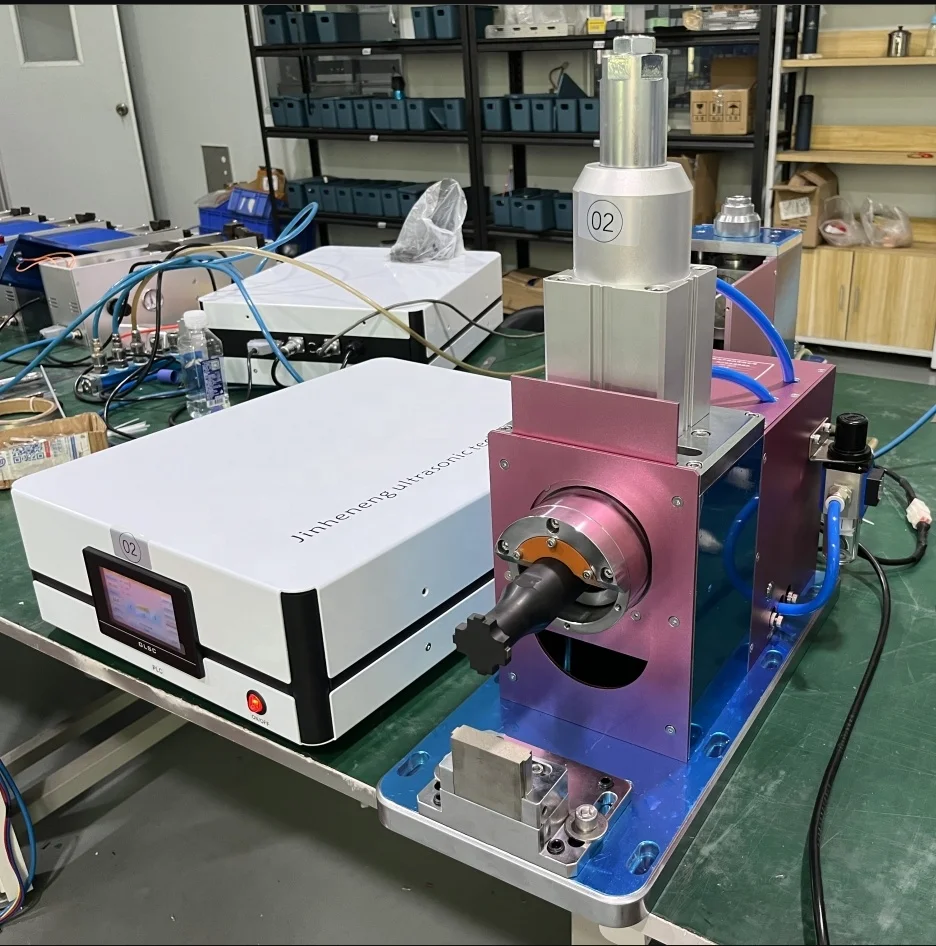

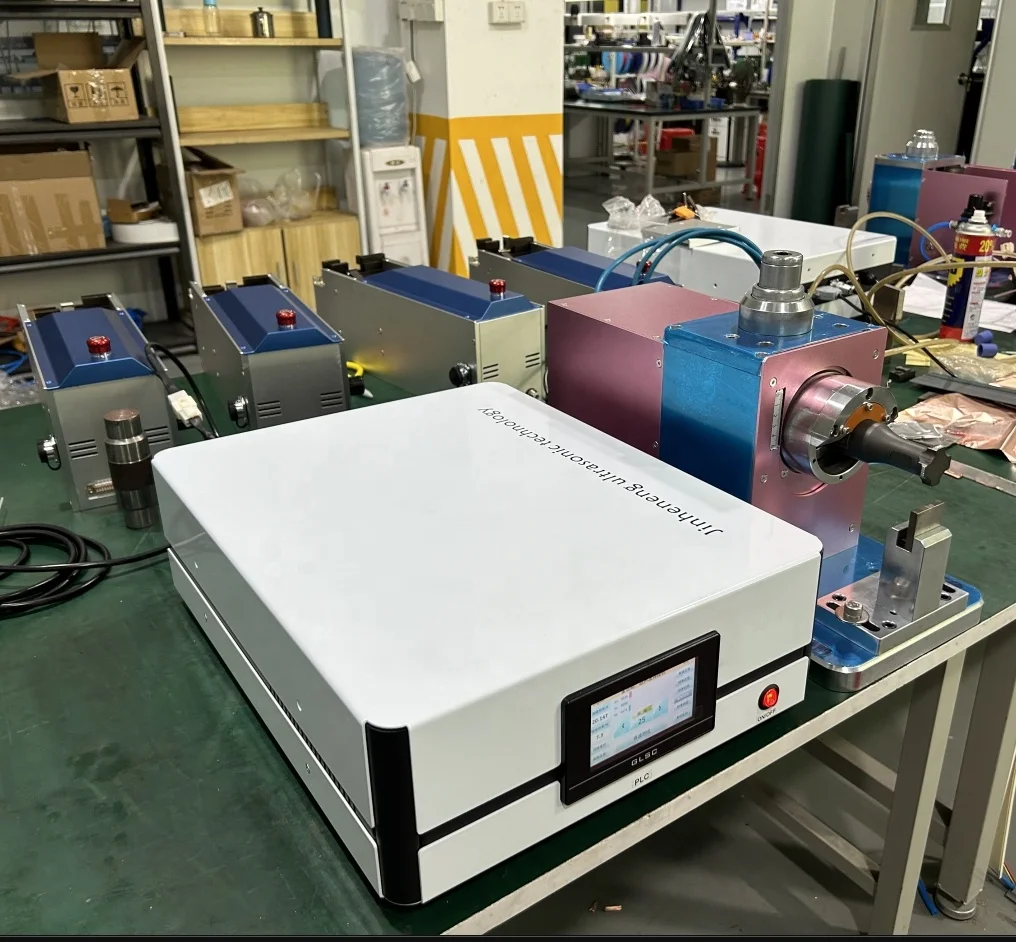

Left perspective
front view
right perspective
Advantages
1. No pollution to environment.Fast welding speed,No consume of other material when welding(Such as lead),No spark.Safe and environment friendly.
2. Because of no heat energy was generated when welding, there is no metal melting and metal
breakage.The welding area is even more stronger after welding and its current conductivity is also very good. Electrical
resistivity is low ,nearly close to zero.
breakage.The welding area is even more stronger after welding and its current conductivity is also very good. Electrical
resistivity is low ,nearly close to zero.
3. Can weld different kinds of metal material. If can not weld different kinds of material together by other welding method,you can use this ultrasonic wire welding machine.
4. Ultrasonic welding machine is most energy-saving and cost-saving machine,and can guarantee the welding quality.
5. Short welding time, no need welding solvent and gas and welding rod.
6. No special requirements of the welding metal surface,even the metal surface with oxidation or electroplate.
Certificates

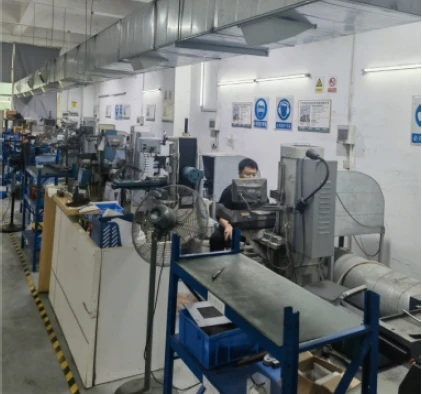

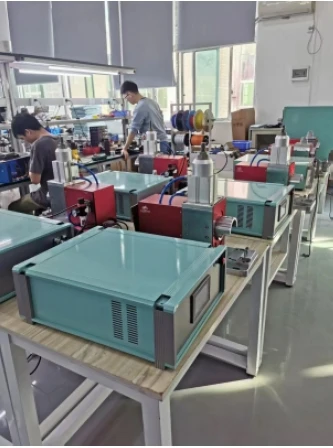

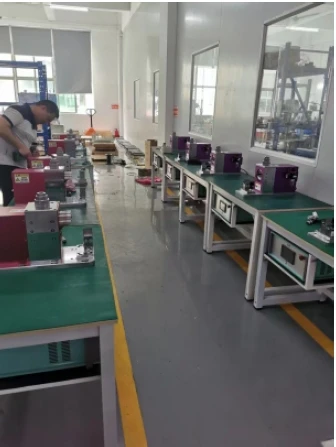

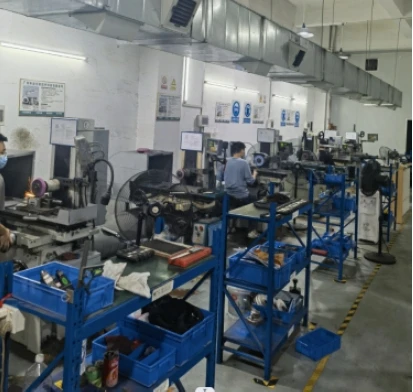

Company Profile
Guangzhou JHN ultrasonic technology co., LTD., with more than 20 years of single chip microcomputer development experience, has developed many bridge,Half bridge welding system, and to receive many domestic ultrasound of the company's efforts to promote, in the application of how thousands of customers, gradually become The senior welding system development leader. Visual lithium battery market trends and modern industry are increasingly demanding in the quality of welding,Domestic large customer gradually will purchase looking Han Meide imported equipment, etc. To the demand of the market, Guangzhou gold or ultrasound Welding technology co., LTD, the leading edge of the high-end technology as a breakthrough point, once again, the ultrasonic welding system carry on the higher one A hierarchy.comprehensively improve the quality of welding of power battery, the power of China's new energy
industry development.
industry development.
Packing & Delivery

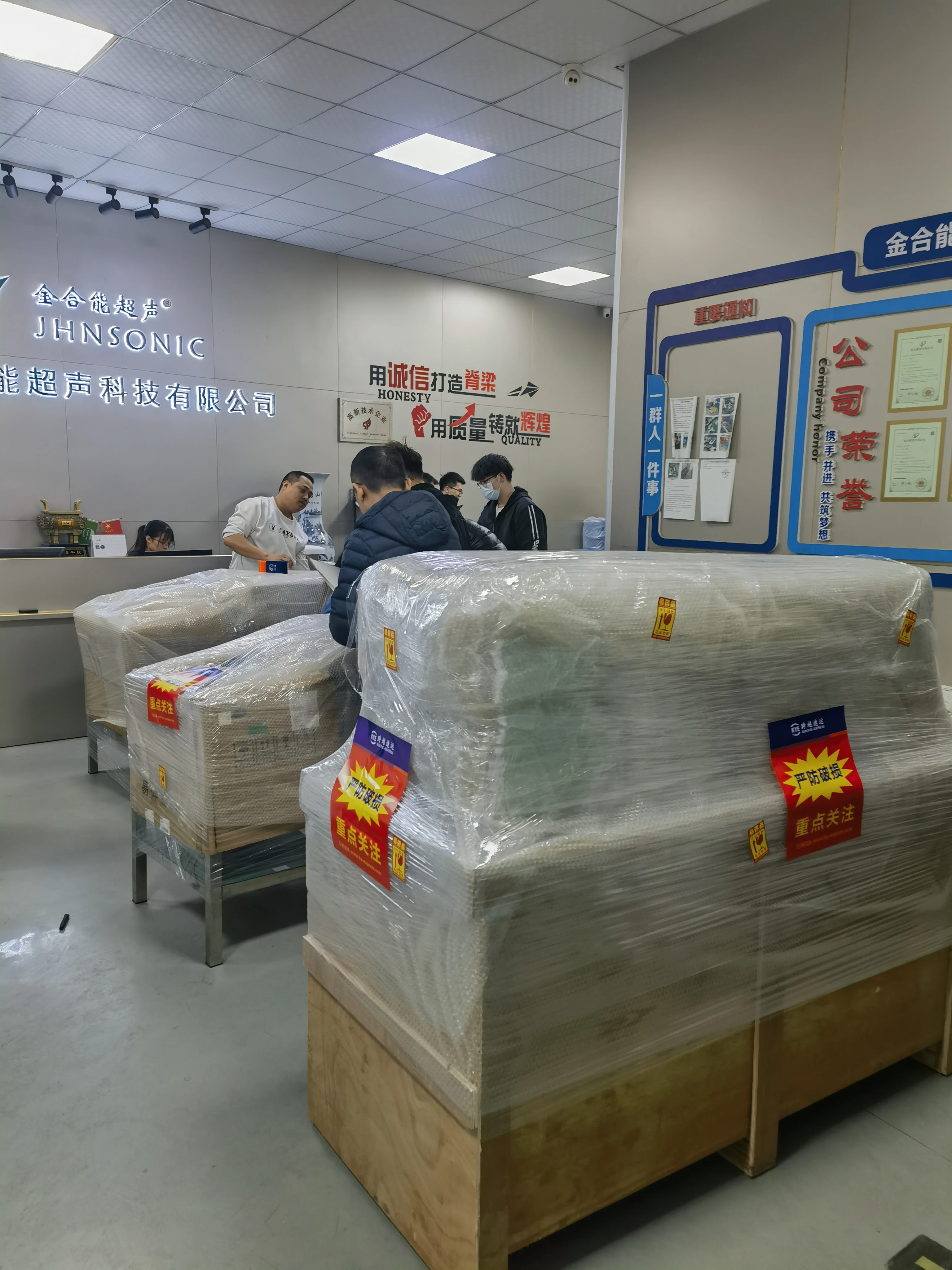

1. Standard exported package : Internal anti-collision protection, external export wooden box packaging.
2. Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
Payment methods
Sales Network
Customer Logos
FAQ
1.How do we ensure quality?
2.What can you purchase from us?
Always pre produce samples before mass production;
Always conduct a final inspection before shipment;
2.What can you purchase from us?
Ultrasonic metal welding machine, ultrasonic wire harness welding machine, ultrasonic generator, ultrasonic accessories
3.Why should you purchase from us instead of from other suppliers?
1. Possess high-tech.
2. Integrity marketing
3. Provide the best solution.
4. Smooth cooperation.
4.What services can we provide?
Accepted delivery terms: FOB, EXW;
Accepted payment methods: USD, EUR, HKD, RMB;
Accepted payment methods: USD, EUR, HKD, RMB;
5.What are the accepted payment methods?
Telegraphic transfer, letter of credit, cash;
6. What're the Language?
English, Chinese
