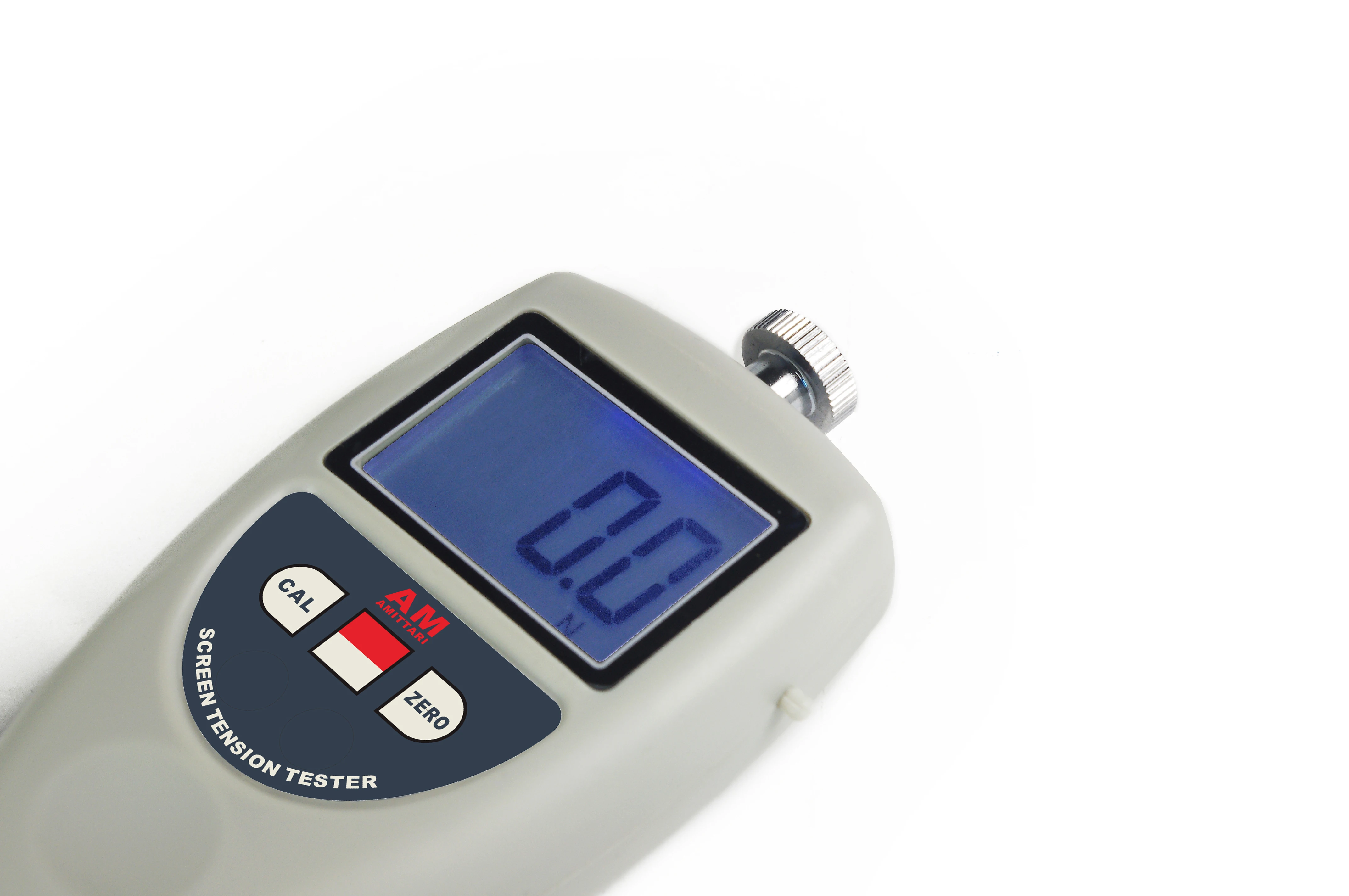

DigitalStencil Tension Meter for Measuring Screen Printing Stencils
- Category: Force Measuring Instruments >>>
- Supplier: Shenzhen,Tony,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Tension Tester applicable to general wire mesh tension and steel mesh tension measurement. Suitable for
screen printing and screen stencil measurement, high accuracy. The ideal and necessary tool for production of precise
screen and steel mesh.
screen printing and screen stencil measurement, high accuracy. The ideal and necessary tool for production of precise
screen and steel mesh.
Product Features
* LCD digital display, eliminating reading error.
* Unit conversions between N/cm and kg/cm.
* Use USB data output with connection PC.
* Provide Bluetooth data outputchoice.
* Unit conversions between N/cm and kg/cm.
* Use USB data output with connection PC.
* Provide Bluetooth data outputchoice.
Standard Accessories | Main Unit | |||
Calibration Block | ||||

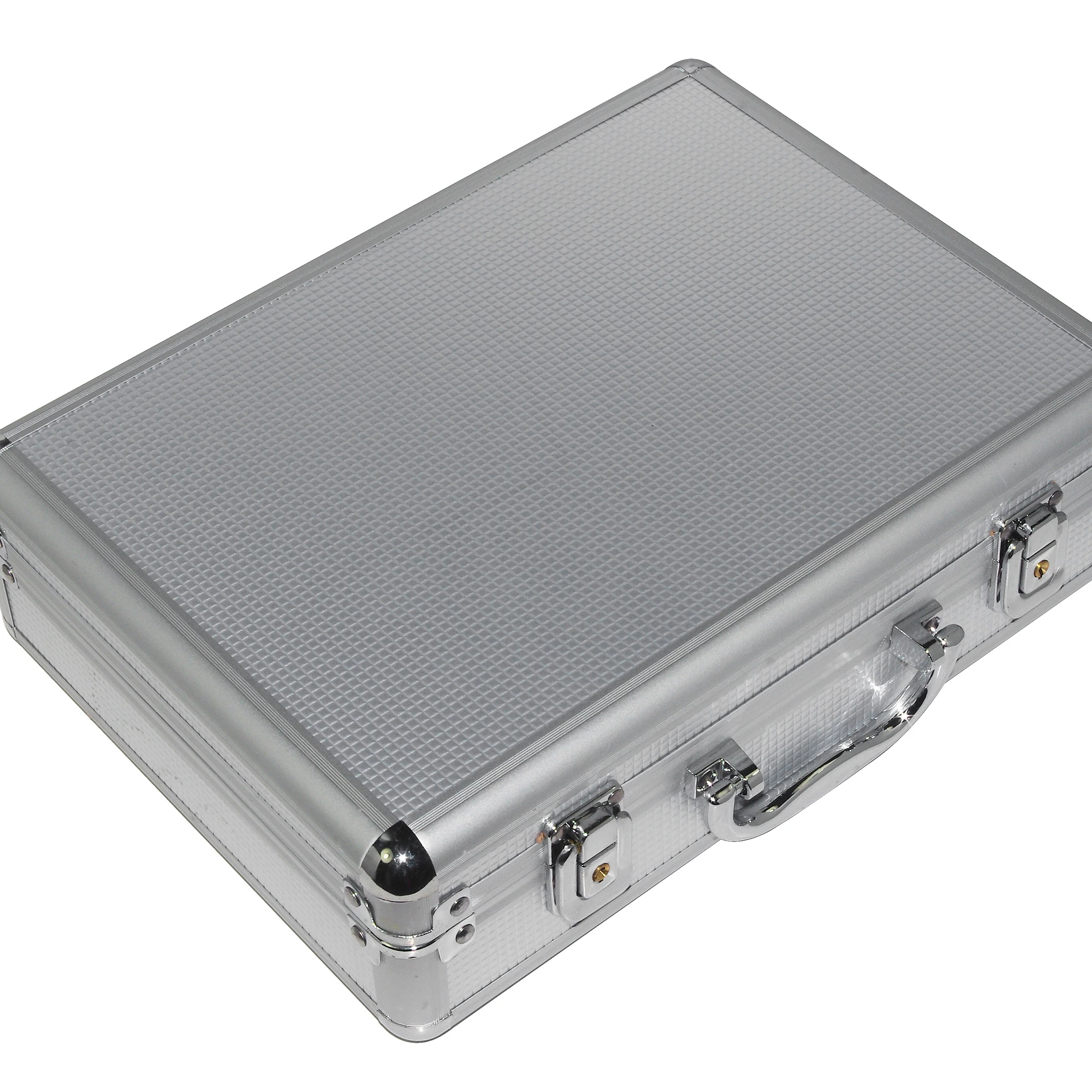

Carrying Case | ||||
Operation Manual | ||||
Optional Accessories | USB/RS232C data output | |||
Bluetooth data output |
Wire Mesh | Printing Task | Tension (N/cm） | ||
Ultra High Tension Wire Mesh | Circuit Board and Measuring Scale | 16~20 | ||
High Strength Wire Mesh | Multicolor and Four-Color Printing (Mechanical Printing) | 16~20 | ||
High Precision Ultra Fine Wire Mesh | High Precision Multi Layer Circuit Printing | 25~30 | ||
High Precision Polyester Net (Standard Monofilament) | Multicolor and Four-Color Printing (Manual Printing) | 8~12 | ||
Ordinary Polyester Net (Standard Monofilament) | Flat Object | 8~12 | ||
Nylon Mesh | Curve Surface or Rough Object | |||
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Specification
item | value |
Warranty | 1 year |
Place of Origin | China |
Guangdong | |
Brand Name | Tony |
Model Number | AS-120N |
Measurement Range | 7~40 N/cm |
Display Range | 0~50 N/cm |
Resolution | 0.1 |
Accuracy | ±5% |
Humidity | 10 ~ 90 %RH |
Temperature: | 0 ~ 40 ℃ |
Power Supply | 4x1.5v AAA(UM-4) battery |
Size | 175x95x40mm |
Weight | 490 g (Not included Batteries) |
Packing & Delivery
1pcs in one box
Company Profile
Shenzhen Tony Electronics Co.,Ltd is one of the leading professional supplier in Shenzhen of China,found in 2002,with 17 years history ,exporting to worldwide markets with higher quality and lower price and prompt lead time.
With the development and devote us into special materials field as an expert, our product lines are now including:
1)All kinds of moisture meters;
2)Portable measuring apparatus and meter equipment;
3)High voltage relay and contactor;
4)High temperature ,voltage resistance wires ;
5)Different materials of insulation tubes/sleeves.
"Quality First,Customer Uppermost" is our developing guideline.To provide customers with one-stop product supply programs and to constantly improve our products and service systems are the company's missions.Hope you can choose us !
With the development and devote us into special materials field as an expert, our product lines are now including:
1)All kinds of moisture meters;
2)Portable measuring apparatus and meter equipment;
3)High voltage relay and contactor;
4)High temperature ,voltage resistance wires ;
5)Different materials of insulation tubes/sleeves.
"Quality First,Customer Uppermost" is our developing guideline.To provide customers with one-stop product supply programs and to constantly improve our products and service systems are the company's missions.Hope you can choose us !
FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to Domestic Market(30.00%),North America(15.00%),South Asia(10.00%),Eastern Asia(10.00%),South America(5.00%),Western Europe(5.00%),Central America(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southeast Asia(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiberglass Sleeving, Moisture Meter, Digital Torque Meter, Heat Shrink Tube
4. why should you buy from us not from other suppliers?
Our company has 17 years of experience in measurement(torque,moisture,thickness), high temperature, high voltage, and insulation, and other fields, located at one of the biggest electronic markets in Asia,with convenient traffic to allover the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2005,sell to Domestic Market(30.00%),North America(15.00%),South Asia(10.00%),Eastern Asia(10.00%),South America(5.00%),Western Europe(5.00%),Central America(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southeast Asia(5.00%),Southern Europe(2.00%),Northern Europe(2.00%),Africa(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiberglass Sleeving, Moisture Meter, Digital Torque Meter, Heat Shrink Tube
4. why should you buy from us not from other suppliers?
Our company has 17 years of experience in measurement(torque,moisture,thickness), high temperature, high voltage, and insulation, and other fields, located at one of the biggest electronic markets in Asia,with convenient traffic to allover the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
