Liquid Nitrogen Tunnel IQF Freezer For Sea foods Frozen Machine 800 kg/h
- Category: Freezing Equipment >>>
- Supplier: Cryogenic (Jiangsu) Refrigeration Equipment Co. Ltd.
Share on (1600674763483):
Product Overview
Description
Product Description
Specification
Item | Value |
Applicable Industries | Energy & Mining, Food & Beverage Shops, Other |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC, Motor |
Condition | New |
Type | Tunnel Freezer |
Place of Origin | Chinia |
Brand Name | Cryogenic |
Voltage | 380v 50HZ |
Power | 5 KW |
Dimension(L*W*H) | 8000*1700*1800 |
Weight | 2000 KG |
Warranty | 1 Year |
Cooling Capacity | 800 KG/H |
Key Selling Points | Easy to Operate |
Product name | IQF Tunnel Quick Freezer |
Freezer Type | Liquid Nitrogen Evaporation Freezing |
Material | Stainless Steel 304 |
Application | Seafood |
Freezing time | 5 Minutes~30 Minutes |
Warranty | 12 Months |
Certification | CE/ISO9001/ISO14001/OHSAS18001 |
Working temperature | Room Temperature~-150 |
Model Name | SD-X-800 |
Company Profile
Cryogenic（Jiangsu）Refrigeration Equipment Co.,Ltd is a high-tech enterprise integrated by R&D, manufacturing, distribution and relative services as well.We specialized in the research,development,manufacturing and sales of liquid nitrogen freezing equipment.
This series of products adopt the latest liquid nitrogen dispersion technology, heating thawing technology, temperature control technology,using program-controlled cooling ‘heating, constant temperature,all processes are uniform and stable. Using -196℃ liquid nitrogen as refrigerant to meet the requirement cooling and environmental protection.
Our products range Include horizontal type, cabinet, tunnel, cylindrical and other specifications, and can be customized according to users’ requirements, can be used in mechanical engineering,genetic engineering,medicine,food processing,medical research, aerospace, animal husbandry and other fields, this series of products have been wildly used in many industries at home and abroad.
222

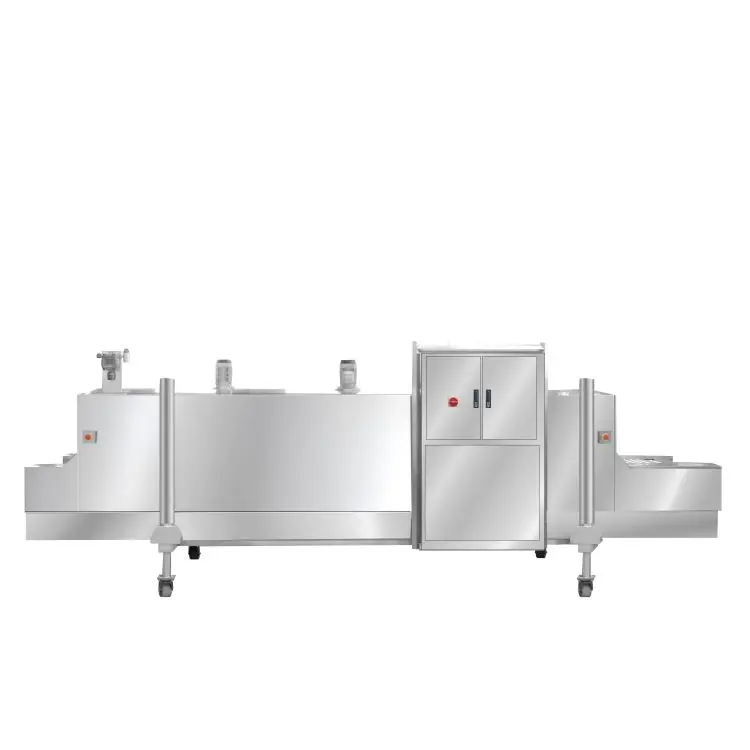

SD-X-800 tunnel freezer
SD-X-800 liquid nitrogen freezer is our advanced high profile freezer. The main material is adopted by food grade SS 304.This
freezer has optimum performance, featuring high speed freezing capacity and easy operation.Freezing time are set between 5-30 minutes based on different freezing products.
Overall dimension:8000*1700*1800 mm, the power consumption is 5 kw
Mesh belt width is 1100 mm
freezer has optimum performance, featuring high speed freezing capacity and easy operation.Freezing time are set between 5-30 minutes based on different freezing products.
Overall dimension:8000*1700*1800 mm, the power consumption is 5 kw
Mesh belt width is 1100 mm
Power supply:380 V 50 HZ,3 Phase,220 V 60 HZ 3 phase
Advanced design save labor and achieve maximum working efficiency
Freezing capacity estimated up to 800 kg/h
Advanced design save labor and achieve maximum working efficiency
Freezing capacity estimated up to 800 kg/h
Item | Specification | Overall dimension | Belt width(mm) | Power |
Tunnel Freezer | SD-X-300 | 5000*1500*1800 | 900 | 2kw |
Tunnel Freezer | SD-X-500 | 6000*1700*1800 | 1100 | 3kw |
Tunnel Freezer | SD-X-800 | 8000*1700*1800 | 1100 | 5kw |
Tunnel Freezer | SD-X-1000 | 9600*1800*1800 | 1200 | 7kw |
Tunnel Freezer | SD-X-1500 | 11500*2100*1800 | 1500 | 8kw |
Tunnel Freezer | SD-X-2000 | 15000*2100*2000 | 1500 | 12kw |
Tunnel Freezer | SD-X-3000 | 18000*2350*2000 | 1800 | 13kw |
Tunnel Freezer | SD-X-3500 | 18000*2580*2000 | 2000 | 13kw |
Tunnel Freezer | SD-X-4000 | 18000*2880*2000 | 2300 | 18kw |
Liquid nitrogen freezer application

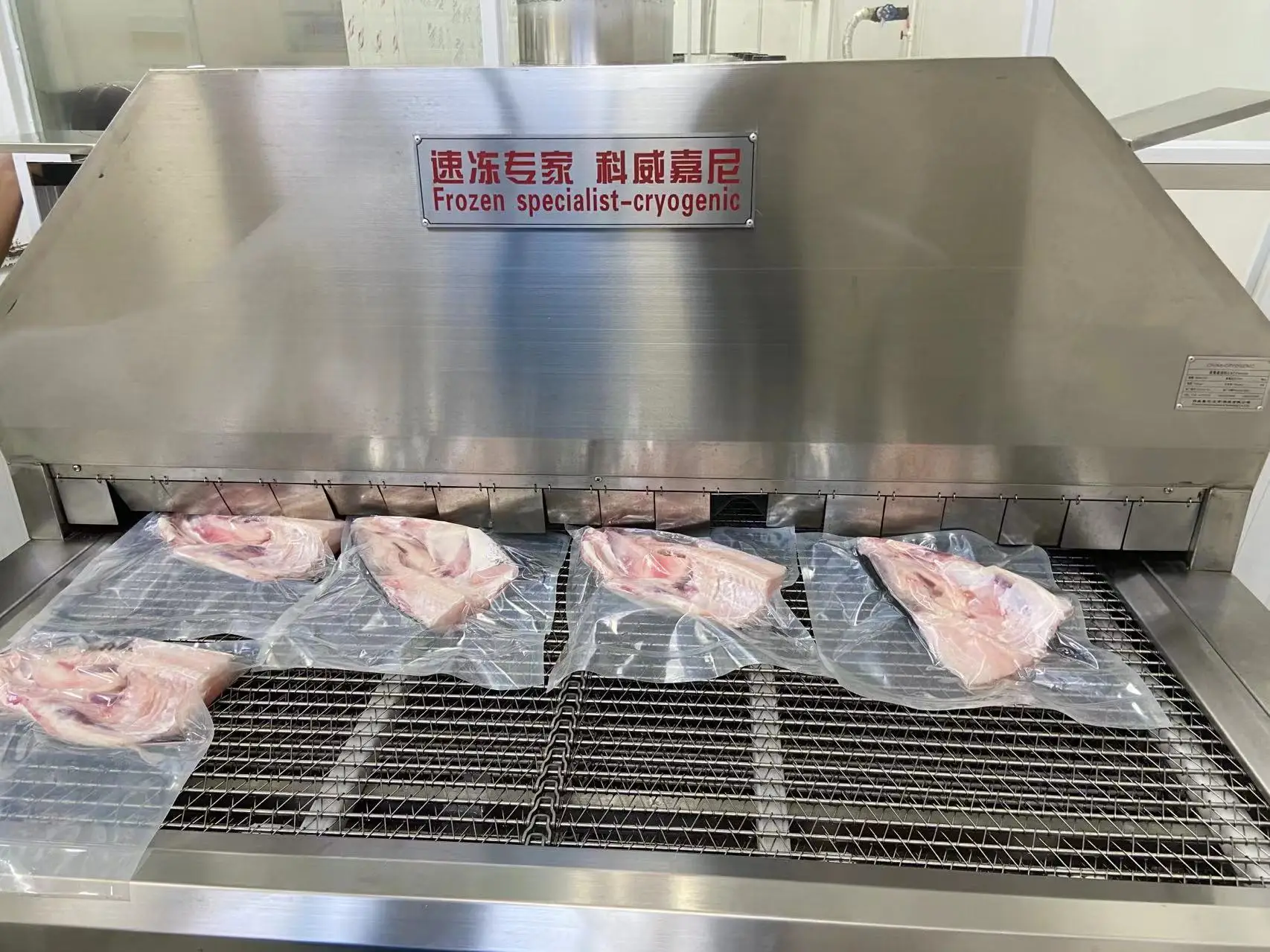

SS 304 Liquid nitrogen freezer is widely used in sea foods frozen process, such as sea fish, lobster, crab, shrimp quick freezing etc.Extreme low temperature can be up to -195 ℃.Freezing time between 5-30 minutes.
Cryogenic -frozen specialist
Details Images
High quality touch screen display
Easy operation free of mind

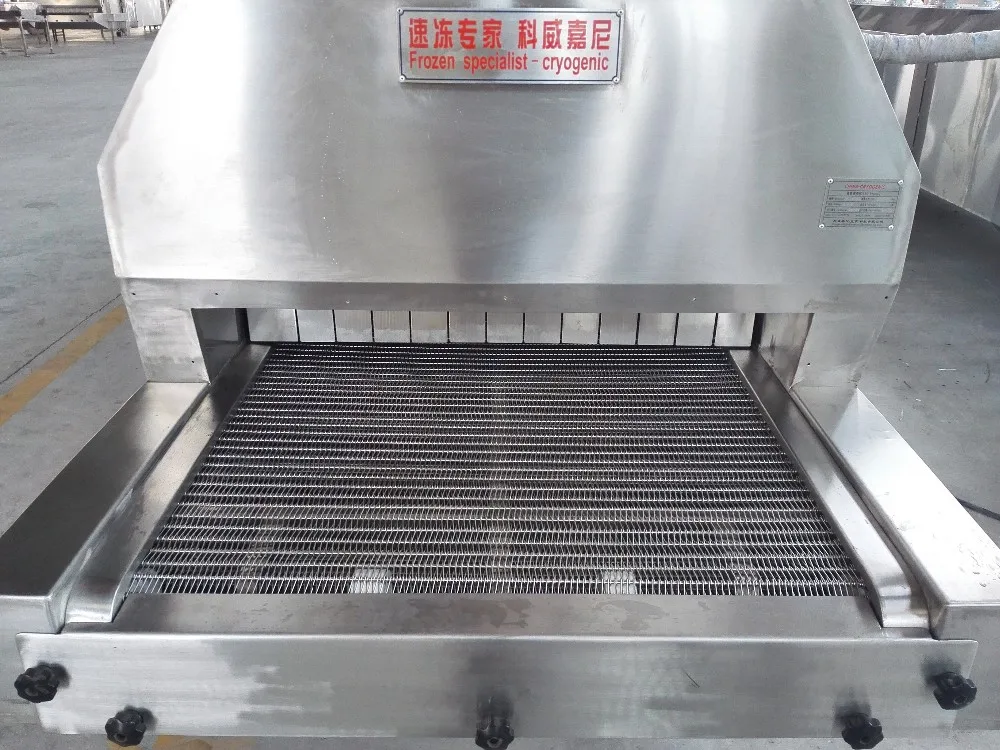

SS 304 mesh belt conveyor
Rigid and hygiene
Oxygen concentration indicator
Safety assured
Certifications
CE certificate
CE Certificate
QMS ISO9001
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2015,we are top liquid nitrogen freezer supplier widely used in sea foods fruit quick freezing process. Our products have been exported to more than 20 countries.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cabinet Quick Freezer, Tunnel Quick Freezer, Metal Cryogenic cabinet
4. why should you buy from us not from other suppliers?
1.Our company has a number of patented technology and certificates. 2.Our company can customize products 3.Professionals are responsible for following up projects.4.Our company has a production base of over 20,000 square meters.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency :USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
We are based in Jiangsu, China, start from 2015,we are top liquid nitrogen freezer supplier widely used in sea foods fruit quick freezing process. Our products have been exported to more than 20 countries.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cabinet Quick Freezer, Tunnel Quick Freezer, Metal Cryogenic cabinet
4. why should you buy from us not from other suppliers?
1.Our company has a number of patented technology and certificates. 2.Our company can customize products 3.Professionals are responsible for following up projects.4.Our company has a production base of over 20,000 square meters.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency :USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
