Product Overview
Description
Products Description

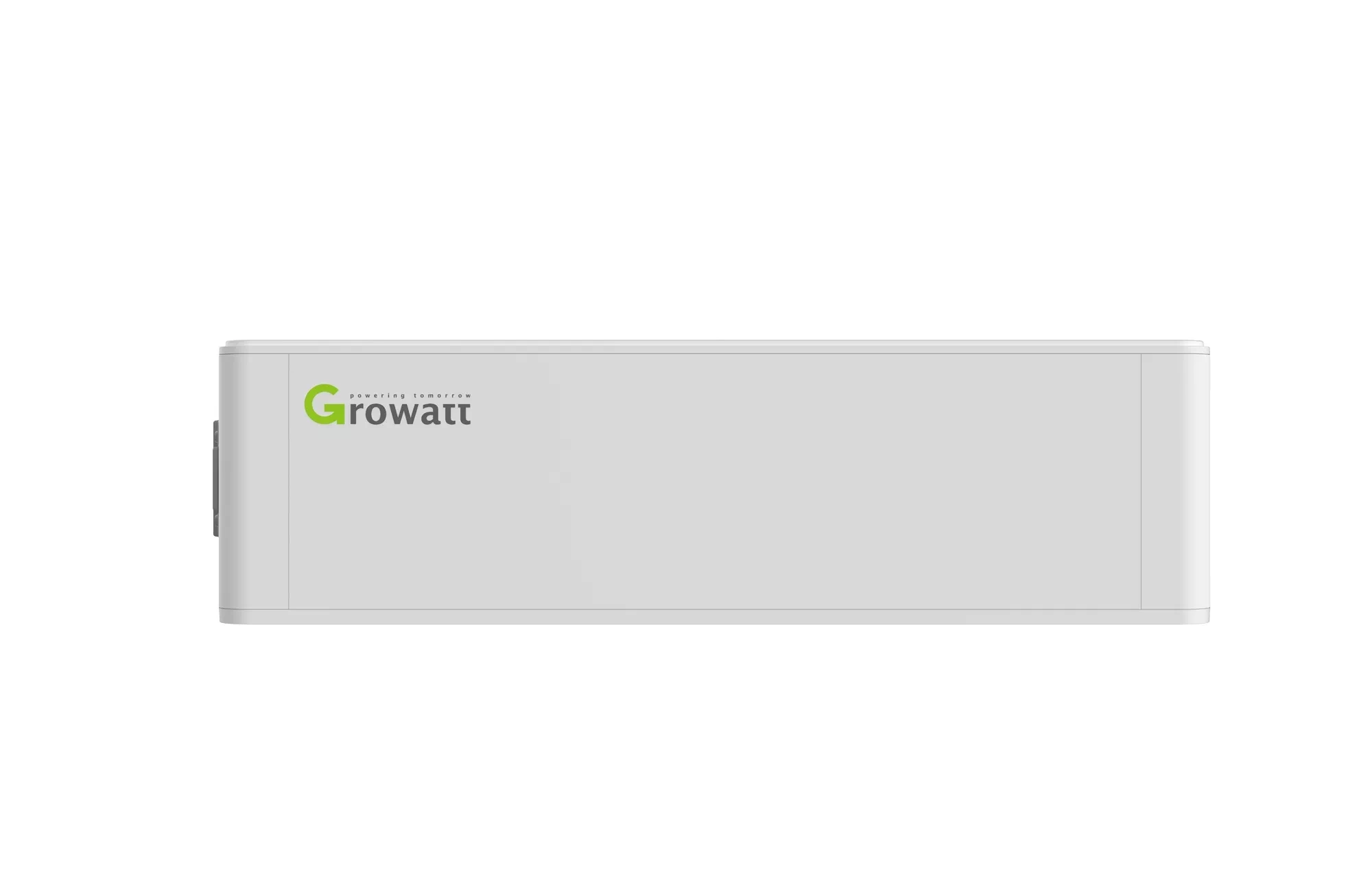

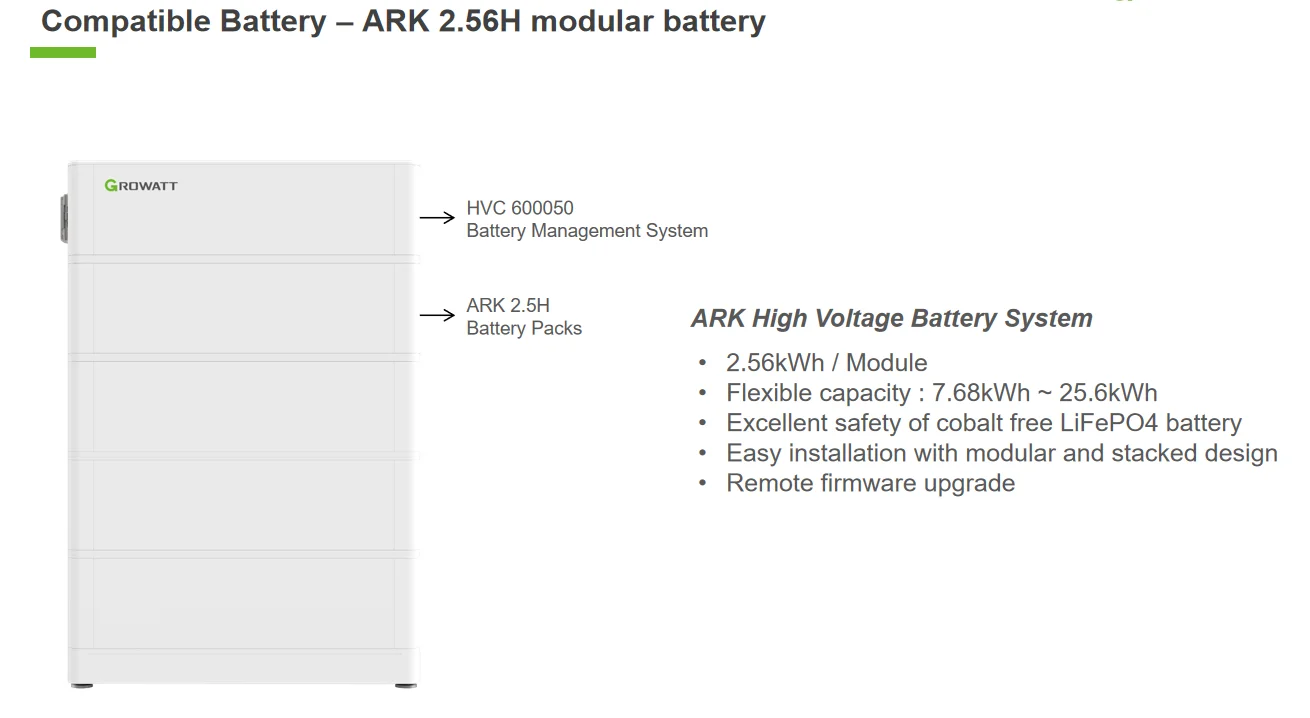

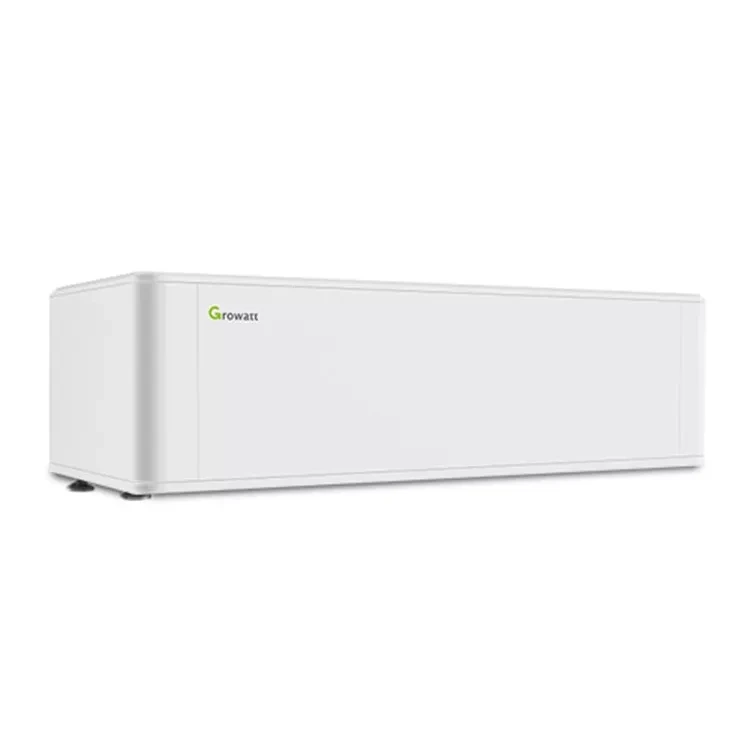

ARK 2.5H-A1 (battery pack)

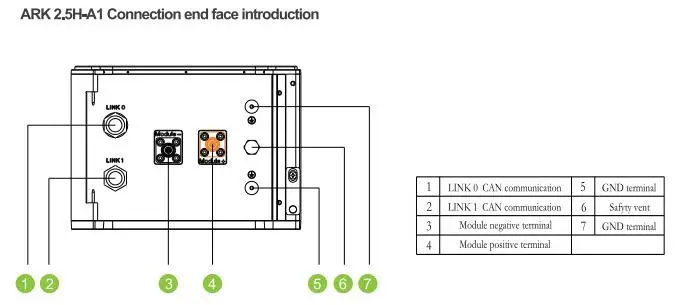

ARK 2.5H-A1 consists of battery module (including cell and mechanical parts), Battery management unit (BMU) as well as power and communication terminals. Product appearance is shown as above.

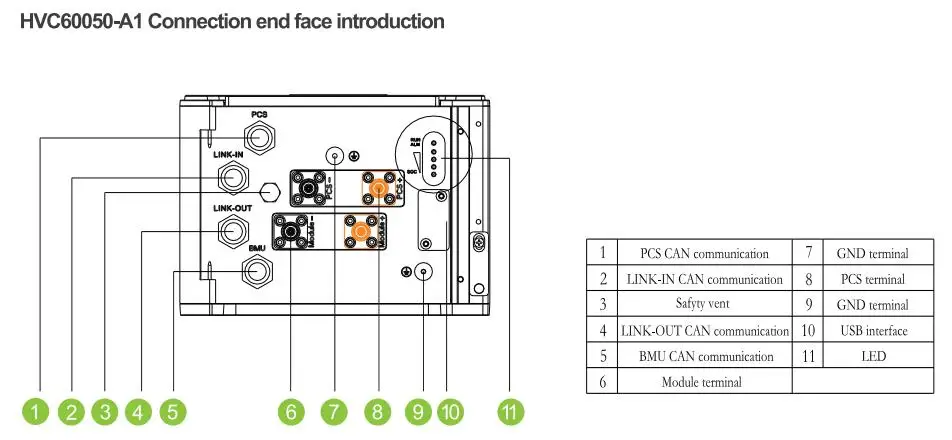

HVC 60050-A1 (high voltage controller)
HVC 60050-A1 (high voltage controller) The high voltage controller is composed of battery control unit, DC breaker, power supply and communication terminals. The appearance of the product is shown as above.
Specification
Datasheet | ARK 7.68H | ARK 10.24H | ARK 15.36H | ARK 20.48H | ARK 25.6H | ||||
Battery Module | ARK 2.5H-A1(2.56kWh, 51.2V, 28kg) | ||||||||
Number of Modules | 3 | 4 | 6 | 8 | 10 | ||||
Energy Capacity | 7.68kWh | 10.24kWh | 15.36kWh | 20.48kWh | 25.6kWh | ||||
Usable Capacity | 6.9kWh | 9.21kWh | 13.81kWh | 18.43kWh | 23.04kWh | ||||
Nominal Voltage | 153.6V | 204.8V | 307.2V | 409.6V | 512V | ||||
Operating Voltage Range | 141.6-170.4V | 188.8-227.2V | 283.2-340.8V | 377.6-454.4V | 472-568V | ||||

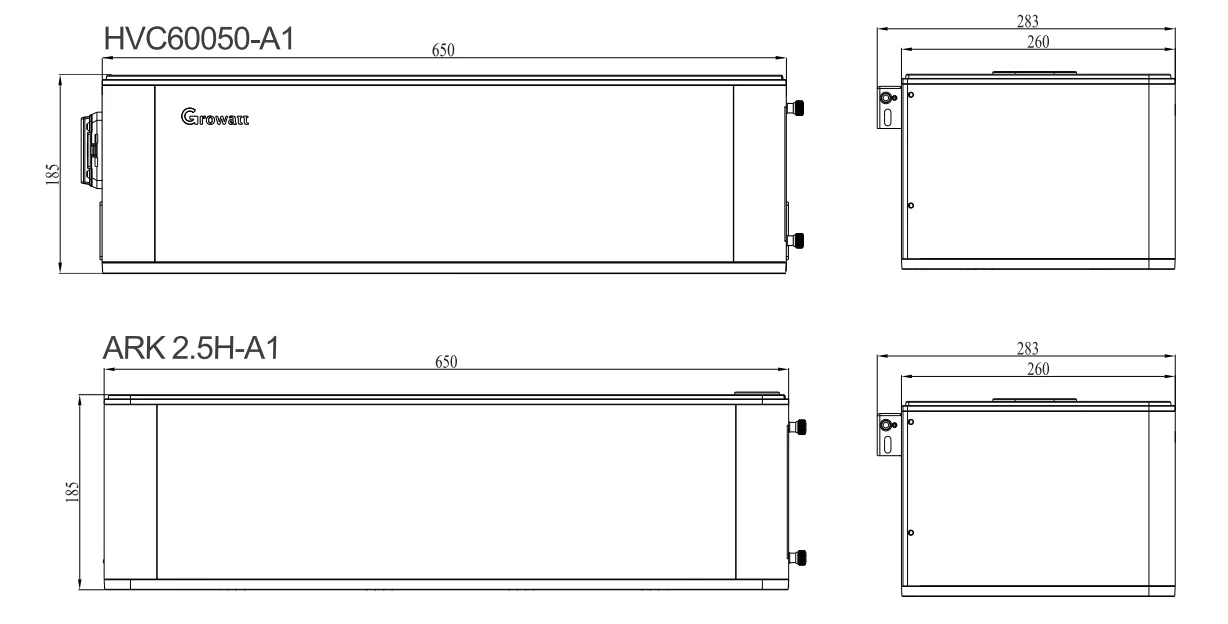

Dimension(W/D/H)/mm | 650/260/725 | 650/260/905 | 650/260/1265 | 650/260/1625 | 650/260/1985 | ||||
Weight | 91kg | 118kg | 172kg | 226kg | 280kg | ||||
General | ||
Battery Type | Cobalt-free Lithium Iron Phosphate(LFP) | |
Standard Charge/Discharge Current | 25A/0.5C | |
IP Protection | IP65 | |
Installation | Wall-mounted or Floor installation | |
Operation Temperature | -10-50°C | |
Warranty | 10 Years | |
BMS Controller | HVC 60050-A1 |
Weight | 8kg |
Communication Port | CAN |
Dimension(W/D/H)/mm | 650/260/185mm |
BMS Monitoring Parameters | SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement |

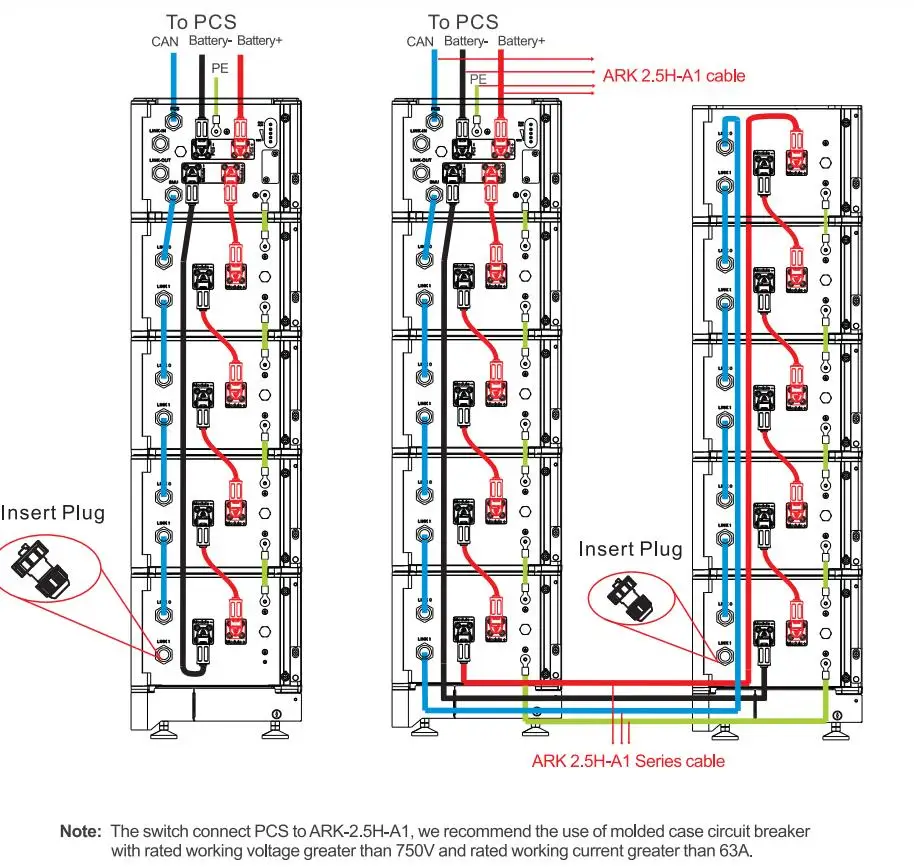

System Diagram

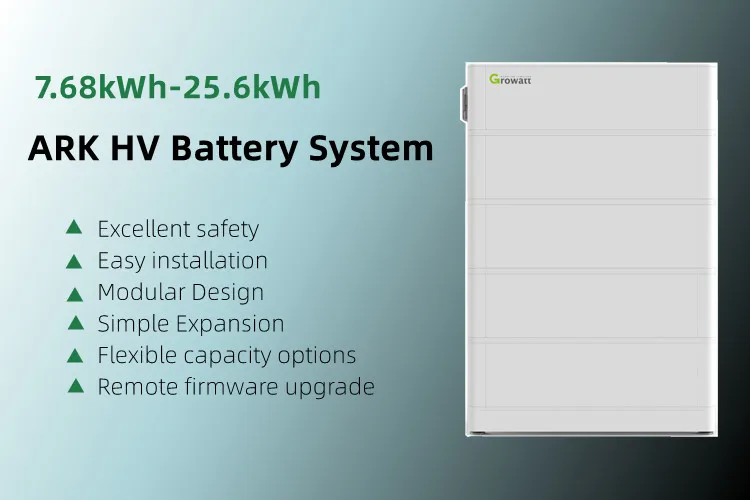

Product Features
EASY INSTALLATION
＞Easy installation with modular and stacked design
＞Flexible capacity options, 7.68kWh to 25.6kWh
＞Floor installation requires extra base

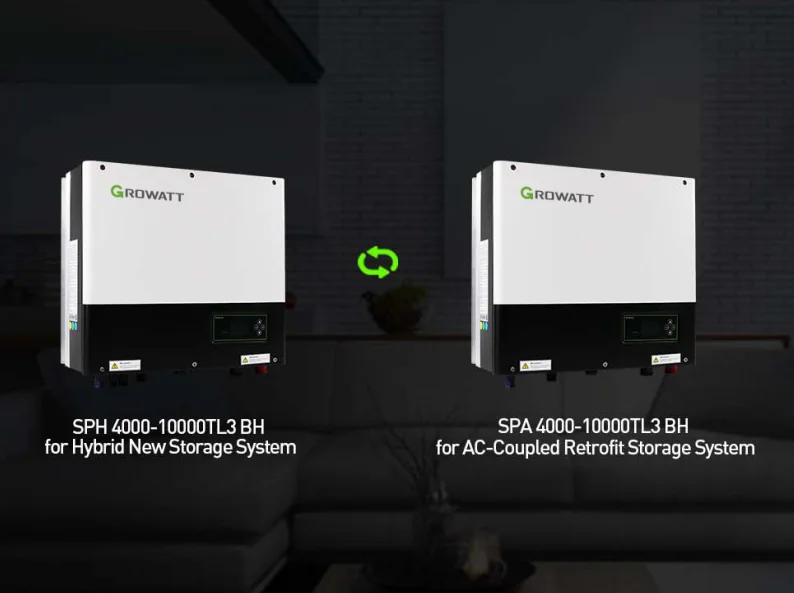

COMPATIBLE WITH DIVERSE STORAGE INVERTERS
> For Hybrid New Storage System
> For AC-coupled Retrofit Storage System
> Minimum 3pcs of ARK-HV battery modules required for each storage inverter
SAFE AND RELIABLE
> Excellent safety of colbat free LiFePO4 battery

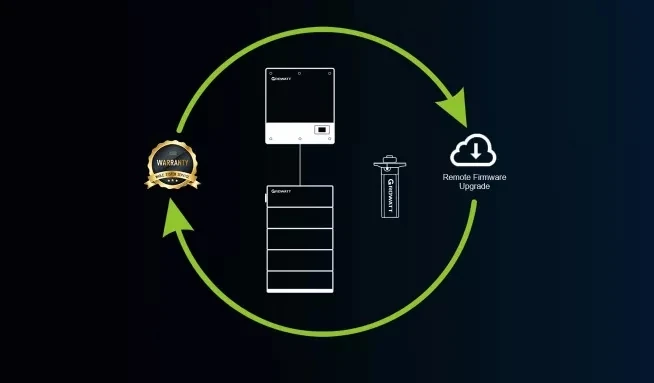

WHOLE SSYSTEM SERVICE
> Include BMS controller
> Battery discharge: -10-50°C, battery charge: 0-50°C

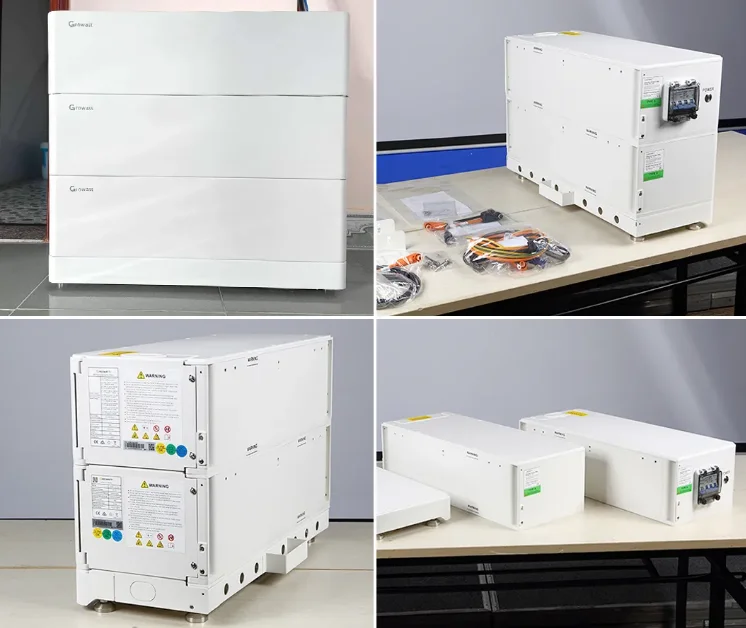

Packing

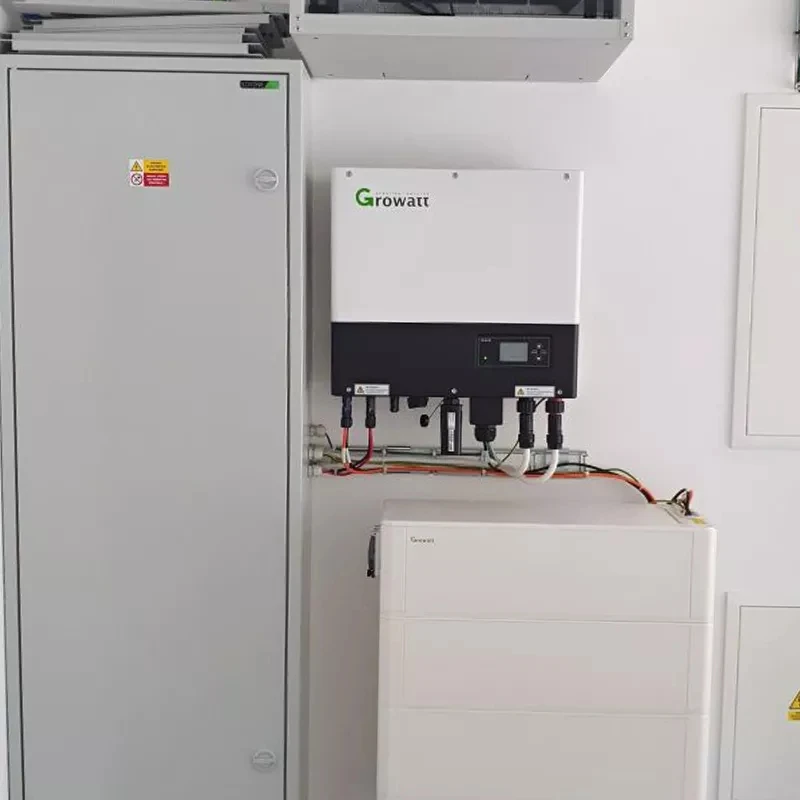

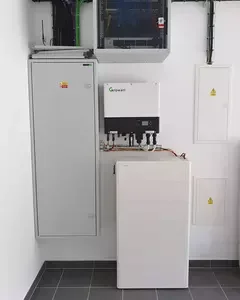

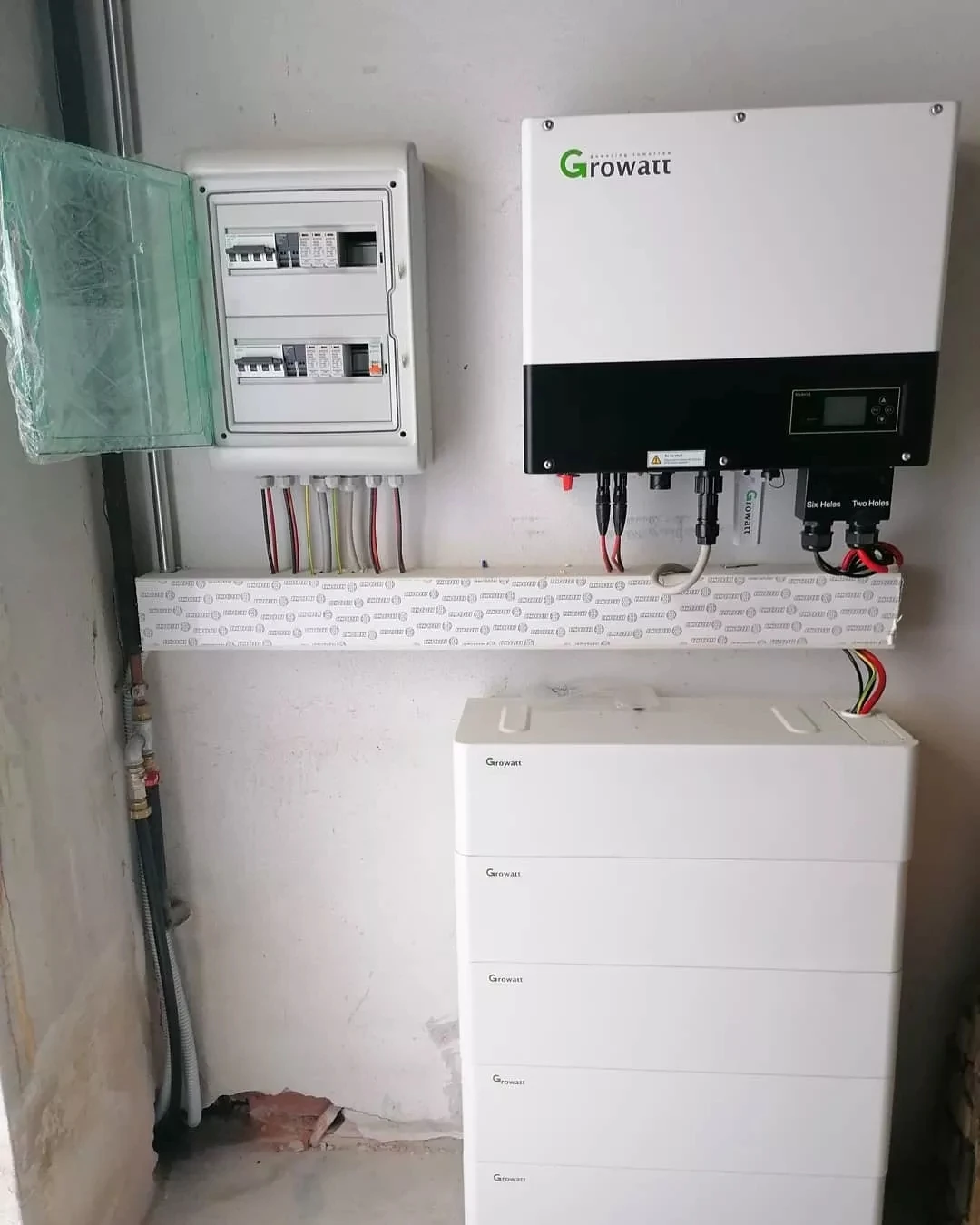

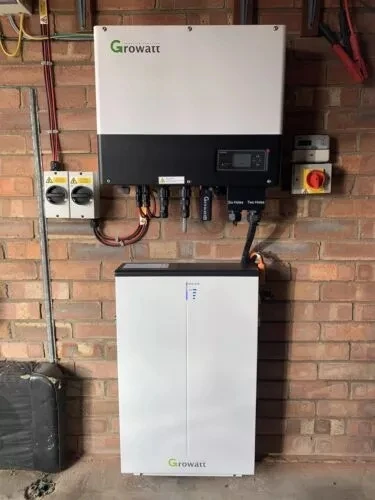

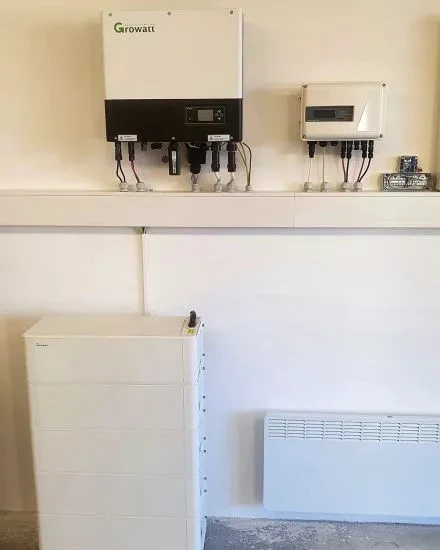

Projet Case
Delivery & Payment Terms
Payment Terms | T/T | EXW | 30% in advance for deposit payment, the balance payments will be paid before shipment. | ||||
FOB | |||||||
CFR/C&F | 30% in advance for deposit payment, the balance will be paid against copy of B/L | ||||||
CIF | |||||||
L/C | For the amount of one shipment above 50,000 usd, L/C at sight is acceptable. | ||||||
West Union | For the amount less than 5000 usd | ||||||
Paypal | |||||||
Delivery Time | 7~25 days after receiving the payment or the deposit payment | ||||||
