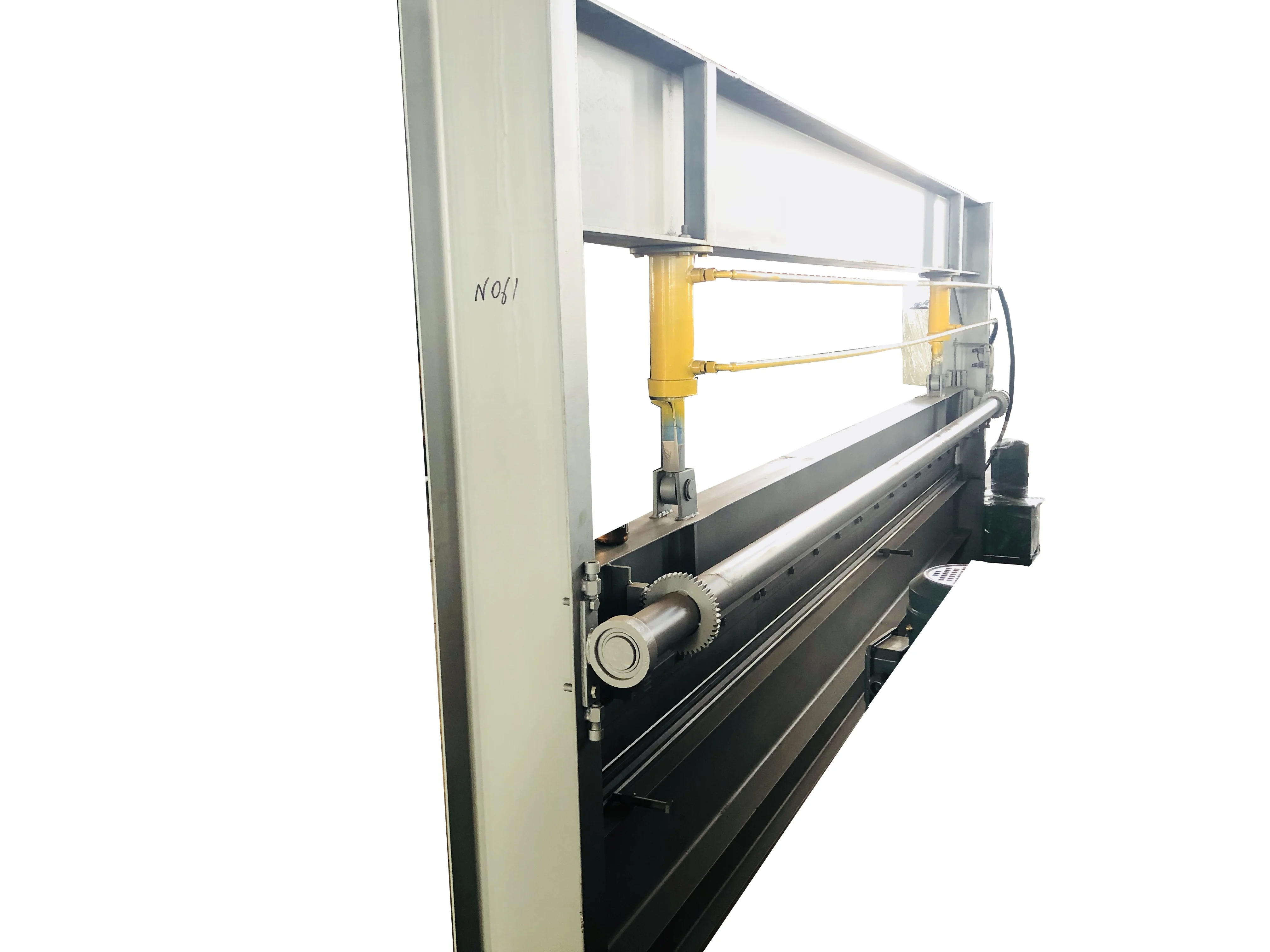

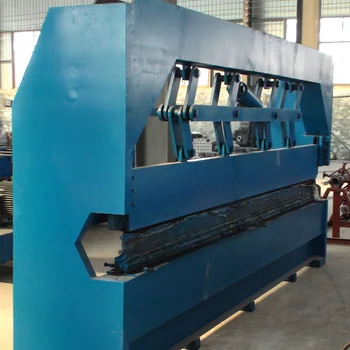

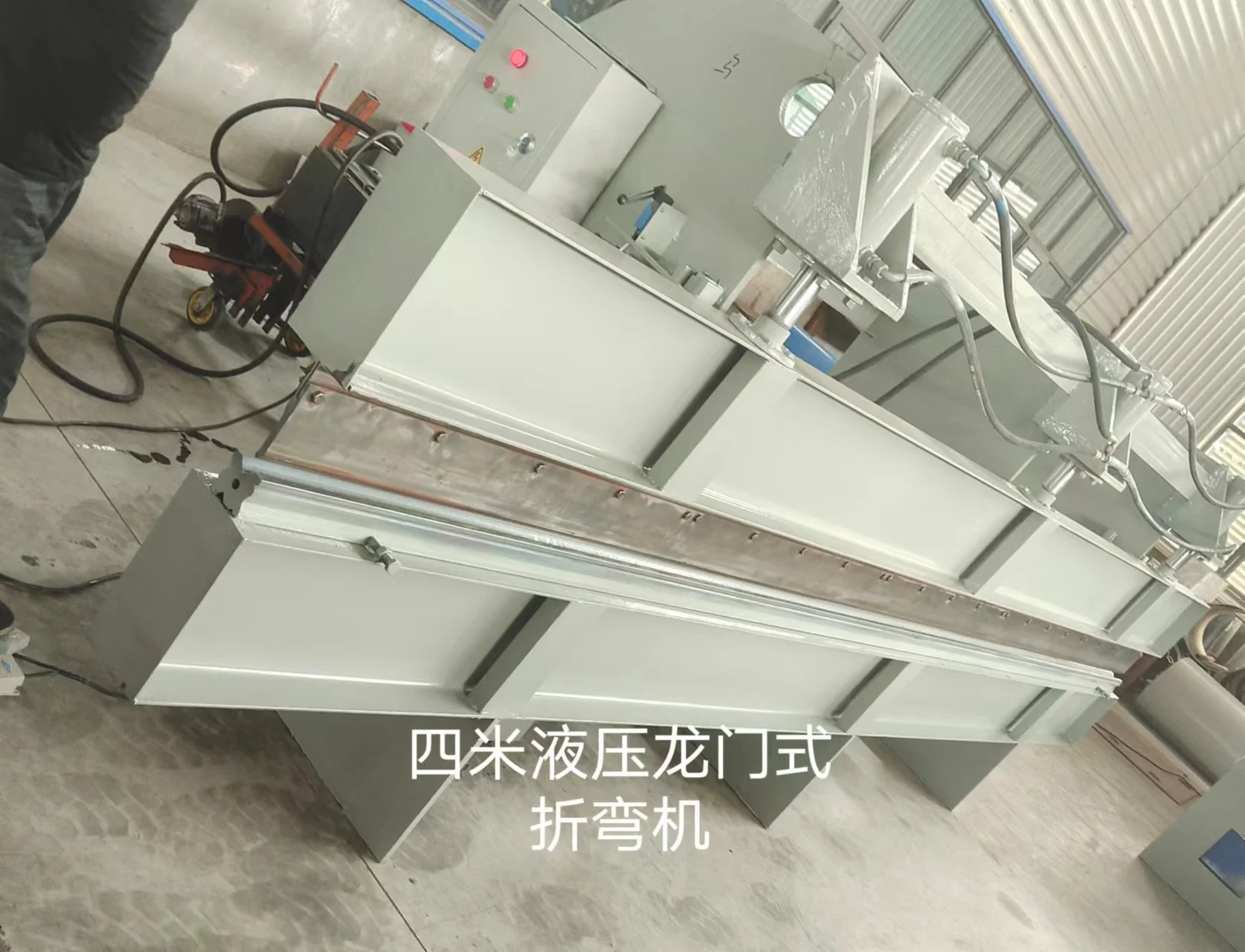

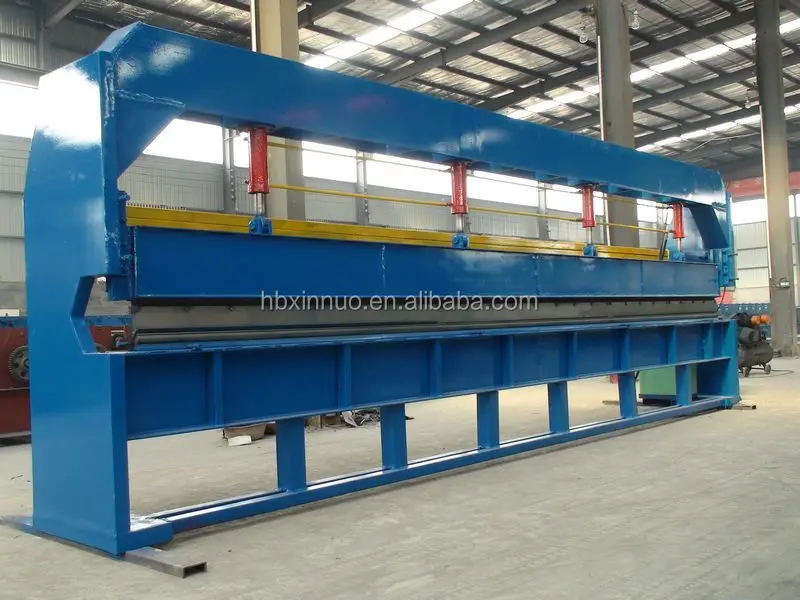

High quality iron sheet bending machine iron sheet bending machine sheet metal folding machine electrical and manual
- Category: >>>
- Supplier: Hebei Xinnuo Roll Forming Machine Co. Ltd.
Share on (1600682080342):
Product Overview
Description
Application

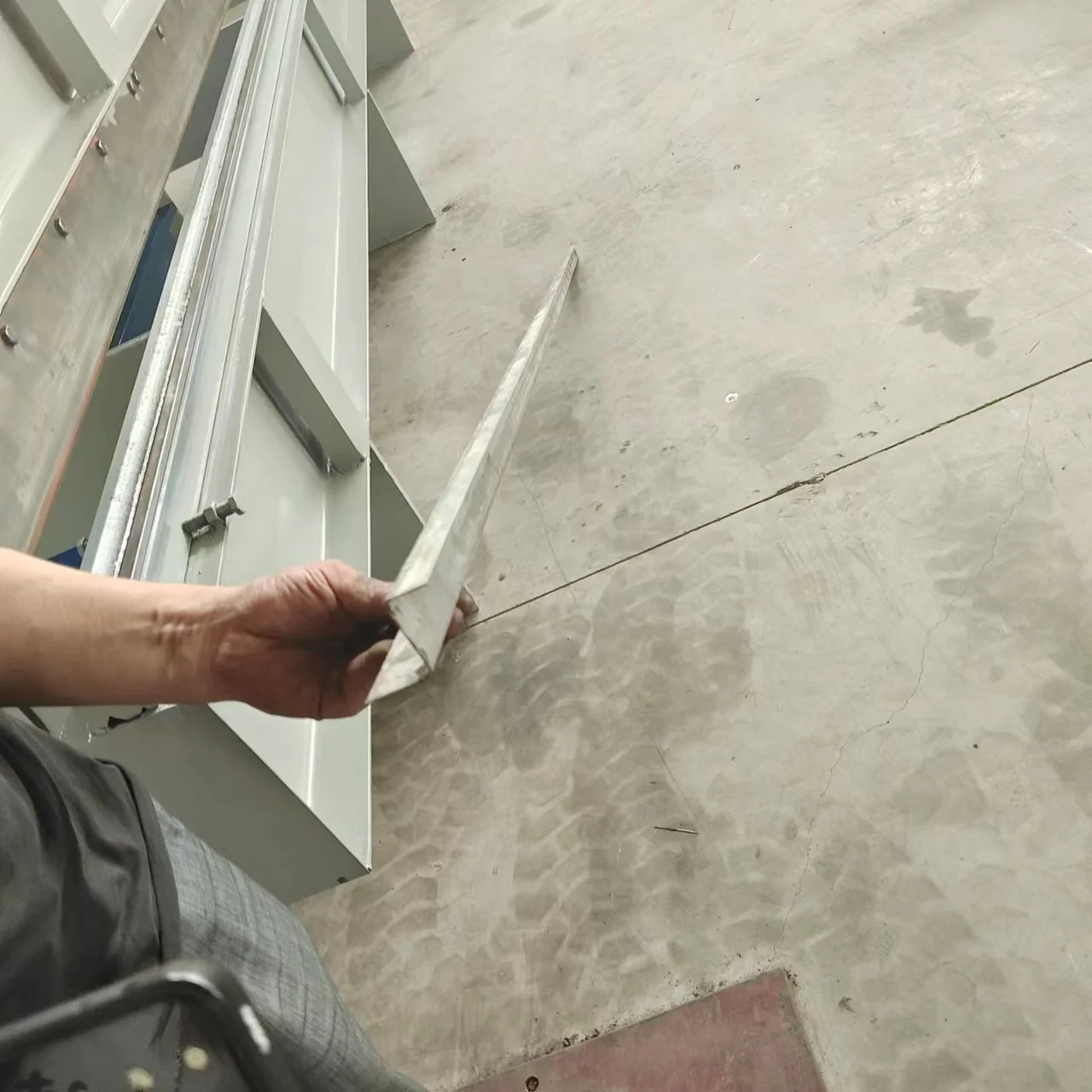

Sample
Specifitation
Suitable to process : | Color steel plate, galvanized sheet, aluminum coils and etc | ||||||
Width of the feeding material : | 1000 mm or as your need | ||||||
Roller station : | rows | ||||||
Productivity : | 10-15 m/min | ||||||
Thickness of feeding material : | 0.3-0.8 mm | ||||||
Rollers' material : | 45#steel | ||||||
Diameter of shaft : | 70 mm | ||||||
Voltage : | 380 V60 Hz, 3 Phase or as your need | ||||||
Wall thickness of main forming machine : | 16 mm | ||||||
Main forming machine body : | 350 H steel | ||||||
Motor power : | 3+3kw | ||||||
Custom : | According to your need. | ||||||
Cutting Mechanism
It adopts hydraulic motor drive and automatic location to decide the dimension and cut the target products.
Roller system
Material of the roller:High grade No.45 forged steel.Roller station: custom as customer's requirements. Thickness of feeding material:0.3-0.8 mm.

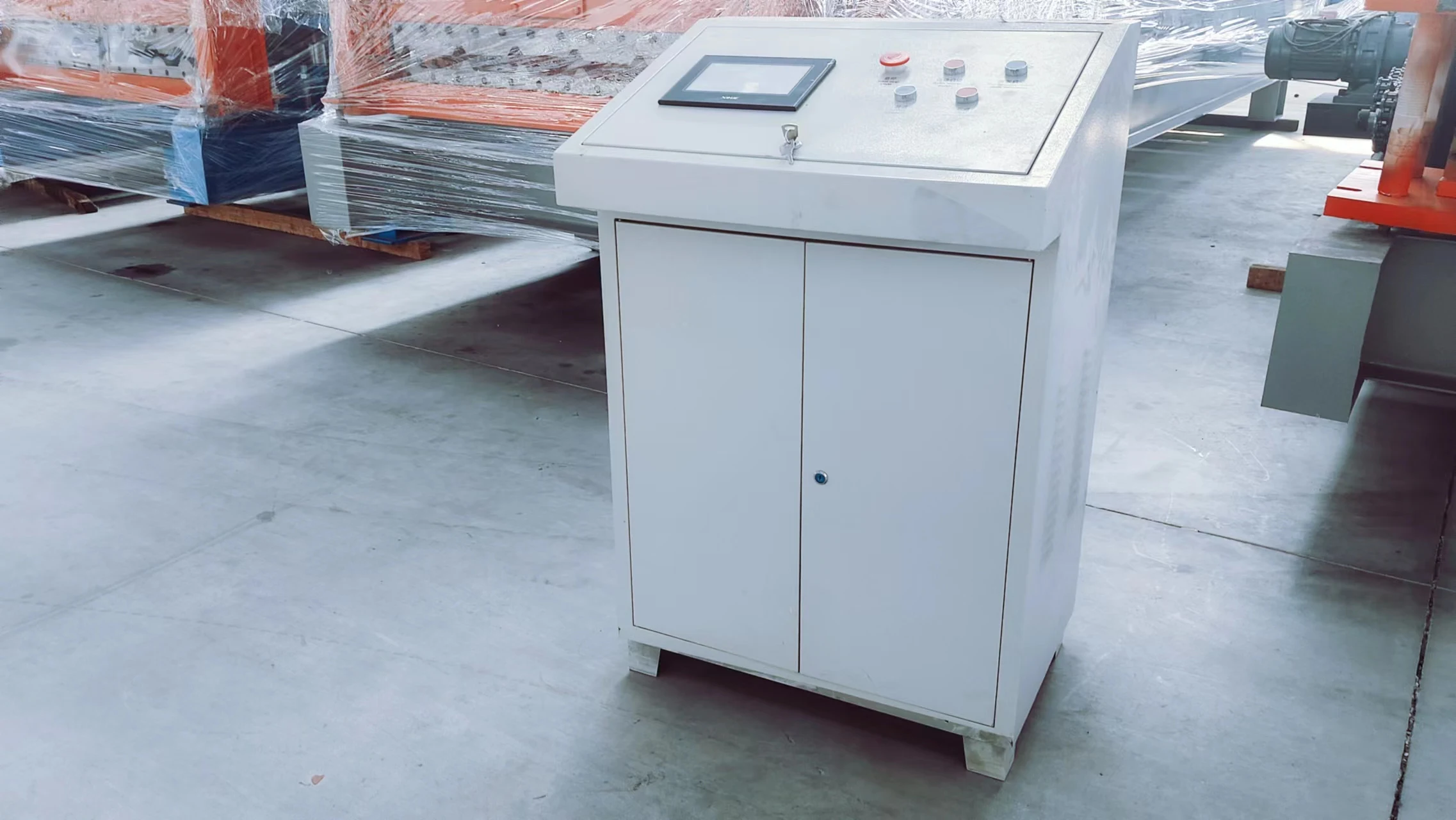

Computer Control Cabinet
It adopts Delta PLC to control.The target piece length is adjustable and digit of it can be adjusted.Computed mode has two modes automatic and manual one.
Hydraulic System
Match equipment hydraulic motor,a set of hydraulic tank,a set of hydraulic oil pump,two hydraulic pipes and two sets of electromagnetism valves.
Power:5.5kw
Power:5.5kw
Manual Uncoiler
Maximal out diameter: 1250mmCoil placement in the coil holder:hydraulic hoist
Working speed:0- 15m/min adjustable
Main motor power:5 5KW AC motor
Working speed:0- 15m/min adjustable
Main motor power:5 5KW AC motor
Receiving Table
Maximal out diameter: 1250mmCoil placement in the coil holder:hydraulic hoist.
Other machine
Hydraulic decoiler
Used to support the material and feeding into the roof sheet tile making machine automatically.
Automatic stacker machine
Used to receive the final products of corrugated roof sheet tile making machine automatically.
Drywall stud&truss&track machine
With L&I*T&U*C*W different shapes and different sizes. Can be customized by your need.
C&Z&U purlin forming machine
Can change shape and size just in one minute. Full automatic line in high speed.
Rain gutter forming machine
Has square and round different shapes for you choose. And there is matching bending machine, can do any bending products.
Slitting line
The cutting bland can change width at will by your need. Very easy to operate.

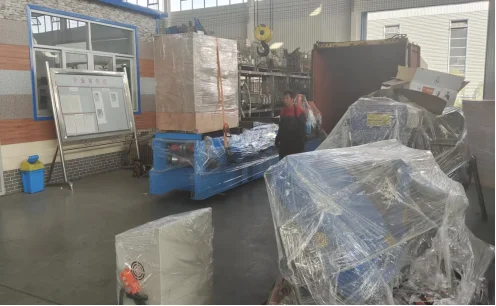

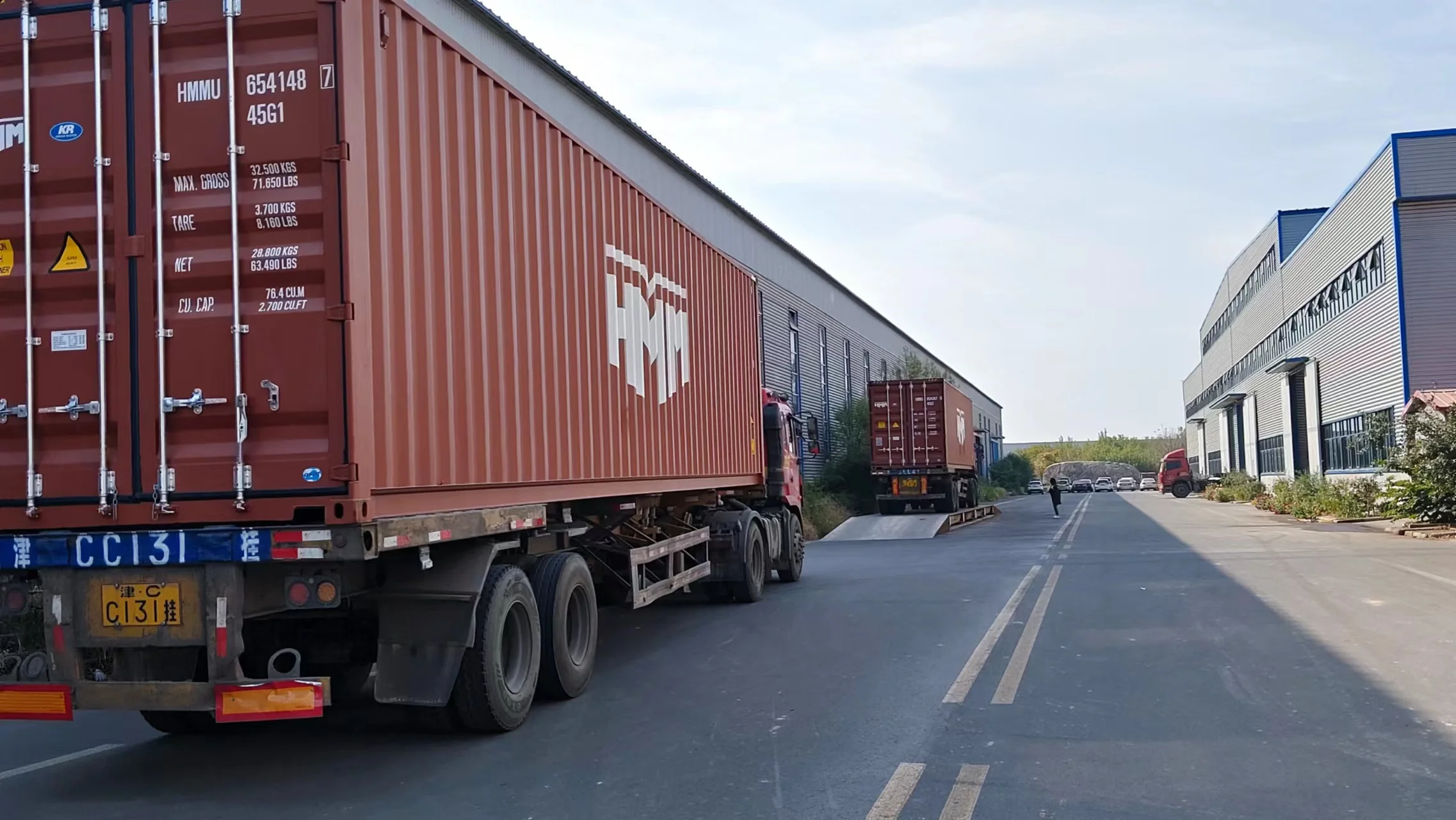

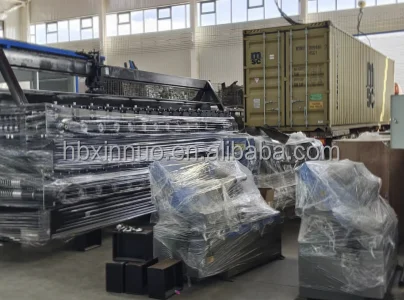

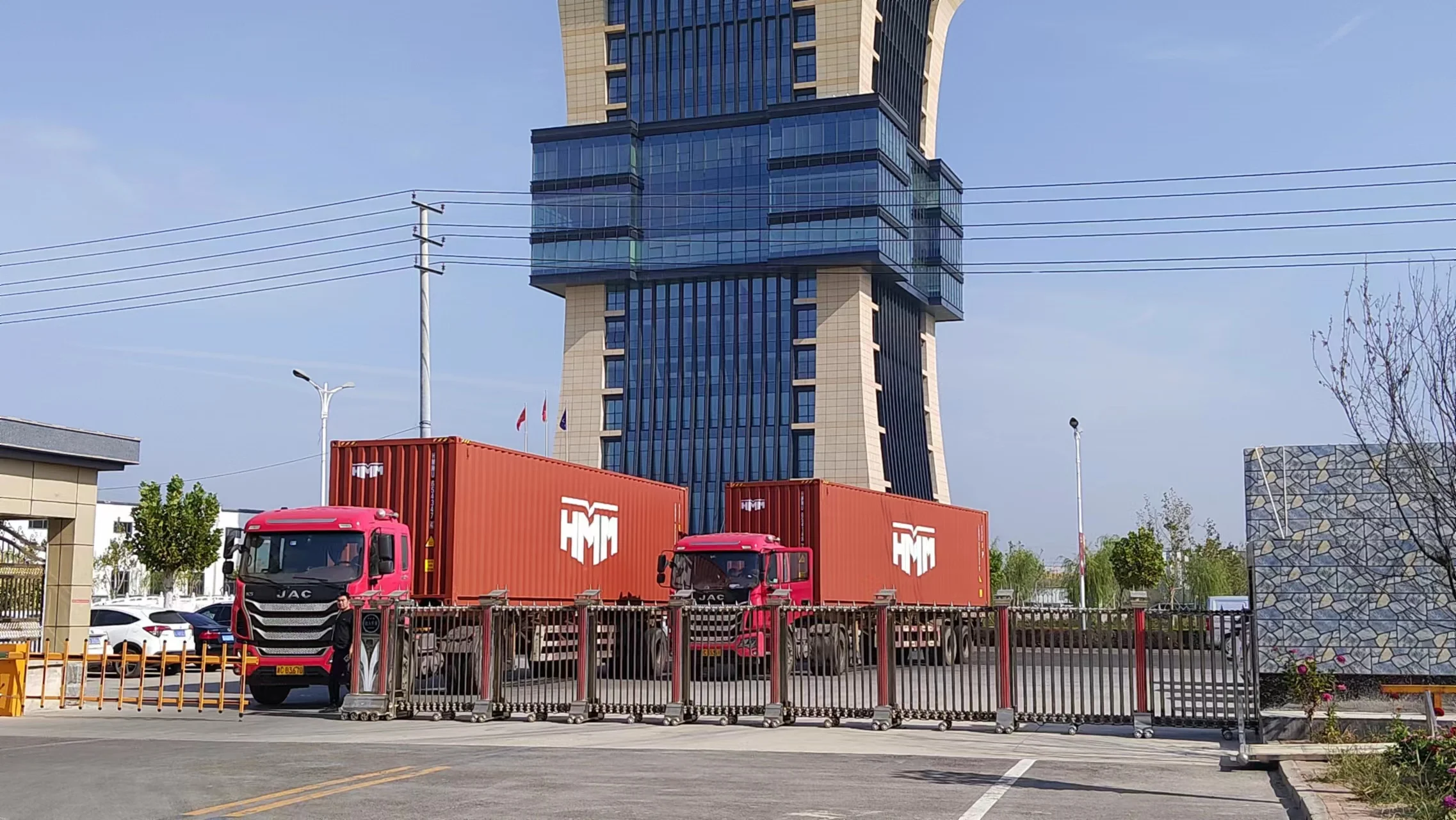

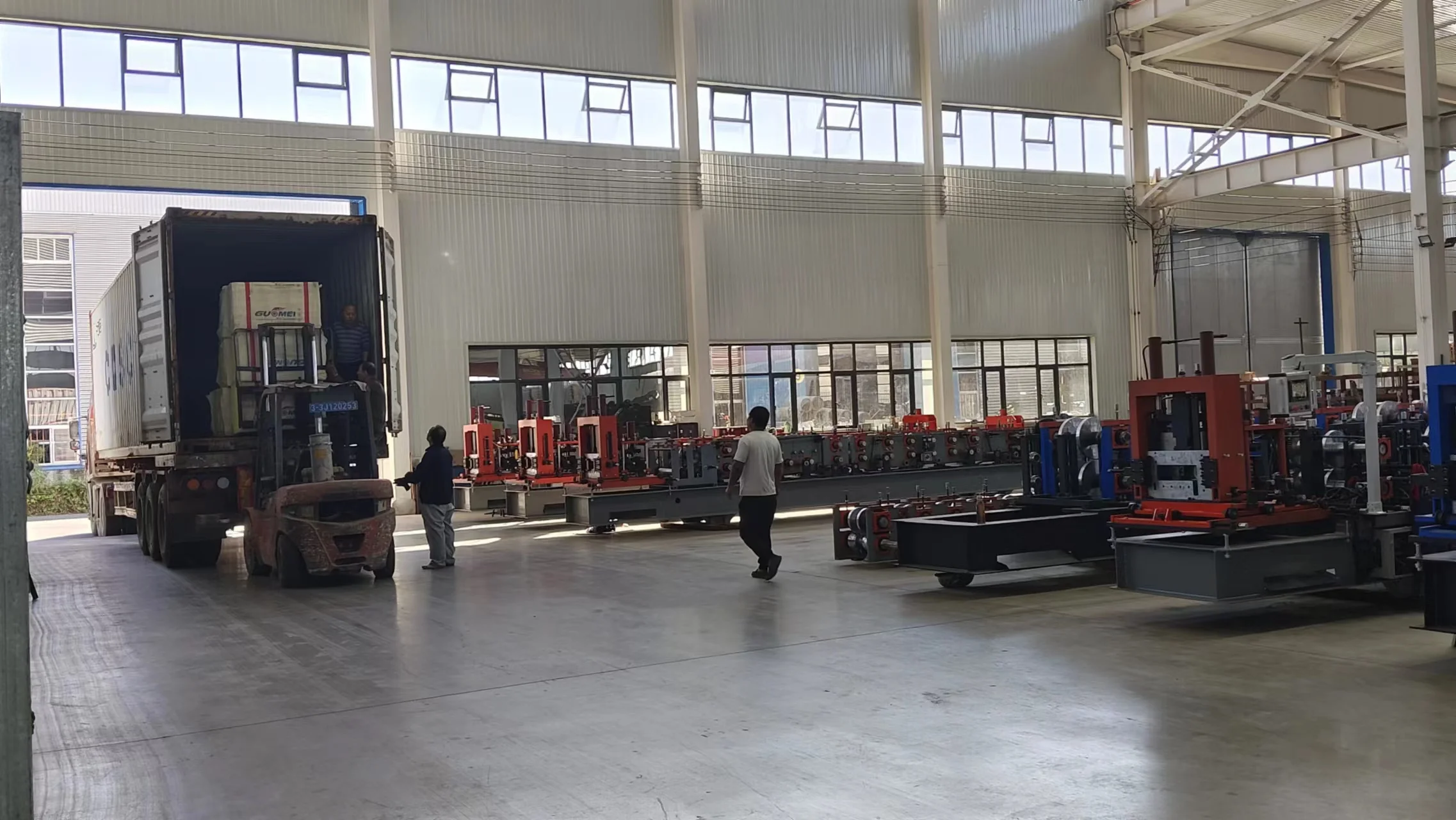

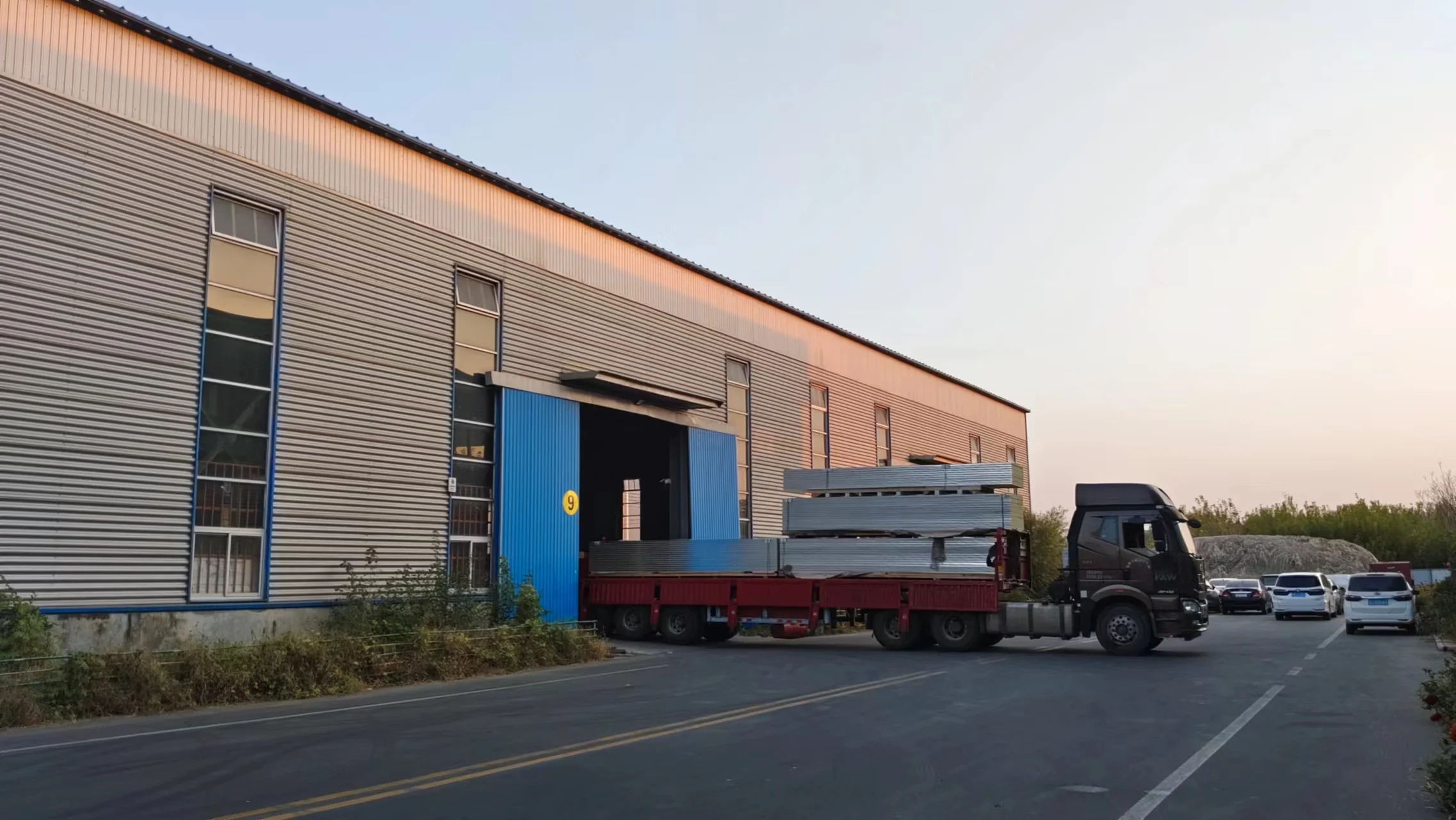

Packing and shipping
Our Advantages

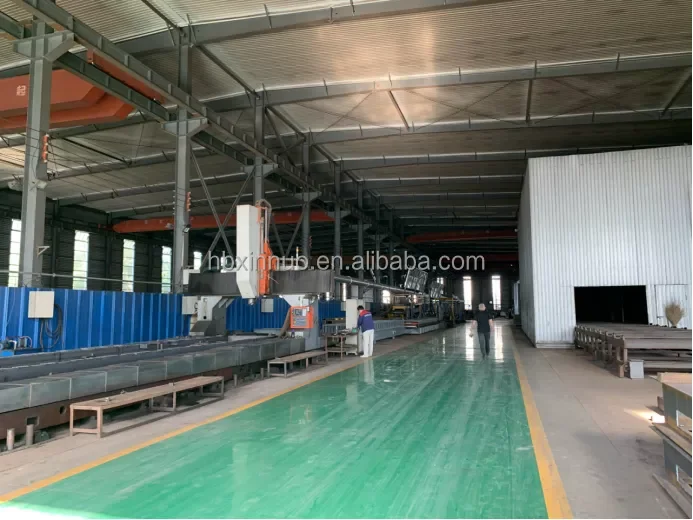

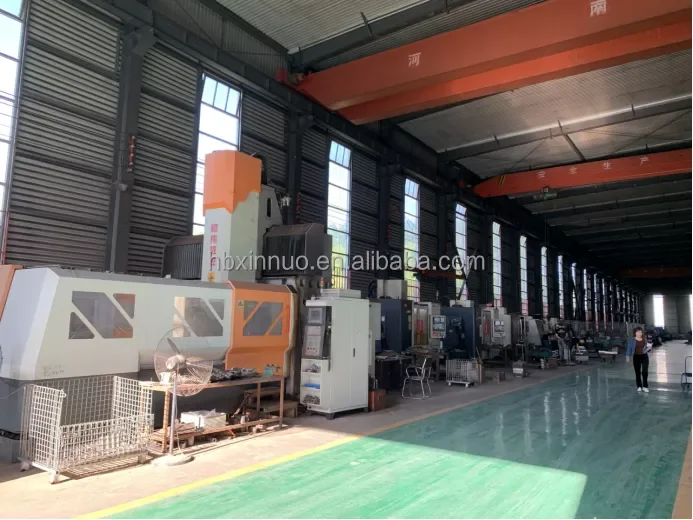

Large gantry milling machine
Our factory uses a 13-meter large gantry milling machine. This equipment is used to process the main frame of the machine, so that the large frame has a higher flatness and better levelness, and the accuracy can reach 0.05 mm. Effectively ensure product stability.

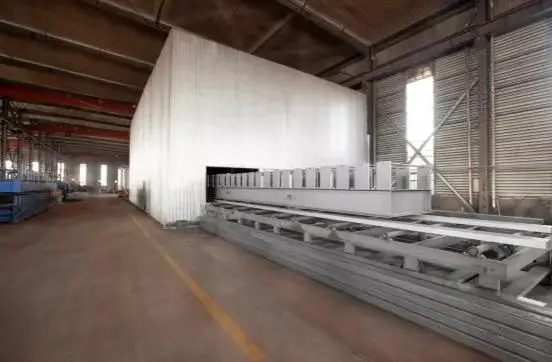

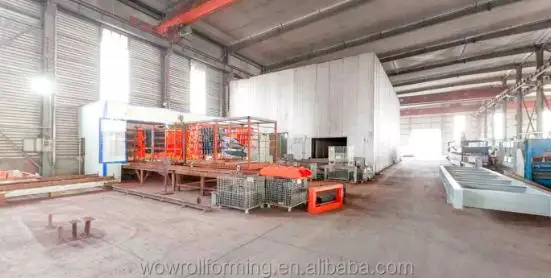

Spray paint workshop
Using environmentally friendly resin paint, two-coating and two-spray new technology, the paint surface has good adhesion, durability, corrosion resistance, aging resistance and no fading.
Shot blasting machine
The use of large-scale shot blasting with six heads for rust removal and the deep treatment of the overall frame improves the intrinsic quality of the paint film and steel and prolongs its service life.
Electrical control
The electrical control systems of the machines in our factory are all programmed and designed by our factory engineers.If there is a problem with the operation of the travel electrical appliance,the electrical engineer can assist the customer through video to ensure that the problem is solved in time.

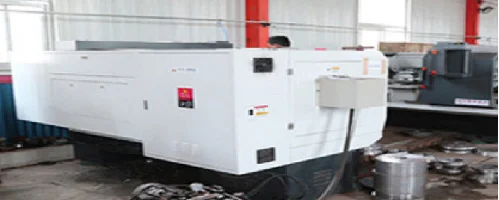

Machining
Our factory has purchased more than 50 processing machine, including CNC machining centers, CNC lathes, grinding machines, milling machines , sawing machines, drilling machines, etc.,to ensure that each component is processed by itself, and undergoes strict
quality inspection to ensure product quality.
quality inspection to ensure product quality.
Data milling machine
All the hole positions of the vertical plate of the computer C-shaped steel equipment ,which is a hot-selling product of our factory ,are processed by this equipment ,and the hole positions are accurate . The vertical plates of all C-section steel equipment are interchangeable for after-sales convenience.

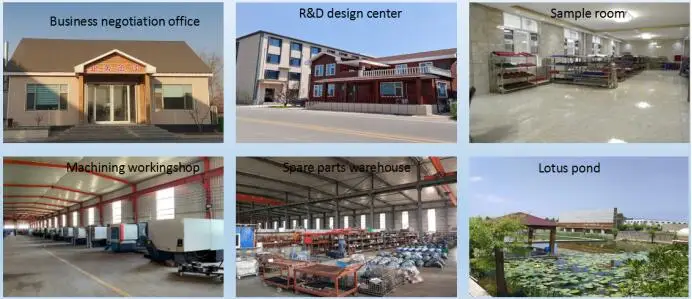

Company Profile
