Mikrometry torque wrench tester Meter ECT5 bottle torque tester machine
- Category: Force Measuring Instruments >>>
- Supplier: Mikrometry,instruments,limited
Share on:
Product Overview
Description
Features
Mikrometry bottle cap torque tester is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.
Features:
Clamping Range: Φ19.5~Φ190mm
Curve or digital display modes
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface ,easy to communicate with PLC
Accuracy: ± 0.3% Readings
Sampling Rate: up to 2KHz
Clamping Range: Φ19.5~Φ190mm
Curve or digital display modes
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface ,easy to communicate with PLC
Accuracy: ± 0.3% Readings
Sampling Rate: up to 2KHz
Product Description
Range | 5%~100% Capacity |
Accuracy | ± 0.3% Readings |
Selectable Units | N.m、N.cm、kgf.cm、lbf.ft、lbf.in |
Display | 240*160 dot matrix LCD(3.1 inch) with LED Backlight |
Overload Capacity | 120% of F.S. |
Measurement Mode | Track, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak |
Display | Digital/ Cruve |
Data Sampling Rate | Up to 2KHz |
Memory | 1000 data |
Set Point | Programmable high and low limits |
Power | 3.6VDC 1600mAH Ni-Mh rechargeable batteries |
Battery Life | Approx. 25 hours per charge |
Charger | Universal USB/BM charger, Input:110~240VAC |
Temperature Effects | <0.03% FS per °C |
Communication | USB or RS-232 |
Software | Free software for USB communication |
Outputs | RS-232, "Within" set point output， "Under or over" set point output |
Operating environment | Temperature: -10 to 40°C |
Relative Humidity: 20 to 80% | |
Storage environment | Temperature: -20 to +50°C |
Relative Humidity: 5 to 90% | |
Dimension | 197*200*142(mm) |
Weight | 2.5KG |
Accessories | AC adapter/ charger, USB cable |
Optional | Mini-printer,RS-232 Cable, small diameter jaw, EST-TT2 torque test stand |
Recommend Products
Our Advantage

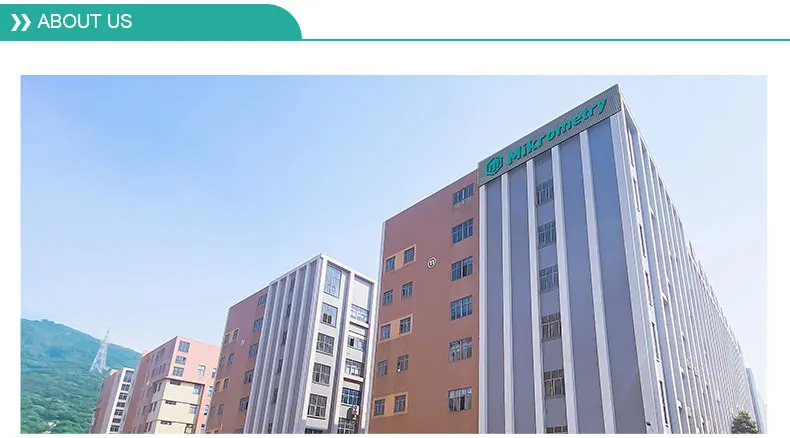

Company Profile
Founded in 2007 and located in Shenzhen,a special economic zone,Mikrometry is a professional- altimeter,Leeb hardness tester,precision digital dynamometer,precision torque tester,coating thickness gauge , Shore hardness tester and other instruments. Have the ability of independent research and development and independent production.
The company has a R&D team with rich experience,comprehensive knowledge and efficient work.The products are developed and designed by R&D personnel with many years of industry application and design experience.The integration of rich practical experience and professional technology has won the widespread trust and support of a large number of customers.
Payment & Shipping
FAQ
Q1. You are manufacturer or trading company?
A: We are manufacturer and exporter, our price is reasonable. Also we have great sales team providing professional service.
Q2. Do you provide OEM/ODM services?
A: We can do OEM/ODM.
Q3. How does your factory do regarding quality control?
A: Quality is priority. we always test one by one before produce or finished. We have got the CE, RoHS, so don't worry about quality
