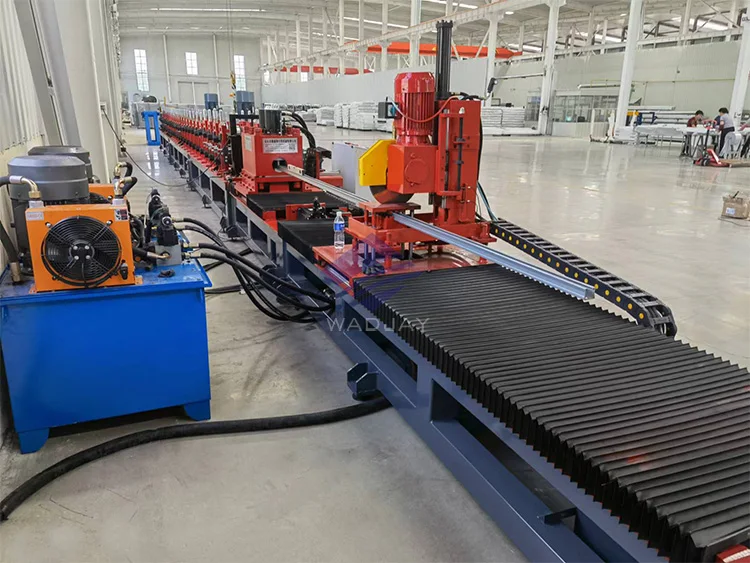

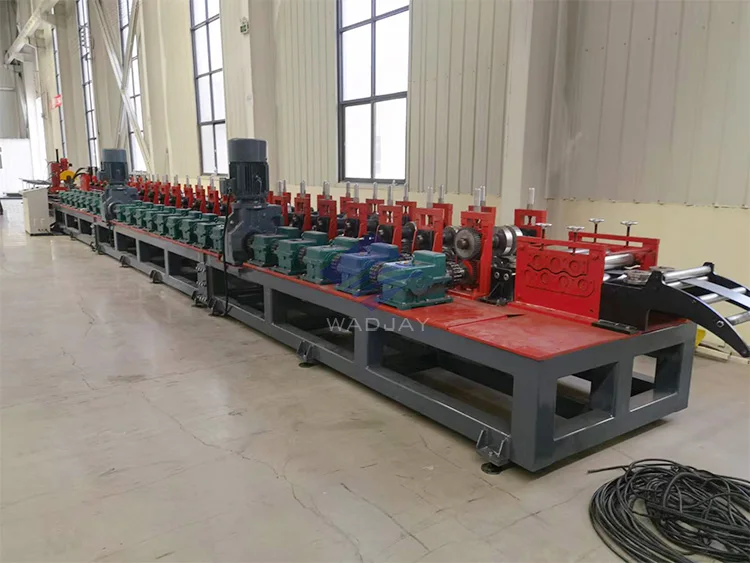

High Precision Solar Panel Frame Solar Bracket Roll Forming Machine for PV Mounting System
- Category: >>>
- Supplier: Henan Wadjay Machinery Co. Ltd.
Share on (1600704306265):
Product Overview
Description
Description
High Precision Solar Panel Frame Solar Bracket Roll Forming Machine for PV Mounting System

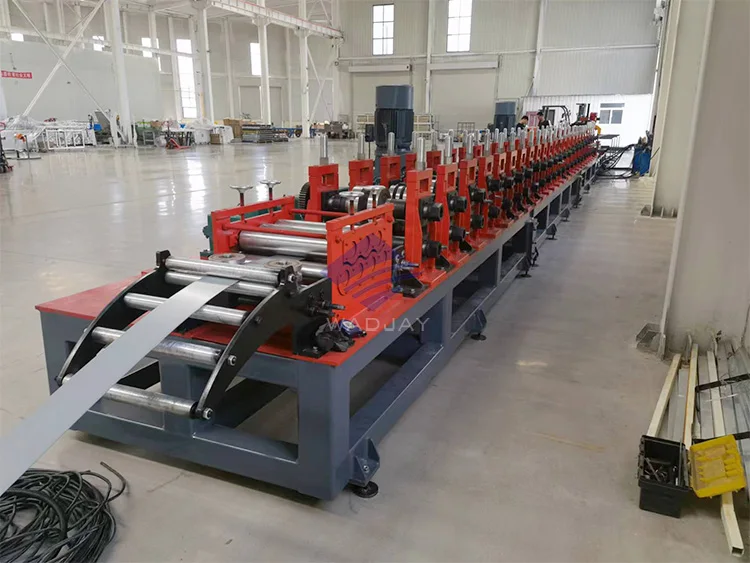

Roll Forming Machine
Automatic roll forming and cutting with Inverter, PLC, HMI
Automatic programmable length settings via the touch panel
Customize design
Stable operation with strong power and body frame
Customize design
Stable operation with strong power and body frame

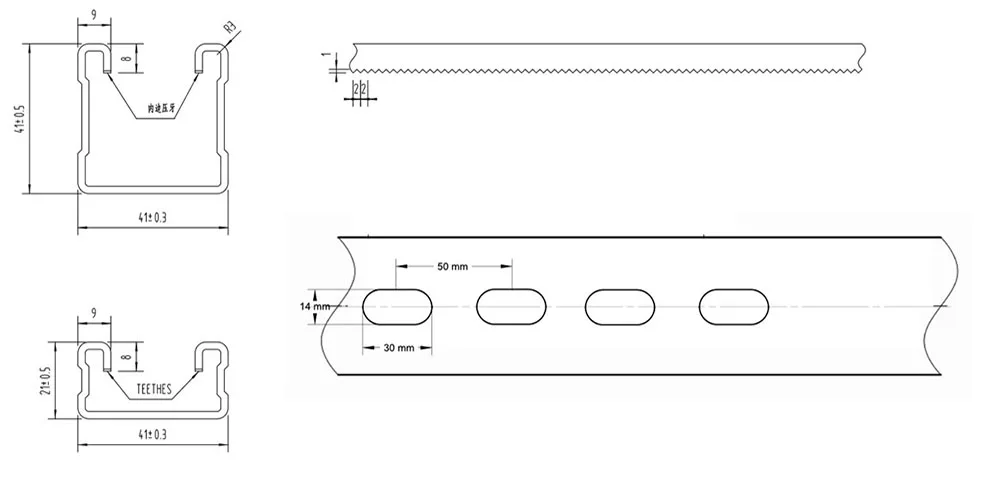

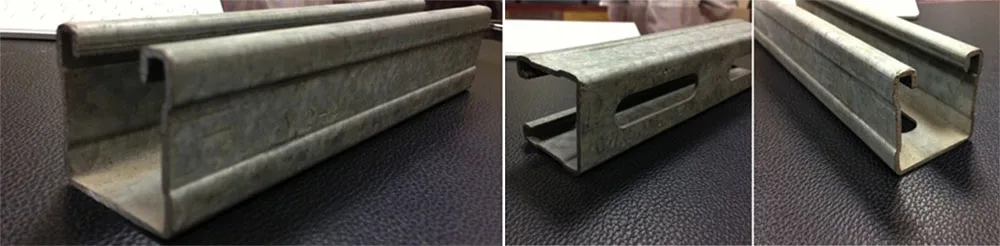

Work Peice Drawing & Sample
Please send your drawings, we can also customize for you
Technical Details
Roll Forming Machine | WJ41-21&WJ41-41 |
Rolling Speed | 6m/min(not include cutting time) |
Rolling Thickness | 1.5-2.5mm |
Control System | PLC (Panasonic) as list in the note |

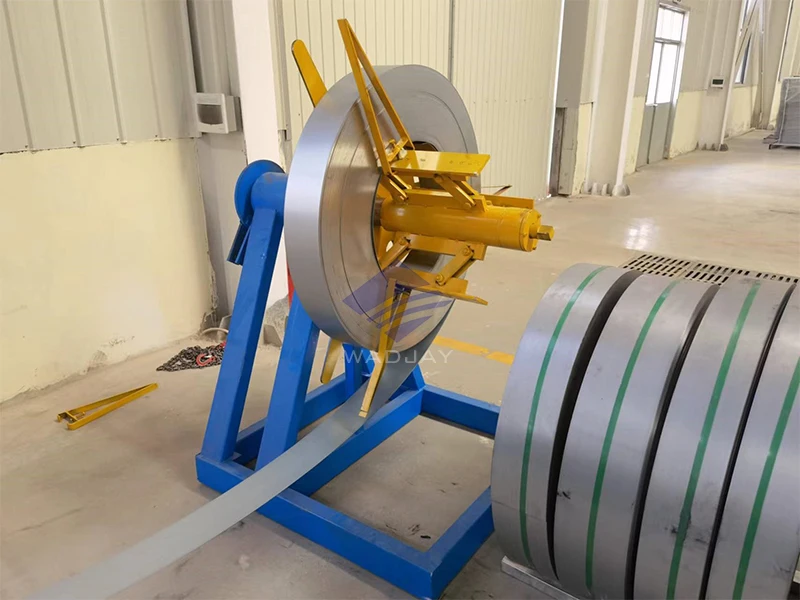

De-Coiler | 2tonsManualde-coiler |
Roller Stations | 18 stations |

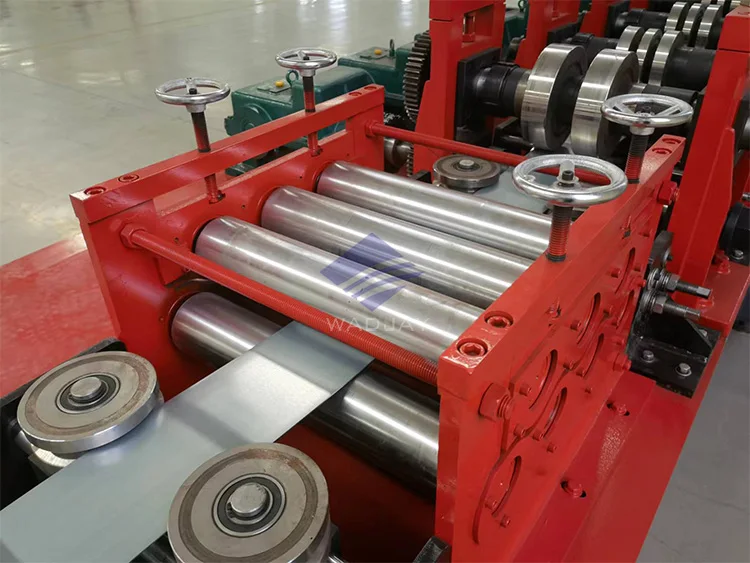

Leveling System | 1 station(7 rollers leveling) |
Leveling Power | 2.2KW |
Feeding system | Servo feeding |
Punching system | Hydraulic Punching System |
Roller Material | Cr12MoV, coated with chrome |
Shaft Material and DIA | ¢76mm, material is 45# forge steel,Hardening and tempering |

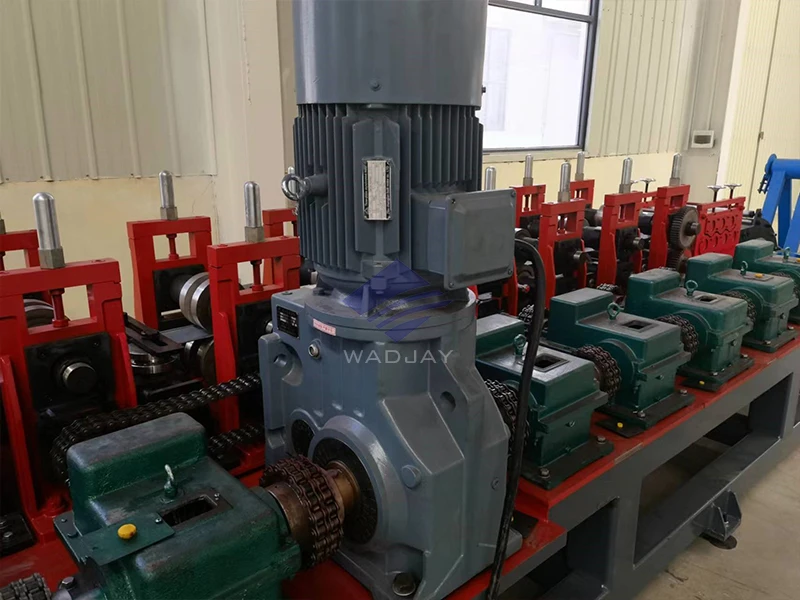

Maim Motor Power | 15kw |
Hydraulic Station Power | 7.5kw |
Hydraulic Pressure | 12Mpa |

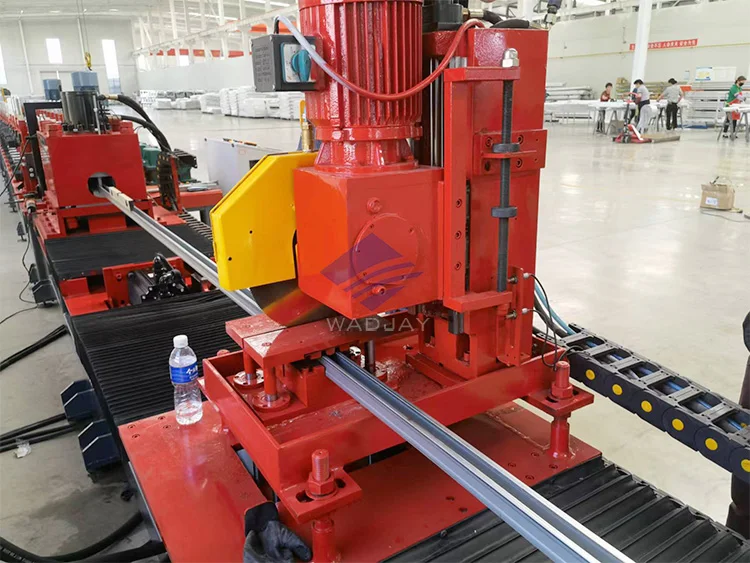

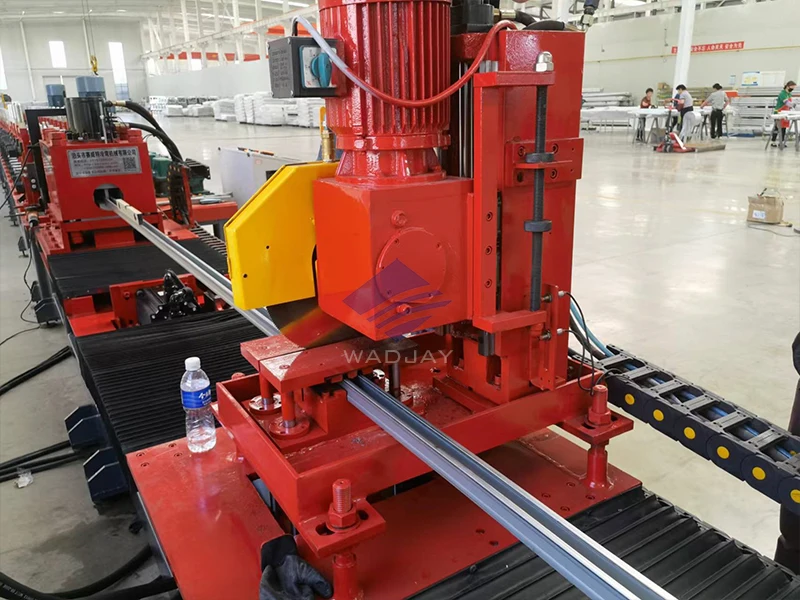

Cutting system | Hydraulic cutting |
Material Of The Stations | Wall panel(Thickness:25mm) |
Tolerance | 3m 1.5mm |
Electric Source | 380V, 50HZ,3 phaseAlso can satisfy customer’s require |
Bearing | NJ210 |
Gear Thickness | 40 mm |
Way Of Drive | 1.5 inch single chain |
Roll Forming Type | Cassette Type |
Production Process
Uncoiling → Leveling → Servo feeding → Punching → Roll forming → Cutting → Products collecting
Machine Layout
Why Choose Us
Company Profiles
WADJAY welcome customers from all over the world to visit our factory.
Packing & Delivery
FAQ
Q1: How long is the warranty?
A1: We guarantee a 18-month after-sale service. Any problem when using, call or mail us, we will advise on technically sound methods. If needed, we will provide free accessories.
Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.
Q7: How about your delivery time?
A7: Generally, It will take about 35 days to send goods out. The specific delivery time depends on the items and the quantity of your order.
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.
Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.
Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.
Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.
Q7: How about your delivery time?
A7: Generally, It will take about 35 days to send goods out. The specific delivery time depends on the items and the quantity of your order.
