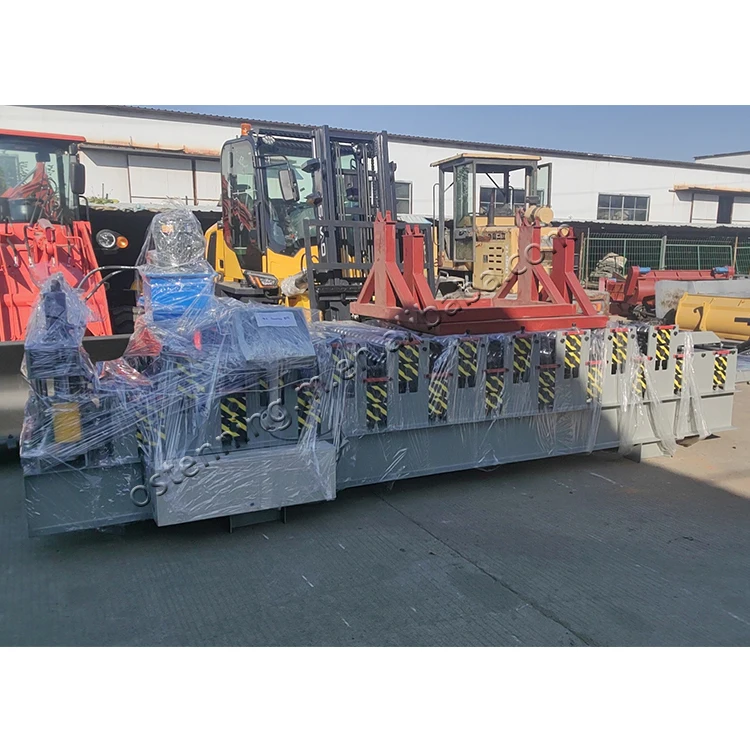

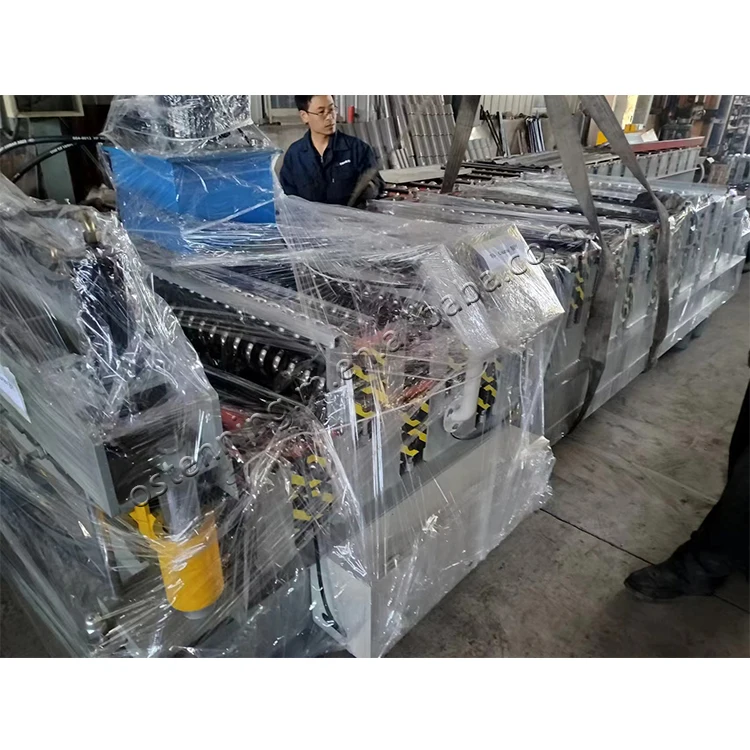

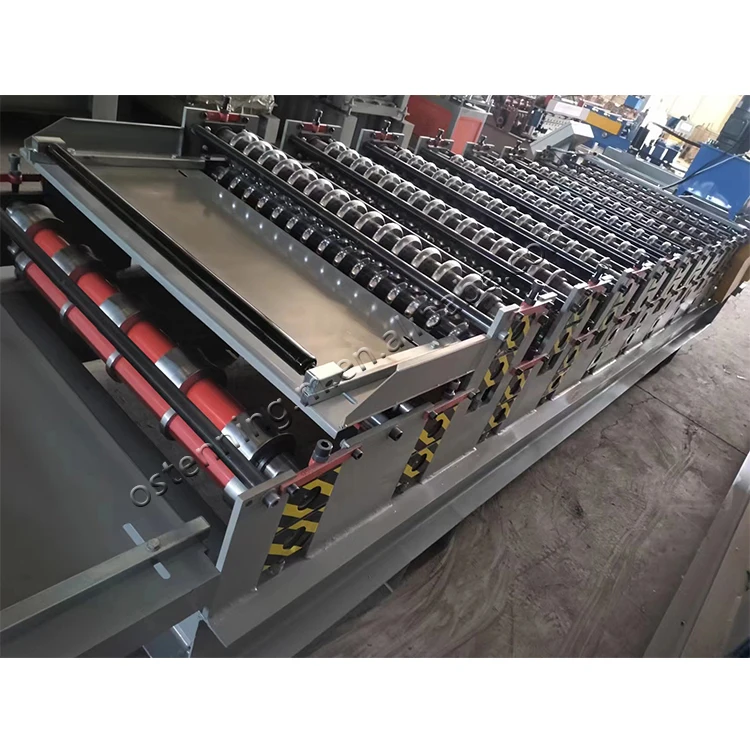

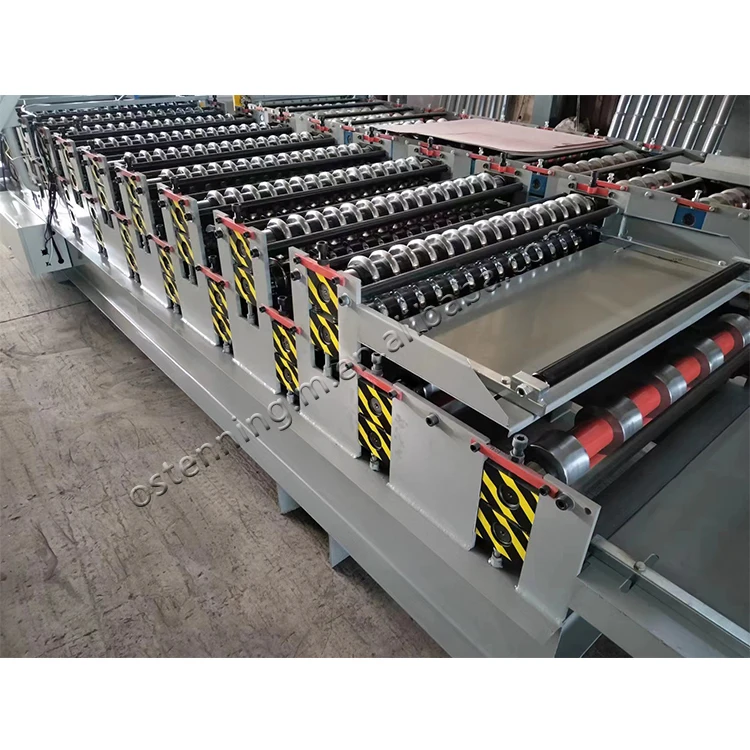

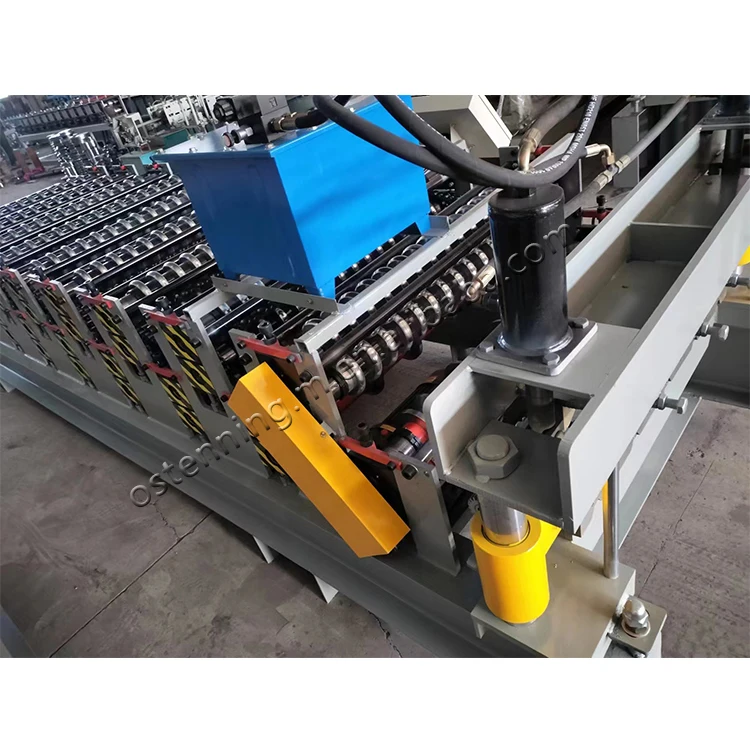

Double Layer Corrugated Profile Steel Roofing Sheet Roll Forming Machine
- Category: >>>
- Supplier: Henan Austing Machinery Co. Ltd.
Share on (1600707259063):
Product Overview
Description
Products Description
Brief Introduction
Roof roll forming machines has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The ridge cap sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product.It has advantage of pretty appearance, durable using and so on.
Features for window and door making machine
1.Famous Brand, quality is guaranteed.

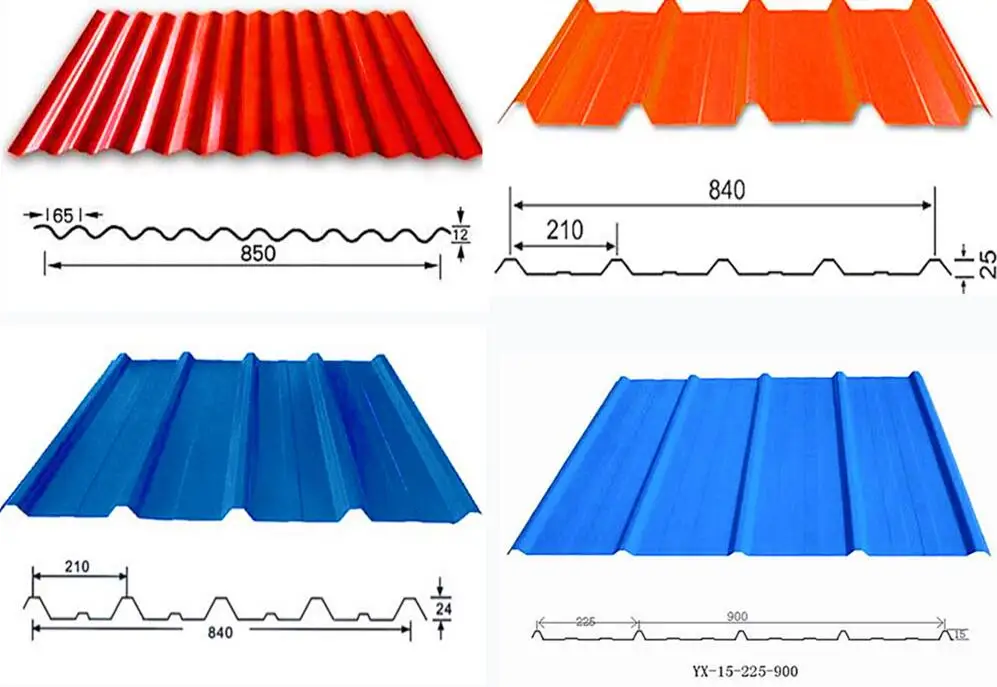

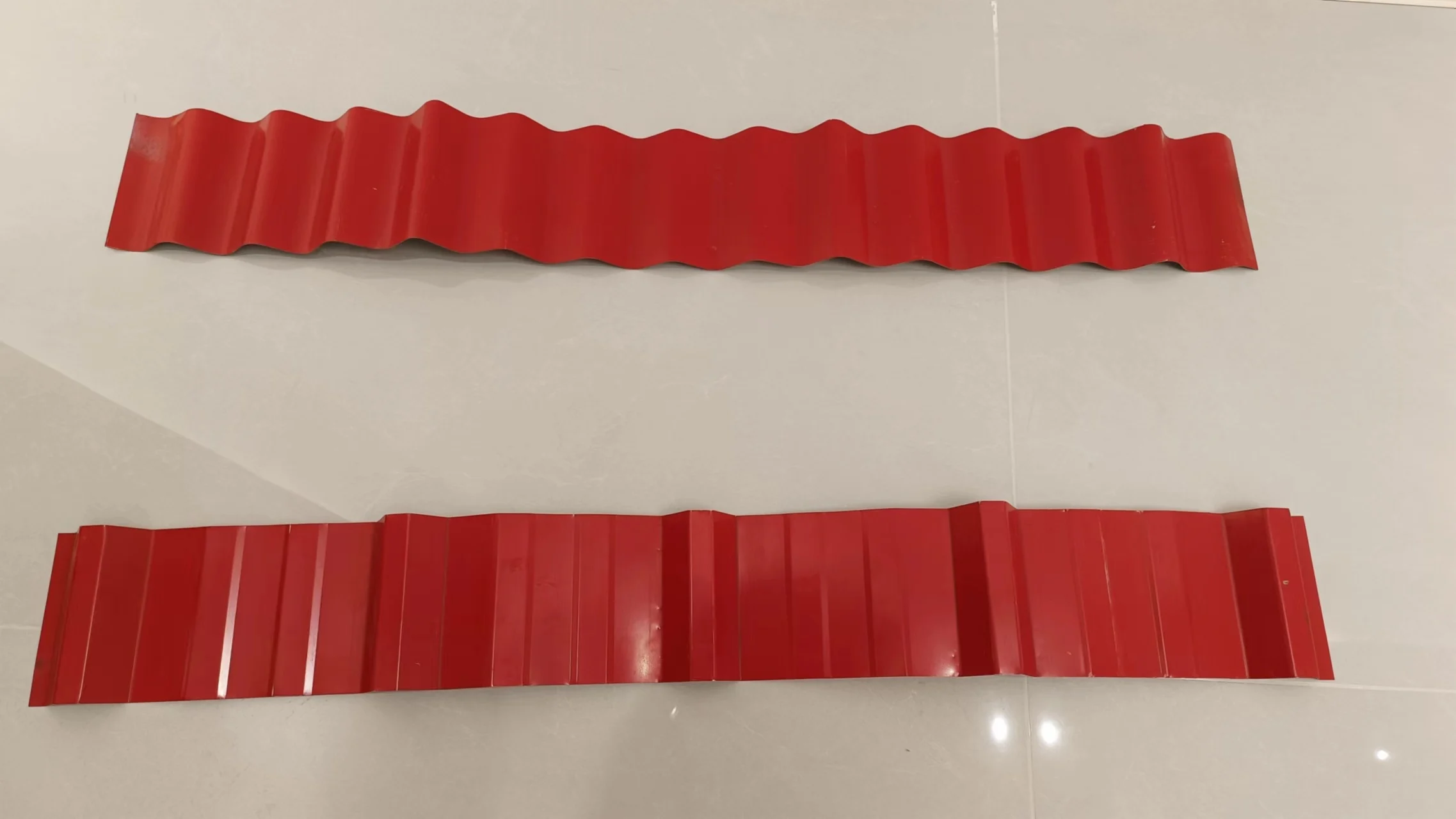

2. It can be produce Two kinds Profile can satisfy the client demand for spend less and Multi-purpose.
3. Full Automatic Computer Control make easy to operation.
4. Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heat
treatment 58℃-62℃ . The product quality is durable and long service life .
2. It can be produce Two kinds Profile can satisfy the client demand for spend less and Multi-purpose.
3. Full Automatic Computer Control make easy to operation.
4. Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heat
treatment 58℃-62℃ . The product quality is durable and long service life .

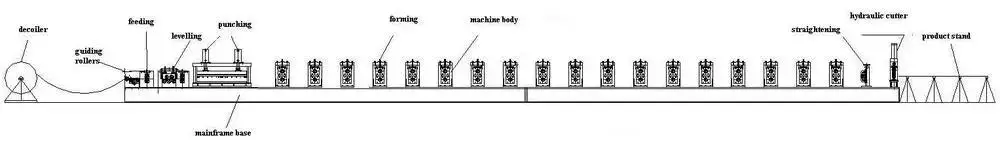

Working Process
Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism
-----Automatic Shearing Mechanism ----- Products Receiving Tables
-----Automatic Shearing Mechanism ----- Products Receiving Tables
Specification
No. | Item | Specification |
1 | Can Formed Material | PPGI,GI,AI |
2 | Equipment operation | Automatic |
3 | Voltage | 380V 60Hz 3Phase or as your requirement |
4 | Thickness of sheet (mm) | 0.3-0.8mm |
5 | Material width(mm) | As your requirement |

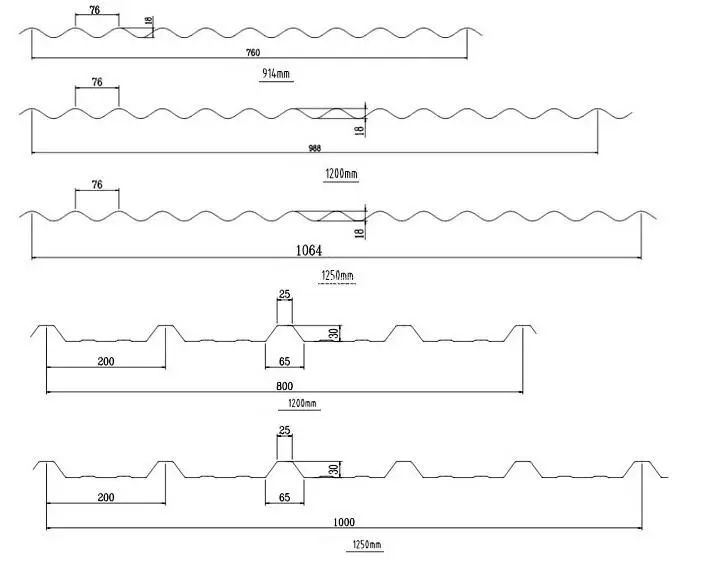

6 | Cover Width of the sheet after formed | as your drawing |
7 | The size of the roll forming machine | 7200mmx1600mmx1500mm |
8 | Speed | 8-16m/min |
9 | Diameter of shaft | 75mm |
10 | Weight of the Machine | 4500-5000KGS |
11 | Material of rollers | C45 steel quenched and chromed |
12 | Motor brand | Siemens or Guomao |
13 | PLC | Siemens or Delta or Mitsubushi |
14 | Total power (kw) | 9.5kw |
15 | Power of hydraulic system | 5.5kw |
16 | Power of main molding core | 4kw |
No. | Item | Unit | Qty |
1. | Decoiler | set | 1 |
2. | Main Roll Forming Machine | set | 1 |
3. | Cutting System | set | 1 |
4. | Oil Pump | set | 1 |
5. | PLC control Box | set | 1 |
6. | Output | set | 1 |
7. | Tools | set | 1 |
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
