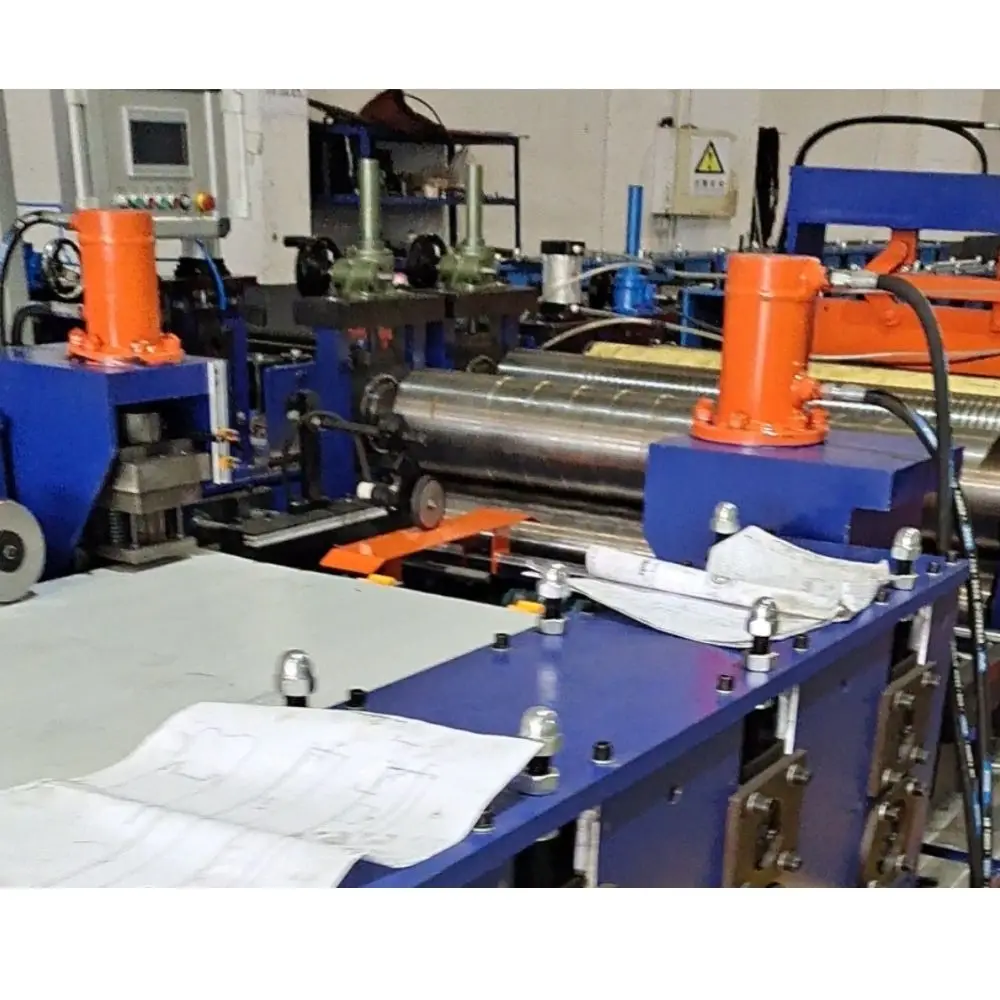

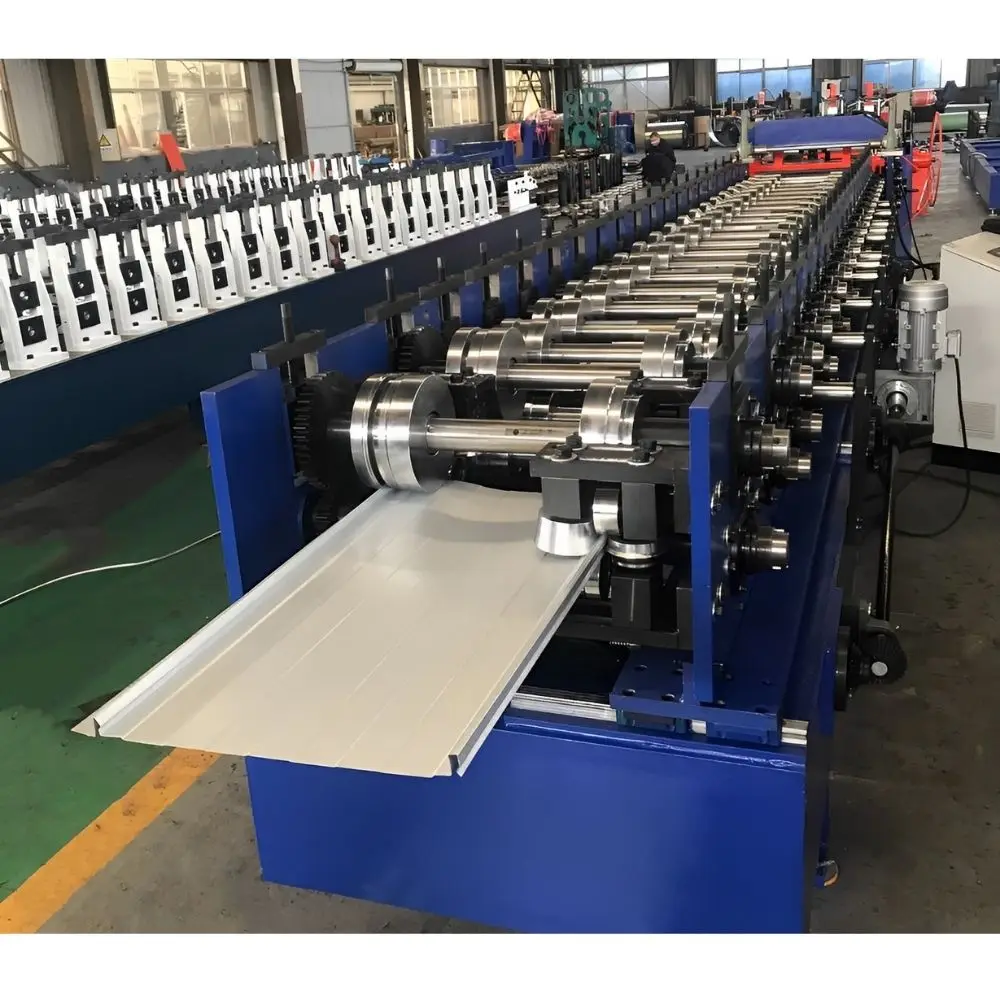

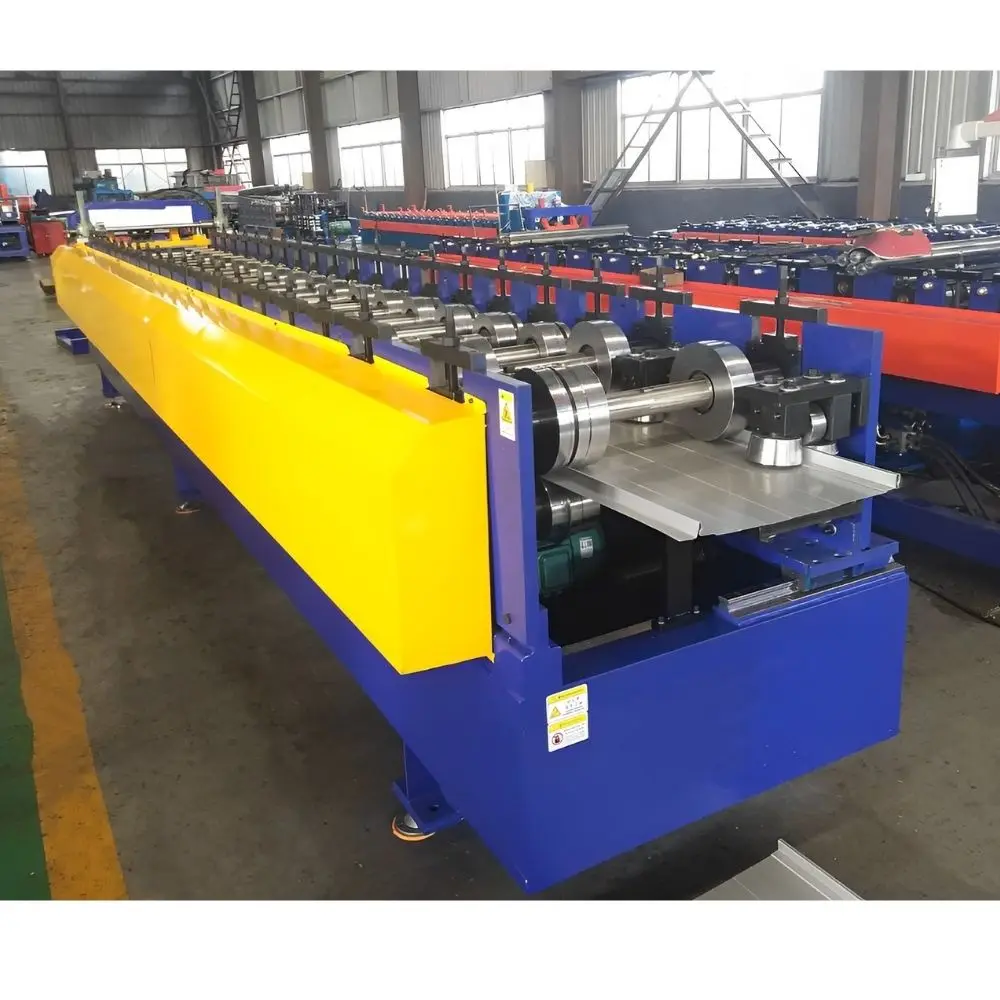

Automatically Width Adjustable Perforated Holes Bemo Standing Seam Roof Sheet Roll Forming Machine
- Category: >>>
- Supplier: Sussman Machinery (wuxi) Co. Ltd.
Share on (1600710314995):
Product Overview
Description
Product Description

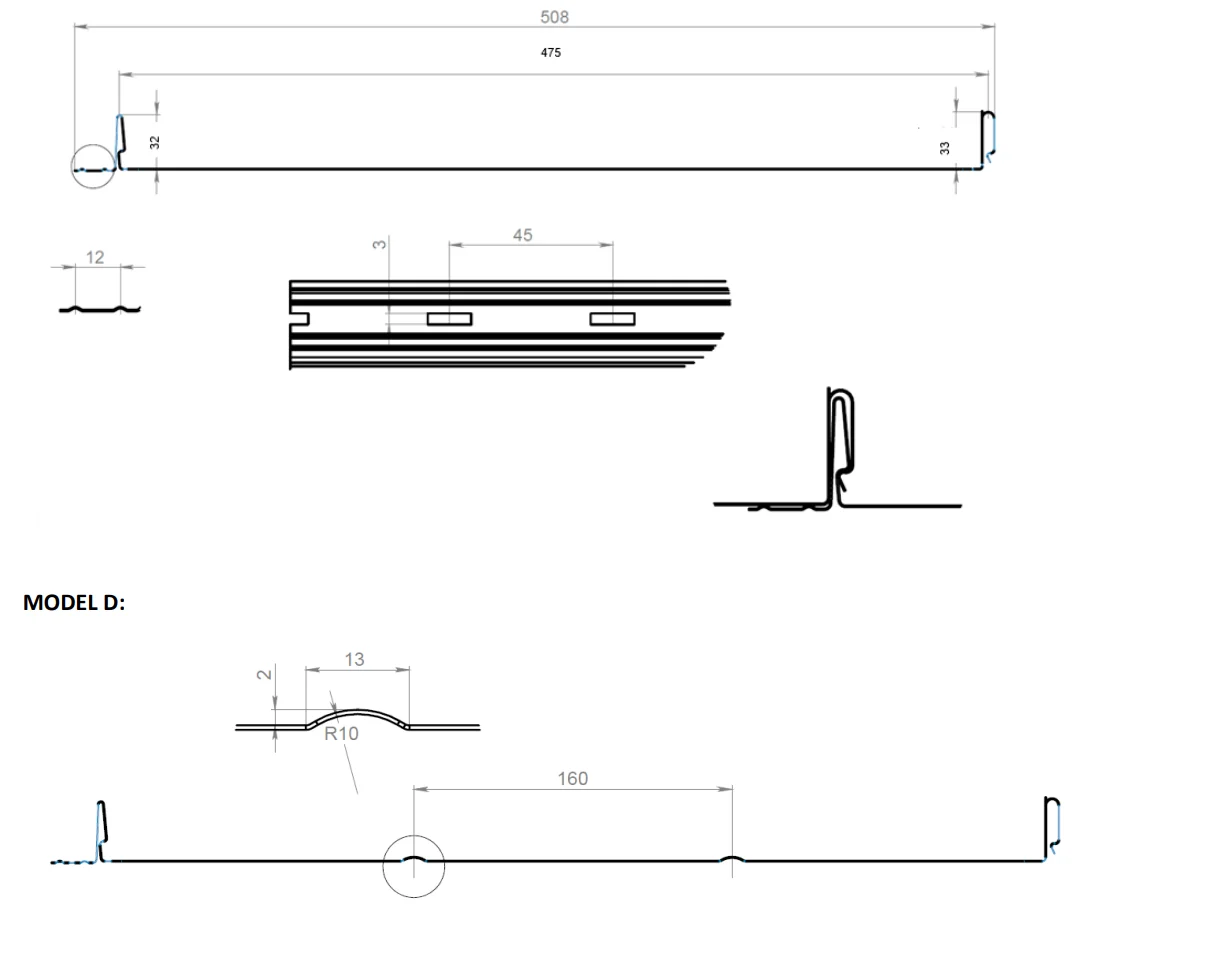

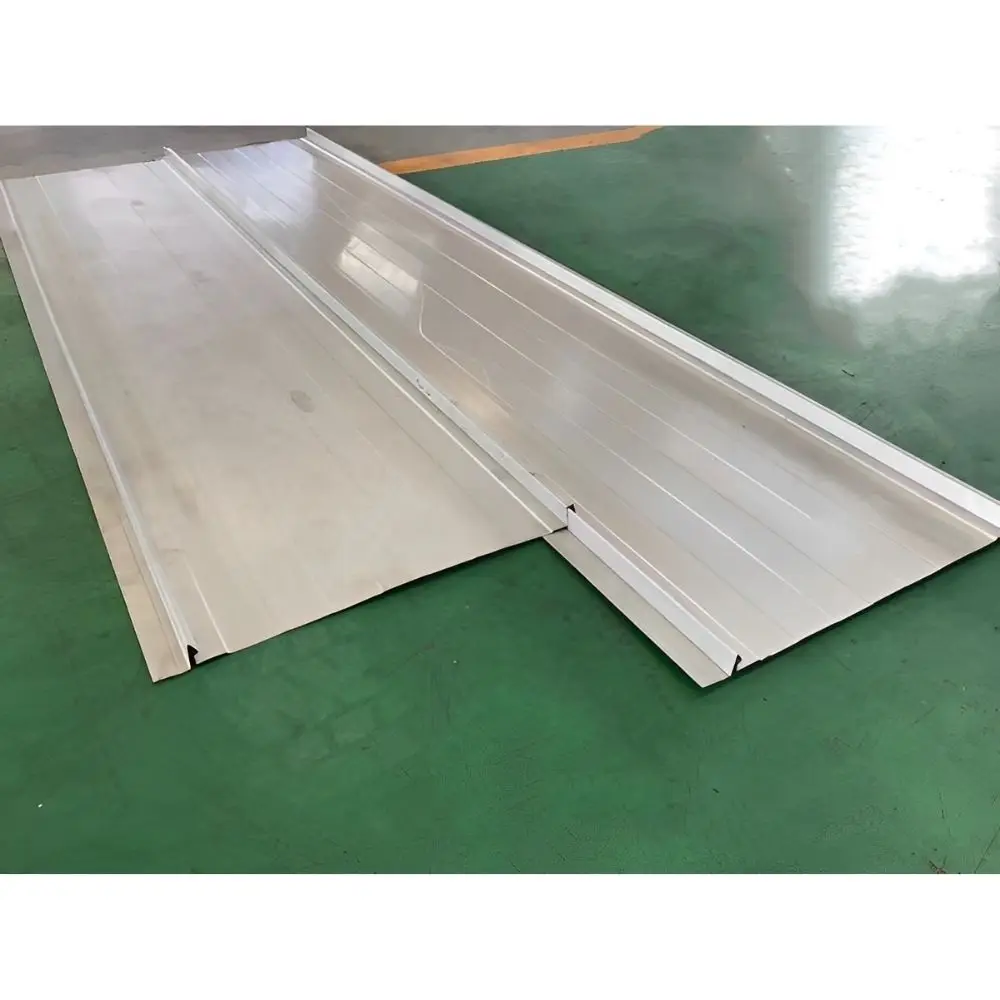

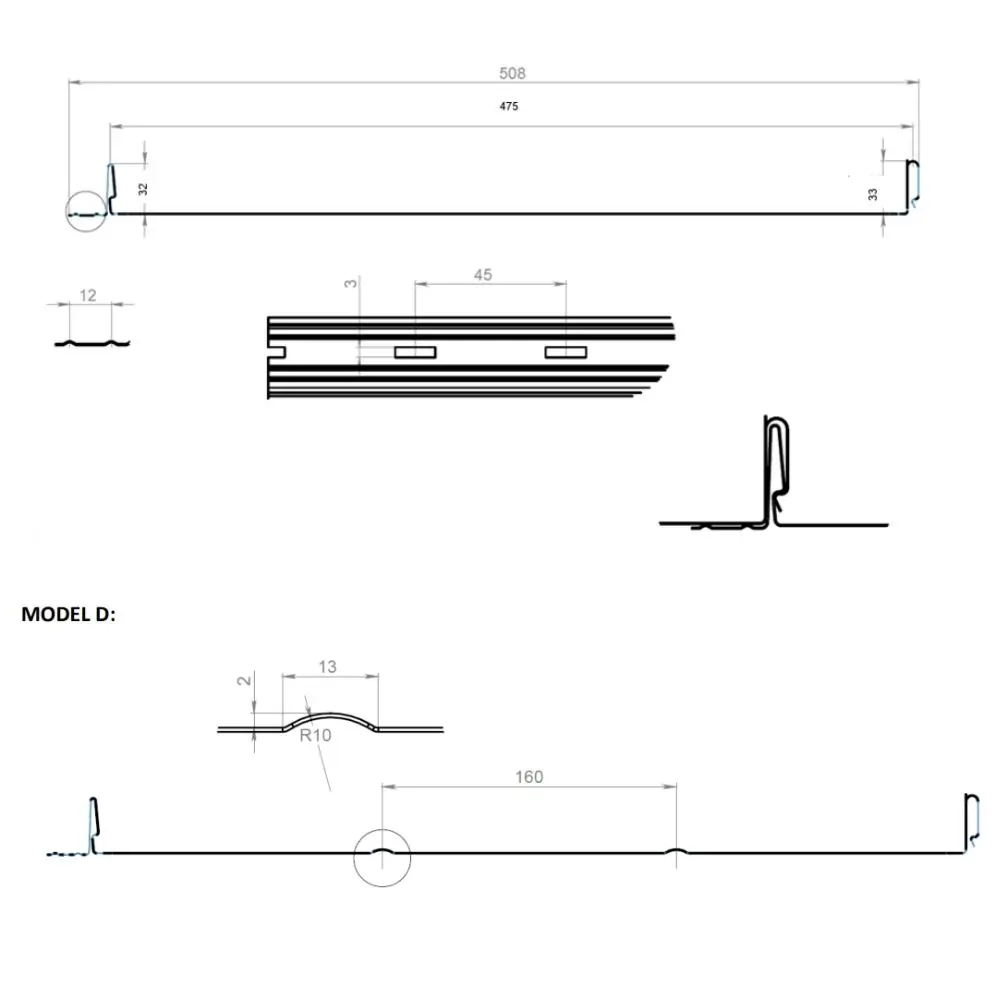

Standing seam roofs have more sleek lines. Instead of the “waves” that you see on a corrugated metal roof, these systems have raised seams that rise up from the flat surface.
With a standing seam roof, the seams are above the surface, and the screws are concealed and protected by the roofing material.
With a standing seam roof, the seams are above the surface, and the screws are concealed and protected by the roofing material.
Item NO | Description | Unit\\Type | RF-RP |
1 | Material Thickness | mm | 0.7-1.2mm for Color coated steel 0.5-0.8mm for aluminum sheet |
2 | Forming Speed | m/min | 0-10 |
3 | Roller stands | stands | 20 |
4 | Roller Material | 45# steel, coated with chrome, fire treated, HRC 58-62 | |
5 | Shaft diameter and materail | Ф70, 45# steel, fire treated, HRC 58-62 | |
6 | Cutting device | Pre-cutting device | |
7 | Main Motor Power | Kw | 7.5 Servo motor |
8 | Hydraulic cutting Power | Kw | 5.5 |
9 | Hydraulic pressure | Mpa | 12 |
10 | Power Supply | According to client’s requiry | |
11 | Tolerance | mm | 1.5 |
12 | Material of cutting | Cr12 | |
13 | Control system | PLC with touch screen | |
14 | Main machine weight | T | 6-7 Ton |
15 | Width | 300-600mm adjustable | |
16 | Outer specification | m | 7*1.2*1.2 |
17 | Transmission Type | 1 inch chain drive |
Machine List:
5 ton passive de-coiler | 1 set |
Pre-punching and Pre-cutting device | 1 set |
Main roll forming machine with wheels | 1 set |
PLC Control box | 1 unit |
Hydraulic station | 1 unit |
4 meters passive table | 1 unit |
Working Flow:
Uncoiling—Punching—Cutting—Roll forming——Products collecting

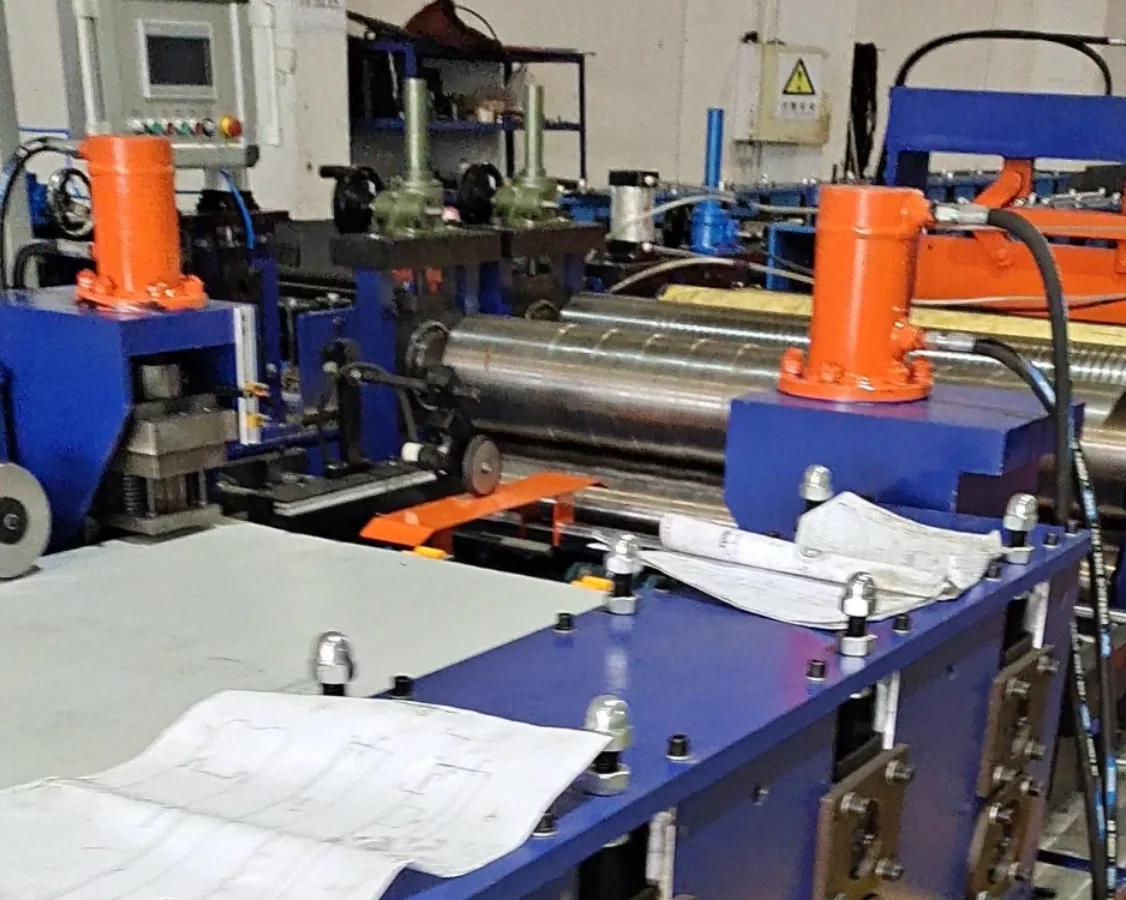

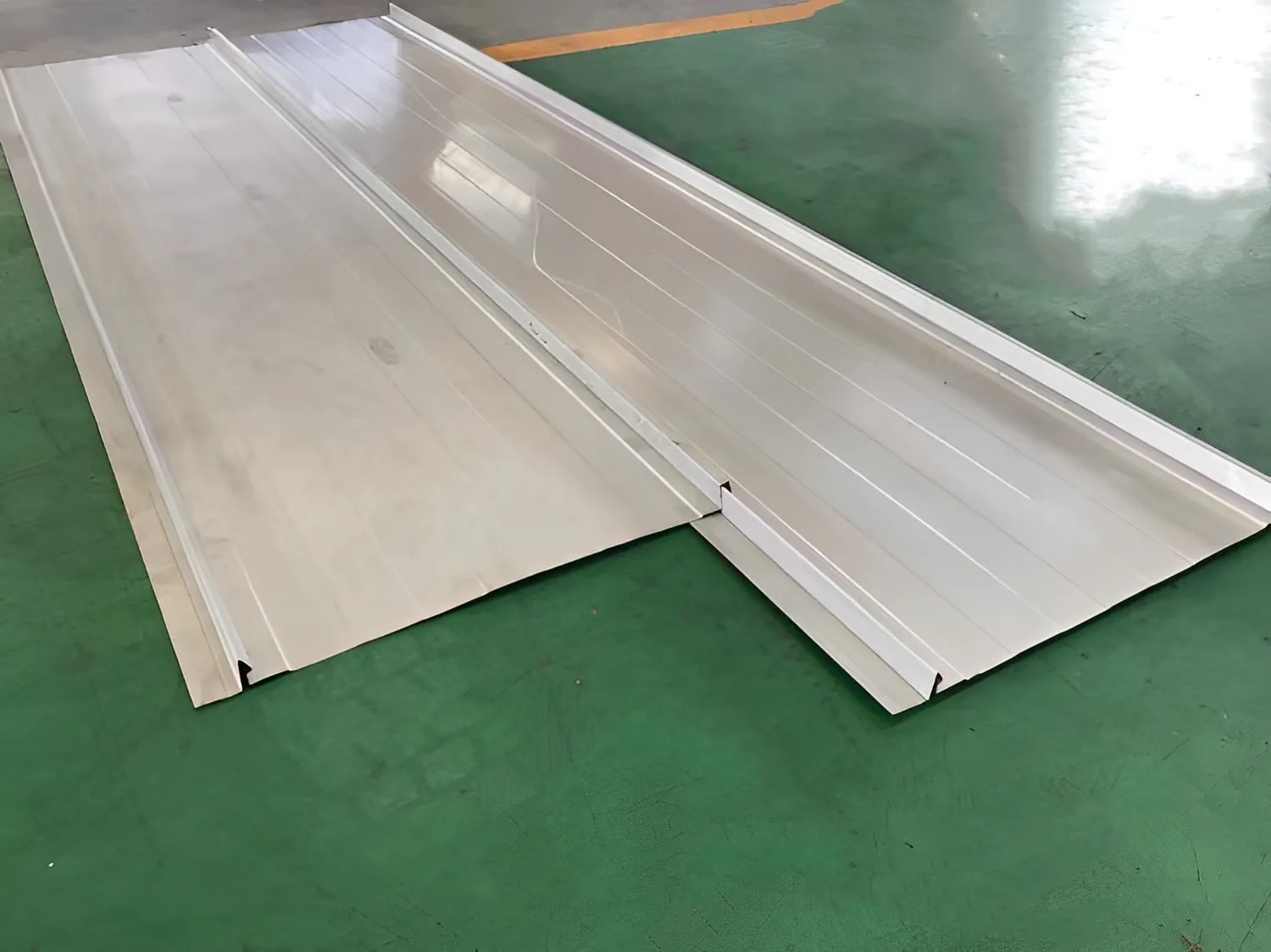

Product Display
5 Tons Passive Decoiler
* Type:5 passive tons,
* Range of expansion: 400mm-570mm
* Range of expansion: 400mm-570mm
Pre-punching and Pre-cutting device
(1) Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically
start.
(2) Material of blade: CR12mov heat treatment
(3) Length measuring: Automatic length measuring
(4) Tolerance of length: +/- 1.5mm
start.
(2) Material of blade: CR12mov heat treatment
(3) Length measuring: Automatic length measuring
(4) Tolerance of length: +/- 1.5mm

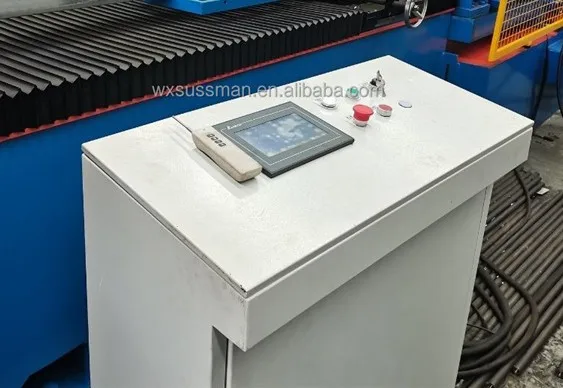

Control Box
(1) Voltage, Frequency, Phase:380v, 50 Hz, 3Phase
(2) Automatic length measurement:
(3) Automatic quantity measurement
(4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is
achieved
(5) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) Unit of length: millimeter (switched on the control panel)
(2) Automatic length measurement:
(3) Automatic quantity measurement
(4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is
achieved
(5) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) Unit of length: millimeter (switched on the control panel)
Output Table
Length: 2 meters
Quantity: 2 Units
Quantity: 2 Units

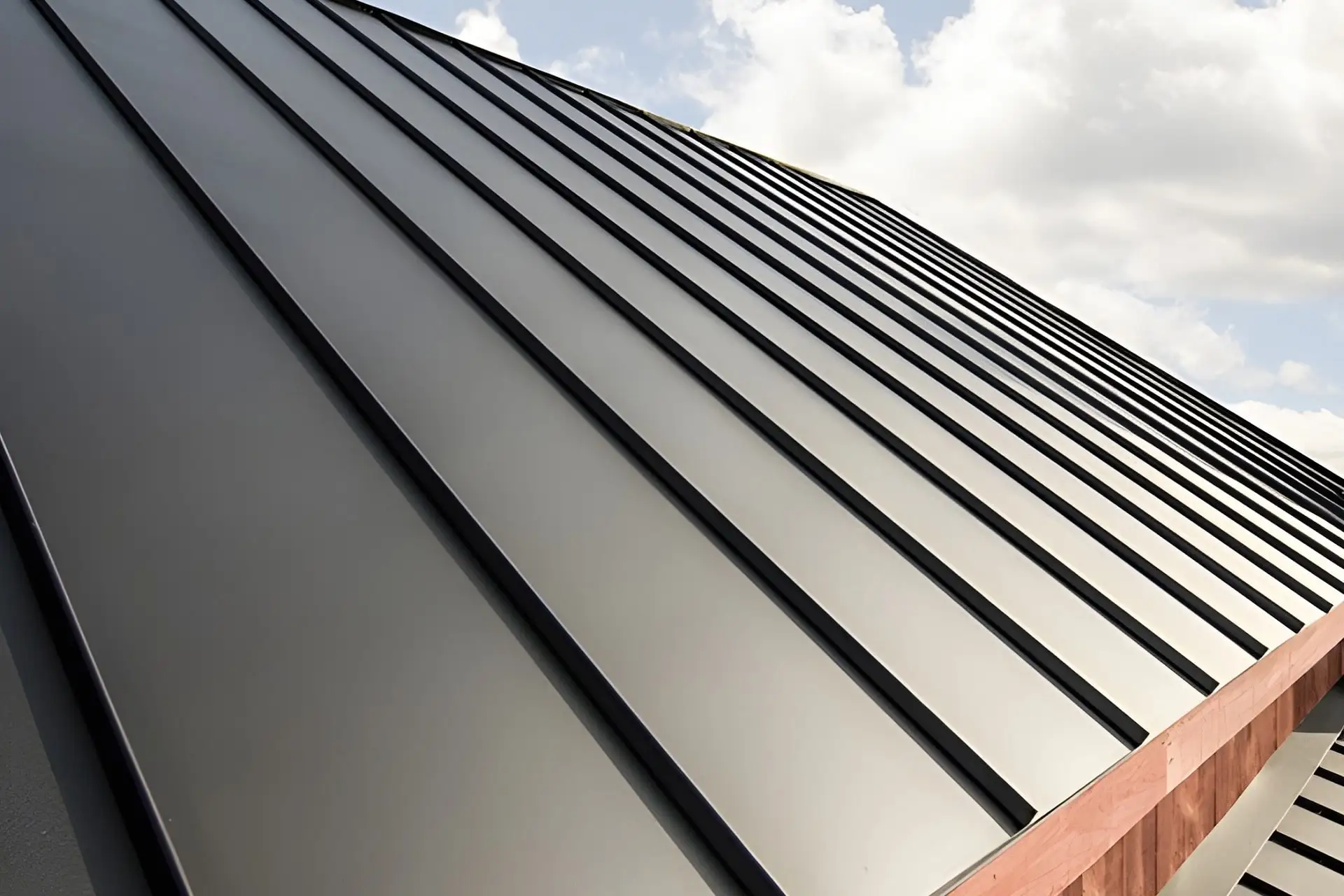

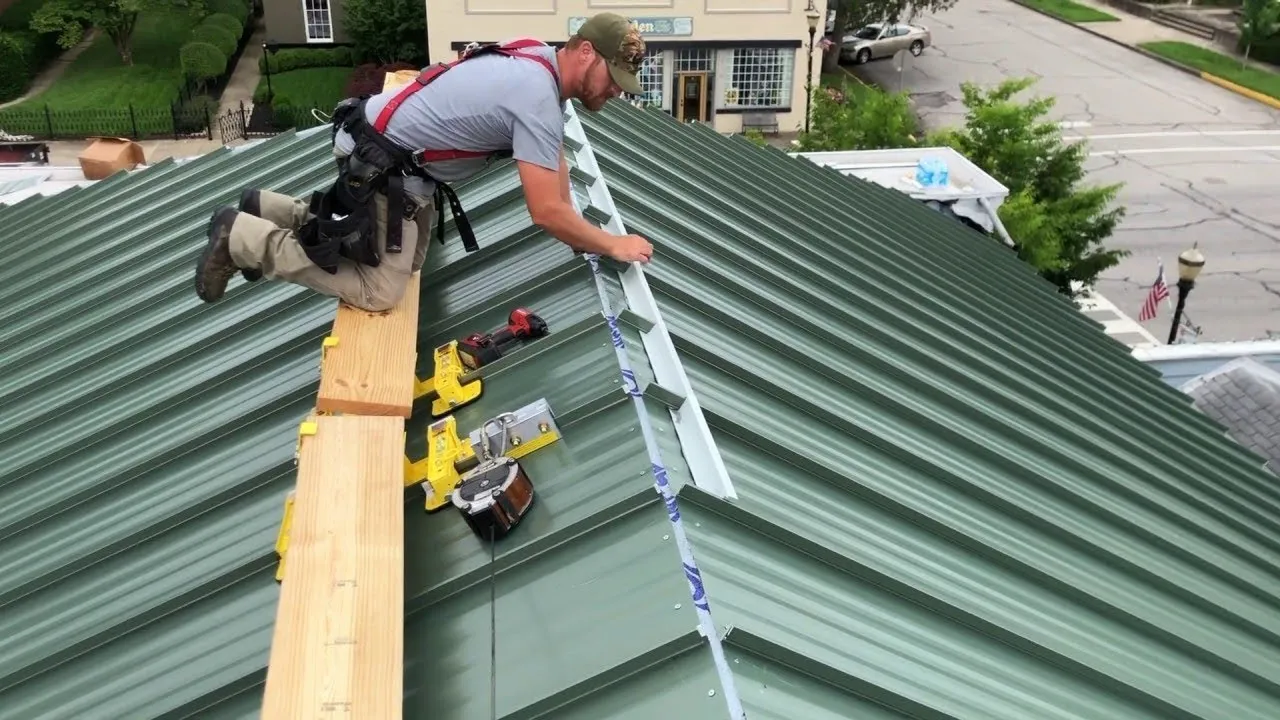

Application
Company Information
Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 20 years before, it' s always design and produce various type profile of roll forming machine.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
Packing & Delivery
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will paint the coil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire ropes, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
Second, make some protection on the machine, Such as, we will paint the coil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire ropes, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container

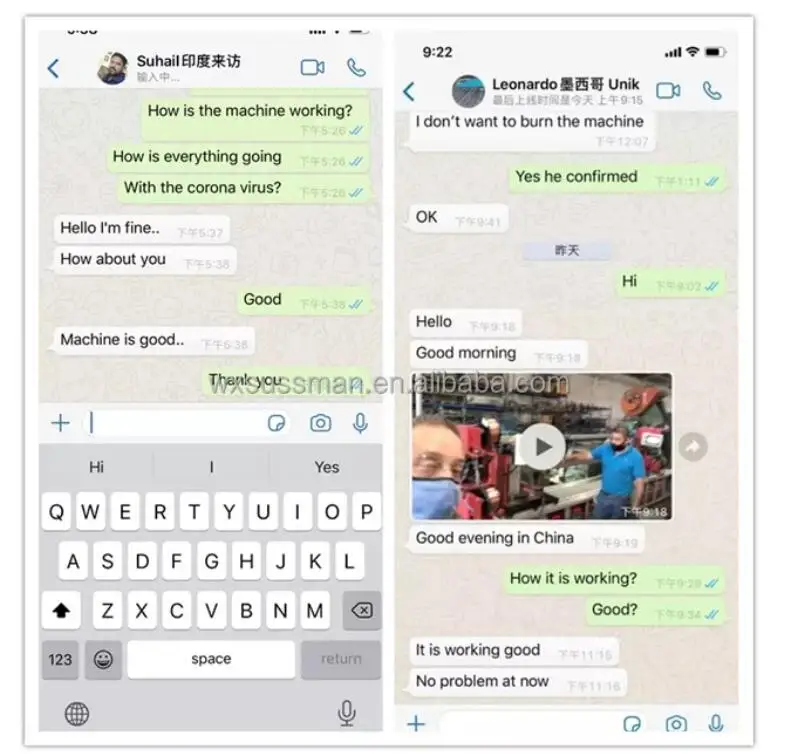

Our Customers
Sussman Machinery has exported its equipment and machines to more than 80 countries over the world, such as Russia, India, Australia, Malaysia, Nigeria, Romania, Rwanda,UNITED ARAB EMIRATES,Tanzania,Kenya,Philippines, Indonesia,South
Africa,Mauritius,Mexico,etc. It has received excellent reputation. In the future, we are committed to better equipment and sales service and meeting customers' requirements when and where they need.
Africa,Mauritius,Mexico,etc. It has received excellent reputation. In the future, we are committed to better equipment and sales service and meeting customers' requirements when and where they need.
