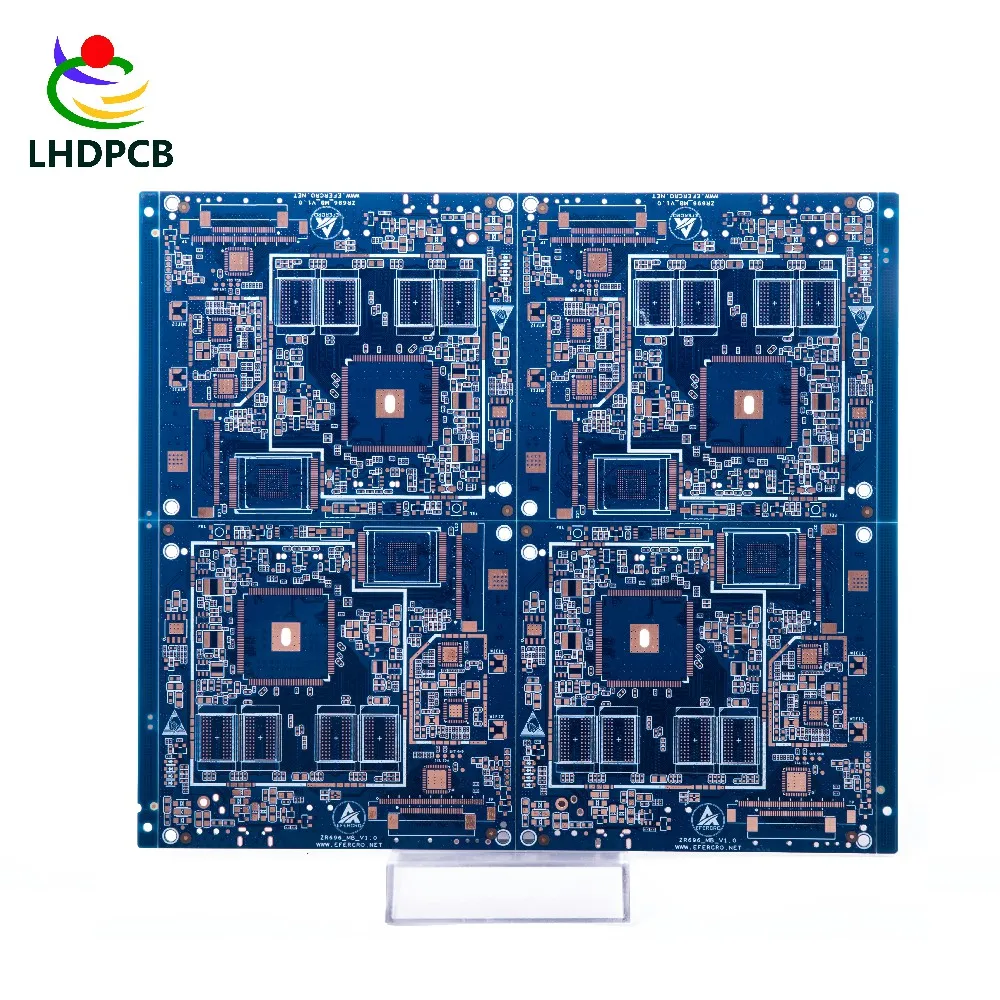

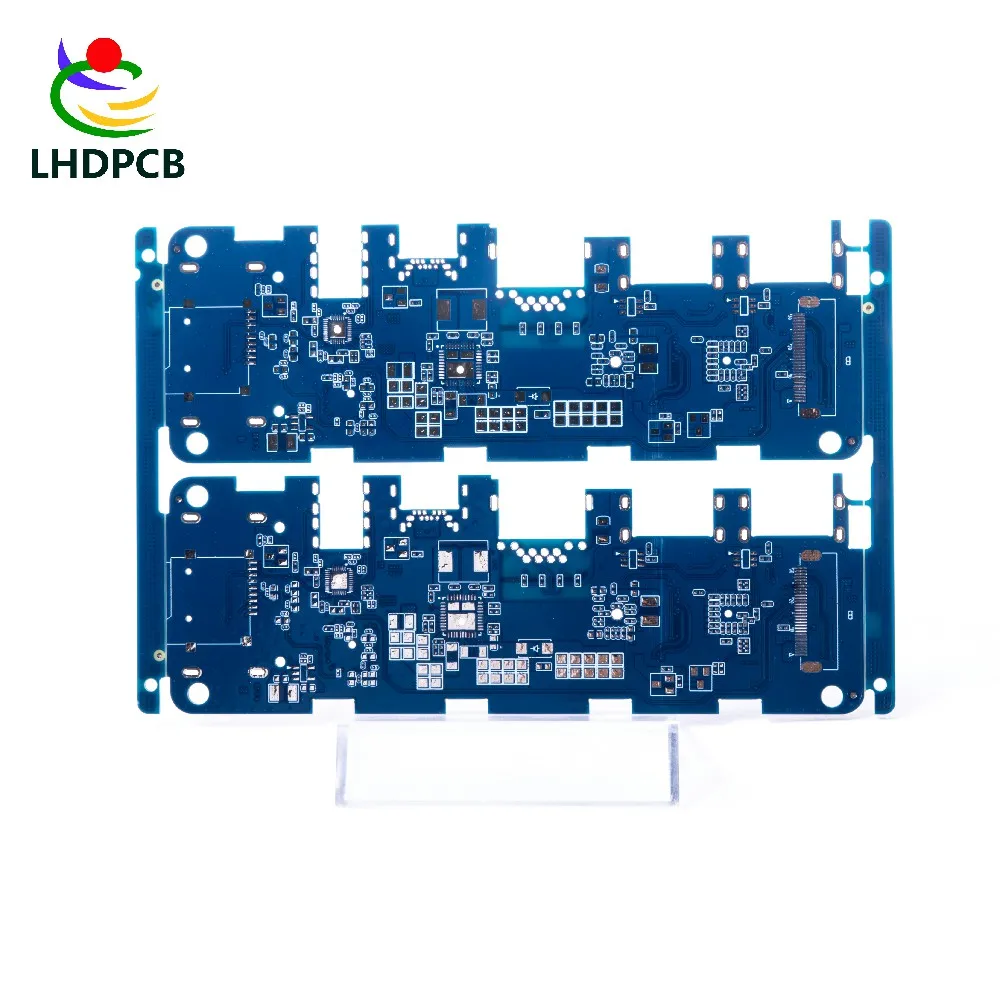

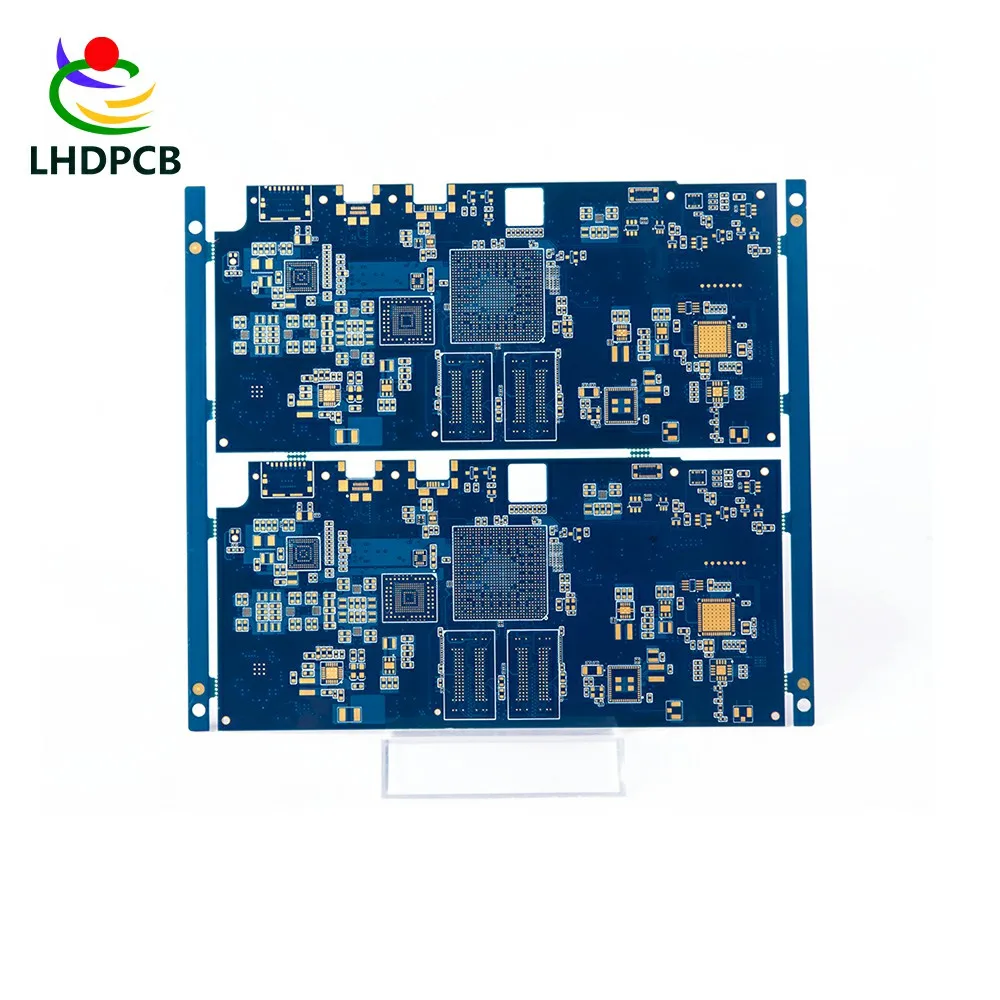

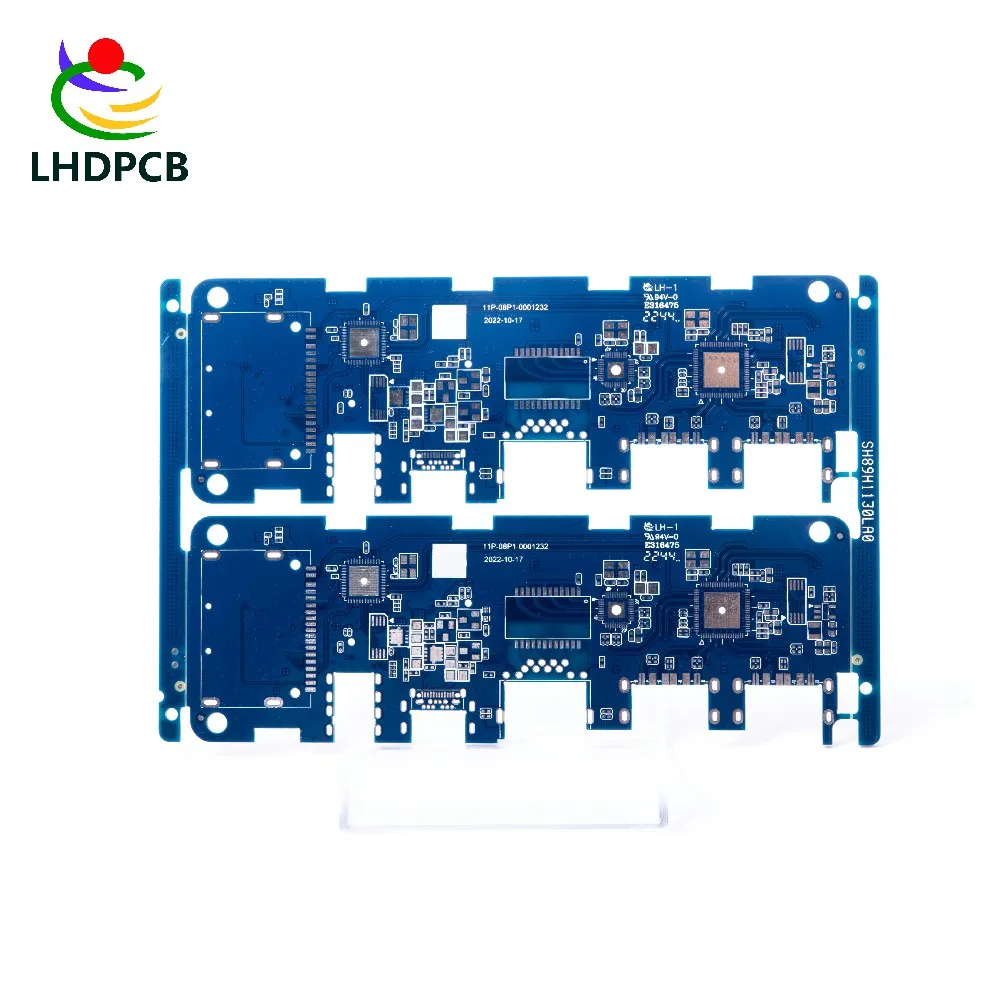

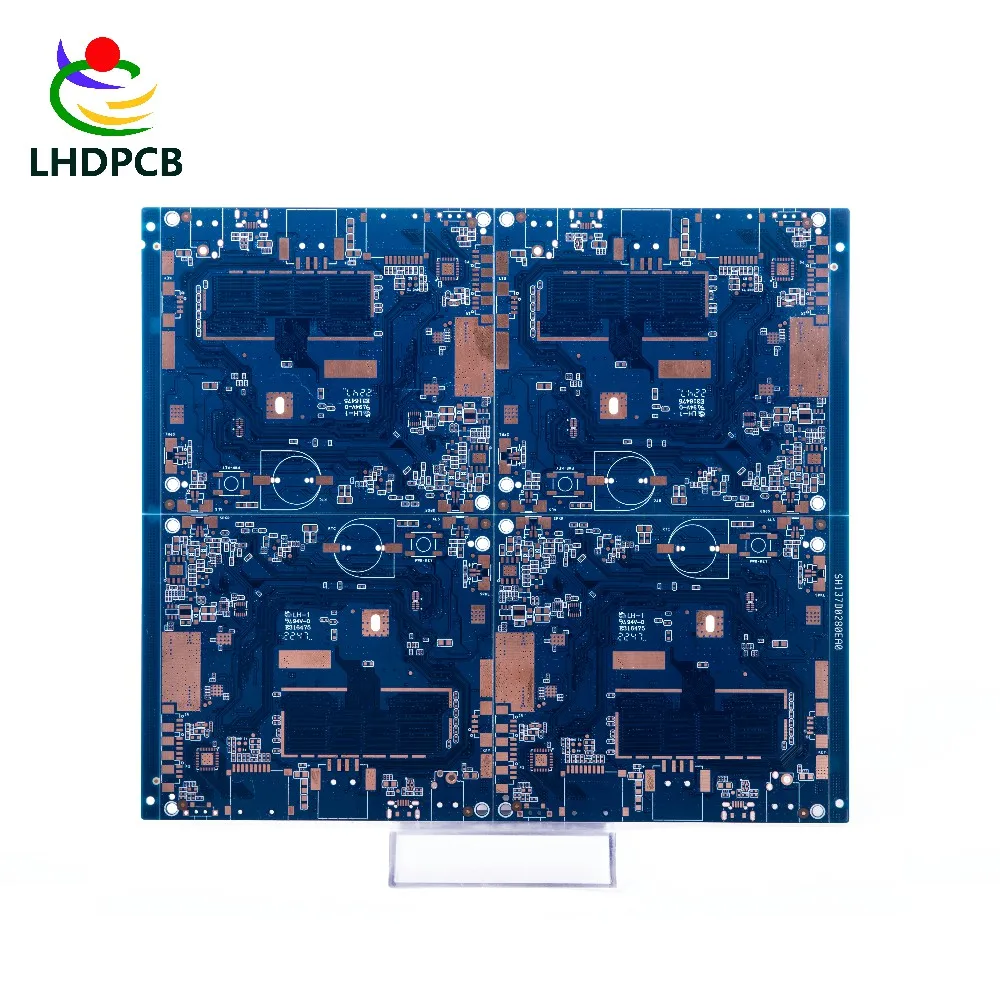

Support One Stop Oem Service Pcb Assembly Pcb Manufacturer In China
- Category: PCB & PCBA >>>
- Supplier: Huizhou Linghangda Technology Co. Ltd.
Share on (1600710366100):
Product Overview
Description
Product Paramenters
Specification of PCB Manufacturing | ||
Items | Paramerers | |
Double side/Mulyti-layer | ||
Max panel size | 32'*20'(800mm*508mm) | |
Minimum track/gap IL | 0.075mm/0.075mm(3mil/3mil) | |
Min annular ring on inner layer one side | 3mil(0.075mm) | |
Maximum Cu weight OL | 6oz(210um) | |
Maximum Cu weight 1L | 12oz(420um) | |
Finished board thickness | 0.20-6mm | |
Layer count | 2-32L | |
Layer to layer registration | ±3mil(±76um) | |
Min finished hole diameter | 0.15mm(6mil),0.1mm(4mil) for HDI | |
Hole position Accuracy | ±2mil(±50um) | |
Slot hloe Tolerance | ±3mil(±75um) | |
PTH diameter tolerance | ±2mil(±50um) | |
NPTH diameter tolerance | ±1mil(25±um) | |
Max Aspect ratio PTH | 10:1 | |
Copper on the wall of the holes | 0.4-2mil(10-50um) | |
Grapic pattern registration tolerance | ±3mil(0.075um) | |
Minimum track/gap 1L(mil)-copper weight dependant | 3mil/3mil(75um/75um) | |
The track Etching tolerance | ±1mil(±25um) | |
buyer feedback
Exhibition
IPCA Expo2019
IPCA is an electronics expo ,numerous representatives of several subareas involved in electronics come together under one roof in
order to demonstrate the latest manufacturing equipments, components .
order to demonstrate the latest manufacturing equipments, components .
Company Profile
Packing and Delivery
Application
Mainly used in industrial control, medical instruments, automotive LED lights, communications, security Aviation and so on. All PCBS have passed ISO9001, ROHS certification, and comply with international IPC standards.
FAQ
Q: What is needed for PCB/PCBA quotation? | ||||||||
A: For Bare PCB project, please provide Quantity, Gerber file and specification like material, surface finish treatment, copper thickness, board thickness, soldermask color and silkscreen color and other special | ||||||||
Q: Are my files safe? | ||||||||
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties. We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level. | ||||||||
Q:What is your minimum order quantity (MOQ)? | ||||||||
A:Our MOQ is 1 PCS, sample and mass production all can support. | ||||||||
Q: How to calculate the shipping cost? | ||||||||
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost. | ||||||||
Q:Are you factory? | ||||||||
A:YES,Our factory is located in No.26,Meiyuan 3rd Road,Intercontinental Industrial Park,Luoyang Town,Boluo County,Huizhou,Guangdong,China. | ||||||||
Q: What is your testing policy and how you control the quality? | ||||||||
A: Regarding to PCB samples, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by Electrical fixture which is faster. As to PCBA production, there are automated optical inspection (AOI) for each batch, X-ray inspection for BGA parts, first article inspection(FAI) before mass production. | ||||||||
