4s 8s Active Balance 1A 2A Smart BMS A phone App BLE RS485 USB PC CAN BMS системы литий ионного аккумулятора
- Category: PCB & PCBA >>>
- Supplier: Chengdu Heltec Energy Technology Co. Ltd
Share on (1600710527372):
Product Overview
Description
Brand: | HeltecBMS |
Product: | 4s -24s Active Balance Smart BMS 40A 60A 80A 100A 150A 200A BMS 0.4A 0.6A 1A 2A BLE RS485 CAN Bms lithium ion batter Systems |
Material: | PCB board |
Country of origin： | China |
MOQ： | 1 pcs |
Balance Type: | Active Balancing |
to be customized: | CAN or RS485 |
Products Description

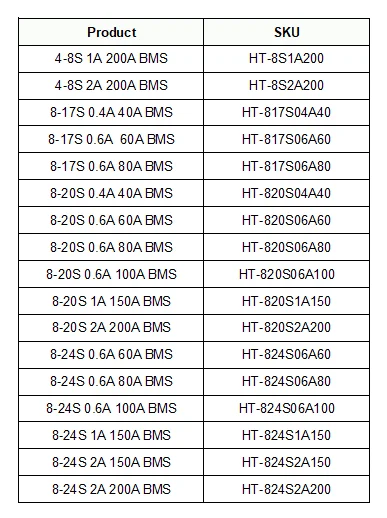

Product | SKU |
8-17S 0.4A 40A BMS | HT-817S04A40 |
8-17S 0.6A 60A BMS | HT-817S06A60 |
8-17S 0.6A 80A BMS | HT-817S06A80 |
8-20S 0.4A 40A BMS | HT-820S04A40 |
8-24S 0.6A 60A BMS | HT-824S06A60 |
8-24S 0.6A 80A BMS | HT-824S06A80 |
8-24S 0.6A 100A BMS | HT-824S06A100 |
8-24S 1A 150A BMS | HT-824S1A150 |
8-24S 2A 150A BMS | HT-824S2A150 |
8-24S 2A 200A BMS | HT-824S2A200 |
4-8S 1A 200A BMS | HT-8S1A200 |
4-8S 2A 200A BMS | HT-8S2A200 |
BT communication:
Support BT communication function, mobile APP supports Android/IOS, check battery status in real time through APP, set
protection board work parameters, and charge and discharge switch
GPS positioning + cloud data (Now only china market support GPS function)
Support GPS positioning, real-time viewing of battery location, track playback, etc., support for cloud remote data viewing,
remote cut off discharge of battery and other functions
High-precision coulomb meter
Accurately calculate remaining battery charge and base on current-time integration
Support CAN/RS485 interface (optional)
Support CAN/RS485 interface, user protocol can be embedded, flexible expansion
Independent watchdog design (optional)
Independent watchdog design, real-time monitoring program running status, never crash
RS485 & CAN
RS485 & CAN is customized, kindly contact us to buy separately. We only ship the BMS
Support BT communication function, mobile APP supports Android/IOS, check battery status in real time through APP, set
protection board work parameters, and charge and discharge switch
GPS positioning + cloud data (Now only china market support GPS function)
Support GPS positioning, real-time viewing of battery location, track playback, etc., support for cloud remote data viewing,
remote cut off discharge of battery and other functions
High-precision coulomb meter
Accurately calculate remaining battery charge and base on current-time integration
Support CAN/RS485 interface (optional)
Support CAN/RS485 interface, user protocol can be embedded, flexible expansion
Independent watchdog design (optional)
Independent watchdog design, real-time monitoring program running status, never crash
RS485 & CAN is customized, kindly contact us to buy separately. We only ship the BMS
Hint:
Plug into the charger to activate the boot, and make sure that the charger voltage is greater than 4V of the battery pack voltage to activate
Plug into the charger to activate the boot, and make sure that the charger voltage is greater than 4V of the battery pack voltage to activate
summary
The lithium battery intelligent protection board is a management system tailored for the large capacity series lithium battery pack, which has the functions of voltage acquisition, large current active equalization, overcharge, over discharge, over temperature protection, coulometer, Bluetooth communication, GPS remote, etc. It is suitable for lithium iron phosphate, lithium ternary and lithium titanate batteries.
Relying on the energy transfer active equalization technology with independent intellectual property rights, the protection board can realize the maximum continuous 2A equalizing current. High current active equalization technology can maximize battery consistency, improve battery range, and delay battery aging.
The protection board has a supporting mobile app, which supports Android and IOS operating systems. The APP can be connected to the protection board through the mobile phone Bluetooth to check the battery working status, modify the working parameters of the protection board, control the charging and discharging switch, and so on. The protective plate is small in size, simple in operation and full in function, and can be widely used in battery PACK of small sightseeing cars, courtesy cars, shared cars, high-power energy storage, base station backup power, solar power stations and other products.
Relying on the energy transfer active equalization technology with independent intellectual property rights, the protection board can realize the maximum continuous 2A equalizing current. High current active equalization technology can maximize battery consistency, improve battery range, and delay battery aging.
The protection board has a supporting mobile app, which supports Android and IOS operating systems. The APP can be connected to the protection board through the mobile phone Bluetooth to check the battery working status, modify the working parameters of the protection board, control the charging and discharging switch, and so on. The protective plate is small in size, simple in operation and full in function, and can be widely used in battery PACK of small sightseeing cars, courtesy cars, shared cars, high-power energy storage, base station backup power, solar power stations and other products.

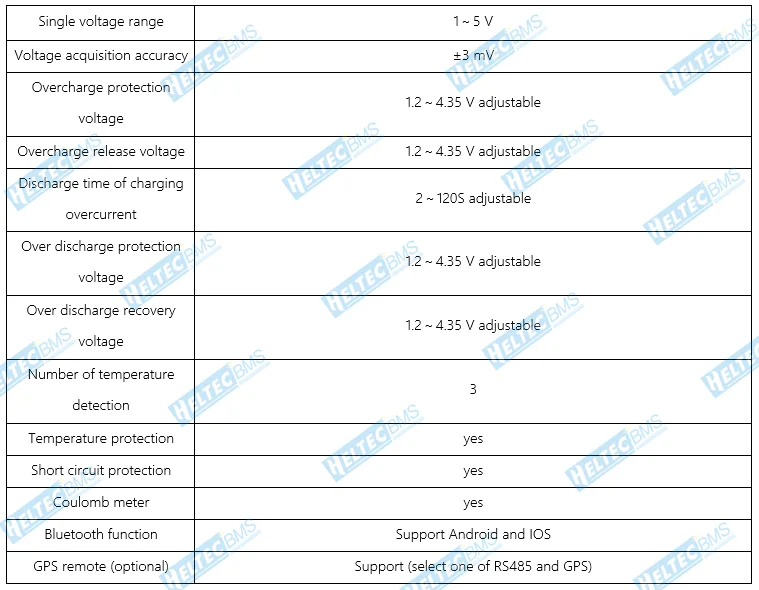

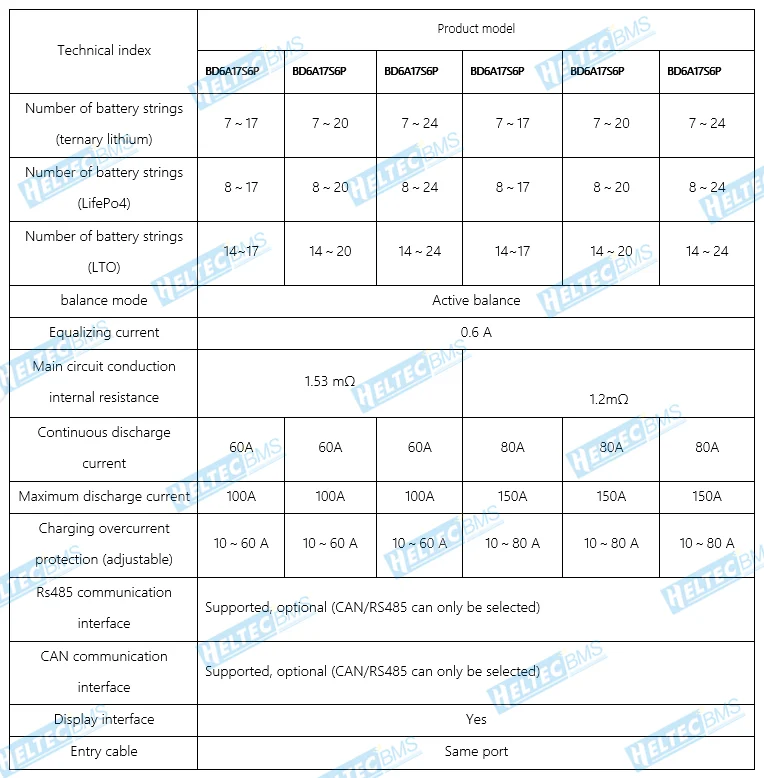

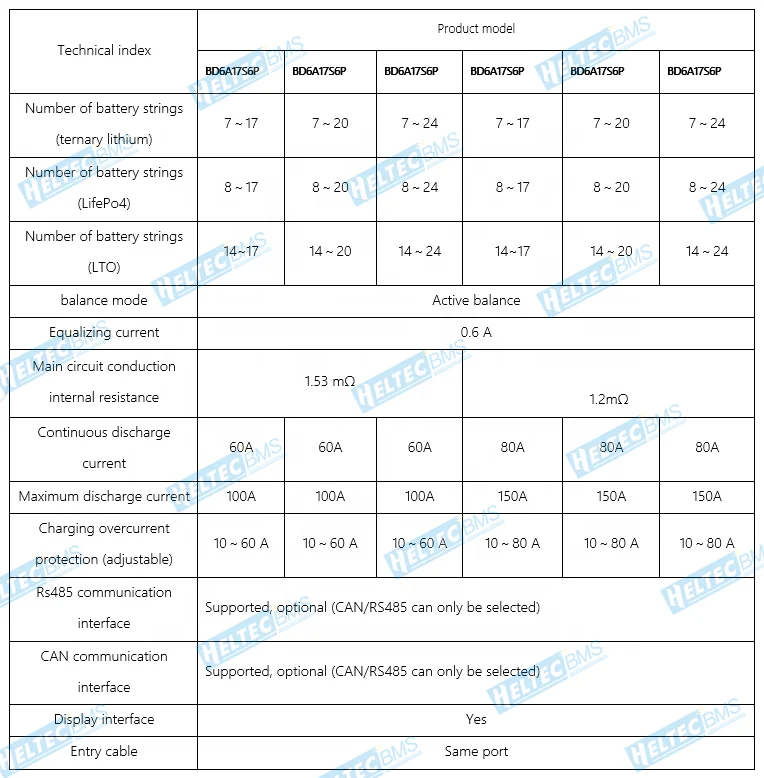

Future and Model Selection:

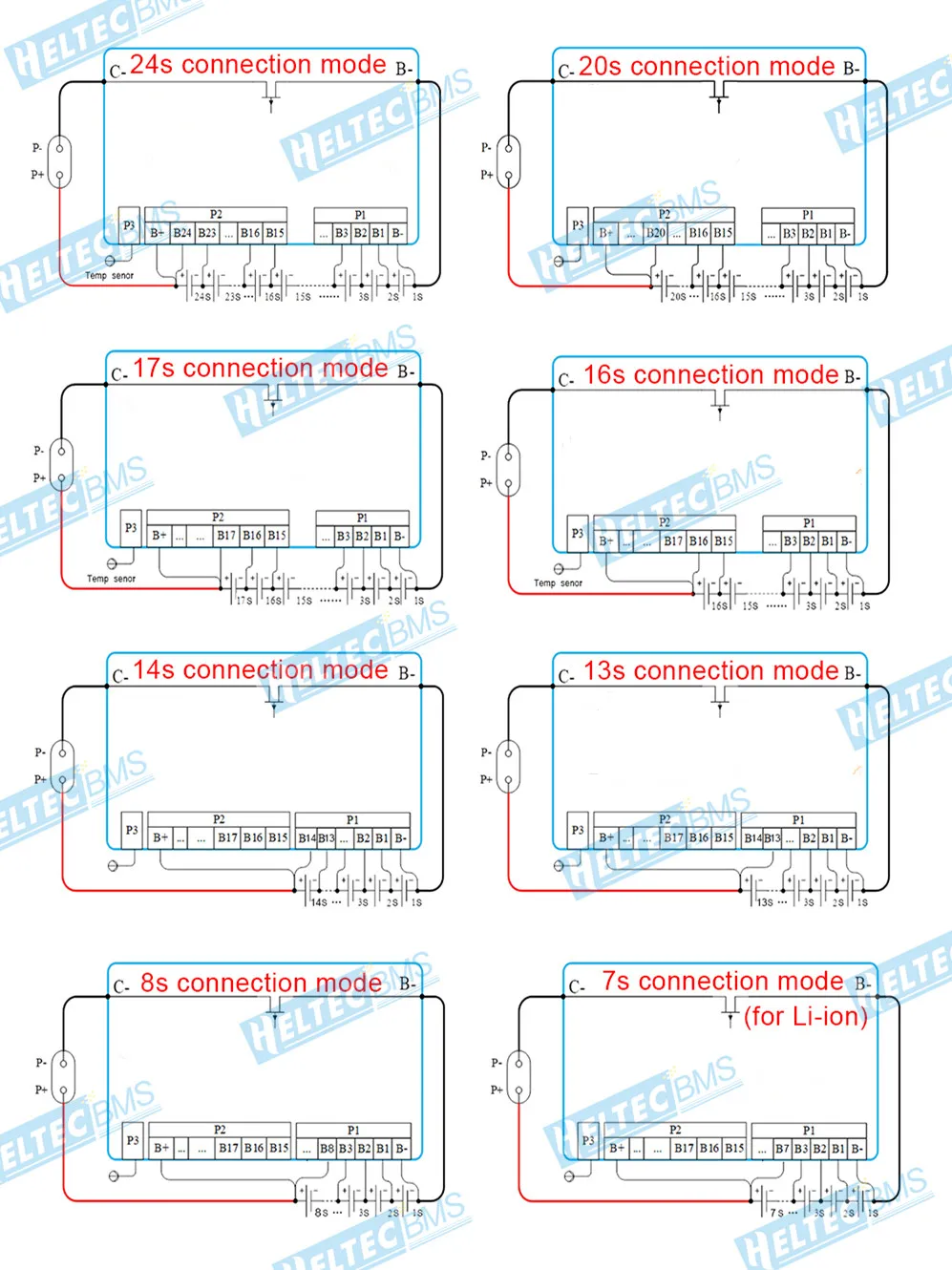

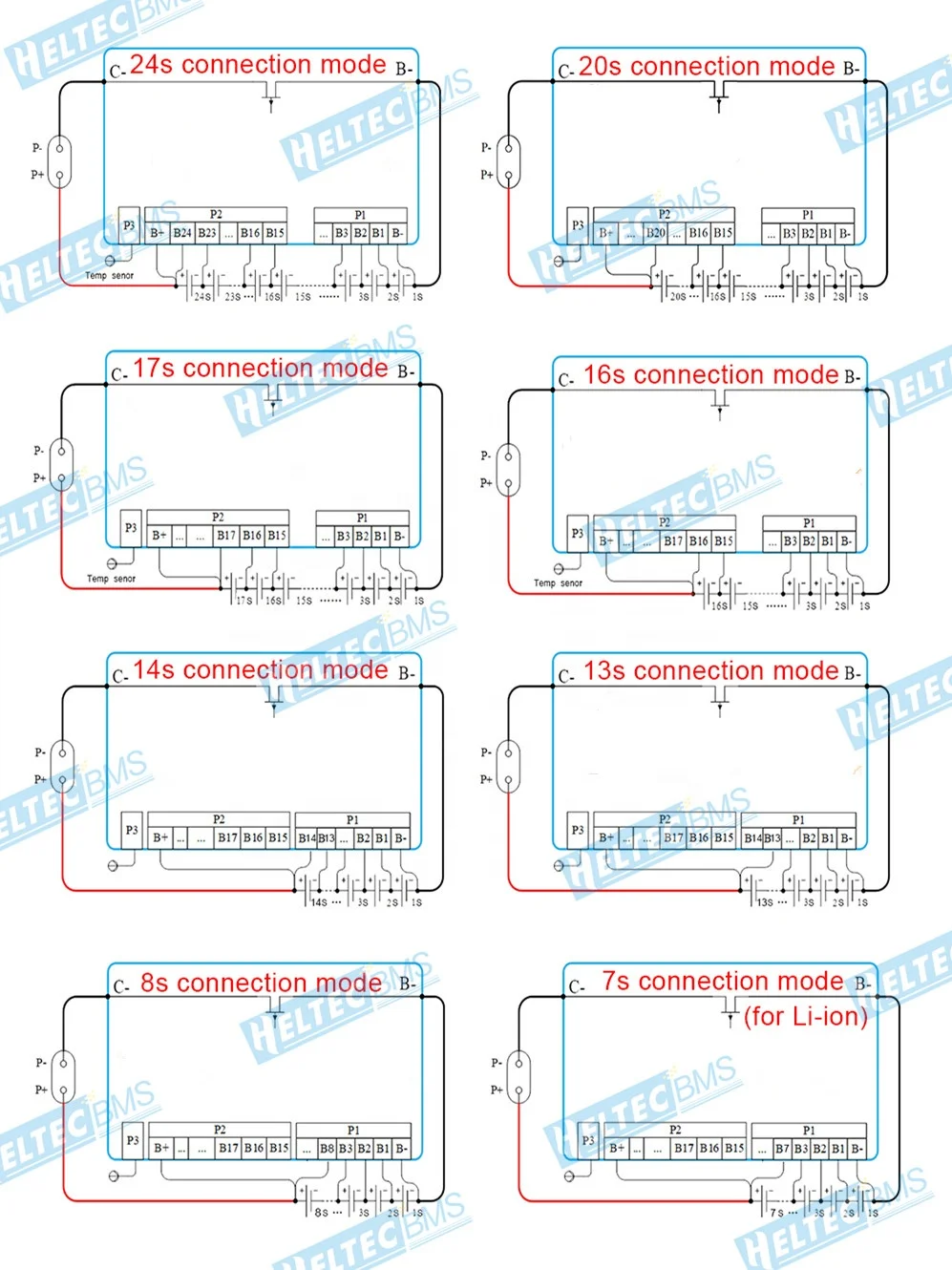

Connection

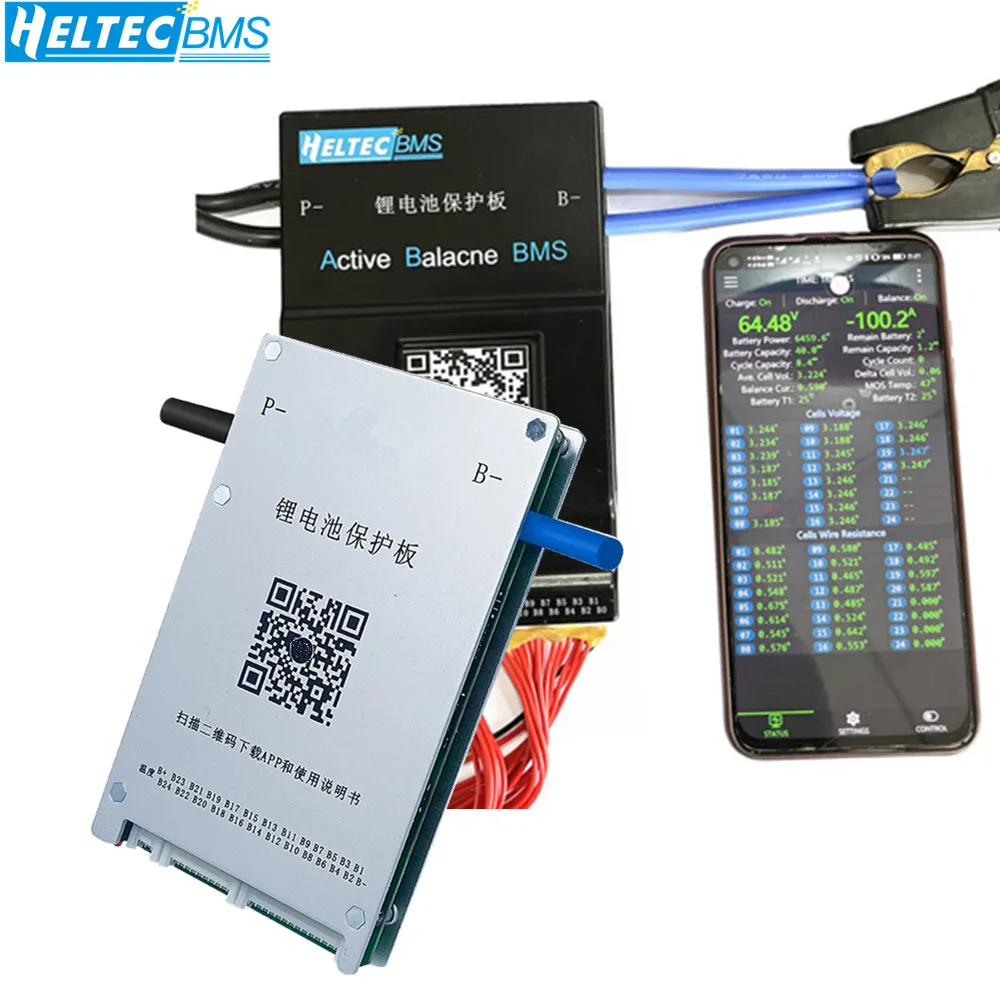

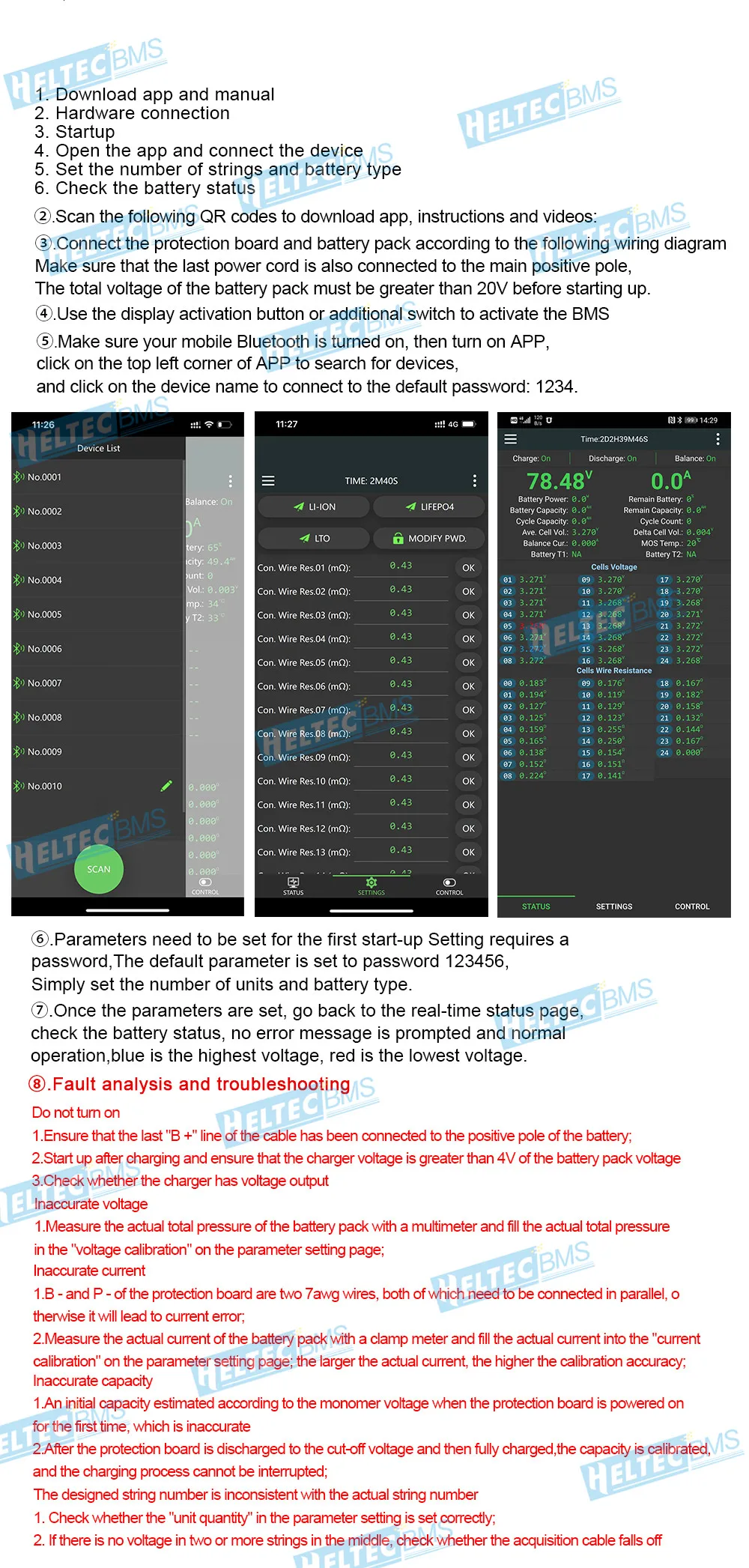

Connect the APP

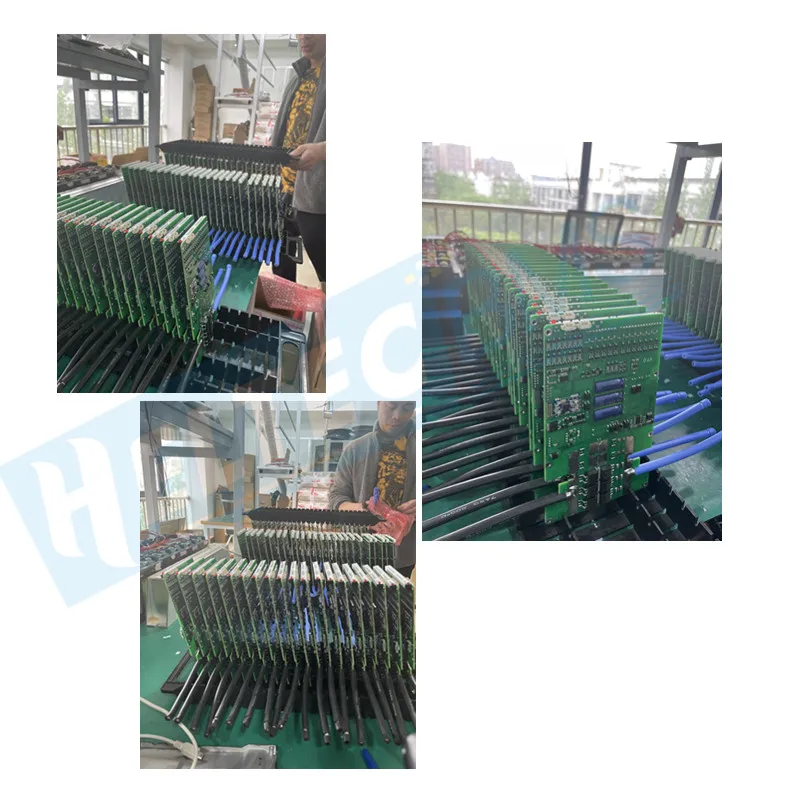

Company Profile
Chengdu HeltecBMS Electronic Technology Co., Ltd
Chengdu HeltecBMS Electronic Technology Co., Ltd is located in Chengdu, Sichuan province, China .HeltecBMS is a one stop power system provider, engaged in research and development and sales of lithium battery,Active Balancers,BMS,Spot welding and its accessories. There are already strong technical r&d teams,scientific production platform and strict quality control system and few technologies in China that can truly achieve active balancing and protect the battery. After three years, we have built our own brand product,HeltecBMS, which sells well in more than 100 countries around the world.On the road to innovation, we are not standing still.We constantly, with high quality requirements, to meet the market demand as the goal, development and production of exquisite appearance, excellent performance, energy conservation and environmental protection green products, is committed to be a leader in the electronic market. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success! Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.\t
FAQ
1. Can you accept customization?
A: Yes，our company has a design department.And we provide Hardware design,ARM and Mbed system sofftware design...
If you want to know our service ,please click here: Why choose Us
Bms lithium ion battery
2. How long will it take for sample making and mass production?
A: it takes 3-5 days to make the sample, and 7-30 days for mass production.
Bms lithium ion battery
3.How about the productivity of your company?
A.We have enough storage for most of our products,if you need customize we have SMT factory to fulfill your needs after you pay for the products.
Bms lithium ion battery
4.What about the mode of transportation ?
A: according to the quantity and volume, we will choose the most suitable mode of transportation for you. Of course, you are also free to choose.
A: Yes，our company has a design department.And we provide Hardware design,ARM and Mbed system sofftware design...
If you want to know our service ,please click here: Why choose Us
Bms lithium ion battery
2. How long will it take for sample making and mass production?
A: it takes 3-5 days to make the sample, and 7-30 days for mass production.
Bms lithium ion battery
3.How about the productivity of your company?
A.We have enough storage for most of our products,if you need customize we have SMT factory to fulfill your needs after you pay for the products.
Bms lithium ion battery
4.What about the mode of transportation ?
A: according to the quantity and volume, we will choose the most suitable mode of transportation for you. Of course, you are also free to choose.
Bms lithium ion battery
5.How do you guarantee the quality of your products?
A: We have professional instruments and equipment for development and test.And we use manual inspection. Each product will be tested before packaging. 200A BMS
5.How do you guarantee the quality of your products?
A: We have professional instruments and equipment for development and test.And we use manual inspection. Each product will be tested before packaging. 200A BMS
