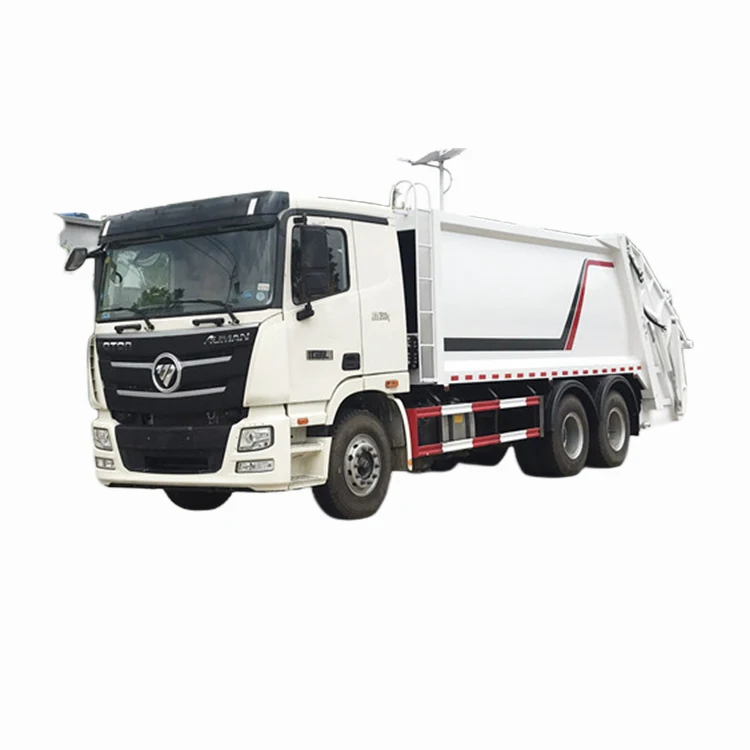

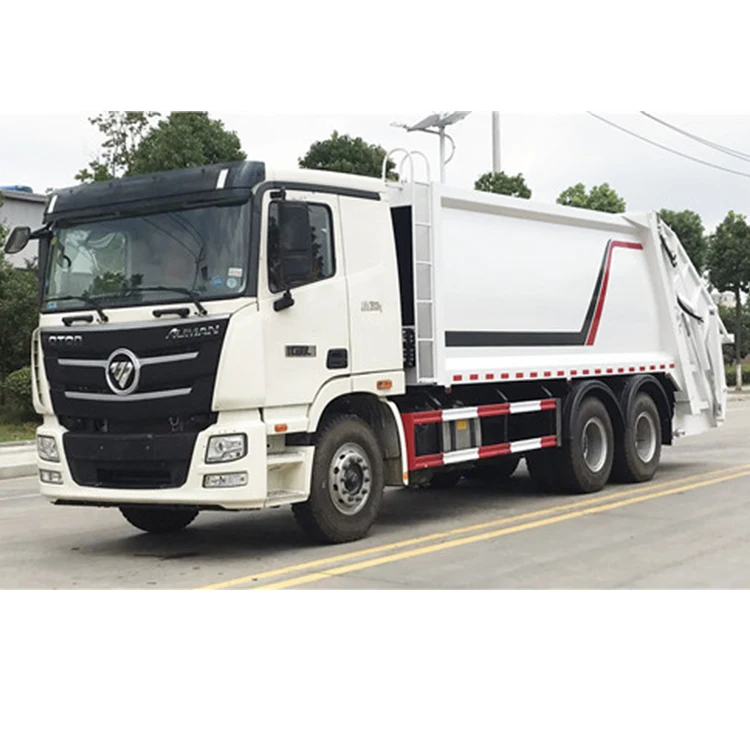

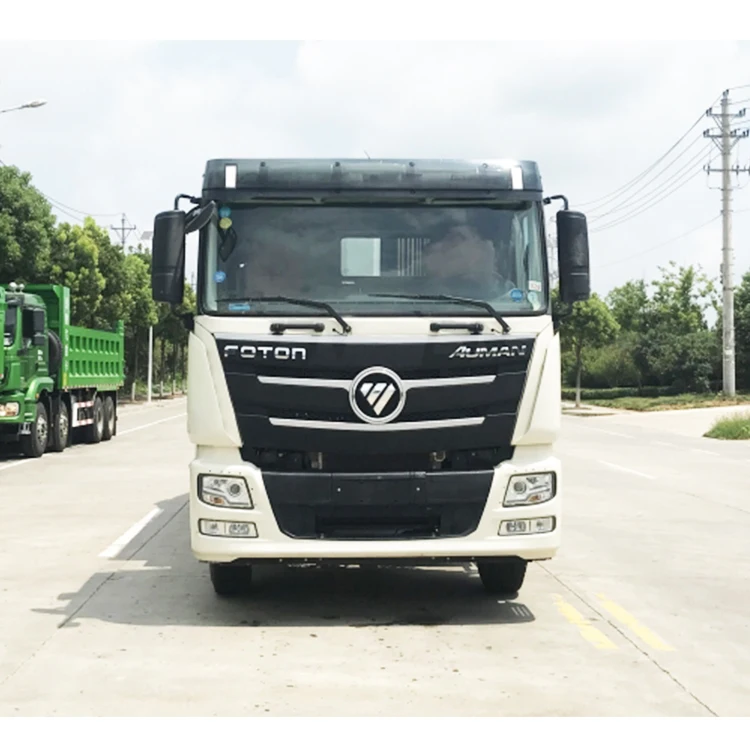

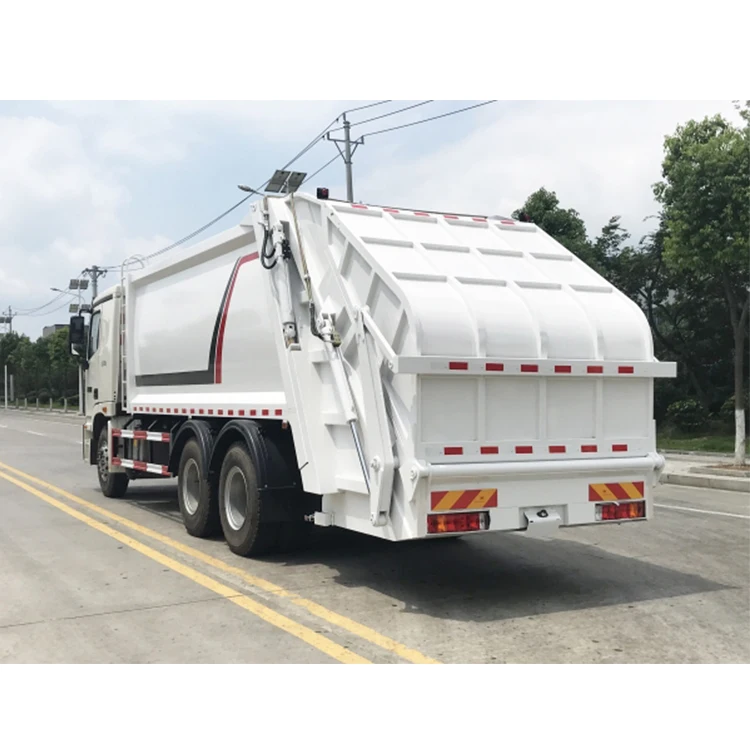

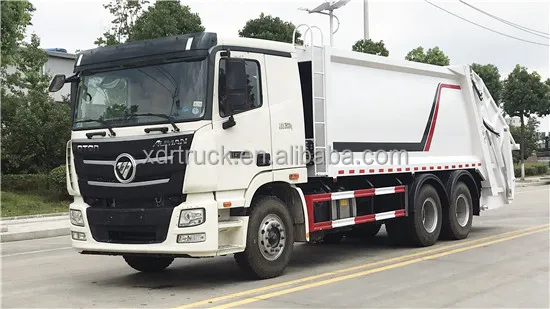

XDR Made Waste Disposal Compactor Garbage Can Cleaning Truck for sale
- Category: >>>
- Supplier: Hubei Xindongri Special Vehicle Co. Ltd.
Share on (1600714524802):
Product Overview
Description
Specification
Vehicle Parameter： | ||
Product Name | Compactor Garbage Truck | |
Model | YZR5259ZYSB6 | |
Chassis No. | BJ1253VLPJE-1 | |
Driving Type | 6*4 | |
Gross Weight | 25000kg | |
Related Loading Mass | 9630kg | |
Curb Weight | 15240kg | |
Dimension | 10360×2500×3350mm | |
Wheelbase | 4500+1350（mm） | |
Front Axle Loading Capacity | 7000kg | |
Rear Axle Loading Capacity | 18000kg | |
Approach angle | 17° | |
Departure angle | 10° | |
Front Suspension | 1460mm | |
Rear Suspension | 2850mm | |
Tire | 12.00R20,10+1 PCS | |
Max Speed | 101(Km/h） | |
Engine parameters: | ||
Model | WD615.34 | |
Horse Power | 340hp | |
Displacement | 9726cc | |
Emission Standard | Euro 2 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling) | |
Gear Box | ||
Gear Box | 10 forward and 1 reverse | |
Superstructure Parameter： | ||
Tank Volume | 18CBM | |
Tank Shape | Arc-shape | |
Tank Material thickness | Bottom:5mm Side:5mm | |
Tank Material | Carbon Steel (high quality) | |
Compression Ratio | ≥2.5 | |
The effective volume of the bucket | ≥0.8m³ | |
Loading cycle time | ≤40 s | |
unload garbage time | ≤45s | |
control method | Automatic、Manual | |
Maximum pressure of hydraulic system | 20MPa | |
Control System | Siemens PLC | |
Engine power control | Fully automatic control | |
Tumbler mechanism | 240L Garbage bin（Others Optional） | |
