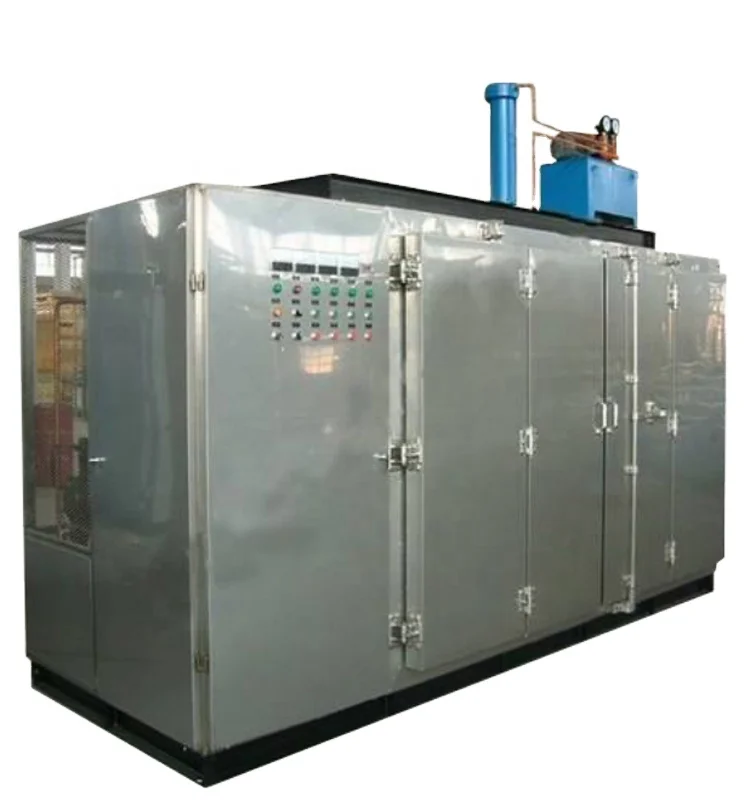

750 кг, морозильная камера, гидравлическая горизонтальная Контактная Пластина, морозильная камера, морская машина для морепродуктов, креветок
- Category: Freezing Equipment >>>
- Supplier: Shandong Ecoice Refrigeration Co. Ltd.
Share on (1600717850387):
Product Overview
Description
Product Description

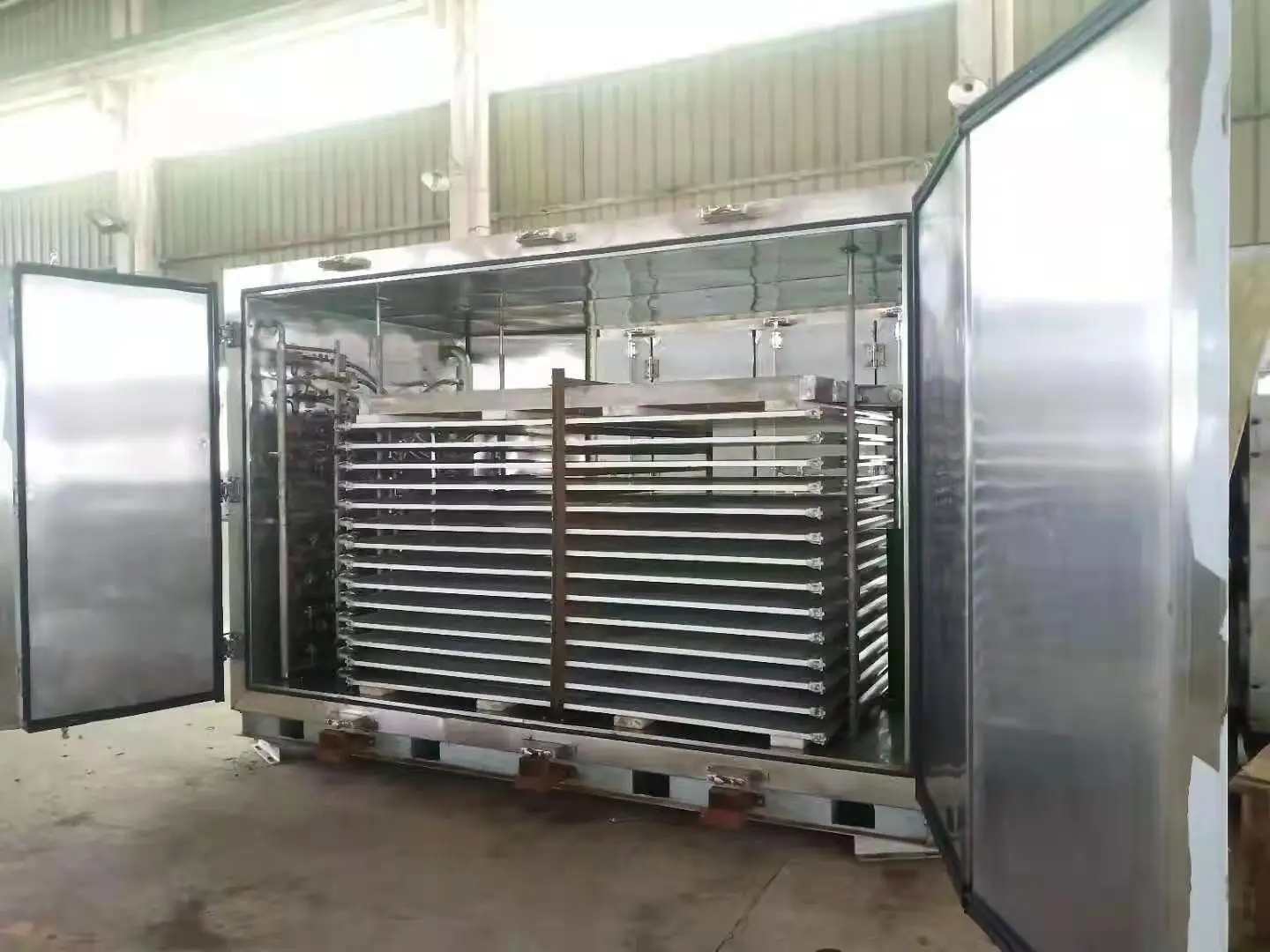

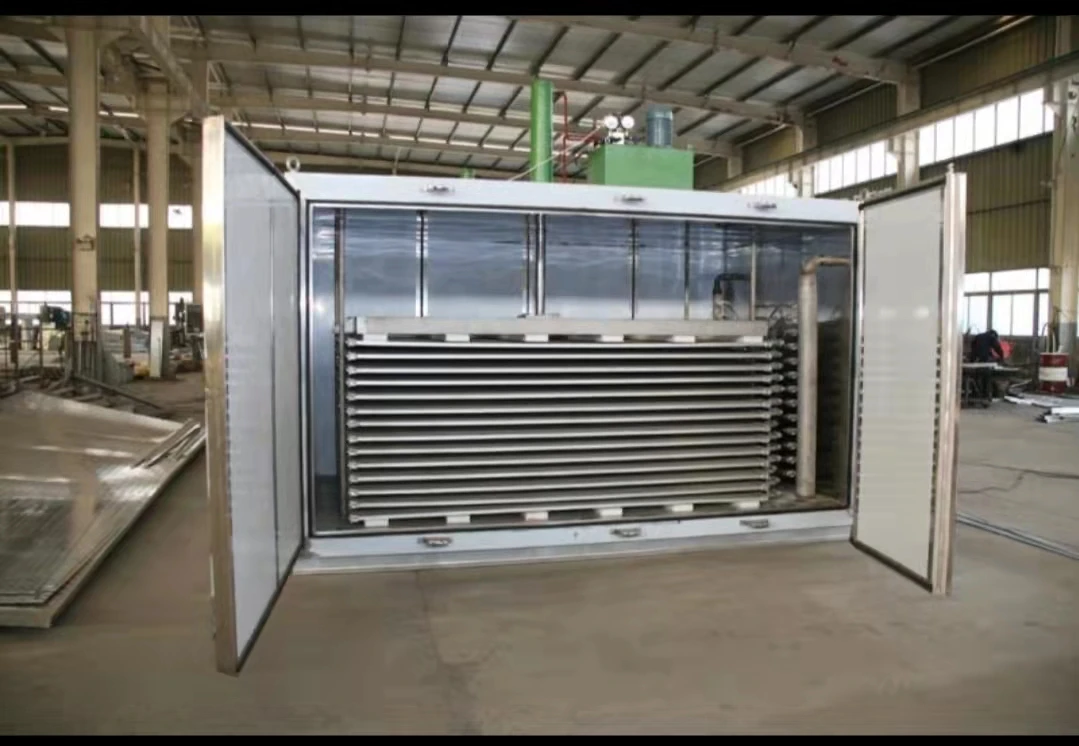

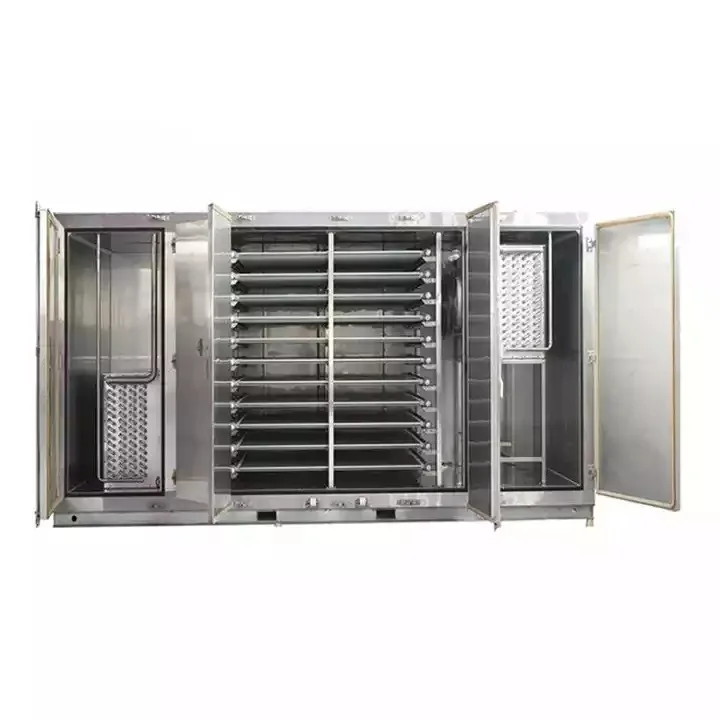

Introduction of Hydraulic Contact Plate Freezer
Contact plate quick freezer can quickly freeze products by moving up and down the inside aluminum plates so that the products
exchange heat with two plates.
Refrigeration system can be equipped as per different requirement of users.
exchange heat with two plates.
Refrigeration system can be equipped as per different requirement of users.
The plate quick freezer is suitable for freezing block food, such as fish fillet, minced fish, shrimp, shellfish and other aquatic
products on land or fishing boats.
products on land or fishing boats.
Specification
Model | Freezing Temp. | Size(L*W*H) mm | Weight(kg) | Plate Layers | Freezing Capacity (kg/h) |
ECO 500 | -35 | 3000*1500*2000 | 2800 | 10 | 500 |
ECO 750 | -35 | 3250*1500*2250 | 3400 | 10 | 750 |
ECO 1000 | -35 | 3450*1750*2250 | 4000 | 10 | 1000 |
ECO 1500 | -35 | 3560*1750*2450 | 4600 | 10 | 1500 |
ECO 2000 | -35 | 3850*1750*2450 | 5000 | 10 | 2000 |
ECO 2500 | -35 | 3950*1750*2650 | 5400 | 10 | 2500 |
Contact Plate Freezer mainly used in frozen food industry, such as fish blocks, shellfish, shrimp, meatballs, etc.
♣Contact Plate Freezer Main feature:
1, Refrigeration system is built to a compartment beneath the freezing cabinet. It's ideal for small capacity
freezing.
2, Air cooling or water cooling compressors are optional.
3, Doors opened on the front and rear enable access. Easy installed and moved
4, Uniform blocks and even pressure between aluminum plates.
5, Adopt high efficient compressor, well-insulated panels and hygeian extrusion plates.
♣ Contact Plate Freezer Main parameters
1, Digital temperature display(PLC/touch screen control panel)
2, Hydraulic system to lift and press the freezing plates
3, plates are corrosion resistant, polyurethane foam insulation
4, stainless steel insulated boards and doors.
5, cabinet is made up of heavy-duty structural frame, polyurethane insulation and stainless steel sheet
cladding. Leak proof and folding doors at the back.
6, Frozen time:2-4hr/batch
7, Freezing temp.:-28C(+/-2)
8, Refrigerant:R22(Freon), water defrosting
9, Compressor: Bitzer

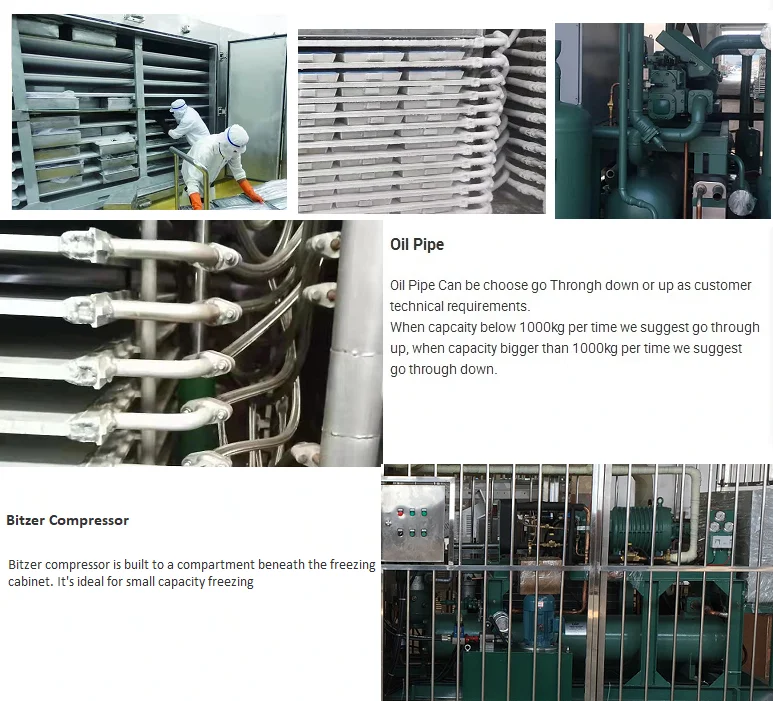

Oil Pipe
Oil Pipe Can be choose go through down or up as customer technical requirements.
When capacity below 1000kg per time we suggest go through up, when capacity bigger than 1000kg per time we suggest go through
down.
Evaporator
air cold type plate contact freezer need Evaporator to cooling the machine, but water cold type don't need.

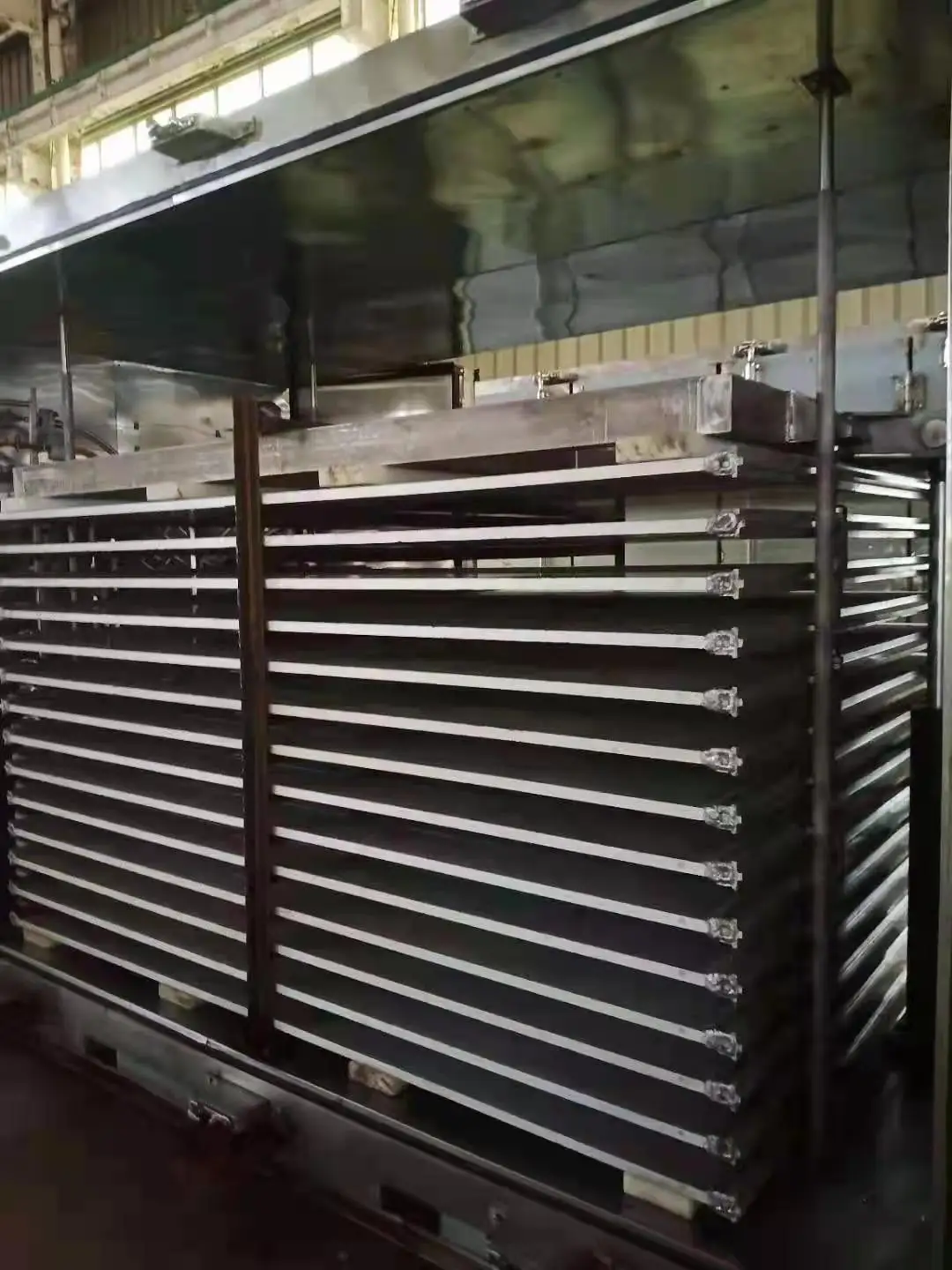

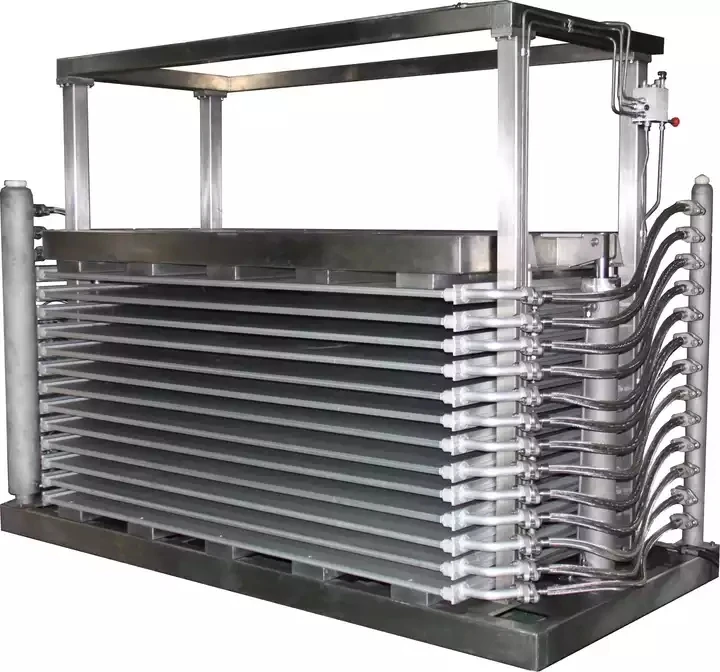

Plates
All aluminum in plate freezer we welding by ourself factory and fill in nitrogen, the plate number depends on machine capacity
customer need.

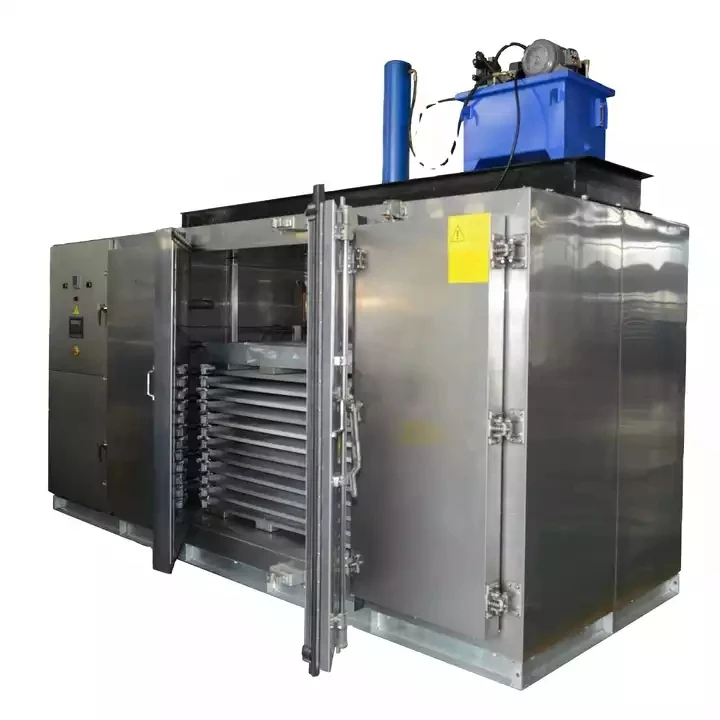

Hydraulic station
Hydraulic station we use brand DECO , stable and energy saving,contact plate freezer us Hydraulic station to control plate up and
down, and control oil speed.
Expansion valve
Expansion valve brand danfoss. when capacity bellow 1000kg per time, one valve supply two plates, when capacity bigger than 1000kg
per time, one valve supply one plate.

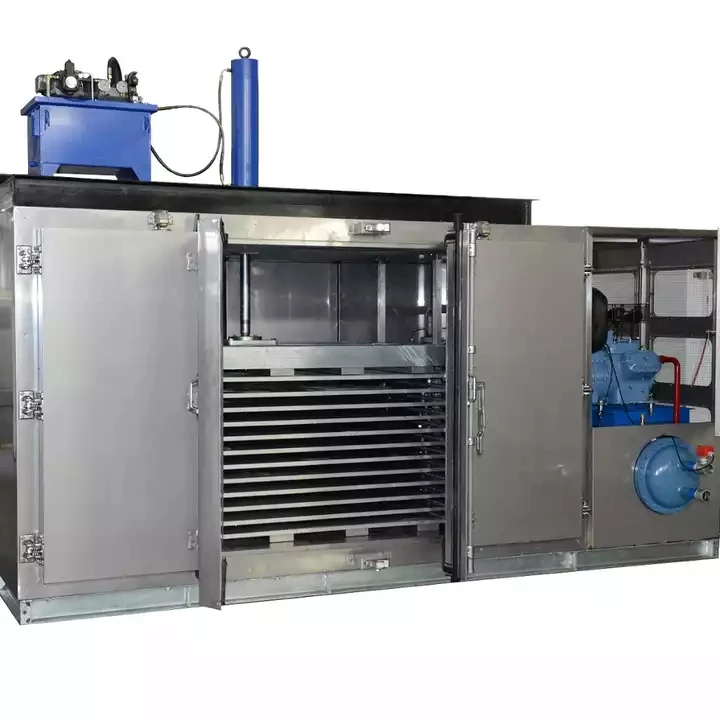

Bitzer Compressor
1, Bitzer compressor is built to a compartment beneath the freezing cabinet. It's ideal for small capacity freezing.
2, Air cooling or water cooling compressors are optional.
3.Adopt high efficient compressor, well-insulated panels and hygeian extrusion plates.
♣Contact Plate Freezer Main feature:
1, Refrigeration system is built to a compartment beneath the freezing cabinet. It's ideal for small capacity
freezing.
2, Air cooling or water cooling compressors are optional.
3, Doors opened on the front and rear enable access. Easy installed and moved
4, Uniform blocks and even pressure between aluminum plates.
5, Adopt high efficient compressor, well-insulated panels and hygeian extrusion plates.
♣ Contact Plate Freezer Main parameters
1, Digital temperature display(PLC/touch screen control panel)
2, Hydraulic system to lift and press the freezing plates
3, plates are corrosion resistant, polyurethane foam insulation
4, stainless steel insulated boards and doors.
5, cabinet is made up of heavy-duty structural frame, polyurethane insulation and stainless steel sheet
cladding. Leak proof and folding doors at the back.
6, Frozen time:2-4hr/batch
7, Freezing temp.:-28C(+/-2)
8, Refrigerant:R22(Freon), water defrosting
9, Compressor: Bitzer
Oil Pipe
Oil Pipe Can be choose go through down or up as customer technical requirements.
When capacity below 1000kg per time we suggest go through up, when capacity bigger than 1000kg per time we suggest go through
down.
Evaporator
air cold type plate contact freezer need Evaporator to cooling the machine, but water cold type don't need.
Plates
All aluminum in plate freezer we welding by ourself factory and fill in nitrogen, the plate number depends on machine capacity
customer need.
Hydraulic station
Hydraulic station we use brand DECO , stable and energy saving,contact plate freezer us Hydraulic station to control plate up and
down, and control oil speed.
Expansion valve
Expansion valve brand danfoss. when capacity bellow 1000kg per time, one valve supply two plates, when capacity bigger than 1000kg
per time, one valve supply one plate.
Bitzer Compressor
1, Bitzer compressor is built to a compartment beneath the freezing cabinet. It's ideal for small capacity freezing.
2, Air cooling or water cooling compressors are optional.
3.Adopt high efficient compressor, well-insulated panels and hygeian extrusion plates.

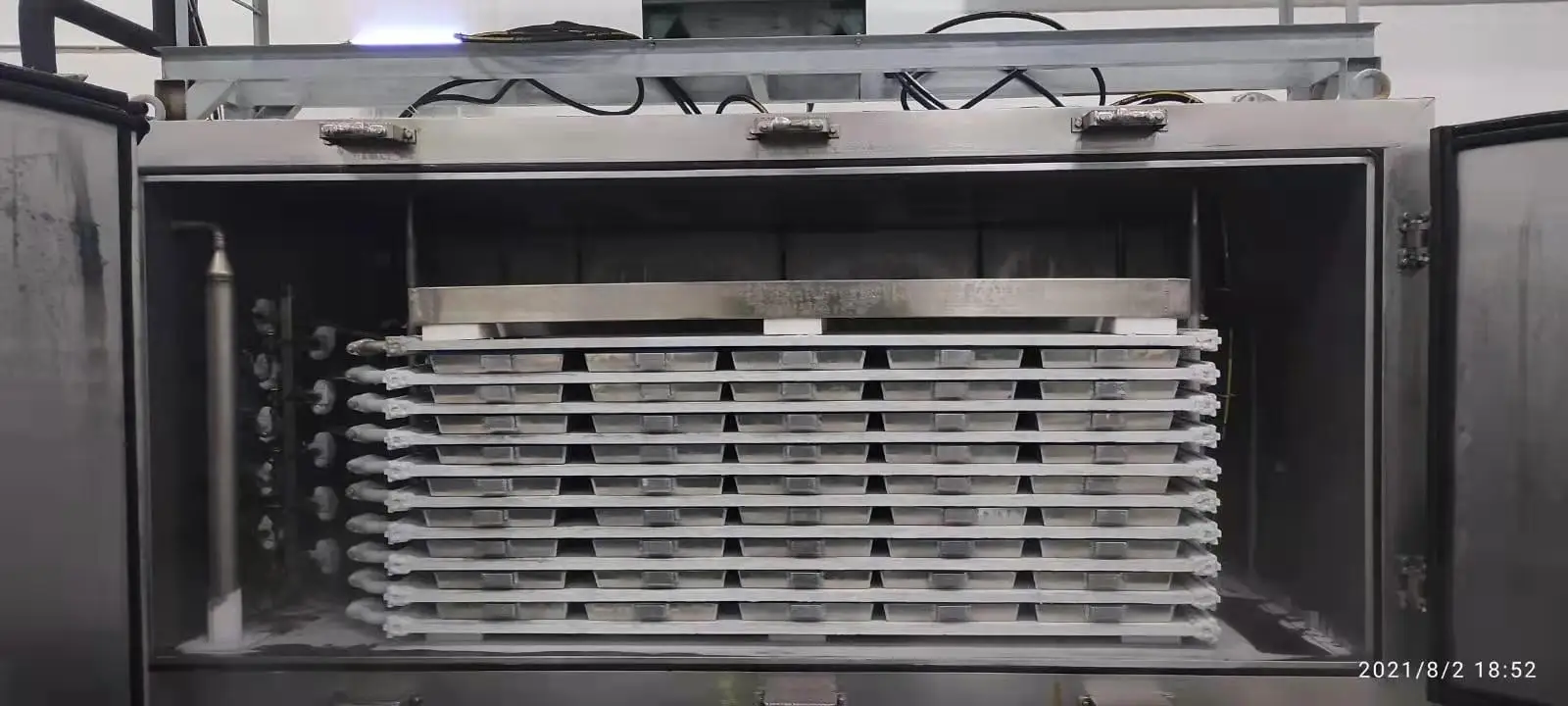

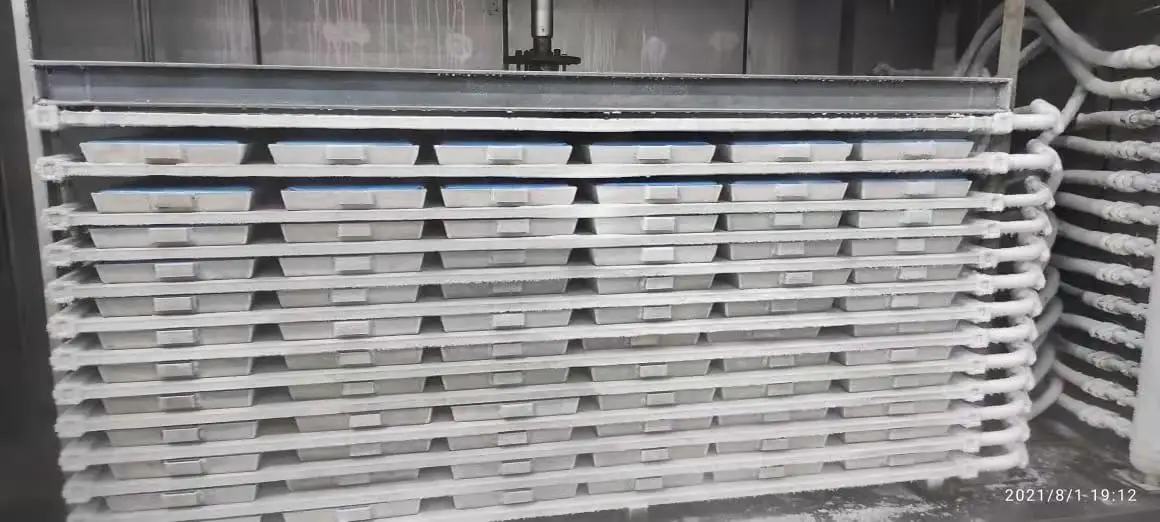

Details Images

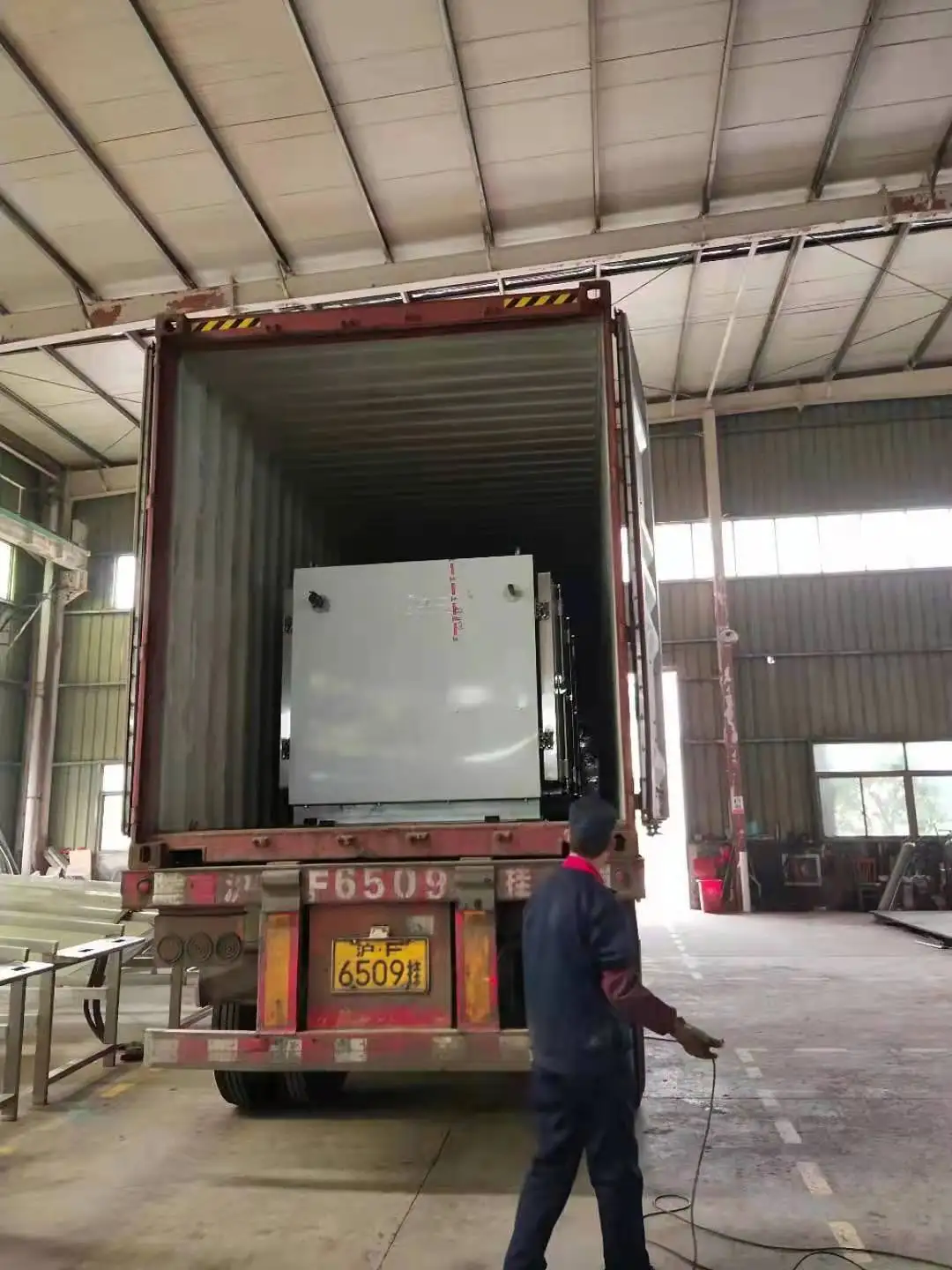

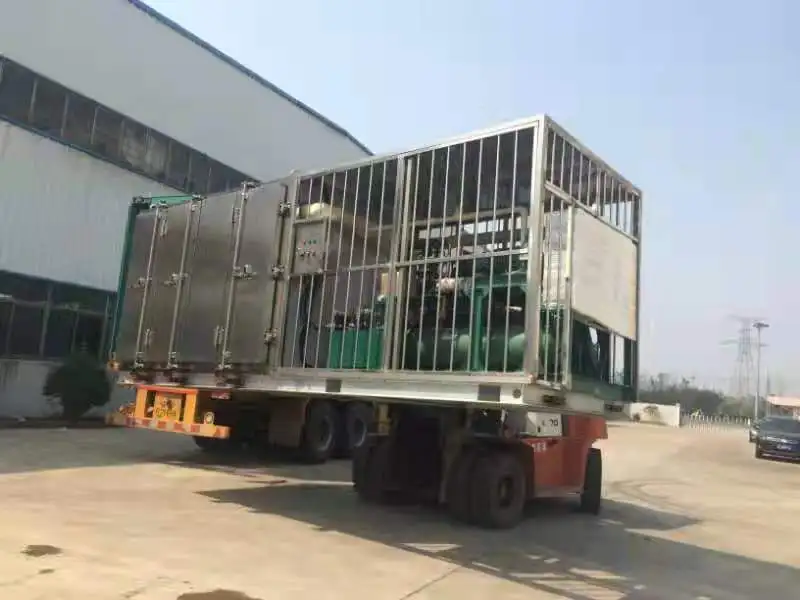

Packing & Delivery

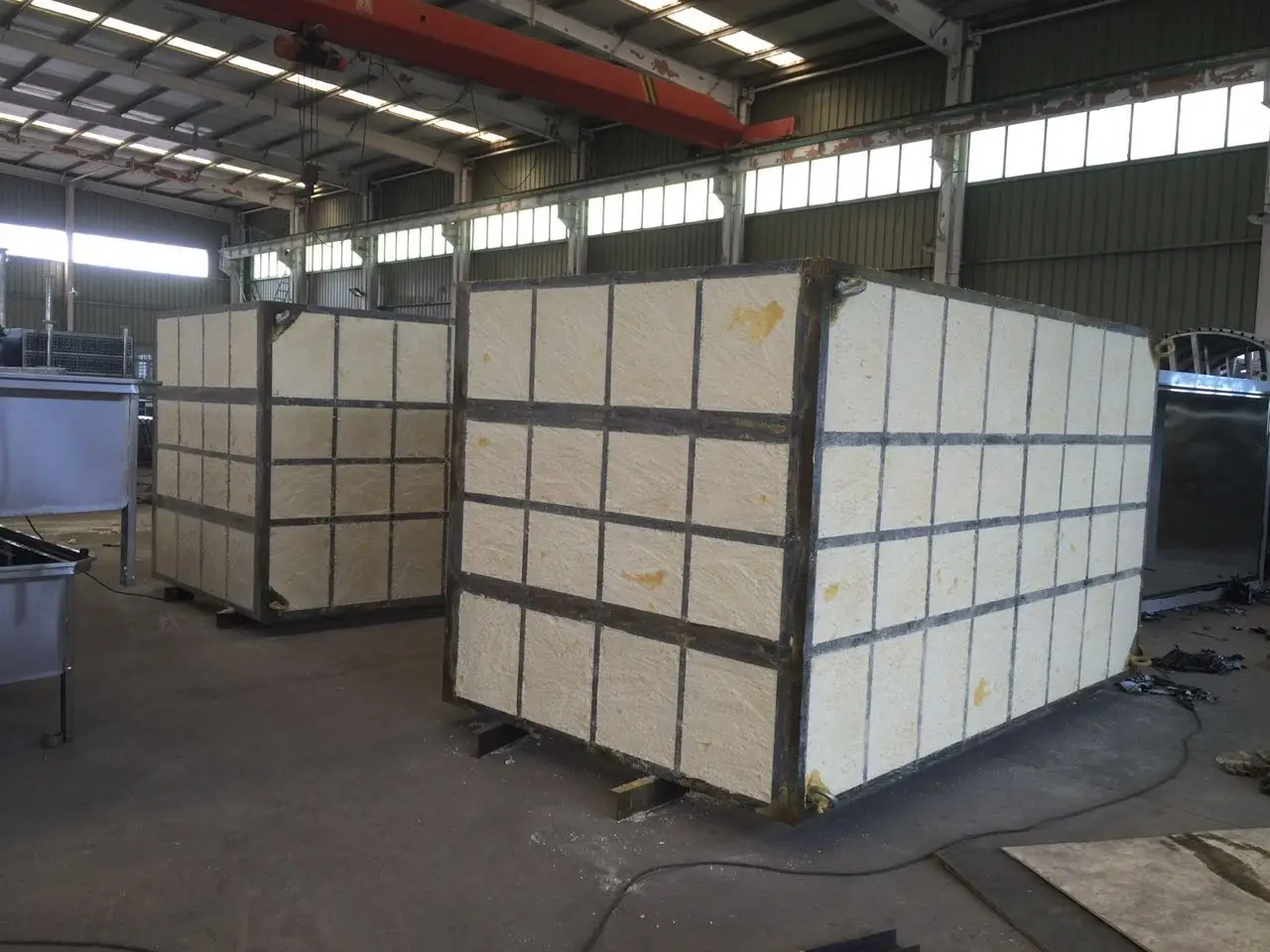

WOODEN CASES
