Ritmo prisma JIG PPR Pipe Welding machine 20 125mm
- Category: >>>
- Supplier: Chengdu Chuangrong Trading Co. Ltd.Chengdu Ltd.
Share on (1600726866053):
Product Overview
Description
Product Description

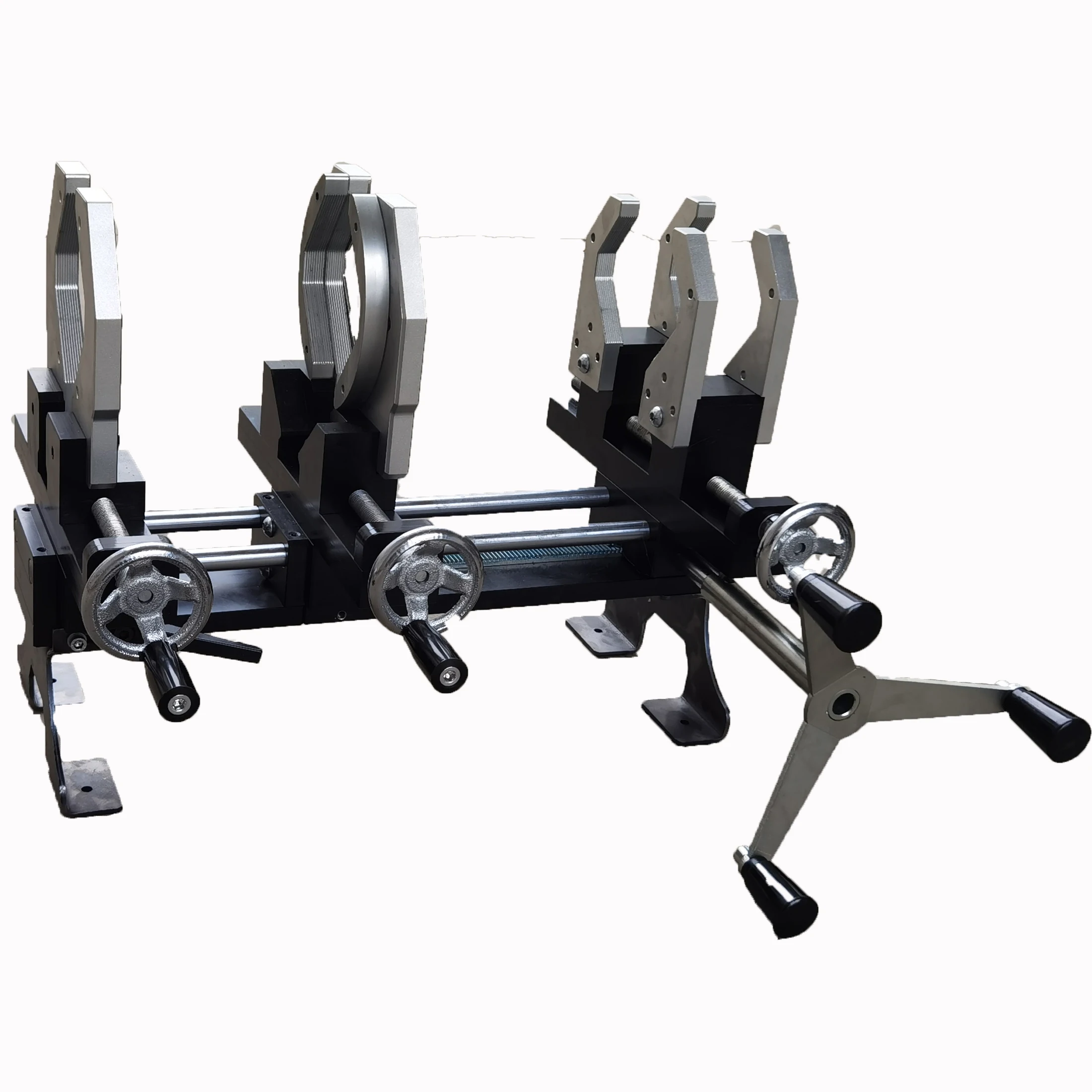

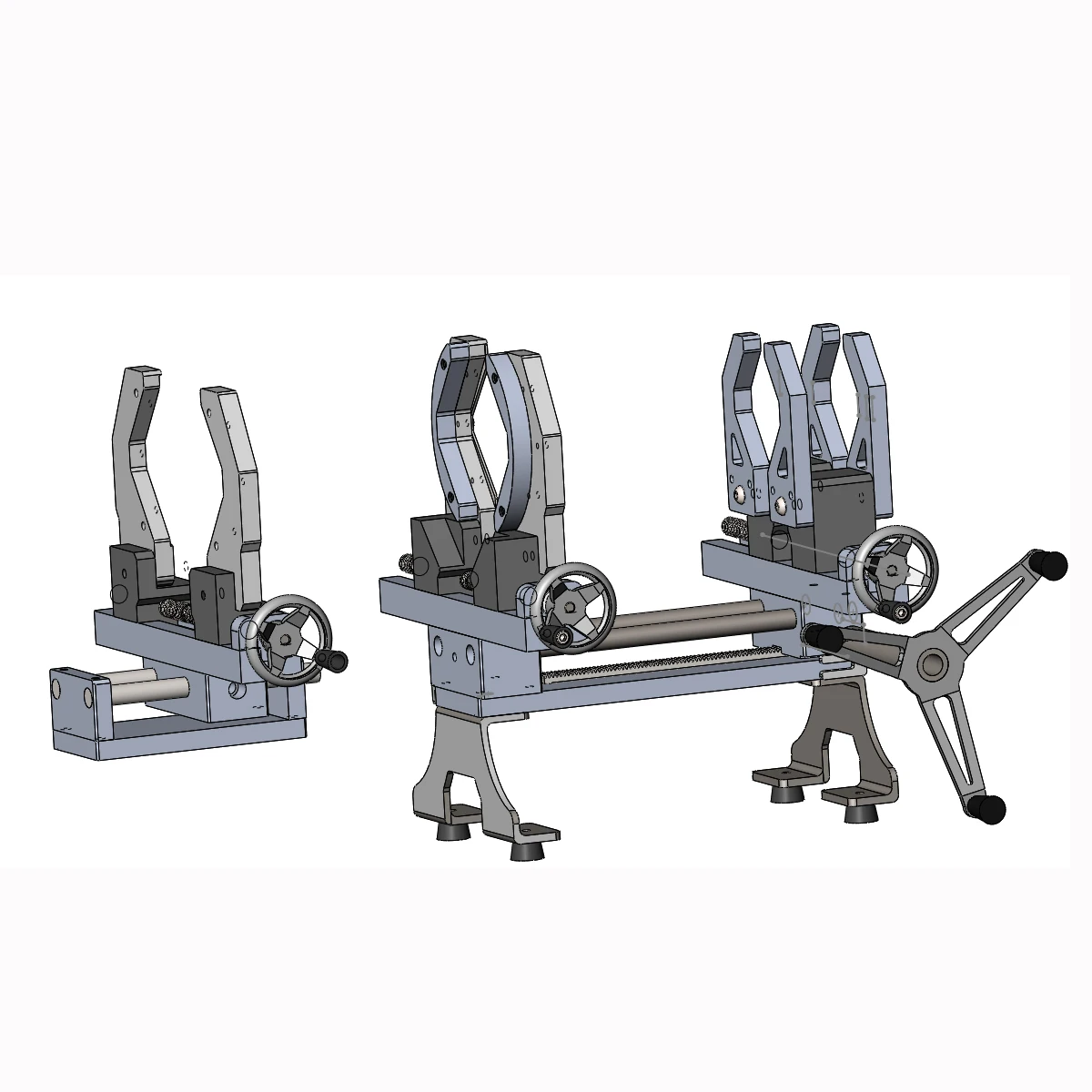

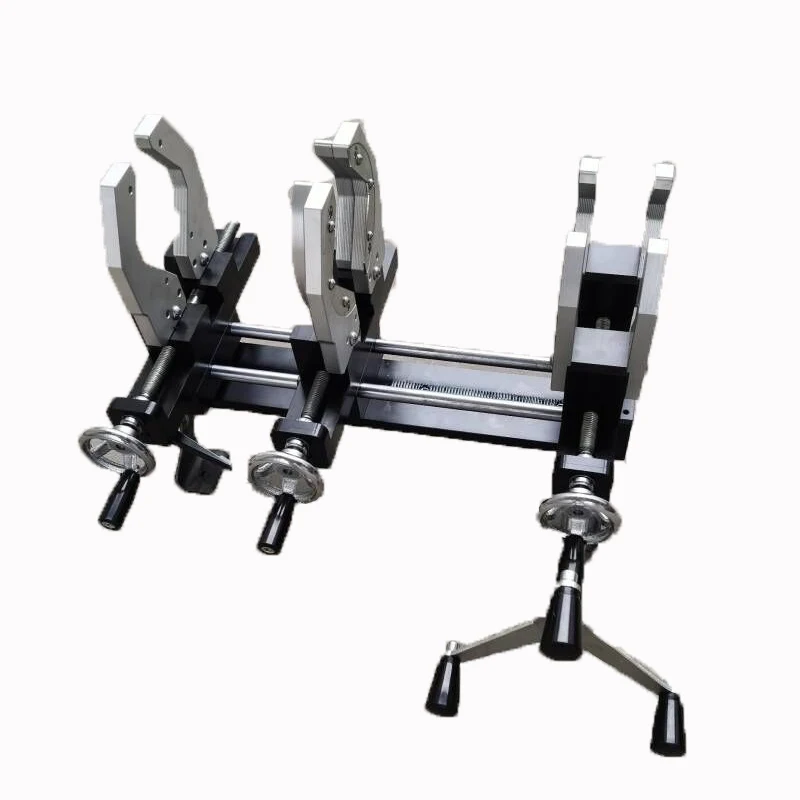

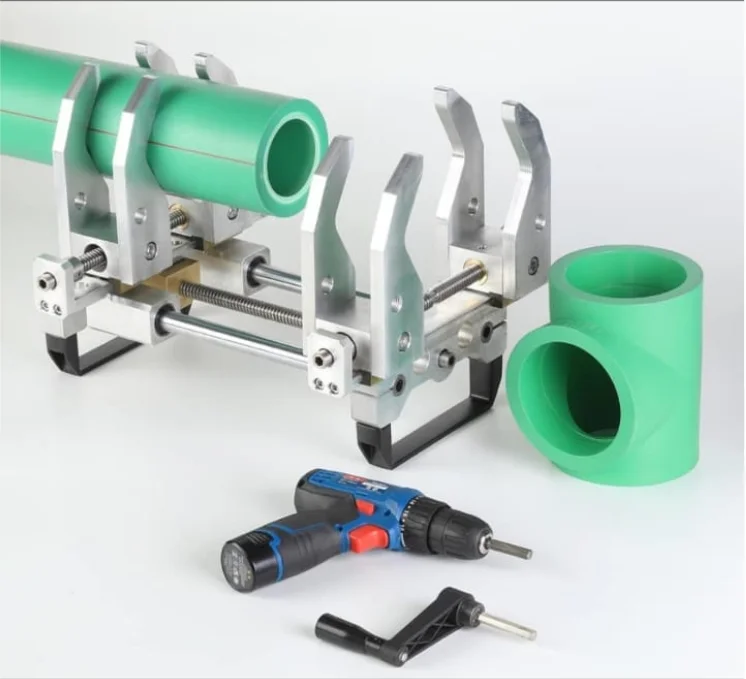

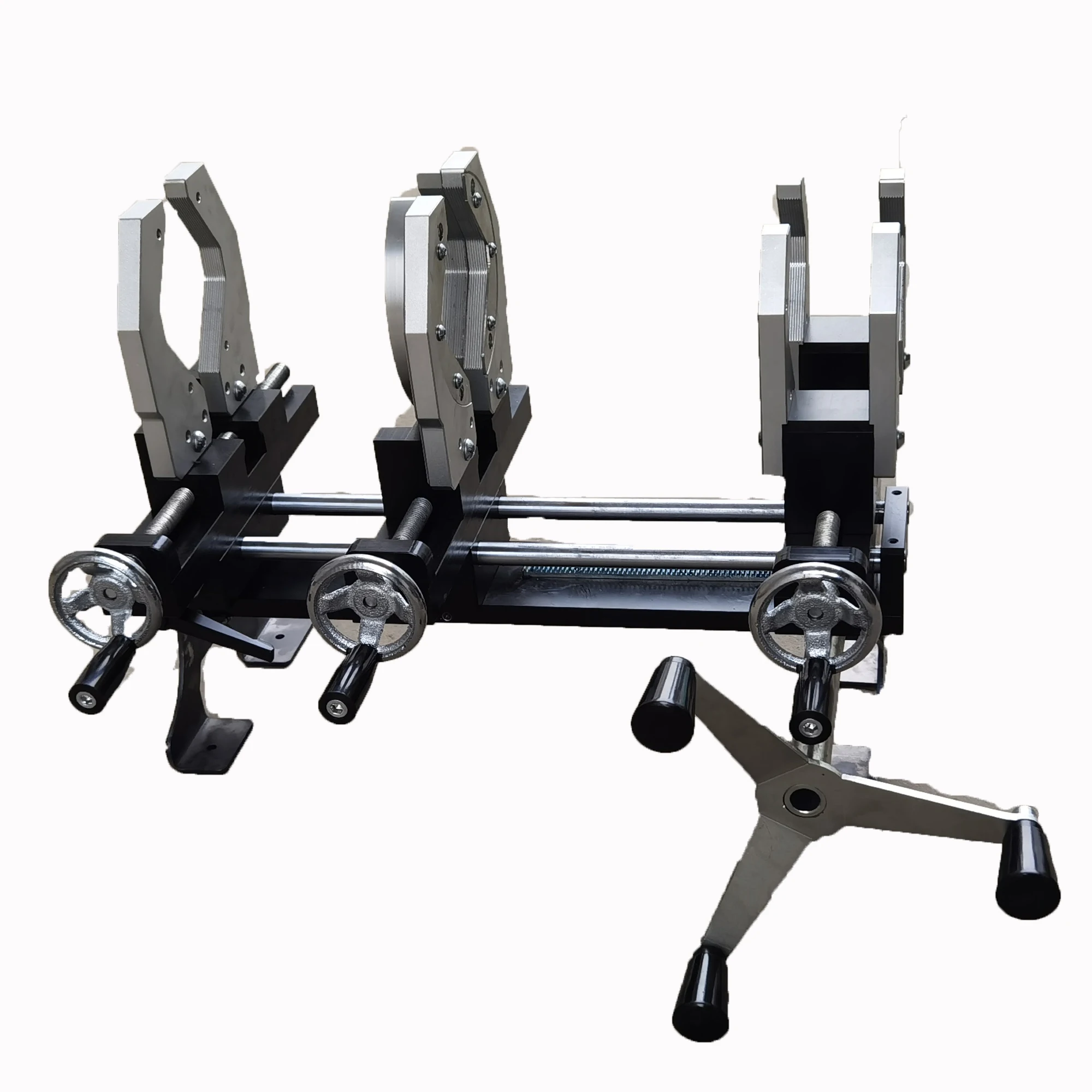

PRISMA JIG
The PRISMA JIG is a compact socket welding machine for HDPE, PP and PP-R, PVDF, PB OD 20* ÷ 125 mm (standard composition steel
clamps from Ø 63 to 125 mm; on request clamps from Ø 20 to 63 mm). The machine displays a steel frame that can be used as a
support to the aligning body; the unit distinguishes itself by being able to work in tight spaces, after a swift releasing
manoeuvre of the frame. The PRISMA JIG has two trolleys, a fixed and a movable one, with practical closing handwheels in order to
ensure a perfect grip in between clamp and pipe/fitting. The machine also features steel auto-centering clamps: a special clamp
for the fitting, and a couple of paired clamps designed to keep the pipe in position. The trolley closing and opening operations
are performed by a “mutual” starter. The special fittings clamp is placed on the fixed trolley. Whenever the type of work requires
a different clamping configuration, it is rather easy to unlock and change the machine’s operativeness. The heating operation is
performed by the R 125 Q hand socket welder with TFE fixed temperature control. The main distinctiveness of the TFE device is its
security: an acoustic auto-diagnosis alarm indicates when the heating plate has reached the working temperature, but also shuts
off the heating plate automatically if any anomaly happens. Thanks to a combined control system, the TFE device responds rather
quickly to any temperature fluctuation forced by external causes; on the other hand, it also gives a greater stability, welding
precision and reliability in time. A sustaining handle may be placed at the heating plate, in order to simplify the working
phases. The R 125 Q is available in 110 and 230 V. The welding machine is available in two versions, depending on the type of
sockets & spigots supplied: Type A and Type B.
clamps from Ø 63 to 125 mm; on request clamps from Ø 20 to 63 mm). The machine displays a steel frame that can be used as a
support to the aligning body; the unit distinguishes itself by being able to work in tight spaces, after a swift releasing
manoeuvre of the frame. The PRISMA JIG has two trolleys, a fixed and a movable one, with practical closing handwheels in order to
ensure a perfect grip in between clamp and pipe/fitting. The machine also features steel auto-centering clamps: a special clamp
for the fitting, and a couple of paired clamps designed to keep the pipe in position. The trolley closing and opening operations
are performed by a “mutual” starter. The special fittings clamp is placed on the fixed trolley. Whenever the type of work requires
a different clamping configuration, it is rather easy to unlock and change the machine’s operativeness. The heating operation is
performed by the R 125 Q hand socket welder with TFE fixed temperature control. The main distinctiveness of the TFE device is its
security: an acoustic auto-diagnosis alarm indicates when the heating plate has reached the working temperature, but also shuts
off the heating plate automatically if any anomaly happens. Thanks to a combined control system, the TFE device responds rather
quickly to any temperature fluctuation forced by external causes; on the other hand, it also gives a greater stability, welding
precision and reliability in time. A sustaining handle may be placed at the heating plate, in order to simplify the working
phases. The R 125 Q is available in 110 and 230 V. The welding machine is available in two versions, depending on the type of
sockets & spigots supplied: Type A and Type B.

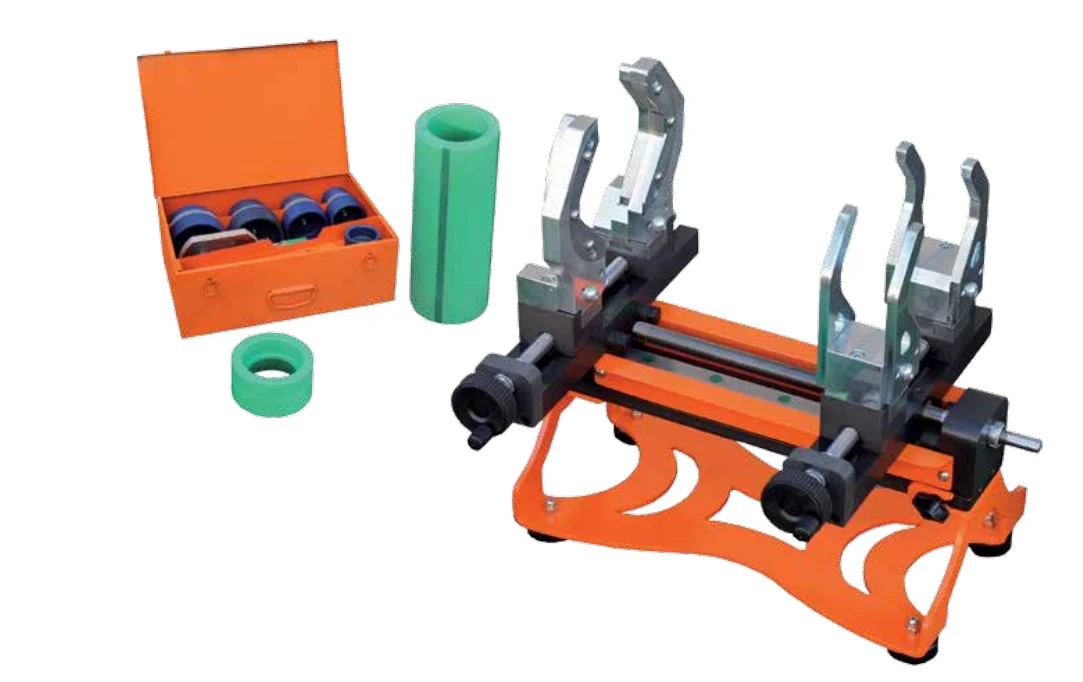

STANDARD COMPOSITION - Machine body complete with clamps and frame - R 125 Q TFE hand socket welder - Socket welder fork support -
Clamps for OD 63-75-90-110-125 mm (A or B type) sockets & spigots - Transport case for socket welder and sockets & spigots -
Transport case for machine body - Sustaining handle and tool kit
Clamps for OD 63-75-90-110-125 mm (A or B type) sockets & spigots - Transport case for socket welder and sockets & spigots -
Transport case for machine body - Sustaining handle and tool kit

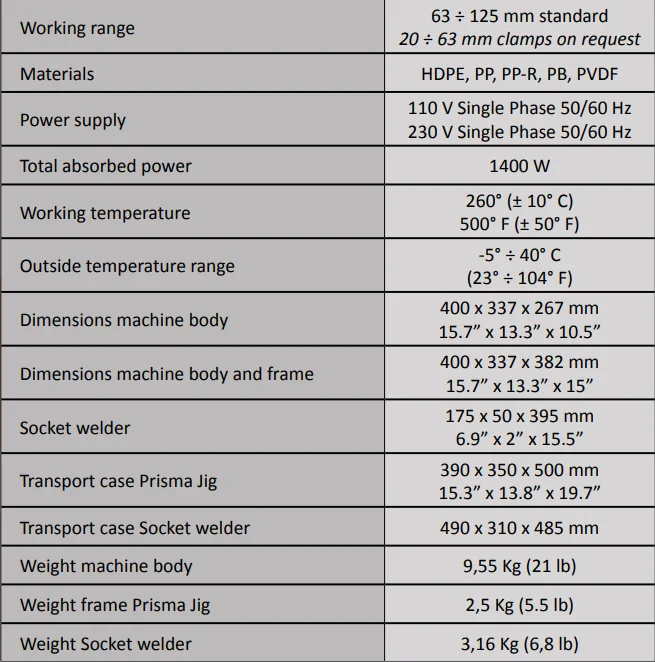

Specification
Our Advantages
1. Accurately control the welding depth of different pipes and fittings
2. Accurate control the depth that pipe insert fittings
3.The diameter selector can avoid over-melting caused by excessive force when pipes are inserted into pipes
4.Mechanical operation makes each welding interface Standardization ,improve welding quality.
2. Accurate control the depth that pipe insert fittings
3.The diameter selector can avoid over-melting caused by excessive force when pipes are inserted into pipes
4.Mechanical operation makes each welding interface Standardization ,improve welding quality.
