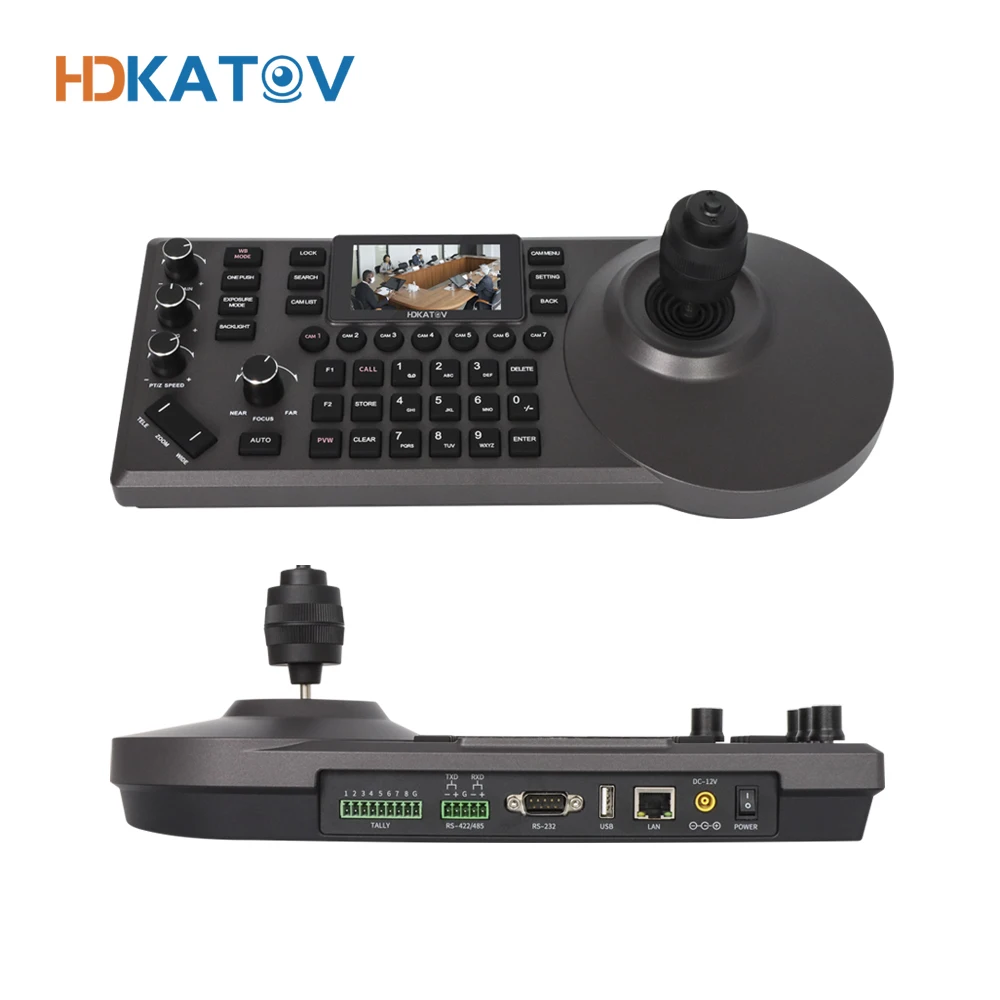

HDKATOV IP PTZ dome Camera Controller with 4D joystick and Multiple Control Protocols, usb 4D precision Joystick
- Category: >>>
- Supplier: Shenzhen Jinjiutianshi Industry Co. Ltd.
Share on (1600733100273):
Product Overview
Description
Recommend Products
Product Parameters

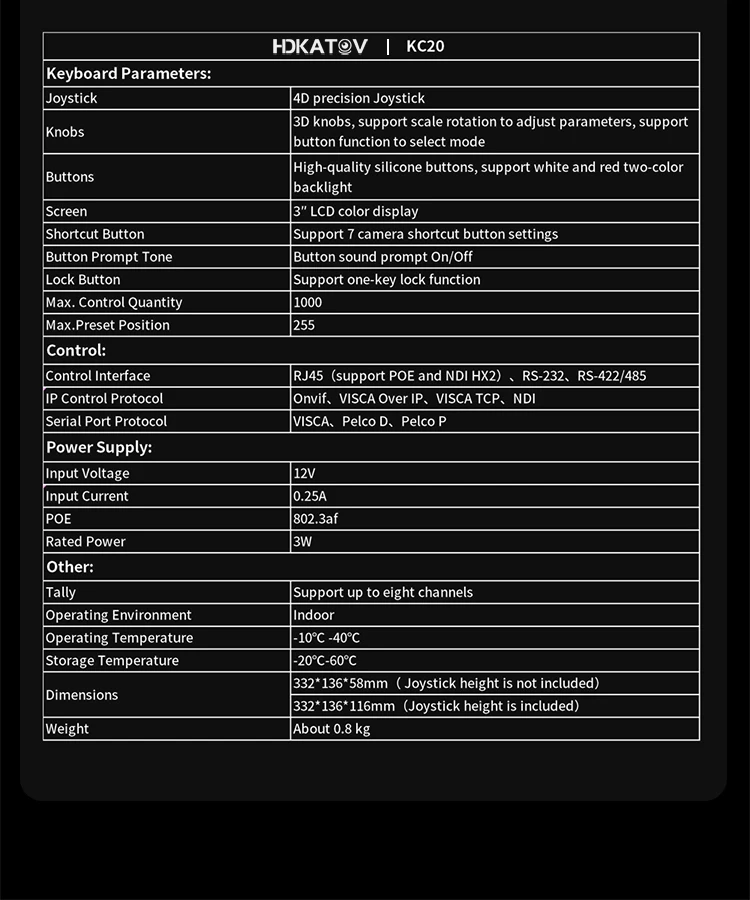

Keyboard Parameters | ||
Joystick | 4D precision Joystick | |
Knobs | 3D knobs, support scale rotation to adjust parameters, support button function to select mode | |
Buttons | High-quality silicone buttons, support white and red two-color backlight | |
Screen | 3″ LCD color display | |

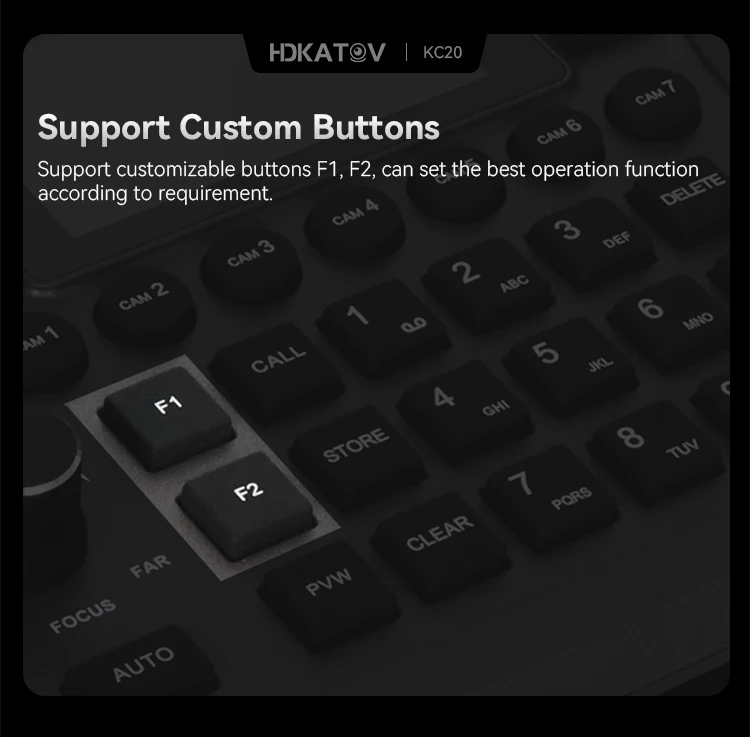

Shortcut Button | Support 7 camera shortcut button settings | |
Button Prompt Tone | Button sound prompt On/Off | |

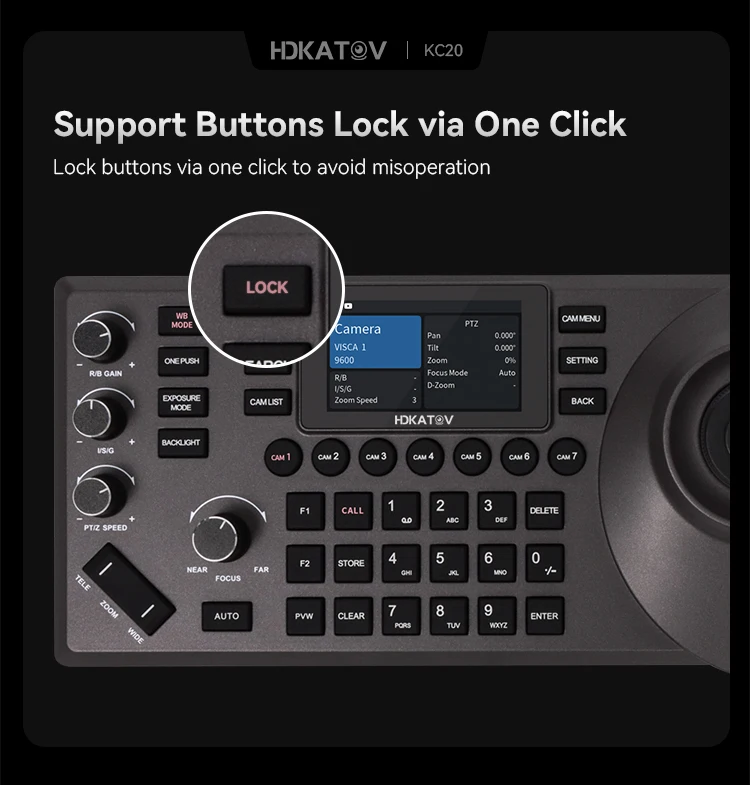

Lock Button | Support one-key lock function | |
Max. Control Quantity | 1000 | |
Max.Preset Position | 255 | |
Control | ||

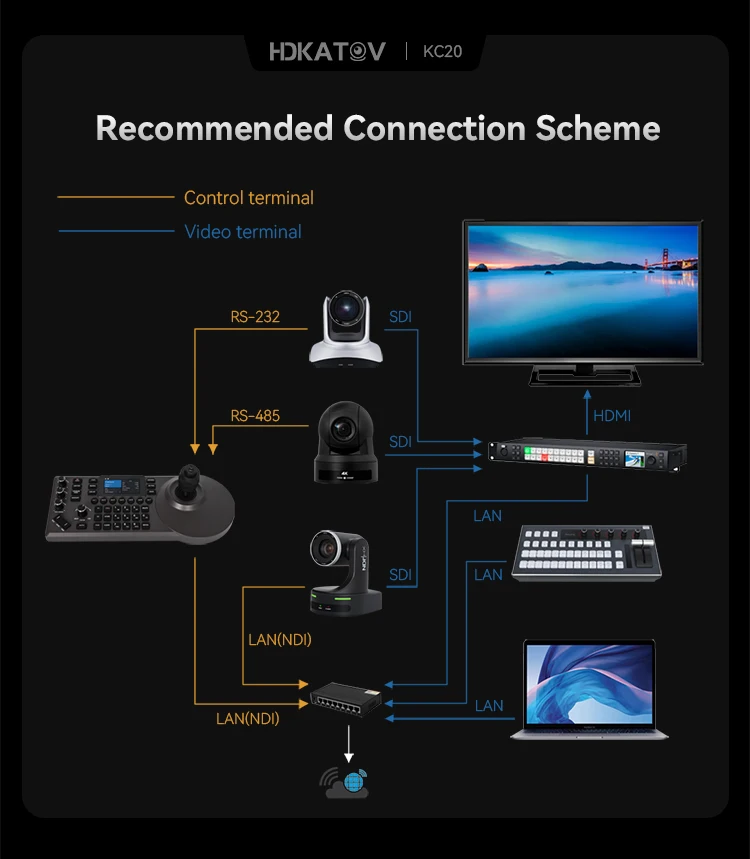

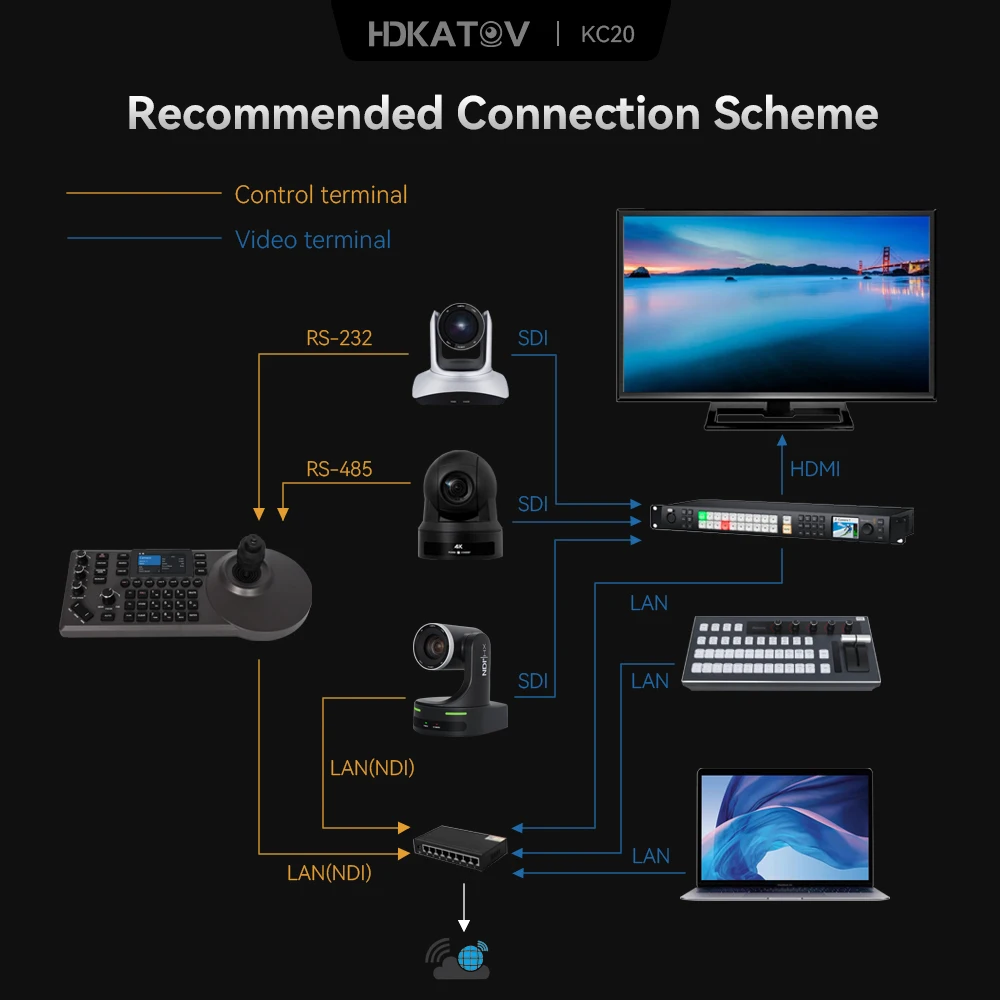

Control Interface | RJ45(support POE and NDI HX2), RS-232, RS-422/485 | |

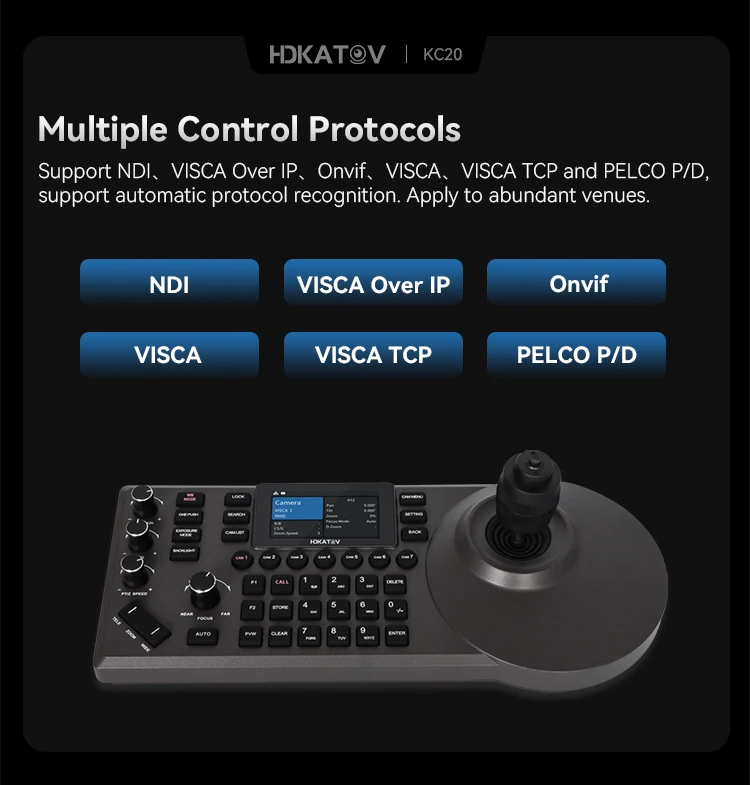

IP Control Protocol | Onvif, VISCA Over IP, VISCA TCP, NDI | |
Serial Port Protocol | VISCA, Pelco D, Pelco P | |
Power Supply | ||
Input Voltage | 12V | |
Input Current | 0.25A | |
POE | 802.3af | |
Rated Power | 3W | |
General Specifications | ||
Tally | Support up to eight channels | |
Operating Environment | Indoor | |
Operating Temperature | -10℃ -40℃ | |
Storage Temperature | -20℃-60℃ | |
Dimension | (W)332*(D)136*(H)58mm (Joystick height is not included) (W)332*(D)136*(H)116mm (Joystick height is included) | |
Weight | 0.8 kg | |
Why Choose us?
1. 18 years' OEM &ODEM production experience
2. Strong technical team support
3. Professional exporting experiences
4. Excellent foreign trade team
5. Strict quality control system
6. 3 years' waranty
Qualification Honor
Exhibition Cases
Company Profile
Buyer reviews
Why Choose JJTS
FAQ
Q1.What's your payment term?
A:Our payment term is TT in advance before shipment.
Q2.What's your warranty period?
A:The warranty period is 3 years and start from the purchase date.
Q3.Do you offer remote assistance when facing a technical problem?
A:Yes,surely.We have very professional technical team,and it is our responsibility to help our clients when meet with any technical problem.
Q4.Could I put my own logo products?
A:Sure, we have our R&D department, we can do ODM and OEM.
Q5.How do you guarantee the quality?
A:We have our own QC to inspect all our goods before packing. And also, we have CE/FCC/RoHS/ISO.
Q6.I'm buying with yours company at the first time,how can I trust you?
A:We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or our factory anytime you like. You can also choose trade assurance for your order.
