PFT40 160mm Manual Butt Fusion Welding Machine Plastic Pipe Welders PE HDPE Pipe Welding Machine
- Category: >>>
- Supplier: Qingdao Polyfusion Machinery Co. Ltd.Qingdao Ltd.
Share on (1600736840211):
Product Overview
Description

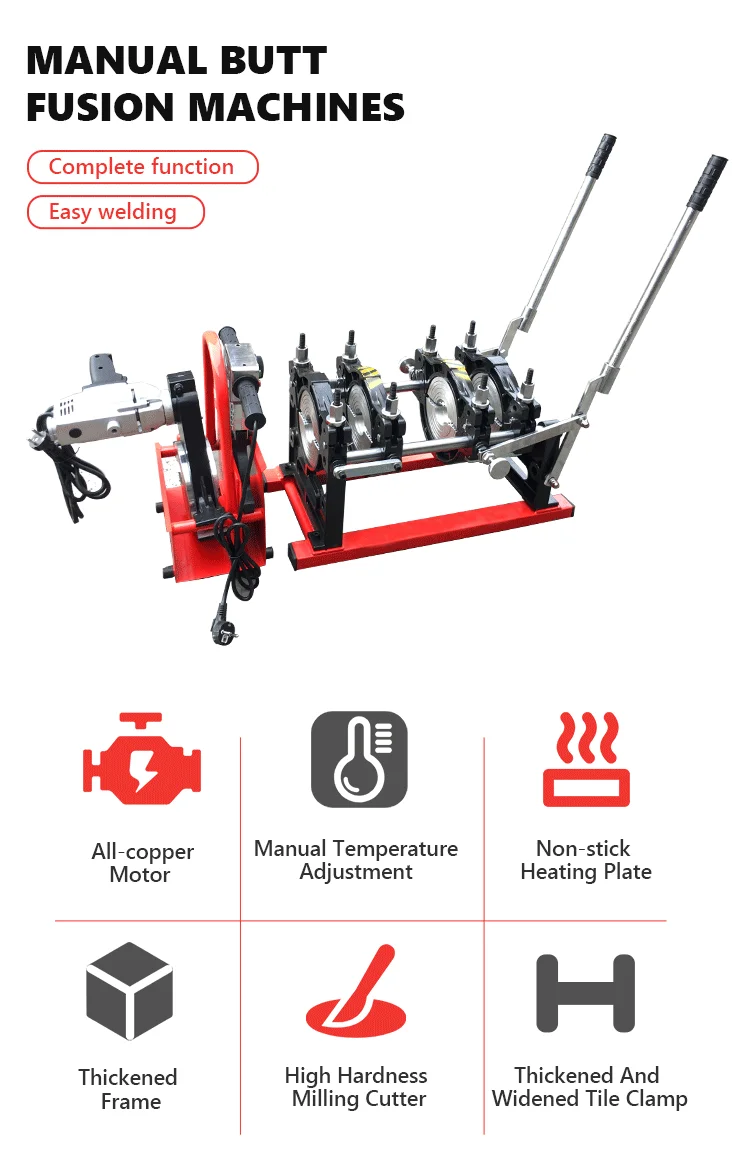

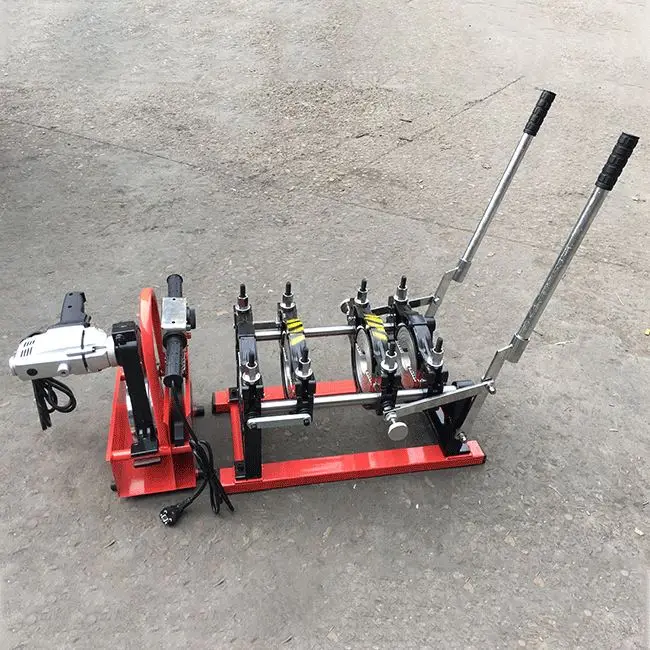

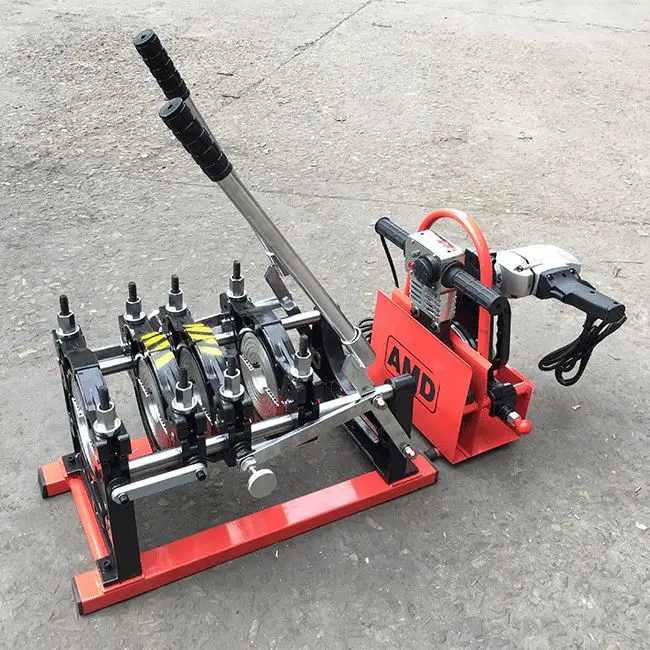

PFT40-200mm Manual Butt Fusion Welding Machine Plastic Pipe Welders PE HDPE Pipe Welding Machine
Brief:
Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature:
1. Removable PTFE coated heating plate with separate temperature control system.
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the exact time and temperature
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the exact time and temperature
Model | PFT160-4C |
Welding Range(mm) | 40,50,63,75,90,110,125,140,160mm |
Heating Plate Max.Temp | 270℃ |
Temp.Deviation in Surface | ≤±5℃ |
Working Voltage | 220V 50HZ |
Heating Plate Power | 1.0 KW |
Planning Tool Power | 0.7 KW |
Total Power | 1.7 KW |
Pressure Adjustable Ranges | 0- 6.3 Mpa |
Weight | 40 KG |
Service | 1 Year Warranty & Free Spare Parts & Detailed Technical Video |

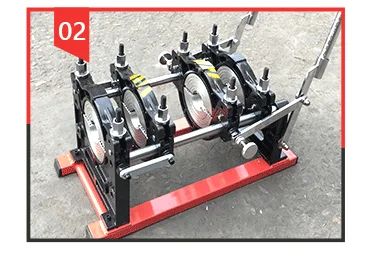

BASIC FRAME

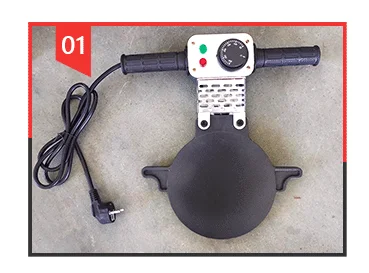

HEATING PLATE
BASET
MILLING CUTTER
